Model Maytag M8TXEGFBS02 REFRIGERATOR – Common Parts & Diagrams

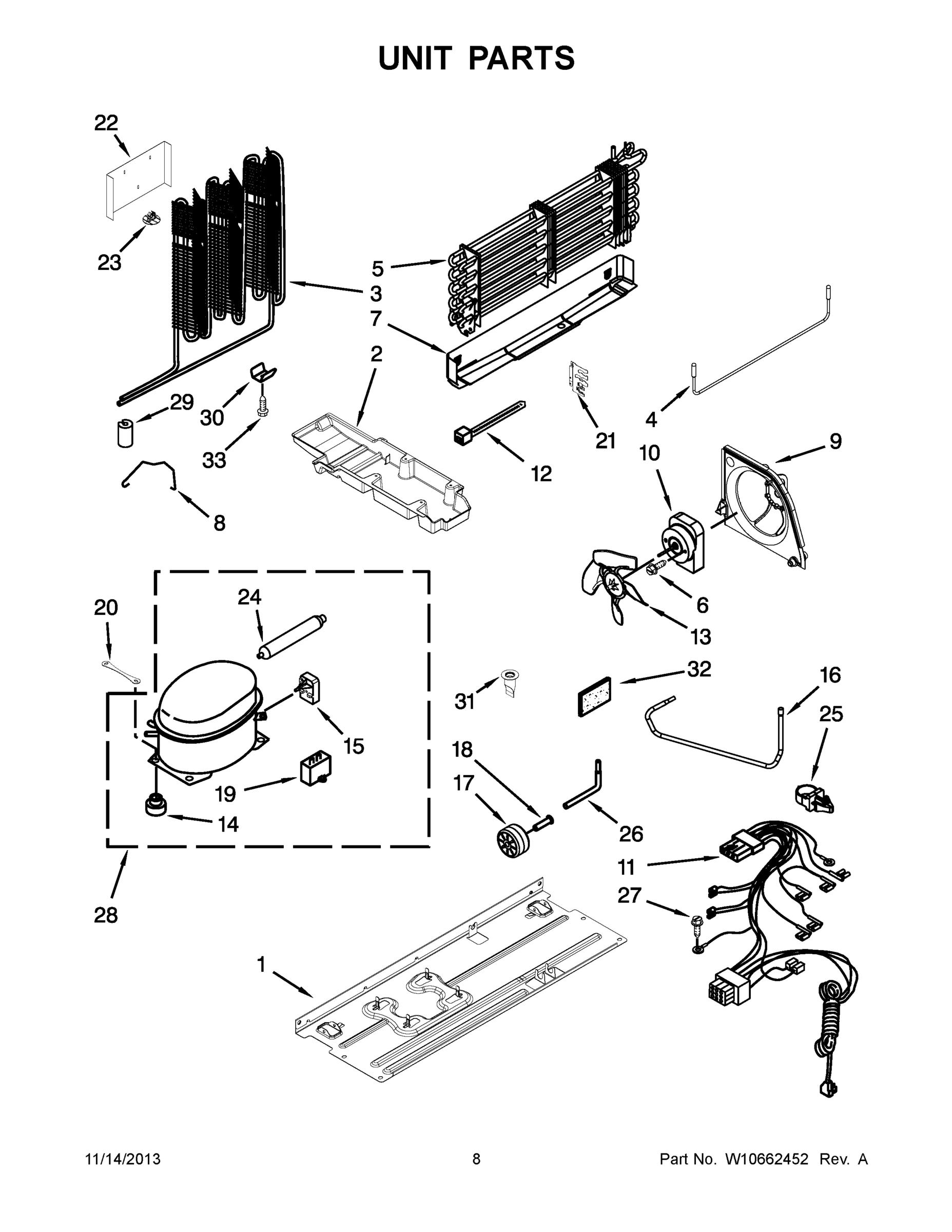

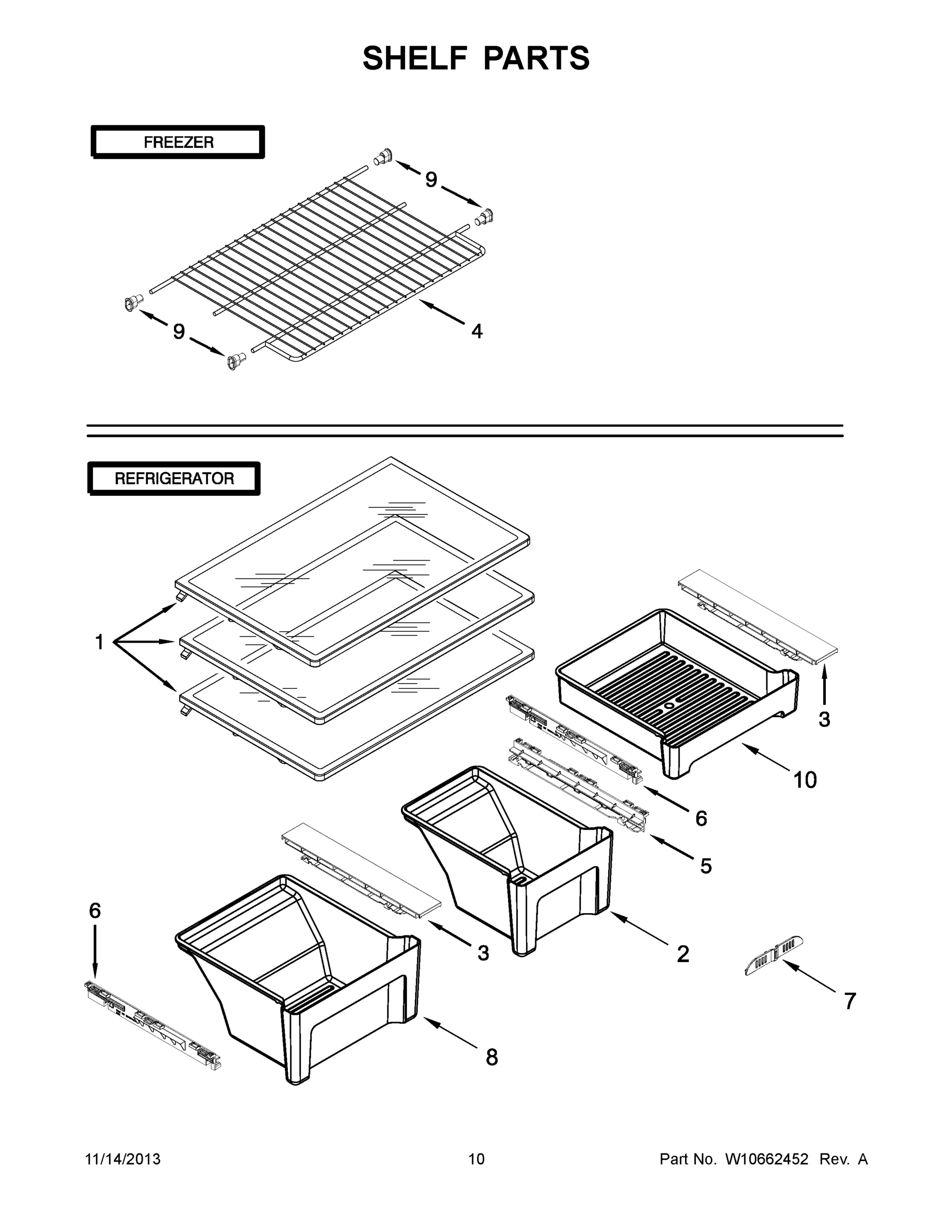

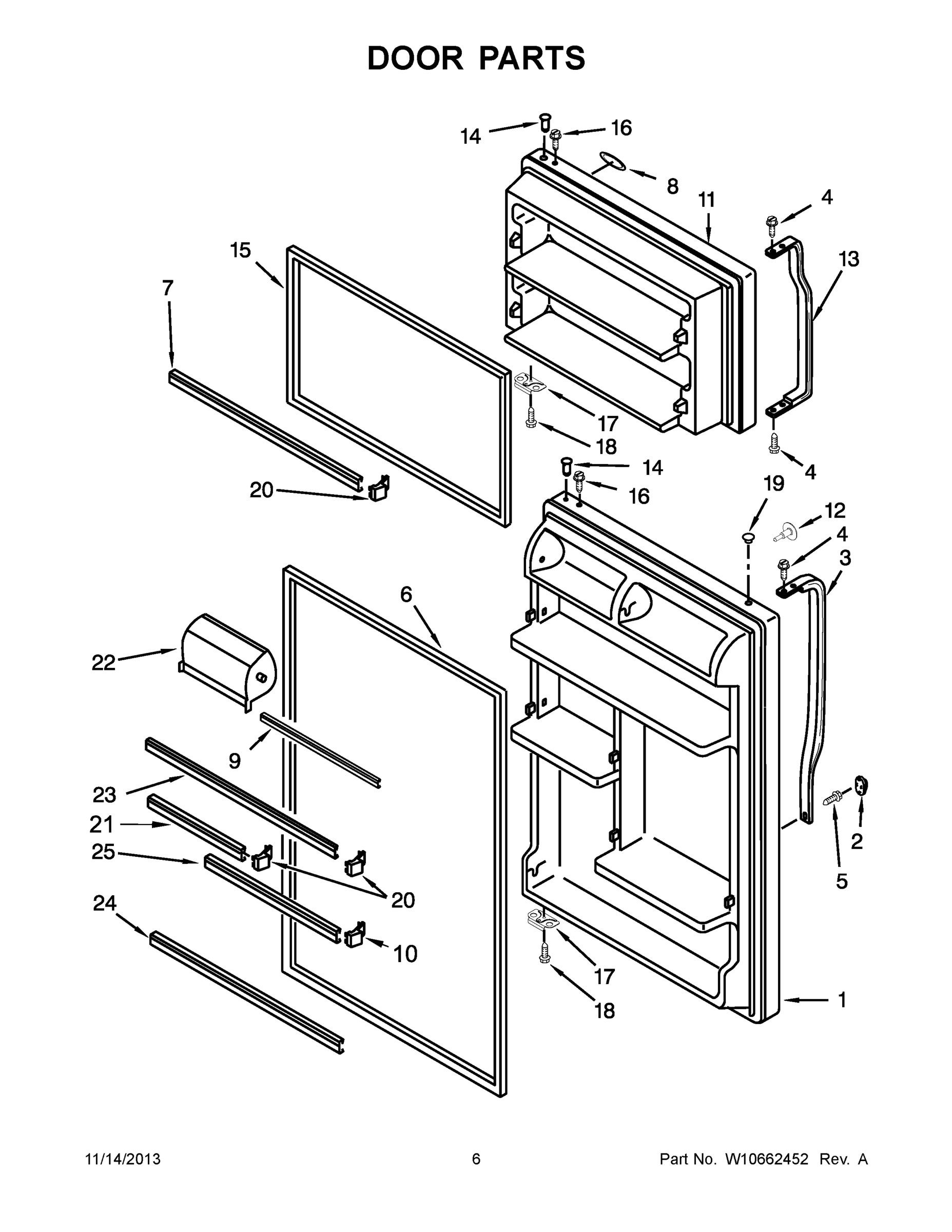

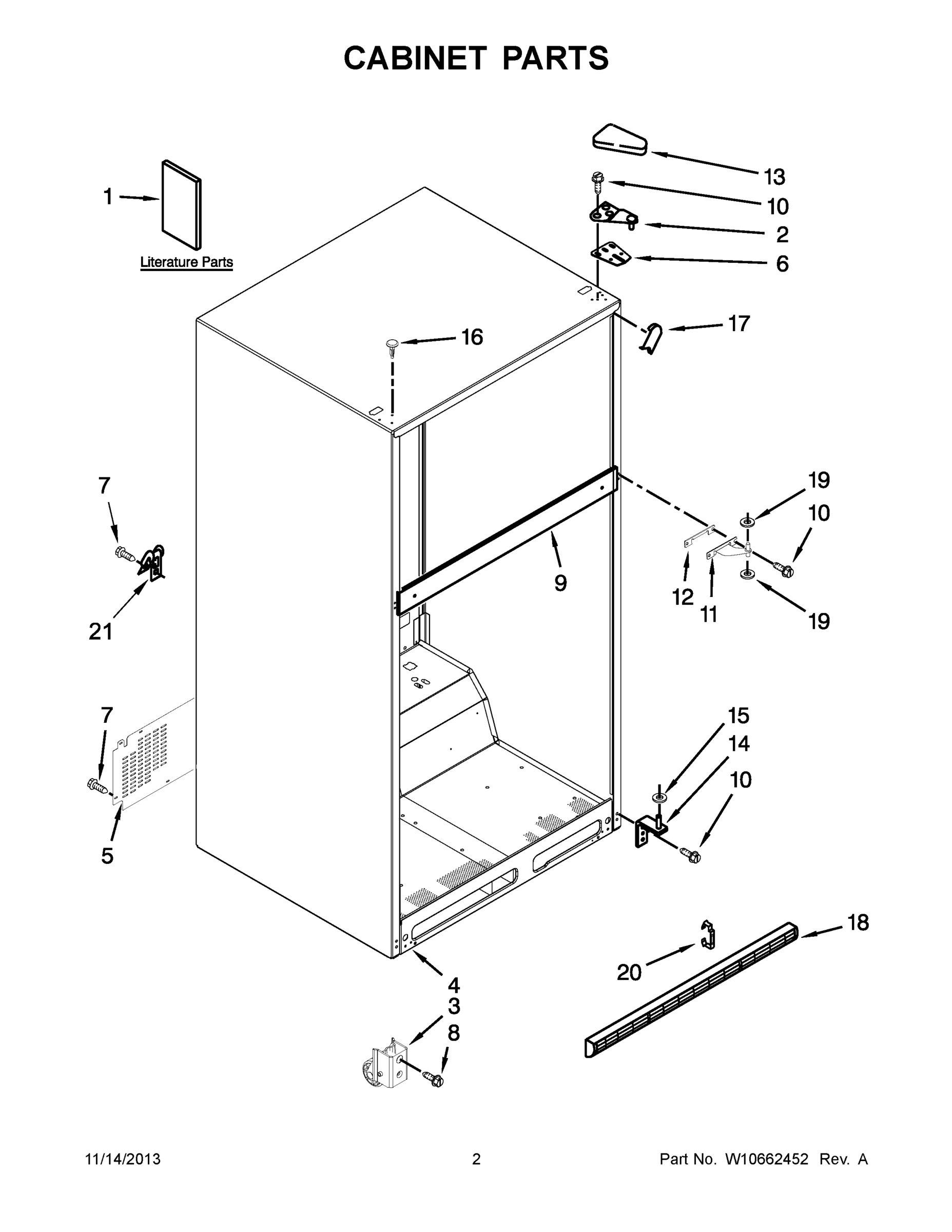

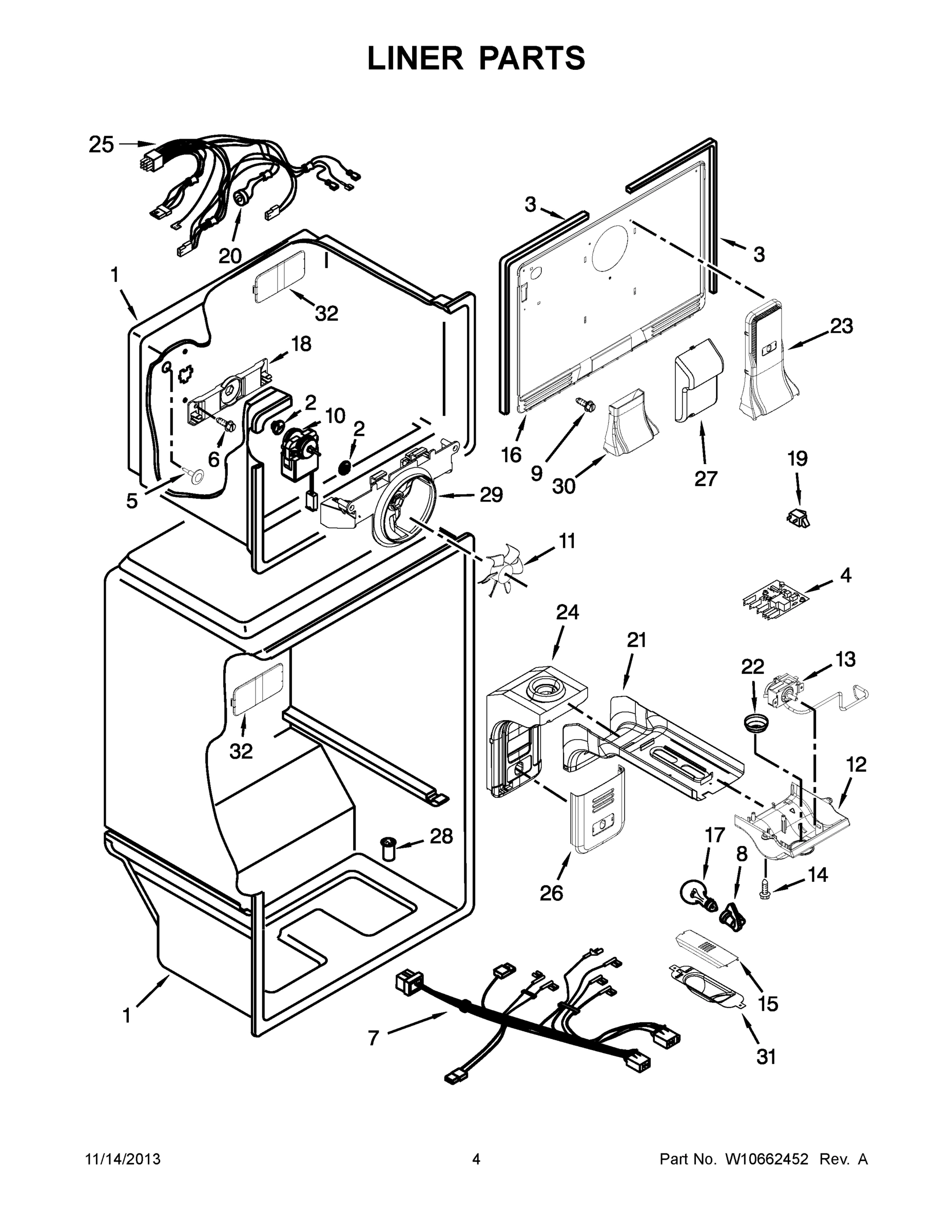

01 - COVER SHEET
02 - CABINET PARTS
03 - LINER PARTS
04 - DOOR PARTS
05 - UNIT PARTS
06 - SHELF PARTS
07 - OPTIONAL PARTS
Common parts from model Maytag M8TXEGFBS02 REFRIGERATOR
1
SERVICE & WIRING SHEET MAY W10404596 Contact Us For Availability
1
USE & CARE GUIDE MAY W10551695 Contact Us For Availability
1
MAY W10580777 MAY W10580777 Contact Us For Availability
1
REFRIGERATOR DOOR (INCLUDES ILLUS. 6) (STAINL MAY W10371932 Contact Us For Availability
1
MAY W10300116 MAY W10300116 Contact Us For Availability
1
ASSEMBLY, FULL SHELF (30``) MAY W10486290 Contact Us For Availability
2
TOP HINGE ASSEMBLY MAY 2261963 Contact Us For Availability
2
MAY 2197380 MAY 2197380 Contact Us For Availability
2
MAY 2193143B MAY 2193143B Contact Us For Availability
2
MAY W10466213 MAY W10466213 Contact Us For Availability
2
ASSEMBLY, 8`` CRISPER PAN MAY W10373941 Contact Us For Availability
3
ASSEMBLY, ROLLER MAY W10327136 Contact Us For Availability
3
MAY W10468762 MAY W10468762 Contact Us For Availability
3
MAY 2254533B MAY 2254533B Contact Us For Availability
3
MAY W10342567 MAY W10342567 Contact Us For Availability
3
MAY W10468557 MAY W10468557 Contact Us For Availability
4
ADAPTIVE DEFROST CONTROL MAY W10352689 Contact Us For Availability
4
MAY 489357 MAY 489357 Contact Us For Availability
4
MAY W10316428 MAY W10316428 Contact Us For Availability
4
MAY W10477088 MAY W10477088 Contact Us For Availability
5
MAY W10384413 MAY W10384413 Contact Us For Availability
5
MAY 941839 MAY 941839 Contact Us For Availability
5
MAY 8281146 MAY 8281146 Contact Us For Availability
5
EVAPORATOR ASSEMBLY MAY W10314205 Contact Us For Availability
5
MAY W10468556 MAY W10468556 Contact Us For Availability
6
SHIM, HINGE TOP (WHITE) MAY 2221885 Contact Us For Availability
6
Screw MAY 488208 Contact Us For Availability
6
MAY 2202881 MAY 2202881 Contact Us For Availability
6
MAY 8533961 MAY 8533961 Contact Us For Availability
6
MAY W10468555 MAY W10468555 Contact Us For Availability
7
MAY 2262176 MAY 2262176 Contact Us For Availability
7
WIRE ASSEMBLY, CONTROL BOX MAY W10318068 Contact Us For Availability
7
MAY W10463615 MAY W10463615 Contact Us For Availability
7
MAY W10314195 MAY W10314195 Contact Us For Availability
7
HUMIDITY CONTROL MAY W10356844 Contact Us For Availability
8
MAY 3400517 MAY 3400517 Contact Us For Availability
8
Socket, Light MAY 2162085 Contact Us For Availability
8
NAMEPLATE (BADGE, MAYTAG) MAY W10170766 Contact Us For Availability
8
BALE STRAP MAY W10174383 Contact Us For Availability
8
ASSEMBLY, 16`` CRISPER PAN MAY W10373936 Contact Us For Availability
9
MAY W10142283 MAY W10142283 Contact Us For Availability
9
MAY W10421482 MAY W10421482 Contact Us For Availability
9
BAFFLE, AIR MAY 2315541 Contact Us For Availability
9
Cup, Shelf MAY W10130299 Contact Us For Availability
10
MAY 489497 MAY 489497 Contact Us For Availability
10
MAY 2315539 MAY 2315539 Contact Us For Availability
10
TRIM ENDCAP MAY 2195915 Contact Us For Availability
10
MAY 2188874 MAY 2188874 Contact Us For Availability
10
MEAT PAN MAY W10310944 Contact Us For Availability
11
MAY 2254618 MAY 2254618 Contact Us For Availability
11
BLADE, FAN MAY 2200509 Contact Us For Availability
11
FREEZER DOOR (INCLUDES ILLUS. 15) (STAINLESS) MAY W10371931 Contact Us For Availability
11
MAY W10410814 MAY W10410814 Contact Us For Availability
12
MAY 2183852 MAY 2183852 Contact Us For Availability
12
CONTROL BOX MAY W10316941 Contact Us For Availability
12
MAY 2189009 MAY 2189009 Contact Us For Availability
12
TIE, WIRE MAY 2263990 Contact Us For Availability
13
MAY 2213363 MAY 2213363 Contact Us For Availability
13
THERMOSTAT ASSEMBLY MAY W10343913 Contact Us For Availability
13
MAY W10292303 MAY W10292303 Contact Us For Availability
13
MAY W10139483 MAY W10139483 Contact Us For Availability
14
HINGE, BOTTOM MAY 2254473 Contact Us For Availability
14
MAY 489174 MAY 489174 Contact Us For Availability
14
MAY 2314293 MAY 2314293 Contact Us For Availability
14
GROMMET MAY 10835903 Contact Us For Availability
15
Washer, Plastic MAY 487576 Contact Us For Availability
15
MAY W10348614 MAY W10348614 Contact Us For Availability
15
MAY 2214968 MAY 2214968 Contact Us For Availability
15
START-DEVICE, COMBINATION (START RELAY AND OV MAY W10330832 Contact Us For Availability
16
HOLE PLUG (BLACK) MAY W10520305 Contact Us For Availability
16
COVER-EVAPORATOR MAY W10385128 Contact Us For Availability
16
MAY 8281206 MAY 8281206 Contact Us For Availability
16
MAY W10510988 MAY W10510988 Contact Us For Availability
17
FILLER, WRAPPER (BLACK) MAY W10283960 Contact Us For Availability
17
LIGHT BULB, BLUE MAY W10311528 Contact Us For Availability
17
MAY 2189202 MAY 2189202 Contact Us For Availability
17
Roller MAY 2150304 Contact Us For Availability
18
GRILLE (BLACK) MAY 2254388 Contact Us For Availability
18
BRACKET EVAPORATOR FAN, REAR MAY 2254454 Contact Us For Availability
18
MAY 488921 MAY 488921 Contact Us For Availability
18
AXLE, RIVET MAY 2179826 Contact Us For Availability
19
WASHER, PLASTIC MAY 489341 Contact Us For Availability
19
SWITCH, ROCKER ARM (REFRIGERATOR) MAY 1118894 Contact Us For Availability
19
Hole Plug (Black) MAY 2212651 Contact Us For Availability
19
MAY 2264017 MAY 2264017 Contact Us For Availability
20
CLIP, GRILLE (LEFT SIDE) MAY 2189356 Contact Us For Availability
20
CLIP, GRILLE (RIGHT SIDE) MAY 2254385 Contact Us For Availability
20
DEFROST, BI-METAL MAY W10392132 Contact Us For Availability
20
END CAP, DOOR TRIM MAY 2156003 Contact Us For Availability
20
MAY W10236396 MAY W10236396 Contact Us For Availability
21
Clamp, Power Cord MAY 549193 Contact Us For Availability
21
AIR DIFFUSER COVER MAY W10305175 Contact Us For Availability
21
MAY W10463613 MAY W10463613 Contact Us For Availability
21
MAY W10314197 MAY W10314197 Contact Us For Availability
22
KNOB MAY W10356940 Contact Us For Availability
22
DOOR, COMPARTMENT MAY 2218113 Contact Us For Availability
22
MAY W10349514 MAY W10349514 Contact Us For Availability
23
MAY W10305174 MAY W10305174 Contact Us For Availability
23
MAY W10464028 MAY W10464028 Contact Us For Availability
23
CLIP, BOTTOM COVER MAY W10296661 Contact Us For Availability
24
AIR DIFFUSER ASSEMBLY MAY W10376137 Contact Us For Availability
24
MAY W10421484 MAY W10421484 Contact Us For Availability
24
MAY W10190413 MAY W10190413 Contact Us For Availability
25
MAY W10339627 MAY W10339627 Contact Us For Availability
25
MAY W10463614 MAY W10463614 Contact Us For Availability
25
Clip, Harness MAY 2219077 Contact Us For Availability
26
MAY W10310927 MAY W10310927 Contact Us For Availability
26
MAY VS20001 MAY VS20001 Contact Us For Availability
27
WATER TUBE COVER MAY W10339203 Contact Us For Availability
27
MAY 488500 MAY 488500 Contact Us For Availability
28
MAY 2210509 MAY 2210509 Contact Us For Availability
28
COMPRESSOR MAY W10445422 Contact Us For Availability
29
MAY W10321162 MAY W10321162 Contact Us For Availability
29
GROMMET, CONDENSER MAY 2319835 Contact Us For Availability
30
ASSEMBLY, TOWER CONNECTION MAY W10396926 Contact Us For Availability
30
CLIP, CONDENSER MAY W10248621 Contact Us For Availability
31
MAY W10300161 MAY W10300161 Contact Us For Availability
31
MAY W10519112 MAY W10519112 Contact Us For Availability
32
MAY W10336009 MAY W10336009 Contact Us For Availability
32
MAY 2215468 MAY 2215468 Contact Us For Availability
33
MAY 8281232 MAY 8281232 Contact Us For Availability
NI
FOLLOWING PARTS NOT ILLUSTRATED, MAY N/P Contact Us For Availability
NI
VALVE, ACCESS MAY 876764 Contact Us For Availability
NI
VALVE, ACCESS MAY 978025 Contact Us For Availability
NI
VALVE, ACCESS MAY 978026 Contact Us For Availability
NI
VALVE, ACCESS MAY 978027 Contact Us For Availability
NI
VALVE, ACCESS MAY 978028 Contact Us For Availability
NI
VALVE, ACCESS MAY 978029 Contact Us For Availability
NI
VALVE, ACCESS MAY 978030 Contact Us For Availability
NI
TORX SCREW WRENCH, TORX KEY MAY 1117510 Contact Us For Availability
NI
SEALER, GUM (4 FEET) MAY 212643 Contact Us For Availability
NI
ICE MAKER FIELD INSTALLABLE, ICEMAKER ASSEMBL MAY 2155469 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ.) (WHITE) MAY 350930 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12OZ. ENAMEL, BLACK MAY 350939 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12OZ. WHITE PRIMER) MAY 350942 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ. BISCUIT/BISQUE) MAY 4392899 Contact Us For Availability
NI
PAINT, BULK (1 QT. BISCUIT/BISQUE) MAY 4392900 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12OZ. BISCUIT/BISQU MAY 4392901 Contact Us For Availability
NI
MAY 479502 MAY 479502 Contact Us For Availability
NI
CORK, SEALER MAY 503695 Contact Us For Availability
NI
MAY 505587 MAY 505587 Contact Us For Availability
NI
WHITE PORCELAIN (2 OZ.) MAY 511873 Contact Us For Availability
NI
MAY 542638 MAY 542638 Contact Us For Availability
NI
MAY 542639 MAY 542639 Contact Us For Availability
NI
BAG MAY 606755 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ.) (WHITE) MAY 72017 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2oz.) (Black) MAY 72032 Contact Us For Availability
NI
PAINT, BULK (1 qt.) (White) MAY 799344 Contact Us For Availability
NI
MAY 833938 MAY 833938 Contact Us For Availability
NI
MAY 876029 MAY 876029 Contact Us For Availability
NI
INSULATION KIT (14 PIECES, 3`` X 24`` X 48``) MAY 876305 Contact Us For Availability
NI
INSULATION (2 PIECES, 3`` X 24`` X 48``) MAY 876370 Contact Us For Availability
NI
MAY 978941 MAY 978941 Contact Us For Availability
NI
DOOR REVERSAL KIT MAY W10437912 Contact Us For Availability
× ![]()
