Model Maytag M8RXEGMAB01 REFRIGERATOR – Common Parts & Diagrams

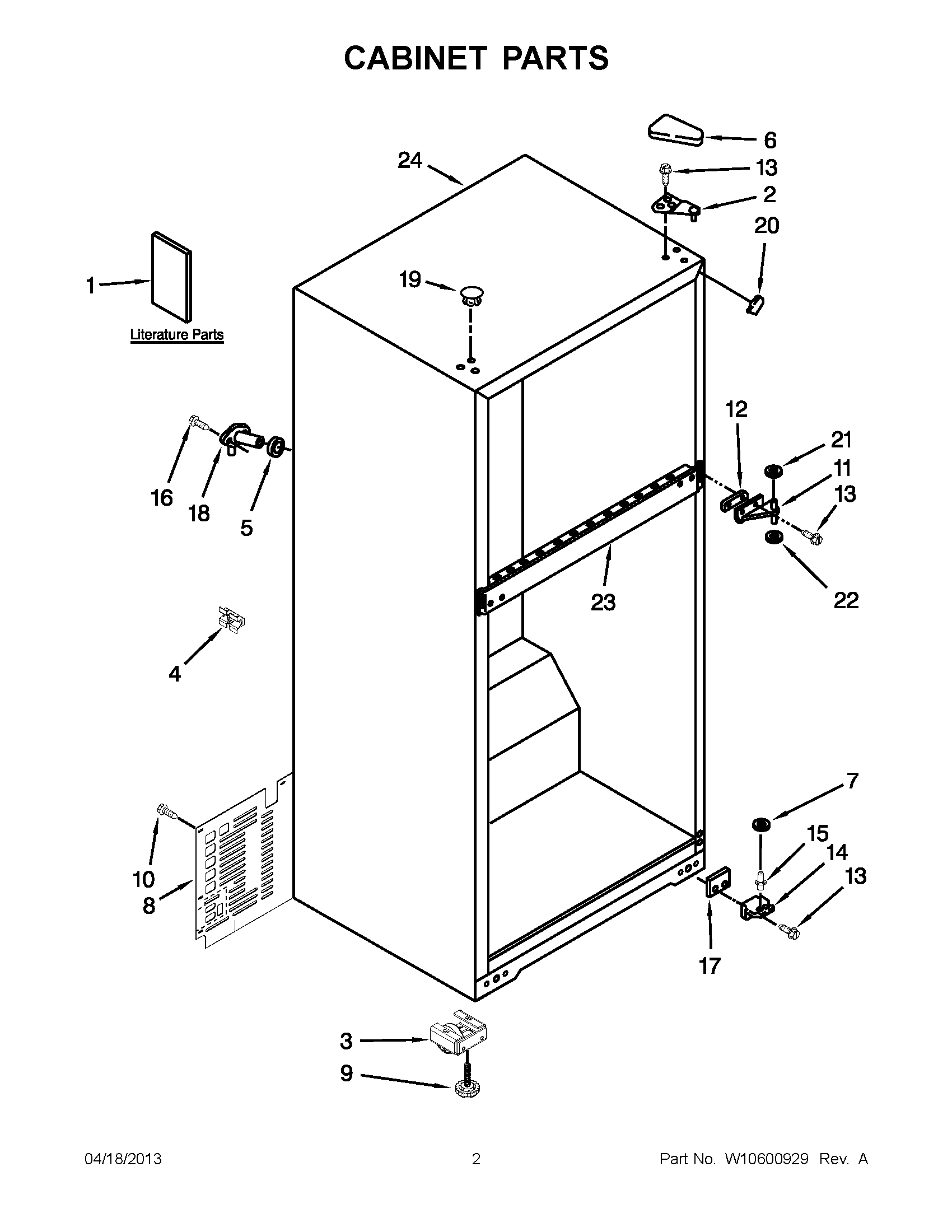

01 - CABINET PARTS

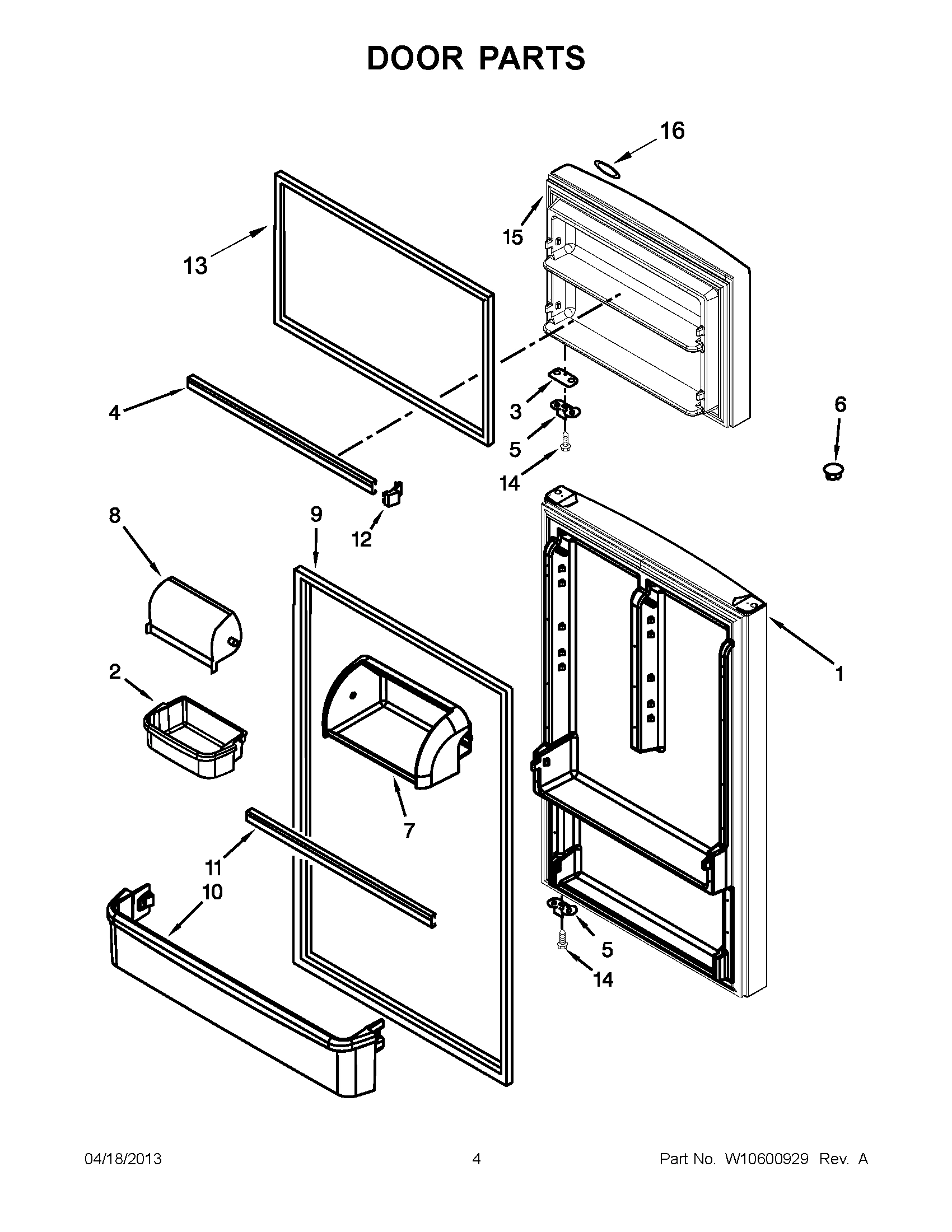

02 - DOOR PARTS

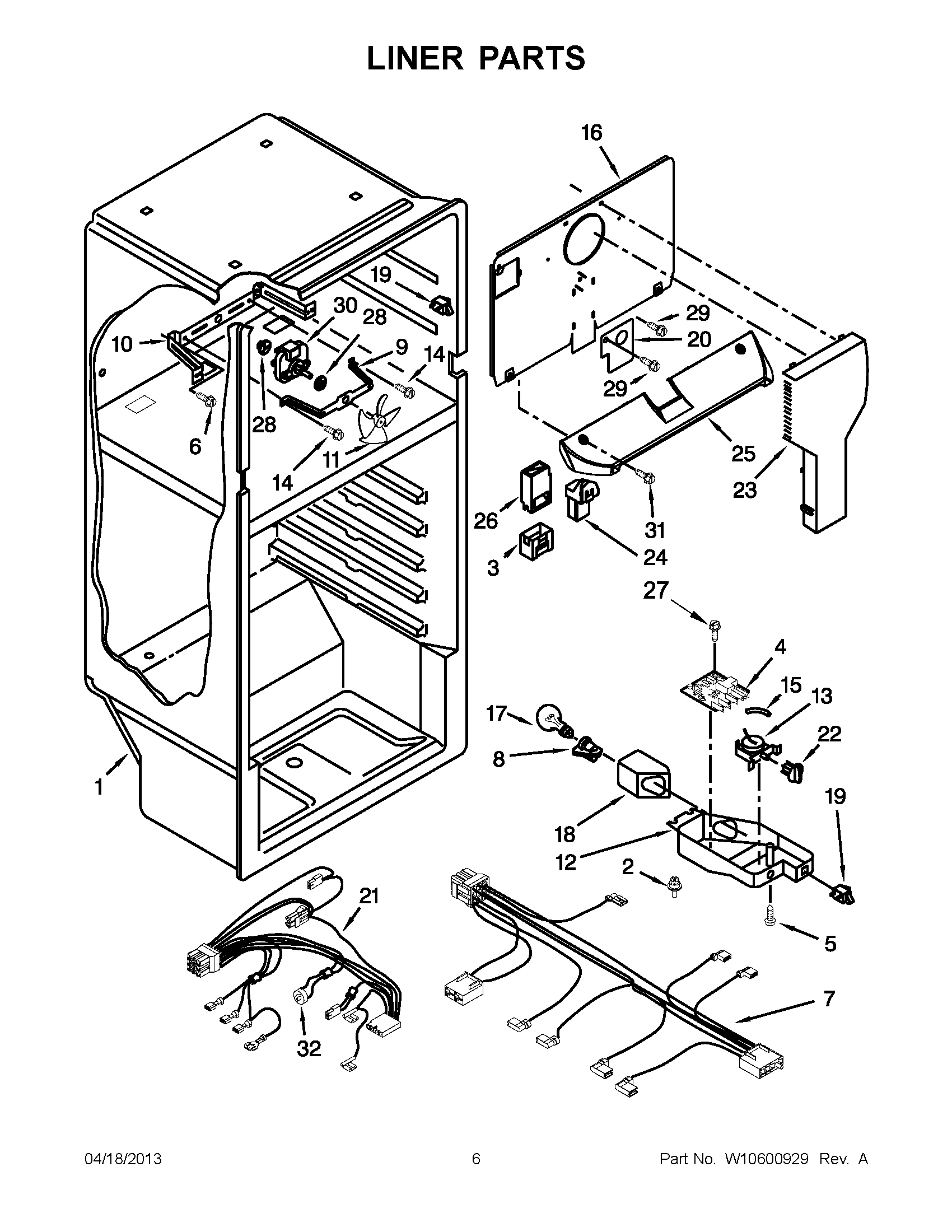

03 - LINER PARTS

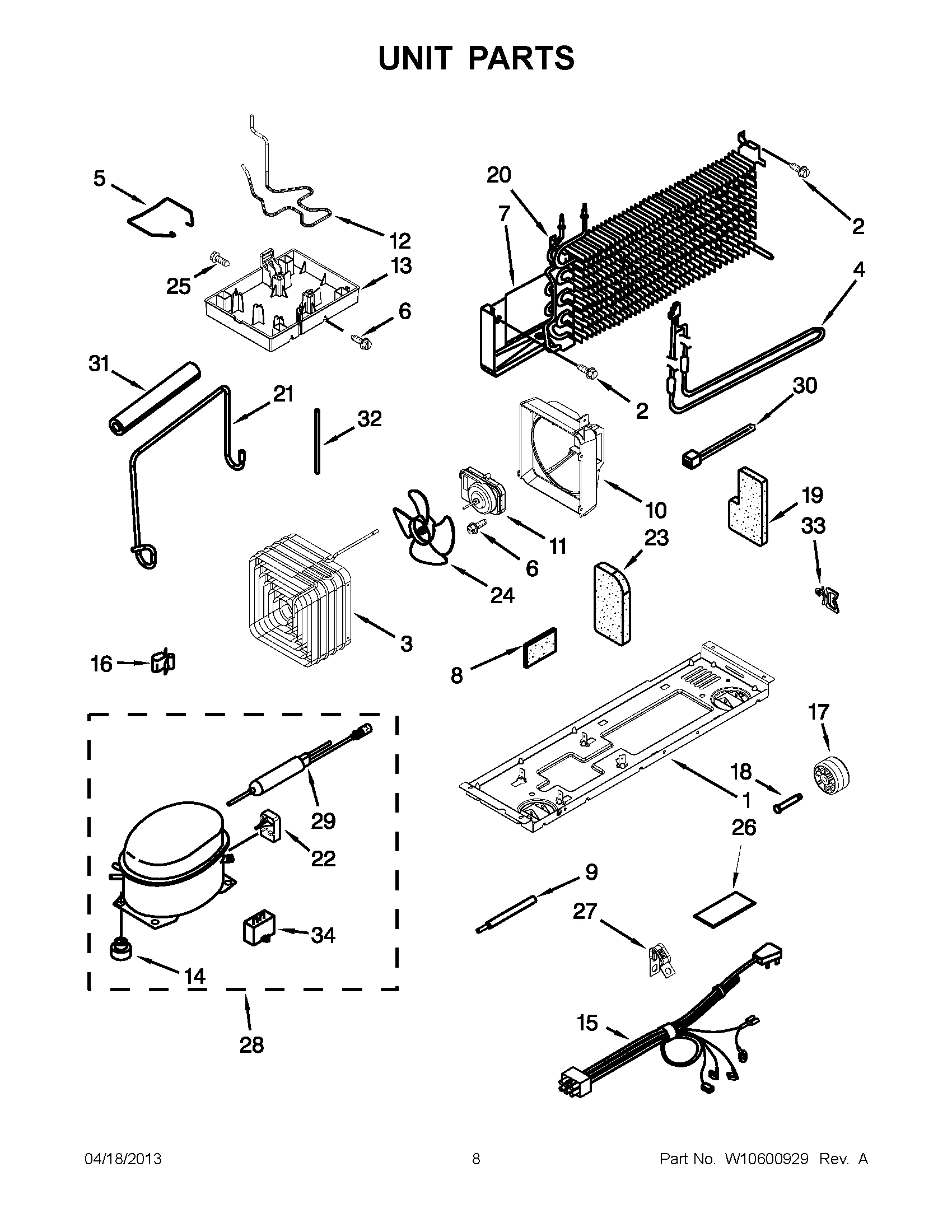

04 - UNIT PARTS

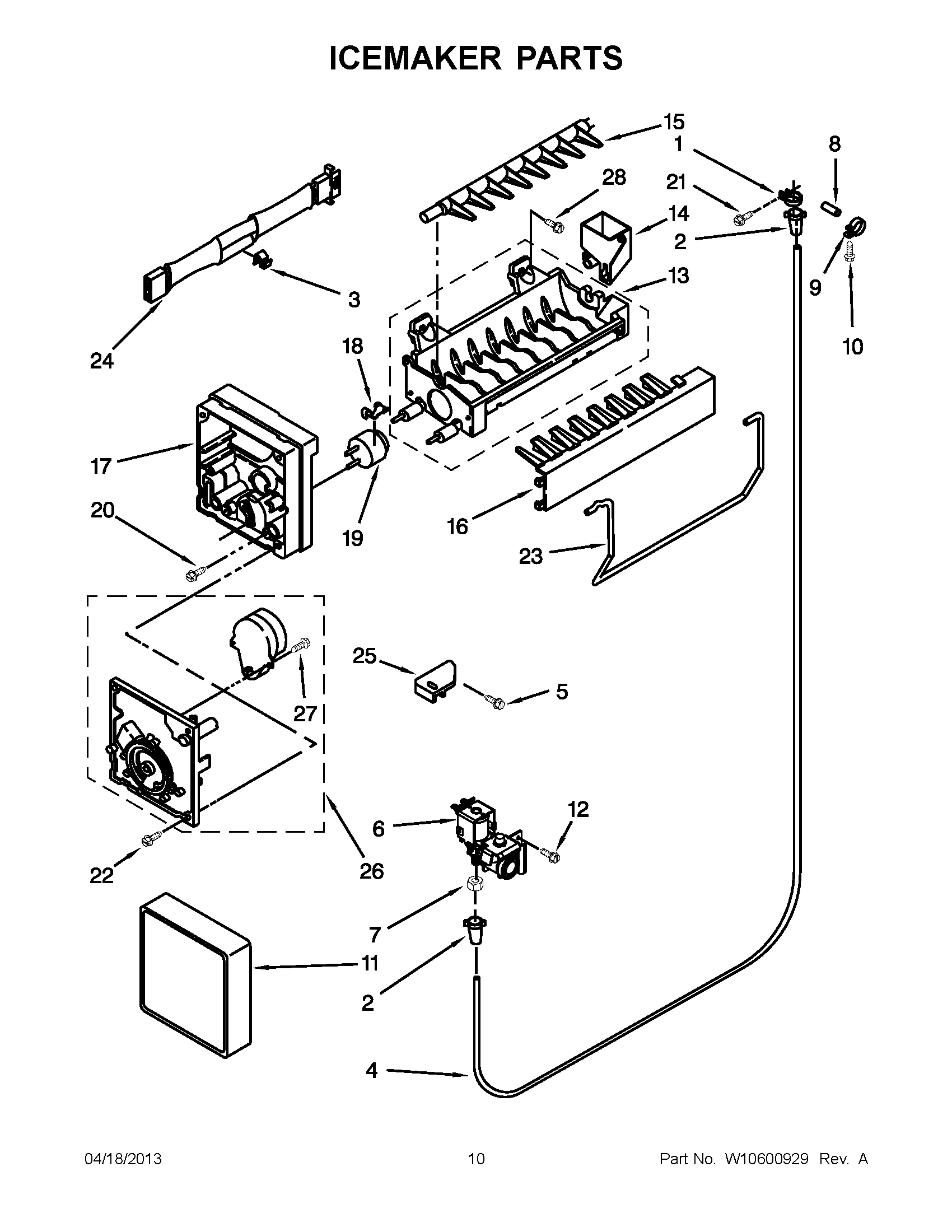

05 - ICEMAKER PARTS

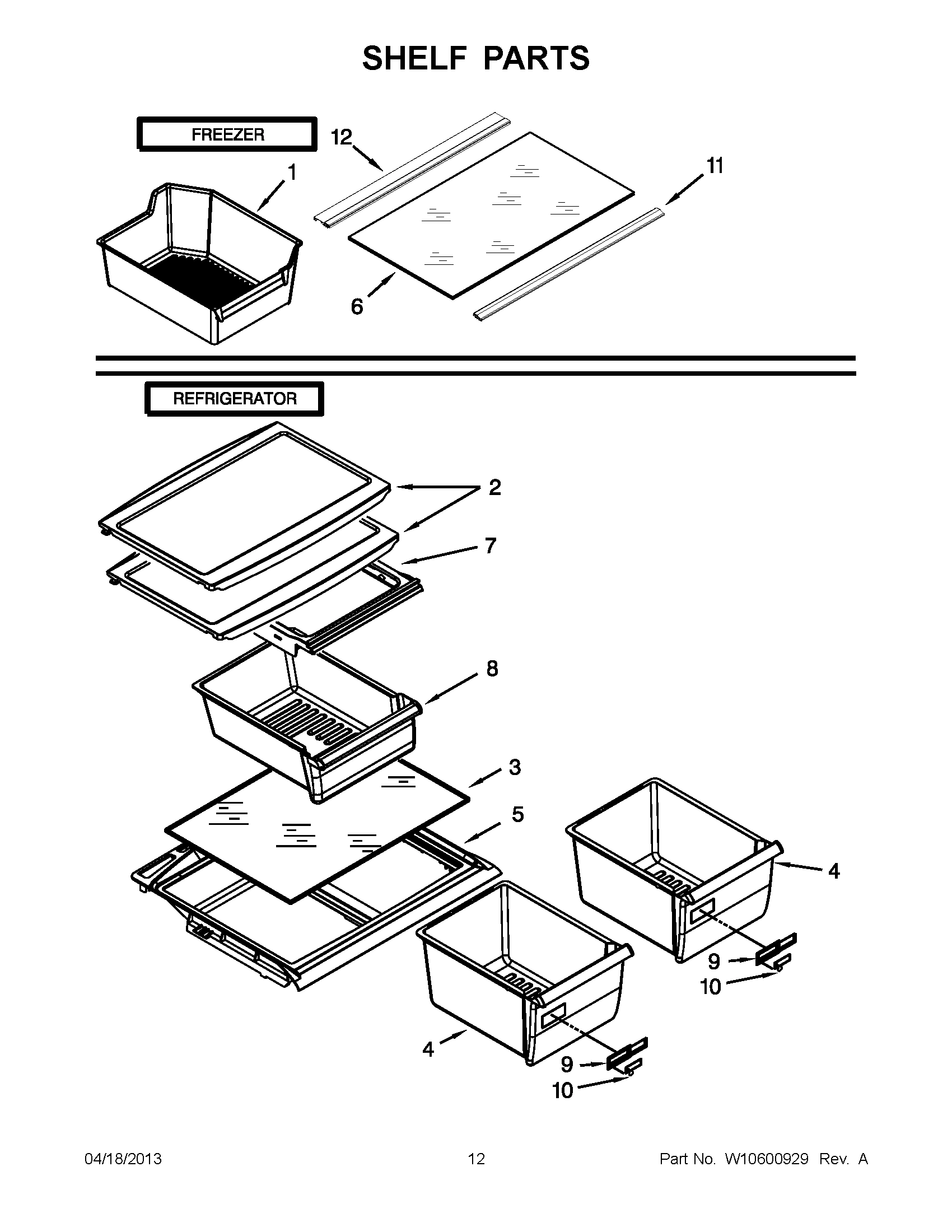

06 - SHELF PARTS
07 - OPTIONAL PARTS
Common parts from model Maytag M8RXEGMAB01 REFRIGERATOR
1
DO-IT-YOURSELF REPAIR MANUALS MAY 677969 Contact Us For Availability
1
MAY W10214132 MAY W10214132 Contact Us For Availability
1
MAY W10504134 MAY W10504134 Contact Us For Availability
1
MAY W10527297 MAY W10527297 Contact Us For Availability
1
REFRIGERATOR DOOR PANEL (INCLUDES ILLUS. 9 & MAY 2264716B Contact Us For Availability
1
REFRIGERATOR DOOR PANEL (INCLUDES ILLUS. 9 & MAY 2264716W Contact Us For Availability
1
REFRIGERATOR DOOR PANEL (INCLUDES ILLUS. 9 & MAY W10209800 Contact Us For Availability
1
MAY W10222450 MAY W10222450 Contact Us For Availability
1
MAY 488878 MAY 488878 Contact Us For Availability
1
Pan-Ice Cube MAY 2166261 Contact Us For Availability
2
ASSEMBLY, HINGE, TOP MAY 2261963 Contact Us For Availability
2
MAY 2265126 MAY 2265126 Contact Us For Availability
2
RIVET, PLASTIC MAY 939962 Contact Us For Availability
2
MAY 2181939 MAY 2181939 Contact Us For Availability
2
MAY W10283851 MAY W10283851 Contact Us For Availability
3
MAY W10142530 MAY W10142530 Contact Us For Availability
3
Shim, Door Stop (Black) MAY 2258681B Contact Us For Availability
3
Shim, Door Stop (White) MAY 2258681W Contact Us For Availability
3
Air Diffuser Cover MAY 2183061 Contact Us For Availability
3
MAY 2264004 MAY 2264004 Contact Us For Availability
3
CLIP, THERMAL FUSE MAY 628379 Contact Us For Availability
3
MAY 2262441 MAY 2262441 Contact Us For Availability
4
MAY 2266506 MAY 2266506 Contact Us For Availability
4
MAY 2266727 MAY 2266727 Contact Us For Availability
4
MAY 2303825 MAY 2303825 Contact Us For Availability
4
MAY 2176942 MAY 2176942 Contact Us For Availability
4
TUBE WATER MAY 2181944 Contact Us For Availability
4
CRISPER PAN (ALSO ORDER ITEMS 8, & 9) MAY 2256704 Contact Us For Availability
5
GASKET, SEAL MAY 1106508 Contact Us For Availability
5
BRACKET, DOOR STOP (SILVER) MAY 2189202 Contact Us For Availability
5
MAY 489174 MAY 489174 Contact Us For Availability
5
MAY 489478 MAY 489478 Contact Us For Availability
5
MAY 2264835 MAY 2264835 Contact Us For Availability
5
COVER, CRISPER MAY W10250666 Contact Us For Availability
6
Cover, Hinge (White) MAY 2213360 Contact Us For Availability
6
MAY 2213363 MAY 2213363 Contact Us For Availability
6
Hole Plug (White) MAY 2212648 Contact Us For Availability
6
Hole Plug (Black) MAY 2212651 Contact Us For Availability
6
Screw MAY 488693 Contact Us For Availability
6
MAY 8533859 MAY 8533859 Contact Us For Availability
6
MAY 2210494 MAY 2210494 Contact Us For Availability
6
SHELF, GLASS MAY W10283871 Contact Us For Availability
7
MAY 2264477 MAY 2264477 Contact Us For Availability
7
MAY 2265572 MAY 2265572 Contact Us For Availability
7
MAY 2319224 MAY 2319224 Contact Us For Availability
7
MAY 627018 MAY 627018 Contact Us For Availability
7
MAY W10258418 MAY W10258418 Contact Us For Availability
8
MAY 2266389 MAY 2266389 Contact Us For Availability
8
MAY 2264478 MAY 2264478 Contact Us For Availability
8
Socket, Light MAY 2162085 Contact Us For Availability
8
MAY 2215468 MAY 2215468 Contact Us For Availability
8
MAY 2174755 MAY 2174755 Contact Us For Availability
8
MAY 2261934 MAY 2261934 Contact Us For Availability
9
MAY W10133299 MAY W10133299 Contact Us For Availability
9
Door Gasket, Magnetic (Black) MAY 2264723 Contact Us For Availability
9
MAY 2264727 MAY 2264727 Contact Us For Availability
9
MAY W10180172 MAY W10180172 Contact Us For Availability
9
MAY VS20001 MAY VS20001 Contact Us For Availability
9
MAY W10352217 MAY W10352217 Contact Us For Availability
9
MAY 2212446 MAY 2212446 Contact Us For Availability
10
MAY 2262176 MAY 2262176 Contact Us For Availability
10
MAY W10468559 MAY W10468559 Contact Us For Availability
10
BRACKET, FAN MOUNTING MAY 2197405 Contact Us For Availability
10
MAY W10358308 MAY W10358308 Contact Us For Availability
10
Slide, Humidity Control MAY 2176222 Contact Us For Availability
11
HINGE ASSEMBLY, CENTER MAY 2166086 Contact Us For Availability
11
MAY W10234241 MAY W10234241 Contact Us For Availability
11
MAY 2169141 MAY 2169141 Contact Us For Availability
11
MAY 2188874 MAY 2188874 Contact Us For Availability
11
MAY W10289690 MAY W10289690 Contact Us For Availability
11
MAY W10272377 MAY W10272377 Contact Us For Availability
12
MAY 489442 MAY 489442 Contact Us For Availability
12
SHIM, HINGE CENTER (WHITE) MAY 2166043 Contact Us For Availability
12
SHIM HINGE, CENTER (BLACK) MAY 2215385 Contact Us For Availability
12
END CAP, DOOR TRIM MAY 2156003 Contact Us For Availability
12
MAY W10338475 MAY W10338475 Contact Us For Availability
12
TUBE, DISCHARGE (INCL. PRE-COOLER) MAY W10289687 Contact Us For Availability
12
MAY W10272381 MAY W10272381 Contact Us For Availability
13
MAY 489497 MAY 489497 Contact Us For Availability
13
Door Gasket, Magnetic (Black) MAY 2264722 Contact Us For Availability
13
MAY 2264726 MAY 2264726 Contact Us For Availability
13
MAY 2325701 MAY 2325701 Contact Us For Availability
13
MAY 2263928 MAY 2263928 Contact Us For Availability
13
MOLD & HEATER ASSEMBLY MAY W10122527 Contact Us For Availability
14
MAY 2325482 MAY 2325482 Contact Us For Availability
14
MAY 8533904 MAY 8533904 Contact Us For Availability
14
MAY 489399 MAY 489399 Contact Us For Availability
14
MAY 2264447 MAY 2264447 Contact Us For Availability
14
MAY W10435665 MAY W10435665 Contact Us For Availability
15
MAY 2325483 MAY 2325483 Contact Us For Availability
15
FREEZER DOOR PANEL (INCLUDES ILLUS. 13 & MOLD MAY 2264717B Contact Us For Availability
15
FREEZER DOOR PANEL (INCLUDES ILLUS. 13 & MOLD MAY 2264717W Contact Us For Availability
15
FREEZER DOOR PANEL (INCLUDES ILLUS. 13 & MOLD MAY W10209793 Contact Us For Availability
15
TUBE BARRIER, THERMOSTAT MAY 1118680 Contact Us For Availability
15
WIRE ASSEMBLY, UNIT MAY W10151677 Contact Us For Availability
15
MAY 627843 MAY 627843 Contact Us For Availability
16
NAMEPLATE (SILVER) MAY W10170766 Contact Us For Availability
16
MAY W10244012 MAY W10244012 Contact Us For Availability
16
CLIP, WIRE (COMPRESSOR) MAY 939054 Contact Us For Availability
16
STRIPPER, ICE MAY W10122563 Contact Us For Availability
17
MAY 2201567 MAY 2201567 Contact Us For Availability
17
MAY 2311792 MAY 2311792 Contact Us For Availability
17
MAY W10475495 MAY W10475495 Contact Us For Availability
17
MAY 2194712 MAY 2194712 Contact Us For Availability
18
MAY W10472793 MAY W10472793 Contact Us For Availability
18
MAY 9791702 MAY 9791702 Contact Us For Availability
18
AXLE, ROLLER MAY 2264756 Contact Us For Availability
18
MAY 2315522 MAY 2315522 Contact Us For Availability
19
MAY W10520304 MAY W10520304 Contact Us For Availability
19
HOLE PLUG (BLACK) MAY W10520305 Contact Us For Availability
19
SWITCH, ROCKER ARM (REF) MAY 1118894 Contact Us For Availability
19
MAY 2262191 MAY 2262191 Contact Us For Availability
19
Thermostat (Also Order 542369 Cement Alumilas MAY 628397 Contact Us For Availability
20
MAY 2166003 MAY 2166003 Contact Us For Availability
20
Corner Filler (Black) MAY 2215384 Contact Us For Availability
20
MAY 2217783 MAY 2217783 Contact Us For Availability
20
EVAPORATOR MAY 2263920 Contact Us For Availability
20
MAY W10001280 MAY W10001280 Contact Us For Availability
21
WASHER, PLASTIC MAY 489341 Contact Us For Availability
21
MAY W10183127 MAY W10183127 Contact Us For Availability
21
MAY W10524963 MAY W10524963 Contact Us For Availability
21
SCREW MAY 488886 Contact Us For Availability
22
Washer, Plastic MAY 487576 Contact Us For Availability
22
KNOB, CONTROL MAY 2202885 Contact Us For Availability
22
START DEVICE, COMBINATION (START RELAY AND OV MAY W10330836 Contact Us For Availability
22
MAY 489276 MAY 489276 Contact Us For Availability
23
MAY 9790408 MAY 9790408 Contact Us For Availability
23
MAY 2262192 MAY 2262192 Contact Us For Availability
23
MAY 627792 MAY 627792 Contact Us For Availability
24
ASSEMBLY, HOOD & FOIL MAY 2197052 Contact Us For Availability
24
MAY 2264129 MAY 2264129 Contact Us For Availability
24
WIRE ASSEMBLY, ICE MAKER MAY W10309400 Contact Us For Availability
25
COVER, AIR RETURN (FREEZER) MAY 2261978 Contact Us For Availability
25
SCREW 8-18 X .405 MAY 2264841 Contact Us For Availability
25
Bracket, Ice Maker Mounting MAY 628320 Contact Us For Availability
26
AIR DIFFUSER ASSEMBLY MAY 2221992 Contact Us For Availability
26
SHIELD-ELECTRICAL MAY 2266360 Contact Us For Availability
26
ASSEMBLY, MODULE MAY W10223929 Contact Us For Availability
27
Clamp, Power Cord MAY 549193 Contact Us For Availability
27
Screw MAY 489136 Contact Us For Availability
28
MAY 2264462 MAY 2264462 Contact Us For Availability
28
MAY W10527293 MAY W10527293 Contact Us For Availability
28
Screw MAY 488208 Contact Us For Availability
29
MAY W10190413 MAY W10190413 Contact Us For Availability
30
MAY 2315539 MAY 2315539 Contact Us For Availability
30
TIE, WIRE MAY 2263990 Contact Us For Availability
31
SCREW 8-18 X 1.00 MAY 2262178 Contact Us For Availability
31
MAY 2264838 MAY 2264838 Contact Us For Availability
32
MAY 2266066 MAY 2266066 Contact Us For Availability
32
MAY 2264278 MAY 2264278 Contact Us For Availability
33
CLIP-HARNESS MAY 2266467 Contact Us For Availability
34
MAY 2264017 MAY 2264017 Contact Us For Availability
100
ICEMAKER ASSEMBLY (COMPLETE) MAY W10190952 Contact Us For Availability
NI
FOLLOWING PARTS NOT ILLUSTRATED, MAY N/P Contact Us For Availability
NI
VALVE, ACCESS MAY 876764 Contact Us For Availability
NI
VALVE, ACCESS MAY 978025 Contact Us For Availability
NI
VALVE, ACCESS MAY 978026 Contact Us For Availability
NI
VALVE, ACCESS MAY 978027 Contact Us For Availability
NI
VALVE, ACCESS MAY 978028 Contact Us For Availability
NI
VALVE, ACCESS MAY 978029 Contact Us For Availability
NI
VALVE, ACCESS MAY 978030 Contact Us For Availability
NI
TORX SCREW WRENCH, TORX KEY MAY 1117510 Contact Us For Availability
NI
SEALER, GUM (4 FEET) MAY 212643 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ.) (WHITE) MAY 350930 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ.) (GRAY PRIME MAY 350938 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12OZ. ENAMEL, BLACK MAY 350939 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12OZ. WHITE PRIMER) MAY 350942 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ. BISCUIT/BISQUE) MAY 4392899 Contact Us For Availability
NI
PAINT, BULK (1 QT. BISCUIT/BISQUE) MAY 4392900 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12OZ. BISCUIT/BISQU MAY 4392901 Contact Us For Availability
NI
MAY 479502 MAY 479502 Contact Us For Availability
NI
CORK, SEALER MAY 503695 Contact Us For Availability
NI
MAY 505587 MAY 505587 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ.) (WHITE PORCELAIN (2 MAY 511873 Contact Us For Availability
NI
MAY 542638 MAY 542638 Contact Us For Availability
NI
MAY 542639 MAY 542639 Contact Us For Availability
NI
BAG MAY 606755 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ.) (WHITE) MAY 72017 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2oz.) (Black) MAY 72032 Contact Us For Availability
NI
PAINT, BULK (1 qt.) (White) MAY 799344 Contact Us For Availability
NI
MAY 833938 MAY 833938 Contact Us For Availability
NI
MAY 876029 MAY 876029 Contact Us For Availability
NI
INSULATION KIT (14 PIECES, 3`` X 24`` X 48``) MAY 876305 Contact Us For Availability
NI
INSULATION (2 PIECES, 3`` X 24`` X 48``) MAY 876370 Contact Us For Availability
NI
MAY 978941 MAY 978941 Contact Us For Availability
× ![]()
