Model Maytag M8RXCGFXB03 REFRIGERATOR – Common Parts & Diagrams

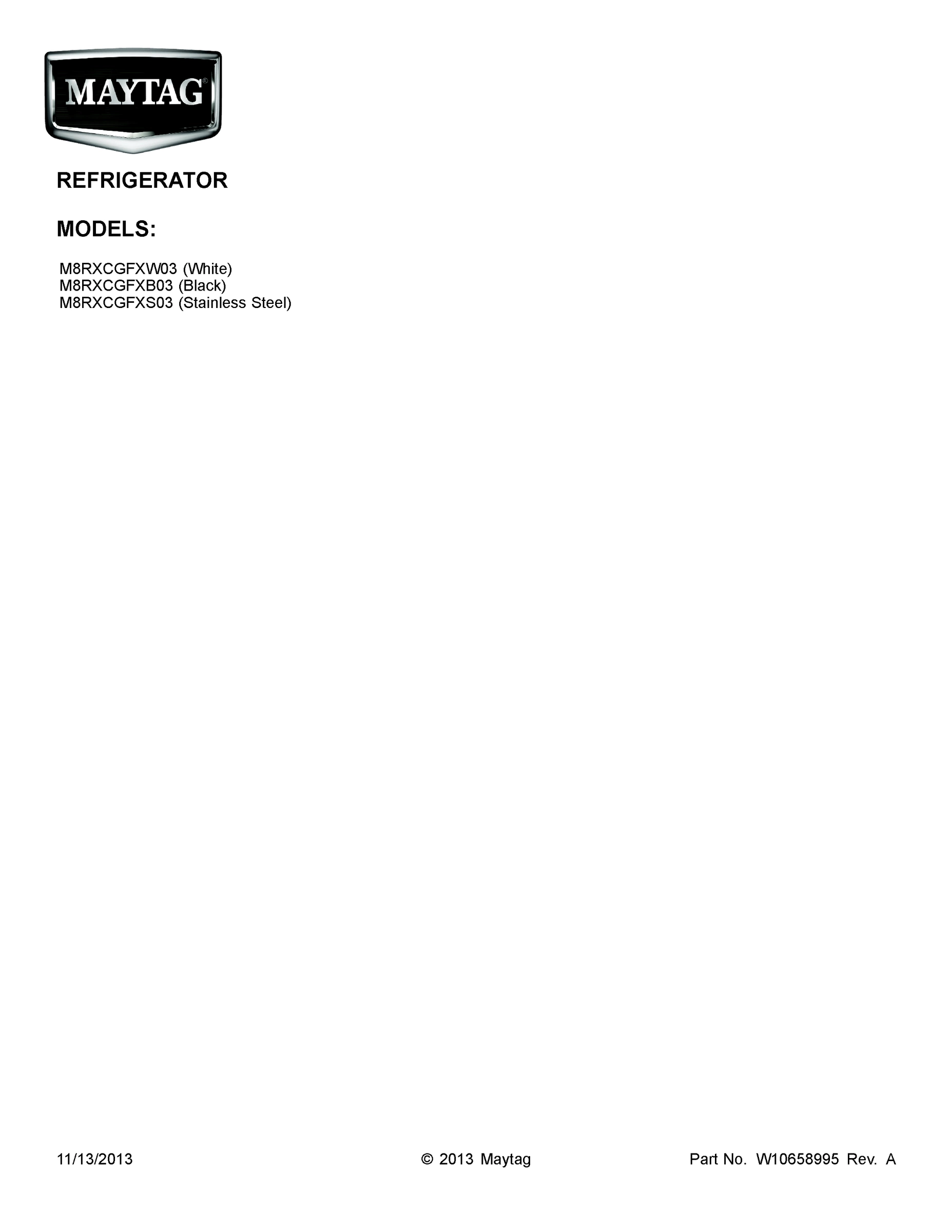

01 - COVER SHEET

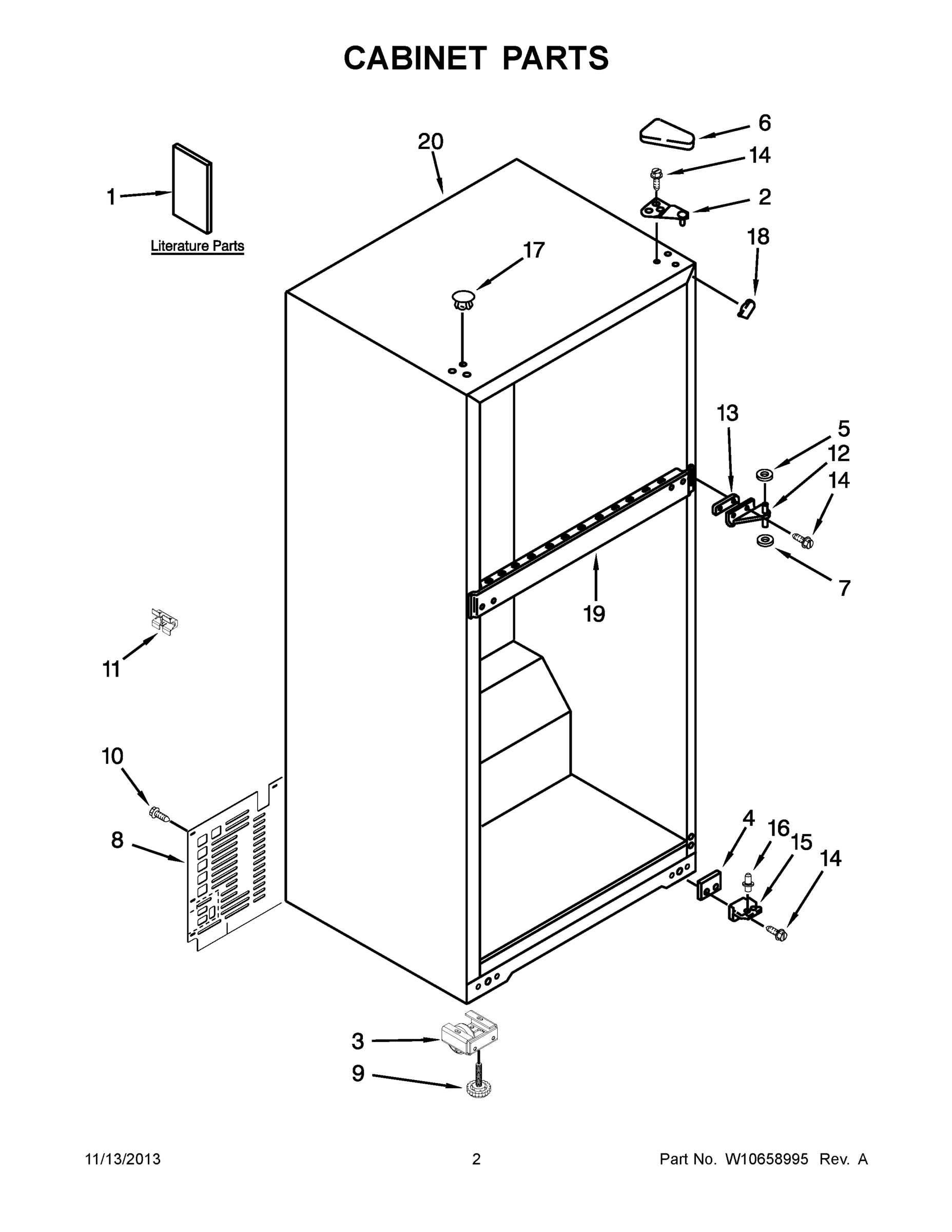

02 - CABINET PARTS
03 - DOOR PARTS
04 - LINER PARTS
05 - UNIT PARTS
06 - SHELF PARTS
07 - OPTIONAL PARTS
Common parts from model Maytag M8RXCGFXB03 REFRIGERATOR
1
MAY W10402929 MAY W10402929 Contact Us For Availability
1
REFRIGERATOR DOOR PANEL (INCLUDES ILLUS. 9 & MAY W10267743 Contact Us For Availability
1
MAY W10573847 MAY W10573847 Contact Us For Availability
1
SHELF, GLASS MAY W10283871 Contact Us For Availability
1A
MAY W10214132 MAY W10214132 Contact Us For Availability
1A
REFRIGERATOR DOOR PANEL (INCLUDES ILLUS. 9 & MAY W10267783 Contact Us For Availability
1B
MAY W10287757 MAY W10287757 Contact Us For Availability
1B
REFRIGERATOR DOOR PANEL (INCLUDES ILLUS. 9 & MAY W10267785 Contact Us For Availability
1C
DO-IT-YOURSELF REPAIR MANUALS MAY 677969 Contact Us For Availability
2
TOP HINGE ASSEMBLY MAY 2261963 Contact Us For Availability
2
MAY 489442 MAY 489442 Contact Us For Availability
2
MAY 8533904 MAY 8533904 Contact Us For Availability
2
RIVET, PLASTIC MAY 939962 Contact Us For Availability
2
MAY W10283851 MAY W10283851 Contact Us For Availability
3
MAY W10142530 MAY W10142530 Contact Us For Availability
3
SHIM, DOOR STOP (WHITE) MAY 2258681W Contact Us For Availability
3
MAY 2252837 MAY 2252837 Contact Us For Availability
3
MAY W10487115 MAY W10487115 Contact Us For Availability
3
MAY 2262441 MAY 2262441 Contact Us For Availability
3A
SHIM, DOOR STOP (BLACK) MAY 2258681B Contact Us For Availability
4
MAY 2201567 MAY 2201567 Contact Us For Availability
4
BIN, DOOR MAY 2264470 Contact Us For Availability
4
MAY 2303825 MAY 2303825 Contact Us For Availability
4
MAY 2176942 MAY 2176942 Contact Us For Availability
4
MAY 2256704 MAY 2256704 Contact Us For Availability
5
WASHER, PLASTIC MAY 489341 Contact Us For Availability
5
HOLE PLUG (WHITE) MAY 2212648 Contact Us For Availability
5
MAY 489174 MAY 489174 Contact Us For Availability
5
MAY 2264835 MAY 2264835 Contact Us For Availability
5
COVER, CRISPER MAY W10211610 Contact Us For Availability
5A
HOLE PLUG (BLACK) MAY 2212651 Contact Us For Availability
6
COVER, HINGE (WHITE) MAY 2213360 Contact Us For Availability
6
MAY 2266727 MAY 2266727 Contact Us For Availability
6
MAY 2263075 MAY 2263075 Contact Us For Availability
6
MAY 8533859 MAY 8533859 Contact Us For Availability
6
MAY W10258418 MAY W10258418 Contact Us For Availability
6A
MAY 2213363 MAY 2213363 Contact Us For Availability
7
WASHER, PLASTIC MAY 487576 Contact Us For Availability
7
END CAP, DOOR TRIM MAY 2156003 Contact Us For Availability
7
MAY 2265572 MAY 2265572 Contact Us For Availability
7
MAY 2319224 MAY 2319224 Contact Us For Availability
7
MAY 2261934 MAY 2261934 Contact Us For Availability
8
MAY W10570558 MAY W10570558 Contact Us For Availability
8
MAY 2264478 MAY 2264478 Contact Us For Availability
8
SOCKET, LIGHT MAY 2162085 Contact Us For Availability
8
SHIELD, ELECTRICAL MAY 2266360 Contact Us For Availability
8
MAY 2212446 MAY 2212446 Contact Us For Availability
9
MAY W10133299 MAY W10133299 Contact Us For Availability
9
MAY 2264727 MAY 2264727 Contact Us For Availability
9
MAY W10180172 MAY W10180172 Contact Us For Availability
9
MAY W10585747 MAY W10585747 Contact Us For Availability
9
SLIDE, HUMIDITY CONTROL MAY 2176222 Contact Us For Availability
9A
DOOR GASKET, MAGNETIC (BLACK) MAY 2264723 Contact Us For Availability
10
MAY 2264477 MAY 2264477 Contact Us For Availability
10
BRACKET, FAN MOUNTING MAY 2197405 Contact Us For Availability
10
MAY 2258429 MAY 2258429 Contact Us For Availability
10
MAY W10272377 MAY W10272377 Contact Us For Availability
11
MAY 2266506 MAY 2266506 Contact Us For Availability
11
BADGE, MAYTAG MAY W10170766 Contact Us For Availability
11
MAY 2169141 MAY 2169141 Contact Us For Availability
11
MAY 2188875 MAY 2188875 Contact Us For Availability
11
MAY W10272381 MAY W10272381 Contact Us For Availability
12
HINGE ASSEMBLY, CENTER MAY 2166086 Contact Us For Availability
12
MAY W10234241 MAY W10234241 Contact Us For Availability
12
MAY 2264733 MAY 2264733 Contact Us For Availability
12
MAY VS20001 MAY VS20001 Contact Us For Availability
13
SHIM, HINGE CENTER (WHITE) MAY 2166043 Contact Us For Availability
13
FREEZER DOOR PANEL (INCLUDES ILLUS. 14 & MOLD MAY W10278900 Contact Us For Availability
13
MAY 2325701 MAY 2325701 Contact Us For Availability
13
MAY W10488462 MAY W10488462 Contact Us For Availability
13A
SHIM, HINGE CENTER (BLACK) MAY 2215385 Contact Us For Availability
13A
FREEZER DOOR PANEL (INCLUDES ILLUS. 14 & MOLD MAY W10267784 Contact Us For Availability
13B
FREEZER DOOR PANEL (INCLUDES ILLUS. 14 & MOLD MAY W10267786 Contact Us For Availability
14
MAY 489497 MAY 489497 Contact Us For Availability
14
MAY 2264726 MAY 2264726 Contact Us For Availability
14
MAY 489399 MAY 489399 Contact Us For Availability
14
MAY 2264447 MAY 2264447 Contact Us For Availability
14A
DOOR GASKET, MAGNETIC (BLACK) MAY 2264722 Contact Us For Availability
15
MAY 2325482 MAY 2325482 Contact Us For Availability
15
MAY W10468562 MAY W10468562 Contact Us For Availability
15
TUBE BARRIER, THERMOSTAT MAY 1118680 Contact Us For Availability
15
MAY W10565417 MAY W10565417 Contact Us For Availability
16
MAY 2325483 MAY 2325483 Contact Us For Availability
16
MAY 2189202 MAY 2189202 Contact Us For Availability
16
MAY W10244012 MAY W10244012 Contact Us For Availability
16
CLIP, WIRE (COMPRESSOR) MAY 939054 Contact Us For Availability
17
MAY W10520304 MAY W10520304 Contact Us For Availability
17
BULB, LIGHT MAY 527949 Contact Us For Availability
17
MAY W10475495 MAY W10475495 Contact Us For Availability
17A
HOLE PLUG (BLACK) MAY W10520305 Contact Us For Availability
18
MAY 2166003 MAY 2166003 Contact Us For Availability
18
MAY 9791702 MAY 9791702 Contact Us For Availability
18
AXLE, ROLLER MAY 2264756 Contact Us For Availability
18A
CORNER FILLER (BLACK) MAY 2215384 Contact Us For Availability
19
SWITCH, ROCKER ARM (REFRIGERATOR) MAY 1118894 Contact Us For Availability
19
MAY 2262191 MAY 2262191 Contact Us For Availability
20
MAY 2217784 MAY 2217784 Contact Us For Availability
20
EVAPORATOR MAY 2263920 Contact Us For Availability
21
MAY W10183127 MAY W10183127 Contact Us For Availability
21
MAY W10585741 MAY W10585741 Contact Us For Availability
22
KNOB, CONTROL MAY 2202885 Contact Us For Availability
22
MAY W10399283 MAY W10399283 Contact Us For Availability
23
MAY 9790408 MAY 9790408 Contact Us For Availability
23
MAY 2262192 MAY 2262192 Contact Us For Availability
24
ASSEMBLY, HOOD & FOIL MAY 2197052 Contact Us For Availability
24
MAY 2264129 MAY 2264129 Contact Us For Availability
25
COVER, AIR RETURN, FREEZER MAY 2261978 Contact Us For Availability
25
MAY 2264841 MAY 2264841 Contact Us For Availability
26
AIR DIFFUSER ASSEMBLY MAY W10355265 Contact Us For Availability
26
MAY 8533919 MAY 8533919 Contact Us For Availability
27
MAY 941839 MAY 941839 Contact Us For Availability
27
CLAMP, POWER CORD MAY 549193 Contact Us For Availability
28
MAY 2264462 MAY 2264462 Contact Us For Availability
28
COMPRESSOR (ALSO ORDER 482801 INSTALLATION KI MAY W10399120 Contact Us For Availability
29
MAY 489478 MAY 489478 Contact Us For Availability
29
MAY W10190413 MAY W10190413 Contact Us For Availability
30
MAY 2315539 MAY 2315539 Contact Us For Availability
30
TIE, WIRE MAY 2263990 Contact Us For Availability
31
MAY 2262178 MAY 2262178 Contact Us For Availability
31
MAY 2264838 MAY 2264838 Contact Us For Availability
32
MAY 2266066 MAY 2266066 Contact Us For Availability
32
CAPACITOR MAY 2252799 Contact Us For Availability
33
MAY W10129686 MAY W10129686 Contact Us For Availability
33
MAY 2212996 MAY 2212996 Contact Us For Availability
34
MAY 2256983 MAY 2256983 Contact Us For Availability
35
SCREW MAY 488693 Contact Us For Availability
37
MAY W10208150 MAY W10208150 Contact Us For Availability
38
GRILL MAY 2263082 Contact Us For Availability
39
MAY 2252831 MAY 2252831 Contact Us For Availability
NI
FOLLOWING PARTS NOT ILLUSTRATED MAY N/P Contact Us For Availability
NI
VALVE, ACCESS MAY 876764 Contact Us For Availability
NI
VALVE, ACCESS MAY 978025 Contact Us For Availability
NI
VALVE, ACCESS MAY 978026 Contact Us For Availability
NI
VALVE, ACCESS MAY 978027 Contact Us For Availability
NI
VALVE, ACCESS MAY 978028 Contact Us For Availability
NI
VALVE, ACCESS MAY 978029 Contact Us For Availability
NI
VALVE, ACCESS MAY 978030 Contact Us For Availability
NI
TORX SCREW WRENCH, TORX KEY MAY 1117510 Contact Us For Availability
NI
SEALER, GUM (4 FEET) MAY 212643 Contact Us For Availability
NI
ICE MAKER FIELD INSTALLABLE, ICEMAKER ASSEMBL MAY 2155469 Contact Us For Availability
NI
MAY 350930 MAY 350930 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ. ENAMEL, BLAC MAY 350939 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ. WHITE PRIMER MAY 350942 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ. BISCUIT/BISQUE) MAY 4392899 Contact Us For Availability
NI
PAINT, BULK (1 QT. BISCUIT/BISQUE) MAY 4392900 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ. BISCUIT/BISQ MAY 4392901 Contact Us For Availability
NI
TAPE, VINYL (3/4 X 108") MAY 479502 Contact Us For Availability
NI
CORK, SEALER MAY 503695 Contact Us For Availability
NI
MAY 505587 MAY 505587 Contact Us For Availability
NI
WHITE PORCELAIN (2 OZ.) MAY 511873 Contact Us For Availability
NI
MAY 542638 MAY 542638 Contact Us For Availability
NI
MAY 542639 MAY 542639 Contact Us For Availability
NI
BAG MAY 606755 Contact Us For Availability
NI
MAY 72017 MAY 72017 Contact Us For Availability
NI
MAY 72032 MAY 72032 Contact Us For Availability
NI
PAINT, BULK (1 QT. WHITE) MAY 799344 Contact Us For Availability
NI
KIT, FOAM SLAB (30" X 32 1/2" X 1 1/2") MAY 876029 Contact Us For Availability
NI
INSULATION KIT (14 PIECES, 3" X 24" X 48") MAY 876305 Contact Us For Availability
NI
INSULATION (2 PIECES, 3" X 24" X 48") MAY 876370 Contact Us For Availability
NI
INSULATION, FIBERGLASS (63 1/2" X 35 1/2" X 2 MAY 978941 Contact Us For Availability
NI
KIT, DOOR REVERSAL MAY W10395149 Contact Us For Availability
× ![]()
