Model Whirlpool M80K-V1 MICROWAVE – Common Parts & Diagrams
01 - BASE
02 - CONTROL BOARD

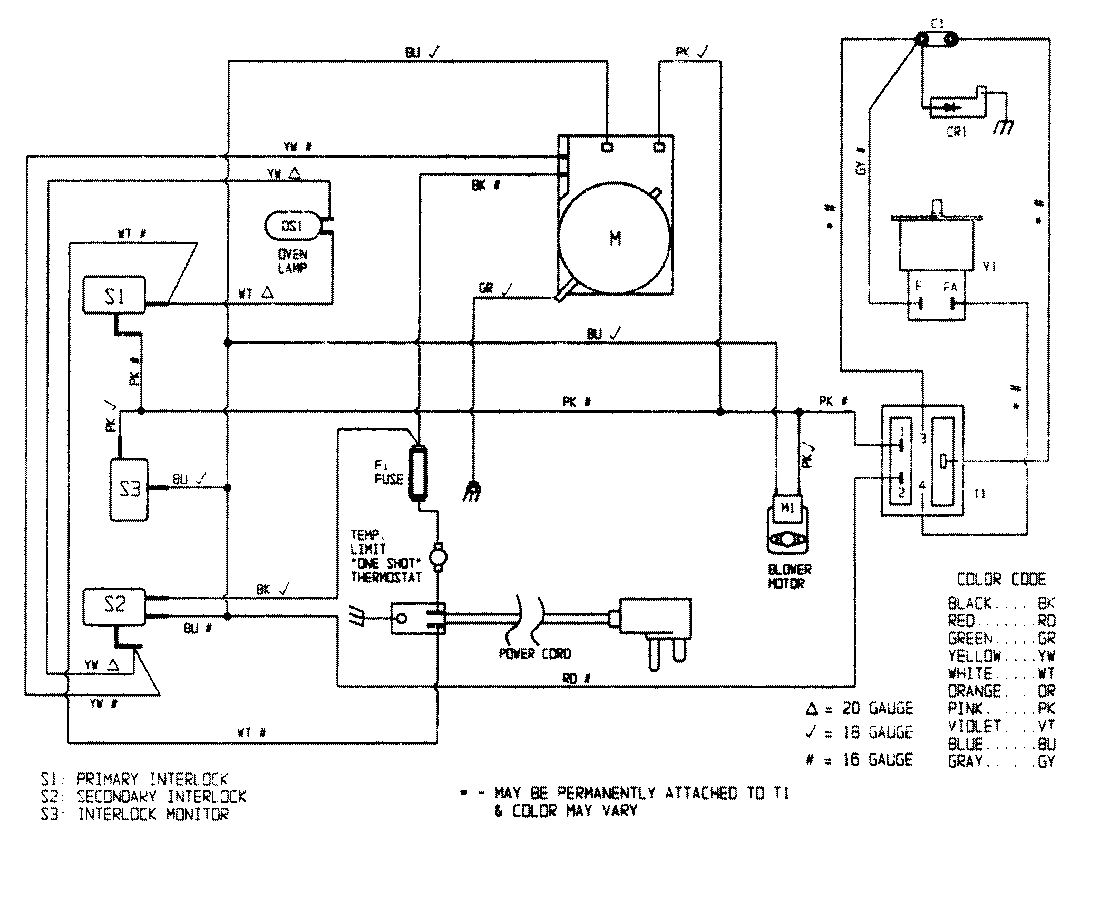

05 - WIRING INFORMATION

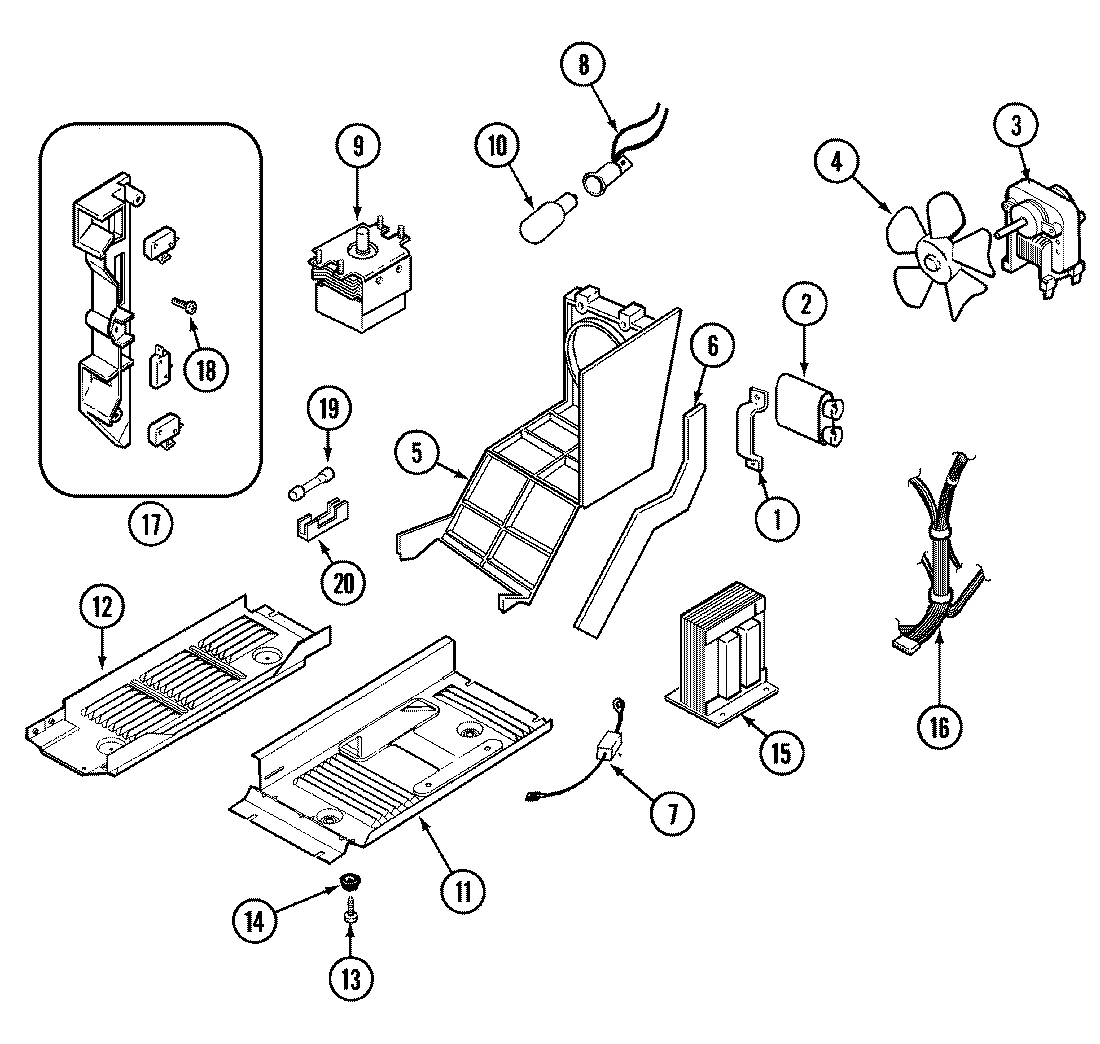

04 - INTERNAL CONTROLS

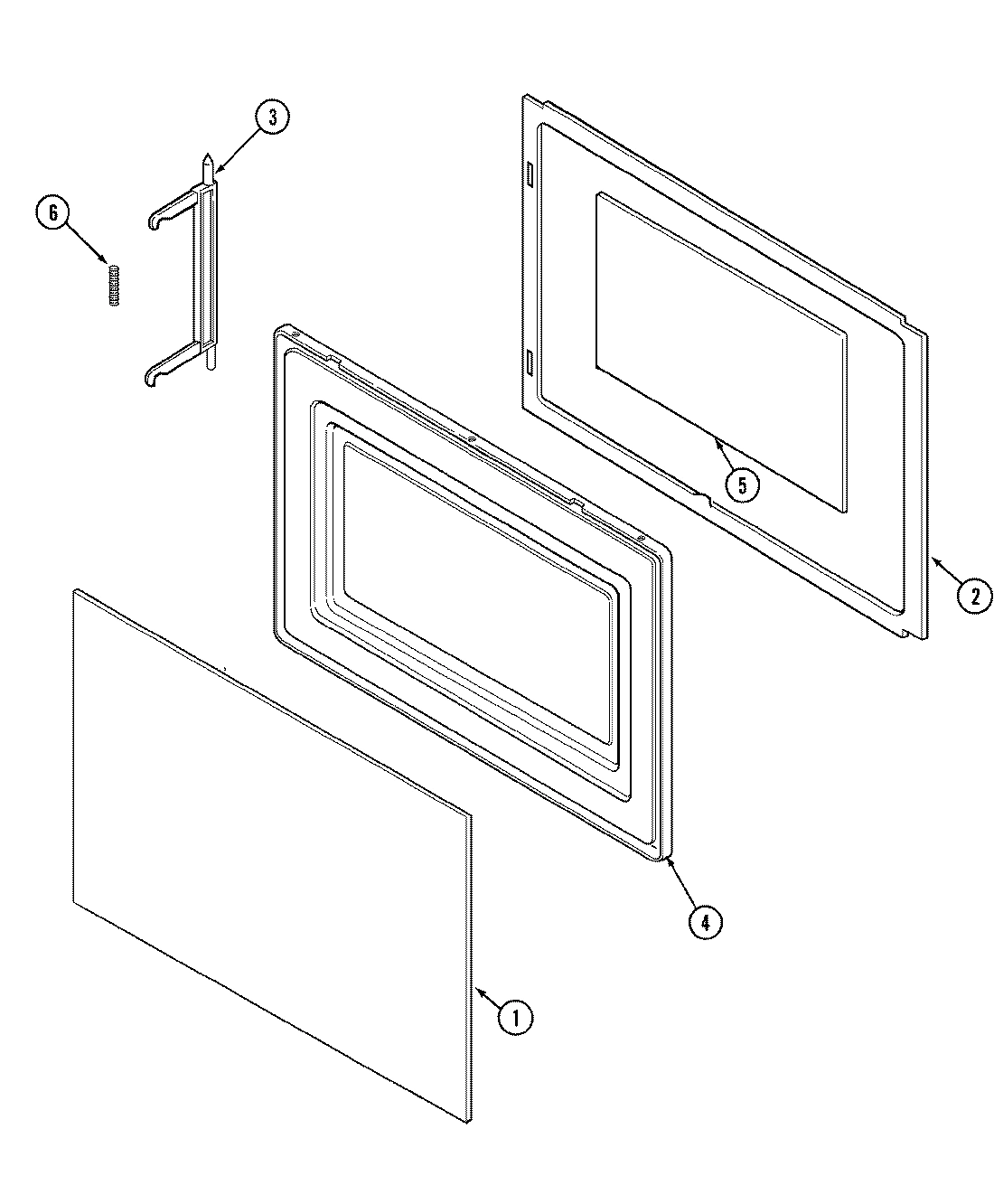

03 - DOOR
Common parts from model Whirlpool M80K-V1 MICROWAVE
1
BLADE, STIRRER WPL 51001048 Contact Us For Availability
1
KNOB, CONTROL (BLK) WPL 51001070 Contact Us For Availability
1
BRACKET, CAPACITOR WPL 02030175 Contact Us For Availability
1
WINDOW, DOOR (OUTER-BLK) WPL 51001294 Contact Us For Availability
2
DUCT, STIRRER WPL 51001027 Contact Us For Availability
2
BAFFLE, STIRRER DUCT WPL 51001210 Contact Us For Availability
2
BRACKET, CONTROL WPL 51001067 Contact Us For Availability
2
CHOKE, DOOR (BLK) WPL 51001038 Contact Us For Availability
3
COVER, STIRRER WPL 51001028 Contact Us For Availability
3
TRIM, CONTROL (BLK) WPL 51001097 Contact Us For Availability
3
SCREW WPL 51001101 Contact Us For Availability
3
MOTOR, FAN WPL 51001228 Contact Us For Availability
3
LATCH, STRIKE WPL 51001036 Contact Us For Availability
4
CAVITY (WHT) WPL 51001079 Contact Us For Availability
4
LABEL, COOKING GUIDE WPL 51001296 Contact Us For Availability
4
TIMER, 15 MINUTE WPL 01070043 Contact Us For Availability
4
BLADE, FAN WPL 51001051 Contact Us For Availability
4
LINING, DOOR (BLK) WPL 51001295 Contact Us For Availability
5
WRAPPER, CABINET (WHT) WPL 51001099 Contact Us For Availability
5
INSERT, OVERLAY (BLK) WPL 51001098 Contact Us For Availability
5
BRACKET, FAN WPL 51001049 Contact Us For Availability
5
WINDOW, DOOR (INNER) WPL 51001039 Contact Us For Availability
6
MANUAL, USE & CARE WPL 51001126 Contact Us For Availability
6
TAPE, FOAM WPL 05140007 Contact Us For Availability
6
SPRING, DOOR WPL 51001197 Contact Us For Availability
7
CLIP WPL Y03110050 Contact Us For Availability
7
GUIDE, QUICK REF. - MAGIC CHEF WPL 16000329 Contact Us For Availability
7
DIODE ASSY. WPL Y04010219 Contact Us For Availability
8
TRAY, PLASTIC (WHT) WPL 51001072 Contact Us For Availability
8
RECEPTACLE, BULB WPL 51001095 Contact Us For Availability
9
CORD, POWER WPL 01080066 Contact Us For Availability
9
MAGNETRON WPL 01040005 Contact Us For Availability
10
BUTTON, DOOR RELEASE (BLK) WPL 51001041 Contact Us For Availability
10
BULB, LIGHT WPL Y01060024 Contact Us For Availability
11
SCREW WPL 03020030 Contact Us For Availability
11
HINGE, DOOR (LOWER) WPL 51001284 Contact Us For Availability
11
CHANNEL, BASE (RT) WPL 51001059 Contact Us For Availability
12
HINGE, DOOR (UPPER) WPL 51001285 Contact Us For Availability
12
CHANNEL, BASE (LT) WPL 51001057 Contact Us For Availability
13
SCREW WPL Y03020076 Contact Us For Availability
13
SCREW WPL 51001241 Contact Us For Availability
14
FOOT, BASE WPL 02230012 Contact Us For Availability
15
SCREW WPL 03010094 Contact Us For Availability
15
TRANSFORMER WPL Y01130040 Contact Us For Availability
16
HARNESS, WIRE (MAIN) WPL 51001102 Contact Us For Availability
17
INTERLOCK ASSY. WPL 51001245 Contact Us For Availability
18
SCREW WPL 51001217 Contact Us For Availability
19
FUSE 15A 125V WPL Y01050005 Contact Us For Availability
20
HOLDER, FUSE WPL Y01100044 Contact Us For Availability
21
FUSE, THERMAL (W/WIRES) WPL 51001253 Contact Us For Availability
21
CLIP WPL Y03110078 Contact Us For Availability
21
HV LEAD WIRE (16``) WPL Y04060535 Contact Us For Availability
NI
WIRING INFORMATION WPL 15001294 Contact Us For Availability
× ![]()
