Model Electrolux M528A2SA ROOM AIR CONDITIONER – Common Parts & Diagrams

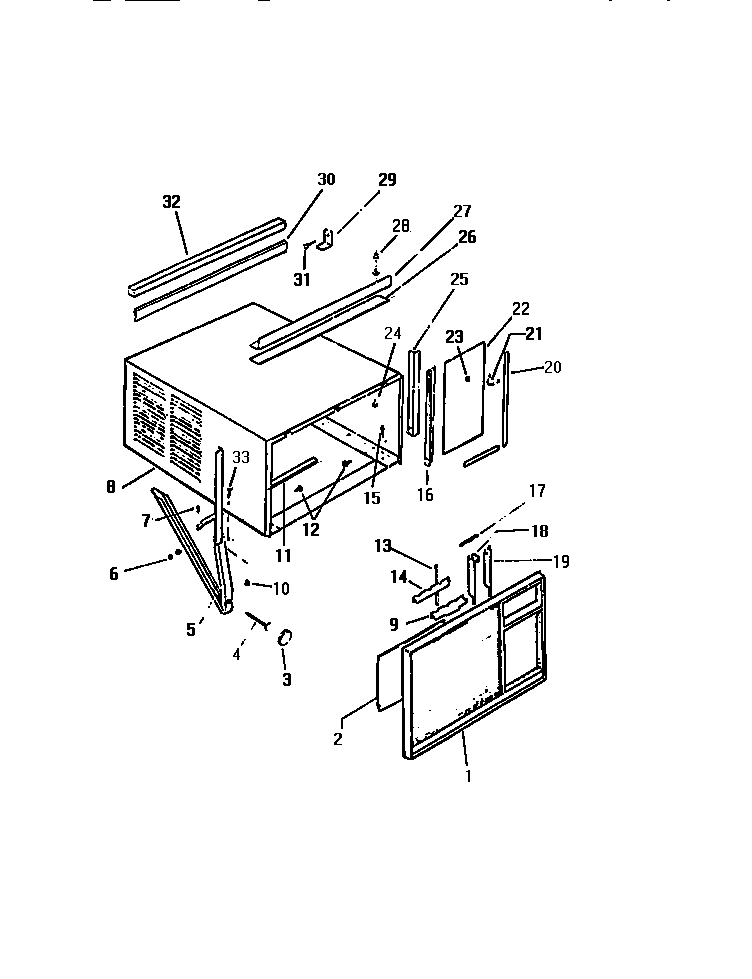

02 - CABINET, FRONT, WRAPPER

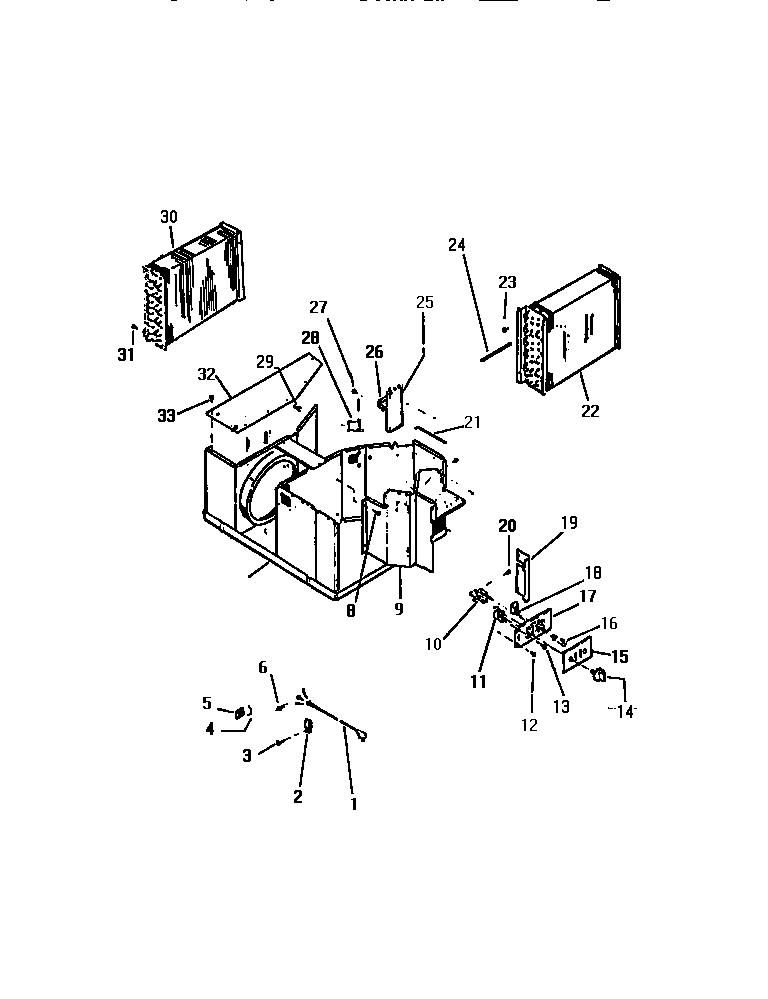

03 - CONTROLS

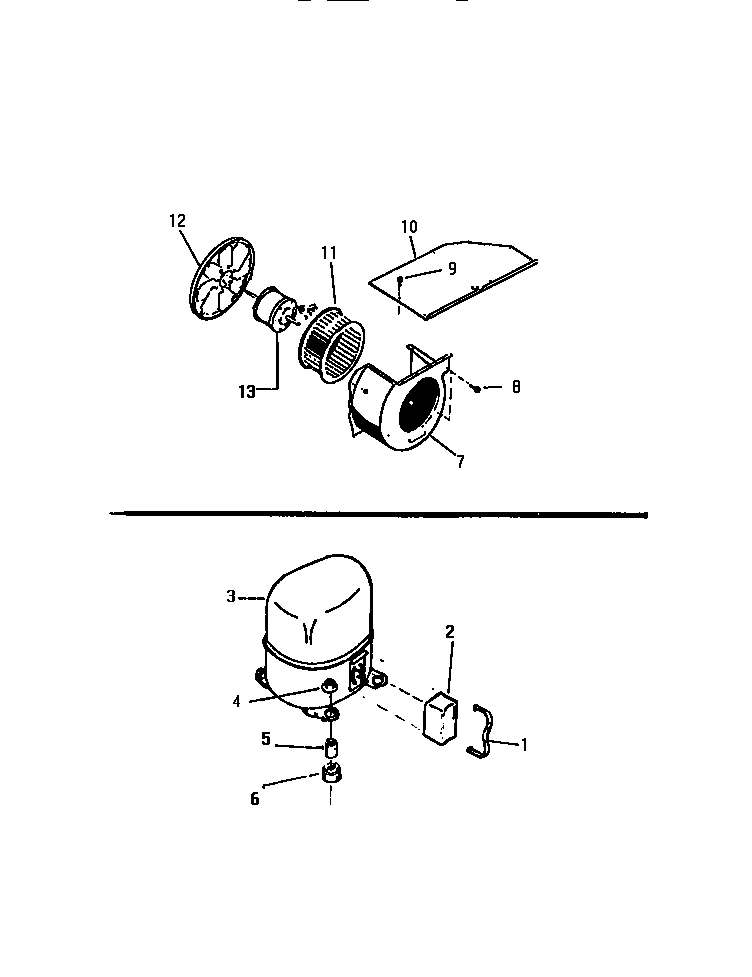

04 - AIR HANDLING PARTS, COMPRESSOR
Common parts from model Electrolux M528A2SA ROOM AIR CONDITIONER
*05200
OWNERS MANUAL WCI G518611 Contact Us For Availability
*05201
WCI G518908 WCI G518908 Contact Us For Availability
*05203
WCI G84701 WCI G84701 Contact Us For Availability
*05204
WCI G517982-22 WCI G517982-22 Contact Us For Availability
*05206
SCREW, FRONT PANEL TO SHELL (2) WCI G509750 Contact Us For Availability
*05207
WCI G513281-14 WCI G513281-14 Contact Us For Availability
*05208
WCI G502900 WCI G502900 Contact Us For Availability
*05209
GASKET, LH SIDE FRONT PANEL WCI G507383-01 Contact Us For Availability
*05210
WCI G150486-18 WCI G150486-18 Contact Us For Availability
*05211
WCI G150486-12 WCI G150486-12 Contact Us For Availability
*05212
INSTRUCTION, INSTALLATION WCI G512545 Contact Us For Availability
*05213
KIT, WINDOW WCI G512549 Contact Us For Availability
*05214
KIT, DUCT ADAPTER WCI G150282 Contact Us For Availability
*05215
SEAL, BETWEEN UNIT & SHELL WCI G149188-03 Contact Us For Availability
*05216
WCI G157696-10 WCI G157696-10 Contact Us For Availability
*05217
WCI G518152 WCI G518152 Contact Us For Availability
*05218
BUSHING, SNAP WCI G506933 Contact Us For Availability
*05219
NUT MOTOR MOUNTING WCI G517918 Contact Us For Availability
*05220
WCI G99148 WCI G99148 Contact Us For Availability
*05221
TUBE, CONNECTOR WCI G158416-04 Contact Us For Availability
*05222
TIE, WIRE (2) WCI G157176 Contact Us For Availability
*05223
KNOB, CONTROL WCI G511424-01 Contact Us For Availability
*05225
GROMMET, MOTOR MOUNTING (3) WCI G503537 Contact Us For Availability
*05226
SLEEVE, MOTOR MOUNTING (3) WCI G503538 Contact Us For Availability
1
WCI G157582-02 WCI G157582-02 Contact Us For Availability
1
CORD SERVICE WCI G506345-24 Contact Us For Availability
1
STRAP, COVER WCI G116606 Contact Us For Availability
2
WCI G152868 WCI G152868 Contact Us For Availability
2
WCI G116605 WCI G116605 Contact Us For Availability
3
WCI G120905 WCI G120905 Contact Us For Availability
3
SCREW (2) WCI G516355 Contact Us For Availability
3
WCI G149367-01 WCI G149367-01 Contact Us For Availability
4
SCREW (2) WCI G120904 Contact Us For Availability
4
NUT, COMPRESSOR MOUNTING (4) WCI G517928 Contact Us For Availability
4
WCI G513810 WCI G513810 Contact Us For Availability
5
BRACE UNIT SUPPORT (2) WCI G149392-03 Contact Us For Availability
5
WCI G136533 WCI G136533 Contact Us For Availability
5
SLEEVE, COMPRESSOR MOUNTING (4) WCI G160280 Contact Us For Availability
6
GROMMET, COMPRESSOR MOUNTING (4) WCI G513262 Contact Us For Availability
7
WCI G514019 WCI G514019 Contact Us For Availability
7
WCI G142129 WCI G142129 Contact Us For Availability
8
WCI G159566-10 WCI G159566-10 Contact Us For Availability
8
WCI G518352 WCI G518352 Contact Us For Availability
9
WCI G512966-18 WCI G512966-18 Contact Us For Availability
9
WCI G514869 WCI G514869 Contact Us For Availability
9
WCI G516352 WCI G516352 Contact Us For Availability
10
MECHANISM, DOOR WCI G506420 Contact Us For Availability
10
COVER, DUCT WCI G514119 Contact Us For Availability
11
WCI G513372 WCI G513372 Contact Us For Availability
11
WCI G149597 WCI G149597 Contact Us For Availability
11
WHEEL, BLOWER WCI G149714-01 Contact Us For Availability
12
SCREW (6) WCI G516357 Contact Us For Availability
12
FAN, SLINGER RING WCI G509597 Contact Us For Availability
13
LINK, HORIONTAL LOUVER (2) WCI G513274 Contact Us For Availability
13
WCI G503753 WCI G503753 Contact Us For Availability
14
WCI G513272-18 WCI G513272-18 Contact Us For Availability
14
WCI G110826 WCI G110826 Contact Us For Availability
15
WCI G100821 WCI G100821 Contact Us For Availability
15
WCI G514590 WCI G514590 Contact Us For Availability
16
WCI G149182-05 WCI G149182-05 Contact Us For Availability
16
SCREW (4) WCI G517310 Contact Us For Availability
17
LINK, VERTICAL LOUVER WCI G100365 Contact Us For Availability
17
WCI G512685 WCI G512685 Contact Us For Availability
18
LOUVER, VERTICAL DIRECTIONAL WCI G157750 Contact Us For Availability
18
SWITCH WCI G514218 Contact Us For Availability
19
WCI G157749 WCI G157749 Contact Us For Availability
19
BAFFLE, WATER WCI G149747 Contact Us For Availability
20
WCI G149187-05 WCI G149187-05 Contact Us For Availability
21
WCI G117313 WCI G117313 Contact Us For Availability
21
WCI G149351 WCI G149351 Contact Us For Availability
22
WCI G149202-03 WCI G149202-03 Contact Us For Availability
22
EVAPORATOR WCI G505502 Contact Us For Availability
24
SCREW (4) WCI G516984 Contact Us For Availability
24
TUBE, CAPILLARY (2) WCI G144044-12 Contact Us For Availability
25
WCI G149391-03 WCI G149391-03 Contact Us For Availability
25
CAPACITOR WCI G513068-04 Contact Us For Availability
26
SEAL, TOP MEMBER WCI G149187-04 Contact Us For Availability
26
STRAP, CAPACITOR WCI G501770 Contact Us For Availability
27
WCI G149390-03 WCI G149390-03 Contact Us For Availability
27
SCREW, STRAP MOUNTING (2) WCI G516356 Contact Us For Availability
28
NUT ( 4 ) WCI G513166 Contact Us For Availability
28
DOOR, EXCHAUST WCI G501587 Contact Us For Availability
29
BRACKET, STOOL SUPPORT WCI G500741 Contact Us For Availability
29
WCI G157339 WCI G157339 Contact Us For Availability
30
GASKET-TOP MEMBER WCI G149356-05 Contact Us For Availability
30
CONDENSER WCI G154989 Contact Us For Availability
31
WCI G100773 WCI G100773 Contact Us For Availability
32
WCI G145337-10 WCI G145337-10 Contact Us For Availability
32
COVER, CONDENSER WCI G516980 Contact Us For Availability
33
WCI G100824 WCI G100824 Contact Us For Availability
× ![]()
