Model Electrolux M423T3SA ROOM AIR CONDITIONER – Common Parts & Diagrams
02 - CABINET, FRONT, WRAPPER
03 - CONTROLS

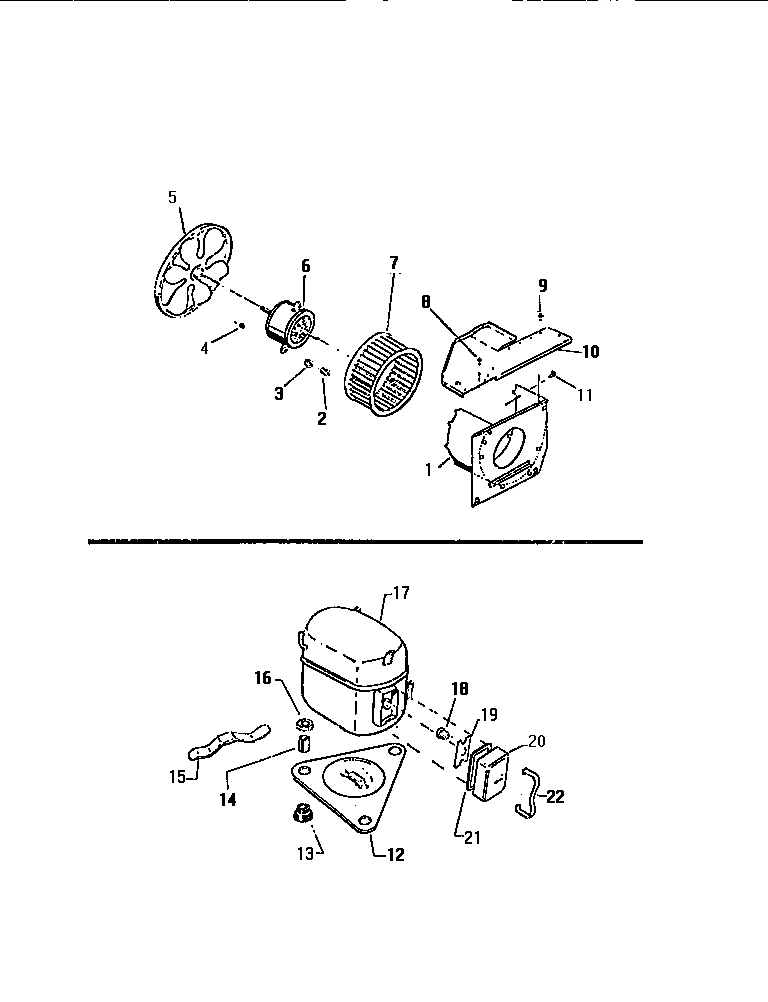

04 - AIR HANDLING PARTS, COMPRESSOR

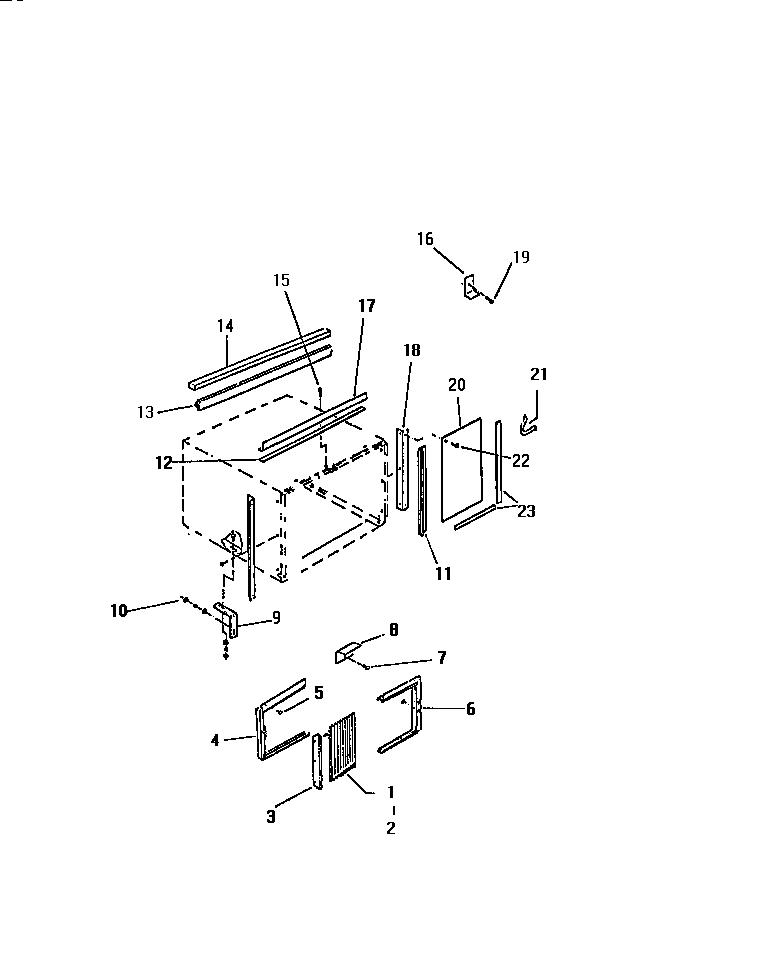

05 - WINDOW MOUNTING PARTS
Common parts from model Electrolux M423T3SA ROOM AIR CONDITIONER
*84843
WCI G512268-53 WCI G512268-53 Contact Us For Availability
*84845
TIE-WIRE WCI G157176 Contact Us For Availability
*84846
WCI G506015 WCI G506015 Contact Us For Availability
*84847
WCI G84701 WCI G84701 Contact Us For Availability
*84848
WCI G155754 WCI G155754 Contact Us For Availability
*84849
KIT WINDOW WCI G507945 Contact Us For Availability
*84850
OWNERS MANUAL WCI G509645 Contact Us For Availability
*84851
INSTALLATION INSTRUCTION WCI G512264 Contact Us For Availability
*84853
SEAL-TOP-CONT.PNL WCI G149308-28 Contact Us For Availability
1
WCI G110826 WCI G110826 Contact Us For Availability
1
WCI G512884 WCI G512884 Contact Us For Availability
1
WCI G149147-04 WCI G149147-04 Contact Us For Availability
2
WCI G514165 WCI G514165 Contact Us For Availability
2
WCI G506345-03 WCI G506345-03 Contact Us For Availability
2
SLEEVE ( 3 ) WCI G503538 Contact Us For Availability
3
WCI G119108 WCI G119108 Contact Us For Availability
4
WCI G149106 WCI G149106 Contact Us For Availability
4
CLAMP-CAPACITOR WCI G501770 Contact Us For Availability
4
WCI G506435 WCI G506435 Contact Us For Availability
4
NUT-MOTOR MTG ( 3 ) WCI G500444 Contact Us For Availability
5
LOUVER ,HORIZONTAL WCI G506000-02 Contact Us For Availability
5
LOUVER HORIZ.DIRECTING WCI G508800-01 Contact Us For Availability
5
WCI G512294 WCI G512294 Contact Us For Availability
6
WCI G145332-23 WCI G145332-23 Contact Us For Availability
6
WCI G501894 WCI G501894 Contact Us For Availability
7
WCI G154281-10 WCI G154281-10 Contact Us For Availability
7
WCI G125102 WCI G125102 Contact Us For Availability
8
LOUVER HORIZ. ( 3 ) WCI G505999-02 Contact Us For Availability
8
CAPACITOR WCI G513068-04 Contact Us For Availability
9
WCI G119993 WCI G119993 Contact Us For Availability
9
WCI G513997 WCI G513997 Contact Us For Availability
9
BRKT-TRACK SUPPORT ( 2 ) WCI G501665 Contact Us For Availability
10
LINK-HORIZ-LOWER ( 2 ) WCI G508801 Contact Us For Availability
10
LINK-HORIZ.LOUVER ( 2 ) WCI G508802 Contact Us For Availability
10
CONDENSOR WCI G157609 Contact Us For Availability
10
BOTTOM DUCT WCI G153211 Contact Us For Availability
10
NUT ( 4 ) WCI G513166 Contact Us For Availability
11
WCI G14988-01 WCI G14988-01 Contact Us For Availability
11
SCREW ( 4 ) WCI G500621 Contact Us For Availability
11
WCI G149182-05 WCI G149182-05 Contact Us For Availability
12
SHELL CABINET ( DO NOT STOCK ) WCI G504435 Contact Us For Availability
12
BASE-COMPRESSOR WCI G142019 Contact Us For Availability
12
SEAL-TOP FRAME WCI G149187-01 Contact Us For Availability
13
WCI G119700 WCI G119700 Contact Us For Availability
13
SCREW MOTOR GROUND WCI G500638 Contact Us For Availability
13
GROMMET-COMPRESSOR-MTG ( 3 ) WCI G513262 Contact Us For Availability
14
WCI G119940 WCI G119940 Contact Us For Availability
14
SLEEVE-COMPRESSOR-MTG ( 3 ) WCI G160280 Contact Us For Availability
14
SEAL-WINDOW SACH WCI G145337-01 Contact Us For Availability
15
WCI G100821 WCI G100821 Contact Us For Availability
15
SPRING COMPRESSOR WCI G132978 Contact Us For Availability
16
WCI G136381 WCI G136381 Contact Us For Availability
16
NUT-COMPRESSOR-MTG ( 3 ) WCI G156927 Contact Us For Availability
16
BRKT-STOOL SUPPORT WCI G500741 Contact Us For Availability
17
WCI G136378 WCI G136378 Contact Us For Availability
17
WCI G99148 WCI G99148 Contact Us For Availability
17
WCI G512925-02 WCI G512925-02 Contact Us For Availability
18
WCI G119621 WCI G119621 Contact Us For Availability
18
WCI G149186-02 WCI G149186-02 Contact Us For Availability
19
WCI G157614 WCI G157614 Contact Us For Availability
19
WCI G100773 WCI G100773 Contact Us For Availability
20
WCI G506431 WCI G506431 Contact Us For Availability
20
WCI G500309 WCI G500309 Contact Us For Availability
20
WCI G149202-03 WCI G149202-03 Contact Us For Availability
21
WCI G157606 WCI G157606 Contact Us For Availability
21
WCI G514592 WCI G514592 Contact Us For Availability
21
WCI G514593 WCI G514593 Contact Us For Availability
21
WCI G117313 WCI G117313 Contact Us For Availability
22
WCI G144044-01 WCI G144044-01 Contact Us For Availability
22
SCREW-WINDOW PNL MTG ( 2 ) WCI G500637 Contact Us For Availability
22
CLAMP COVER WCI G116606 Contact Us For Availability
23
WCI G513810 WCI G513810 Contact Us For Availability
23
WCI G149187-02 WCI G149187-02 Contact Us For Availability
24
WCI G508744 WCI G508744 Contact Us For Availability
25
SCREW ( 6 ) WCI G500739 Contact Us For Availability
26
WCI G153212 WCI G153212 Contact Us For Availability
28
SWITCH WCI G514218 Contact Us For Availability
× ![]()
