Model Electrolux M421D2SA ROOM AIR CONDITIONER – Common Parts & Diagrams

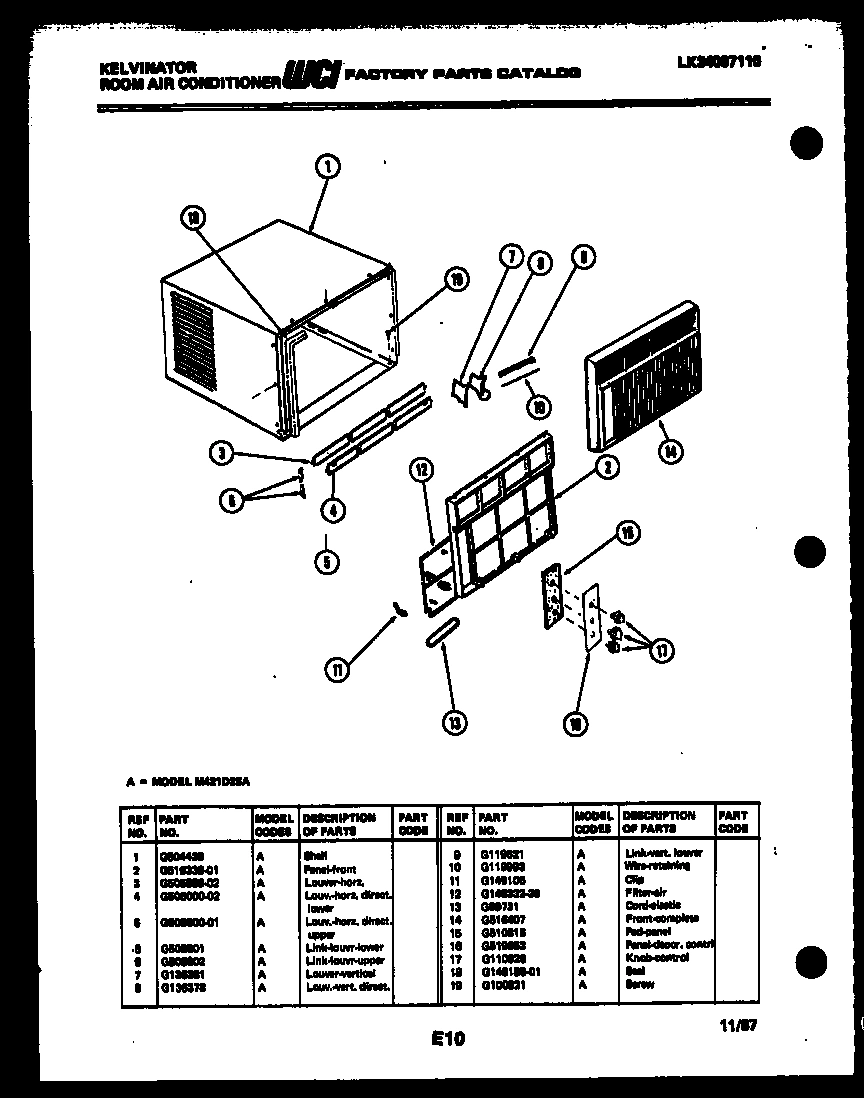

02 - CABINET PARTS

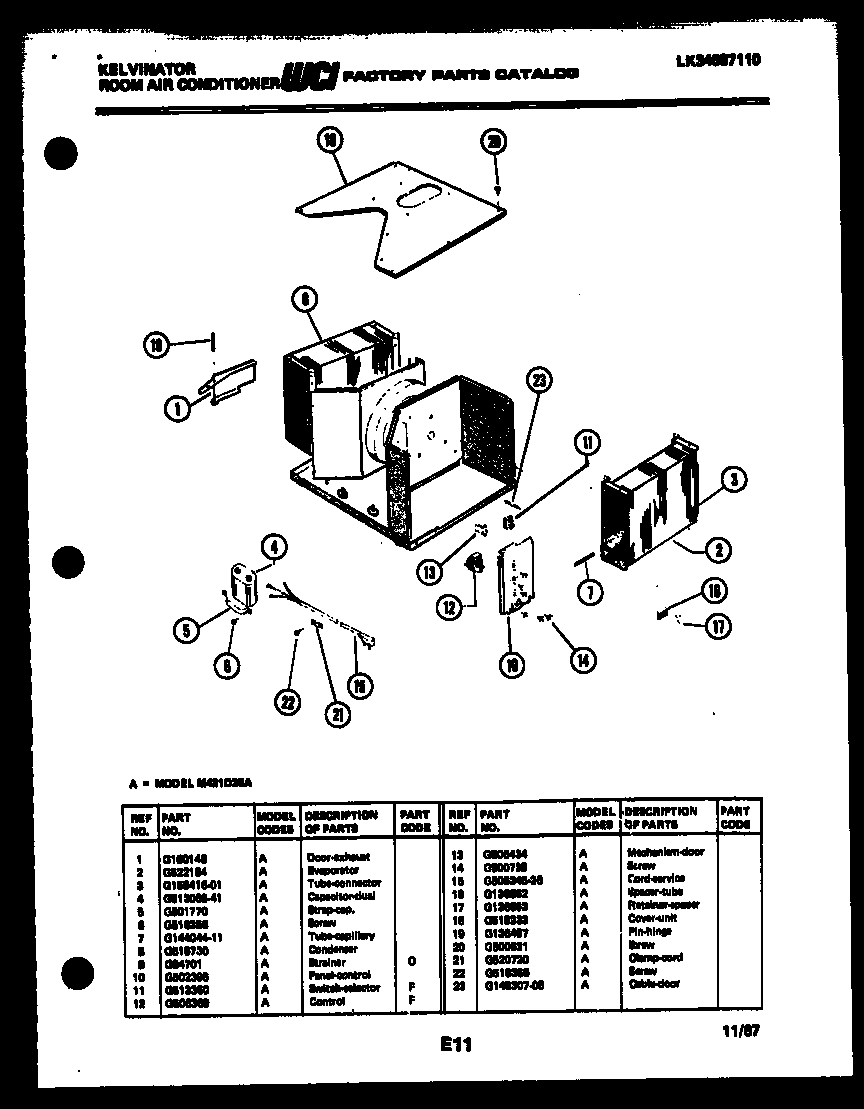

03 - UNIT PARTS
04 - AIR HANDLING PARTS

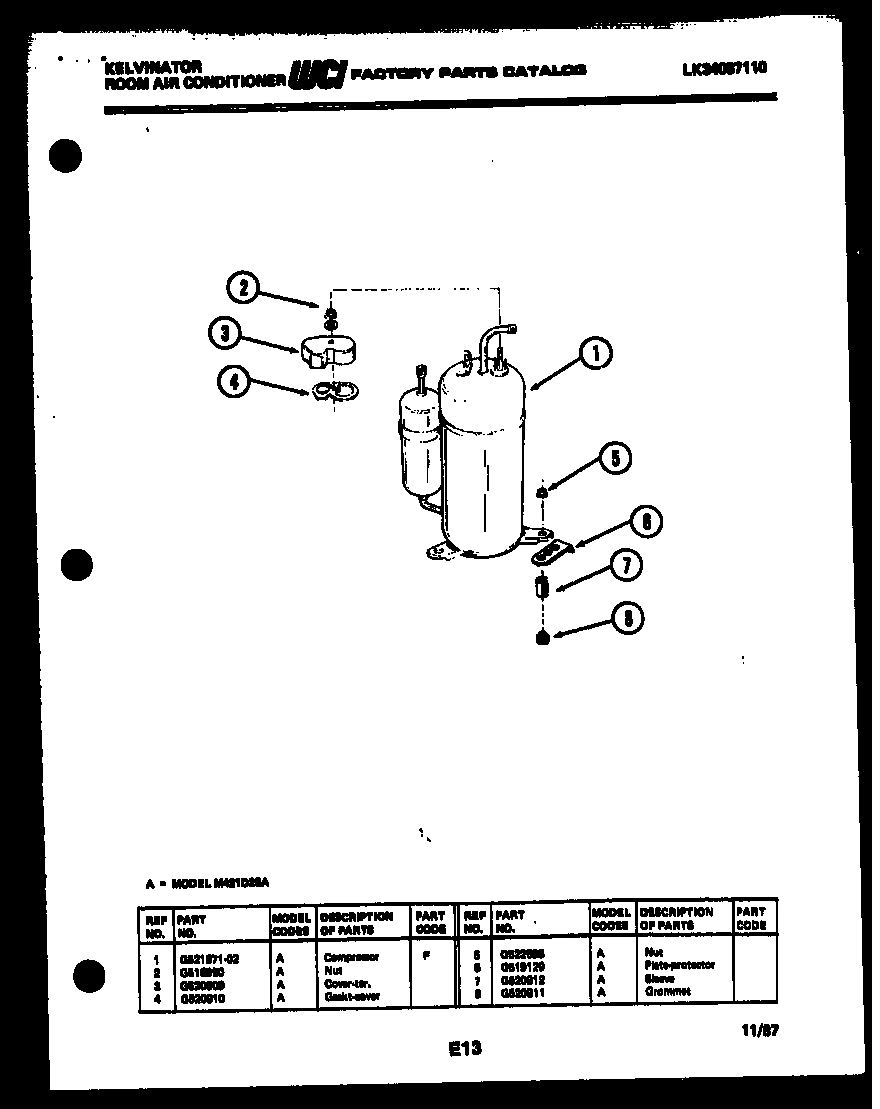

05 - COMPRESSOR

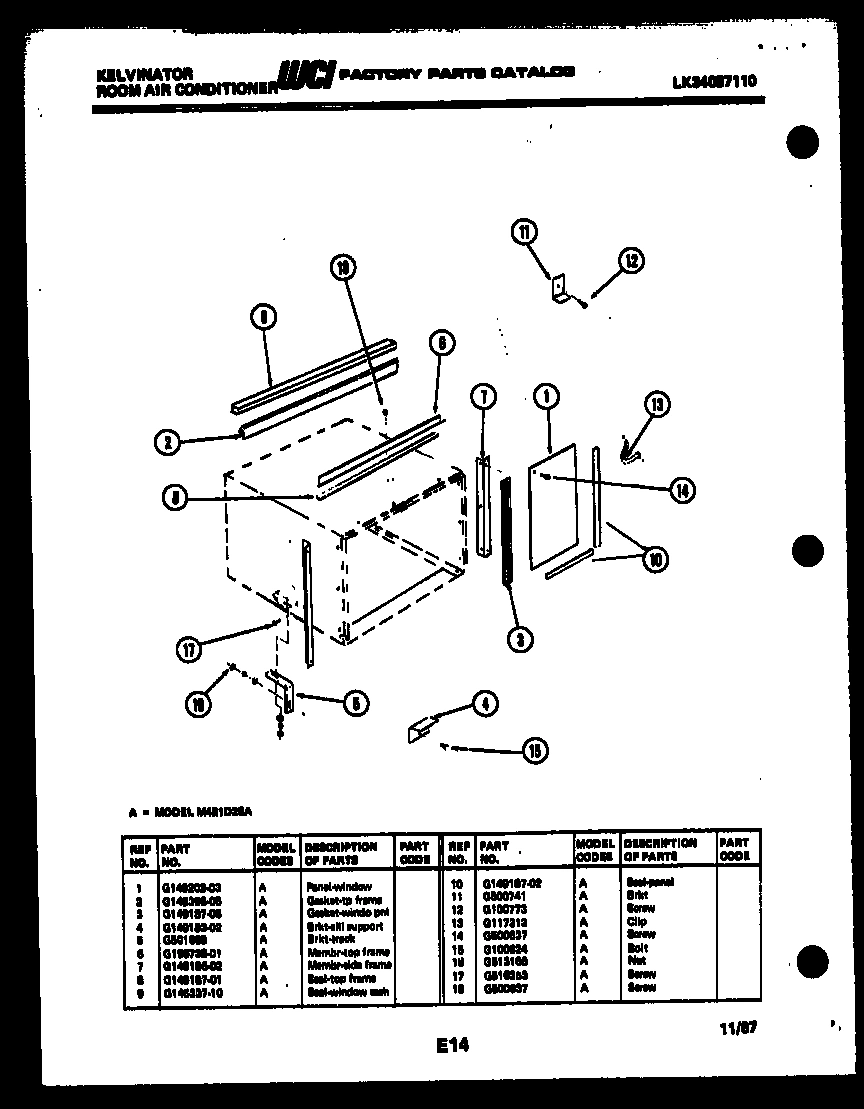

06 - CABINET PARTS
Common parts from model Electrolux M421D2SA ROOM AIR CONDITIONER
1
WCI G504435 WCI G504435 Contact Us For Availability
1
WCI G160146 WCI G160146 Contact Us For Availability
1
WCI G519675 WCI G519675 Contact Us For Availability
1
WCI G521871-02 WCI G521871-02 Contact Us For Availability
1
WCI G149202-03 WCI G149202-03 Contact Us For Availability
2
PANEL-FRONT WCI G516339-01 Contact Us For Availability
2
WCI G522184 WCI G522184 Contact Us For Availability
2
WCI G119108 WCI G119108 Contact Us For Availability
2
NUT WCI G516950 Contact Us For Availability
2
GASKET-TP FRAME WCI G149356-05 Contact Us For Availability
3
LOUVER-HORZ. WCI G505999-02 Contact Us For Availability
3
WCI G158416-01 WCI G158416-01 Contact Us For Availability
3
WCI G119302 WCI G119302 Contact Us For Availability
3
COVER - TER. WCI G520909 Contact Us For Availability
3
GASKET-WINDO PNL WCI G149187-05 Contact Us For Availability
4
LOUV.-HORZ. DIRECT. LOWER WCI G506000-02 Contact Us For Availability
4
CAPACITOR-DUAL WCI G513068-41 Contact Us For Availability
4
WCI G99148 WCI G99148 Contact Us For Availability
4
GASKT-COVER WCI G520910 Contact Us For Availability
4
BRKT-SILL SUPPORT WCI G149183-02 Contact Us For Availability
5
LOUV.-HORZ. DIRECT. UPPER WCI G508800-01 Contact Us For Availability
5
STRAP-CAP. WCI G501770 Contact Us For Availability
5
NUT WCI G521082 Contact Us For Availability
5
NUT WCI G522598 Contact Us For Availability
5
BRKT-TRACK WCI G501665 Contact Us For Availability
6
LINK-LOUVR-LOWER WCI G508801 Contact Us For Availability
6
LINK-LOUVR-UPPER WCI G508802 Contact Us For Availability
6
SCREW WCI G516356 Contact Us For Availability
6
WHEEL-BLOWER WCI G516153 Contact Us For Availability
6
WCI G519129 WCI G519129 Contact Us For Availability
6
MEMBR-TOP FRAME WCI G156738-01 Contact Us For Availability
7
WCI G136381 WCI G136381 Contact Us For Availability
7
TUBE-CAPILLARY WCI G144044-11 Contact Us For Availability
7
FAN-SLINGER RING WCI G517552 Contact Us For Availability
7
SLEEVE WCI G520912 Contact Us For Availability
7
MEMBR-SIDE FRAME WCI G149186-02 Contact Us For Availability
8
WCI G136378 WCI G136378 Contact Us For Availability
8
CONDENSER WCI G519730 Contact Us For Availability
8
WCI G149147-04 WCI G149147-04 Contact Us For Availability
8
GROMMET WCI G520911 Contact Us For Availability
8
SEAL-TOP FRAME WCI G149187-01 Contact Us For Availability
9
WCI G119621 WCI G119621 Contact Us For Availability
9
STRAINER (NON-ILLUSTRATED) WCI G84701 Contact Us For Availability
9
WCI G145337-10 WCI G145337-10 Contact Us For Availability
10
WCI G119993 WCI G119993 Contact Us For Availability
10
WCI G502395 WCI G502395 Contact Us For Availability
10
WCI G519536 WCI G519536 Contact Us For Availability
10
SEAL-PANEL WCI G149187-02 Contact Us For Availability
11
CLIP WCI G149106 Contact Us For Availability
11
SWITCH-SELECTOR WCI G513350 Contact Us For Availability
11
WCI G521208 WCI G521208 Contact Us For Availability
11
BRKT WCI G500741 Contact Us For Availability
12
FILTER-AIR WCI G145332-39 Contact Us For Availability
12
CONTROL WCI G506369 Contact Us For Availability
12
WCI G521086 WCI G521086 Contact Us For Availability
12
WCI G100773 WCI G100773 Contact Us For Availability
13
WCI G99731 WCI G99731 Contact Us For Availability
13
MECHANISM-DOOR WCI G506434 Contact Us For Availability
13
WCI G117313 WCI G117313 Contact Us For Availability
14
FRONT-COMPLETE WCI G516407 Contact Us For Availability
14
SCREW WCI G500739 Contact Us For Availability
15
PAD-PANEL WCI G510816 Contact Us For Availability
15
WCI G506345-26 WCI G506345-26 Contact Us For Availability
15
WCI G100824 WCI G100824 Contact Us For Availability
16
PANEL-DECOR. CONTRL WCI G519653 Contact Us For Availability
16
WCI G136662 WCI G136662 Contact Us For Availability
16
NUT WCI G513166 Contact Us For Availability
17
WCI G110826 WCI G110826 Contact Us For Availability
17
WCI G136663 WCI G136663 Contact Us For Availability
18
SEAL WCI G149188-01 Contact Us For Availability
18
COVER-UNIT WCI G519233 Contact Us For Availability
18
SCREW WCI G500637 Contact Us For Availability
19
WCI G100821 WCI G100821 Contact Us For Availability
19
WCI G136497 WCI G136497 Contact Us For Availability
20
WCI G500621 WCI G500621 Contact Us For Availability
21
CLAMP-CORD WCI G520720 Contact Us For Availability
22
SCREW WCI G516355 Contact Us For Availability
23
WCI G145307-06 WCI G145307-06 Contact Us For Availability
× ![]()
