Model Whirlpool M41B-10P-W6 MICROWAVE – Common Parts & Diagrams

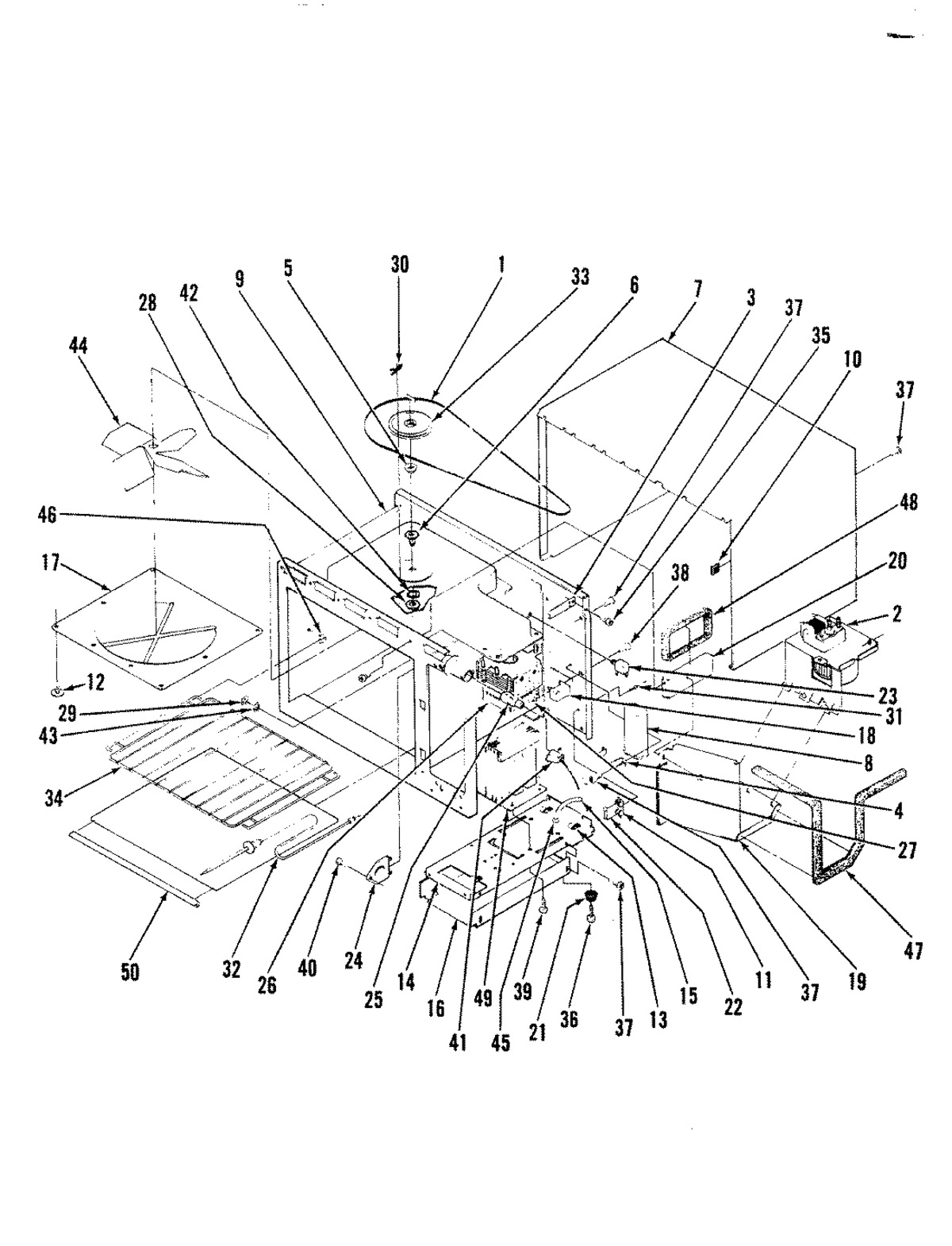

01 - BASE & CAVITY

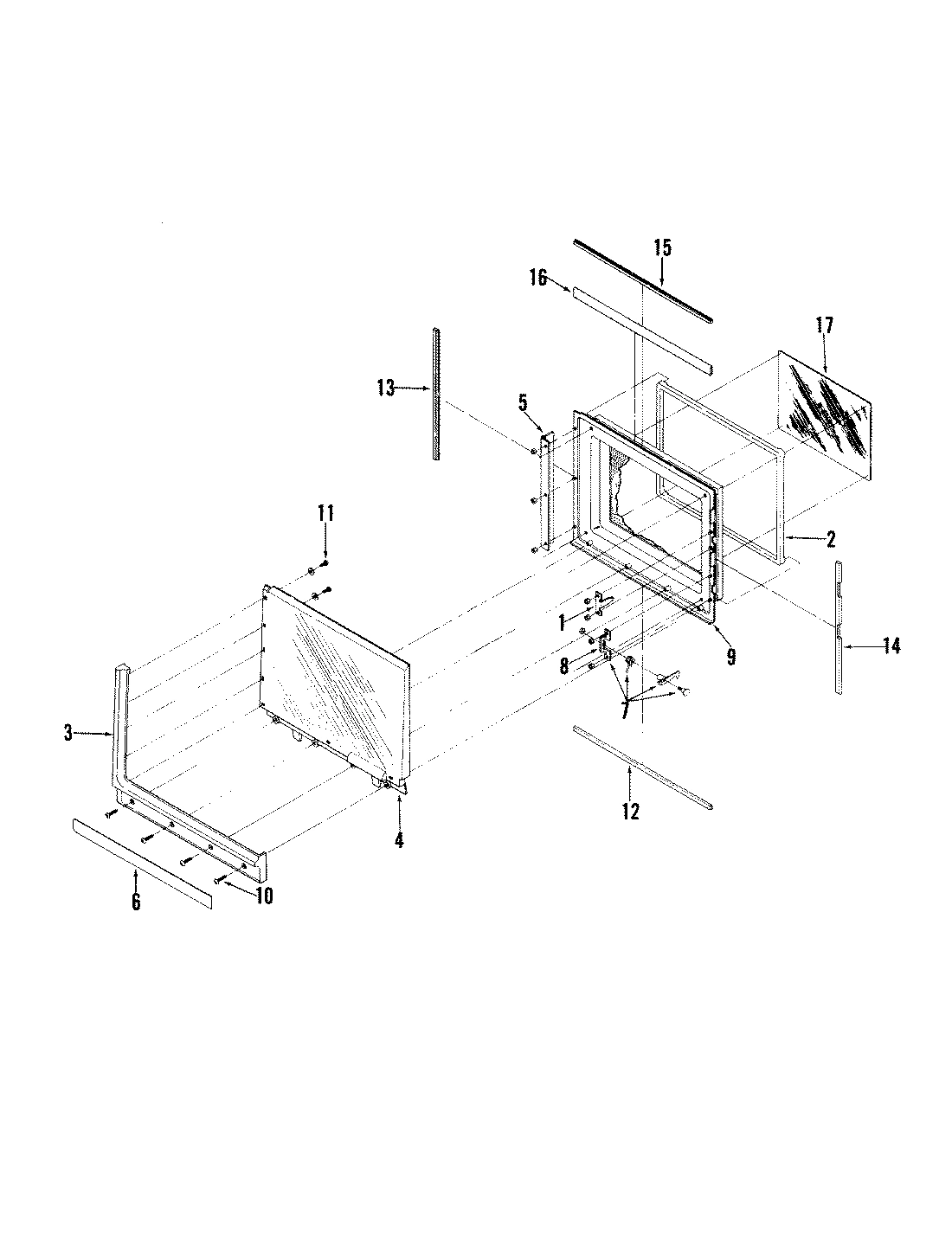

03 - DOOR

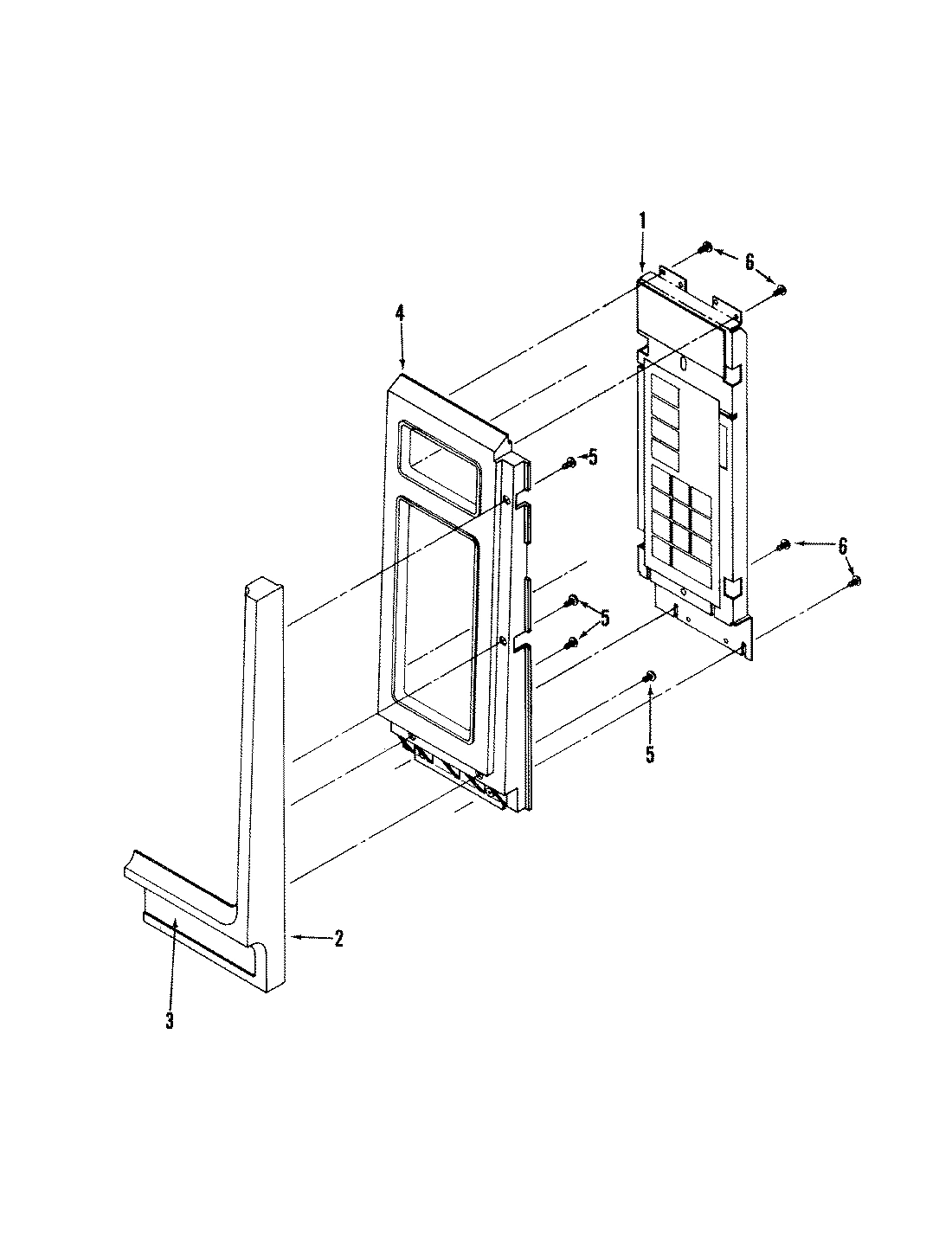

02 - CONTROL PANEL

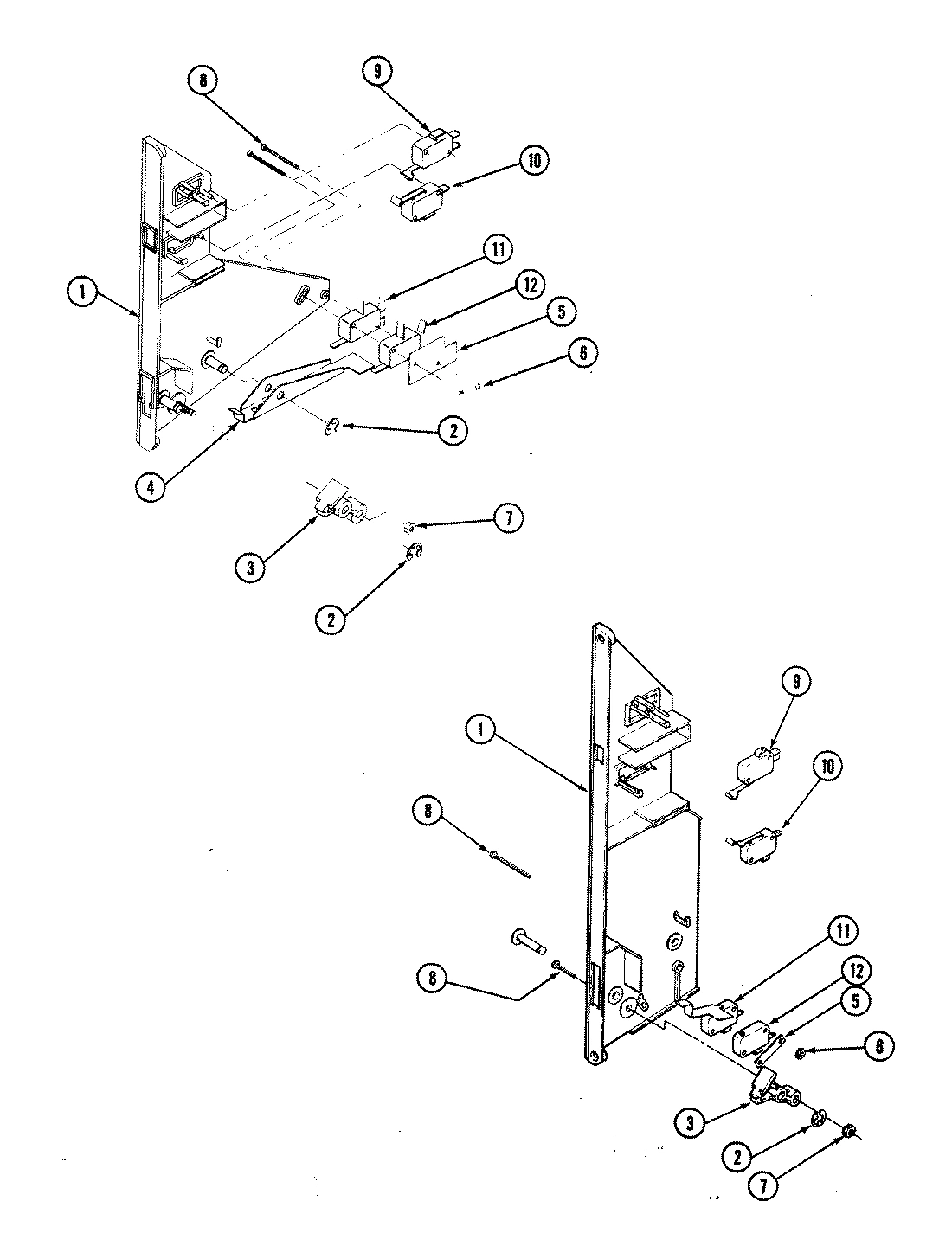

04 - LATCH RELEASE

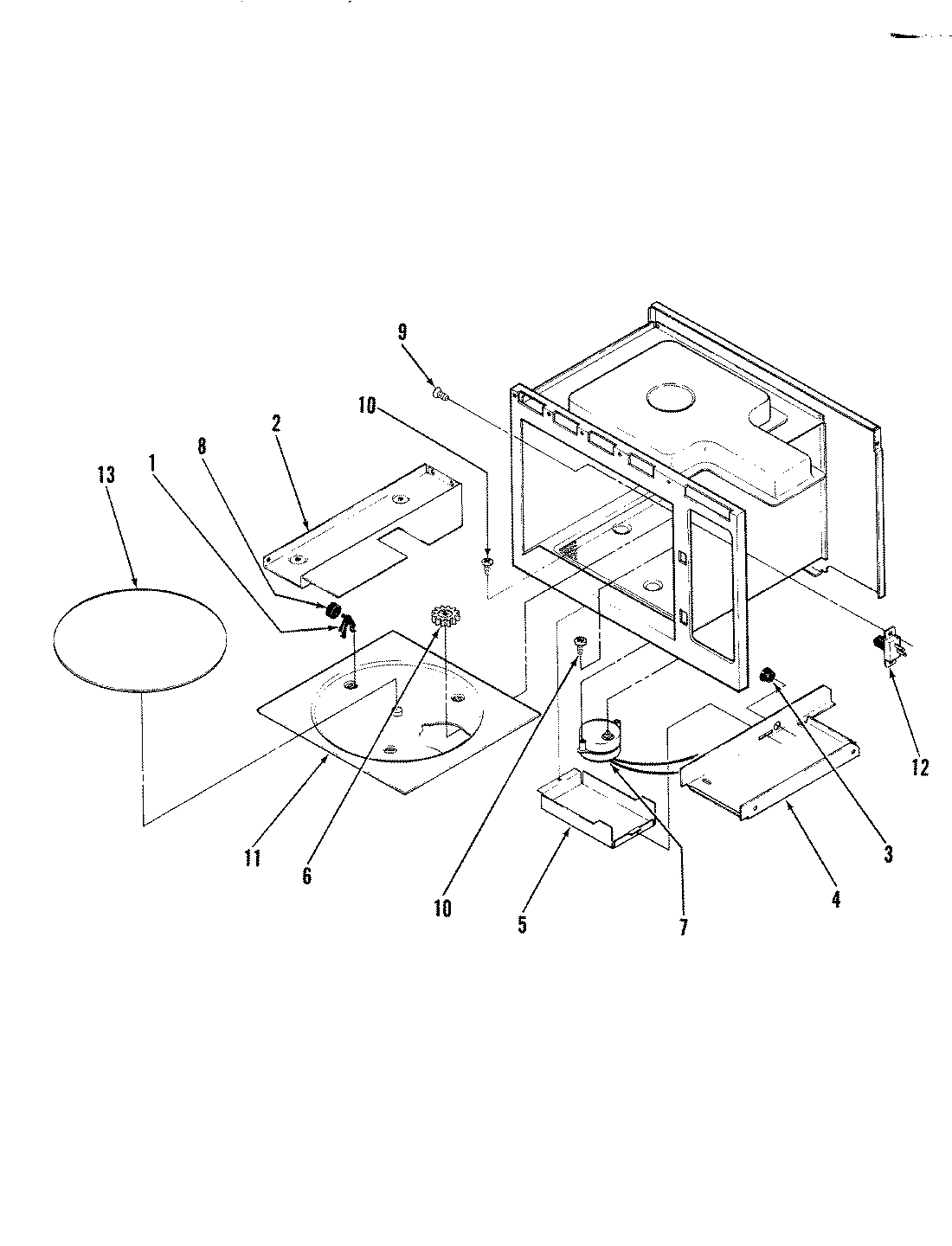

05 - TURNTABLE
Common parts from model Whirlpool M41B-10P-W6 MICROWAVE
1
STIRRER BLADE WPL 02360031 Contact Us For Availability
1
STIRRER BELT WPL Y02390008 Contact Us For Availability
1
ACTIVATOR, MONITOR WPL Y02030117 Contact Us For Availability
1
BOARD, CONTROL WPL 01210016 Contact Us For Availability
1
BRACKET, INTERLOCK WPL Y02030133 Contact Us For Availability
1
BEARING WPL Y02440001 Contact Us For Availability
2
BLOWER ASSY. WPL 04021096 Contact Us For Availability
2
BRACE WPL 04021111 Contact Us For Availability
2
SUPPORT TURNTABLE WPL Y02020024 Contact Us For Availability
2
CHOKE, FILLER (WHT) WPL Y02100080 Contact Us For Availability
2
FRAME WPL 02100061 Contact Us For Availability
2
CLIP, RETAINER WPL 03110040 Contact Us For Availability
3
BRACE, UPPER RIGHT SUPPORT WPL 02020020 Contact Us For Availability
3
INSERT WPL 02100103 Contact Us For Availability
3
TRIM, DOOR FRAME WPL 02100063 Contact Us For Availability
3
LABEL, RELAMPING WPL 02240407 Contact Us For Availability
3
LATCH, DOOR INTERLOCK WPL 02190049 Contact Us For Availability
3
BUSHING WPL Y03140008 Contact Us For Availability
4
BRACKET WPL 02030123 Contact Us For Availability
4
GLASS, OUTER WPL 02220077 Contact Us For Availability
4
DECORATIVE PANEL WPL 02060212 Contact Us For Availability
4
SWITCH LEVER WPL 02180010 Contact Us For Availability
4
PLATE, COMPONENT MOUNTING WPL 02040053 Contact Us For Availability
5
BUSHING PULLEY WPL 02360022 Contact Us For Availability
5
HINGE, DOOR WPL 02200016 Contact Us For Availability
5
SCREW WPL 03020063 Contact Us For Availability
5
INSULATOR, SWITCH WPL Y01100043 Contact Us For Availability
5
COVER, MTR TURNTABLE WPL 02300038 Contact Us For Availability
6
BUSHING WPL 02360034 Contact Us For Availability
6
SCREW WPL 03020054 Contact Us For Availability
6
NUT WPL Y03050001 Contact Us For Availability
6
LABEL, TURNTABLE ON/OFF WPL 12240624 Contact Us For Availability
6
GEAR, TURNTABLE WPL Y02450002 Contact Us For Availability
7
WRAPPER WPL Y02140042 Contact Us For Availability
7
+ DOOR LATCH ASSY WPL 07020149 Contact Us For Availability
7
NUT WPL 03050003 Contact Us For Availability
7
MOTOR, TURNTABLE WPL 01110022 Contact Us For Availability
8
CAPACITOR WPL Y01020022 Contact Us For Availability
8
NUT WPL 03050033 Contact Us For Availability
8
SCREW WPL 03010131 Contact Us For Availability
8
ROLLER WPL 02210010 Contact Us For Availability
9
CAVITY, OVEN WPL 04021101 Contact Us For Availability
9
SCREW WPL 03020077 Contact Us For Availability
9
INNER DOOR WPL 02060221 Contact Us For Availability
9
SWITCH, SECONDARY INTERLOCK WPL Y01140038 Contact Us For Availability
10
CLIP, CABINET (RT) WPL 03110027 Contact Us For Availability
10
CLIP, CABINET (LT) WPL 03110046 Contact Us For Availability
10
SCREW WPL Y03010118 Contact Us For Availability
10
SWITCH, MONITOR INTERLOCK WPL Y01140030 Contact Us For Availability
10
SCREW WPL 03010098 Contact Us For Availability
11
PLASTIC GUIDE WPL Y03110052 Contact Us For Availability
11
SCREW & WASHER (HI LO) WPL Y03020071 Contact Us For Availability
11
SWITCH, PRIMARY INTERLOCK WPL Y01140042 Contact Us For Availability
11
SHELF, TURNTABLE WPL 02280028 Contact Us For Availability
12
CLIP STIRRER WPL 03110018 Contact Us For Availability
12
CLIP WPL Y03110050 Contact Us For Availability
12
SEAL, BOTTOM WPL 02120114 Contact Us For Availability
12
SWITCH, LOGIC INTERLOCK WPL Y01140043 Contact Us For Availability
12
SWITCH WPL 01140054 Contact Us For Availability
13
CLIP WPL Y03110059 Contact Us For Availability
13
SEAL, HINGE SIDE WPL Y02120121 Contact Us For Availability
13
TURNTABLE WPL 02460004 Contact Us For Availability
14
PLATE, COMP MTG WPL 02040074 Contact Us For Availability
14
SEAL, LATCH SIDE WPL Y02120122 Contact Us For Availability
15
CORD, POWER WPL 01080052 Contact Us For Availability
15
SEAL, TOP WPL 02120118 Contact Us For Availability
15
SHIM WPL Y03120064 Contact Us For Availability
16
TAPE, BUFFER WPL 02310129 Contact Us For Availability
17
COVER, STIRRER WPL Y02300021 Contact Us For Availability
17
WINDOW, POLYESTER WPL Y02220073 Contact Us For Availability
18
DIODE WPL Y01030010 Contact Us For Availability
19
DUCT ASSEMBLY, MAGNETRON WPL Y04020842 Contact Us For Availability
20
SUPPORT, MAG DUCT WPL Y02170112 Contact Us For Availability
21
FOOT, BASE WPL Y02230008 Contact Us For Availability
22
FUSE 15A 125V WPL Y01050005 Contact Us For Availability
22
GUIDE WPL Y02360036 Contact Us For Availability
23
PROBE, JACK WPL 01170010 Contact Us For Availability
24
LENS, BULB WPL Y02400007 Contact Us For Availability
25
BULB, LIGHT WPL Y01060024 Contact Us For Availability
26
MAGNETRON WPL 01040004 Contact Us For Availability
29
PROBE JACK NUT WPL 03050035 Contact Us For Availability
30
COTTER PIN WPL 03070013 Contact Us For Availability
31
RIVET, POP WPL Y03060004 Contact Us For Availability
32
PROBE, TEMP. WPL 01220006 Contact Us For Availability
33
STIRRER PULLEY WPL 04020796 Contact Us For Availability
34
RACK, OVEN WPL Y02410004 Contact Us For Availability
35
GROUND SCREW WPL 03010082 Contact Us For Availability
39
SCREW WPL 03010094 Contact Us For Availability
40
STIRRER, SHAFT WPL 02360035 Contact Us For Availability
40
SCREW WPL 03020004 Contact Us For Availability
40
SCREW WPL 03020060 Contact Us For Availability
41
SOCKET, LAMP WPL 01100041 Contact Us For Availability
41
WAVEGUIDE BUMPER WPL 03120021 Contact Us For Availability
42
PROBE JACK LOCKNUT WPL 03030011 Contact Us For Availability
43
STARWASHER WPL 03030012 Contact Us For Availability
44
STIRRER ASSY WPL 04020778 Contact Us For Availability
45
STRAIN, RELIEF WPL 03150023 Contact Us For Availability
46
SUPPORT, RACK WPL 02010031 Contact Us For Availability
46
SWITCH, TEMPERATURE LIMIT WPL Y01180008 Contact Us For Availability
47
TAPE, FOAM WPL 02310070 Contact Us For Availability
48
TAPE, FOAM WPL 02310109 Contact Us For Availability
49
TRANSFORMER, H.V. WPL 01130028 Contact Us For Availability
50
NOT REQUIRED PART OR SEE NOTE WPL W10124350 Contact Us For Availability
50
WIRE HARNESS WPL 04010187 Contact Us For Availability
50
HV LEAD WIRE WPL 04060534 Contact Us For Availability
50
HV LEAD WIRE (8 ``) WPL Y04060532 Contact Us For Availability
50
HV LEAD WIRE (16``) WPL Y04060535 Contact Us For Availability
× ![]()
