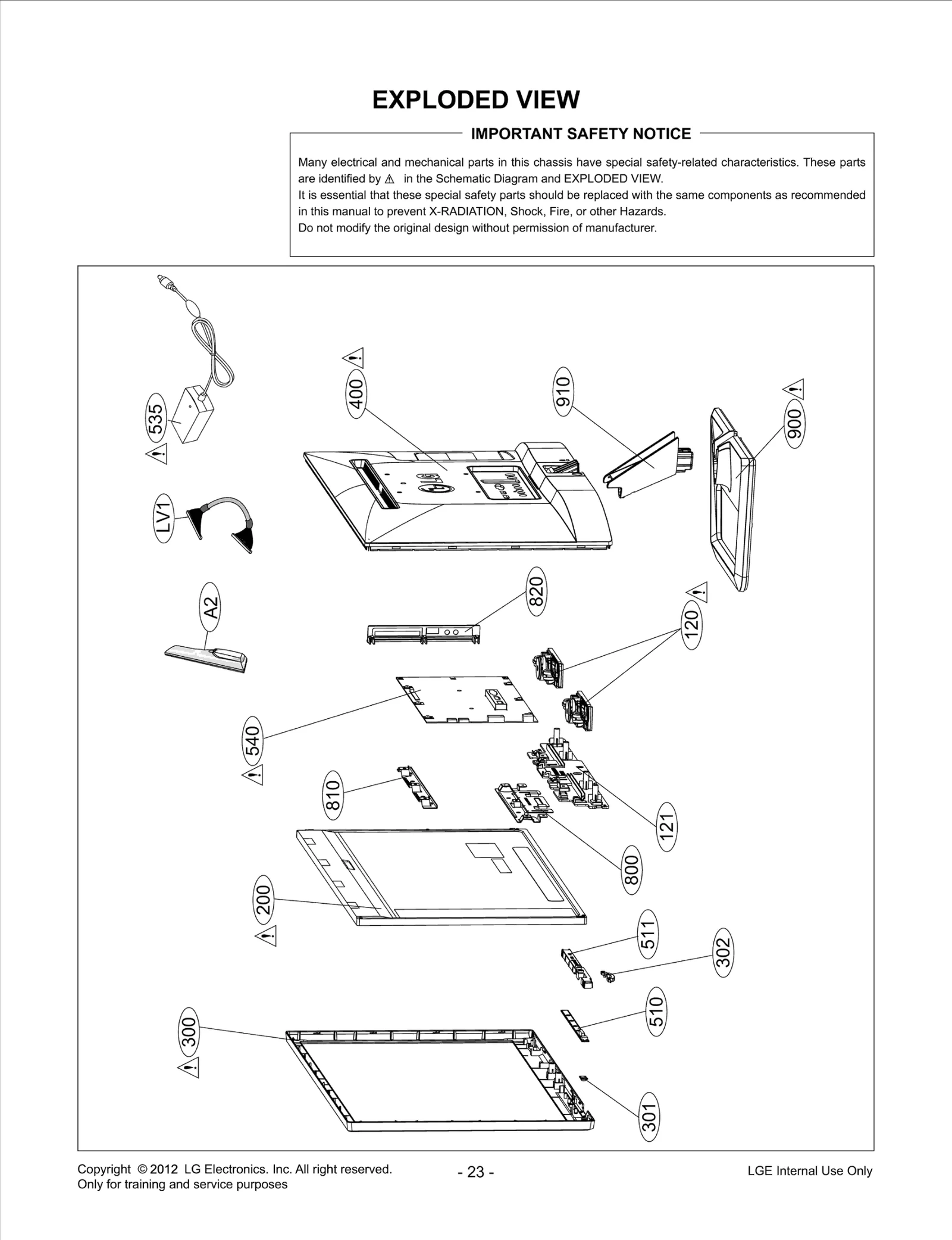

Model LG M2352D-PU – Common Parts & Diagrams

120
Speaker,Full Range
Speaker,Full Range LGE EAB35995505 Contact Us For Availability
View on Model
121
Cover
Cover LGE MCK67134904 Contact Us For Availability
View on Model
200
LCD,Module-TFT
LCD,Module-TFT LGE EAJ62071602 Contact Us For Availability
View on Model
200
LCD,Module-TFT
LCD,Module-TFT LGE EAJ62071601 Contact Us For Availability
View on Model
300
Cabinet Assembly
Cabinet Assembly LGE ABJ73749105 Contact Us For Availability
View on Model
301
Lens
Lens LGE MFB62873502 Contact Us For Availability
View on Model
400
Cover Assembly,Rear
Cover Assembly,Rear LGE ACQ85906907 Contact Us For Availability
View on Model
510
Package Assembly
Package Assembly LGE AGF76500101 Contact Us For Availability
View on Model
511
Cover
Cover LGE MCK67134202 Contact Us For Availability
View on Model
535
Adapters
Adapters LGE EAY61231405 Contact Us For Availability
View on Model
540
DMS Chassis Assembly
DMS Chassis Assembly LGE EBT62054704 Contact Us For Availability
View on Model
800
Plate,Metal
Plate,Metal LGE MGJ63366502 Contact Us For Availability
View on Model
810
Plate,Metal
Plate,Metal LGE MGJ63366302 Contact Us For Availability
View on Model
820
Cover
Cover LGE MCK67135004 Contact Us For Availability
View on Model
900
Base Assembly
Base Assembly LGE AAN74050904 Contact Us For Availability
View on Model
910
Base Assembly
Base Assembly LGE AAN74131910 Contact Us For Availability
View on Model
A2
Remote Controller Assembly
Remote Controller Assembly LGE AKB73655845 Contact Us For Availability
View on Model
C838
CAPACITOR,FIXED CERA
CAPACITOR,FIXED CERA LGE 0CK333CK56A Contact Us For Availability
View on Model
C843
CAPACITOR,FIXED CERA
CAPACITOR,FIXED CERA LGE 0CK105CD56A Contact Us For Availability
View on Model
C860
Capacitor,Ceramic,Ch
Capacitor,Ceramic,Ch LGE 0CK335FK66A Contact Us For Availability
View on Model
C861
CAPACITOR,FIXED CERA
CAPACITOR,FIXED CERA LGE 0CK104CK56A Contact Us For Availability
View on Model
C879
CAPACITOR,FIXED CERA
CAPACITOR,FIXED CERA LGE 0CK475DD56A Contact Us For Availability
View on Model
D710
DIODE,SWITCHING
DIODE,SWITCHING LGE 0DS226009AA Contact Us For Availability
View on Model
IC100
IC,Serial Flash Memory
IC,Serial Flash Memory LGE EAN55718402 Contact Us For Availability
View on Model
IC100
IC,Serial Flash Memory
IC,Serial Flash Memory LGE EAN61327101 Contact Us For Availability
View on Model
L2602
FILTER(CIRC),EMC
FILTER(CIRC),EMC LGE 0LCML00003B Contact Us For Availability
View on Model
LV1
Cable,FFC
Cable,FFC LGE EAD61217857 Contact Us For Availability
View on Model
P400
Connector,DSUB
Connector,DSUB LGE 6630TGA004Q Contact Us For Availability
View on Model
R803
RESISTOR  CHIP, 36K 1/10W 5 D.
RESISTOR CHIP, 36K 1/10W 5 D. LGE 0RH3602D622 Contact Us For Availability
View on Model
R815
Resistor,Chip
Resistor,Chip LGE 0RH3003D622 Contact Us For Availability
View on Model
