Model Electrolux M208F1QA1 ROOM AIR CONDITIONER – Common Parts & Diagrams

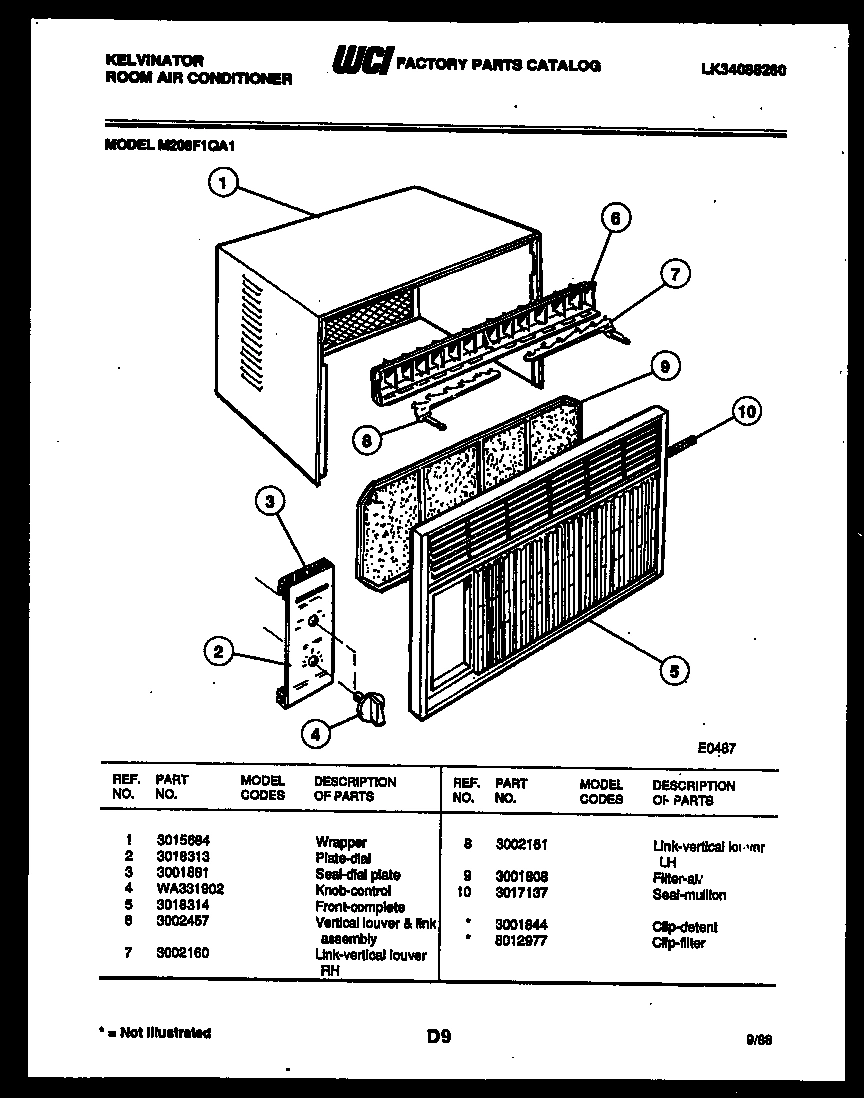

02 - CABINET PARTS

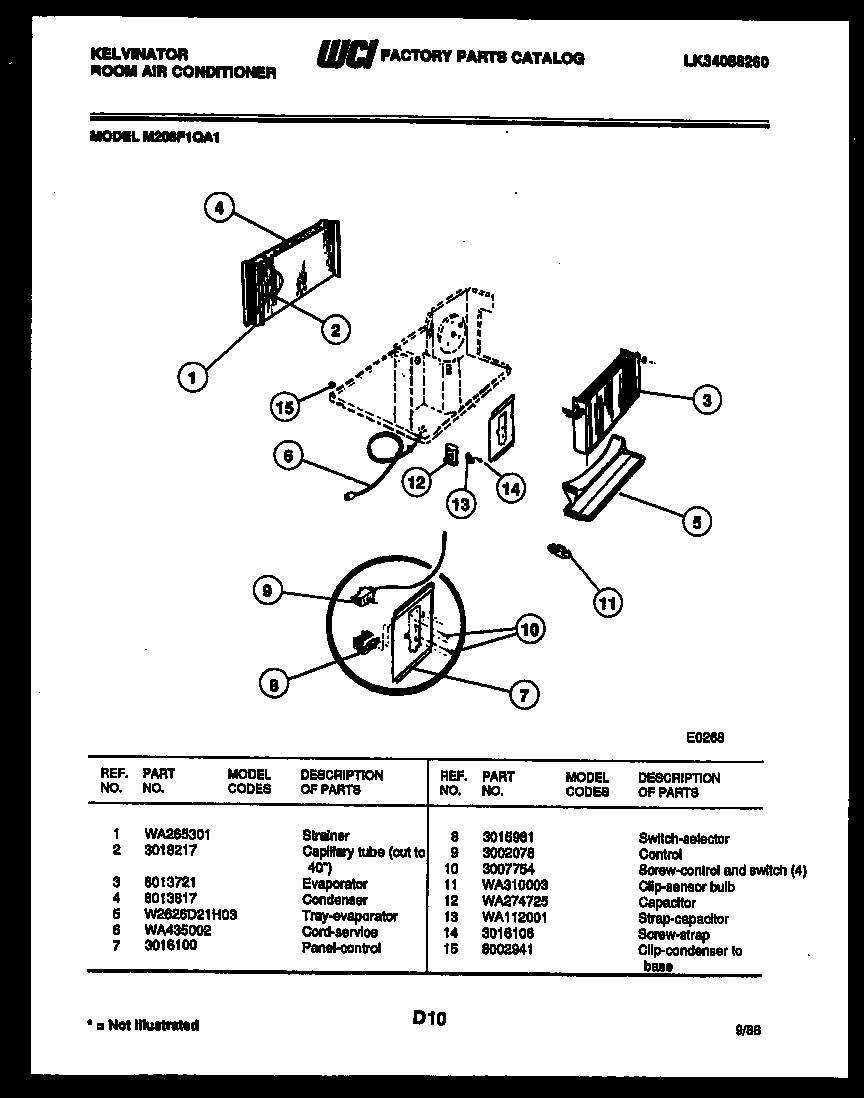

03 - ELECTRICAL PARTS
04 - AIR HANDLING PARTS
05 - COMPRESSOR
06 - CABINET AND INSTALLATION PARTS
Common parts from model Electrolux M208F1QA1 ROOM AIR CONDITIONER
*77836
CLIP-DETENT WCI 3001844 Contact Us For Availability
*77836
WCI 8012977 WCI 8012977 Contact Us For Availability
1
WRAPPER WCI 3015684 Contact Us For Availability
1
WCI 3200945 WCI 3200945 Contact Us For Availability
1
WCI 3017093 WCI 3017093 Contact Us For Availability
1
RAIL-BOTTOM WCI 3011980 Contact Us For Availability
1A
SCREW-MOUNTING MOTOR (3) (NON-ILLUSTRATED) WCI 3001817 Contact Us For Availability
2
PLATE-DIAL WCI 3018313 Contact Us For Availability
2
CAPILLARY TUBE (CUT TO 40``) WCI 3018217 Contact Us For Availability
2
WCI W2625D25H05 WCI W2625D25H05 Contact Us For Availability
2
WCI 3211015 WCI 3211015 Contact Us For Availability
2
RETAINER (2) WCI WA337901 Contact Us For Availability
3
WCI 3001861 WCI 3001861 Contact Us For Availability
3
WCI 8013721 WCI 8013721 Contact Us For Availability
3
WCI 3002074 WCI 3002074 Contact Us For Availability
3
NUT WCI 8006948 Contact Us For Availability
3
WCI WA253701 WCI WA253701 Contact Us For Availability
4
WCI WA331902 WCI WA331902 Contact Us For Availability
4
CONDENSER WCI 8013817 Contact Us For Availability
4
OVERLOAD WCI 3200987 Contact Us For Availability
4
SEAL-TOP WCI W187C140H46 Contact Us For Availability
5
WCI 3018314 WCI 3018314 Contact Us For Availability
5
WCI W2626D21H03 WCI W2626D21H03 Contact Us For Availability
5
GASKET-TERMINAL COVER WCI 3211018 Contact Us For Availability
5
SCREW (4) WCI W684B755H04 Contact Us For Availability
6
VERTICAL LOUVER & LINK ASSEMBLY WCI 3002457 Contact Us For Availability
6
WCI WA435002 WCI WA435002 Contact Us For Availability
6
WCI W2625D24H02 WCI W2625D24H02 Contact Us For Availability
6
WCI 3211013 WCI 3211013 Contact Us For Availability
6
WCI WA452602 WCI WA452602 Contact Us For Availability
7
LINK-VERTICAL LOUVER RH WCI 3002160 Contact Us For Availability
7
WCI 3016100 WCI 3016100 Contact Us For Availability
7
WCI WA264601 WCI WA264601 Contact Us For Availability
7
CAP - TERMINAL COVER WCI 3211014 Contact Us For Availability
7
WCI WA337701 WCI WA337701 Contact Us For Availability
8
LINK-VERTICAL LOUVER LH WCI 3002161 Contact Us For Availability
8
WCI 3015961 WCI 3015961 Contact Us For Availability
8
NUT - TERMINAL COVER WCI 3211017 Contact Us For Availability
8
RETAINER-ACCORDIAN WCI WA135101 Contact Us For Availability
9
WCI 3001808 WCI 3001808 Contact Us For Availability
9
CONTROL WCI 3002078 Contact Us For Availability
9
WCI 3012423 WCI 3012423 Contact Us For Availability
9
WCI 3002664 WCI 3002664 Contact Us For Availability
9
SCREW - ADJUSTMENT WCI 3002801 Contact Us For Availability
10
WCI 3017137 WCI 3017137 Contact Us For Availability
10
SCREW-CONTROL AND SWITCH (4) WCI 3007754 Contact Us For Availability
10
WCI 3002573 WCI 3002573 Contact Us For Availability
10
GASKET-COVER WCI 3211012 Contact Us For Availability
10
WCI WA452601 WCI WA452601 Contact Us For Availability
11
CLIP-SENSOR BULB WCI WA310003 Contact Us For Availability
12
WCI WA274725 WCI WA274725 Contact Us For Availability
12
SCREW (4) WCI 3001806 Contact Us For Availability
13
WCI WA112001 WCI WA112001 Contact Us For Availability
13
WCI WA333501 WCI WA333501 Contact Us For Availability
14
SCREW-STRAP WCI 3016106 Contact Us For Availability
14
NUT WCI 3007760 Contact Us For Availability
15
CLIP-CONDENSER TO BASE WCI 8002941 Contact Us For Availability
15
SCREW WCI WA115602 Contact Us For Availability
16
STOP - WINDOW WCI 3018951 Contact Us For Availability
17
WCI 3002803 WCI 3002803 Contact Us For Availability
19
WASHER (2) WCI 3002646 Contact Us For Availability
21
WCI 3017451 WCI 3017451 Contact Us For Availability
× ![]()
