Model Electrolux M208F1EA1 ROOM AIR CONDITIONER – Common Parts & Diagrams

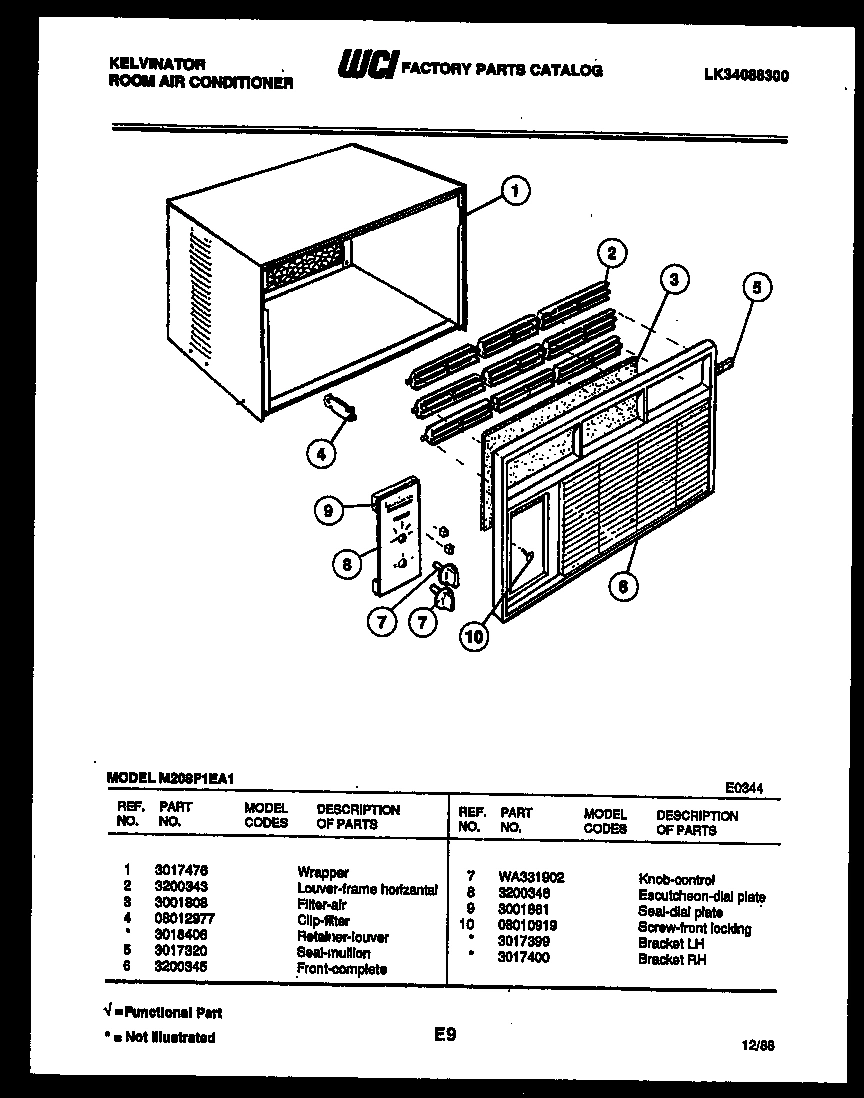

02 - CABINET PARTS

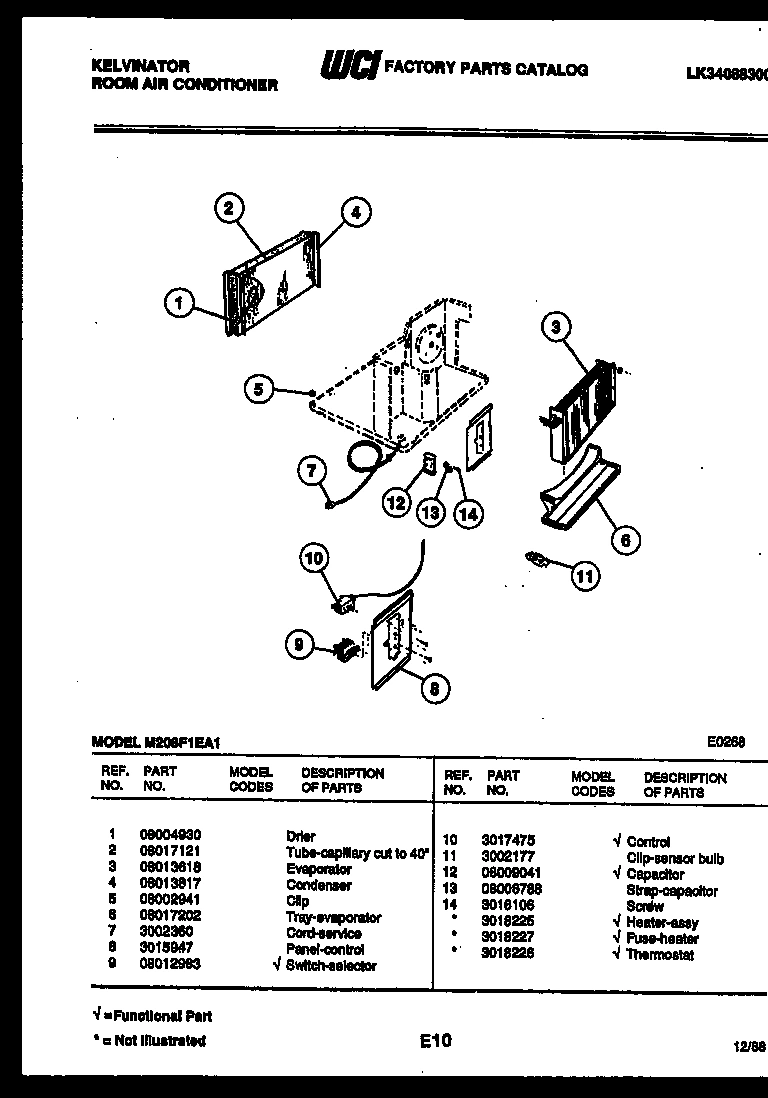

03 - ELECTRICAL PARTS

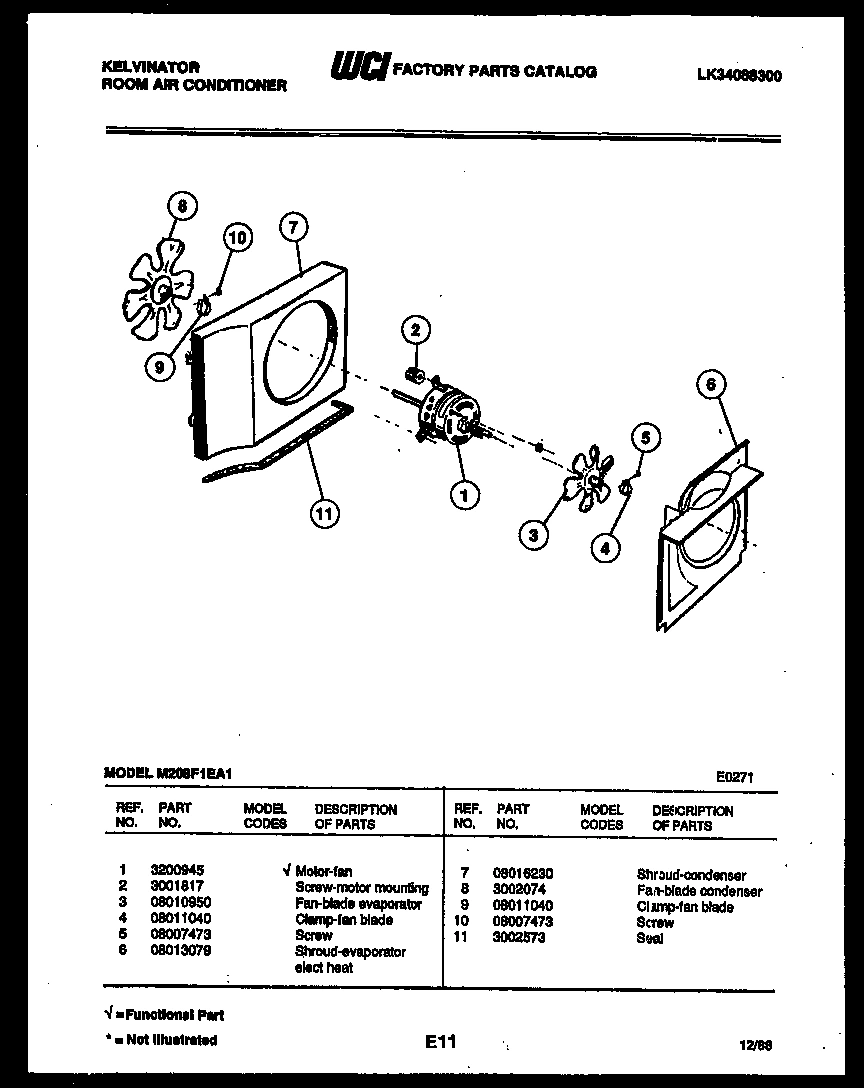

04 - AIR HANDLING PARTS
05 - COMPRESSOR

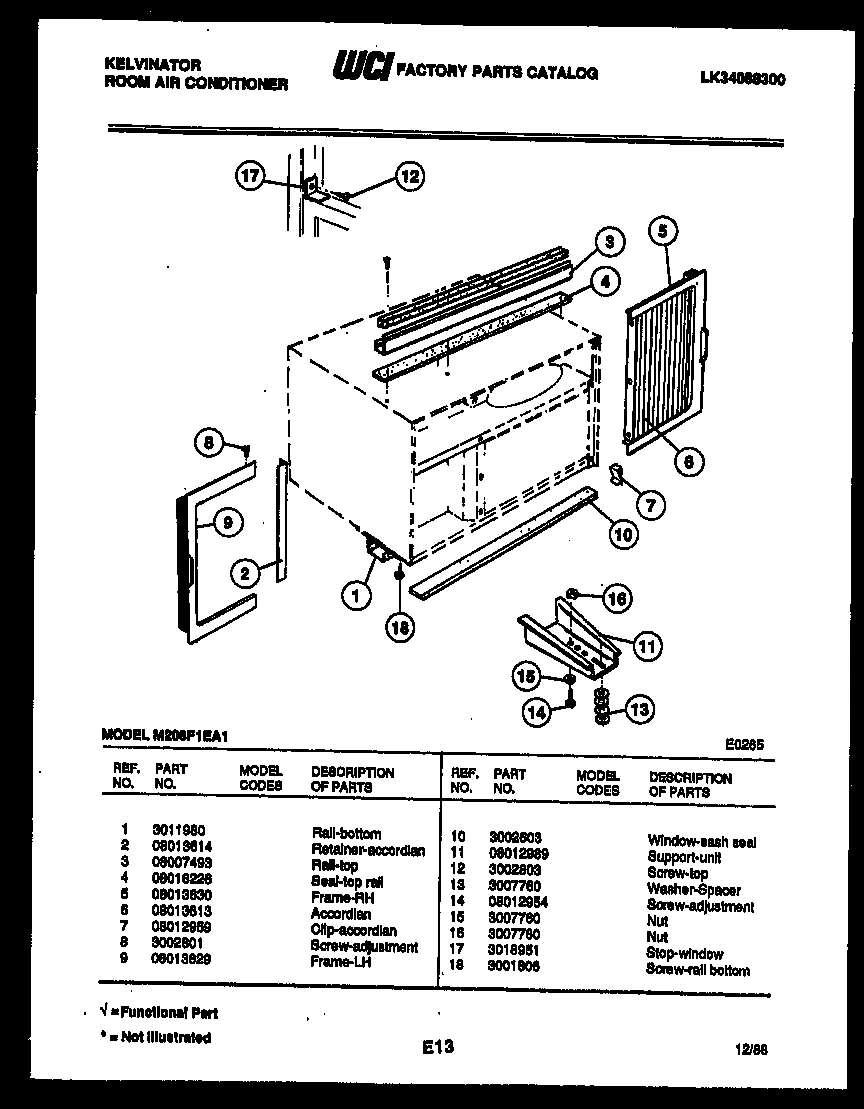

06 - CABINET AND INSTALLATION PARTS
Common parts from model Electrolux M208F1EA1 ROOM AIR CONDITIONER
*79150
BRACKET-LH WCI 3017399 Contact Us For Availability
*79151
BRACKET-RH WCI 3017400 Contact Us For Availability
*79169
HEATER-ASSY WCI 3018225 Contact Us For Availability
*79170
WCI 3018226 WCI 3018226 Contact Us For Availability
*79170
FUSE-HEATER WCI 3018227 Contact Us For Availability
1
WCI 3017476 WCI 3017476 Contact Us For Availability
1
WCI 3200945 WCI 3200945 Contact Us For Availability
1
COMPRESSOR WCI 3019093 Contact Us For Availability
1
RAIL-BOTTOM WCI 3011980 Contact Us For Availability
2
LOUVER-FRAME HORIZANTAL WCI 3200343 Contact Us For Availability
2
WCI 08017121 WCI 08017121 Contact Us For Availability
2
SCREW-MOTOR MOUNTING WCI 3001817 Contact Us For Availability
2
GROMMET-COMPRESSOR MOUNTING WCI 3211015 Contact Us For Availability
2
RETAINER-ACCORDIAN WCI 08013614 Contact Us For Availability
3
WCI 3001808 WCI 3001808 Contact Us For Availability
3
WCI 08013618 WCI 08013618 Contact Us For Availability
3
FAN-BLADE EVAPORATOR WCI 08010950 Contact Us For Availability
3
NUT-COMPRESSOR MOUNTING WCI 08006948 Contact Us For Availability
3
RAIL-TOP WCI 08007493 Contact Us For Availability
4
WCI 08012977 WCI 08012977 Contact Us For Availability
4
WCI 08013817 WCI 08013817 Contact Us For Availability
4
SEAL, TOP RAIL WCI 08016226 Contact Us For Availability
4A
RETAINER-LOUVER WCI 3018406 Contact Us For Availability
5
WCI 3017320 WCI 3017320 Contact Us For Availability
5
WCI 08002941 WCI 08002941 Contact Us For Availability
5
PROTECTOR-OVERLOAD WCI 3200987 Contact Us For Availability
5
FRAME-RH WCI 08013630 Contact Us For Availability
5A
GASKET-COVER TERMINAL (NON-ILLUSTRATED) WCI 3211018 Contact Us For Availability
6
WCI 3200345 WCI 3200345 Contact Us For Availability
6
WCI 08017202 WCI 08017202 Contact Us For Availability
6
WCI 08013079 WCI 08013079 Contact Us For Availability
6
ACCORDIAN WCI 08013613 Contact Us For Availability
7
WCI WA331902 WCI WA331902 Contact Us For Availability
7
CORD-SERVICE WCI 3002360 Contact Us For Availability
7
WCI 08016230 WCI 08016230 Contact Us For Availability
7
WCI 3211013 WCI 3211013 Contact Us For Availability
7
CLIP - ACCORDIAN WCI 08012959 Contact Us For Availability
8
WCI 3200346 WCI 3200346 Contact Us For Availability
8
WCI 3015947 WCI 3015947 Contact Us For Availability
8
FAN-BLADE CONDENSER WCI 3002074 Contact Us For Availability
8
GASKET-COVER WCI 3211012 Contact Us For Availability
8
SCREW - ADJUSTMENT WCI 3002801 Contact Us For Availability
9
WCI 3001861 WCI 3001861 Contact Us For Availability
9
WCI 08012983 WCI 08012983 Contact Us For Availability
9
CLAMP-FAN BLADE WCI 08011040 Contact Us For Availability
9
CAP - TERMINAL COVER WCI 3211014 Contact Us For Availability
9
FRAME-LH WCI 08013629 Contact Us For Availability
10
SCREW-FRONT LOCKING WCI 08010919 Contact Us For Availability
10
WCI 3017475 WCI 3017475 Contact Us For Availability
10
NUT - TERMINAL COVER WCI 3211017 Contact Us For Availability
11
WCI 3002177 WCI 3002177 Contact Us For Availability
11
SEAL WCI 3002573 Contact Us For Availability
11
START KIT RELAY WCI 3201723 Contact Us For Availability
11
SUPPORT-UNIT WCI 08012989 Contact Us For Availability
12
WCI 08009041 WCI 08009041 Contact Us For Availability
12
WCI 3002664 WCI 3002664 Contact Us For Availability
12
SCREW-TOP WCI 3002803 Contact Us For Availability
13
STRAP-CAPACITOR WCI 08006788 Contact Us For Availability
14
SCREW WCI 3016106 Contact Us For Availability
14
SCREW ADJUSTMENT WCI 08012954 Contact Us For Availability
16
NUT WCI 3007760 Contact Us For Availability
17
STOP - WINDOW WCI 3018951 Contact Us For Availability
18
SCREW-RAIL-BOTTOM WCI 3001806 Contact Us For Availability
× ![]()
