Model Electrolux M205G1QA ROOM AIR CONDITIONER – Common Parts & Diagrams
02 - CABINET PARTS
03 - AIR HANDLING PARTS

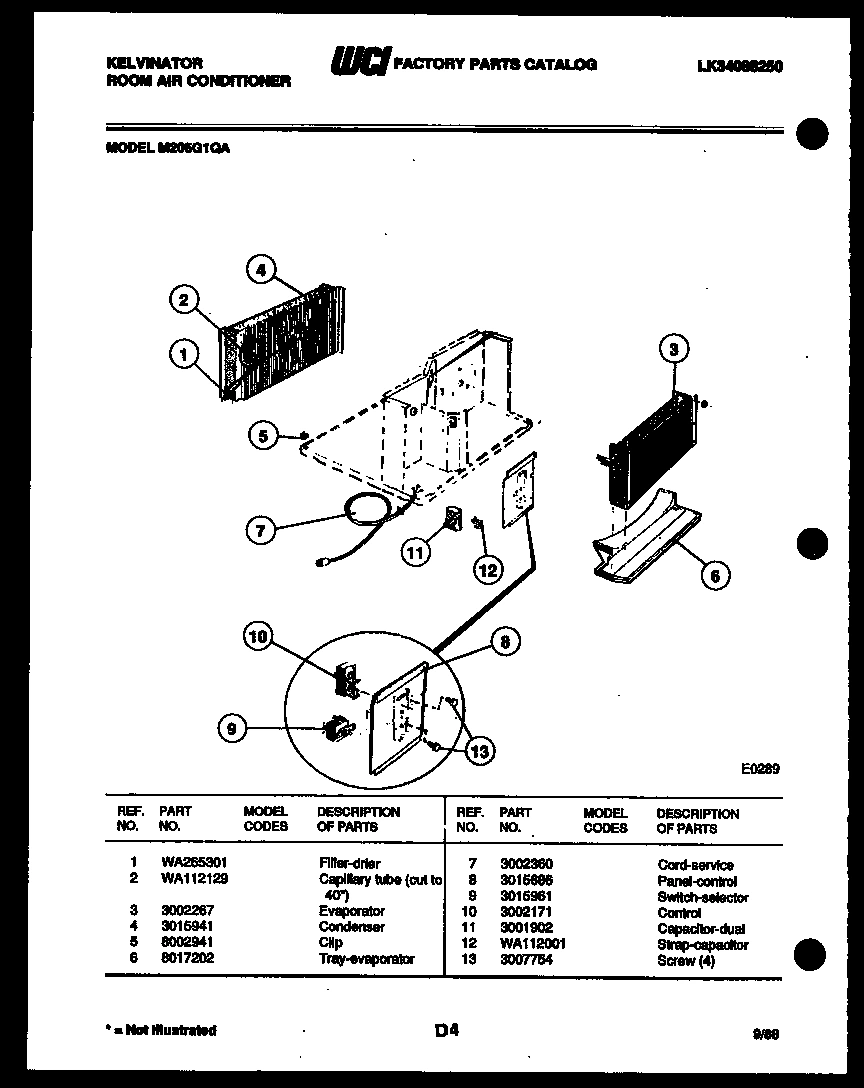

04 - ELECTRICAL PARTS

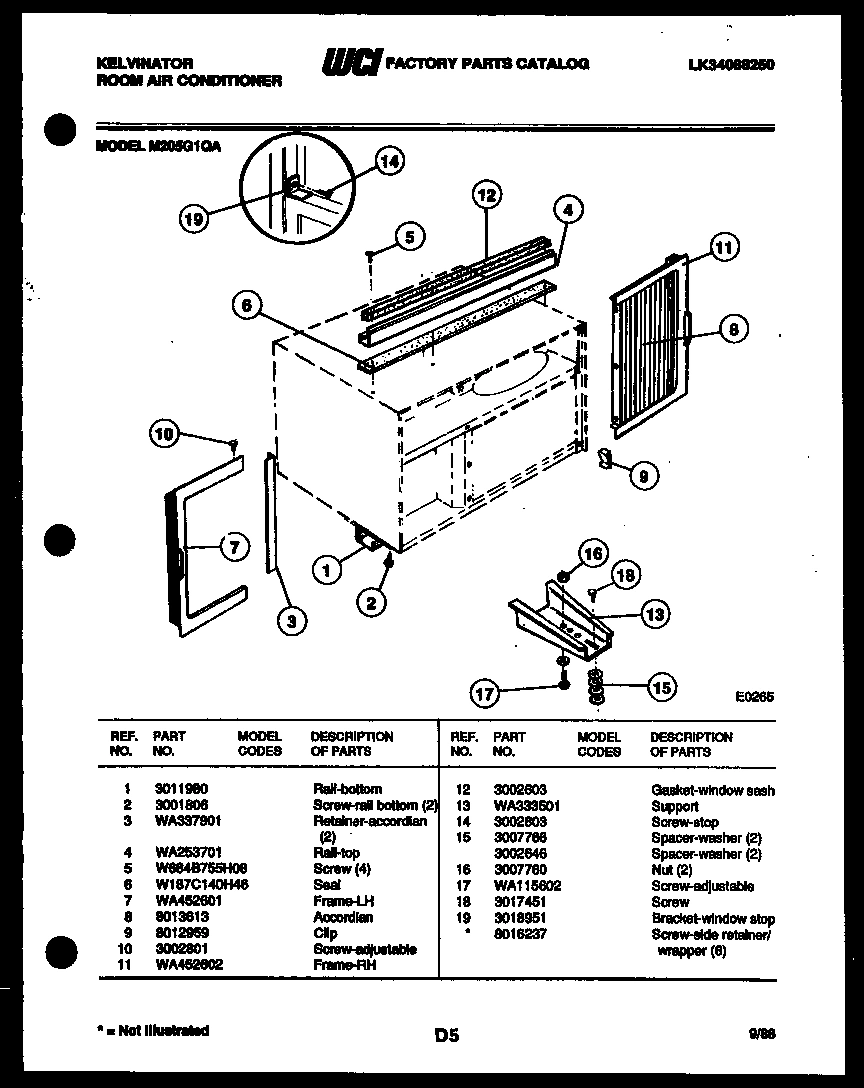

05 - CABINET AND INSTALLATION PARTS

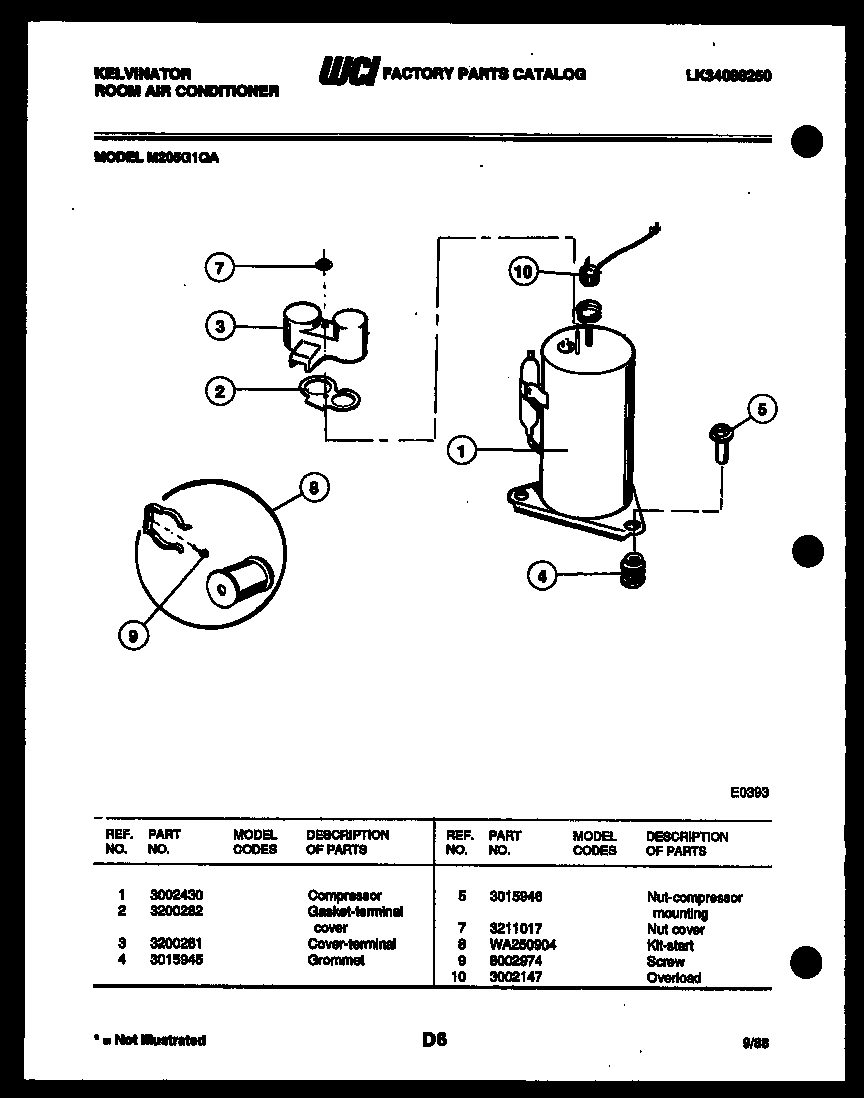

06 - COMPRESSOR
Common parts from model Electrolux M205G1QA ROOM AIR CONDITIONER
*77175
WCI 3001844 WCI 3001844 Contact Us For Availability
*77181
SPACER (2) WCI 3017140 Contact Us For Availability
*77204
SCREW-SIDE RETAINER/WRAPPER (6) WCI 8016237 Contact Us For Availability
1
WCI 3018314 WCI 3018314 Contact Us For Availability
1
WCI 3015683 WCI 3015683 Contact Us For Availability
1
RAIL-BOTTOM WCI 3011980 Contact Us For Availability
1
WCI 3002430 WCI 3002430 Contact Us For Availability
2
VERTICAL LOUVER AND LINK ASSEMBLY WCI 3002457 Contact Us For Availability
2
PLATE-SPLASH WCI 3200698 Contact Us For Availability
2
CAPILLARY-TUBE CUT TO 40`` WCI WA112129 Contact Us For Availability
2
SCREW-RAIL BOTTOM (2) WCI 3001806 Contact Us For Availability
2
GASKET-TERMINAL COVER WCI 3200282 Contact Us For Availability
3
LINK-VERTICAL LH WCI 3002161 Contact Us For Availability
3
SCREW-MOTOR MOUNTING WCI 3001817 Contact Us For Availability
3
WCI 3002267 WCI 3002267 Contact Us For Availability
3
RETAINER-ACCORDIAN (2) WCI WA337901 Contact Us For Availability
3
COVER-TERMINAL WCI 3200281 Contact Us For Availability
3A
NUT-PLATE (NON-ILLUSTRATED) WCI 8007481 Contact Us For Availability
4
LINK-VERTICAL RH WCI 3002160 Contact Us For Availability
4
FAN-BLADE EVAPORATOR WCI 3002072 Contact Us For Availability
4
WCI 3015941 WCI 3015941 Contact Us For Availability
4
WCI WA253701 WCI WA253701 Contact Us For Availability
4
GROMMET WCI 3015945 Contact Us For Availability
5
WCI 3001808 WCI 3001808 Contact Us For Availability
5
CLAMP WCI 8013805 Contact Us For Availability
5
CLIP WCI 8002941 Contact Us For Availability
5
SCREW (4) WCI W684B755H08 Contact Us For Availability
5
NUT-COMPRESSOR MOUNTING WCI 3015946 Contact Us For Availability
6
WCI WA310003 WCI WA310003 Contact Us For Availability
6
SCREW CLAMP WCI 8007473 Contact Us For Availability
6
TRAY-EVAPORATOR WCI 8017202 Contact Us For Availability
6
SEAL WCI W187C140H46 Contact Us For Availability
7
PLATE-DIAL WCI 3018313 Contact Us For Availability
7
WCI 3012423 WCI 3012423 Contact Us For Availability
7
CORD-SERVICE WCI 3002360 Contact Us For Availability
7
WCI WA452601 WCI WA452601 Contact Us For Availability
7
WCI 3211017 WCI 3211017 Contact Us For Availability
7A
SEAL-EVAPORATOR SHROUD/BULKHEAD (NON-ILLUSTRA WCI 8007475 Contact Us For Availability
8
WCI 3001861 WCI 3001861 Contact Us For Availability
8
SHROUD, CONDENSER WCI 8016230 Contact Us For Availability
8
WCI 3015686 WCI 3015686 Contact Us For Availability
8
ACCORDIAN WCI 8013613 Contact Us For Availability
8
WCI WA250904 WCI WA250904 Contact Us For Availability
9
KNOB-CONTROL (2) WCI WA331902 Contact Us For Availability
9
SEAL-SHROUD CONDENSER WCI 3002573 Contact Us For Availability
9
WCI 3015961 WCI 3015961 Contact Us For Availability
9
CLIP WCI 8012959 Contact Us For Availability
9
SCREW WCI 8002974 Contact Us For Availability
10
SCREW-FRONT MOUNTING WCI 8010919 Contact Us For Availability
10
FAN-BLADE CONDENSER WCI 3002390 Contact Us For Availability
10
CONTROL WCI 3002171 Contact Us For Availability
10
SCREW-ADJUSTABLE WCI 3002801 Contact Us For Availability
10
OVERLOAD WCI 3002147 Contact Us For Availability
11
WRAPPER WCI 3015684 Contact Us For Availability
11
CAPACITOR-DUAL WCI 3001902 Contact Us For Availability
11
WCI WA452602 WCI WA452602 Contact Us For Availability
12
WCI 3017137 WCI 3017137 Contact Us For Availability
12
WCI WA112001 WCI WA112001 Contact Us For Availability
13
SCREW (4) WCI 3007754 Contact Us For Availability
13
WCI WA333501 WCI WA333501 Contact Us For Availability
14
SCREW-STOP WCI 3002803 Contact Us For Availability
15
SPACER-WASHER (2) WCI 3002646 Contact Us For Availability
16
NUT (2) WCI 3007760 Contact Us For Availability
17
SCREW-ADJUSTABLE WCI WA115602 Contact Us For Availability
18
WCI 3017451 WCI 3017451 Contact Us For Availability
19
BRACKET-WINDOW STOP WCI 3018951 Contact Us For Availability
× ![]()
