Model Electrolux M205F1QA1 ROOM AIR CONDITIONER – Common Parts & Diagrams

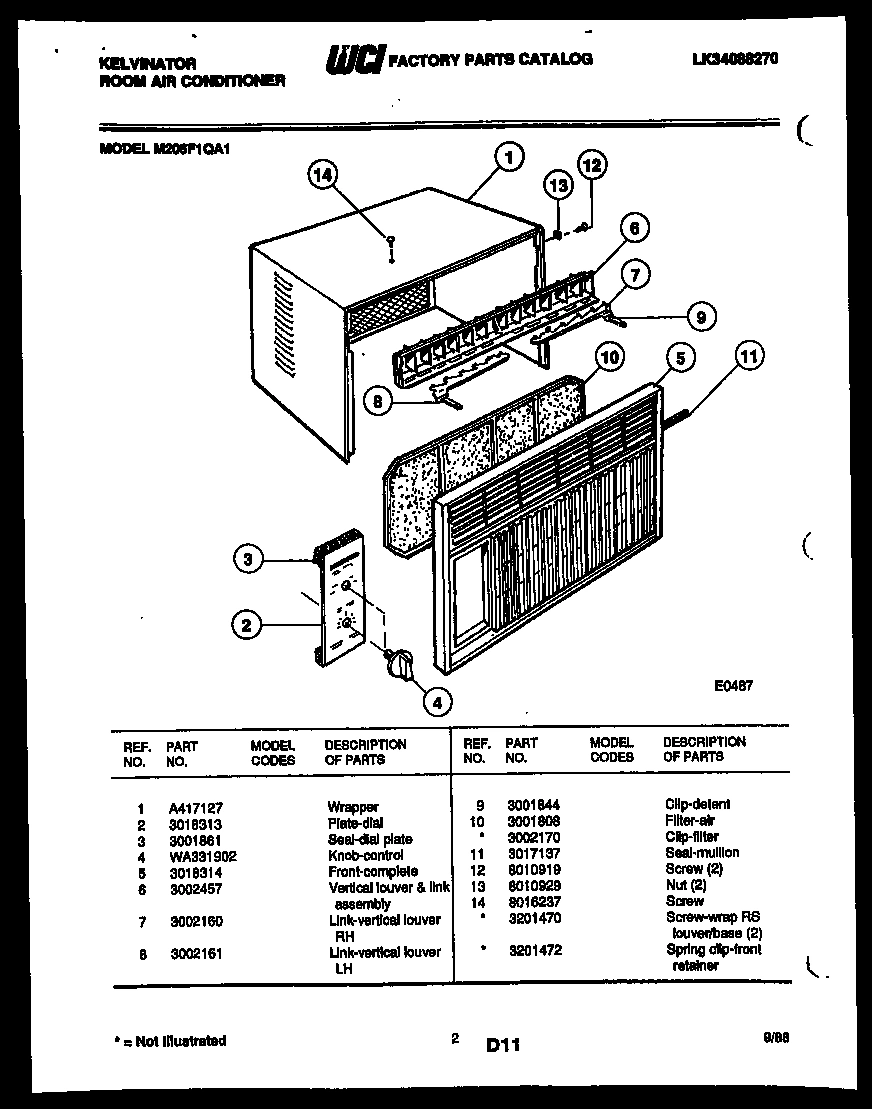

02 - CABINET PARTS

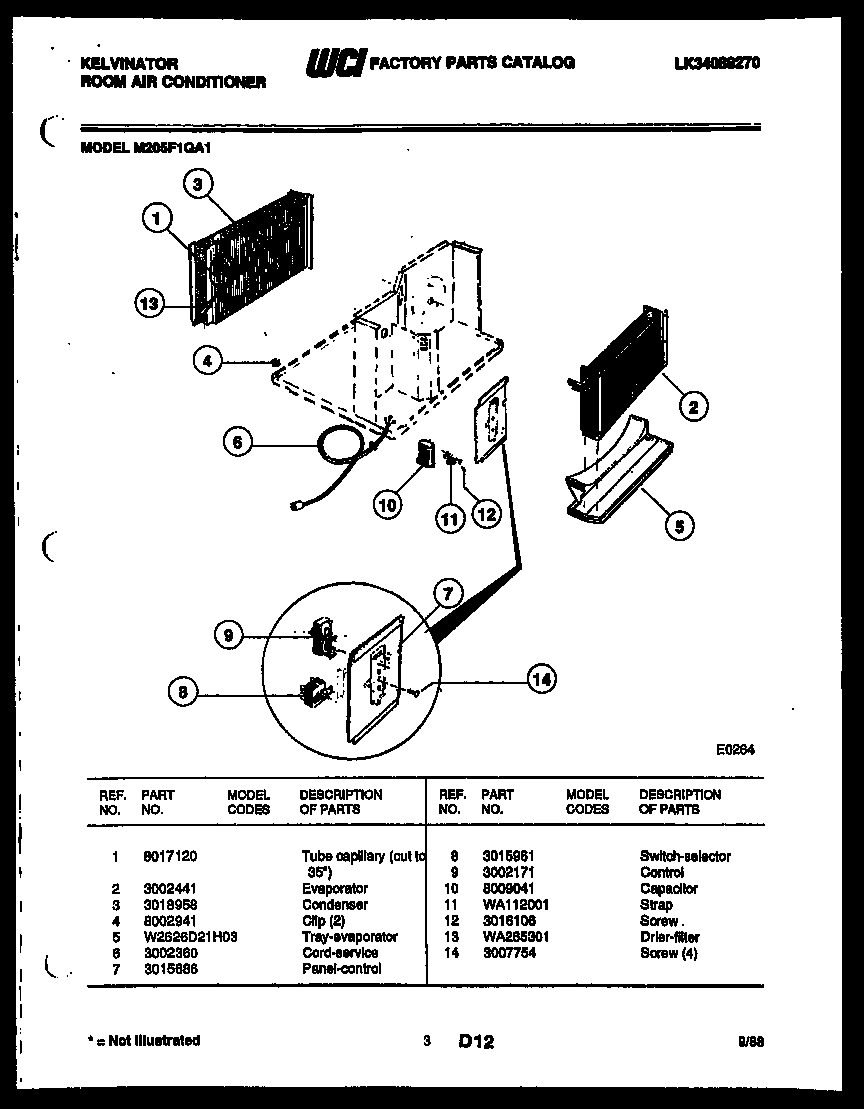

03 - UNIT PARTS
04 - AIR HANDLING PARTS
05 - CABINET AND INSTALLATION PARTS
06 - COMPRESSOR
Common parts from model Electrolux M205F1QA1 ROOM AIR CONDITIONER
*41765
SCREW-WRAP RS LOUVER/BASE (2) WCI 3201470 Contact Us For Availability
*41765
SPRING CLIP-FRONT RETAINER WCI 3201472 Contact Us For Availability
1
WCI A417127 WCI A417127 Contact Us For Availability
1
WCI 8017120 WCI 8017120 Contact Us For Availability
1
WCI 3015683 WCI 3015683 Contact Us For Availability
1
RAIL-BOTTOM WCI 3011980 Contact Us For Availability
1
WCI 3018959 WCI 3018959 Contact Us For Availability
1A
WCI 3200698 WCI 3200698 Contact Us For Availability
1B
SCREW-MOUNTING (3) (NON-ILLUSTRATED) WCI 3001817 Contact Us For Availability
1C
SPACER (2) (NON-ILLUSTRATED) WCI 3017140 Contact Us For Availability
1D
NUT-FAN MOTOR (2) (NON-ILLUSTRATED) WCI 8007481 Contact Us For Availability
2
PLATE-DIAL WCI 3018313 Contact Us For Availability
2
WCI 3002441 WCI 3002441 Contact Us For Availability
2
WCI W2625D25H05 WCI W2625D25H05 Contact Us For Availability
2
RETAINER-ACCORDIAN (2) WCI WA337901 Contact Us For Availability
2
GROMMET WCI 3015945 Contact Us For Availability
3
WCI 3001861 WCI 3001861 Contact Us For Availability
3
WCI 3018958 WCI 3018958 Contact Us For Availability
3
SEAL WCI 3002573 Contact Us For Availability
3
WCI WA253701 WCI WA253701 Contact Us For Availability
3
NUT WCI 3015946 Contact Us For Availability
4
WCI WA331902 WCI WA331902 Contact Us For Availability
4
CLIP (2) WCI 8002941 Contact Us For Availability
4
WCI 3002390 WCI 3002390 Contact Us For Availability
4
WCI W187C140H46 WCI W187C140H46 Contact Us For Availability
4
WCI 3201399 WCI 3201399 Contact Us For Availability
5
WCI 3018314 WCI 3018314 Contact Us For Availability
5
WCI W2626D21H03 WCI W2626D21H03 Contact Us For Availability
5
BLADE-FAN EVAPORATOR WCI 3002072 Contact Us For Availability
5
WCI WA452602 WCI WA452602 Contact Us For Availability
5
WCI 8009071 WCI 8009071 Contact Us For Availability
6
VERTICAL LOUVER & LINK ASSEMBLY WCI 3002457 Contact Us For Availability
6
CORD-SERVICE WCI 3002360 Contact Us For Availability
6
WCI WA264602 WCI WA264602 Contact Us For Availability
6
WCI WA337701 WCI WA337701 Contact Us For Availability
6
WCI 8009070 WCI 8009070 Contact Us For Availability
7
LINK-VERTICAL LOUVER RH WCI 3002160 Contact Us For Availability
7
WCI 3015686 WCI 3015686 Contact Us For Availability
7
WCI WA135101 WCI WA135101 Contact Us For Availability
7
WCI 8009069 WCI 8009069 Contact Us For Availability
8
LINK-VERTICAL LOUVER LH WCI 3002161 Contact Us For Availability
8
WCI 3015961 WCI 3015961 Contact Us For Availability
8
CLIP-SHROUD/BULKHEAD WCI 3014763 Contact Us For Availability
8
WCI 3002801 WCI 3002801 Contact Us For Availability
8
WCI 8009072 WCI 8009072 Contact Us For Availability
9
CLIP-DETENT WCI 3001844 Contact Us For Availability
9
CONTROL WCI 3002171 Contact Us For Availability
9
WCI 3012423 WCI 3012423 Contact Us For Availability
9
WCI WA452601 WCI WA452601 Contact Us For Availability
9
WCI WA250904 WCI WA250904 Contact Us For Availability
10
WCI 3001808 WCI 3001808 Contact Us For Availability
10
WCI 8009041 WCI 8009041 Contact Us For Availability
10
SCREW (2) WCI 3211028 Contact Us For Availability
10A
CLIP-FILTER (NON-ILLUSTRATED) WCI 3002170 Contact Us For Availability
11
WCI 3017137 WCI 3017137 Contact Us For Availability
11
STRAP WCI WA112001 Contact Us For Availability
11
WCI 3002754 WCI 3002754 Contact Us For Availability
11
SUPPORT-UNIT WCI WA333501 Contact Us For Availability
12
SCREW (2) WCI 8010919 Contact Us For Availability
12
SCREW WCI 3016106 Contact Us For Availability
12
WCI 3002803 WCI 3002803 Contact Us For Availability
13
NUT (2) WCI 8010929 Contact Us For Availability
13
WASHER-SPACER (2) WCI 3002646 Contact Us For Availability
14
SCREW (4) WCI 3007754 Contact Us For Availability
14
WCI WA115602 WCI WA115602 Contact Us For Availability
16
NUT WCI 3007760 Contact Us For Availability
17
STOP - WINDOW WCI 3018951 Contact Us For Availability
18
SCREW WCI 8016237 Contact Us For Availability
19
SCREW (2) WCI 3001806 Contact Us For Availability
20
WCI 3017451 WCI 3017451 Contact Us For Availability
× ![]()
