Model Electrolux M205F1QA ROOM AIR CONDITIONER – Common Parts & Diagrams

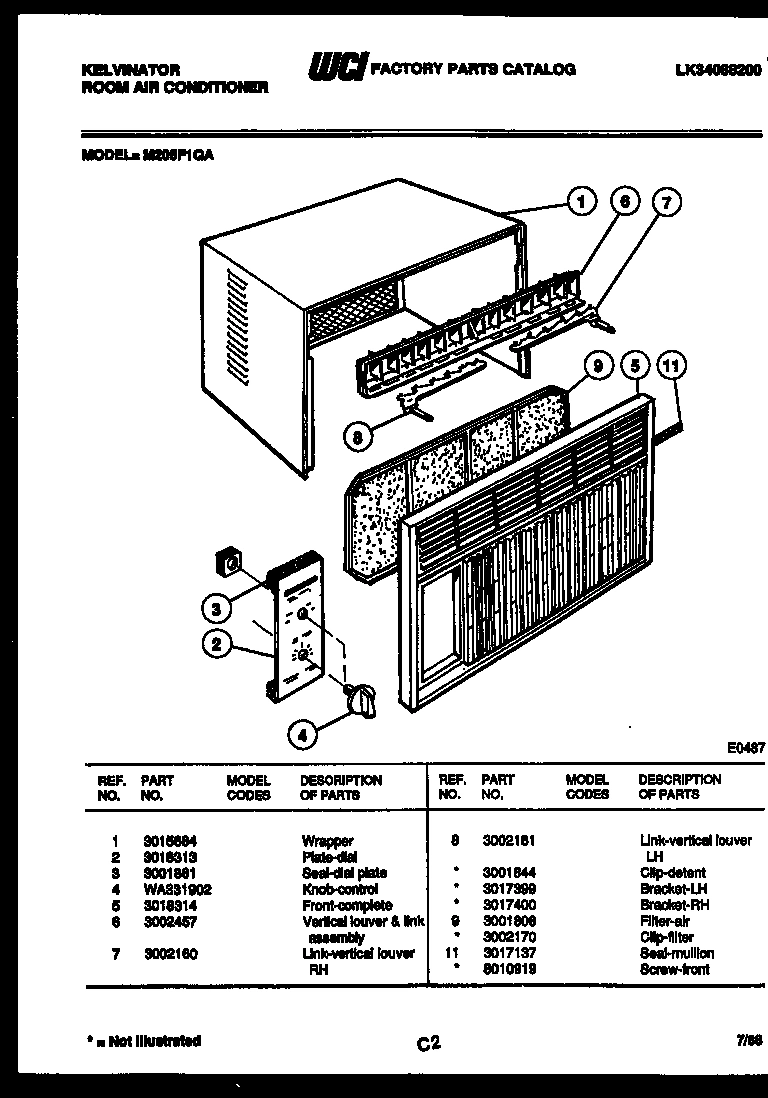

02 - CABINET PARTS

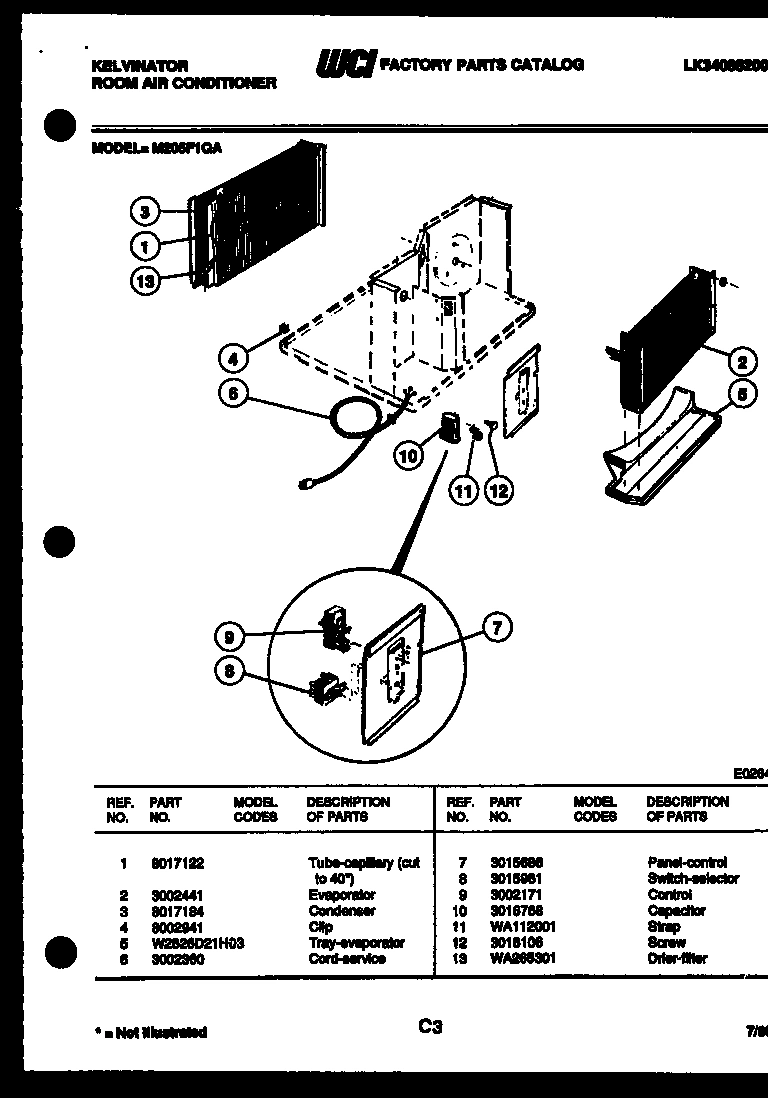

03 - ELECTRICAL PARTS
04 - AIR HANDLING PARTS
05 - COMPRESSOR
06 - CABINET AND INSTALLATION PARTS
Common parts from model Electrolux M205F1QA ROOM AIR CONDITIONER
*75938
SCREW-FRONT WCI 8010919 Contact Us For Availability
1
WRAPPER WCI 3015684 Contact Us For Availability
1
TUBE-CAPILLARY - CUT TO 40`` WCI 8017122 Contact Us For Availability
1
WCI 3015683 WCI 3015683 Contact Us For Availability
1
WCI 8013813 WCI 8013813 Contact Us For Availability
1
RAIL-BOTTOM WCI 3011980 Contact Us For Availability
1A
WCI 3200698 WCI 3200698 Contact Us For Availability
1B
SCREW-MOUNTING MOTOR (NON-ILLUSTRATED) WCI 3001817 Contact Us For Availability
1C
NUT-FAN MOTOR (NON-ILLUSTRATED) WCI C502588 Contact Us For Availability
2
PLATE-DIAL WCI 3018313 Contact Us For Availability
2
WCI 3002441 WCI 3002441 Contact Us For Availability
2
WCI 2625D25H05 WCI 2625D25H05 Contact Us For Availability
2
OVERLOAD WCI 3002147 Contact Us For Availability
2
RETAINER-ACCORDIAN WCI WA337901 Contact Us For Availability
3
WCI 3001861 WCI 3001861 Contact Us For Availability
3
WCI 8017184 WCI 8017184 Contact Us For Availability
3
SEAL WCI 3002573 Contact Us For Availability
3
GASKET-COVER WCI 3002056 Contact Us For Availability
3
WCI WA253701 WCI WA253701 Contact Us For Availability
4
WCI WA331902 WCI WA331902 Contact Us For Availability
4
CLIP WCI 8002941 Contact Us For Availability
4
WCI 3002390 WCI 3002390 Contact Us For Availability
4
WCI 3002054 WCI 3002054 Contact Us For Availability
4
WCI W187C140H46 WCI W187C140H46 Contact Us For Availability
5
WCI 3018314 WCI 3018314 Contact Us For Availability
5
WCI W2626D21H03 WCI W2626D21H03 Contact Us For Availability
5
BLADE-FAN EVAPORATOR WCI 3002072 Contact Us For Availability
5
CAP-COVER WCI 3002055 Contact Us For Availability
5
WCI WA452602 WCI WA452602 Contact Us For Availability
6
VERTICAL LOUVER & LINK ASSEMBLY WCI 3002457 Contact Us For Availability
6
CORD-SERVICE WCI 3002360 Contact Us For Availability
6
WCI A264602 WCI A264602 Contact Us For Availability
6
NUT WCI 3211017 Contact Us For Availability
6
WCI WA337701 WCI WA337701 Contact Us For Availability
7
LINK-VERTICAL LOUVER RH WCI 3002160 Contact Us For Availability
7
WCI 3015686 WCI 3015686 Contact Us For Availability
7
WCI 3002754 WCI 3002754 Contact Us For Availability
7
NUT WCI 3015946 Contact Us For Availability
7
WCI WA135101 WCI WA135101 Contact Us For Availability
8
LINK-VERTICAL LOUVER LH WCI 3002161 Contact Us For Availability
8
WCI 3015961 WCI 3015961 Contact Us For Availability
8
CLIP-BLADE WCI 3014763 Contact Us For Availability
8
GROMMET WCI 3015945 Contact Us For Availability
8A
CLIP-DETENT (NON-ILLUSTRATED) WCI 3001844 Contact Us For Availability
8B
WCI 3017399 WCI 3017399 Contact Us For Availability
8C
WCI 3017400 WCI 3017400 Contact Us For Availability
9
WCI 3001808 WCI 3001808 Contact Us For Availability
9
CONTROL WCI 3002171 Contact Us For Availability
9
WCI 3012423 WCI 3012423 Contact Us For Availability
9
KIT-START WCI 8950087 Contact Us For Availability
9
WCI WA452601 WCI WA452601 Contact Us For Availability
9A
CLIP-FILTER (NON-ILLUSTRATED) WCI 3002170 Contact Us For Availability
10
CAPACITOR WCI 3016768 Contact Us For Availability
11
WCI 3017137 WCI 3017137 Contact Us For Availability
11
STRAP WCI WA112001 Contact Us For Availability
11
SUPPORT-UNIT WCI WA333501 Contact Us For Availability
12
SCREW WCI 3016106 Contact Us For Availability
12
WCI 3002803 WCI 3002803 Contact Us For Availability
14
SCREW-ADJ. WCI WA115602 Contact Us For Availability
16
NUT WCI 3007760 Contact Us For Availability
17
WCI WA115901 WCI WA115901 Contact Us For Availability
18
WCI 3002801 WCI 3002801 Contact Us For Availability
19
WCI 3002608 WCI 3002608 Contact Us For Availability
20
SCREW WCI 3002779 Contact Us For Availability
× ![]()
