Model Maytag M1TXEMMWS03 REFRIGERATOR – Common Parts & Diagrams

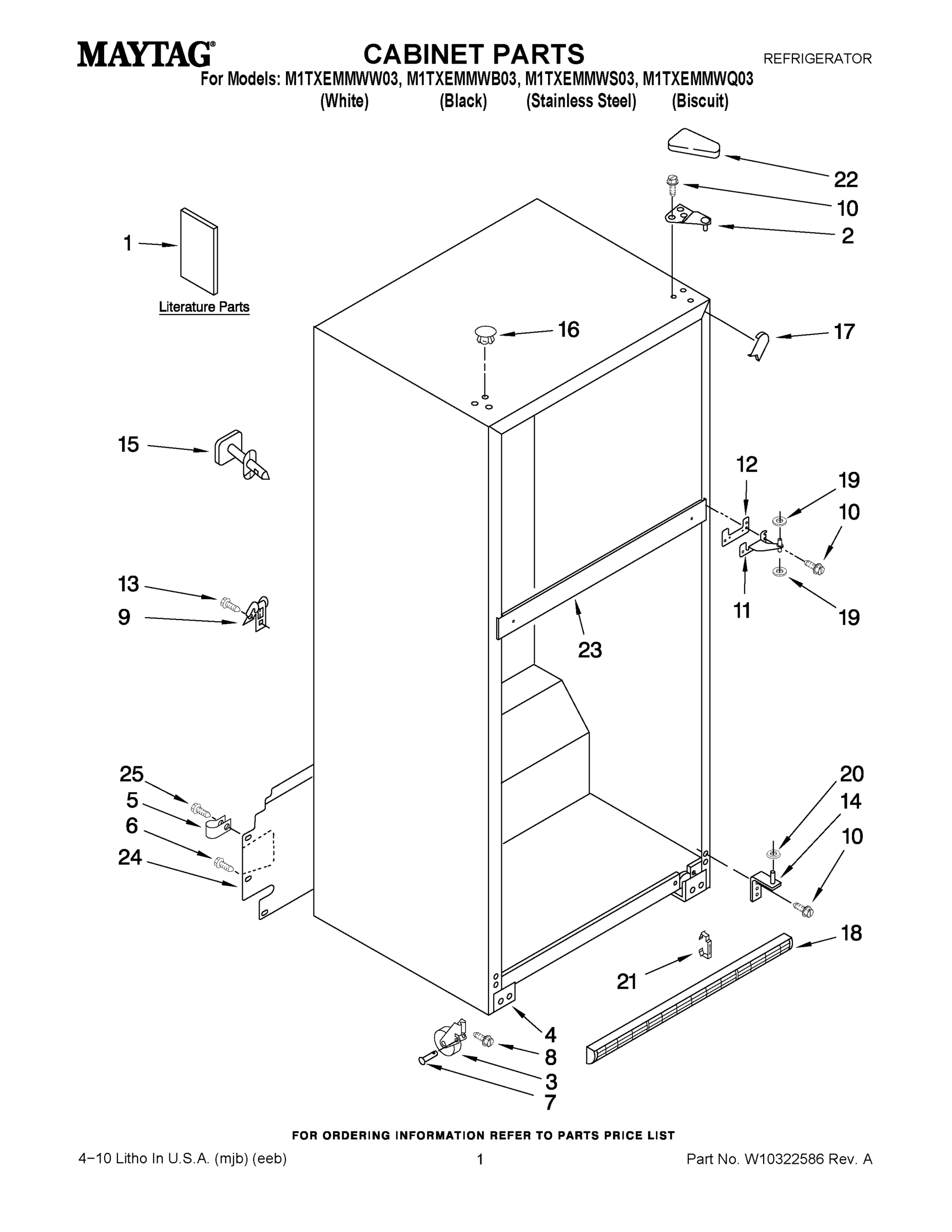

01 - CABINET PARTS

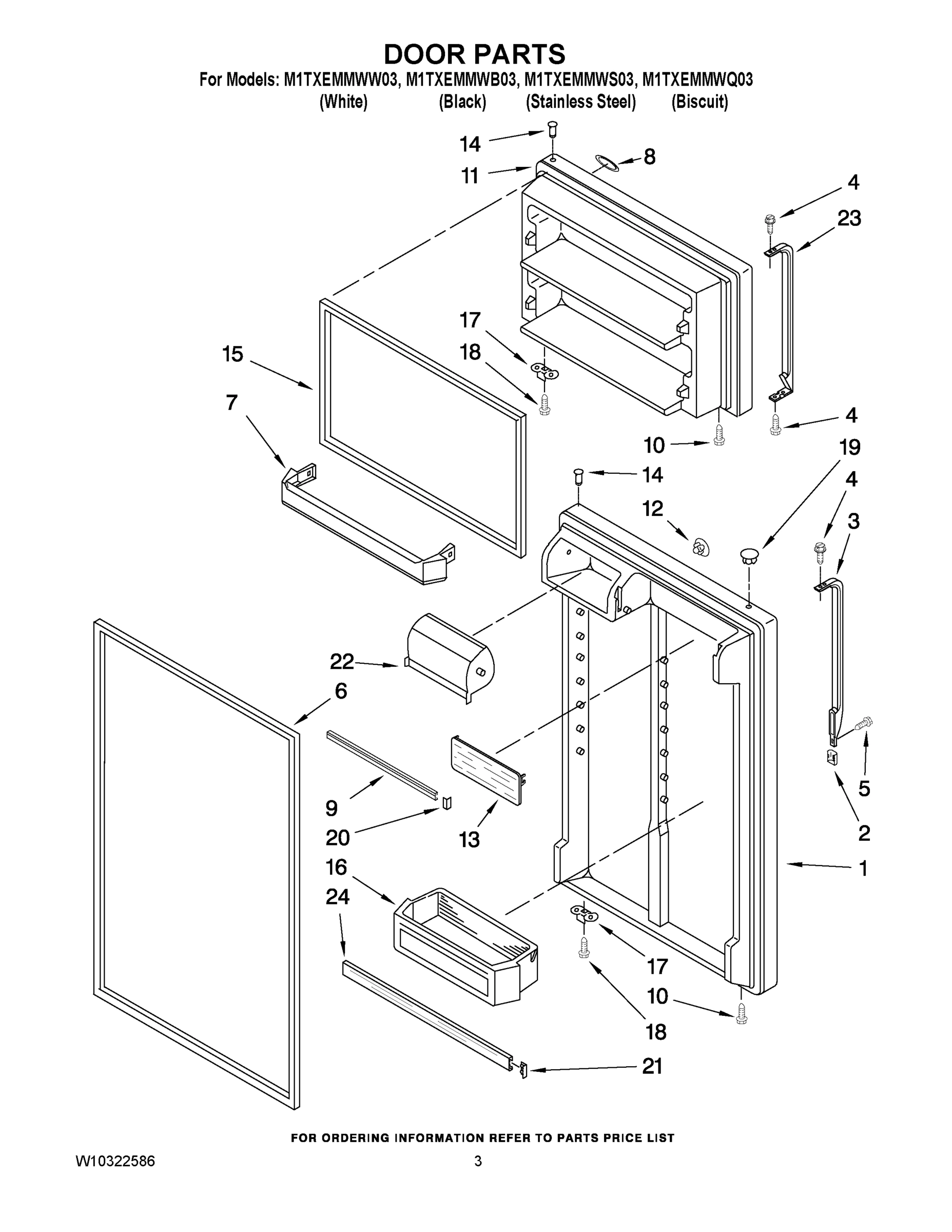

02 - DOOR PARTS
03 - LINER PARTS
04 - UNIT PARTS
05 - ICEMAKER PARTS
06 - SHELF PARTS
07 - OPTIONAL PARTS
Common parts from model Maytag M1TXEMMWS03 REFRIGERATOR
1
MAY 2225623 MAY 2225623 Contact Us For Availability
1
DO-IT-YOURSELF MANUAL REF./ FRZ. MAY 677969 Contact Us For Availability
1
MAY W10142143 MAY W10142143 Contact Us For Availability
1
BILINGUAL MAY W10249206 Contact Us For Availability
1
TRILINGUAL MAY W10249207 Contact Us For Availability
1
ENERGY LABEL USE & CARE GUIDE MAY W10251542 Contact Us For Availability
1
Refrigerator Door (Includes Illus. 6 & 14) (W MAY 2183920 Contact Us For Availability
1
Refrigerator Door (Includes Illus. 6 & 14) (B MAY 2200714 Contact Us For Availability
1
Refrigerator Door (Includes Illus. 6 & 14) (B MAY 2205284 Contact Us For Availability
1
REFRIGERATOR DOOR (INCLUDES ILLUS. 6 & 14) (S MAY W10271883 Contact Us For Availability
1
MAY 2320187 MAY 2320187 Contact Us For Availability
1
MAY 488878 MAY 488878 Contact Us For Availability
1
MAY 2210522 MAY 2210522 Contact Us For Availability
2
MAY 2189410 MAY 2189410 Contact Us For Availability
2
MAY 2193143B MAY 2193143B Contact Us For Availability
2
MAY 2193143T MAY 2193143T Contact Us For Availability
2
MAY 2193143W MAY 2193143W Contact Us For Availability
2
Grommet (2) MAY 2197380 Contact Us For Availability
2
MAY 2300520 MAY 2300520 Contact Us For Availability
3
MAY 2166108 MAY 2166108 Contact Us For Availability
3
MAY 2254533B MAY 2254533B Contact Us For Availability
3
MAY 2254533T MAY 2254533T Contact Us For Availability
3
MAY 2254533W MAY 2254533W Contact Us For Availability
3
Gasket, Evaporator Cover (2) MAY 2254360 Contact Us For Availability
3
MAY W10268878 MAY W10268878 Contact Us For Availability
3
MAY 2210495 MAY 2210495 Contact Us For Availability
3
Cup, Shelf Mtg. MAY 2163762 Contact Us For Availability
4
MAY 489357 MAY 489357 Contact Us For Availability
4
MAY W10140847 MAY W10140847 Contact Us For Availability
4
MAY 2181939 MAY 2181939 Contact Us For Availability
4
TRIM,SHELF FRONT MAY 2188691 Contact Us For Availability
5
MAY 489385 MAY 489385 Contact Us For Availability
5
MAY 8281146 MAY 8281146 Contact Us For Availability
5
MAY 2212485 MAY 2212485 Contact Us For Availability
5
MAY 2254249 MAY 2254249 Contact Us For Availability
5
CLIP,FUSE MAY 628379 Contact Us For Availability
5
MAY 489478 MAY 489478 Contact Us For Availability
6
MAY 489442 MAY 489442 Contact Us For Availability
6
MAY 2202875 MAY 2202875 Contact Us For Availability
6
MAY 2202882 MAY 2202882 Contact Us For Availability
6
MAY 8533961 MAY 8533961 Contact Us For Availability
6
MAY 2181943 MAY 2181943 Contact Us For Availability
6
Slide, Humidity Control MAY 2176222 Contact Us For Availability
7
MAY 2179826 MAY 2179826 Contact Us For Availability
7
TRIM MAY 2195378 Contact Us For Availability
7
MAY 2310057 MAY 2310057 Contact Us For Availability
7
MAY 2254295 MAY 2254295 Contact Us For Availability
7
Valve Solenoid MAY 2315576 Contact Us For Availability
7
MAY 2212446 MAY 2212446 Contact Us For Availability
8
MAY 3400504 MAY 3400504 Contact Us For Availability
8
Nameplate MAY W10170766 Contact Us For Availability
8
Socket, Light MAY 2162085 Contact Us For Availability
8
GROMMET-COND-(4) MAY 2319835 Contact Us For Availability
8
MAY 79191001 MAY 79191001 Contact Us For Availability
8
MAY 2314502 MAY 2314502 Contact Us For Availability
9
MAY 549193 MAY 549193 Contact Us For Availability
9
MAY 8281265 MAY 8281265 Contact Us For Availability
9
Trim, Door Shelf MAY 2195947 Contact Us For Availability
9
MAY 2179858 MAY 2179858 Contact Us For Availability
9
MAY 2176301 MAY 2176301 Contact Us For Availability
9
Shelf, Cantilever MAY 2201102E Contact Us For Availability
10
MAY 489497 MAY 489497 Contact Us For Availability
10
MAY 8281206 MAY 8281206 Contact Us For Availability
10
Fan Motor MAY 2315539 Contact Us For Availability
10
MAY 2300638 MAY 2300638 Contact Us For Availability
10
MAY W10122527 MAY W10122527 Contact Us For Availability
10
Insert, Crisper Cover MAY 2210573 Contact Us For Availability
11
MAY 2254618 MAY 2254618 Contact Us For Availability
11
Freezer Door (Includes Illus. 14 & 15) (White MAY 2182489 Contact Us For Availability
11
Freezer Door (Includes Illus. 14 & 15) (Black MAY 2200711 Contact Us For Availability
11
Freezer Door (Includes Illus. 14 & 15) (Biscu MAY 2204686 Contact Us For Availability
11
FREEZER DOOR (INCLUDES ILLUS. 14 & 15) (STAIN MAY W10271885 Contact Us For Availability
11
Fan Blade MAY 2163777 Contact Us For Availability
11
Strap MAY 2255113 Contact Us For Availability
11
CUP, WATER FILL MAY 628515 Contact Us For Availability
11
Pan Shelf, Cantilever MAY 2201106 Contact Us For Availability
12
MAY 2183852 MAY 2183852 Contact Us For Availability
12
Hole Plug, Handle (White) MAY 2189000 Contact Us For Availability
12
Hole Plug, Handle (Black) MAY 2189009 Contact Us For Availability
12
Hole Plug, Handle (Biscuit) MAY 2200936 Contact Us For Availability
12
MAY 2212982 MAY 2212982 Contact Us For Availability
12
MAY 627843 MAY 627843 Contact Us For Availability
12
MAY 2174694 MAY 2174694 Contact Us For Availability
13
Shelf, Flip-Up MAY 2188236 Contact Us For Availability
13
MAY W10225856 MAY W10225856 Contact Us For Availability
13
MAY W10122563 MAY W10122563 Contact Us For Availability
13
Trim-Shelf-Front MAY 2188685 Contact Us For Availability
14
MAY 2254473 MAY 2254473 Contact Us For Availability
14
MAY 2314293 MAY 2314293 Contact Us For Availability
14
MAY 8534009 MAY 8534009 Contact Us For Availability
14
MAY 1100826 MAY 1100826 Contact Us For Availability
14
MAY 4387558 MAY 4387558 Contact Us For Availability
14
Support MAY 2194712 Contact Us For Availability
14
MAY 2314478 MAY 2314478 Contact Us For Availability
15
MAY 2214967 MAY 2214967 Contact Us For Availability
15
MAY 2214969 MAY 2214969 Contact Us For Availability
15
Screw MAY 2304099 Contact Us For Availability
15
START-DEVICE COMBINATION (START RELAY AND OVE MAY W10249964 Contact Us For Availability
15
MAY 2315522 MAY 2315522 Contact Us For Availability
15
MAY 2189454 MAY 2189454 Contact Us For Availability
16
MAY 2183998 MAY 2183998 Contact Us For Availability
16
MAY 2200924 MAY 2200924 Contact Us For Availability
16
Hole Plug (6) (White) MAY 2201012 Contact Us For Availability
16
MAY 2204812 MAY 2204812 Contact Us For Availability
16
Cover-Evaporator MAY 2320194 Contact Us For Availability
16
MAY 2201185 MAY 2201185 Contact Us For Availability
16
Thermostat (Also Order 542369 Cement Alumilas MAY 628397 Contact Us For Availability
16
MAY 2218132K MAY 2218132K Contact Us For Availability
17
CORNER FILLER (2) (BISCUIT) MAY W10283958 Contact Us For Availability
17
CORNER FILLER (2) (WHITE) MAY W10283959 Contact Us For Availability
17
MAY W10283960 MAY W10283960 Contact Us For Availability
17
Bracket, Door Stop (2) MAY 2189202 Contact Us For Availability
17
Light Bulb (2) MAY 527949 Contact Us For Availability
17
MAY 2150304 MAY 2150304 Contact Us For Availability
17
MAY 8533917 MAY 8533917 Contact Us For Availability
17
MAY 2188689 MAY 2188689 Contact Us For Availability
18
Grille (Includes Illus. 21) (White) MAY 2254313 Contact Us For Availability
18
Grille (Includes Illus. 21) (Black) MAY 2254315 Contact Us For Availability
18
Grille (Includes Illus. 21) (Biscuit) MAY 2254316 Contact Us For Availability
18
MAY 488921 MAY 488921 Contact Us For Availability
18
MAY 2200831 MAY 2200831 Contact Us For Availability
18
MAY 2221797 MAY 2221797 Contact Us For Availability
18
MAY 489276 MAY 489276 Contact Us For Availability
18
Bucket, Ice MAY 2254352 Contact Us For Availability
19
MAY 489341 MAY 489341 Contact Us For Availability
19
Hole Plug (White) MAY 2212648 Contact Us For Availability
19
MAY 2212649 MAY 2212649 Contact Us For Availability
19
Hole Plug (Black) MAY 2212651 Contact Us For Availability
19
Switch, Rocker Arm MAY 1118894 Contact Us For Availability
19
MAY 2182338 MAY 2182338 Contact Us For Availability
19
MAY 627792 MAY 627792 Contact Us For Availability
19
Crisper Pan (Includes Illus. 6 & 7) MAY 2218130 Contact Us For Availability
20
MAY 487576 MAY 487576 Contact Us For Availability
20
PLUG-TRIM MAY 2195916 Contact Us For Availability
20
MAY 2179859 MAY 2179859 Contact Us For Availability
20
MAY 489373 MAY 489373 Contact Us For Availability
20
MAY 2187464 MAY 2187464 Contact Us For Availability
20
Trim-Shelf-Rear MAY 2188687 Contact Us For Availability
21
Clip, Grille (2) MAY 2189356 Contact Us For Availability
21
MAY 2156006 MAY 2156006 Contact Us For Availability
21
MAY 2176281 MAY 2176281 Contact Us For Availability
21
MAY 3400518 MAY 3400518 Contact Us For Availability
21
MAY 628320 MAY 628320 Contact Us For Availability
21
Glass, Shelf Full MAY 2174693 Contact Us For Availability
22
Cover, Hinge (White) MAY 2213360 Contact Us For Availability
22
MAY 2213363 MAY 2213363 Contact Us For Availability
22
Cover, Hinge (Biscuit) MAY 2213364 Contact Us For Availability
22
MAY 2218118 MAY 2218118 Contact Us For Availability
22
MAY 2200863 MAY 2200863 Contact Us For Availability
22
MAY 488500 MAY 488500 Contact Us For Availability
22
MODULE ASSEMBLY (INCLUDES ITEM 24) MAY W10223929 Contact Us For Availability
22
Frame Assy MAY 2201104E Contact Us For Availability
23
MAY W10291249 MAY W10291249 Contact Us For Availability
23
MAY W10292303 MAY W10292303 Contact Us For Availability
23
HANDLE, FREEZER (BISCUIT) MAY W10292304 Contact Us For Availability
23
MAY 2254354 MAY 2254354 Contact Us For Availability
24
MAY 2254576 MAY 2254576 Contact Us For Availability
24
Trim, Door MAY 2195948 Contact Us For Availability
24
MAY 2189452 MAY 2189452 Contact Us For Availability
24
COMPRESSOR (INCLUDES ILLUS. 14,25,27) (ALSO O MAY W10252075 Contact Us For Availability
24
MAY 489136 MAY 489136 Contact Us For Availability
25
MAY 489427 MAY 489427 Contact Us For Availability
25
Screw MAY 488208 Contact Us For Availability
25
MAY 2321800 MAY 2321800 Contact Us For Availability
25
Drier (Service) MAY W10177049 Contact Us For Availability
26
MAY 2212439 MAY 2212439 Contact Us For Availability
26
MAY 2155774 MAY 2155774 Contact Us For Availability
26
MAY 488886 MAY 488886 Contact Us For Availability
27
MAY 2254453 MAY 2254453 Contact Us For Availability
27
Capacitor (Service) MAY 1118576 Contact Us For Availability
27
Capacitor (Production) MAY 2264017 Contact Us For Availability
29
MAY 2204639 MAY 2204639 Contact Us For Availability
29
MAY 2315541 MAY 2315541 Contact Us For Availability
30
MAY 2254454 MAY 2254454 Contact Us For Availability
30
MAY 2188874 MAY 2188874 Contact Us For Availability
31
MAY 2302536 MAY 2302536 Contact Us For Availability
31
Wire Assembly Unit MAY 2187382 Contact Us For Availability
32
MAY 2163810 MAY 2163810 Contact Us For Availability
32
MAY 2225834 MAY 2225834 Contact Us For Availability
33
MAY 2205079 MAY 2205079 Contact Us For Availability
34
Valve-Tube, Body MAY 2210509 Contact Us For Availability
34
MAY 2225237 MAY 2225237 Contact Us For Availability
35
MAY W10129795 MAY W10129795 Contact Us For Availability
35
MAY 2154109 MAY 2154109 Contact Us For Availability
36
MAY 2254574 MAY 2254574 Contact Us For Availability
100
MAY W10190952 MAY W10190952 Contact Us For Availability
NI
REFRIGERANT CHARGE (4.00 OZS. (R134A) MAY N/P Contact Us For Availability
NI
MAY 876764 MAY 876764 Contact Us For Availability
NI
VALVE, ACCESS (1/4``) MAY 978025 Contact Us For Availability
NI
Valve, Access (5/16``) MAY 978026 Contact Us For Availability
NI
VALVE, ACCESS (3/8``) MAY 978027 Contact Us For Availability
NI
Valve, Access (1/2``) MAY 978028 Contact Us For Availability
NI
Valve, Access (5/8``) MAY 978029 Contact Us For Availability
NI
Valve, Access (3/4``) MAY 978030 Contact Us For Availability
NI
MAY 1117510 MAY 1117510 Contact Us For Availability
NI
SEALER, GUM (4 FEET) MAY 212643 Contact Us For Availability
NI
CUSTOMER TOUCH-UP MATERIAL (ENAMEL, WHITE (12 MAY 350930 Contact Us For Availability
NI
CUSTOMER TOUCH-UP MATERIAL (ENAMEL, BLACK (12 MAY 350939 Contact Us For Availability
NI
CUSTOMER TOUCH-UP MATERIAL (PRIMER, WHITE (12 MAY 350942 Contact Us For Availability
NI
CUSTOMER TOUCH-UP MATERIAL (BRUSH TOUCH-UP KI MAY 4392899 Contact Us For Availability
NI
REFINISHING MATERIAL (ENAMEL, BISCUIT (1 QT. MAY 4392900 Contact Us For Availability
NI
Customer Touch-Up Material (Enamel, Biscuit ( MAY 4392901 Contact Us For Availability
NI
MAY 479502 MAY 479502 Contact Us For Availability
NI
MAY 503695 MAY 503695 Contact Us For Availability
NI
MAY 505587 MAY 505587 Contact Us For Availability
NI
TOUCH-UP, WHITE PORCELAIN (2 OZ.) MAY 511873 Contact Us For Availability
NI
MAY 542638 MAY 542638 Contact Us For Availability
NI
MAY 542639 MAY 542639 Contact Us For Availability
NI
MAY 606755 MAY 606755 Contact Us For Availability
NI
CUSTOMER TOUCH-UP MATERIAL (BRUSH TOUCH-UP KI MAY 72017 Contact Us For Availability
NI
CUSTOMER TOUCH-UP MATERIAL (BRUSH TOUCH-UP KI MAY 72032 Contact Us For Availability
NI
REFINISHING MATERIAL (ENAMEL, BLACK (1 QT. UN MAY 786032 Contact Us For Availability
NI
REFINISHING MATERIAL (ENAMEL, WHITE (1 QT. UN MAY 799344 Contact Us For Availability
NI
MAY 799832 MAY 799832 Contact Us For Availability
NI
Kit, Evaporator Repair (Aluminum Epoxy) MAY 799833 Contact Us For Availability
NI
REFINISHING MATERIAL, KIT, TERMINAL CONNECTOR MAY 833938 Contact Us For Availability
NI
MAY 876029 MAY 876029 Contact Us For Availability
NI
KIT, INSULATION (14 PCS. 3`` X 24`` X 48``) MAY 876305 Contact Us For Availability
NI
KIT, INSULATION (2 PCS. 3`` X 24 `` X 48``) MAY 876370 Contact Us For Availability
NI
MAY 978941 MAY 978941 Contact Us For Availability
× ![]()
