Model Maytag M1BXXGMYB00 REFRIGERATOR – Common Parts & Diagrams
01 - CABINET PARTS
02 - DOOR PARTS

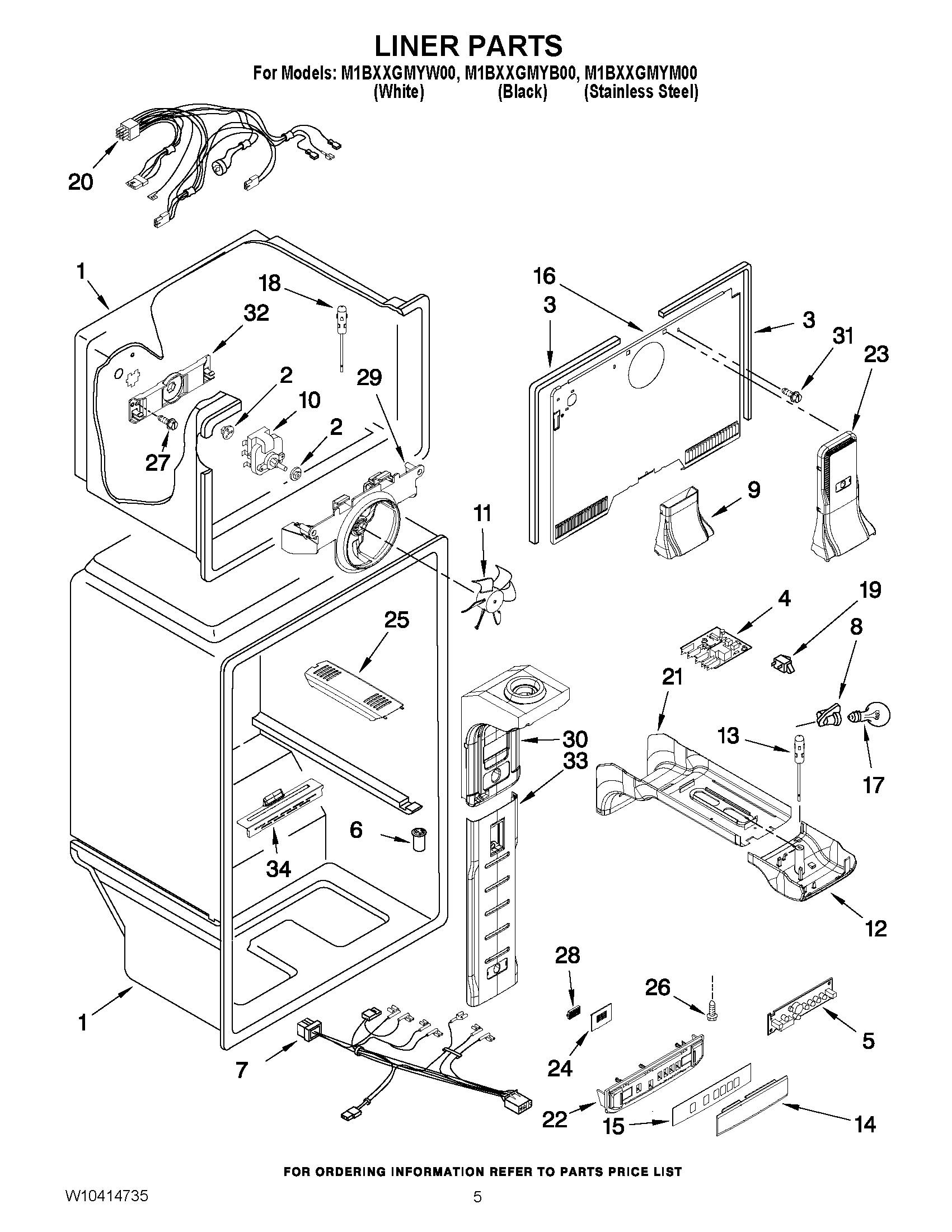

03 - LINER PARTS

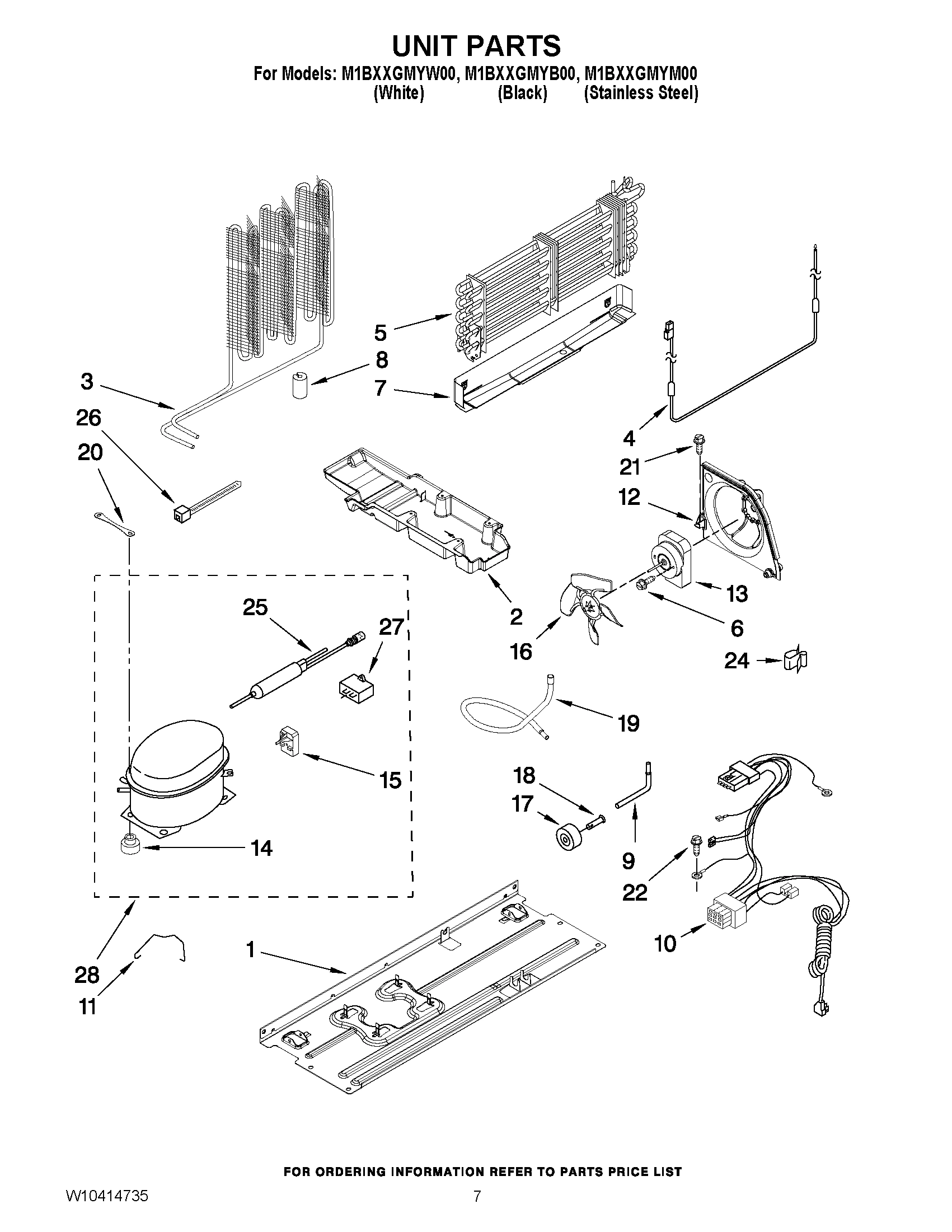

04 - UNIT PARTS

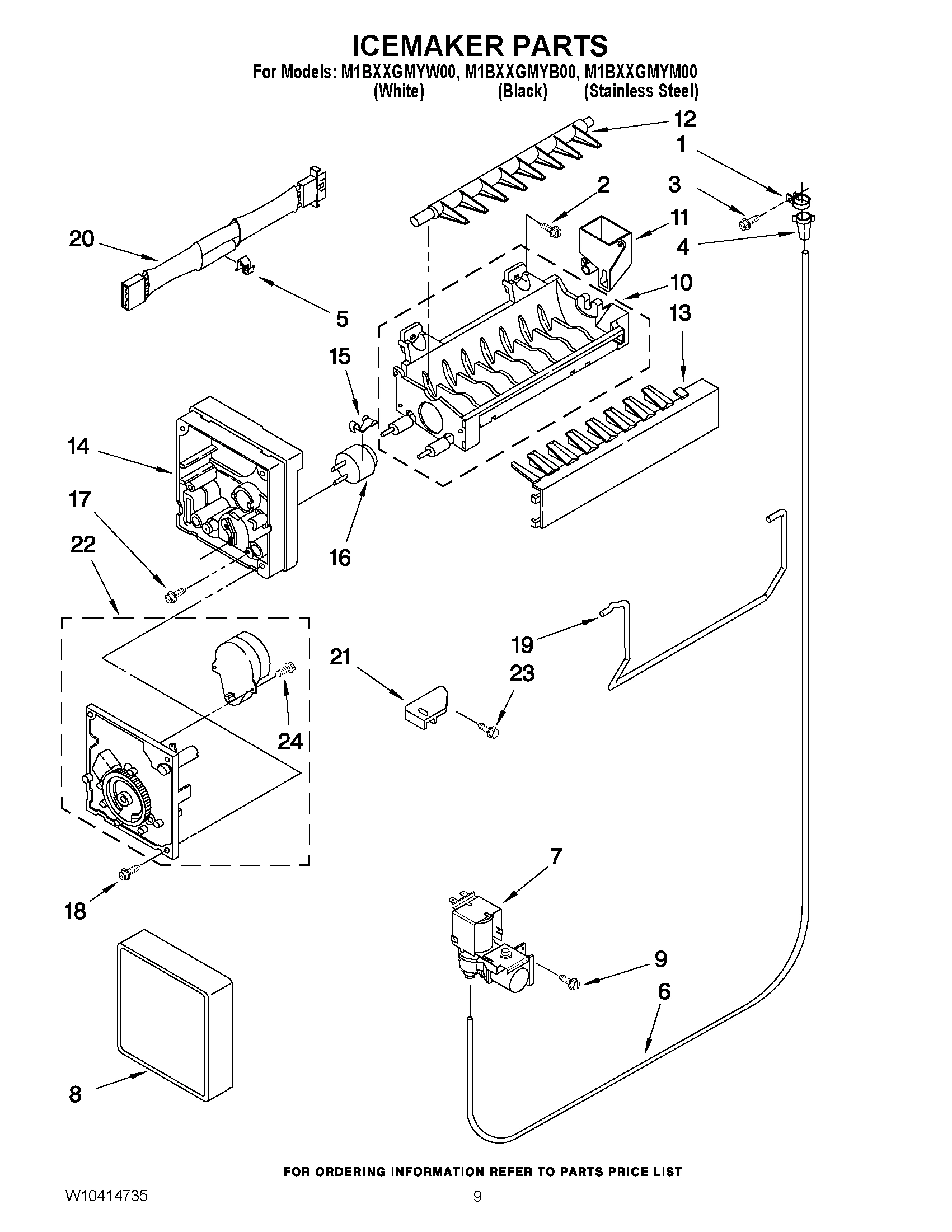

05 - ICEMAKER PARTS
06 - SHELF PARTS

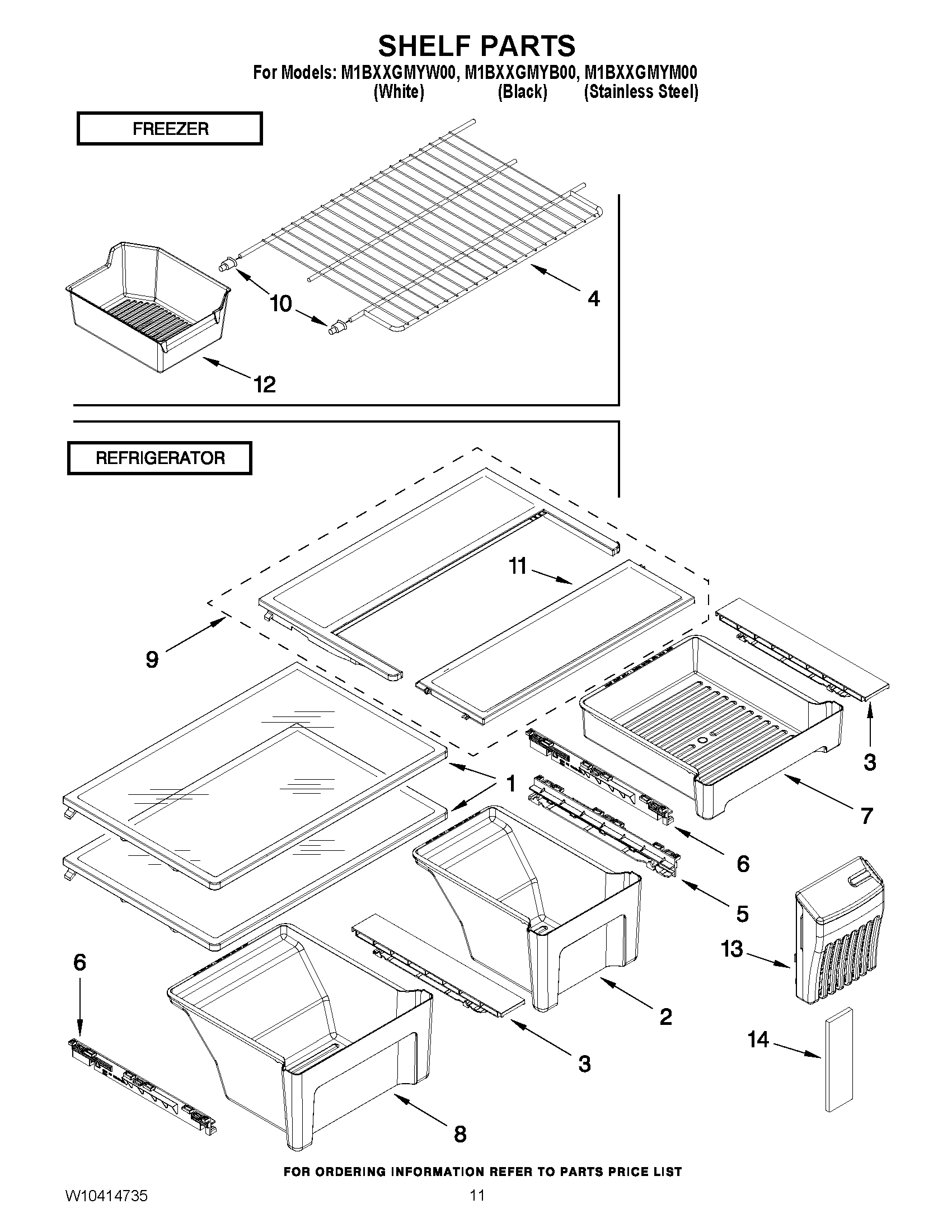

07 - OPTIONAL PARTS
Common parts from model Maytag M1BXXGMYB00 REFRIGERATOR
1
MAY 2225623 MAY 2225623 Contact Us For Availability
1
DO-IT-YOURSELF MANUAL REF./ FRZ. MAY 677969 Contact Us For Availability
1
MAY W10360533 MAY W10360533 Contact Us For Availability
1
MAY W10361785 MAY W10361785 Contact Us For Availability
1
MAY W10414768 MAY W10414768 Contact Us For Availability
1
MAY W10329586 MAY W10329586 Contact Us For Availability
1
MAY W10353884 MAY W10353884 Contact Us For Availability
1
MAY W10353895 MAY W10353895 Contact Us For Availability
1
PLATE, UNIT MOUNTING MAY W10300118 Contact Us For Availability
1
MAY 488878 MAY 488878 Contact Us For Availability
1
SHELF, FULL MAY W10486289 Contact Us For Availability
2
HINGE (TOP) MAY W10300065 Contact Us For Availability
2
BIN, SHORT MAY W10331764 Contact Us For Availability
2
MAY 2197380 MAY 2197380 Contact Us For Availability
2
Screw MAY 488208 Contact Us For Availability
2
TRAY, EVAPORATOR MAY W10466213 Contact Us For Availability
2
CRISPER PAN W/SACHET MOUNT MAY W10373935 Contact Us For Availability
3
ROLLER, FRONT MAY 2166108 Contact Us For Availability
3
MAY 2254360 MAY 2254360 Contact Us For Availability
3
MAY W10414237 MAY W10414237 Contact Us For Availability
3
SCREW MAY 488886 Contact Us For Availability
3
TRAIL RAIL, CENTER MAY W10404446 Contact Us For Availability
4
ENDCAP, GRILLE (WHITE) MAY W10339257 Contact Us For Availability
4
ENDCAP, GRILLE (BLACK) MAY W10353930 Contact Us For Availability
4
ENDCAP, GRILLE (MIDNIGHT GREY) MAY W10353932 Contact Us For Availability
4
MAY 8534058 MAY 8534058 Contact Us For Availability
4
ELEC. CONTROL MAY W10392195 Contact Us For Availability
4
MAY W10316428 MAY W10316428 Contact Us For Availability
4
MAY 2181939 MAY 2181939 Contact Us For Availability
4
SHELF, WIRE MAY W10384386 Contact Us For Availability
5
MAY 489385 MAY 489385 Contact Us For Availability
5
MAY W10129563 MAY W10129563 Contact Us For Availability
5
SWITCH ASSEMBLY MAY W10341559 Contact Us For Availability
5
EVAPORATOR ASSY. MAY W10314205 Contact Us For Availability
5
CLIP,FUSE MAY 628379 Contact Us For Availability
5
TRAIL RAIL, RS MAY W10404450 Contact Us For Availability
6
MAY 2202875 MAY 2202875 Contact Us For Availability
6
MAY 2202882 MAY 2202882 Contact Us For Availability
6
DOOR GASKET, MAGNETIC (APOLLO GREY) MAY W10171475 Contact Us For Availability
6
Valve MAY 2210509 Contact Us For Availability
6
TUBE WATER MAY 2181944 Contact Us For Availability
6
TRAIL RAIL, LS MAY W10404449 Contact Us For Availability
7
MAY 2179826 MAY 2179826 Contact Us For Availability
7
TRIM, FC MAY W10308875 Contact Us For Availability
7
MAY W10292528 MAY W10292528 Contact Us For Availability
7
HEAT SHIELD MAY W10314195 Contact Us For Availability
7
VALVE SOLENOID MAY W10279909 Contact Us For Availability
7
MEAT PAN MAY W10310944 Contact Us For Availability
8
SCREW MAY W10142287 Contact Us For Availability
8
Nameplate MAY W10170766 Contact Us For Availability
8
Socket, Light MAY 2162085 Contact Us For Availability
8
GROMMET-COND-(4) MAY 2319835 Contact Us For Availability
8
COVER MAY W10289690 Contact Us For Availability
8
CRISPER PAN MAY W10373951 Contact Us For Availability
9
MAY 549193 MAY 549193 Contact Us For Availability
9
MAY 8281265 MAY 8281265 Contact Us For Availability
9
TOWER CONN ASSY FC MAY W10396926 Contact Us For Availability
9
MAY 2154109 MAY 2154109 Contact Us For Availability
9
MAY W10352271 MAY W10352271 Contact Us For Availability
10
MAY 489497 MAY 489497 Contact Us For Availability
10
COMPARTMENT MAY W10308809 Contact Us For Availability
10
Fan Motor MAY 2315539 Contact Us For Availability
10
WIRE ASSEMBLY, UNIT MAY W10405935 Contact Us For Availability
10
MAY W10122527 MAY W10122527 Contact Us For Availability
10
Cup, Shelf Mount MAY W10130299 Contact Us For Availability
11
MAY 2254618 MAY 2254618 Contact Us For Availability
11
MAY W10329584 MAY W10329584 Contact Us For Availability
11
MAY W10353297 MAY W10353297 Contact Us For Availability
11
MAY W10353317 MAY W10353317 Contact Us For Availability
11
MAY 2200509 MAY 2200509 Contact Us For Availability
11
STRAP MAY W10204187 Contact Us For Availability
11
MAY W10122561 MAY W10122561 Contact Us For Availability
11
MAY W10305248 MAY W10305248 Contact Us For Availability
12
MAY 2183852 MAY 2183852 Contact Us For Availability
12
FLIP DOOR MAY W10308843 Contact Us For Availability
12
MAY W10316942 MAY W10316942 Contact Us For Availability
12
MAY 2315541 MAY 2315541 Contact Us For Availability
12
MAY 627843 MAY 627843 Contact Us For Availability
12
PAN, ICE CUBE MAY 2254352 Contact Us For Availability
13
MAY W10356444 MAY W10356444 Contact Us For Availability
13
MAY W10384183 MAY W10384183 Contact Us For Availability
13
MAY 2188874 MAY 2188874 Contact Us For Availability
13
MAY W10122563 MAY W10122563 Contact Us For Availability
13
HOLDER, FOOD PRESERVER MAY W10408748 Contact Us For Availability
14
MAY 2254473 MAY 2254473 Contact Us For Availability
14
MAY W10334042 MAY W10334042 Contact Us For Availability
14
FASCIA, LENS MAY W10339195 Contact Us For Availability
14
GROMMET (PRODUCTION) MAY 10835903 Contact Us For Availability
14
GROMMET (SERVICE) MAY 1100826 Contact Us For Availability
14
Support MAY 2194712 Contact Us For Availability
14
FOOD PRESERVER MAY W10346771 Contact Us For Availability
15
MAY 2214967 MAY 2214967 Contact Us For Availability
15
MAY 2214969 MAY 2214969 Contact Us For Availability
15
DOOR GASKET, MAGNETIC (APOLLO GREY) MAY W10171479 Contact Us For Availability
15
MAY W10356943 MAY W10356943 Contact Us For Availability
15
START-DEVICE COMBINATION (START RELAY AND OVE MAY W10136414 Contact Us For Availability
15
START-DEVICE COMBINATION (START RELAY AND OVE MAY W10197428 Contact Us For Availability
15
MAY 2315522 MAY 2315522 Contact Us For Availability
16
HOLE PLUG (BLACK) MAY 2183998 Contact Us For Availability
16
HOLE PLUG (WHITE) MAY 2201012 Contact Us For Availability
16
HOLE PLUG (APOLLO GREY) MAY 2254506 Contact Us For Availability
16
BIN, LONG MAY W10331763 Contact Us For Availability
16
MAY W10385129 MAY W10385129 Contact Us For Availability
16
FAN BLADE MAY W10139483 Contact Us For Availability
16
THERMOSTAT (ALSO ORDER 542369 CEMENT ALUMILAS MAY W10290336 Contact Us For Availability
17
CORNER FILLER (WHITE) MAY W10283959 Contact Us For Availability
17
CORNER FILLER (BLACK) MAY W10283960 Contact Us For Availability
17
CORNER FILLER (APOLLO GREY) MAY W10283961 Contact Us For Availability
17
MAY 2189202 MAY 2189202 Contact Us For Availability
17
LIGHT BULB MAY W10311528 Contact Us For Availability
17
Roller MAY 2150304 Contact Us For Availability
17
MAY 8533917 MAY 8533917 Contact Us For Availability
18
MAY W10326387 MAY W10326387 Contact Us For Availability
18
MAY W10353942 MAY W10353942 Contact Us For Availability
18
GRILLE (MIDNIGHT GREY) MAY W10353944 Contact Us For Availability
18
MAY 489276 MAY 489276 Contact Us For Availability
18
THERMISTOR, FC MAY W10383615 Contact Us For Availability
18
MAY 2221797 MAY 2221797 Contact Us For Availability
19
MAY 489341 MAY 489341 Contact Us For Availability
19
Hole Plug (White) MAY 2212648 Contact Us For Availability
19
Hole Plug (Black) MAY 2212651 Contact Us For Availability
19
HOLE PLUG (APOLLO GREY) MAY 2254517 Contact Us For Availability
19
Switch, Rocker Arm MAY 1118894 Contact Us For Availability
19
MAY W10466682 MAY W10466682 Contact Us For Availability
19
MAY 627792 MAY 627792 Contact Us For Availability
20
MAY 487576 MAY 487576 Contact Us For Availability
20
TRIM, RC MAY W10308874 Contact Us For Availability
20
WIRE ASSEMBLY FREEZER COMPART. MAY W10283809 Contact Us For Availability
20
MAY W10236396 MAY W10236396 Contact Us For Availability
20
MAY W10309399 MAY W10309399 Contact Us For Availability
21
MAY 489427 MAY 489427 Contact Us For Availability
21
ENDCAP, TRIM RS MAY W10308871 Contact Us For Availability
21
ENDCAP, TRIM LS MAY W10338485 Contact Us For Availability
21
MAY W10305175 MAY W10305175 Contact Us For Availability
21
MAY 8533961 MAY 8533961 Contact Us For Availability
21
MAY 628320 MAY 628320 Contact Us For Availability
22
COVER, HINGE (WHITE, RS) MAY W10331560 Contact Us For Availability
22
COVER, HINGE (WHITE, LS) MAY W10331654 Contact Us For Availability
22
COVER, HINGE (BLACK, RS) MAY W10353945 Contact Us For Availability
22
COVER, HINGE (MIDNIGHT GREY, RS) MAY W10353947 Contact Us For Availability
22
COVER, HINGE (BLACK, LS) MAY W10353948 Contact Us For Availability
22
COVER, HINGE (MIDNIGHT GREY, LS) MAY W10353950 Contact Us For Availability
22
HANDLE, FREEZER (WHITE) MAY W10366329 Contact Us For Availability
22
HANDLE, FREEZER (BLACK) MAY W10370622 Contact Us For Availability
22
HANDLE, FREEZER (TITANIUM SPARKLE) MAY W10370624 Contact Us For Availability
22
MAY W10383443 MAY W10383443 Contact Us For Availability
22
MAY 488500 MAY 488500 Contact Us For Availability
22
MODULE ASSEMBLY (INCLUDES ITEM 24) MAY W10223929 Contact Us For Availability
23
ENDCAP, GRILLE HINGE (WHITE) MAY W10381059 Contact Us For Availability
23
ENDCAP, GRILLE HINGE (BLACK) MAY W10381060 Contact Us For Availability
23
ENDCAP, GRILLE HINGE (MIDNIGHT GREY) MAY W10381064 Contact Us For Availability
23
AIR TOWER MAY W10305174 Contact Us For Availability
23
MAY 489478 MAY 489478 Contact Us For Availability
24
MAY 2254576 MAY 2254576 Contact Us For Availability
24
GRILLE, AIR FILTER MAY W10330850 Contact Us For Availability
24
MAY 2326941 MAY 2326941 Contact Us For Availability
24
MAY 489136 MAY 489136 Contact Us For Availability
25
LIGHT COVER, RC MAY W10348614 Contact Us For Availability
25
MAY W10143759 MAY W10143759 Contact Us For Availability
25
MAY W10177049 MAY W10177049 Contact Us For Availability
26
MAY 489442 MAY 489442 Contact Us For Availability
26
MAY 2263990 MAY 2263990 Contact Us For Availability
27
MAY 2169373 MAY 2169373 Contact Us For Availability
27
Capacitor (Service) MAY 2264017 Contact Us For Availability
28
MAY W10315189 MAY W10315189 Contact Us For Availability
28
COMPRESSOR (INCLUDES ILLUS. 14,15, 25, & 27) MAY W10253005 Contact Us For Availability
29
MAY W10321162 MAY W10321162 Contact Us For Availability
30
AIR DIFFUSER BOTTOM MAY W10395376 Contact Us For Availability
32
BRACKET, EVAP. FAN MAY 2254454 Contact Us For Availability
33
AIR TOWER MAY W10356895 Contact Us For Availability
34
MAY W10345375 MAY W10345375 Contact Us For Availability
100
MAY W10190952 MAY W10190952 Contact Us For Availability
NI
REFRIGERANT CHARGE (R134A) MAY N/P Contact Us For Availability
NI
MAY 876764 MAY 876764 Contact Us For Availability
NI
VALVE, ACCESS (1/4``) MAY 978025 Contact Us For Availability
NI
Valve, Access (5/16``) MAY 978026 Contact Us For Availability
NI
VALVE, ACCESS (3/8``) MAY 978027 Contact Us For Availability
NI
Valve, Access (1/2``) MAY 978028 Contact Us For Availability
NI
Valve, Access (5/8``) MAY 978029 Contact Us For Availability
NI
Valve, Access (3/4``) MAY 978030 Contact Us For Availability
NI
MAY 1117510 MAY 1117510 Contact Us For Availability
NI
SEALER, GUM (4 FEET) MAY 212643 Contact Us For Availability
NI
CUSTOMER TOUCH-UP MATERIAL (ENAMEL, WHITE (12 MAY 350930 Contact Us For Availability
NI
CUSTOMER TOUCH-UP MATERIAL (ENAMEL, BLACK (12 MAY 350939 Contact Us For Availability
NI
CUSTOMER TOUCH-UP MATERIAL (PRIMER, WHITE (12 MAY 350942 Contact Us For Availability
NI
CUSTOMER TOUCH-UP MATERIAL (BRUSH TOUCH-UP KI MAY 4392899 Contact Us For Availability
NI
REFINISHING MATERIAL (ENAMEL, BISCUIT (1 QT. MAY 4392900 Contact Us For Availability
NI
Customer Touch-Up Material (Enamel, Biscuit ( MAY 4392901 Contact Us For Availability
NI
MAY 479502 MAY 479502 Contact Us For Availability
NI
MAY 503695 MAY 503695 Contact Us For Availability
NI
MAY 505587 MAY 505587 Contact Us For Availability
NI
TOUCH-UP, WHITE PORCELAIN (2 OZ.) MAY 511873 Contact Us For Availability
NI
MAY 542638 MAY 542638 Contact Us For Availability
NI
MAY 542639 MAY 542639 Contact Us For Availability
NI
MAY 606755 MAY 606755 Contact Us For Availability
NI
CUSTOMER TOUCH-UP MATERIAL (BRUSH TOUCH-UP KI MAY 72017 Contact Us For Availability
NI
CUSTOMER TOUCH-UP MATERIAL (BRUSH TOUCH-UP KI MAY 72032 Contact Us For Availability
NI
REFINISHING MATERIAL (ENAMEL, WHITE (1 QT. UN MAY 799344 Contact Us For Availability
NI
REFINISHING MATERIAL, KIT, TERMINAL CONNECTOR MAY 833938 Contact Us For Availability
NI
MAY 876029 MAY 876029 Contact Us For Availability
NI
KIT, INSULATION (14 PCS. 3`` X 24`` X 48``) MAY 876305 Contact Us For Availability
NI
KIT, INSULATION (2 PCS. 3`` X 24 `` X 48``) MAY 876370 Contact Us For Availability
NI
MAY 978941 MAY 978941 Contact Us For Availability
NI
MAY W10395149 MAY W10395149 Contact Us For Availability
× ![]()
