Model Maytag M166 MICROWAVE – Common Parts & Diagrams
01 - BLOWER ASSY. (M166)
02 - CONTROL PANEL (M166)

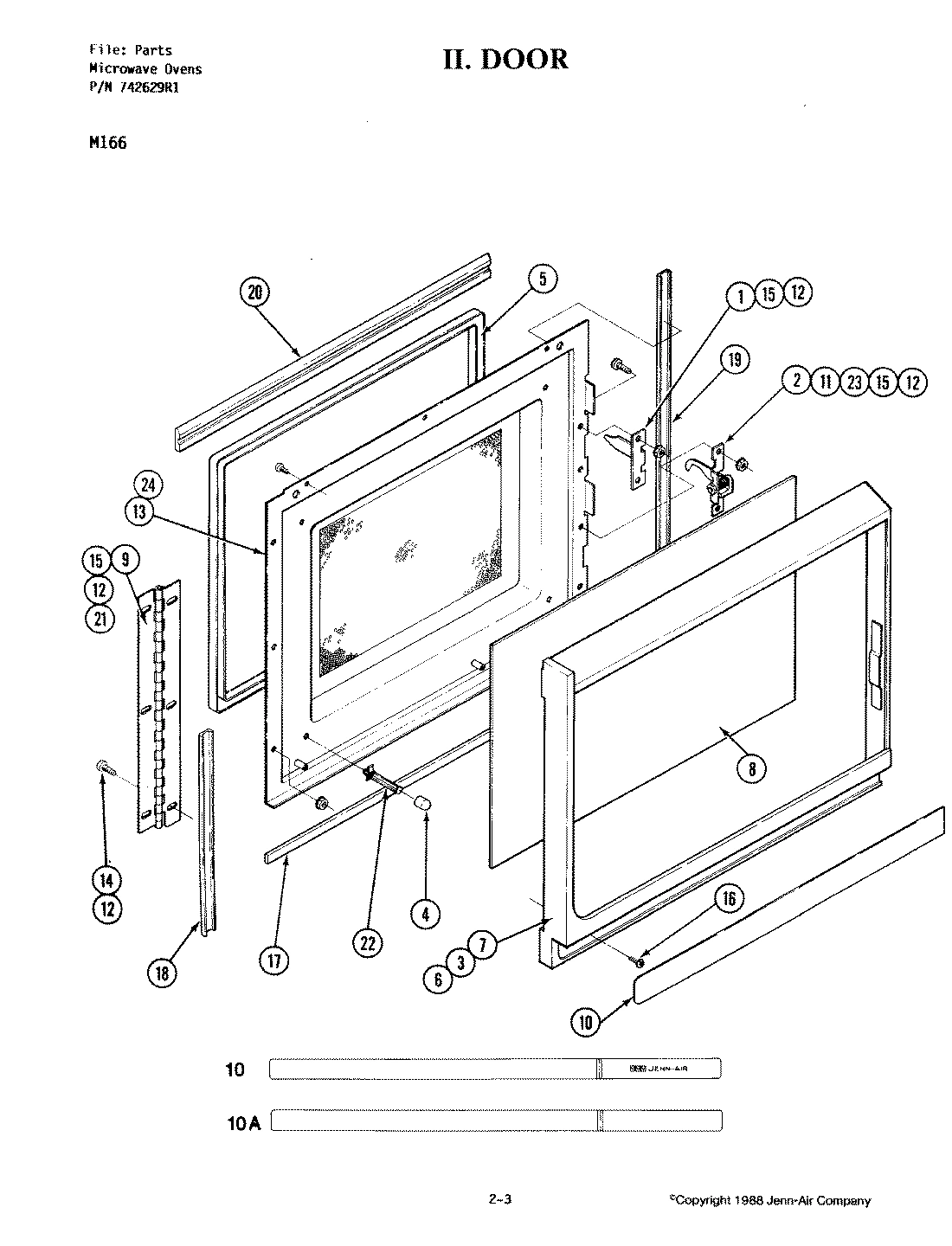

03 - DOOR (M166)
04 - INTERNAL CONTROLS (M166)

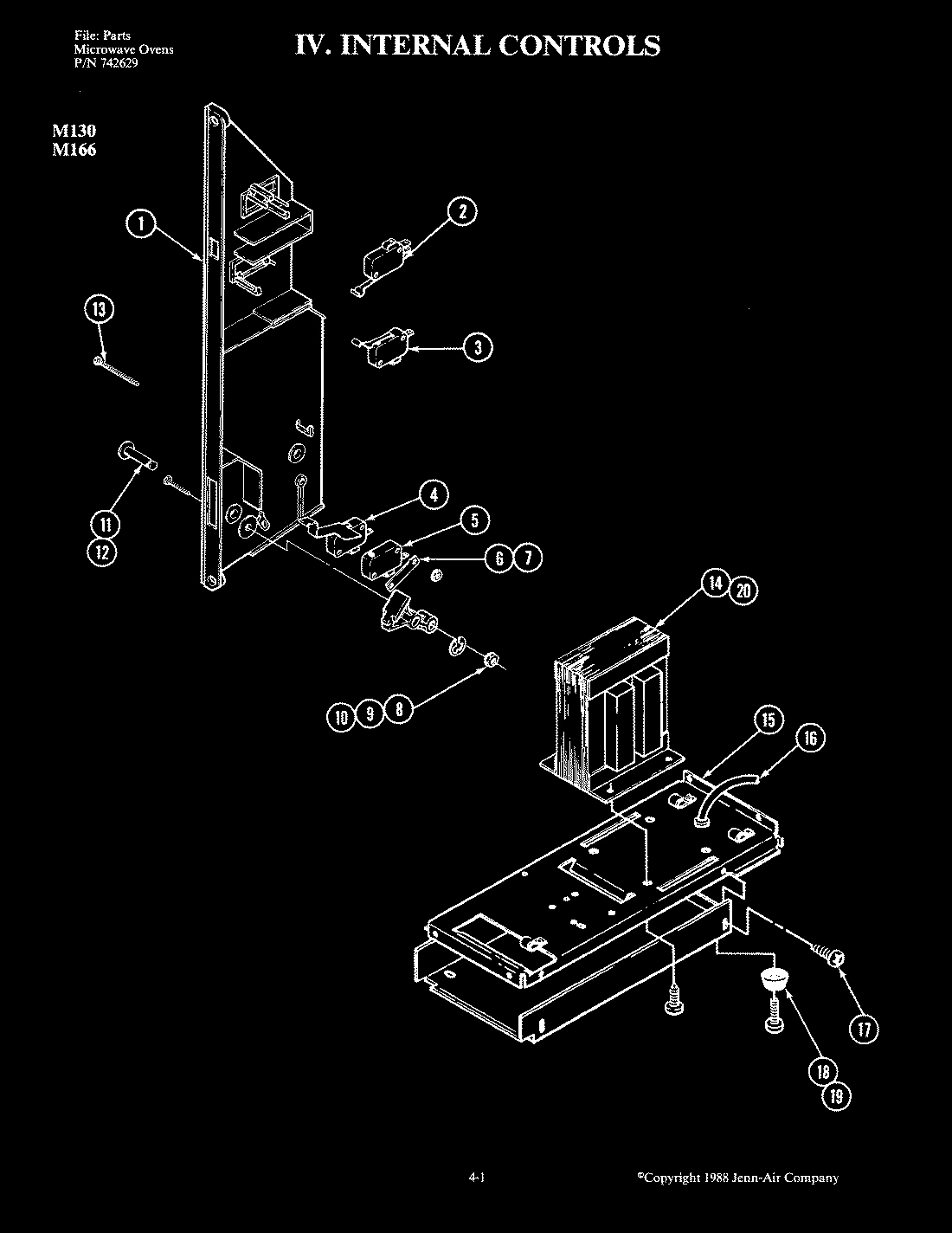

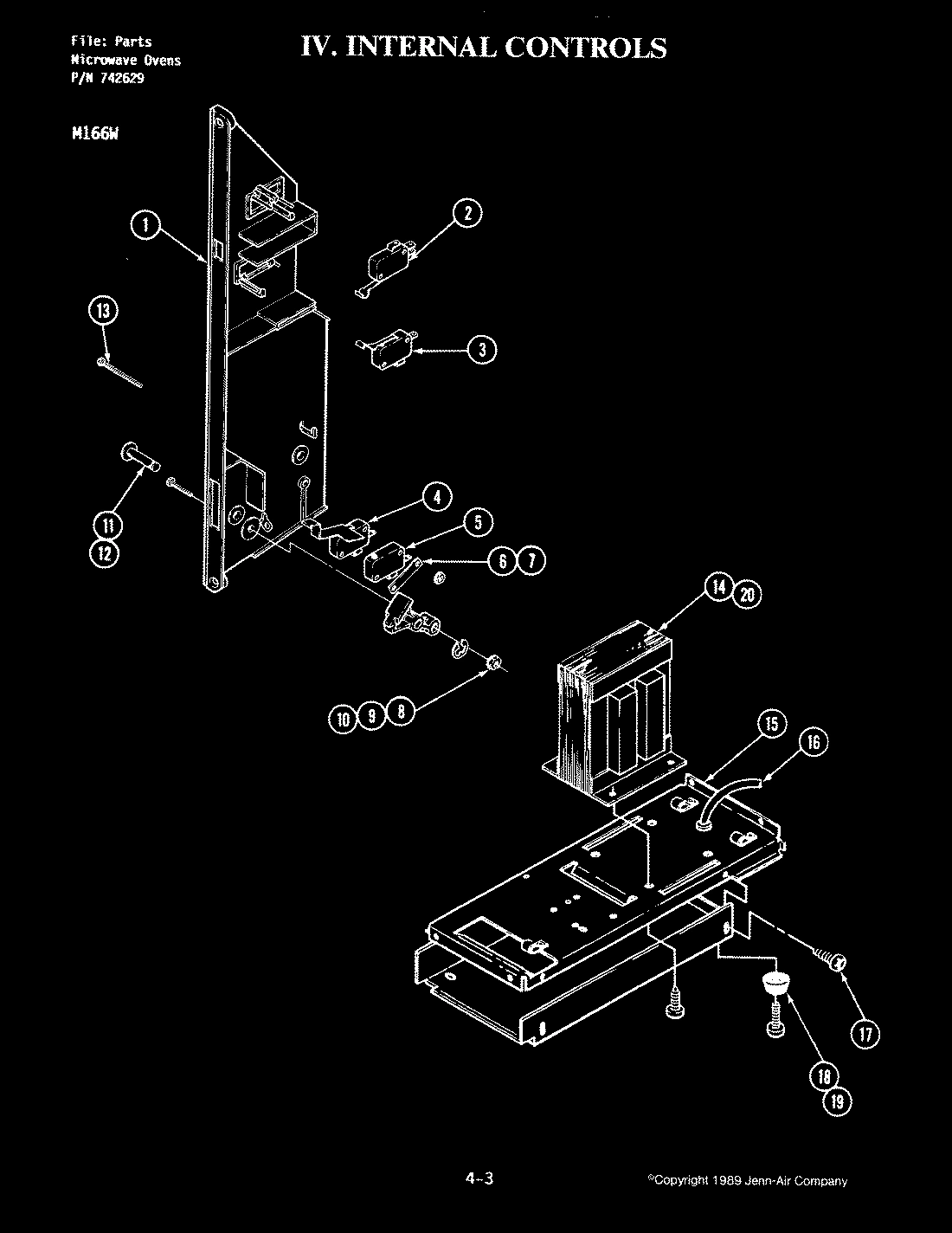

05 - INTERNAL CONTROLS (M166W)

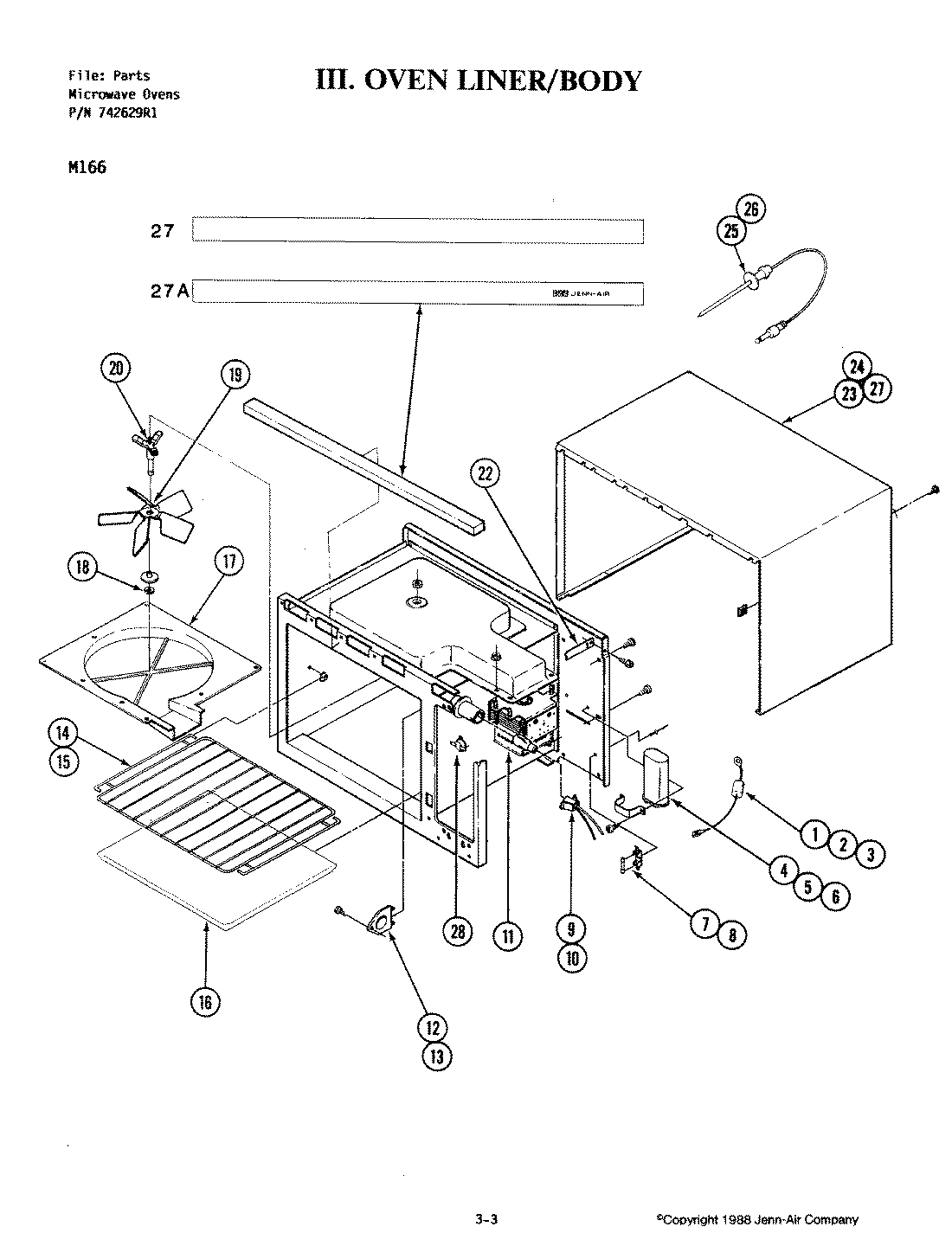

06 - OVEN LINER-BODY (M166)
Common parts from model Maytag M166 MICROWAVE
1
BLOWER ASSEMBLY MAY 790155 Contact Us For Availability
1
MAY 02030128 MAY 02030128 Contact Us For Availability
1
BRACKET, CONTROL PANEL-UPPER MAY 790100 Contact Us For Availability
1
ACTIVATOR, MONITOR MAY 790110 Contact Us For Availability
1
BRACKET, INTERLOCK MAY 790135 Contact Us For Availability
1
MAY Y02030133 MAY Y02030133 Contact Us For Availability
1
MAY 04021452 MAY 04021452 Contact Us For Availability
1
MAY 04021546 MAY 04021546 Contact Us For Availability
1
DIODE MAY 790162 Contact Us For Availability
1
MAY Y04010206 MAY Y04010206 Contact Us For Availability
2
DUCT ASSEMBLY, MAGNETRON MAY 790156 Contact Us For Availability
2
MAY 02030137 MAY 02030137 Contact Us For Availability
2
BRACKET, CONTROL PANEL-LOWER MAY 790101 Contact Us For Availability
2
BRACKET, DOOR LATCH MAY 790111 Contact Us For Availability
2
SWITCH, SECONDARY INTERLOCK MAY 790136 Contact Us For Availability
2
MAY Y01140038 MAY Y01140038 Contact Us For Availability
2
SCREW MAY 790163 Contact Us For Availability
2
MAY Y03010144 MAY Y03010144 Contact Us For Availability
3
SUPPORT, DUCT MAGNETRON MAY 790157 Contact Us For Availability
3
MAY 01210077 MAY 01210077 Contact Us For Availability
3
CONTROL MAY 790108 Contact Us For Availability
3
BRACKET, DOOR TRIM MAY 790112 Contact Us For Availability
3
SWITCH, MONITOR INTERLOCK MAY 790137 Contact Us For Availability
3
MAY Y01140030 MAY Y01140030 Contact Us For Availability
3
NUT MAY 790142 Contact Us For Availability
4
SCREW MAY 790158 Contact Us For Availability
4
MAY 02060256 MAY 02060256 Contact Us For Availability
4
FRAME, CONTROL PANEL MAY 790103 Contact Us For Availability
4
MAY Y790113 MAY Y790113 Contact Us For Availability
4
MAY 01140068 MAY 01140068 Contact Us For Availability
4
SWITCH, PRIMARY INTERLOCK MAY 790138 Contact Us For Availability
4
MAY Y01140042 MAY Y01140042 Contact Us For Availability
4
CAPACITOR MAY 790164 Contact Us For Availability
4
MAY Y01020023 MAY Y01020023 Contact Us For Availability
5
TAPE, FOAM MAY 790159 Contact Us For Availability
5
MAY W10124350 MAY W10124350 Contact Us For Availability
5
MAY Y790114 MAY Y790114 Contact Us For Availability
5
SWITCH, LOGIC INTERLOCK MAY 790139 Contact Us For Availability
5
MAY Y01140043 MAY Y01140043 Contact Us For Availability
5
MAY 02030123 MAY 02030123 Contact Us For Availability
5
BRACKET MAY 790165 Contact Us For Availability
6
TAPE, FOAM MAY 790160 Contact Us For Availability
6
MAY 03020011 MAY 03020011 Contact Us For Availability
6
SCREW MAY 790106 Contact Us For Availability
6
EXTRUSION, HANDLE MAY 790115 Contact Us For Availability
6
INSULATOR, SWITCH MAY 790140 Contact Us For Availability
6
MAY Y01100043 MAY Y01100043 Contact Us For Availability
6
MAY Y03020076 MAY Y03020076 Contact Us For Availability
7
TAPE, FOAM MAY 790161 Contact Us For Availability
7
SCREW MAY 790107 Contact Us For Availability
7
MAY Y03010147 MAY Y03010147 Contact Us For Availability
7
FRAME-DOOR MAY 790116 Contact Us For Availability
7
NUT MAY 790141 Contact Us For Availability
7
MAY Y03050001 MAY Y03050001 Contact Us For Availability
7
CLIP, FUSE MAY 790167 Contact Us For Availability
7
MAY Y01100036 MAY Y01100036 Contact Us For Availability
8
MAY 03020041 MAY 03020041 Contact Us For Availability
8
GLASS, DOOR MAY 790117 Contact Us For Availability
8
MAY 03050003 MAY 03050003 Contact Us For Availability
8
FUSE MAY 790168 Contact Us For Availability
8
MAY Y01050005 MAY Y01050005 Contact Us For Availability
9
MAY Y790118 MAY Y790118 Contact Us For Availability
9
MAY 03110040 MAY 03110040 Contact Us For Availability
9
CLIP-RETAINER MAY 790143 Contact Us For Availability
9
MAY 01100045 MAY 01100045 Contact Us For Availability
9
SOCKET, LAMP MAY 790169 Contact Us For Availability
10
MAY 02100105 MAY 02100105 Contact Us For Availability
10
INSERT MAY 790109 Contact Us For Availability
10
MAY 02190049 MAY 02190049 Contact Us For Availability
10
LATCH, DOOR INTERLOCK MAY 790144 Contact Us For Availability
10
LAMP MAY 790170 Contact Us For Availability
11
LATCH-DOOR MAY 790120 Contact Us For Availability
11
PIN, LEVER & PIVOT LATCH MAY 790145 Contact Us For Availability
11
MAY Y03070031 MAY Y03070031 Contact Us For Availability
11
MAY 01040004 MAY 01040004 Contact Us For Availability
11
MAGNETRON MAY 790171 Contact Us For Availability
12
NUT MAY 790121 Contact Us For Availability
12
MAY 03010114 MAY 03010114 Contact Us For Availability
12
SCREW MAY 790146 Contact Us For Availability
12
LENS, LAMP MAY 790172 Contact Us For Availability
12
MAY Y02400007 MAY Y02400007 Contact Us For Availability
13
PANEL-INNER MAY 790122 Contact Us For Availability
13
MAY 03010131 MAY 03010131 Contact Us For Availability
13
SCREW MAY 790147 Contact Us For Availability
13
MAY 03010098 MAY 03010098 Contact Us For Availability
13
SCREW MAY 790173 Contact Us For Availability
14
SCREW MAY 790123 Contact Us For Availability
14
MAY 01130028 MAY 01130028 Contact Us For Availability
14
TRANSFORMER MAY 790148 Contact Us For Availability
14
RACK, OVEN MAY 790174 Contact Us For Availability
14
MAY Y02410004 MAY Y02410004 Contact Us For Availability
15
SCREW MAY 790124 Contact Us For Availability
15
MAY 02040053 MAY 02040053 Contact Us For Availability
15
PLATE, COMPONENT MOUNTING MAY 790149 Contact Us For Availability
15
MAY 02010031 MAY 02010031 Contact Us For Availability
15
SUPPORT, RACK MAY 790175 Contact Us For Availability
16
SCREW MAY 790125 Contact Us For Availability
16
MAY 01080050 MAY 01080050 Contact Us For Availability
16
CORD-POWER MAY 790150 Contact Us For Availability
16
MAY 01080055 MAY 01080055 Contact Us For Availability
16
SHELF, GLASS MAY 790176 Contact Us For Availability
16
MAY Y02280024 MAY Y02280024 Contact Us For Availability
17
SEAL-BOTTOM MAY 790126 Contact Us For Availability
17
MAY 03020092 MAY 03020092 Contact Us For Availability
17
SCREW MAY 790151 Contact Us For Availability
17
COVER, STIRRER MAY 790092 Contact Us For Availability
17
MAY Y02300045 MAY Y02300045 Contact Us For Availability
17
MAY Y03110050 MAY Y03110050 Contact Us For Availability
18
SEAL, HINGE SIDE MAY 790127 Contact Us For Availability
18
FOOT-BASE MAY 790152 Contact Us For Availability
18
MAY Y02230008 MAY Y02230008 Contact Us For Availability
18
CLIP, STIRRER MAY 790093 Contact Us For Availability
18
MAY Y03110055 MAY Y03110055 Contact Us For Availability
19
SEAL, LATCH SIDE MAY 790128 Contact Us For Availability
19
SCREW MAY 790153 Contact Us For Availability
19
MAY Y03020068 MAY Y03020068 Contact Us For Availability
19
MAY 04021190 MAY 04021190 Contact Us For Availability
19
BLADE, BUSHING ASSEMBLY MAY 790094 Contact Us For Availability
20
SEAL, TOP MAY 790129 Contact Us For Availability
20
MAY 03010094 MAY 03010094 Contact Us For Availability
20
SCREW MAY 790154 Contact Us For Availability
20
MAY 04010243 MAY 04010243 Contact Us For Availability
20
MAY 02360045 MAY 02360045 Contact Us For Availability
20
SHAFT, STIRRER MAY 790095 Contact Us For Availability
21
SHIM, DOOR HINGE MAY 790130 Contact Us For Availability
21
MAY 03050007 MAY 03050007 Contact Us For Availability
21
NUT, SHAFT STIRRER MAY 790096 Contact Us For Availability
22
SPACER, DOOR WINDOW MAY 790131 Contact Us For Availability
22
MAY 02020020 MAY 02020020 Contact Us For Availability
22
BRACE, SUPPORT (UPPER) MAY 790097 Contact Us For Availability
23
SPRING, DOOR LATCH MAY 790132 Contact Us For Availability
23
TAPE (DOUBLE-SIDED) MAY 790133 Contact Us For Availability
23
MAY Y03010113 MAY Y03010113 Contact Us For Availability
23
MAY 02140070 MAY 02140070 Contact Us For Availability
23
CABINET MAY 790098 Contact Us For Availability
24
WINDOW, POLYESTER MAY 790134 Contact Us For Availability
24
MAY 03110046 MAY 03110046 Contact Us For Availability
24
CLIP, CABINET MAY 790099 Contact Us For Availability
25
MAY 01220002 MAY 01220002 Contact Us For Availability
25
PROBE, TEMP MAY 790177 Contact Us For Availability
26
MAY 01170008 MAY 01170008 Contact Us For Availability
26
JACK, PROBE MAY 790178 Contact Us For Availability
27
MAY 02100177 MAY 02100177 Contact Us For Availability
27
TRIM, TOP (NO LOGO) MAY 790180 Contact Us For Availability
28
MAY Y01180008 MAY Y01180008 Contact Us For Availability
29
MAY 02240682 MAY 02240682 Contact Us For Availability
× ![]()
