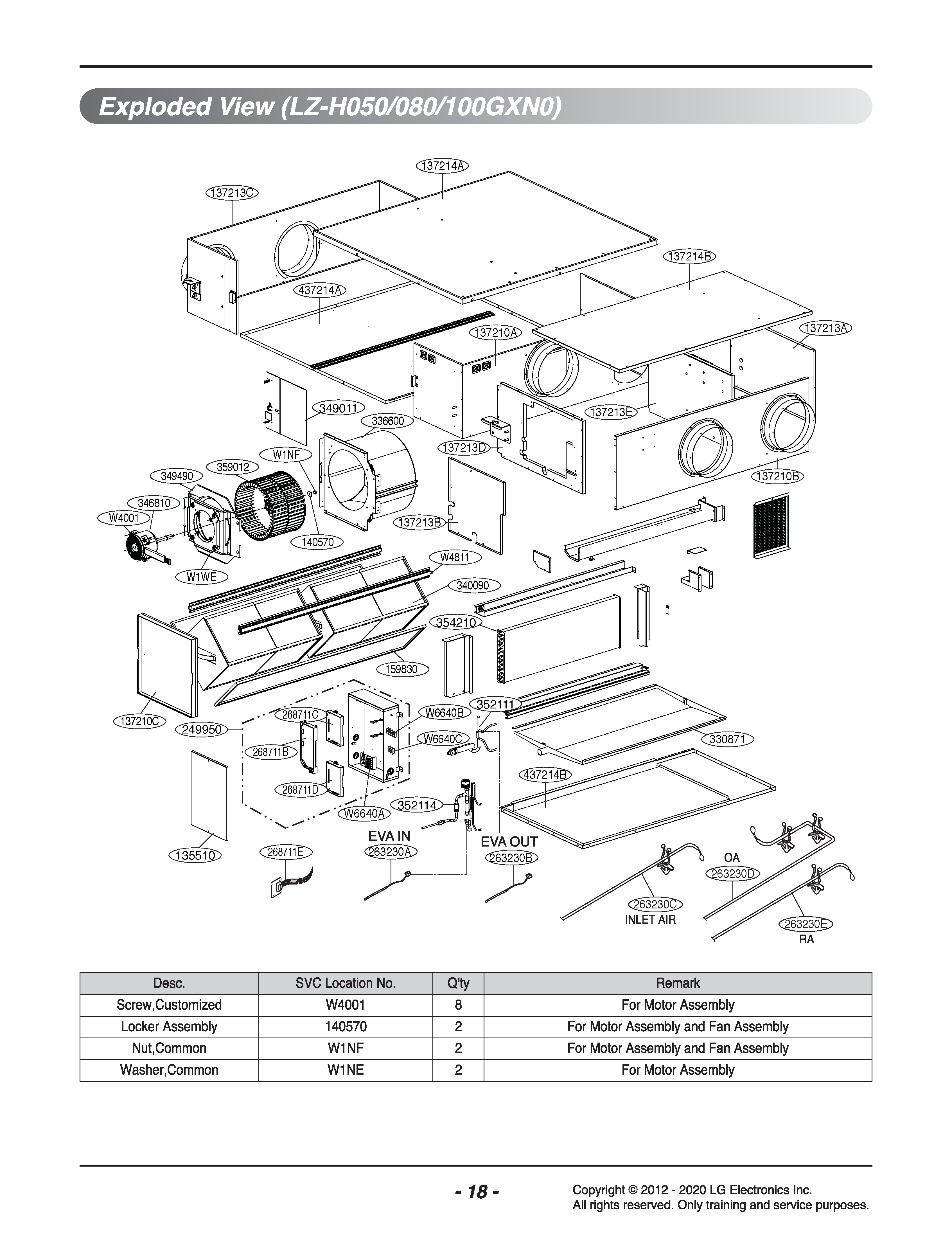

Model LG LZ-H100GXN0.ENWALEU – Common Parts & Diagrams

135510
Cover Assembly,Control
Cover Assembly,Control LGE ACQ74765001 Contact Us For Availability
View on Model
137210A
Panel Assembly,Front
Panel Assembly,Front LGE AGL72954802 Contact Us For Availability
View on Model
137210B
Panel Assembly,Front
Panel Assembly,Front LGE AGL73075901 Contact Us For Availability
View on Model
137210C
Panel Assembly,Front
Panel Assembly,Front LGE 3721A20196A Contact Us For Availability
View on Model
137213A
Panel Assembly,Side
Panel Assembly,Side LGE AGL73055501 Contact Us For Availability
View on Model
137213B
Panel Assembly,Side
Panel Assembly,Side LGE AGL72946401 Contact Us For Availability
View on Model
137213C
Panel Assembly,Side
Panel Assembly,Side LGE AGL73076001 Contact Us For Availability
View on Model
137213D
Panel Assembly,Side
Panel Assembly,Side LGE AGL72946002 Contact Us For Availability
View on Model
137213E
Panel Assembly,Side
Panel Assembly,Side LGE AGL72946301 Contact Us For Availability
View on Model
137214A
Panel Assembly,Upper
Panel Assembly,Upper LGE AGL73075801 Contact Us For Availability
View on Model
137214B
Panel Assembly,Upper
Panel Assembly,Upper LGE AGL73015801 Contact Us For Availability
View on Model
159830
Filter Assembly,Air Cleaner
Filter Assembly,Air Cleaner LGE 5231A30003B Contact Us For Availability
View on Model
249950
Case Assembly,Control
Case Assembly,Control LGE ABQ72952001 Contact Us For Availability
View on Model
263230A
Thermistor,NTC
Thermistor,NTC LGE 6323A30004J Contact Us For Availability
View on Model
263230A
Thermistor Assembly,NTC
Thermistor Assembly,NTC LGE EBG61106811 Contact Us For Availability
View on Model
263230B
Thermistor,NTC
Thermistor,NTC LGE 6323A30004K Contact Us For Availability
View on Model
263230B
Thermistor Assembly,NTC
Thermistor Assembly,NTC LGE EBG61106812 Contact Us For Availability
View on Model
263230D
Thermistor Assembly,NTC
Thermistor Assembly,NTC LGE EBG61106537 Contact Us For Availability
View on Model
263230E
Thermistor,NTC
Thermistor,NTC LGE 6323A30004T Contact Us For Availability
View on Model
268711B
PCB Assembly,Main
PCB Assembly,Main LGE EBR39319518 Contact Us For Availability
View on Model
268711C
PCB Assembly,Sub
PCB Assembly,Sub LGE 6871A20912E Contact Us For Availability
View on Model
268711D
PCB Assembly,Sub
PCB Assembly,Sub LGE EBR61664002 Contact Us For Availability
View on Model
268711E
PCB Assembly,Sub
PCB Assembly,Sub LGE EBR62316104 Contact Us For Availability
View on Model
330871
Pan Assembly,Drain
Pan Assembly,Drain LGE AGK72950601 Contact Us For Availability
View on Model
336600
Housing,Wrapper
Housing,Wrapper LGE 3660A20042A Contact Us For Availability
View on Model
340090
Exchanger Assembly
Exchanger Assembly LGE ADM34380902 Contact Us For Availability
View on Model
346810
Motor Assembly,DC,Indoor
Motor Assembly,DC,Indoor LGE 4681A20169C Contact Us For Availability
View on Model
349011
Damper Assembly
Damper Assembly LGE 4901A20002A Contact Us For Availability
View on Model
349490
Orifice Assembly
Orifice Assembly LGE 4949A20006D Contact Us For Availability
View on Model
352111
Tube Assembly,Connector
Tube Assembly,Connector LGE AJR73065601 Contact Us For Availability
View on Model
352114
Tube Assembly,Distributor
Tube Assembly,Distributor LGE AJR73065501 Contact Us For Availability
View on Model
354210
Evaporator Assembly,First
Evaporator Assembly,First LGE 5421A20114F Contact Us For Availability
View on Model
359012
Fan Assembly,Blower
Fan Assembly,Blower LGE 5901A30005B Contact Us For Availability
View on Model
437214A
Panel Assembly,Base
Panel Assembly,Base LGE AGL73076101 Contact Us For Availability
View on Model
437214B
Panel Assembly,Base
Panel Assembly,Base LGE AGL73055601 Contact Us For Availability
View on Model
W1WE
Washer,Common
Washer,Common LGE 1WSD0800030 Contact Us For Availability
View on Model
W4001
Screw,Customized
Screw,Customized LGE 4A00637D Contact Us For Availability
View on Model
W4811
Bracket Assembly
Bracket Assembly LGE 4811A20056A Contact Us For Availability
View on Model
W6640B
Connector,Terminal Block
Connector,Terminal Block LGE 6640A90001U Contact Us For Availability
View on Model
W6640C
Connector,Terminal Block
Connector,Terminal Block LGE 6640A90001T Contact Us For Availability
View on Model
