Model Speed Queen LWS45M* Washer – Common Parts & Diagrams

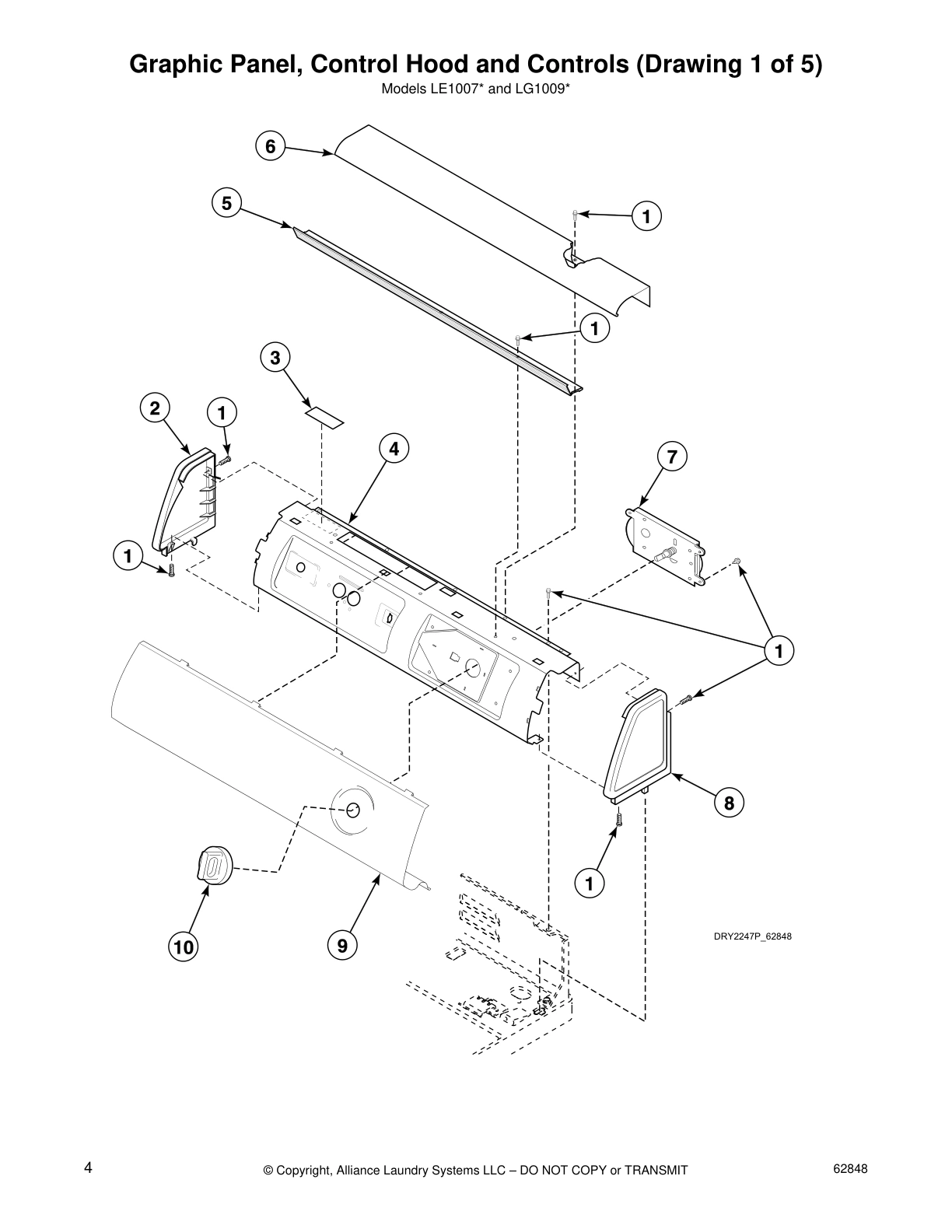

Graphic Panel, Control Hood and Controls (Drawing 1 of 5)

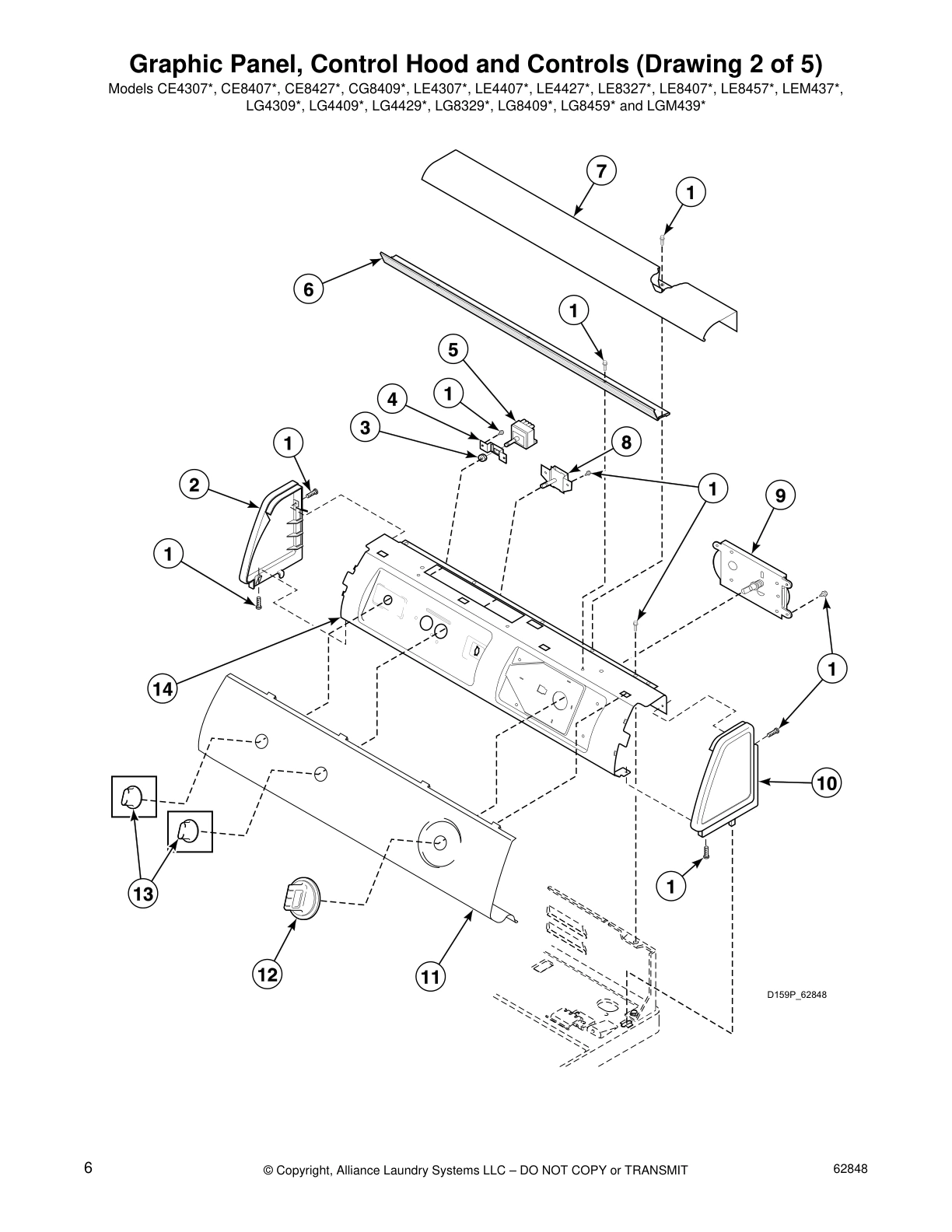

Graphic Panel, Control Hood and Controls (Drawing 2 of 5)
Graphic Panel, Control Hood and Controls (Drawing 3 of 5)
Graphic Panel, Control Hood and Controls (Drawing 4 of 5)
Graphic Panel, Control Hood and Controls (Drawing 5 of 5)
Cabinet Top and Control Hood Rear Panel
Motor, Exhaust Fan and Belt
Front Bulkhead, Air Duct, Felt Seal and Cylinder
Rear Bulkhead, Felt Seal, Cylinder Roller and Terminal Block
Cabinet, Exhaust Duct and Base
Power Cord (Drawing 2 of 2)
Terminals
Motor Connection Block and Terminal Extractor Tools
