Model GE LWNE52SP303SW01 General Electric Model LWNE52SP303SW01 – Common Parts & Diagrams

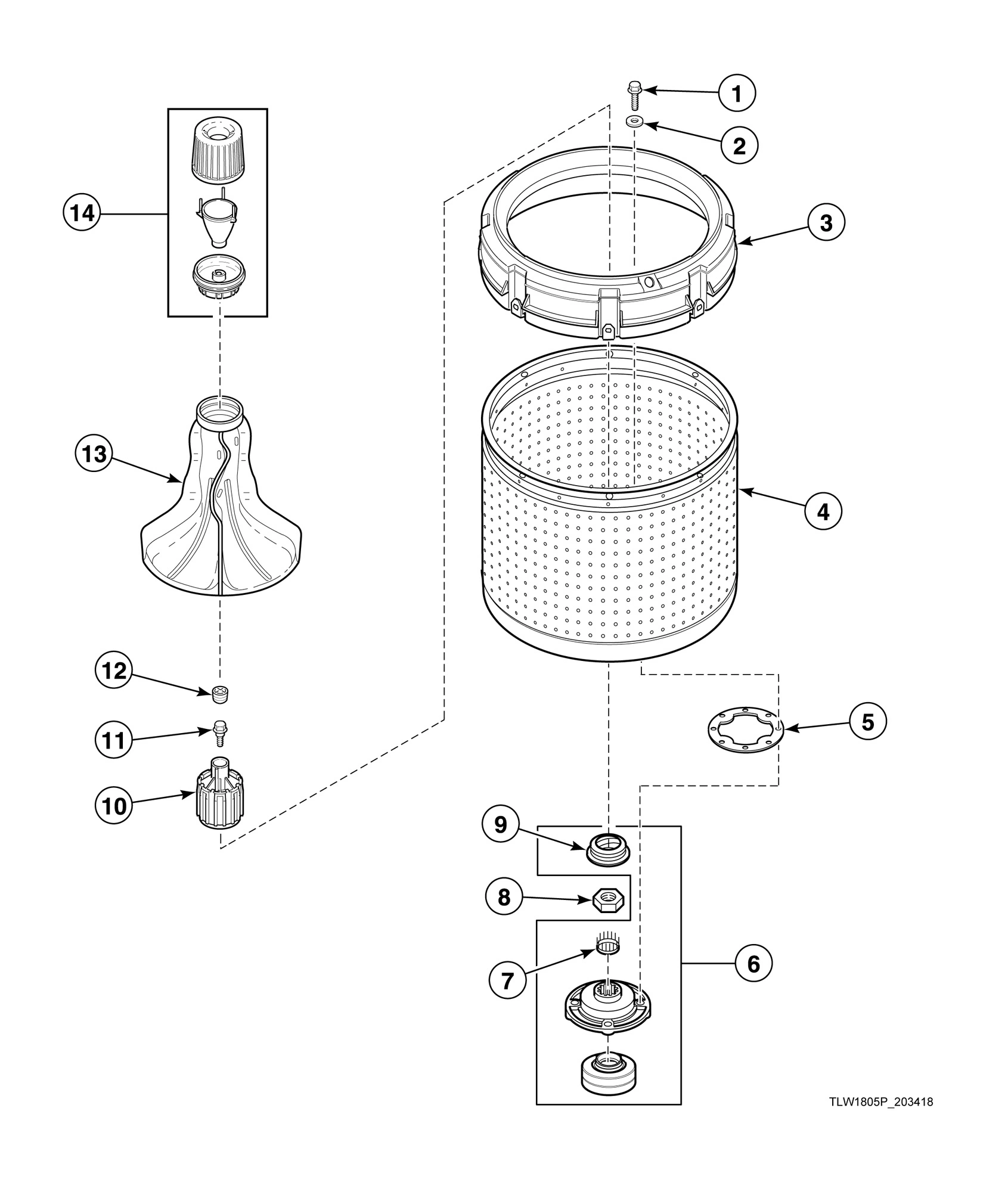

Agitator, Fabric Softener Dispenser, Drive Bell, Hub and Lip Seal Kit and Washtub

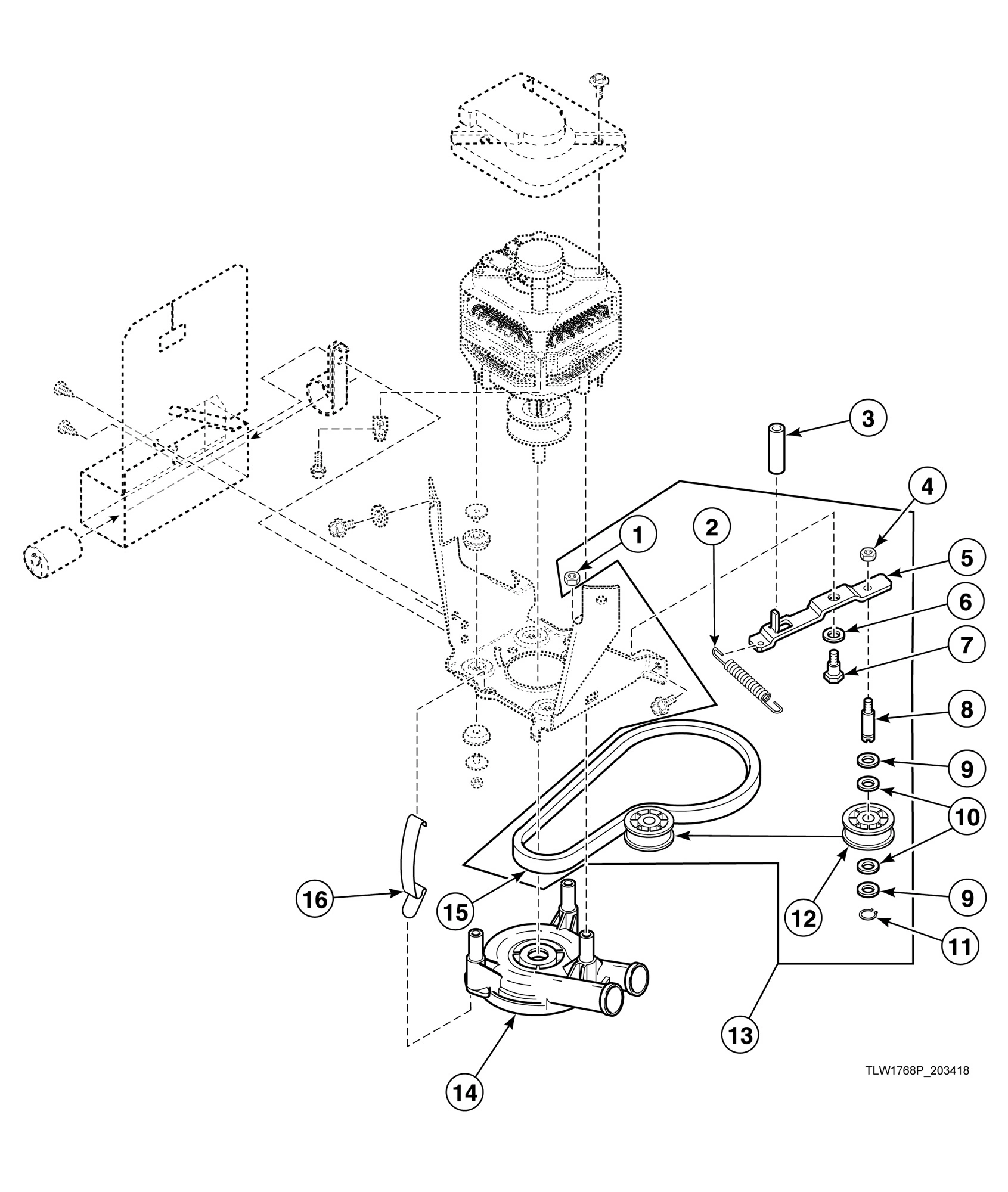

Belt, Pump and Idler Assembly (Drawing 1 of 2)

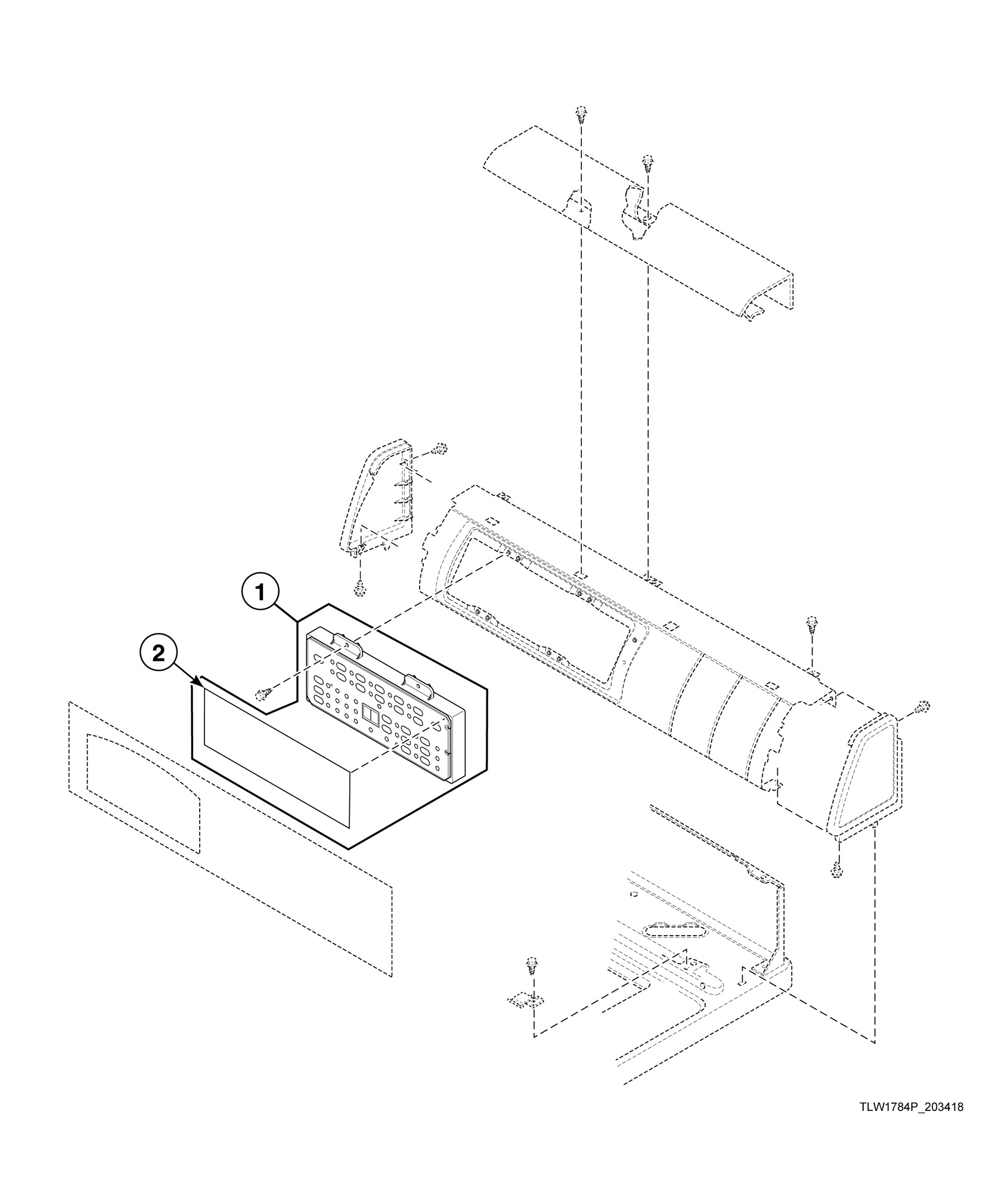

Controls and Overlay

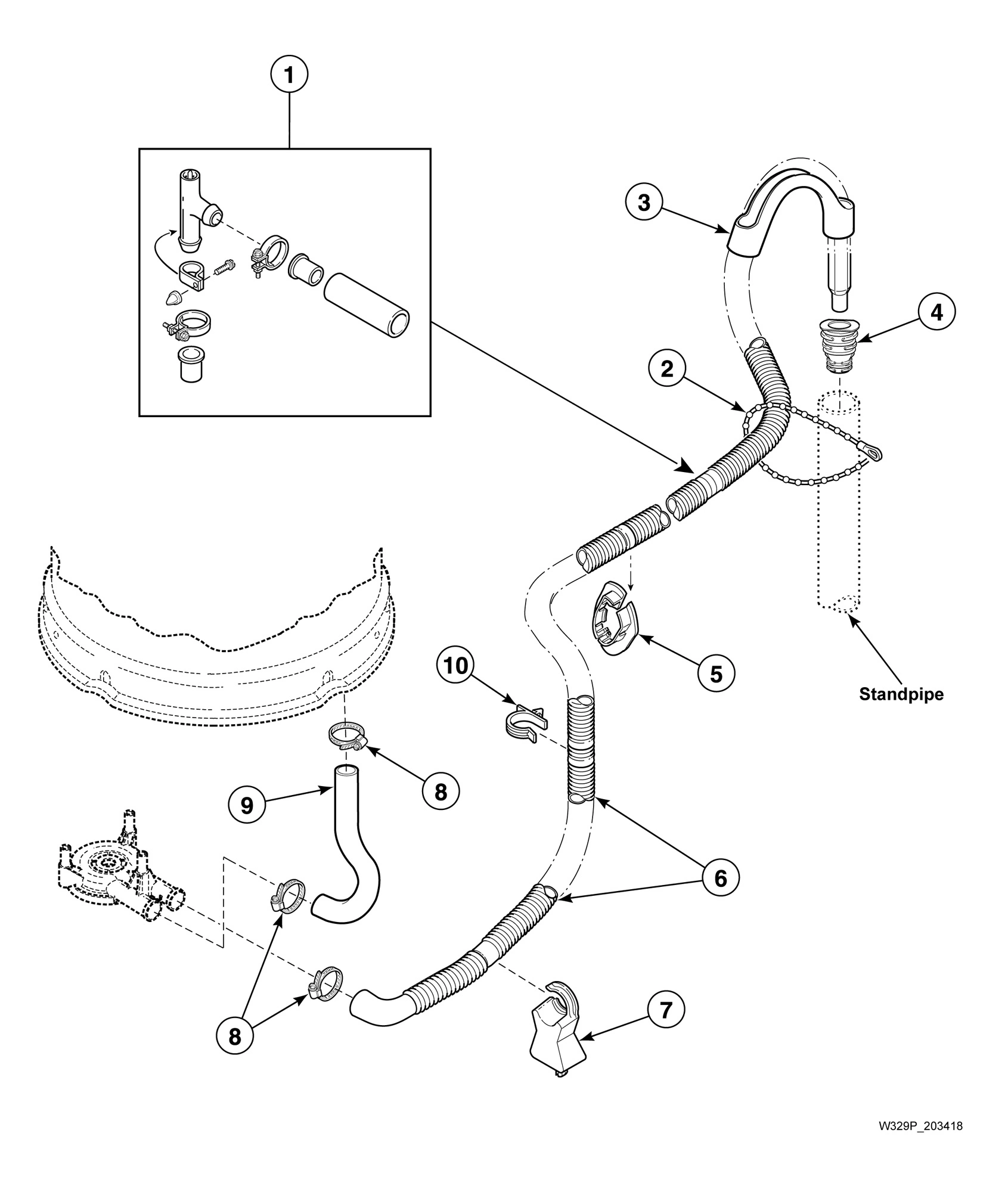

Drain Hose and Siphon Break Kit

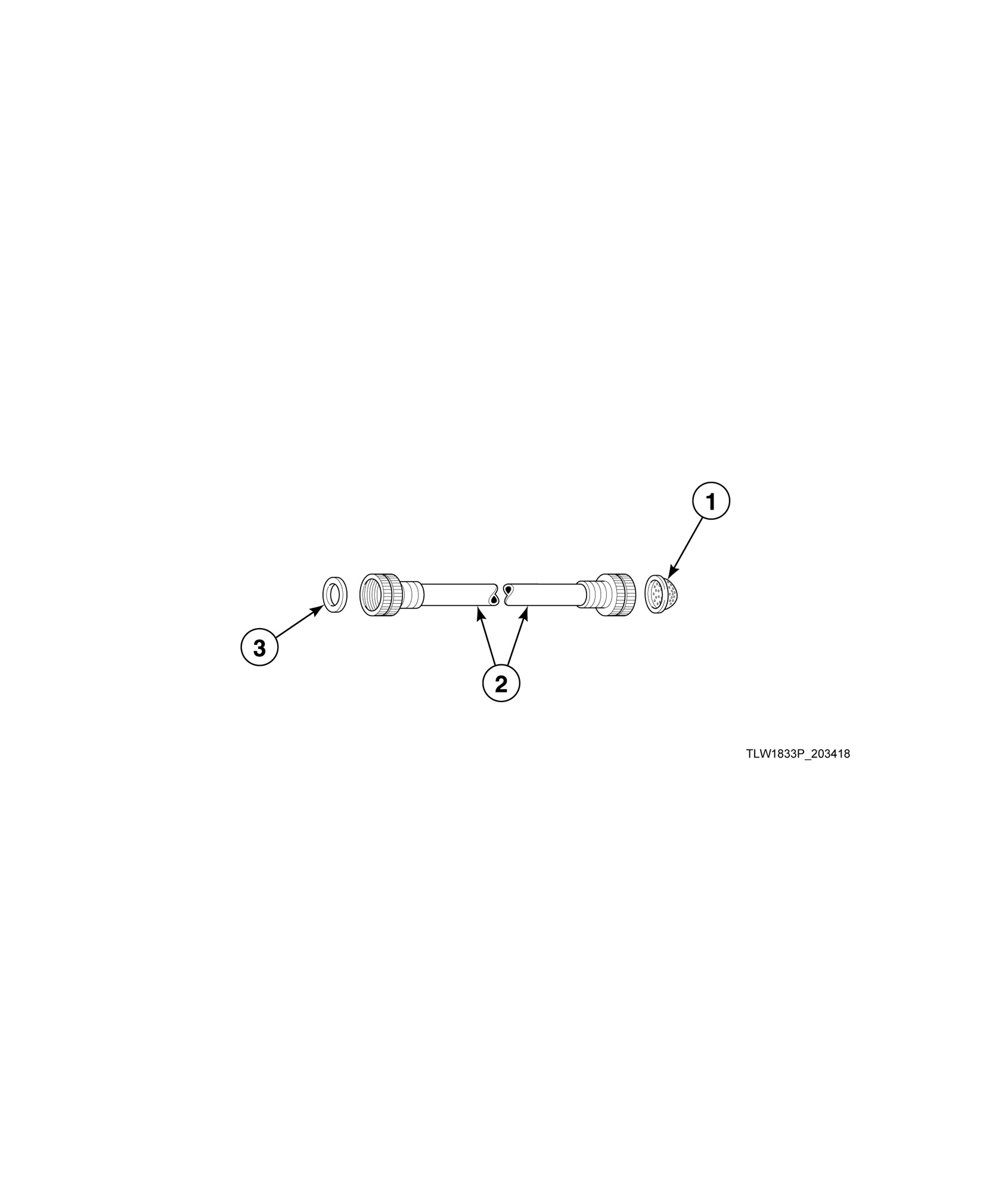

Fill Hose

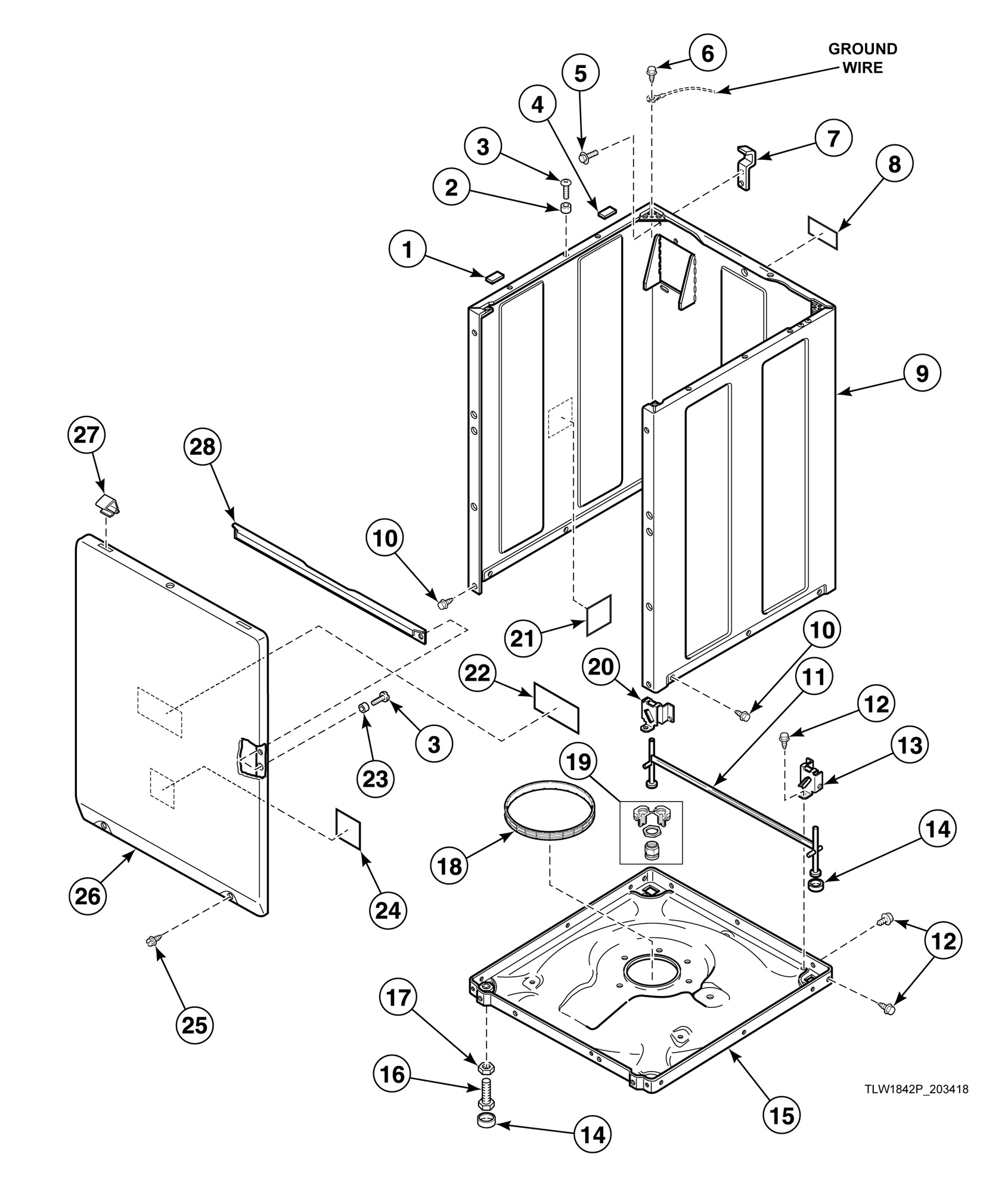

Front Panel, Base Assembly and Cabinet Kit

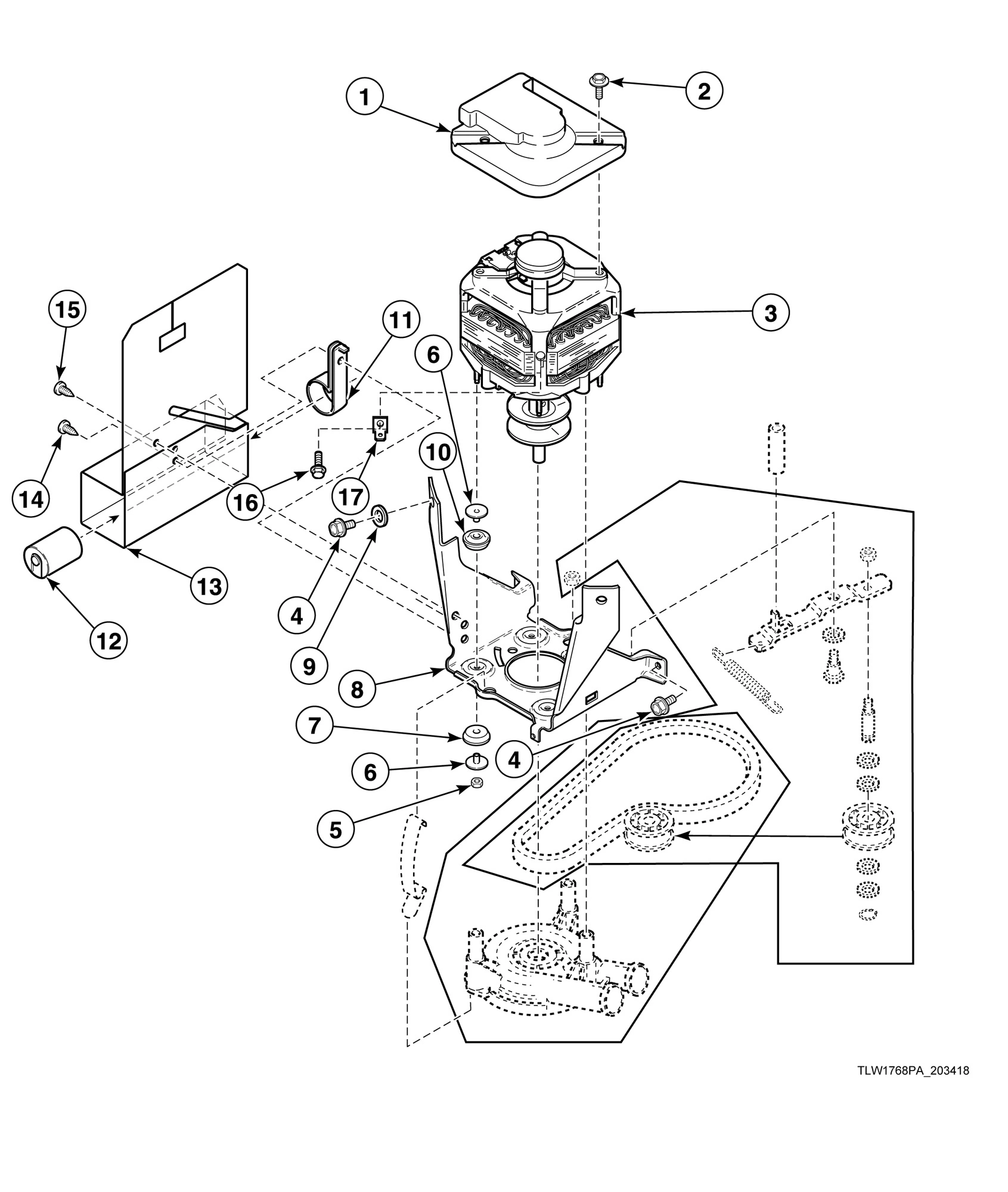

Motor and Mounting Bracket

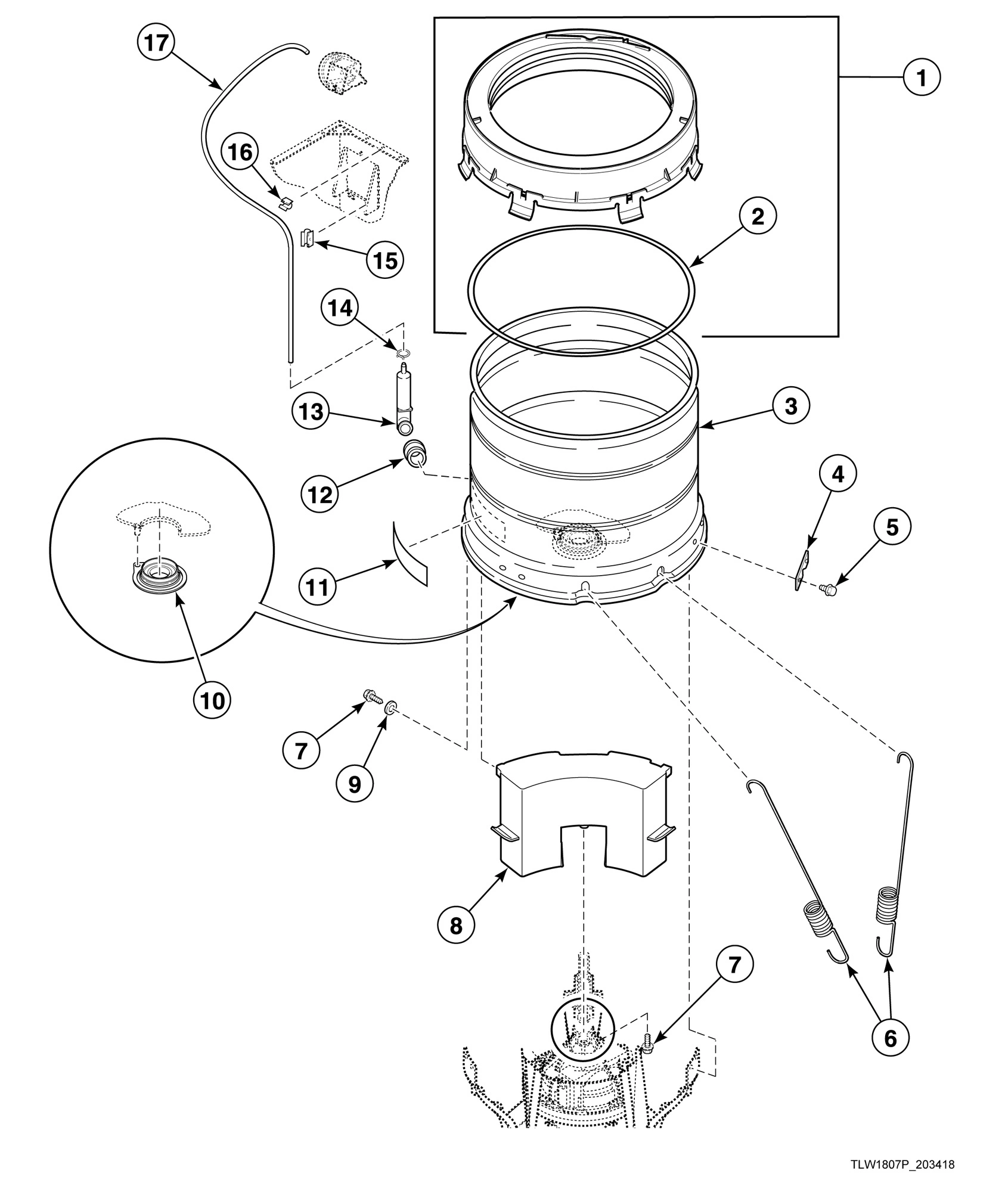

Outer Tub, Cover, Bearing and Seal Housing, Pressure Hose and Counterweight

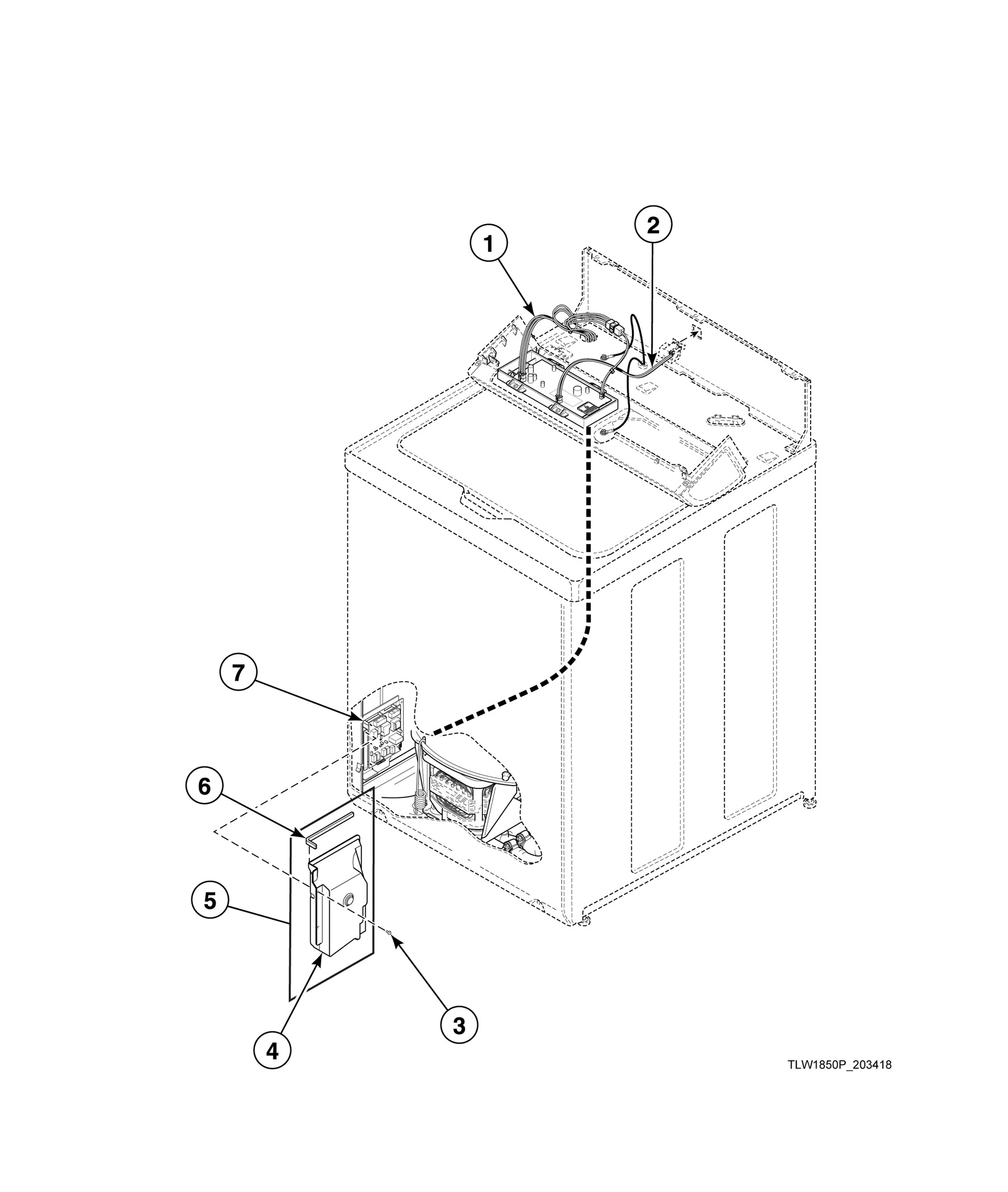

Output Board, Wire Harnesses and Wires

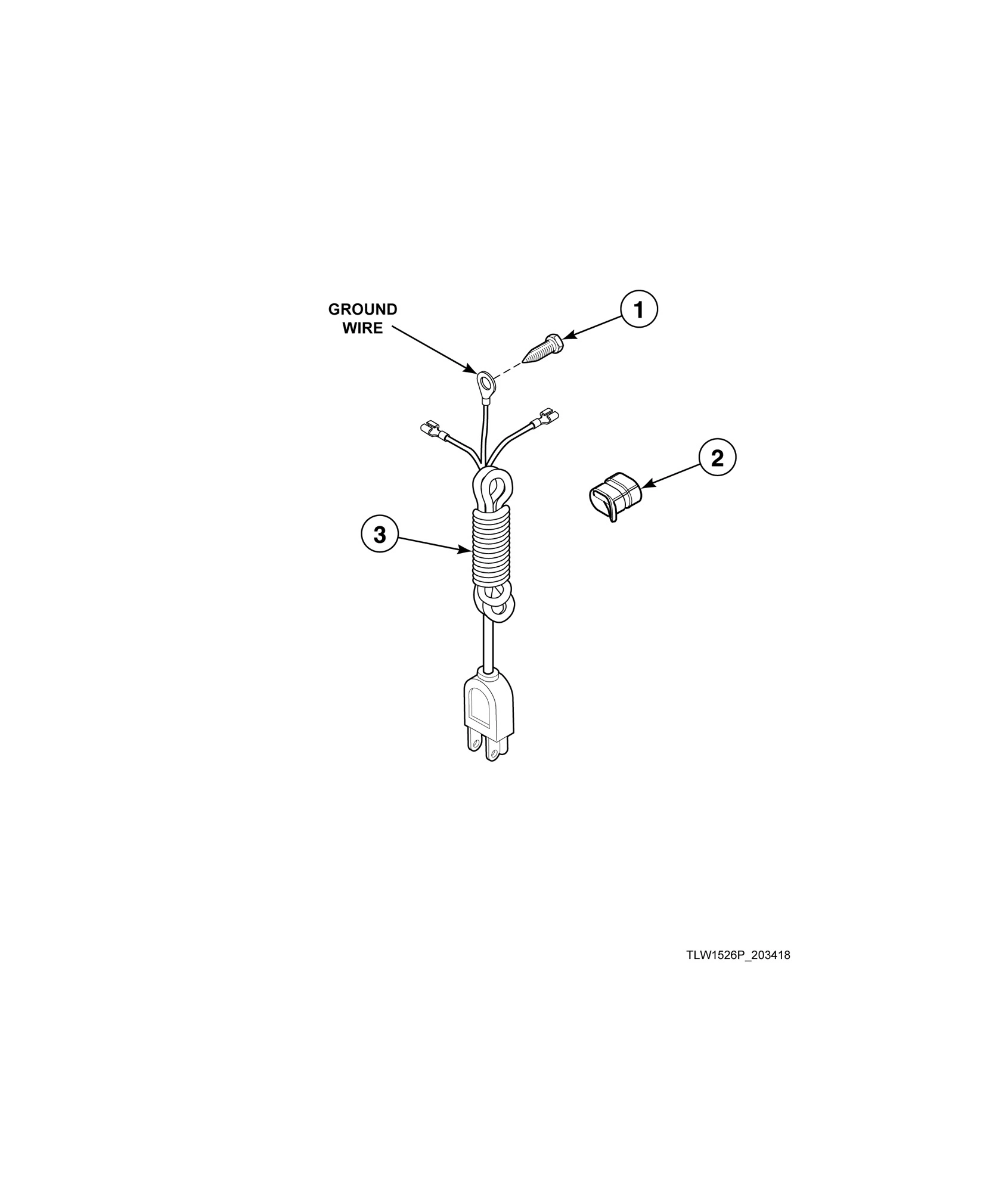

Power Cord

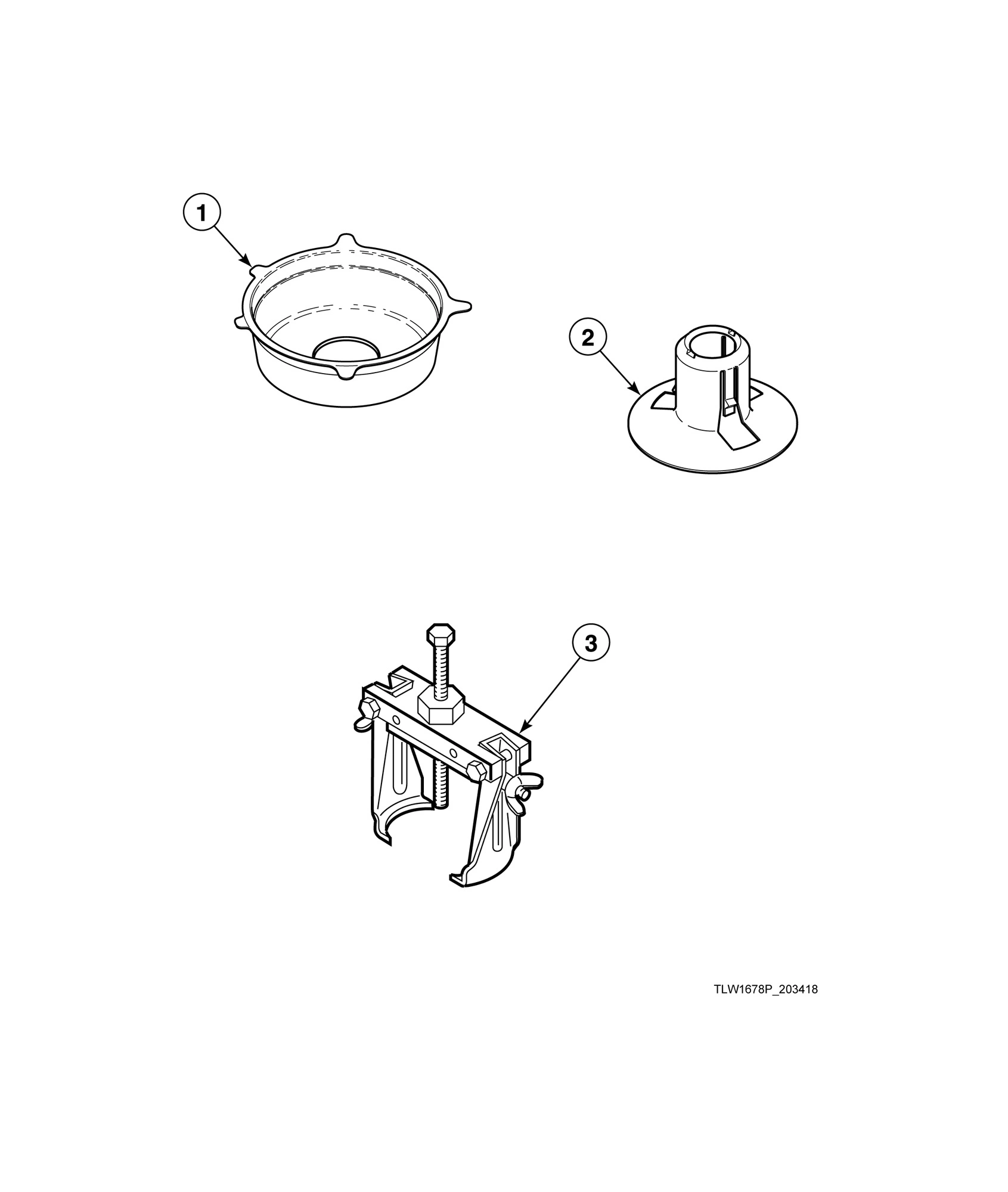

Shipping Materials and Special Tools

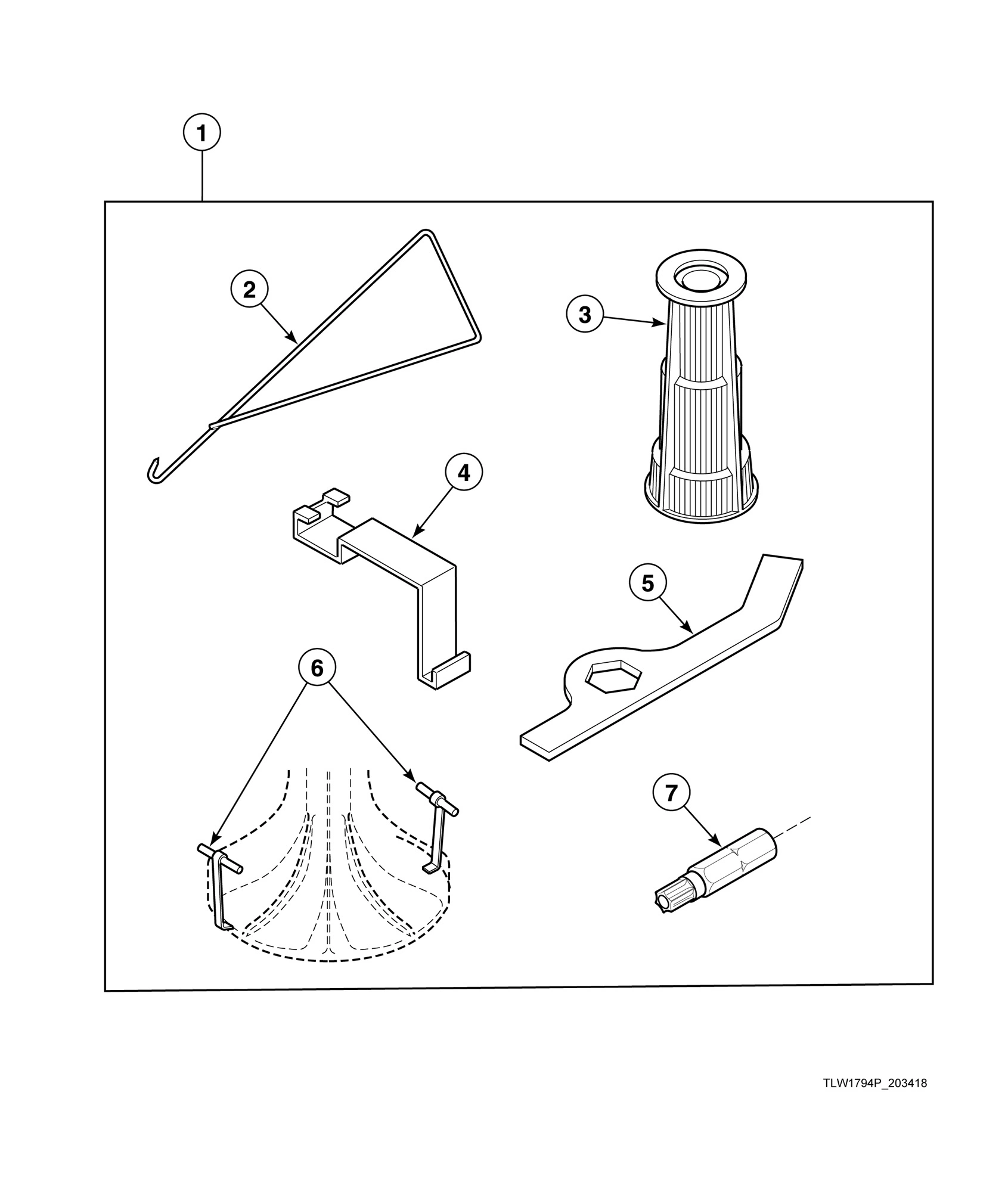

Special Tools

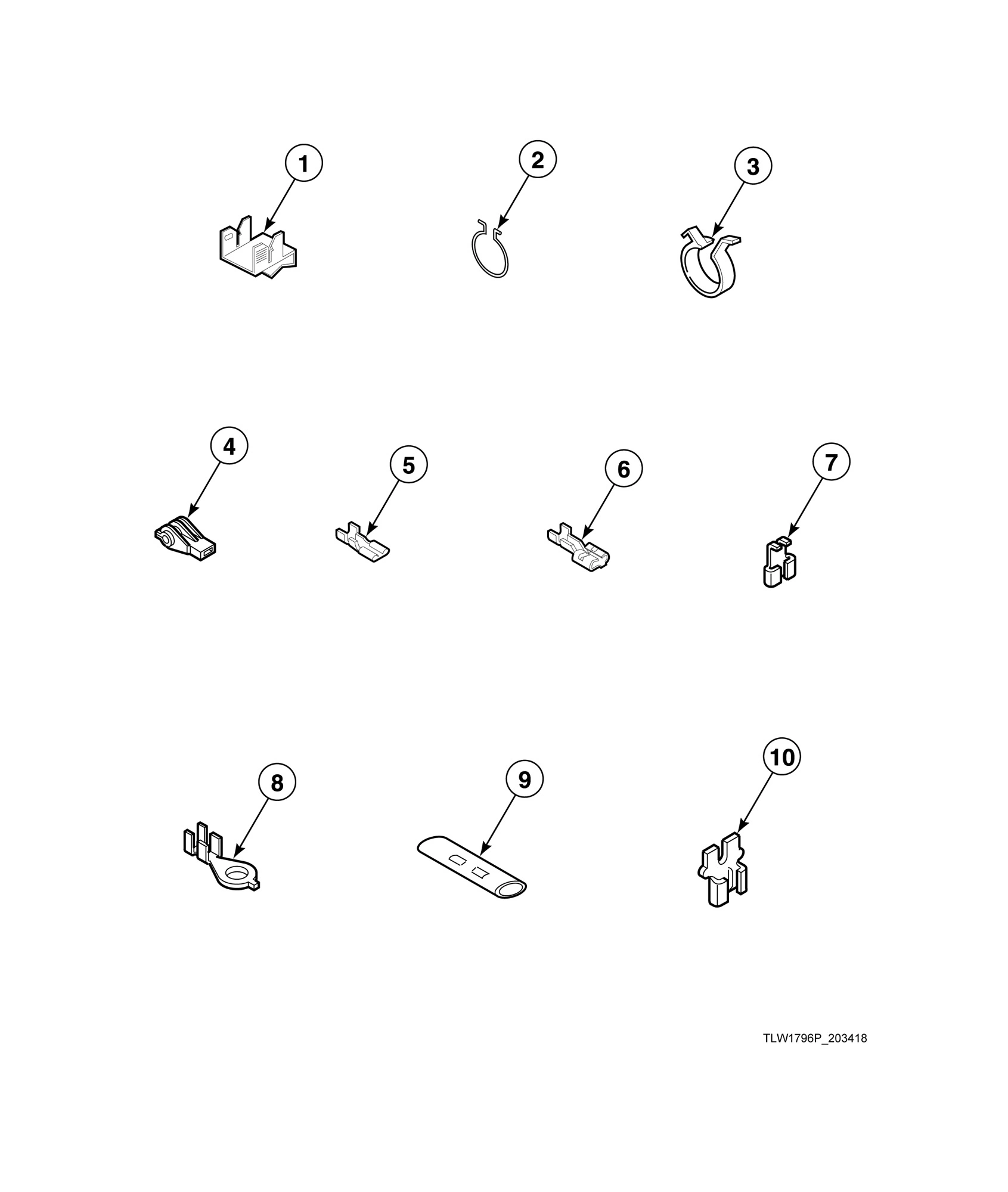

Terminals

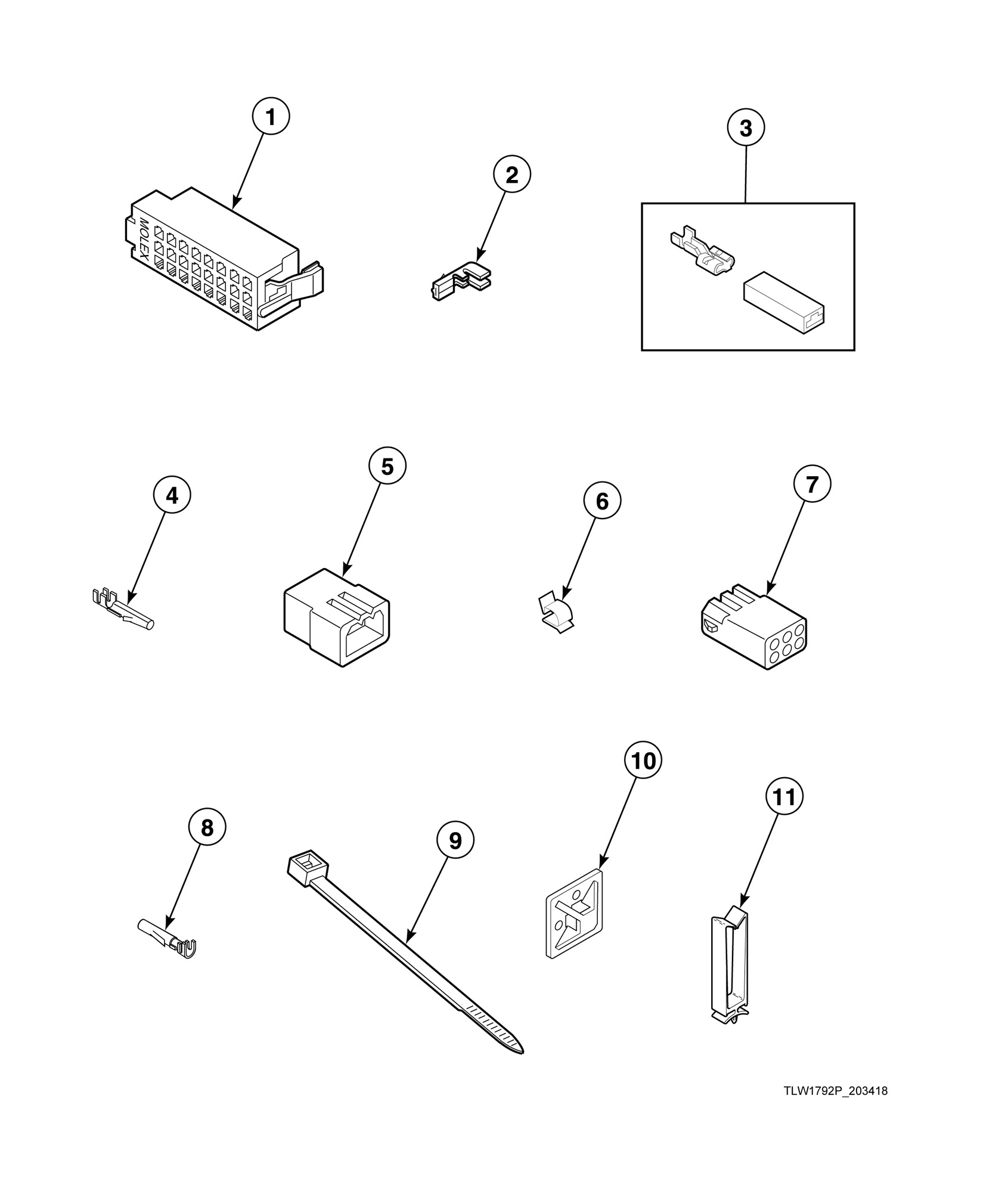

Terminals and Clips

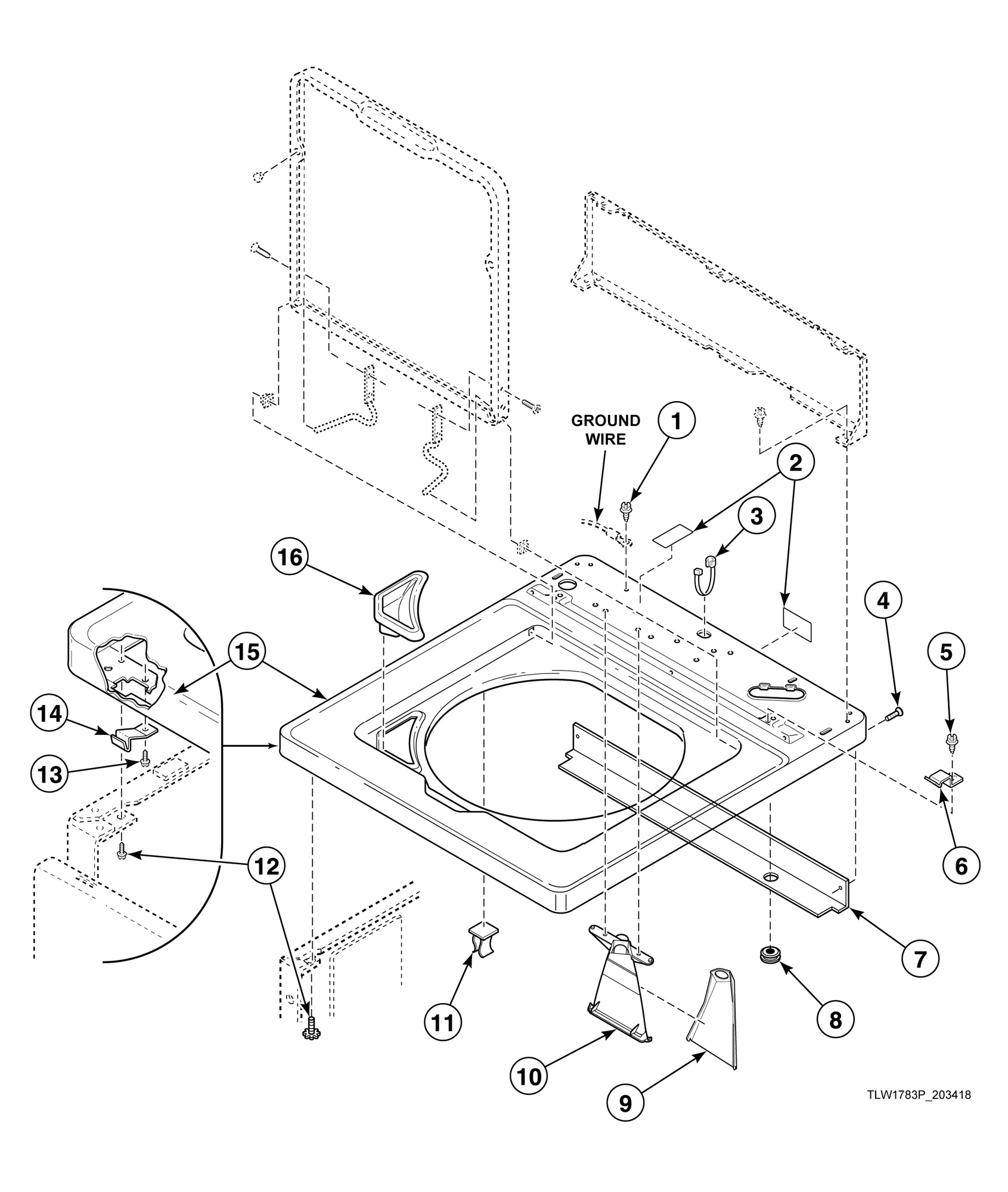

Top

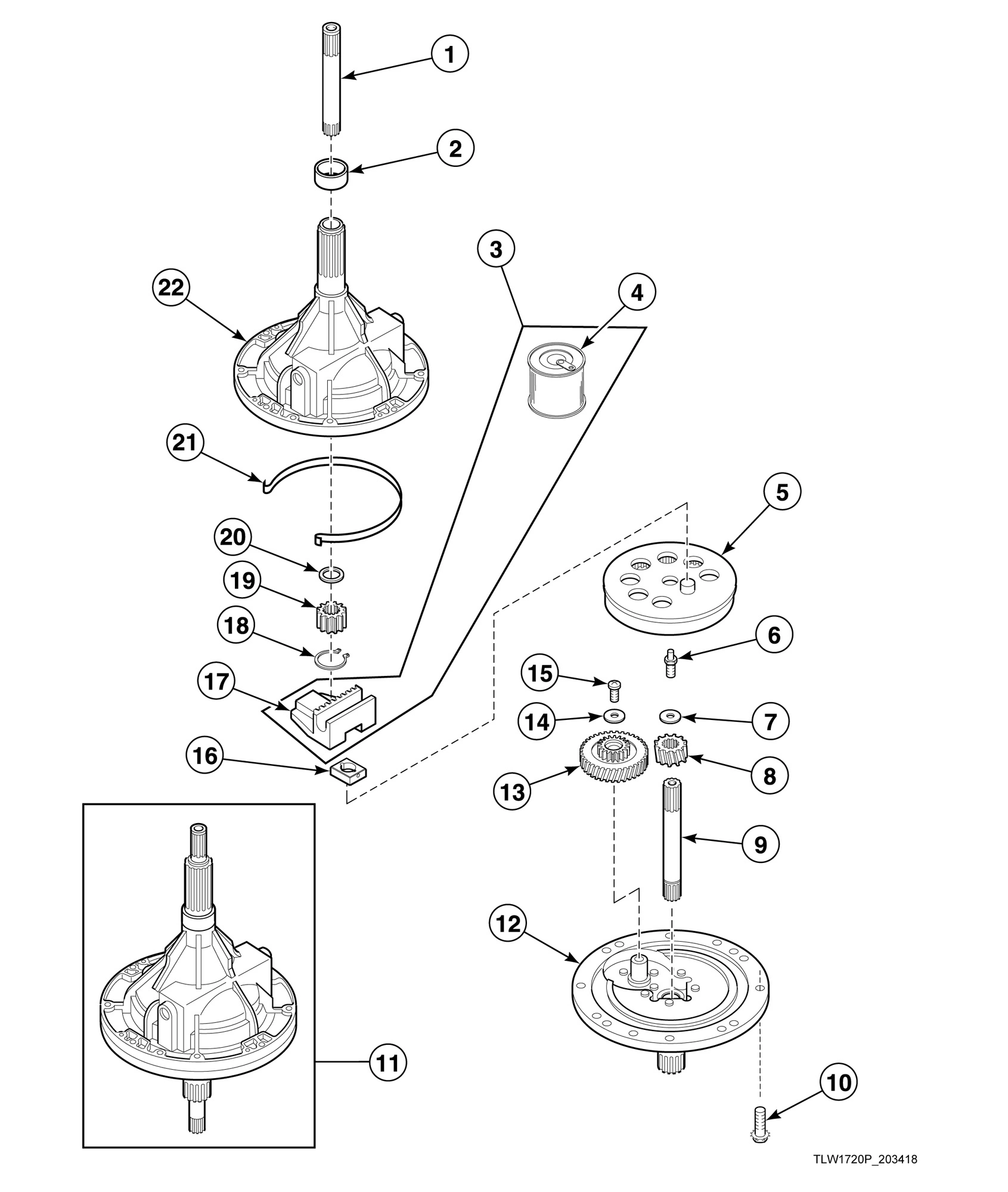

Transmission Assembly (Drawing 1 of 2)

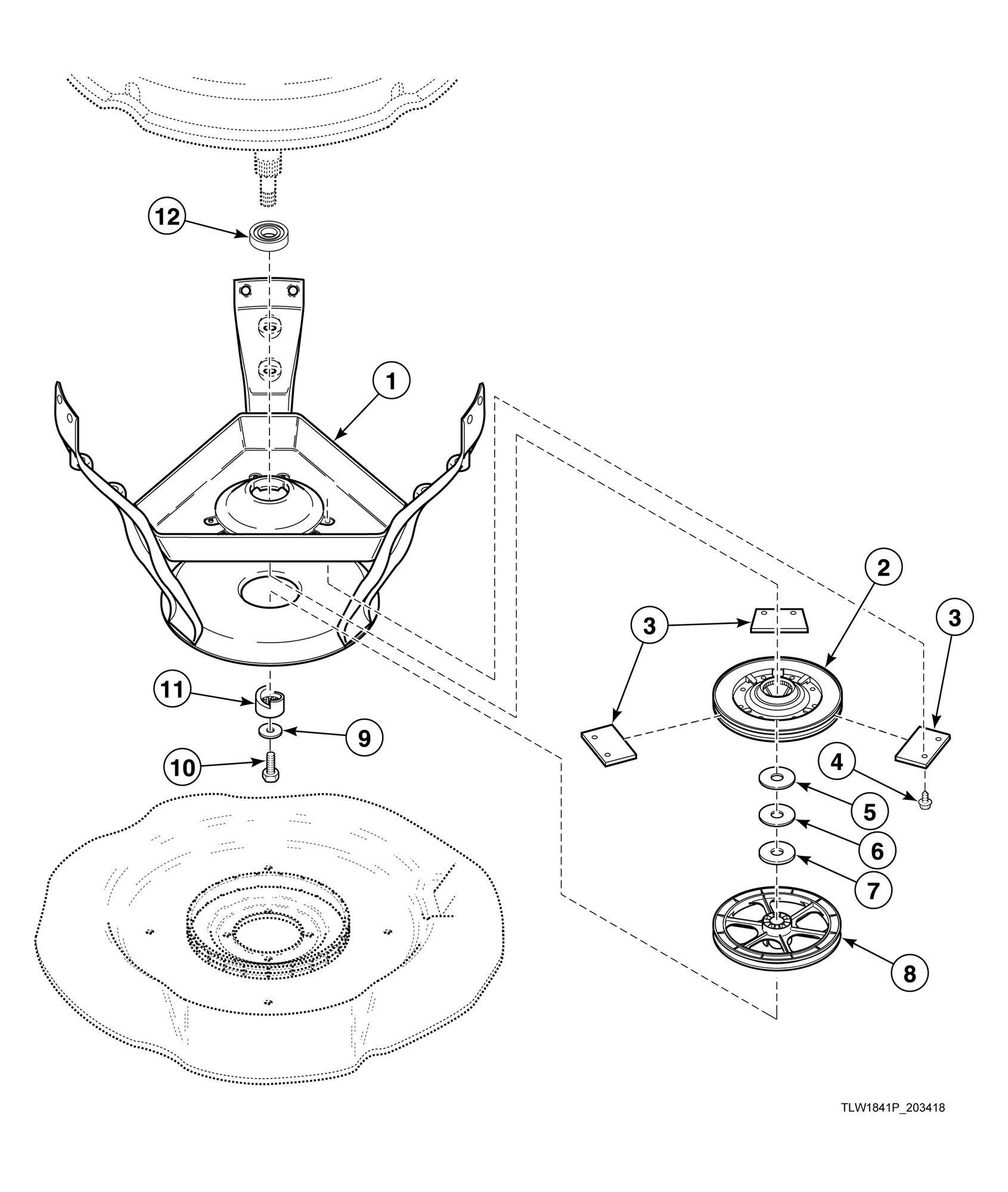

Weldment and Bearing Assembly, Brake and Pulley
Common parts from model GE LWNE52SP303SW01 General Electric Model LWNE52SP303SW01
1
Screw GEN 27202 Contact Us For Availability
1
Nut GEN 52566 Contact Us For Availability
1
Control Assembly (Comment: Includes item 2) GEN 202905P Contact Us For Availability
1
Siphon Break Kit (Comment: Siphon break kit M GEN 562P3 Contact Us For Availability
1
Washer (Comment: Flow restrictor, Water press GEN 802254 Contact Us For Availability
1
Washer (Comment: Filter screen) GEN 803615 Contact Us For Availability
1
Bumper Pad GEN 56128 Contact Us For Availability
1
Screw GEN 52909 Contact Us For Availability
1
Tub Cover Assembly (Comment: Includes item 2) GEN 202888 Contact Us For Availability
1
Control Harness GEN 202691 Contact Us For Availability
1
Shipping Brace (Comment: Install whenever mov GEN 200553 Contact Us For Availability
1
Tool Kit (Comment: Includes items 2-7) GEN 725P3 Contact Us For Availability
1
Grounding Clip GEN 00161 Contact Us For Availability
1
Terminal Grounding Clip GEN 00569SG Contact Us For Availability
1
24 Position Housing (Comment: Right, Black) GEN 32746 Contact Us For Availability
1
24 Position Housing (Comment: Left, White) GEN 34123 Contact Us For Availability
1
Output Shaft GEN 36570P Contact Us For Availability
1
Weldment and Bearing Assembly GEN 39253 Contact Us For Availability
2
Idler Lever Spring GEN 201189 Contact Us For Availability
2
Control Overlay GEN 202750 Contact Us For Availability
2
Standpipe Strap GEN 33489 Contact Us For Availability
2
Fill Hose (Comment: Marked for hot water, 4 f GEN 203718 Contact Us For Availability
2
Fill Hose (Comment: Marked for hot water, 4 f GEN 203719 Contact Us For Availability
2
Fill Hose (Comment: Marked for cold water, 4 GEN 203720 Contact Us For Availability
2
Fill Hose (Comment: Marked for cold water, 4 GEN 203750 Contact Us For Availability
2
Fill Hose (Comment: Marked for hot water, 4 f GEN 204102 Contact Us For Availability
2
Fill Hose (Comment: Marked for cold water, 4 GEN 204103 Contact Us For Availability
2
Panel Locator GEN 56079 Contact Us For Availability
2
Screw GEN 36639 Contact Us For Availability
2
Tub Cover Gasket GEN 38359 Contact Us For Availability
2
Pressure Sensor Harness GEN 804432 Contact Us For Availability
2
Shipping Plug (Comment: Install before moving GEN 38149 Contact Us For Availability
2
Spring Hook Tool (Comment: For removal of mod GEN 321P4 Contact Us For Availability
2
Wire Clip GEN 51291 Contact Us For Availability
2
Female Terminal (Comment: Used for 1 or 2 wir GEN 00188 Contact Us For Availability
2
Terminal GEN 00568SG Contact Us For Availability
2
Electrical Shock Label GEN F8211201 Contact Us For Availability
2
Hub Spacer GEN 201212 Contact Us For Availability
2
Brake Kit GEN 38505P Contact Us For Availability
3
Balance Ring Assembly GEN 39837 Contact Us For Availability
3
Tube GEN 202333 Contact Us For Availability
3
Drain Hose Sleeve GEN 33615 Contact Us For Availability
3
Washer GEN 20290 Contact Us For Availability
3
Motor Assembly (Comment: 2 speed) GEN 202544P Contact Us For Availability
3
Outer Tub Assembly GEN 203603P Contact Us For Availability
3
Screw GEN 804667 Contact Us For Availability
3
Strain Relief GEN 38384 Contact Us For Availability
3
Lead-In Cord GEN 203108 Contact Us For Availability
3
Agitator Drive Bell Puller (Comment: For remo GEN 294P4 Contact Us For Availability
3
Drive Bell Seal Tool (Comment: For installati GEN 293P4 Contact Us For Availability
3
Wire Clip GEN 687500 Contact Us For Availability
3
Insulated Female Spade Terminal GEN 00359 Contact Us For Availability
3
Transmission Rebuild Kit (Comment: Includes i GEN RB150004 Contact Us For Availability
3
Brake Pad Kit (Comment: Includes 3 pads and 6 GEN 735P3 Contact Us For Availability
4
Washtub Kit (Comment: Stainless steel) GEN 719P3 Contact Us For Availability
4
Nut GEN 28803 Contact Us For Availability
4
Leg Plate GEN 27926 Contact Us For Availability
4
Output Control Shield GEN 202939 Contact Us For Availability
4
Tub Cover Removal Tool (Comment: Use to insta GEN 273P4 Contact Us For Availability
4
Insulator GEN 70210 Contact Us For Availability
4
Male Pin Terminal GEN 00116 Contact Us For Availability
4
Screw GEN 431287 Contact Us For Availability
4
Transmission Oil (Comment: 1 fill) GEN 27243P Contact Us For Availability
4
Screw GEN 39739 Contact Us For Availability
5
Washtub Gasket GEN 39122 Contact Us For Availability
5
Idler Lever GEN 38011 Contact Us For Availability
5
Strain Relief GEN 32219 Contact Us For Availability
5
Screw GEN 35369 Contact Us For Availability
5
Nut GEN 35423 Contact Us For Availability
5
Shield Assembly (Comment: Includes items 5 an GEN 202965 Contact Us For Availability
5
Hex Wrench Tool (Comment: For removal of lock GEN 306P4 Contact Us For Availability
5
Female Spade Terminal (Comment: Small spade) GEN 00112 Contact Us For Availability
5
9 Circuit Plug GEN 23033 Contact Us For Availability
5
6 Circuit Plug GEN 23041 Contact Us For Availability
5
1 Circuit Plug GEN 26302 Contact Us For Availability
5
Screw GEN 23962 Contact Us For Availability
5
Gear and Stud Assembly GEN 26577 Contact Us For Availability
6
Washer GEN 81392 Contact Us For Availability
6
Drain Hose GEN 39894 Contact Us For Availability
6
Isolator Post GEN 38325 Contact Us For Availability
6
Leg Spring (Comment: Marked with green paint, GEN 201521 Contact Us For Availability
6
Leg Spring (Comment: Marked with blue paint) GEN 37575 Contact Us For Availability
6
Cable Clip GEN 21036 Contact Us For Availability
6
Output Board Cover Gasket GEN 202964 Contact Us For Availability
6
Agitator Hook (Comment: Set of 2, Use to remo GEN 254P4P Contact Us For Availability
6
Female Spade Terminal (Comment: Large spade) GEN 00223 Contact Us For Availability
6
Terminal Tab GEN 00577 Contact Us For Availability
6
Screw GEN 201773 Contact Us For Availability
6
Washer (Comment: Thick) GEN 27015 Contact Us For Availability
7
Spline Insert GEN 29728 Contact Us For Availability
7
Screw GEN 27229 Contact Us For Availability
7
Hose Stand GEN 38732 Contact Us For Availability
7
Isolator Assembly GEN 204062 Contact Us For Availability
7
Screw GEN 39566 Contact Us For Availability
7
Output Board Control Assembly GEN 202508P Contact Us For Availability
7
Torx Bit (Comment: T25, For removal and insta GEN 282P4 Contact Us For Availability
7
Female Flag Terminal GEN 00120 Contact Us For Availability
7
9 Circuit Receptacle GEN 26163 Contact Us For Availability
7
1 Circuit Receptacle GEN 26301 Contact Us For Availability
7
6 Circuit Receptacle GEN 26708 Contact Us For Availability
7
Top Shield GEN 203946 Contact Us For Availability
7
Silicone Grease (Comment: Apply small amount GEN 26594P Contact Us For Availability
7
Washer (Comment: For machines experiencing sq GEN 35535 Contact Us For Availability
7
Washer (Comment: Starting Serial Nos. beginni GEN 203950 Contact Us For Availability
8
Nut GEN 29220 Contact Us For Availability
8
Idler Shaft GEN 210186 Contact Us For Availability
8
Hose Clamp GEN F200204 Contact Us For Availability
8
Motor Mount Bracket GEN 200941 Contact Us For Availability
8
Counterweight Assembly GEN 38769 Contact Us For Availability
8
Ring Terminal (Comment: Small shank) GEN 00110 Contact Us For Availability
8
Female Pin Terminal GEN 00117 Contact Us For Availability
8
Female Pin Terminal GEN 00574SG Contact Us For Availability
8
Grommet (Comment: Use with item 7) GEN 80262 Contact Us For Availability
8
Drive Pinion GEN 37405 Contact Us For Availability
8
Pulley GEN 202795 Contact Us For Availability
9
Bell and Transmission Tube Seal GEN 36425 Contact Us For Availability
9
Washer GEN D504082 Contact Us For Availability
9
Tub-to-Pump Hose GEN 38351 Contact Us For Availability
9
Washer GEN 37772 Contact Us For Availability
9
Washer GEN 39249 Contact Us For Availability
9
Connector (Comment: (2) 1/4 inch male spades) GEN 21091 Contact Us For Availability
9
Harness Strap GEN 55881 Contact Us For Availability
9
Inlet Cover GEN 202894 Contact Us For Availability
9
Washer GEN 26509 Contact Us For Availability
9
Input Shaft GEN 38268P Contact Us For Availability
10
Sealant (Comment: Use with hub and lip seal k GEN 200996P Contact Us For Availability
10
Hub and Lip Seal Kit (Comment: Do NOT use any GEN 766P3A Contact Us For Availability
10
Drive Bell and Seal Kit (Comment: Includes it GEN 39508P Contact Us For Availability
10
Washer (Comment: Nylatron) GEN 52549 Contact Us For Availability
10
Retainer Clip GEN 36014 Contact Us For Availability
10
Screw GEN 27196 Contact Us For Availability
10
Connector GEN F140562 Contact Us For Availability
10
Tie Wrap Mounting Clamp GEN F140602 Contact Us For Availability
10
Inlet Deflector GEN 202900 Contact Us For Availability
10
Screw GEN 32814 Contact Us For Availability
10
Screw GEN 27220 Contact Us For Availability
11
Screw GEN 39432 Contact Us For Availability
11
Retaining Ring GEN 23748 Contact Us For Availability
11
Leg and Stabilizer Assembly GEN 34443 Contact Us For Availability
11
Pinch Warning Label GEN F8615701 Contact Us For Availability
11
Wire Clip (Comment: 0.93 inch wide) GEN 70366201 Contact Us For Availability
11
Hinge Stop Clip GEN 36519 Contact Us For Availability
11
Transmission Assembly GEN 38165P Contact Us For Availability
11
Helix GEN 38008 Contact Us For Availability
12
Bell Plug GEN 36511 Contact Us For Availability
12
Idler Pulley GEN 38225P Contact Us For Availability
12
Screw GEN 35148 Contact Us For Availability
12
Capacitor GEN 203140 Contact Us For Availability
12
Grommet GEN 29175 Contact Us For Availability
12
Screw GEN 33562 Contact Us For Availability
12
Transmission Cover Assembly GEN 37471 Contact Us For Availability
12
Lower Bearing GEN 28944RP Contact Us For Availability
13
Flex Vane Agitator GEN 36507 Contact Us For Availability
13
Idler Lever and Belt Kit (Comment: Includes i GEN 202972 Contact Us For Availability
13
Bracket (Comment: Right) GEN 36036 Contact Us For Availability
13
Motor Drip Shield GEN 203053 Contact Us For Availability
13
Pressure Bulb GEN 30907 Contact Us For Availability
13
Screw GEN D501086 Contact Us For Availability
13
Reduction Gear GEN 37404P Contact Us For Availability
14
Fabric Softener Dispenser Assembly GEN 36542 Contact Us For Availability
14
Pump Assembly (Comment: Heavy Duty) GEN 201442P Contact Us For Availability
14
Pump GEN 201566P Contact Us For Availability
14
Rubber Foot GEN 34318 Contact Us For Availability
14
Screw GEN 31645 Contact Us For Availability
14
Hose Clamp GEN 39282 Contact Us For Availability
14
Hold-Down Clip GEN 35358 Contact Us For Availability
14
Washer GEN 29260 Contact Us For Availability
15
Agitate and Spin Belt GEN 200923 Contact Us For Availability
15
Base Assembly GEN 39788 Contact Us For Availability
15
Hose Clip GEN 36985 Contact Us For Availability
15
Top (Comment: Dark gray) GEN 37992DG Contact Us For Availability
15
Top (Comment: Bisque) GEN 37992QP Contact Us For Availability
15
Top (Comment: White) GEN 37992WP Contact Us For Availability
15
Screw GEN 29273 Contact Us For Availability
16
Spring Clip GEN 210202 Contact Us For Availability
16
Leveling Leg GEN 34319 Contact Us For Availability
16
Screw GEN 20530 Contact Us For Availability
16
Bleach Dispenser GEN 38382 Contact Us For Availability
16
Slide GEN 26493 Contact Us For Availability
17
Nut GEN 21899 Contact Us For Availability
17
Male Tab Terminal GEN 00177 Contact Us For Availability
17
Tubing GEN 202700 Contact Us For Availability
17
Rack GEN 201664 Contact Us For Availability
18
Friction Ring GEN 37937 Contact Us For Availability
18
Retaining Ring GEN 27197 Contact Us For Availability
19
Adjustable Leg Extension Kit GEN 566P3 Contact Us For Availability
19
Agitator Pinion GEN 27003 Contact Us For Availability
20
Bracket (Comment: Left) GEN 36037 Contact Us For Availability
20
Washer GEN 35092 Contact Us For Availability
21
Foam Pad GEN 39480 Contact Us For Availability
21
Gear Sleeve GEN 38864 Contact Us For Availability
22
Transmission Case Assembly GEN 33223P Contact Us For Availability
NA
NOT ON YOUR MODEL GEN - Contact Us For Availability
NA
Idler Lever Assembly (Comment: Includes items GEN 202378 Contact Us For Availability
NA
Drain Extension Kit GEN 451P3 Contact Us For Availability
NA
18 Gauge Wire (Comment: Black, Order wire by GEN 45001 Contact Us For Availability
NA
12 Gauge Wire (Comment: Orange, Order wire by GEN 45380 Contact Us For Availability
NA
Anti-Seize Compound (Comment: Apply to smooth GEN 27604P Contact Us For Availability
NA
Transmission Sealant (Comment: Use between tr GEN 37577P Contact Us For Availability
× ![]()
