Model GE LWNE52SP113CW01 General Electric Model LWNE52SP113CW01 – Common Parts & Diagrams
Transmission Assembly (Drawing 1 of 2)

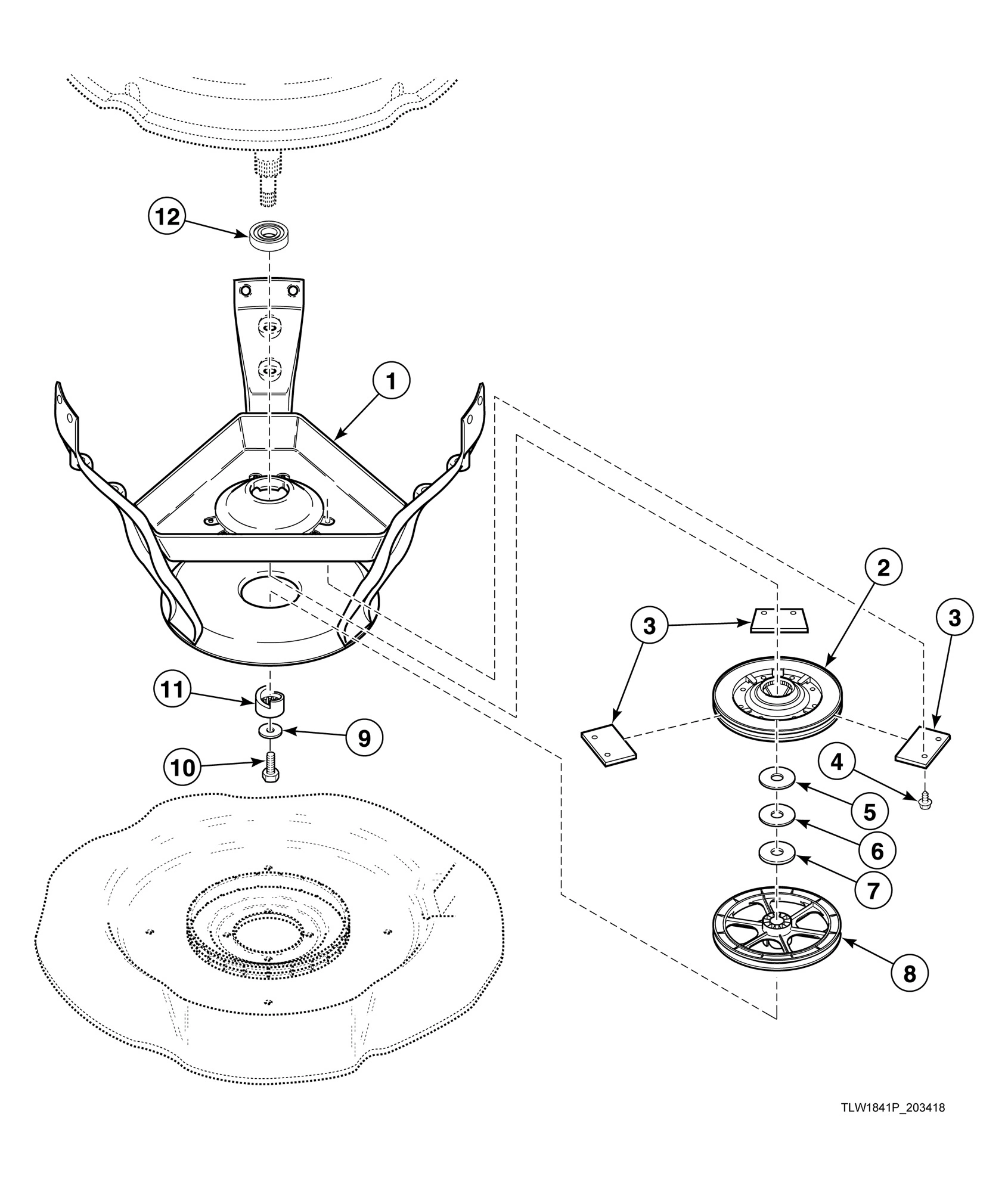

Weldment and Bearing Assembly, Brake and Pulley
Common parts from model GE LWNE52SP113CW01 General Electric Model LWNE52SP113CW01
1
Weldment and Bearing Assembly GEN 39253 Contact Us For Availability
2
Hub Spacer GEN 201212 Contact Us For Availability
2
Brake Kit GEN 38505P Contact Us For Availability
3
Transmission Rebuild Kit (Comment: Includes i GEN RB150004 Contact Us For Availability
3
Brake Pad Kit (Comment: Includes 3 pads and 6 GEN 735P3 Contact Us For Availability
4
Transmission Oil (Comment: 1 fill) GEN 27243P Contact Us For Availability
4
Screw GEN 39739 Contact Us For Availability
5
Gear and Stud Assembly GEN 26577 Contact Us For Availability
6
Screw GEN 201773 Contact Us For Availability
6
Washer (Comment: Thick) GEN 27015 Contact Us For Availability
7
Silicone Grease (Comment: Apply small amount GEN 26594P Contact Us For Availability
7
Washer (Comment: For machines experiencing sq GEN 35535 Contact Us For Availability
7
Washer (Comment: Starting Serial Nos. beginni GEN 203950 Contact Us For Availability
8
Drive Pinion GEN 37405 Contact Us For Availability
8
Pulley GEN 202795 Contact Us For Availability
9
Washer GEN 26509 Contact Us For Availability
9
Input Shaft GEN 38268P Contact Us For Availability
10
Screw GEN 27220 Contact Us For Availability
11
Helix GEN 38008 Contact Us For Availability
12
Lower Bearing GEN 28944RP Contact Us For Availability
19
Agitator Pinion GEN 27003 Contact Us For Availability
20
Washer GEN 35092 Contact Us For Availability
21
Gear Sleeve GEN 38864 Contact Us For Availability
22
Transmission Case Assembly GEN 33223P Contact Us For Availability
NA
Anti-Seize Compound (Comment: Apply to smooth GEN 27604P Contact Us For Availability
NA
Transmission Sealant (Comment: Use between tr GEN 37577P Contact Us For Availability
× ![]()
