Model LG LWC051SFCK0 WINDOW – Common Parts & Diagrams

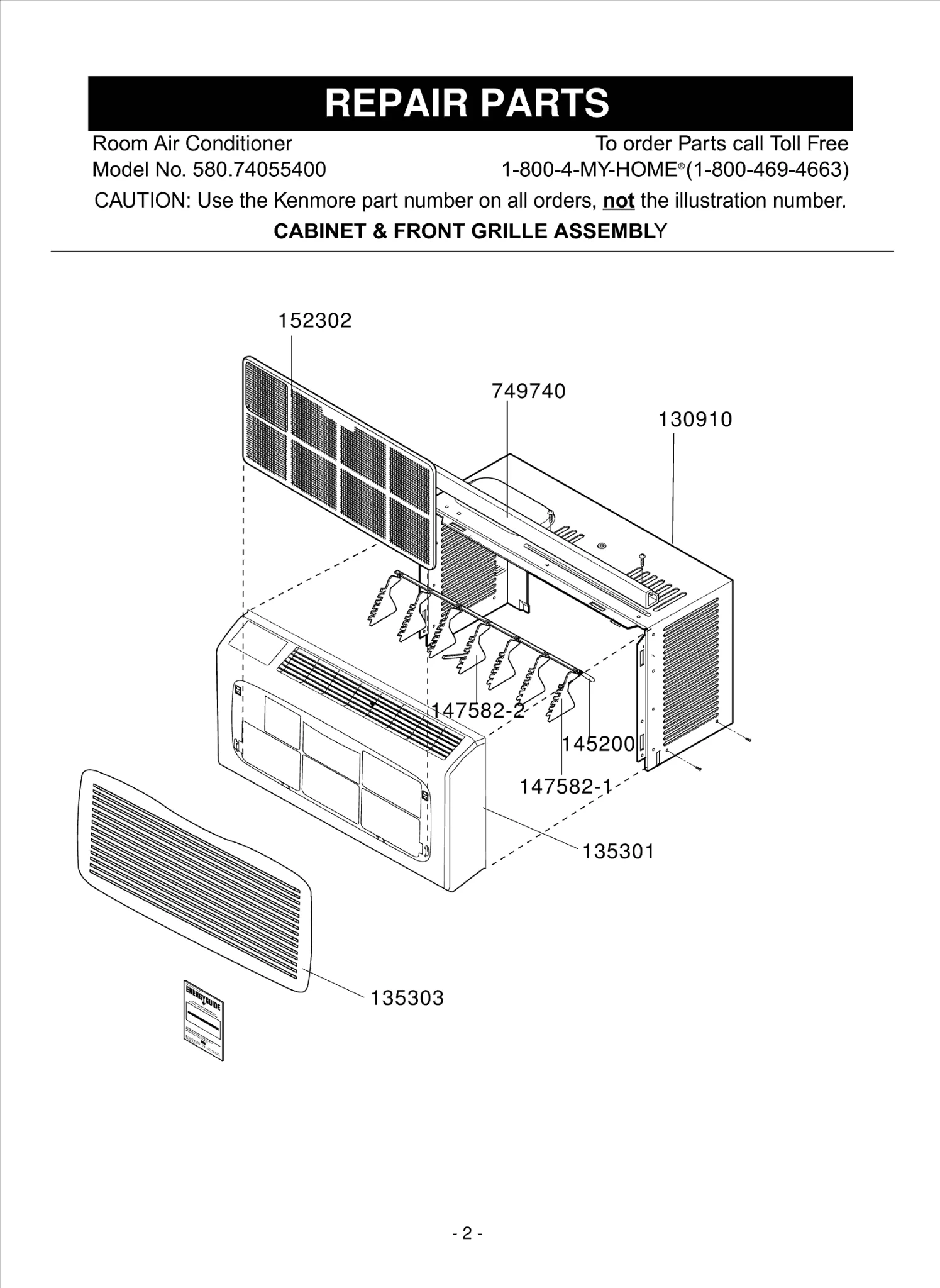

Diagram 0

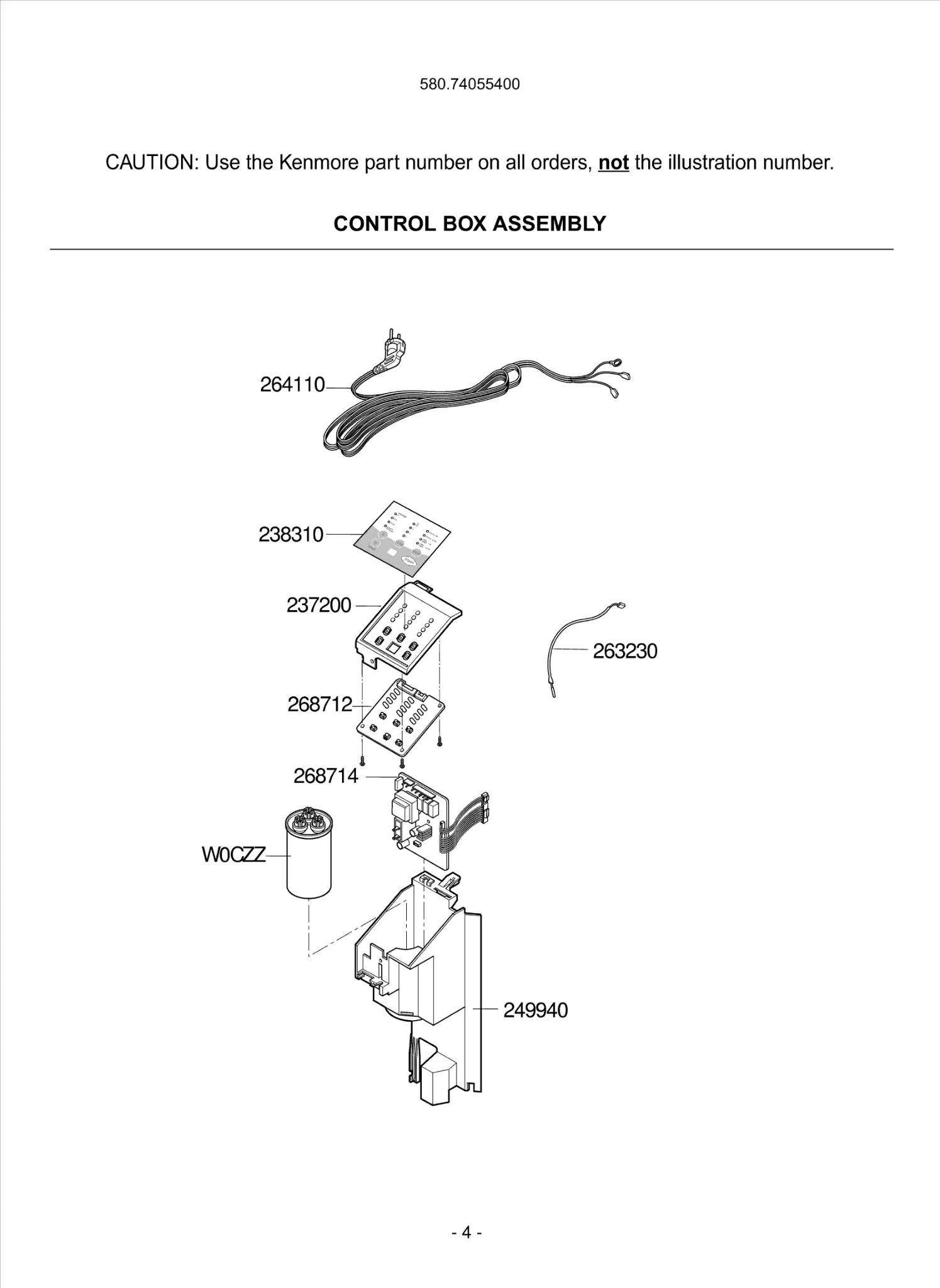

Diagram 1
Diagram 2
Diagram 3
Diagram 4
Common parts from model LG LWC051SFCK0 WINDOW
35211A
TUBE ASSEMBLY,SUCTION SINGLE LGE 5211A21228A Contact Us For Availability
130410
BASE ASSEMBLY,SINGLE LGE 3041A10040A Contact Us For Availability
135303
GRILLE,INLET LGE 3530A10192A Contact Us For Availability
147582-1
LOUVER,VERTICAL LGE 4758A30041A Contact Us For Availability
149980
SHROUD LGE 4998A10028A Contact Us For Availability
237200
PANEL,CONTROL LGE 3720A30099A Contact Us For Availability
238310
ESCUTCHEON LGE 3831A10038B Contact Us For Availability
249940
CONTROL BOX,SINGLE LGE 4994A10062A Contact Us For Availability
263230
THERMISTOR ASSEMBLY LGE 6323A20004R Contact Us For Availability
264110
POWER CORD ASSEMBLY LGE 6411A20038A Contact Us For Availability
268712
PWB(PCB) ASSEMBLY,DISPLAY LGE 6871A20499A Contact Us For Availability
268714
PWB(PCB) ASSEMBLY,MAIN LGE 6871A10129E Contact Us For Availability
346811
MOTOR ASSEMBLY,SINGLE LGE 4681A20116E Contact Us For Availability
352113
TUBE ASSEMBLY,DISCHARGE SINGLE LGE 5211A21136A Contact Us For Availability
352115
TUBE ASSEMBLY,EVAPORATOR IN LGE 5211A25019A Contact Us For Availability
352380-1
AIR GUIDE LGE 5238A10026A Contact Us For Availability
352380-2
AIR GUIDE LGE 5238A10025A Contact Us For Availability
354210
EVAPORATOR ASSEMBLY,FIRST LGE 5421A20176C Contact Us For Availability
550140
ISOLATOR,COMP LGE 5040AR4195E Contact Us For Availability
552113
TUBE ASSEMBLY,CONDENSER OUT LGE 5211A21145A Contact Us For Availability
554030
CONDENSER ASSEMBLY,FIRST LGE 5403A20174A Contact Us For Availability
554160
COMPRESSOR SET,CHINA LGE 2520UCAA011 Contact Us For Availability
567502
O.L.P LGE 6750U-L050A Contact Us For Availability
W4810
BRACKET,BASE LGE 4810A30113A Contact Us For Availability
× ![]()
