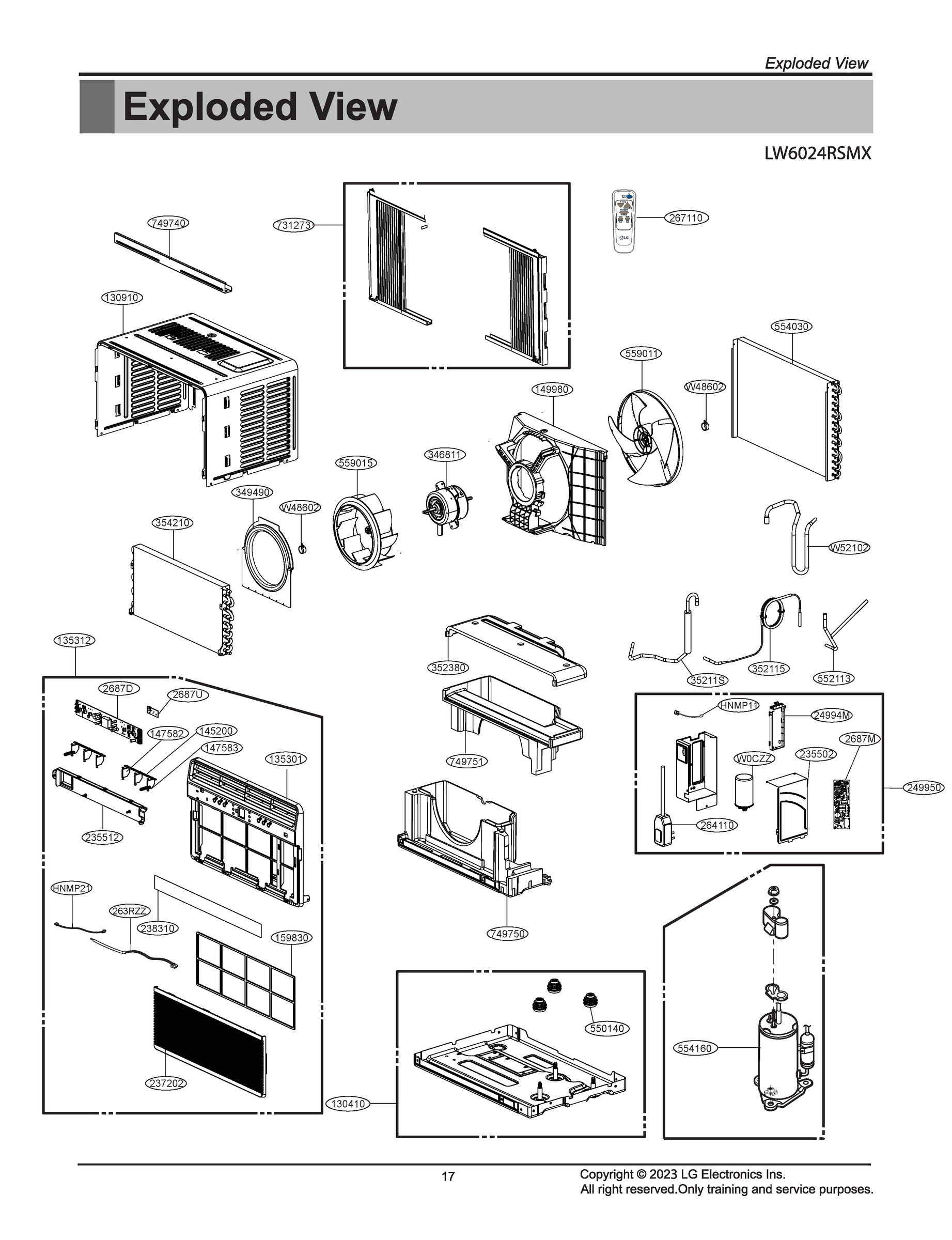

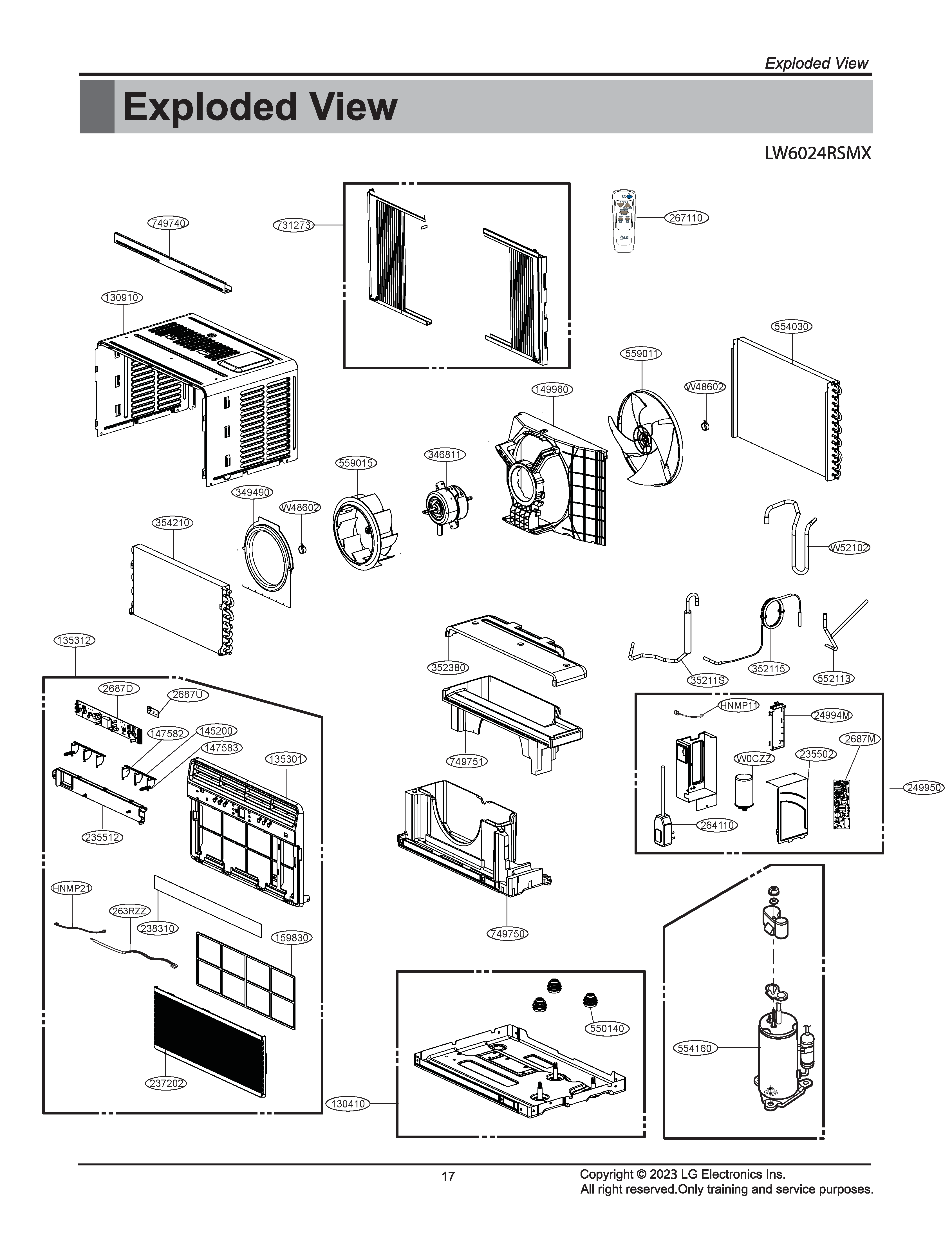

Model LG LW6024RSMX.AT1AUSH Air Conditioners – Common Parts & Diagrams
LW6O24RSMX
Common parts from model LG LW6024RSMX.AT1AUSH Air Conditioners
2687D
PCB Assembly,Display LGE EBR42275101 Contact Us For Availability
35211S
Tube Assembly,Suction LGE AJR30092302 Contact Us For Availability
130910
Cabinet Assembly,Single LGE ABJ76765801 Contact Us For Availability
135301
Grille,Front LGE MDX65471201 Contact Us For Availability
135312
Grille Assembly,Front LGE AEB76301903 Contact Us For Availability
145200
Link LGE MFF64127701 Contact Us For Availability
235502
Cover LGE MCK71845801 Contact Us For Availability
238310
Escutcheon LGE MDD63324303 Contact Us For Availability
249950
Case Assembly,Control LGE ABQ30254902 Contact Us For Availability
264110
Power Cord Assembly LGE EAD63469527 Contact Us For Availability
264110
Power Cord Assembly LGE EAD66043105 Contact Us For Availability
346811
Motor Assembly,AC LGE 4681A20116Z Contact Us For Availability
349490
Orifice LGE MFX63427301 Contact Us For Availability
352115
Tube Assembly,Evaporator(In) LGE AJR30092402 Contact Us For Availability
352380
Guide,Air LGE MEA66395401 Contact Us For Availability
354210
Evaporator Assembly,First LGE ADL76745301 Contact Us For Availability
354210
Evaporator Assembly,First LGE ADL76745302 Contact Us For Availability
552113
Tube Assembly,Condenser(Out) LGE AJR30092201 Contact Us For Availability
554030
Condenser Assembly,First LGE ACG76586901 Contact Us For Availability
554030
Condenser Assembly,First LGE ACG76586902 Contact Us For Availability
554160
Compressor Set,China LGE TBZ39275601 Contact Us For Availability
559015
Fan,Turbo LGE MDG63966302 Contact Us For Availability
749750
Guide Assembly,Air LGE AEC75969001 Contact Us For Availability
HNMP11
Harness,Single LGE 6631A20104N Contact Us For Availability
HNMP21
Harness,Multi LGE EAD63989024 Contact Us For Availability
W52102
Tube,Discharge LGE MJU66973401 Contact Us For Availability
× ![]()
