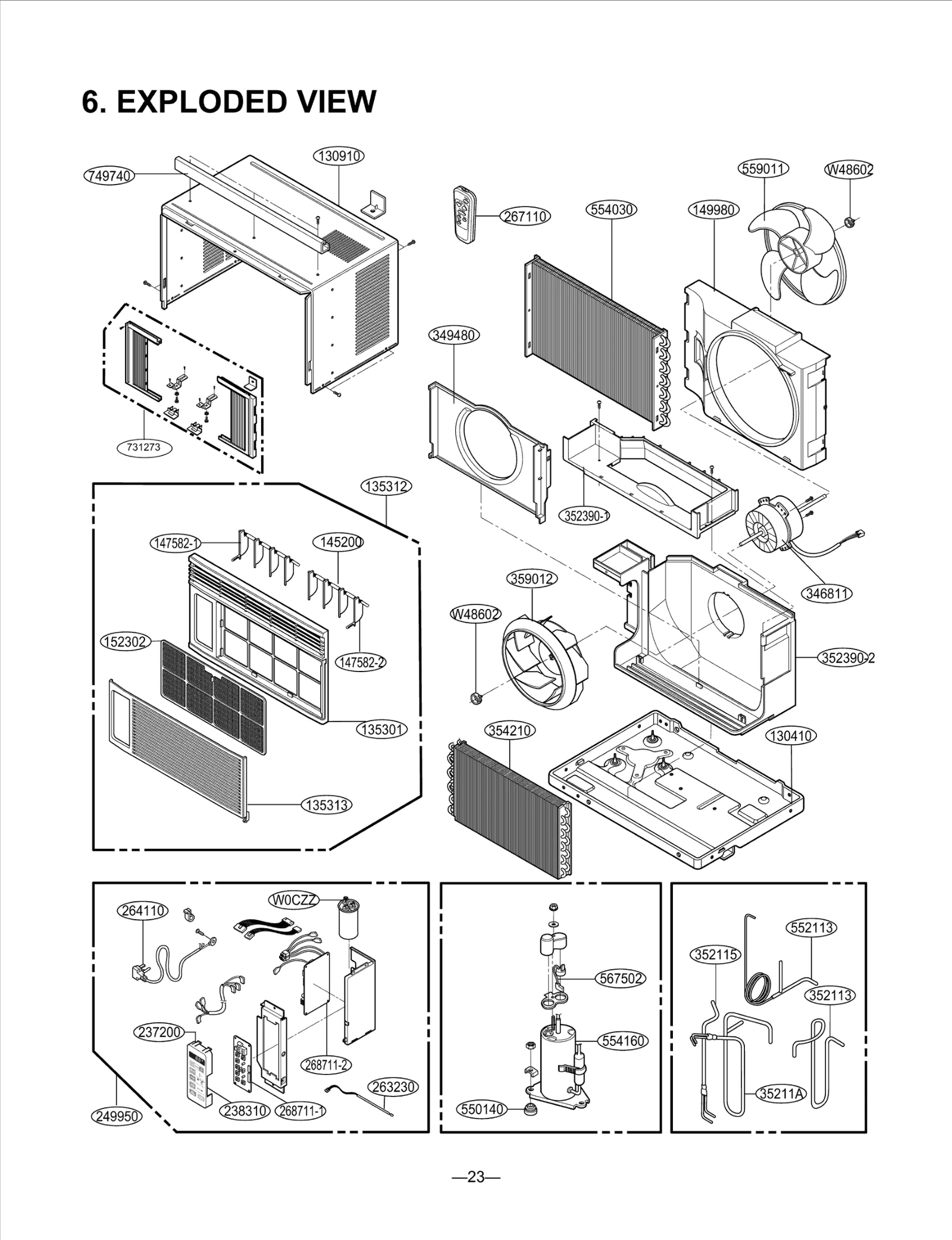

Model LG LW6012ER AC – Common Parts & Diagrams

135312
Grille Assembly,Front
Grille Assembly,Front LGE AEB73364902 Contact Us For Availability
View on Model
145200
LINK HOLDER PP JI-350 LW-A0512
LINK HOLDER PP JI-350 LW-A0512 LGE 4520AR3191A Contact Us For Availability
View on Model
147582-2
VANE,VERTICAL
VANE,VERTICAL LGE 5990AR3190D Contact Us For Availability
View on Model
149980
Shroud
Shroud LGE MHN61903101 Contact Us For Availability
View on Model
237200
PANEL,CONTROL
PANEL,CONTROL LGE 3720A20017A Contact Us For Availability
View on Model
238310
Escutcheon
Escutcheon LGE MDD42503001 Contact Us For Availability
View on Model
268711-1
PWB(PCB) ASSEMBLY,DISPLAY
PWB(PCB) ASSEMBLY,DISPLAY LGE 6871A20432B Contact Us For Availability
View on Model
268711-2
PCB Assembly,Main
PCB Assembly,Main LGE EBR39266613 Contact Us For Availability
View on Model
346811
Motor Assembly,AC,Single
Motor Assembly,AC,Single LGE 4681A10016T Contact Us For Availability
View on Model
352113
Tube Assembly,Discharge
Tube Assembly,Discharge LGE AJR73085504 Contact Us For Availability
View on Model
352115
Tube Assembly,Evaporator(In)
Tube Assembly,Evaporator(In) LGE AJR73084411 Contact Us For Availability
View on Model
352390-1
Guide Assembly,Air
Guide Assembly,Air LGE AEC36811301 Contact Us For Availability
View on Model
352390-2
Guide Assembly,Air
Guide Assembly,Air LGE AEC36596101 Contact Us For Availability
View on Model
354210
Evaporator Assembly,First
Evaporator Assembly,First LGE ADL73742301 Contact Us For Availability
View on Model
552113
Tube Assembly,Condenser(Out)
Tube Assembly,Condenser(Out) LGE AJR73084603 Contact Us For Availability
View on Model
567502
Overload Protect
Overload Protect LGE EAF34140250 Contact Us For Availability
View on Model
749740
Guide
Guide LGE 5210AR3196N Contact Us For Availability
View on Model
