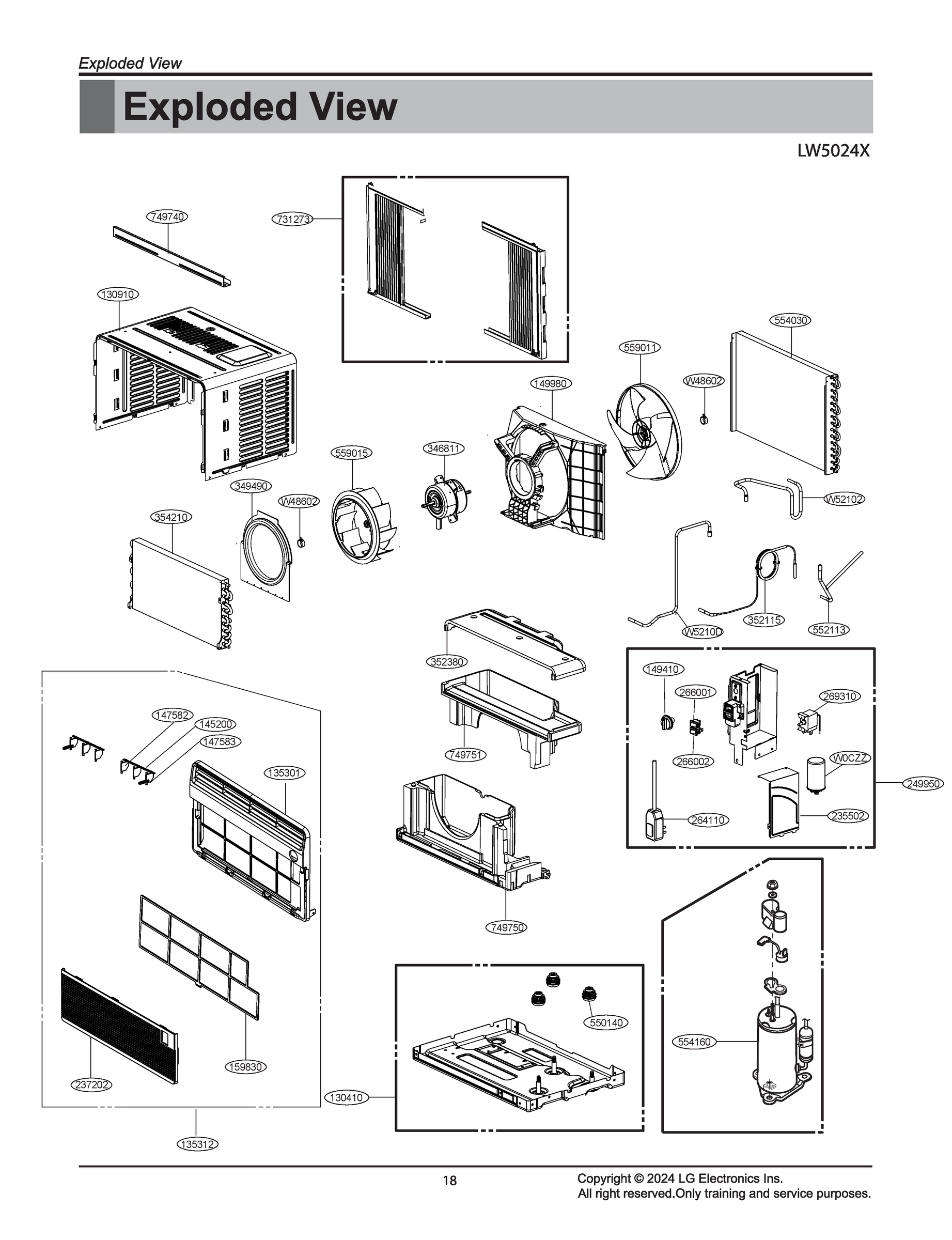

Model LG LW5024X.AT1AUSH Air Conditioners – Common Parts & Diagrams

130410
Base Assembly,Single
Base Assembly,Single LGE AAN30130901 Contact Us For Availability
View on Model
130910
Cabinet Assembly,Single
Cabinet Assembly,Single LGE ABJ76765801 Contact Us For Availability
View on Model
135301
Grille,Front
Grille,Front LGE MDX65471701 Contact Us For Availability
View on Model
135312
Grille Assembly,Front
Grille Assembly,Front LGE AEB76302902 Contact Us For Availability
View on Model
145200
Link
Link LGE MFF64127701 Contact Us For Availability
View on Model
147582
Louver,Vertical
Louver,Vertical LGE MFH63887901 Contact Us For Availability
View on Model
147583
Louver,Vertical
Louver,Vertical LGE MFH63887902 Contact Us For Availability
View on Model
149410
Knob Assembly
Knob Assembly LGE AEZ75997001 Contact Us For Availability
View on Model
149980
Shroud
Shroud LGE MHN63785901 Contact Us For Availability
View on Model
159830
Filter Assembly,Air Cleaner
Filter Assembly,Air Cleaner LGE ADQ75812401 Contact Us For Availability
View on Model
235502
Cover
Cover LGE MCK71845801 Contact Us For Availability
View on Model
237202
Panel,Front
Panel,Front LGE MGC66449402 Contact Us For Availability
View on Model
249950
Case Assembly,Control
Case Assembly,Control LGE ABQ30255003 Contact Us For Availability
View on Model
264110
Power Cord Assembly
Power Cord Assembly LGE EAD63469527 Contact Us For Availability
View on Model
264110
Power Cord Assembly
Power Cord Assembly LGE EAD66043105 Contact Us For Availability
View on Model
266001
Switch,Rocker
Switch,Rocker LGE EBF64572302 Contact Us For Availability
View on Model
266002
Switch,Rocker
Switch,Rocker LGE EBF64572301 Contact Us For Availability
View on Model
269310
Thermostat Assembly
Thermostat Assembly LGE 2H01109X Contact Us For Availability
View on Model
346811
Motor Assembly,AC
Motor Assembly,AC LGE 4681A20116Z Contact Us For Availability
View on Model
349490
Orifice
Orifice LGE MFX63427301 Contact Us For Availability
View on Model
352115
Tube Assembly,Evaporator(In)
Tube Assembly,Evaporator(In) LGE AJR30097201 Contact Us For Availability
View on Model
352380
Guide,Air
Guide,Air LGE MEA66395401 Contact Us For Availability
View on Model
354210
Evaporator Assembly,First
Evaporator Assembly,First LGE ADL76745301 Contact Us For Availability
View on Model
354210
Evaporator Assembly,First
Evaporator Assembly,First LGE ADL76745302 Contact Us For Availability
View on Model
552113
Tube Assembly,Condenser(Out)
Tube Assembly,Condenser(Out) LGE AJR30092201 Contact Us For Availability
View on Model
554030
Condenser Assembly,First
Condenser Assembly,First LGE ACG76586901 Contact Us For Availability
View on Model
554030
Condenser Assembly,First
Condenser Assembly,First LGE ACG76586902 Contact Us For Availability
View on Model
554160
Compressor Set,China
Compressor Set,China LGE TBZ39289301 Contact Us For Availability
View on Model
559011
Fan,Axial
Fan,Axial LGE MDG63966601 Contact Us For Availability
View on Model
559015
Fan,Turbo
Fan,Turbo LGE MDG63966302 Contact Us For Availability
View on Model
731273
Install Part Assembly,Set
Install Part Assembly,Set LGE AET74151724 Contact Us For Availability
View on Model
749740
Guide
Guide LGE MEA66398002 Contact Us For Availability
View on Model
749750
Guide Assembly,Air
Guide Assembly,Air LGE AEC75969001 Contact Us For Availability
View on Model
749751
Guide Assembly,Air
Guide Assembly,Air LGE AEC75968202 Contact Us For Availability
View on Model
W5210D
Tube,Suction
Tube,Suction LGE MJU66987401 Contact Us For Availability
View on Model
W52102
Tube,Discharge
Tube,Discharge LGE MJU66987301 Contact Us For Availability
View on Model
