Model LG LW5022.AT1AHDP 5,000 BTU Window Air Conditioner – Common Parts & Diagrams

Common parts from model LG LW5022.AT1AHDP 5,000 BTU Window Air Conditioner

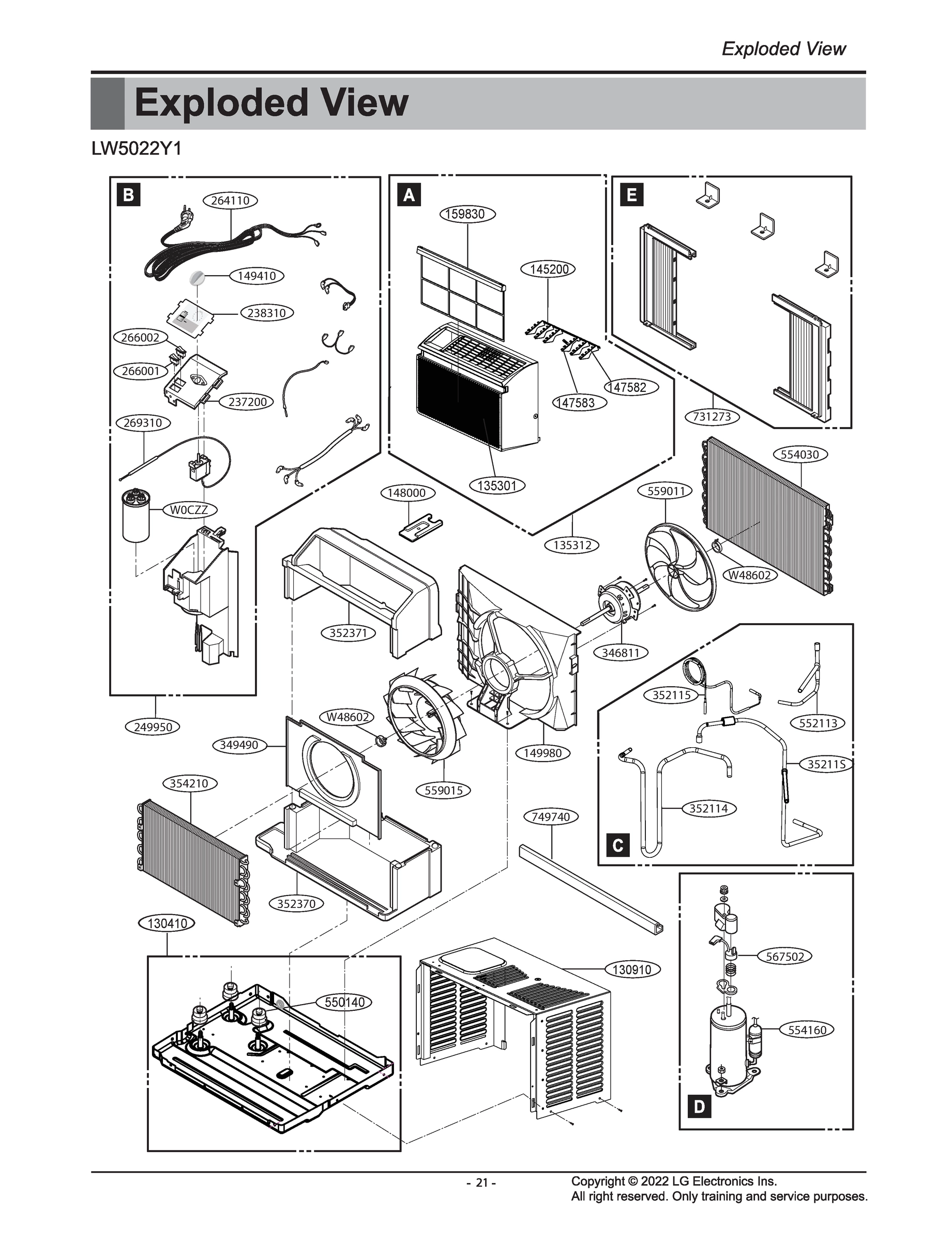

DIAGRAM 1

Print

• This Diagram
• All Diagrams

130910

ABJ74668011 LG Air Conditioner Cabinet Assemb Backorder LGE ABJ74668011 View Details $50.56

View on Model

135301

Grille,Front LGE MDX65461601 Contact Us For Availability

View on Model

135312

Grille Assembly,Front LGE AEB76292501 Contact Us For Availability

View on Model

145200

4520A30065B LG Air Conditioner Link Backorder LGE 4520A30065B View Details $3.40

View on Model

147582

4758A30041D LG Vertical Air Conditioner Louve Backorder LGE 4758A30041D View Details $3.40

View on Model

147583

4758A30041C LG Air Conditioner Vertical Louve Backorder LGE 4758A30041C View Details $3.40

View on Model

148000

4800A30012A LG Air Conditioner Support Backorder LGE 4800A30012A View Details $3.40

View on Model

148000

Supporter LGE 4800A30012B Contact Us For Availability

View on Model

149410

4941A30024E LG Air Conditioner Knob Assembly Backorder LGE 4941A30024E View Details $3.40

View on Model

149980

MHN62842003 LG Air Conditioner Shroud Backorder LGE MHN62842003 View Details $26.57

View on Model

149980

Shroud LGE MHN62842005 Contact Us For Availability

View on Model

159830

Filter Assembly,Air Cleaner LGE ADQ75802301 Contact Us For Availability

View on Model

237200

Panel,Control LGE 3720A30090D Contact Us For Availability

View on Model

238310

MDD62622204 LG Air Conditioner Escutcheon Backorder LGE MDD62622204 View Details $3.40

View on Model

249950

ABQ73982018 LG Air Conditioner Control Assemb Backorder LGE ABQ73982018 View Details $141.28

View on Model

264110

EAD63469519 LG Air Conditioner Power Cord Ass Backorder LGE EAD63469519 View Details $68.76

View on Model

264110

Power Cord Assembly LGE EAD63469527 Contact Us For Availability

View on Model

266001

2H01316J LG Air Conditioner Rocker Switch Backorder LGE 2H01316J View Details $7.98

View on Model

266002

2H01316H LG Air Conditioner Rocker Switch Backorder LGE 2H01316H View Details $4.81

View on Model

269310

Thermostat Assembly LGE 2H01109X Contact Us For Availability

View on Model

346811

4681A20116W LG Air Conditioner Motor Assembly Backorder LGE 4681A20116W View Details $98.48

View on Model

349490

MFX63041902 LG Air Conditioner Orifice Backorder LGE MFX63041902 View Details $5.27

View on Model

352114

AJR73067211 LG Air Conditioner Discharge Tube Backorder LGE AJR73067211 View Details $18.12

View on Model

352114

Tube Assembly,Discharge LGE AJR73067218 Contact Us For Availability

View on Model

352115

AJR72960508 LG Air Conditioner Evaporator Tub Backorder LGE AJR72960508 View Details $18.12

View on Model

352115

Tube Assembly,Evaporator(In) LGE AJR72960510 Contact Us For Availability

View on Model

352370

MCZ63492302 LG Air Conditioner Duct Backorder LGE MCZ63492302 View Details $7.98

View on Model

352371

MCZ63492202 LG Air Conditioner Duct Backorder LGE MCZ63492202 View Details $7.98

View on Model

354210

ADL72920809 LG Evaporator Assembly Backorder LGE ADL72920809 View Details $98.48

View on Model

354210

Evaporator Assembly,First LGE ADL72920810 Contact Us For Availability

View on Model

550140

4984AR4390B LG Air Conditioner Compressor Dam Backorder LGE 4984AR4390B View Details $3.40

View on Model

552113

AJR72962112 LG Air Conditioner Outer Condense Backorder LGE AJR72962112 View Details $14.15

View on Model

552113

Tube Assembly,Condenser(Out) LGE AJR72962114 Contact Us For Availability

View on Model

554030

ACG72924306 LG Condenser First Assembly Backorder LGE ACG72924306 View Details $83.91

View on Model

554030

Condenser Assembly,First LGE ACG72924308 Contact Us For Availability

View on Model

554030

Condenser Assembly,First LGE ACG72924309 Contact Us For Availability

View on Model

554160

TBZ39187201 LG Air Conditioner Compressor Ass Backorder LGE TBZ39187201 View Details $257.10

View on Model

559011

5900A20042J LG Air Conditioner Axial Fan In Stock LGE 5900A20042J View Details $26.57

View on Model

559015

MDG41758703 LG Air Conditioner Turbo Fan Backorder LGE MDG41758703 View Details $22.29

View on Model

567502

EAF61751213 LG Air Conditioner Overload Prote Backorder LGE EAF61751213 View Details $39.47

View on Model

731273

AET74151701 LG Air Conditioner Window Side Cu Backorder LGE AET74151701 View Details $45.05

View on Model

749740

4974A30066P LG Air Conditioner Guide Backorder LGE 4974A30066P View Details $10.91

View on Model

749740

Guide LGE 4974A30066Q Contact Us For Availability

View on Model

W0CZZ

0CZZA20005B LG Capacitor Film Box Backorder LGE 0CZZA20005B View Details $34.75

View on Model

W48602

3H02932B LG Air Conditioner Clamp Spring I.D. Backorder LGE 3H02932B View Details $3.40

View on Model

W48602

MBU64446301 LG Air Conditioner Spring Clamp Backorder LGE MBU64446301 View Details $3.40

View on Model

×
