Model LG LW2522ERSM.AT3AUSH 24,000/24,500 BTU Smart Wi-Fi Enabled Window Air Conditioner – Common Parts & Diagrams

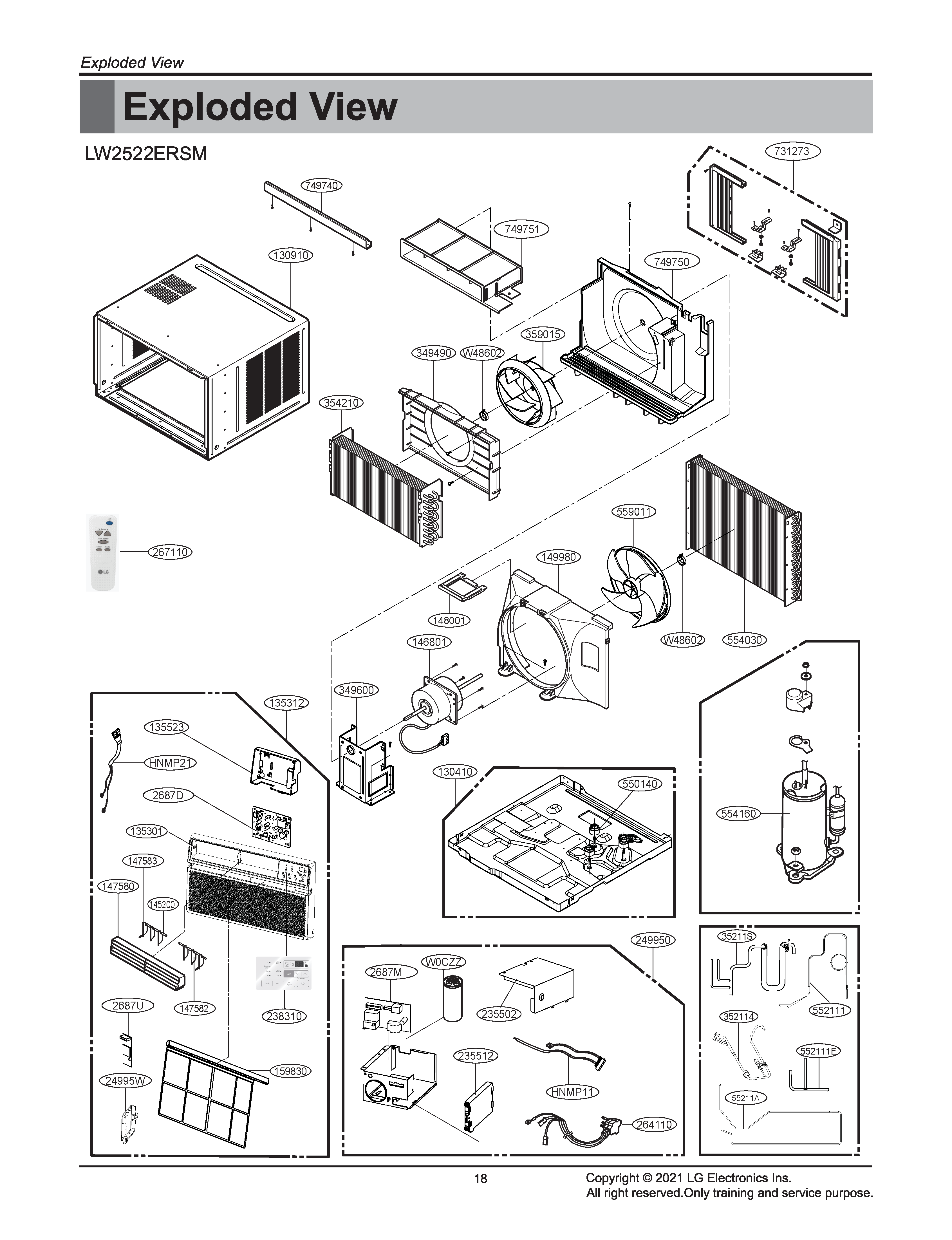

Common parts from model LG LW2522ERSM.AT3AUSH 24,000/24,500 BTU Smart Wi-Fi Enabled Window Air Conditioner

DIAGRAM 1

Print

• This Diagram
• All Diagrams

2687U

EBR85871801 LG WiFi PCB Assembly Backorder LGE EBR85871801 View Details $82.70

View on Model

55211A

Tube Assembly,Condenser(Out) LGE AJR73067843 Contact Us For Availability

View on Model

130410

Base Assembly,Single LGE AAN76849603 Contact Us For Availability

View on Model

130910

Cabinet Assembly,Single Backorder LGE 3091A10064Y View Details $172.09

View on Model

135301

MDX65461501 LG Front Grille Backorder LGE MDX65461501 View Details $68.76

View on Model

135312

AEB76293202 LG Front Grille Assembly Backorder LGE AEB76293202 View Details $184.43

View on Model

135523

Cover LGE MCK69433203 Contact Us For Availability

View on Model

145200

4520A30026C LG Air Conditioner Link Assembly Backorder LGE 4520A30026C View Details $3.40

View on Model

146801

4681A20043T LG AC Motor Backorder LGE 4681A20043T View Details $215.56

View on Model

147580

4758A30047D LG Air Conditioner Horizontal Lou Backorder LGE 4758A30047D View Details $3.40

View on Model

147582

4758A30050F LG Vertical Air Conditioner Louve Backorder LGE 4758A30050F View Details $3.40

View on Model

147583

4758A30050E LG Air Conditioner Vertical Louve Backorder LGE 4758A30050E View Details $3.40

View on Model

148001

4800A20001C LG Air Conditioner Support Assemb Backorder LGE 4800A20001C View Details $7.98

View on Model

149980

Shroud LGE 4998A10035L Contact Us For Availability

View on Model

159830

Filter Assembly,Air Cleaner LGE ADQ75802602 Contact Us For Availability

View on Model

235502

MCK69413201 LG Air Conditioner Cover Backorder LGE MCK69413201 View Details $7.98

View on Model

235512

ACQ31027902 LG Display Cover Assembly Backorder LGE ACQ31027902 View Details $4.48

View on Model

238310

Escutcheon LGE MDD63323401 Contact Us For Availability

View on Model

249950

CASE ASSEMBLY,CONTROL Backorder LGE ABQ30237906 View Details $84.42

View on Model

249950

ABQ75823206 LG Case Assembly Control Backorder LGE ABQ75823206 View Details $184.43

View on Model

264110

Power Cord Assembly Backorder LGE EAD63469523 View Details $141.28

View on Model

267110

AKB73016019 LG Remote Controller Assembly Backorder LGE AKB73016019 View Details $18.12

View on Model

349490

MFX62901902 LG Air Conditioner Orifice Backorder LGE MFX62901902 View Details $26.57

View on Model

349600

4960A20056C LG Air Conditioner Motor Bracket Backorder LGE 4960A20056C View Details $34.75

View on Model

352114

5211A12003K LG Air Conditioner Discharge Tube Backorder LGE 5211A12003K View Details $98.48

View on Model

352114

Tube Assembly,Discharge Backorder LGE 5211A12003Q View Details $68.76

View on Model

354210

5421A20186K LG Air Conditioner Evaporator Ass Backorder LGE 5421A20186K View Details $269.91

View on Model

354210

Evaporator Assembly,First LGE 5421A20186M Contact Us For Availability

View on Model

359015

5901A20009E LG Air Conditioner Fan Assembly-T Backorder LGE 5901A20009E View Details $39.47

View on Model

550140

5014A20003A LG Compressor Damper Backorder LGE 5014A20003A View Details $5.27

View on Model

552111

AJR72923111 LG Air Conditioner Capillary Tube Backorder LGE AJR72923111 View Details $45.05

View on Model

552111

Tube Assembly,Capillary LGE AJR72923116 Contact Us For Availability

View on Model

552111E

5211A12004C LG Air Conditioner Capillary Tube Backorder LGE 5211A12004C View Details $14.15

View on Model

552111E

Tube Assembly,Capillary LGE 5211A12004D Contact Us For Availability

View on Model

554030

5403A20182M LG Air Conditioner First Assembly Backorder LGE 5403A20182M View Details $257.10

View on Model

554030

Condenser Assembly,First LGE 5403A20182N Contact Us For Availability

View on Model

554160

TBZ37258301 LG Compressor Set Backorder LGE TBZ37258301 View Details $396.62

View on Model

554160

Compressor Set,China Backorder LGE TBZ38955501 View Details $427.49

View on Model

559011

5900A10011D LG Air Conditioner Axial Fan Backorder LGE 5900A10011D View Details $55.80

View on Model

731273

AET73691406 LG Air Conditioner Installation P Backorder LGE AET73691406 View Details $68.76

View on Model

731273

AET74151703 LG Installation Part Assembly Set Backorder LGE AET74151703 View Details $75.08

View on Model

731273

Install Part Assembly,Set LGE AET74151719 Contact Us For Availability

View on Model

749740

MEA61972806 LG Air Conditioner Guide Backorder LGE MEA61972806 View Details $18.12

View on Model

749750

Guide Assembly,Air Backorder LGE 5239A20020H View Details $98.48

View on Model

749751

Guide Assembly,Air LGE 5239A20017J Contact Us For Availability

View on Model

HNMP11

EAD63989002 LG Multi Harness Backorder LGE EAD63989002 View Details $18.12

View on Model

HNMP21

EAD63989001 LG Multi Harness Backorder LGE EAD63989001 View Details $14.15

View on Model

W0CZZ

EAE42718003 LG Air Conditioner Film Capacitor Backorder LGE EAE42718003 View Details $68.76

View on Model

W48602

MBU64446302 LG Air Conditioner Spring Clamp Backorder LGE MBU64446302 View Details $3.40

View on Model

×
