Model LG LW1216HR.AT3AUSL 12,000 BTU Window Air Conditioner, Cooling & Heating – Common Parts & Diagrams

Common parts from model LG LW1216HR.AT3AUSL 12,000 BTU Window Air Conditioner, Cooling & Heating

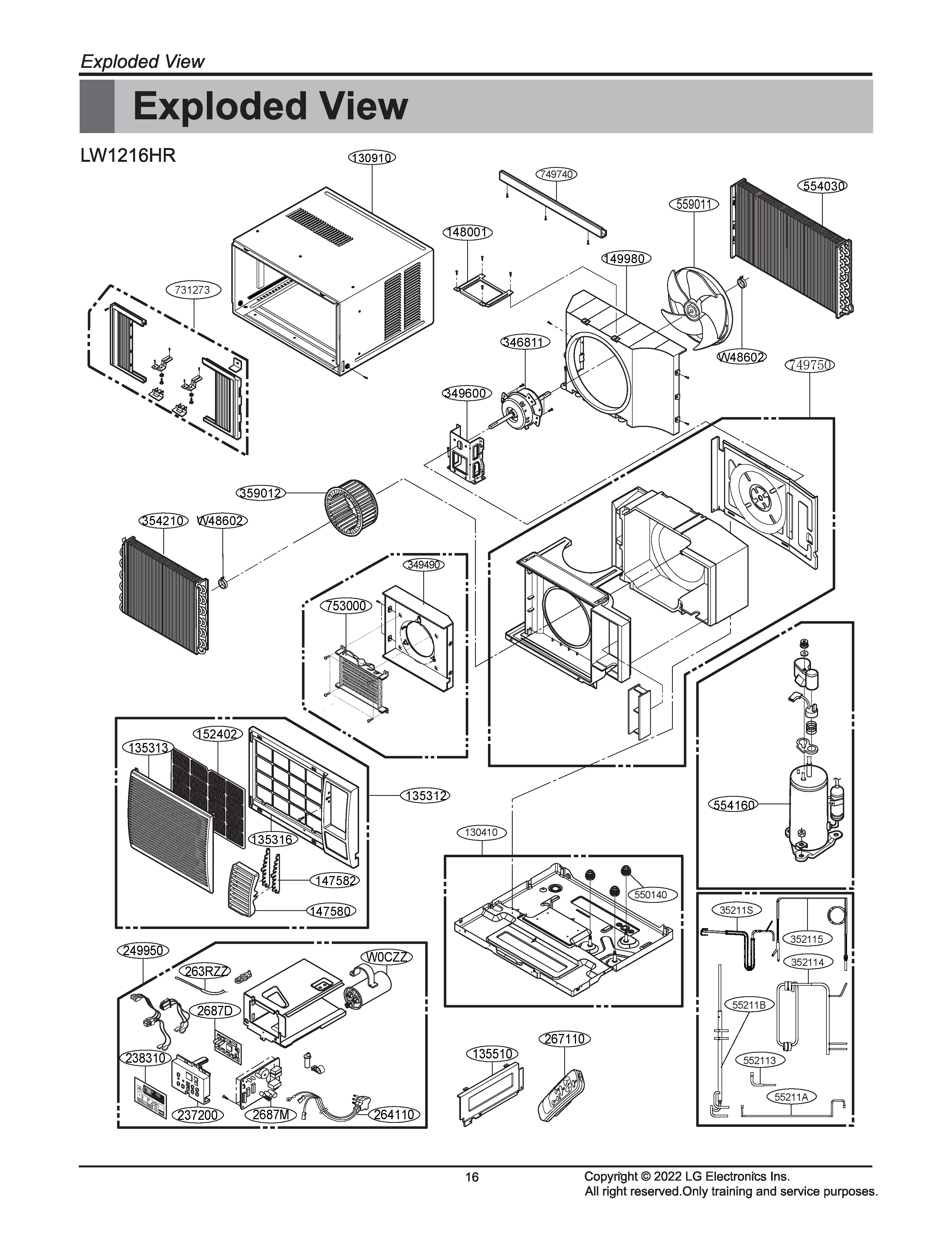

DIAGRAM 1

Print

• This Diagram
• All Diagrams

263RZZ

6323A20003F LG NTC Thermistor Backorder LGE 6323A20003F View Details $10.91

View on Model

130910

ABJ73769415 LG Air Conditioner Single Cabinet Backorder LGE ABJ73769415 View Details $125.28

View on Model

135312

3531A20136P LG Air Conditioner Front Grille A Backorder LGE 3531A20136P View Details $84.42

View on Model

135313

3530AR1634W LG Air Conditioner Inlet Grille A Backorder LGE 3530AR1634W View Details $34.75

View on Model

135316

3530AR1633W LG Air Conditioner Front Indoor G Backorder LGE 3530AR1633W View Details $26.57

View on Model

135510

3550AR7032G LG Air Conditioner Cover Backorder LGE 3550AR7032G View Details $5.27

View on Model

135510

Cover LGE 3550AR7032K Contact Us For Availability

View on Model

147580

5990AR6191N LG Air Conditioner Horizontal Lou Backorder LGE 5990AR6191N View Details $5.27

View on Model

147582

4758AR7308E LG Air Conditioner Vertical Louve Backorder LGE 4758AR7308E View Details $3.40

View on Model

148001

4800A10001B LG Air Conditioner Support Backorder LGE 4800A10001B View Details $7.98

View on Model

149980

4998A10020E LG Air Conditioner Shroud Backorder LGE 4998A10020E View Details $26.57

View on Model

152402

5231AR1152Z LG Air Conditioner Filter Backorder LGE 5231AR1152Z View Details $26.57

View on Model

237200

MGC66370801 LG Air Conditioner Control Panel Backorder LGE MGC66370801 View Details $10.91

View on Model

238310

MDD63322909 LG Air Conditioner Escutcheon Backorder LGE MDD63322909 View Details $14.15

View on Model

249950

ABQ74425005 LG Case Control Assembly Backorder LGE ABQ74425005 View Details $195.85

View on Model

249950

ABQ74425015 LG Air Conditioner Control Case A Backorder LGE ABQ74425015 View Details $141.28

View on Model

264110

Backorder LGE EAD63469524 View Details $125.28

View on Model

267110

AKB73016019 LG Remote Controller Assembly Backorder LGE AKB73016019 View Details $18.12

View on Model

346811

EAU62962902 LG Air Conditioner Motor Assembly Backorder LGE EAU62962902 View Details $184.43

View on Model

349490

MFX63021903 LG Air Conditioner Orifice Backorder LGE MFX63021903 View Details $18.12

View on Model

349600

4960AR6165D LG Air Conditioner Motor Bracket Backorder LGE 4960AR6165D View Details $18.12

View on Model

352114

AJR75922501 LG Air Conditioner Discharge Tube Backorder LGE AJR75922501 View Details $45.05

View on Model

352114

Tube Assembly,Discharge LGE AJR75922503 Contact Us For Availability

View on Model

352115

AJR75922801 LG Air Conditioner Evaporator Tub Backorder LGE AJR75922801 View Details $39.47

View on Model

352115

Tube Assembly,Evaporator(In) LGE AJR75922803 Contact Us For Availability

View on Model

354210

ADL75320903 LG Air Conditioner Evaporator Ass Backorder LGE ADL75320903 View Details $159.22

View on Model

354210

ADL75320904 LG Evaporator Assembly Backorder LGE ADL75320904 View Details $172.09

View on Model

359012

5834AR1495E LG Air Conditioner Blower Fan Ass Backorder LGE 5834AR1495E View Details $34.75

View on Model

550140

4984AR4390B LG Air Conditioner Compressor Dam Backorder LGE 4984AR4390B View Details $3.40

View on Model

552113

AJR75804204 LG Air Conditioner Outer Condense Backorder LGE AJR75804204 View Details $10.91

View on Model

552113

Tube Assembly,Condenser(Out) LGE AJR75804206 Contact Us For Availability

View on Model

554030

ACG72924212 LG Air Conditioner Condenser Asse Backorder LGE ACG72924212 View Details $172.09

View on Model

554030

Condenser Assembly,First LGE ACG72924217 Contact Us For Availability

View on Model

554160

TBZ37574401 LG Compressor Assembly Backorder LGE TBZ37574401 View Details $351.98

View on Model

559011

5900A10009E LG Air Conditioner Axial Fan Backorder LGE 5900A10009E View Details $45.05

View on Model

731273

3127A20074Y LG Air Conditioner Single Install Backorder LGE 3127A20074Y View Details $45.05

View on Model

731273

AET74151705 LG AC Installation Part Set Assem Backorder LGE AET74151705 View Details $55.80

View on Model

749740

4974AR3262S LG Air Conditioner Guide Backorder LGE 4974AR3262S View Details $18.12

View on Model

749750

Guide Assembly,Air Backorder LGE AEC73578111 View Details $0.00

View on Model

753000

5300A20003A LG Electric Heater Backorder LGE 5300A20003A View Details $141.28

View on Model

753000

5300A20003V LG Air Conditioner Electric Heate In Stock LGE 5300A20003V View Details $110.41

View on Model

753000

Heater,Electric Backorder LGE 5300A20003X View Details $0.00

View on Model

W0CZZ

6120AR2194F LG Air Conditioner Capacitor Backorder LGE 6120AR2194F View Details $110.41

View on Model

W48602

3H02932B LG Air Conditioner Clamp Spring I.D. Backorder LGE 3H02932B View Details $3.40

View on Model

W48602

MBU64446301 LG Air Conditioner Spring Clamp Backorder LGE MBU64446301 View Details $3.40

View on Model

×
