Model LG LUV400T Ventilation – Common Parts & Diagrams
Diagram 0
Diagram 1

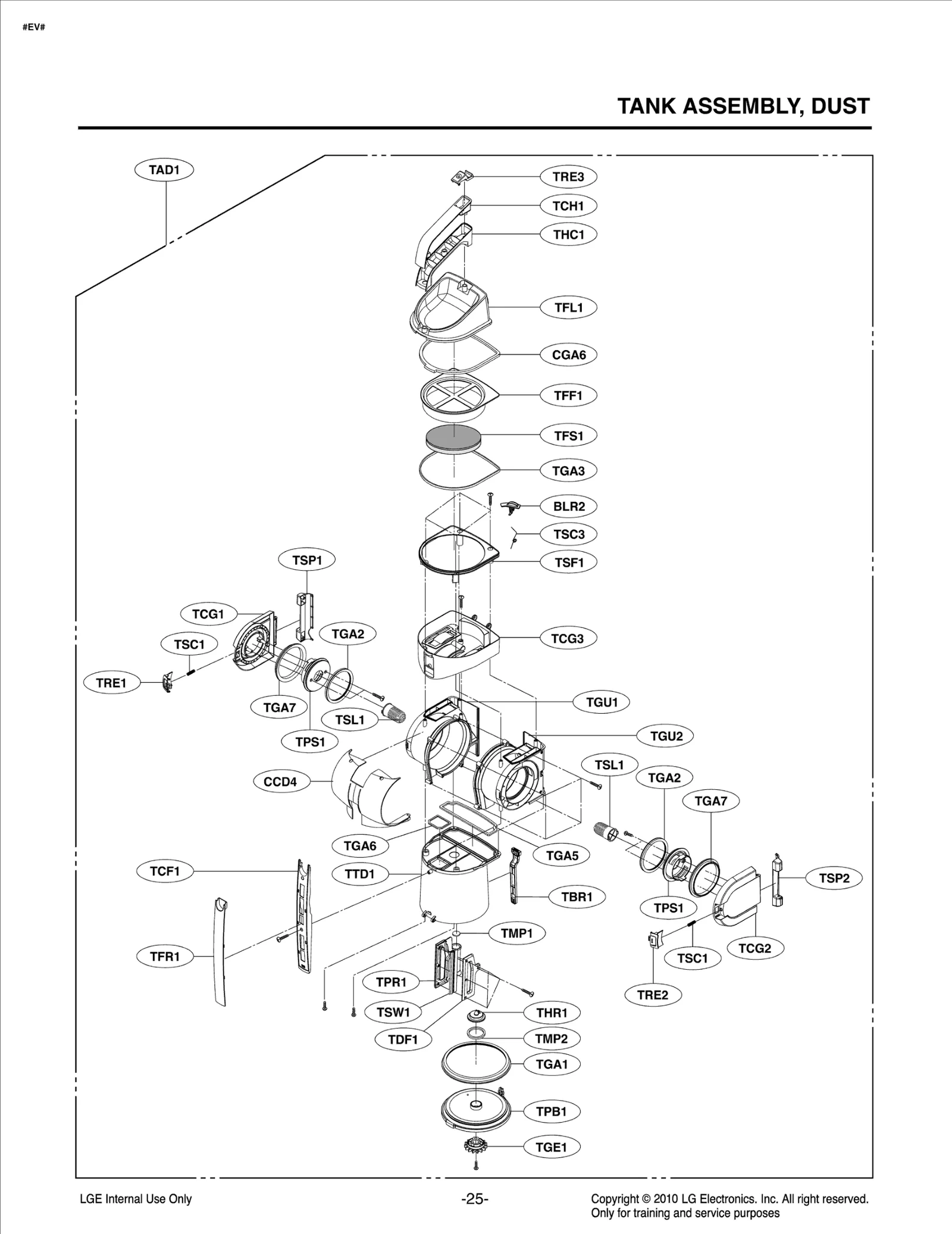

Diagram 2

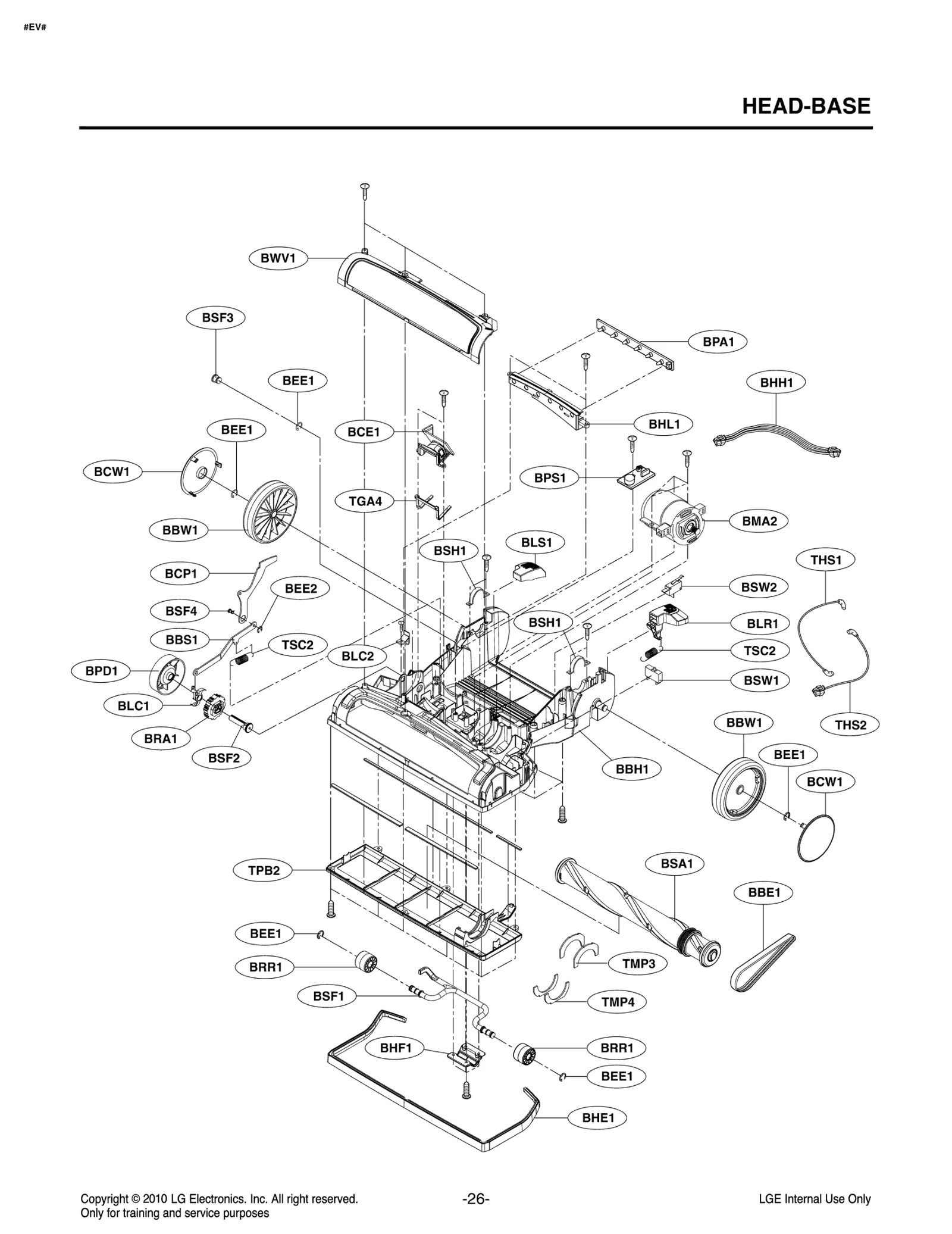

Diagram 3

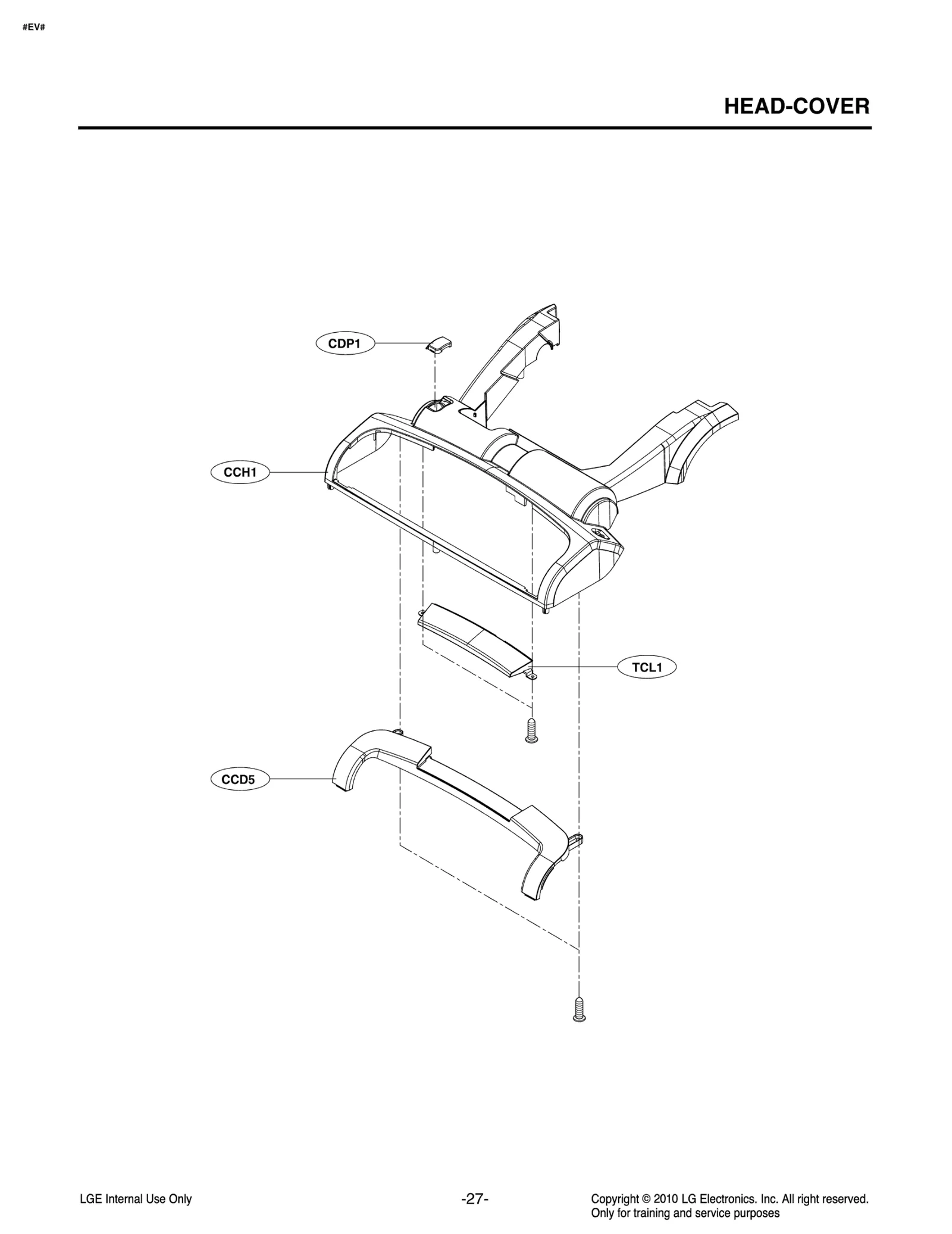

Diagram 4

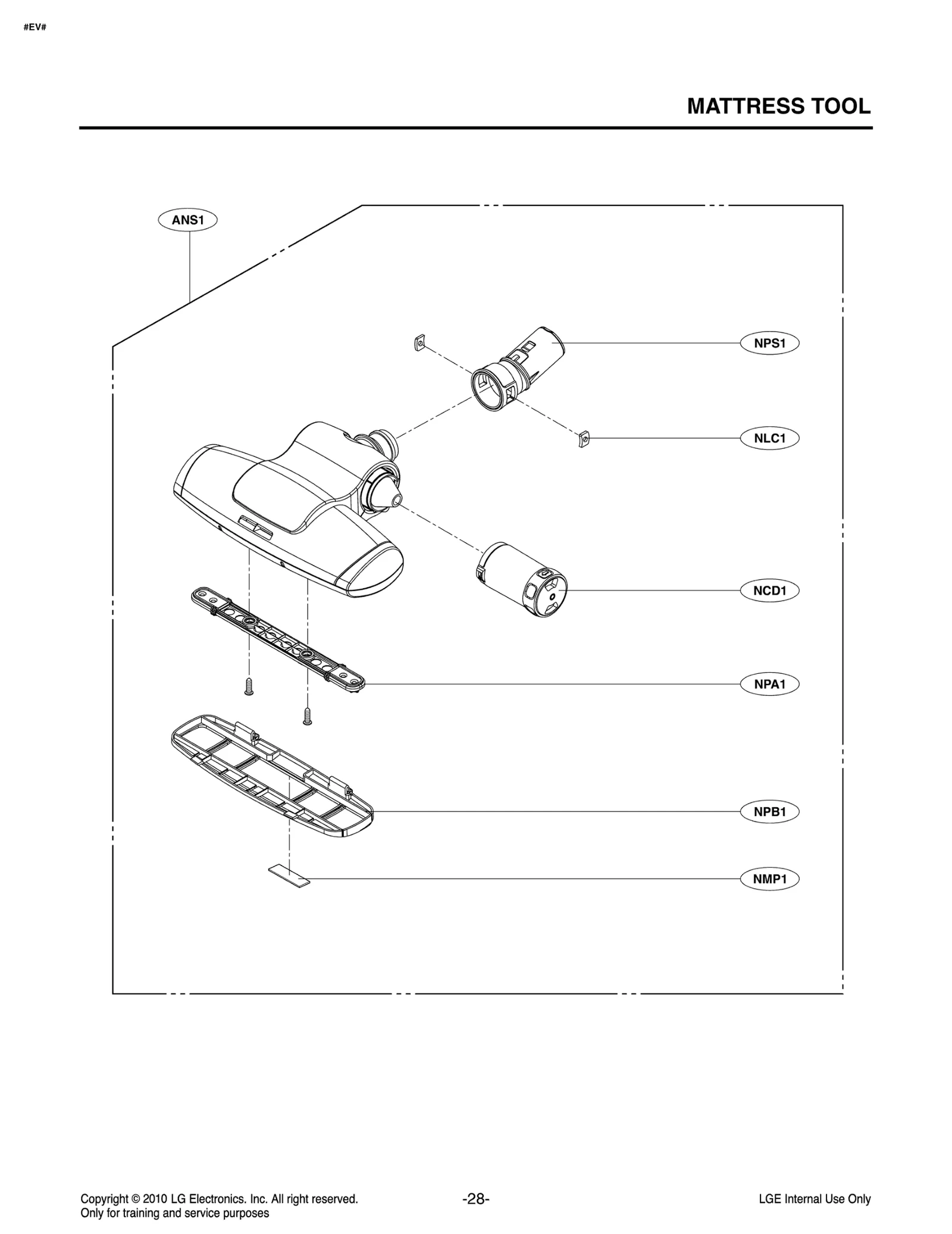

Diagram 5

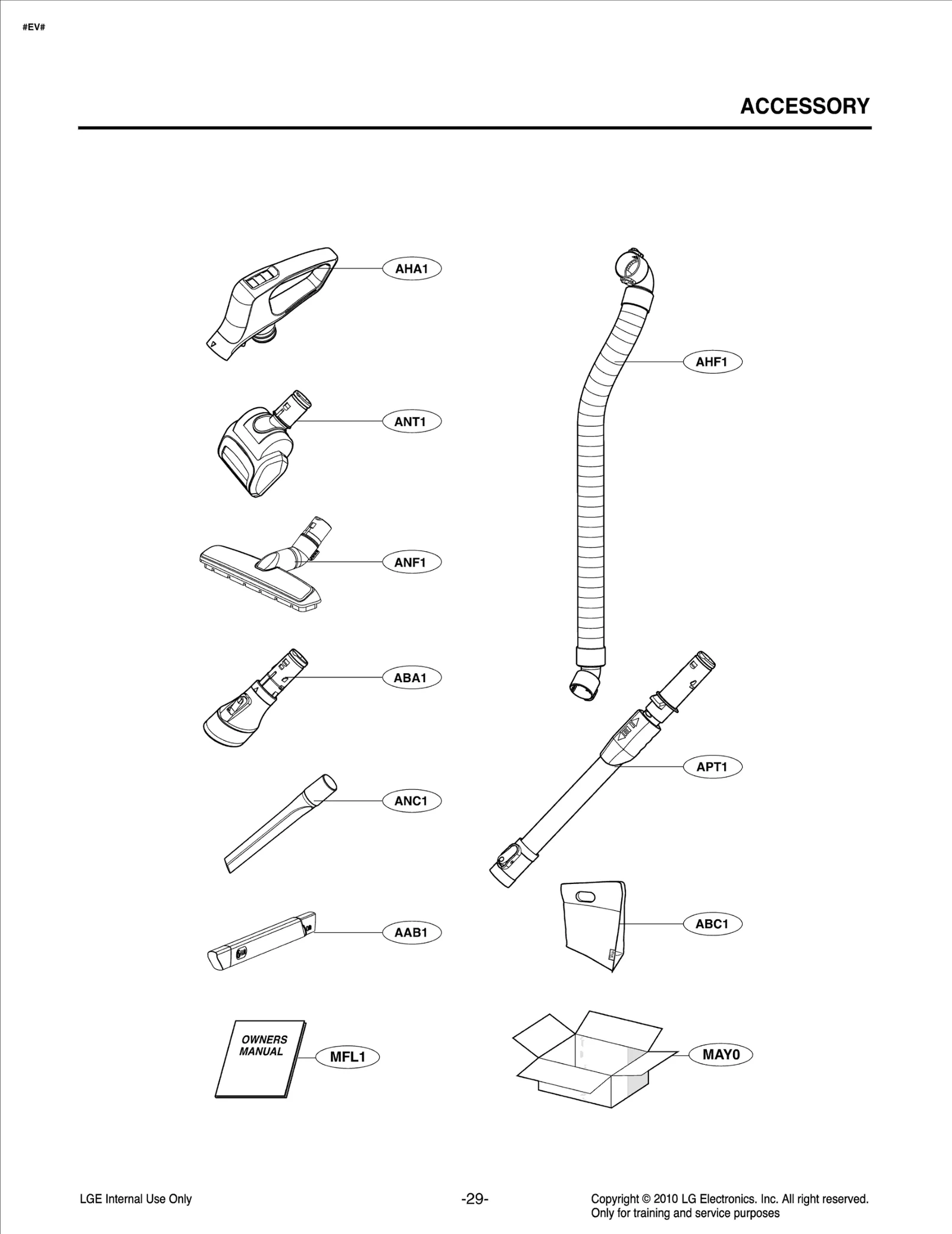

Diagram 6
Common parts from model LG LUV400T Ventilation
AAB1
Brush Assembly LGE ABC72930001 Contact Us For Availability
ABA1
Brush Assembly,Dust LGE ABC72909803 Contact Us For Availability
ABC1
Bag,Accessory LGE MAF62527801 Contact Us For Availability
AHA1
Handle Assembly LGE AED72911902 Contact Us For Availability
AHF1
Hose Assembly,Flexible LGE AEM72912802 Contact Us For Availability
ANC1
Nozzle,Crevice LGE MFV61984701 Contact Us For Availability
ANF1
Nozzle Assembly,Floor LGE AGB36646405 Contact Us For Availability
ANS1
Nozzle Assembly,Quilt LGE AGB72972501 Contact Us For Availability
ANT1
Nozzle Assembly,Turbine LGE AGB72912005 Contact Us For Availability
BBE1
Belt LGE MAS61842501 Contact Us For Availability
BBH1
Base,Head LGE MAM61856402 Contact Us For Availability
BBS1
Bar,Selector LGE MAK61844701 Contact Us For Availability
BBW1
Bumper,Wheel LGE MBD61843002 Contact Us For Availability
BCE1
Cover,Pipe LGE MCK62605701 Contact Us For Availability
BCH1
Connector,Hose LGE MCD61845402 Contact Us For Availability
BCP1
Connector,Pedal LGE MCD61845101 Contact Us For Availability
BCR1
Bush,Cord LGE MBF62143801 Contact Us For Availability
BCW1
Cover,Wheel LGE MCK62606302 Contact Us For Availability
BEE1
Ring,E LGE MGZ61846001 Contact Us For Availability
BEE2
Ring,E LGE MGZ61846101 Contact Us For Availability
BEF1
Cover,Exhaust Filter LGE MCK62607202 Contact Us For Availability
BHB1
Holder,Button LGE MEG61889403 Contact Us For Availability
BHC1
Hanger,Cord LGE MEC61844602 Contact Us For Availability
BHC2
Hanger,Cord LGE MEC61844702 Contact Us For Availability
BHE1
Bumper,Head LGE MBD61843102 Contact Us For Availability
BHF1
Holder,Fixing LGE MEG61888801 Contact Us For Availability
BHH1
Harness,Single LGE EAD60874401 Contact Us For Availability
BHL1
Holder,LED LGE MEG61889002 Contact Us For Availability
BHN1
Holder,Nozzle LGE MEG61889501 Contact Us For Availability
BHP1
Holder,Pipe LGE MEG62059601 Contact Us For Availability
BHR1
Holder,Cord LGE MFG61874601 Contact Us For Availability
BHS1
Harness,Single LGE EAD60874102 Contact Us For Availability
BHS2
Harness,Single LGE EAD60874501 Contact Us For Availability
BLC1
Locker LGE MFG61874401 Contact Us For Availability
BLC2
Locker LGE MFG61874501 Contact Us For Availability
BLR1
Lever,Release LGE MFC61846702 Contact Us For Availability
BLR2
Lever,Release LGE MFC61846901 Contact Us For Availability
BLS1
Lever,Selector LGE MFC61846602 Contact Us For Availability
BMA2
Motor Assembly,DC,Vacuum Cleaner LGE EAU60885401 Contact Us For Availability
BMB1
Magnet,ND Bonded LGE RAB31825201 Contact Us For Availability
BPA1
Base Assembly,Head LGE AAN72940203 Contact Us For Availability
BPC1
Power Cord LGE EAD60853301 Contact Us For Availability
BPD1
Plate,Display LGE MGJ61968101 Contact Us For Availability
BPG1
Pipe,Guide LGE MGE61848702 Contact Us For Availability
BPM1
PCB Assembly,Main LGE EBR60719304 Contact Us For Availability
BPS1
PCB Assembly,Sub LGE EBR66044701 Contact Us For Availability
BPT1
PCB Assembly,Timer/Key LGE EBR64111001 Contact Us For Availability
BRA1
Ratchet LGE MGU61841001 Contact Us For Availability
BRE1
Button,Release LGE MBG62127802 Contact Us For Availability
BRE2
Button,Release LGE MBG62128002 Contact Us For Availability
BRR1
Roller LGE MHA61848902 Contact Us For Availability
BSA1
Shaft Assembly,Agitator LGE AHR72909602 Contact Us For Availability
BSC2
Spring,Coil LGE MHY61881904 Contact Us For Availability
BSC3
Spring,Coil LGE MHY61881903 Contact Us For Availability
BSC4
Spring,Coil LGE MHY61881902 Contact Us For Availability
BSE1
Button,Setting LGE MBG62127903 Contact Us For Availability
BSF1
Shaft LGE MHJ61851401 Contact Us For Availability
BSF2
Shaft LGE MHJ61851501 Contact Us For Availability
BSF3
Shaft LGE MHJ61851601 Contact Us For Availability
BSF4
Shaft LGE MHJ61851701 Contact Us For Availability
BSH1
Strap,Head LGE MJD61865501 Contact Us For Availability
BSW1
Switch Assembly,Safety LGE 6601FI3502C Contact Us For Availability
BSW2
Switch Assembly LGE EBF60693501 Contact Us For Availability
BWV1
Window,Viewing LGE MKC62113601 Contact Us For Availability
CAB1
Cover Assembly,Body LGE ACQ74697605 Contact Us For Availability
CCB1
Cover,Body LGE MCK62606702 Contact Us For Availability
CCD1
Cover,Decor LGE MCK62607103 Contact Us For Availability
CCD2
Cover,Decor LGE MCK62607303 Contact Us For Availability
CCD3
Cover,Decor LGE MCK62607403 Contact Us For Availability
CCD4
Cover,Decor LGE MCK62605801 Contact Us For Availability
CCD5
Cover,Decor LGE MCK62605002 Contact Us For Availability
CCH1
Cover,Head LGE MCK62604902 Contact Us For Availability
CCL1
Cover,LED LGE MCK62606802 Contact Us For Availability
CCS1
Cap,Sensor LGE MBL62424202 Contact Us For Availability
CDA1
Damper Assembly LGE ACV73010001 Contact Us For Availability
CDM1
Damper,Motor Mount LGE MCQ62569501 Contact Us For Availability
CDP1
Cover,Display LGE MCK62605301 Contact Us For Availability
CFA1
Filter Assembly,Exhaust LGE ADQ72913001 Contact Us For Availability
CGA1
Gasket LGE MDS62025401 Contact Us For Availability
CGA2
Gasket LGE MDS62025201 Contact Us For Availability
CGA3
Gasket LGE MDS62025101 Contact Us For Availability
CGA4
Gasket LGE MDS62025501 Contact Us For Availability
CGA5
Gasket LGE MDS62025701 Contact Us For Availability
CGA6
Gasket LGE MDS62055701 Contact Us For Availability
CGC1
Guide,Suction LGE MEA61892801 Contact Us For Availability
CGE1
Guide,Selector LGE MEA61892501 Contact Us For Availability
CGU1
Guide,Air LGE MEA61892602 Contact Us For Availability
CGU2
Guide,Air LGE MEA61892702 Contact Us For Availability
CHF1
Hose,Flexible LGE MEJ61843902 Contact Us For Availability
CHL1
Holder,LED LGE MEG61889101 Contact Us For Availability
CHM1
Housing,Motor LGE MEK61845101 Contact Us For Availability
CHS1
Harness,Single LGE 6631FI3155Q Contact Us For Availability
CHS2
Harness,Single LGE EAD60874601 Contact Us For Availability
CHS3
Harness,Single LGE EAD60874502 Contact Us For Availability
CHS4
Harness,Single LGE EAD60874301 Contact Us For Availability
CHS5
Harness,Single LGE EAD61050701 Contact Us For Availability
CHX1
Holder,Fixing LGE MEG61889601 Contact Us For Availability
CMH1
Cover,Motor Housing LGE MCK62607501 Contact Us For Availability
CPD1
PCB Assembly,Display LGE EBR60719501 Contact Us For Availability
CPG1
Packing,Gasket LGE MFZ62036401 Contact Us For Availability
CPM1
Plate,Metal LGE MGJ61968501 Contact Us For Availability
CPS1
Pipe,Suction LGE MGE61848202 Contact Us For Availability
CPS2
Pipe,Suction LGE MGE61848102 Contact Us For Availability
CPS3
Pipe,Suction LGE MGE61847702 Contact Us For Availability
CSC1
Spring,Coil LGE MHY61882001 Contact Us For Availability
CSH1
Supporter,Holder LGE MJH61872802 Contact Us For Availability
CSM1
Switch,Micro LGE EBF35163501 Contact Us For Availability
MAY0
Box LGE MAY64327201 Contact Us For Availability
MFL1
Manual,Owners LGE MFL62862403 Contact Us For Availability
NCD1
Cap Assembly,Dust LGE ABN73118502 Contact Us For Availability
NLC1
Locker LGE MFG62439102 Contact Us For Availability
NMP1
Mop LGE 4766FI4699N Contact Us For Availability
NPA1
Plate Assembly,Bottom LGE AGU73152101 Contact Us For Availability
NPB1
Plate,Bottom LGE MGJ62329202 Contact Us For Availability
NPS1
Pipe,Suction LGE MGE62070601 Contact Us For Availability
TAD1
Tank Assembly,Dust LGE AJL72911005 Contact Us For Availability
TBR1
Bar LGE MAK61844602 Contact Us For Availability
TCF1
Case,Front LGE MBN61873402 Contact Us For Availability
TCG1
Cover,Guide LGE MCK62605503 Contact Us For Availability
TCG2
Cover,Guide LGE MCK62605603 Contact Us For Availability
TCG3
Cover,Guide LGE MCK62605903 Contact Us For Availability
TCH1
Cover,Handle LGE MCK62606103 Contact Us For Availability
TCL1
Cover,LED LGE MCK62605402 Contact Us For Availability
TDF1
Decor,Front LGE MCR62163403 Contact Us For Availability
TFF1
Frame,Filter LGE MDQ61918301 Contact Us For Availability
TFL1
Cover,Filter LGE MCK62606004 Contact Us For Availability
TFR1
Cover,Front LGE MCK62606202 Contact Us For Availability
TGA1
Gasket LGE MDS62025601 Contact Us For Availability
TGA2
Gasket LGE MDS62025901 Contact Us For Availability
TGA3
Gasket LGE MDS62042801 Contact Us For Availability
TGA4
Gasket LGE MDS62024401 Contact Us For Availability
TGA5
Gasket LGE MDS62056001 Contact Us For Availability
TGA6
Gasket LGE MDS62056101 Contact Us For Availability
TGA7
Gasket LGE MDS62025801 Contact Us For Availability
TGE1
Gear LGE MDT61845101 Contact Us For Availability
TGE2
Gear LGE MDT61845201 Contact Us For Availability
TGU1
Guide,Air LGE MEA61892301 Contact Us For Availability
TGU2
Guide,Air LGE MEA61892401 Contact Us For Availability
THC1
Handle,Carrier LGE MEB61851802 Contact Us For Availability
THR1
Holder,Rotary LGE MEG61888701 Contact Us For Availability
THS1
Harness,Single LGE EAD60874001 Contact Us For Availability
THS2
Harness,Single LGE EAD60877901 Contact Us For Availability
TMP1
Mop LGE MFQ61841901 Contact Us For Availability
TMP2
Mop LGE MFQ61842001 Contact Us For Availability
TMP3
Mop LGE MFQ61841601 Contact Us For Availability
TMP4
Mop LGE MFQ61841801 Contact Us For Availability
TPB1
Plate,Bottom LGE MGJ61967801 Contact Us For Availability
TPB2
Plate,Bottom LGE MGJ61968202 Contact Us For Availability
TPR1
Plate,Rotation LGE MGJ61967703 Contact Us For Availability
TPS1
Plate,Shield LGE MGJ61967903 Contact Us For Availability
TRE1
Button,Release LGE MBG62127402 Contact Us For Availability
TRE2
Button,Release LGE MBG62127502 Contact Us For Availability
TRE3
Button,Release LGE MBG62127601 Contact Us For Availability
TSC1
Spring,Coil LGE MHY61881601 Contact Us For Availability
TSC2
Spring,Coil LGE MHY61881602 Contact Us For Availability
TSC3
Spring,Coil LGE MHY61944601 Contact Us For Availability
TSF1
Supporter,Filter LGE MJH61872203 Contact Us For Availability
TSL1
Strainer,Inner LGE MJC53468203 Contact Us For Availability
TSP1
Supporter,Cover LGE MJH61872003 Contact Us For Availability
TSP2
Supporter,Cover LGE MJH61872103 Contact Us For Availability
TSW1
Sweeper LGE MJJ61841201 Contact Us For Availability
TTD1
Tank,Dust LGE MJM61843701 Contact Us For Availability
× ![]()
