Model LG LUV350P Ventilation – Common Parts & Diagrams

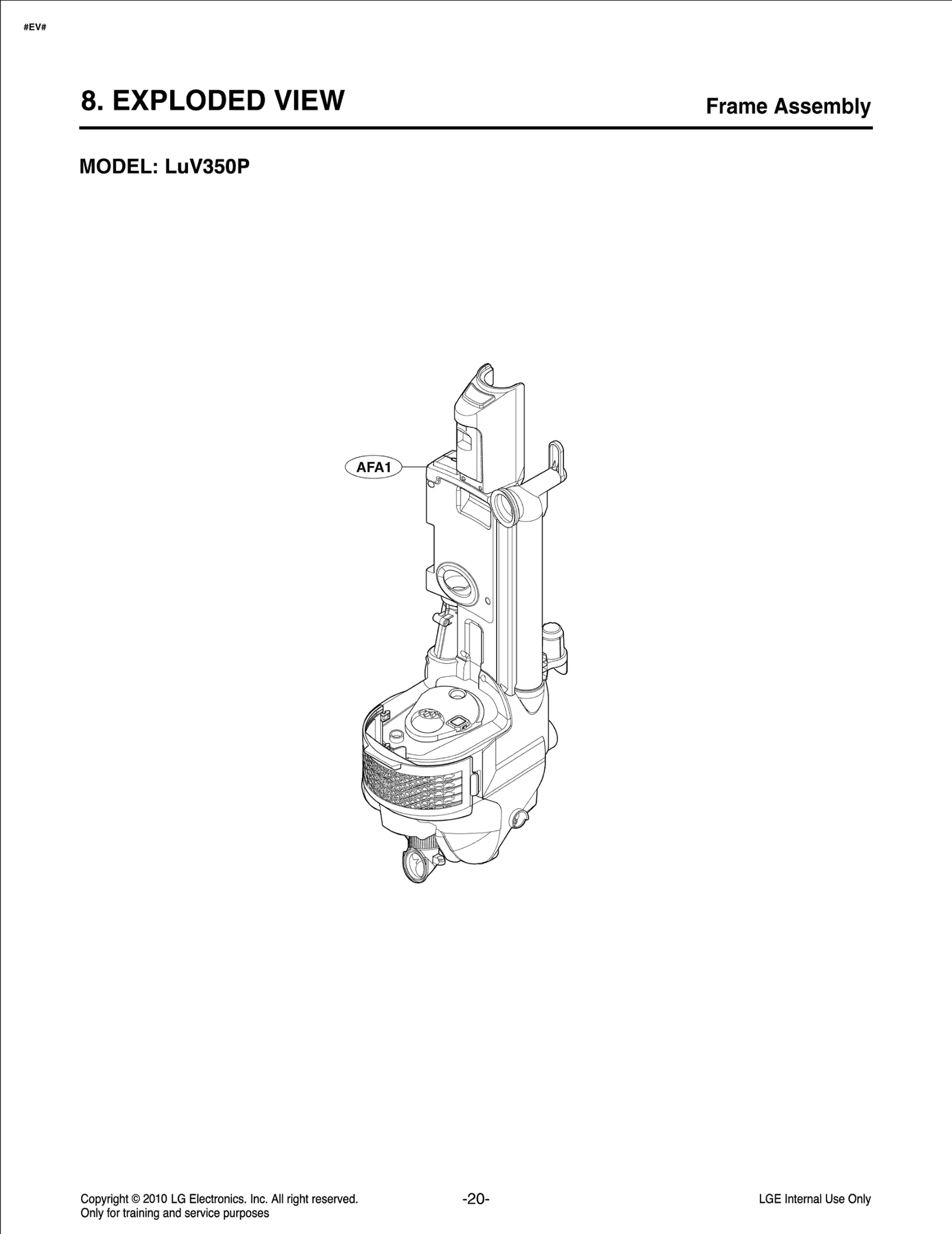

Diagram 0

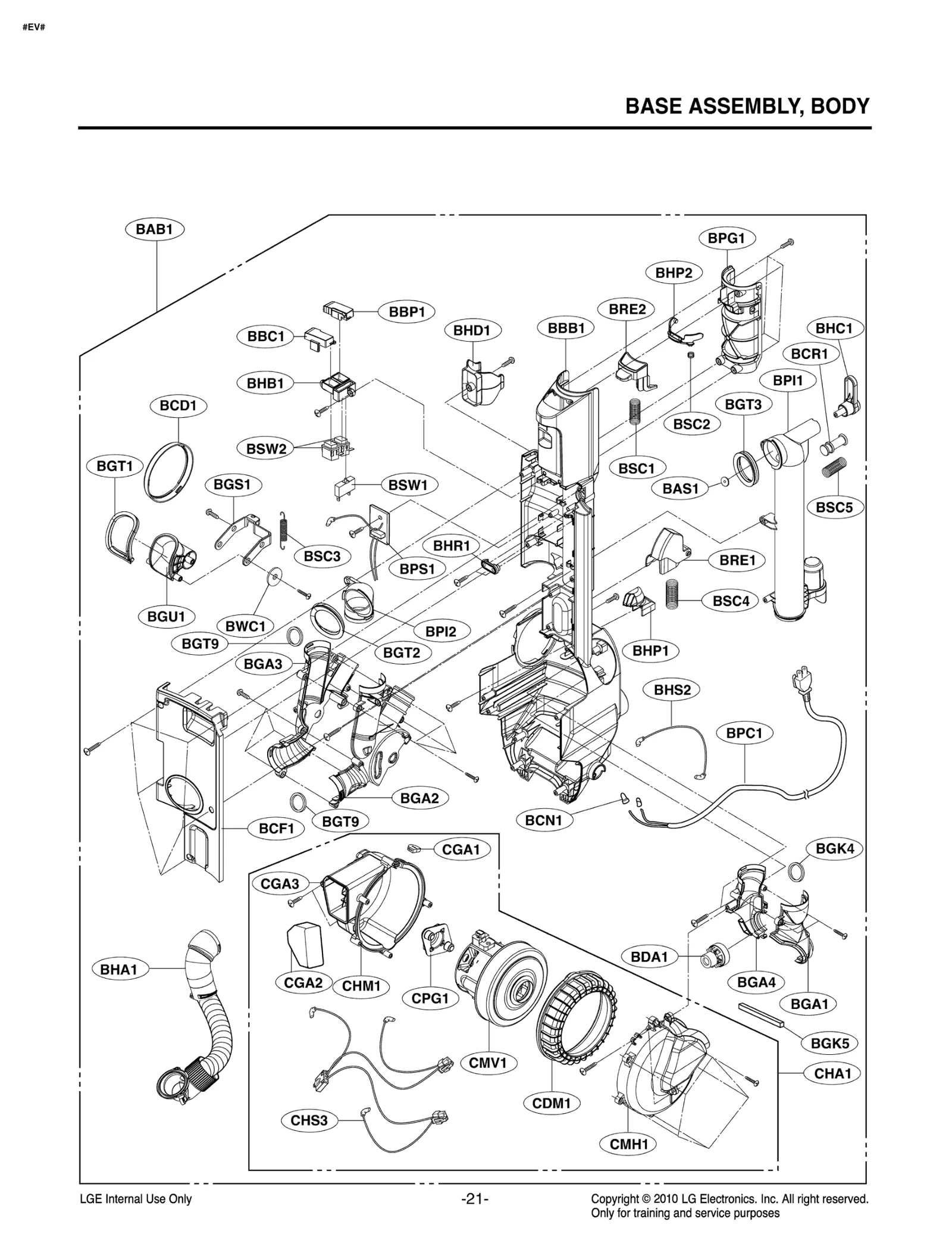

Diagram 1

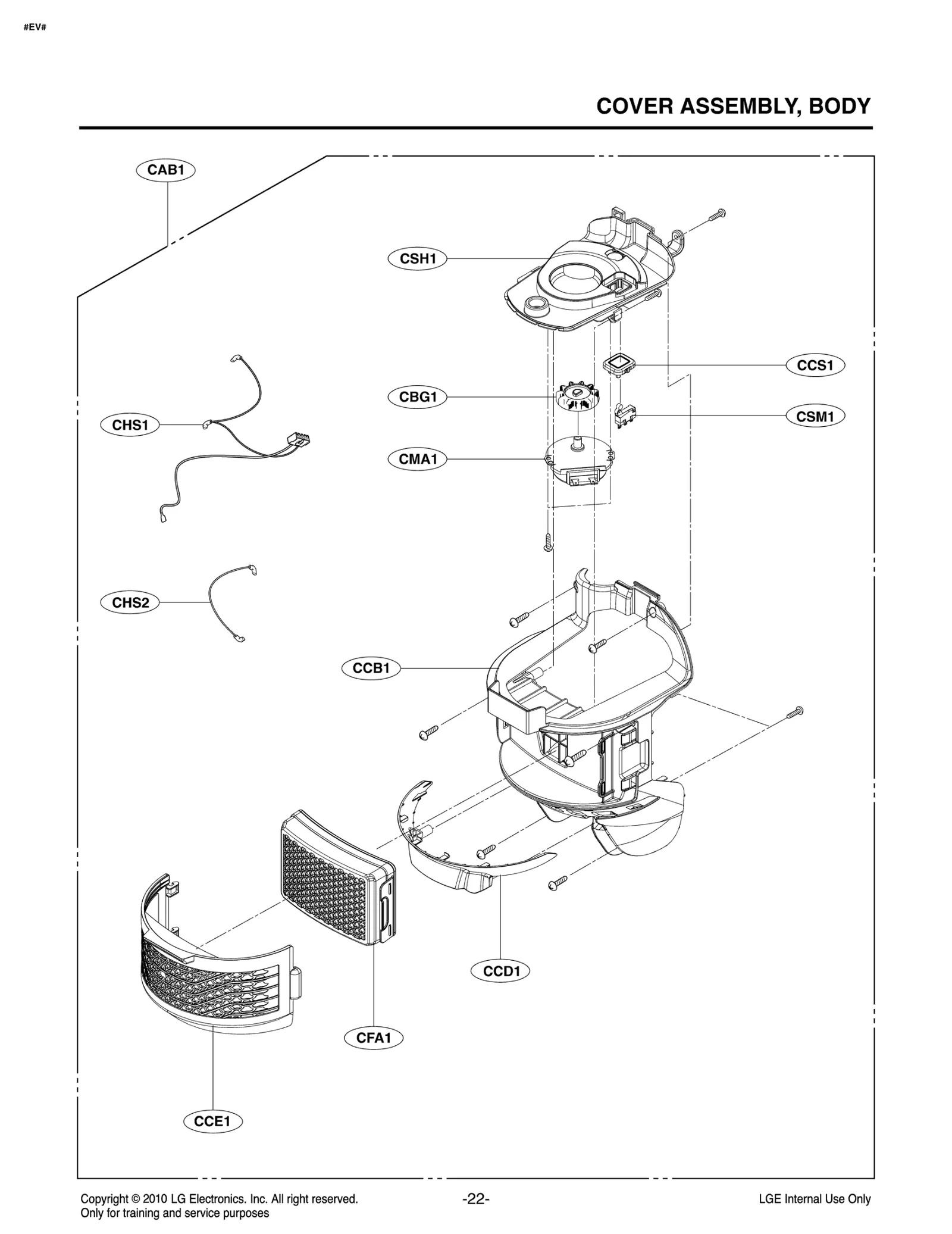

Diagram 2

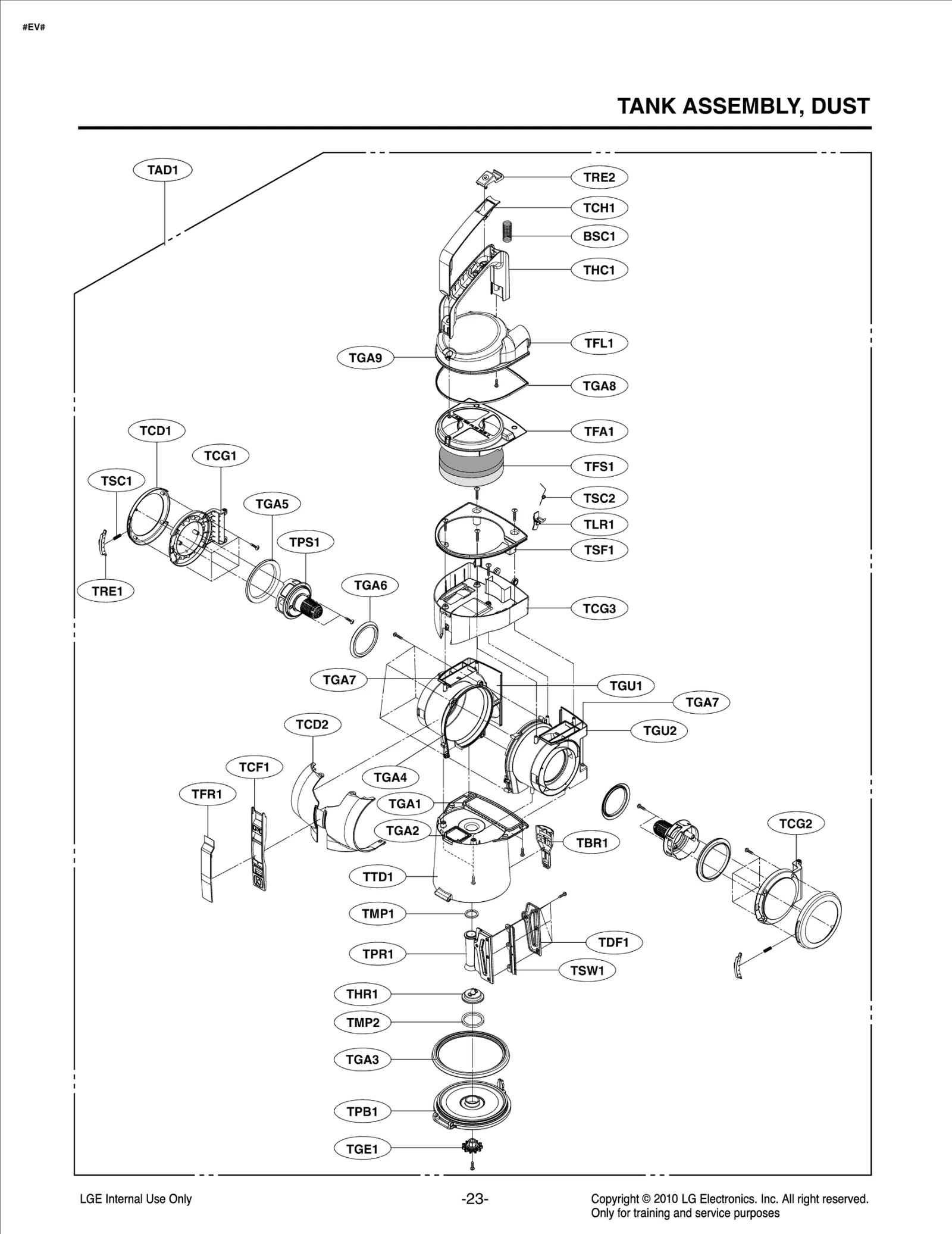

Diagram 3
Diagram 4

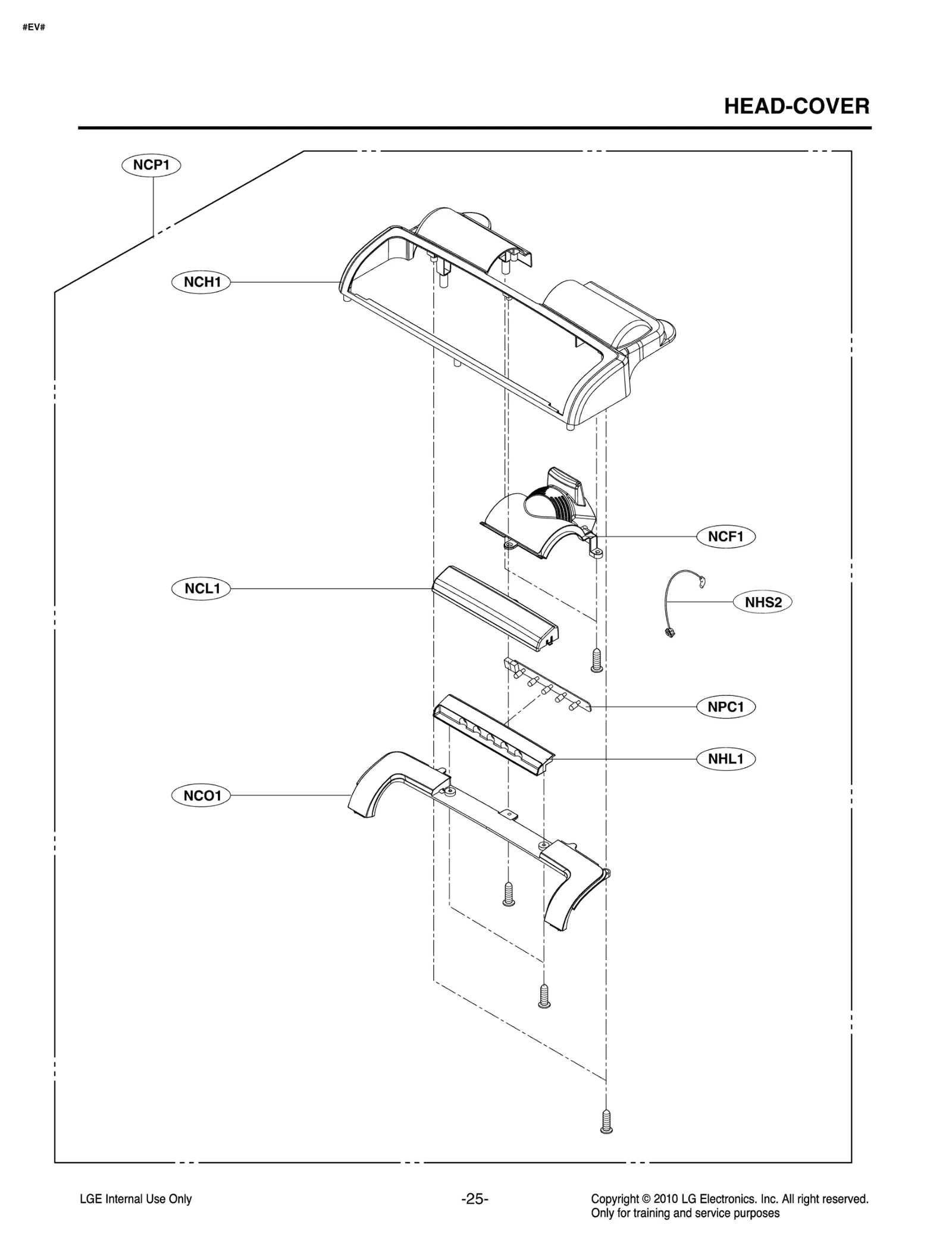

Diagram 5

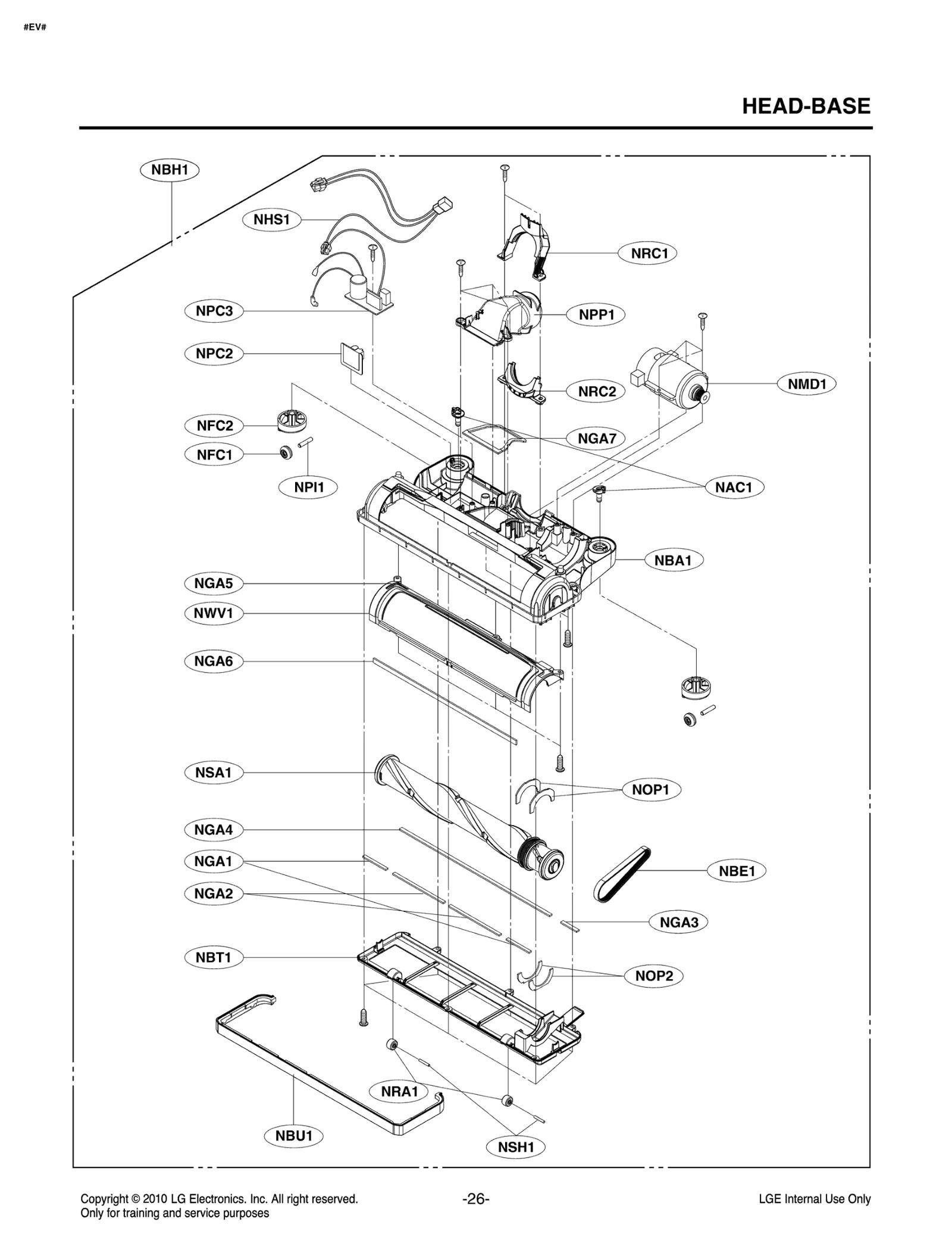

Diagram 6

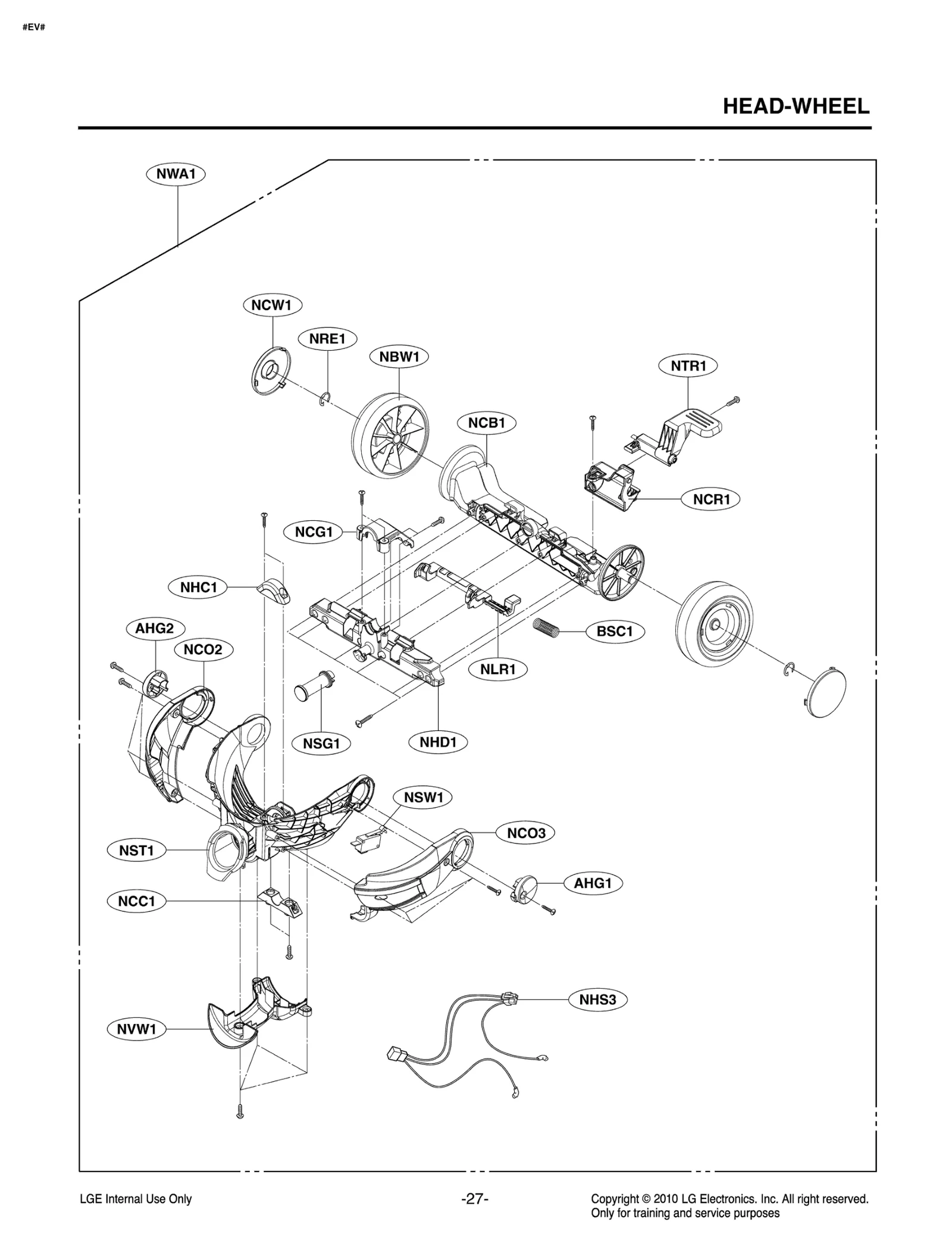

Diagram 7

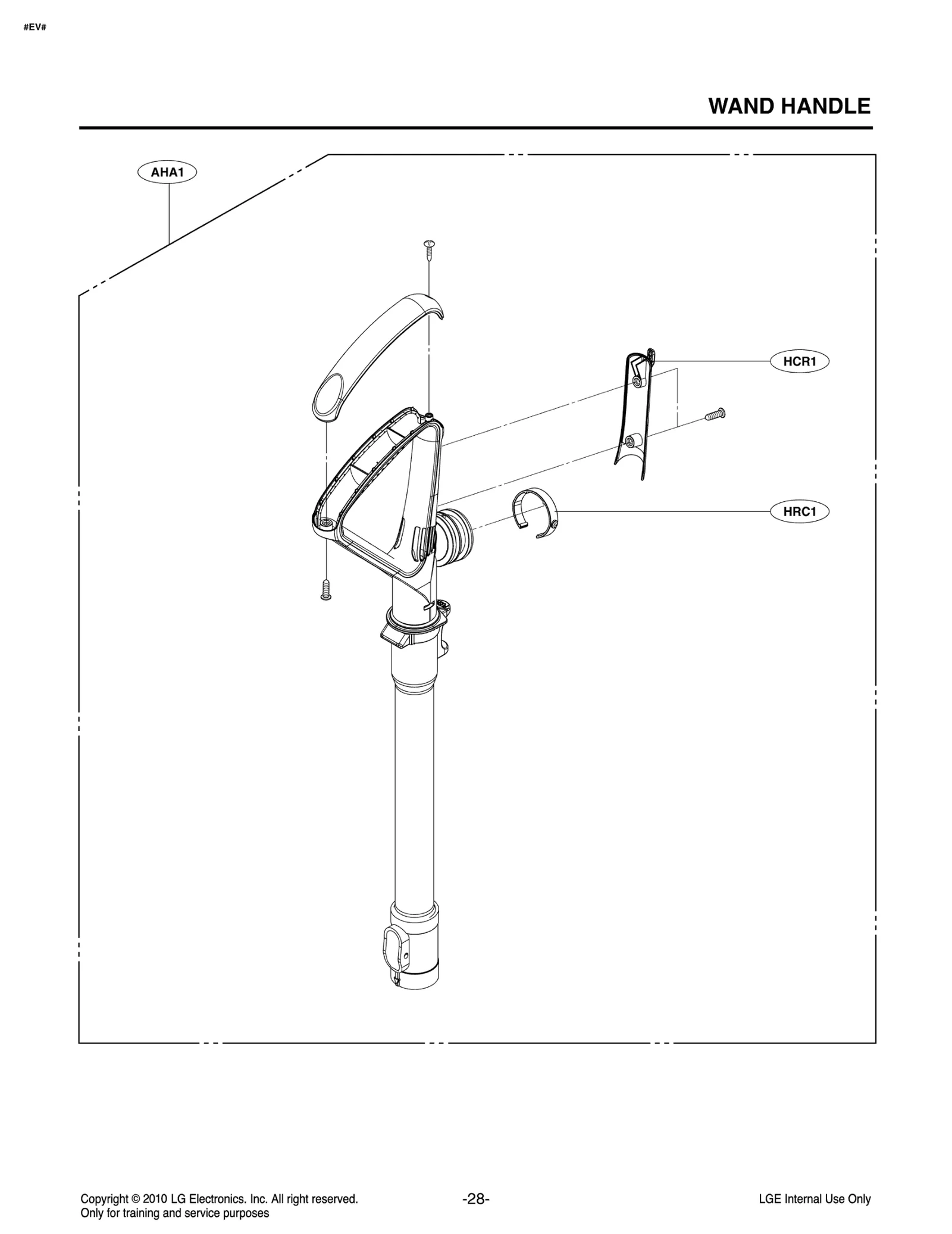

Diagram 8
Diagram 9
Common parts from model LG LUV350P Ventilation
ABA1
Brush Assembly,Dust LGE ABC73089901 Contact Us For Availability
AFA1
Frame Assembly LGE ADV74086001 Contact Us For Availability
AHA1
Handle Assembly LGE AED73372701 Contact Us For Availability
AHF1
Hose Assembly,Flexible LGE AEM73372901 Contact Us For Availability
AHG2
Holder,Fixing LGE MEG62839801 Contact Us For Availability

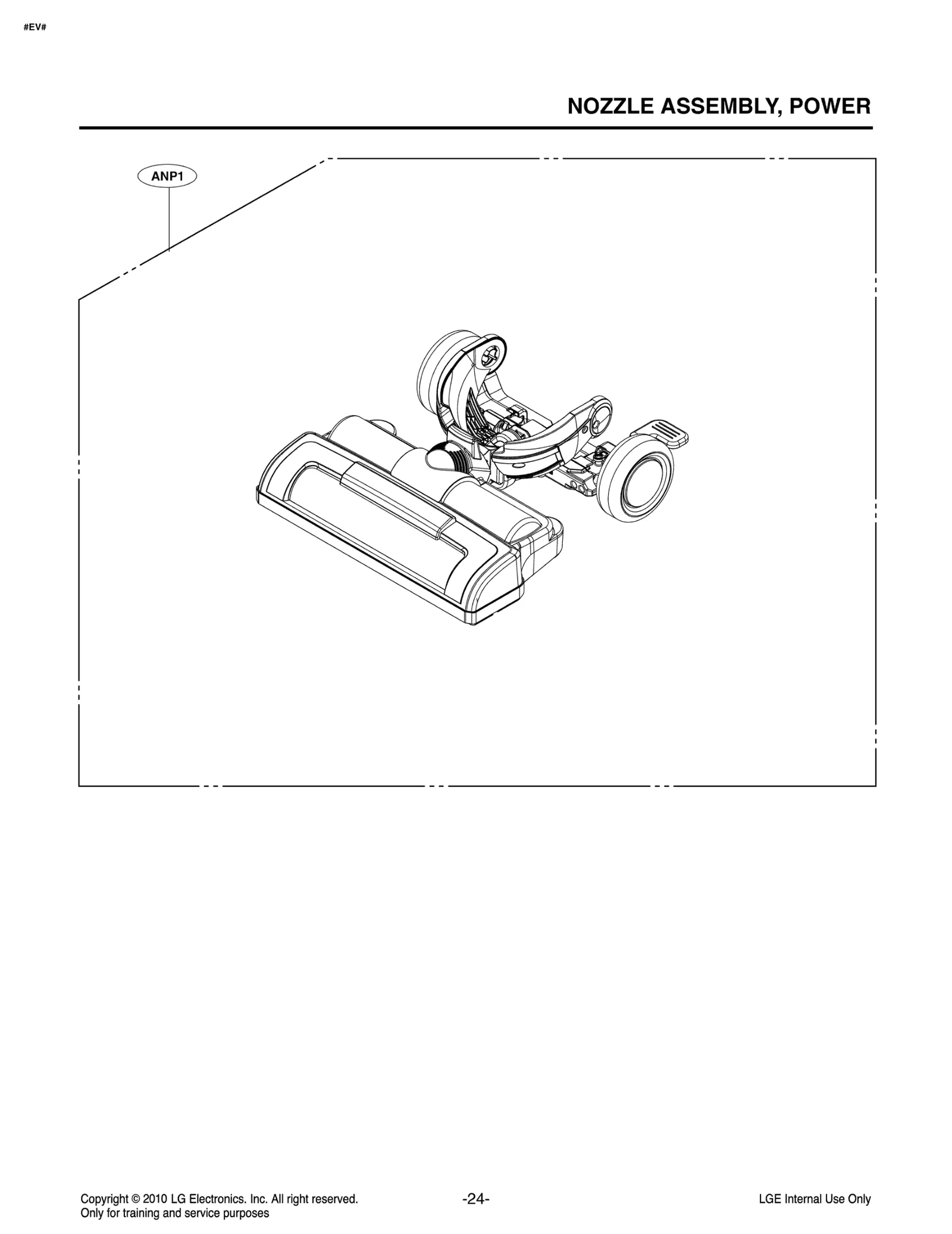

ANP1
Nozzle Assembly,Power LGE AGB73212901 Contact Us For Availability
ANU1
Nozzle Assembly,Upholstery LGE AGB73212701 Contact Us For Availability
BAB1
Base Assembly,Body LGE AAN73869701 Contact Us For Availability
BAS1
Screw Assembly LGE 4001AR4160D Contact Us For Availability
BBB1
Base,Body LGE MAM62525701 Contact Us For Availability
BBC1
Button,Control LGE MBG64284001 Contact Us For Availability
BBP1
Button,Power Switch LGE MBG64283901 Contact Us For Availability
BCD1
Cover,Decor LGE MCK66791301 Contact Us For Availability
BCF1
Cover,Front LGE MCK66791101 Contact Us For Availability
BCN1
Connector,Nylon LGE 4H50253B Contact Us For Availability
BCR1
Bush,Cord LGE MBF62143801 Contact Us For Availability
BDA1
Damper Assembly LGE ACV73010002 Contact Us For Availability
BGA1
Guide,Air LGE MEA62731001 Contact Us For Availability
BGA2
Guide,Air LGE MEA62730601 Contact Us For Availability
BGA3
Guide,Air LGE MEA62730701 Contact Us For Availability
BGA4
Guide,Air LGE MEA62731101 Contact Us For Availability
BGK4
Gasket LGE MDS63733910 Contact Us For Availability
BGK5
Gasket LGE MDS63733911 Contact Us For Availability
BGS1
Guide,Selector LGE MEA62730801 Contact Us For Availability
BGT1
Gasket LGE MDS63692601 Contact Us For Availability
BGT2
Gasket LGE MDS63692701 Contact Us For Availability
BGT3
Gasket LGE MDS63692801 Contact Us For Availability
BGT9
Gasket LGE MDS63733905 Contact Us For Availability
BGU1
Guide,Suction LGE MEA62730901 Contact Us For Availability
BHB1
Holder,Button LGE MEG62859101 Contact Us For Availability
BHC1
Hanger,Cord LGE MEC62224901 Contact Us For Availability
BHD1
Holder,Hose LGE MEG62859501 Contact Us For Availability
BHP1
Holder,Pipe LGE MEG62859301 Contact Us For Availability
BHP2
Holder,Pipe LGE MEG62899801 Contact Us For Availability
BHR1
Holder,Cord LGE MFG61874601 Contact Us For Availability
BHS2
Harness,Single LGE EAD61872502 Contact Us For Availability
BPC1
Power Cord LGE EAD60853302 Contact Us For Availability
BPG1
Pipe,Guide LGE MGE62430701 Contact Us For Availability
BPI1
Pipe,Suction LGE MGE62410801 Contact Us For Availability
BPI2
Pipe,Suction LGE MGE62431501 Contact Us For Availability
BPS1
PCB Assembly,Sub LGE EBR74167401 Contact Us For Availability
BRE1
Button,Release LGE MBG64284101 Contact Us For Availability
BRE2
Button,Release LGE MBG64283801 Contact Us For Availability
BSC1
Spring,Coil LGE MHY61881602 Contact Us For Availability
BSC3
Spring,Coil LGE MHY61881902 Contact Us For Availability
BSC4
Spring,Coil LGE MHY61881903 Contact Us For Availability
BSC5
Spring,Coil LGE MHY61882001 Contact Us For Availability
BSW1
Switch Assembly,Safety LGE 6601FI3502C Contact Us For Availability
BSW2
Switch Assembly LGE EBF60694602 Contact Us For Availability
BWC1
Washer,Customized LGE 1WZZFI3004A Contact Us For Availability
CAB1
Cover Assembly,Body LGE ACQ85597901 Contact Us For Availability
CBG1
Gear LGE MDT62287101 Contact Us For Availability
CCB1
Cover,Body LGE MCK66791201 Contact Us For Availability
CCD1
Cover,Decor LGE MCK66790801 Contact Us For Availability
CCE1
Cover,Exhaust Filter LGE MCK66791401 Contact Us For Availability
CCS1
Cap,Sensor LGE MBL64978401 Contact Us For Availability
CDM1
Damper,Motor Mount LGE MCQ66669001 Contact Us For Availability
CFA1
Filter Assembly,Exhaust LGE ADQ73353501 Contact Us For Availability
CGA1
Gasket LGE MDS62025501 Contact Us For Availability
CGA2
Gasket LGE MDS63733801 Contact Us For Availability
CGA3
Gasket LGE MDS63733906 Contact Us For Availability
CHA1
Housing Assembly,Motor LGE AEN73231801 Contact Us For Availability
CHM1
Housing,Motor LGE MEK62306601 Contact Us For Availability
CHS1
Harness,Single LGE EAD61872401 Contact Us For Availability
CHS2
Harness,Single LGE EAD61872501 Contact Us For Availability
CHS3
Harness,Single LGE EAD61872601 Contact Us For Availability
CMH1
Cover,Motor Housing LGE MCK66791501 Contact Us For Availability
CPG1
Packing,Gasket LGE MFZ62036401 Contact Us For Availability
CSH1
Supporter,Holder LGE MJH62513601 Contact Us For Availability
CSM1
Switch,Micro LGE EBF35163501 Contact Us For Availability
HCR1
Cover,Rear LGE MCK66773101 Contact Us For Availability
HRC1
Ring,Connector LGE MGZ62387401 Contact Us For Availability
NBA1
Base,Head LGE MAM62525601 Contact Us For Availability
NBE1
Belt LGE MAS62064002 Contact Us For Availability
NBH1
Base Assembly,Head LGE AAN73869801 Contact Us For Availability
NBT1
Plate,Bottom LGE MGJ63063901 Contact Us For Availability
NBU1
Bumper,Head LGE MBD62043901 Contact Us For Availability
NBW1
Bumper,Wheel LGE MBD62044001 Contact Us For Availability
NCB1
Connector,Bar LGE MCD62307101 Contact Us For Availability
NCC1
Cover,Connector LGE MCK66790101 Contact Us For Availability
NCF1
Cover,Front LGE MCK66789901 Contact Us For Availability
NCG1
Cover,Guide LGE MCK66770501 Contact Us For Availability
NCH1
Cover,Head LGE MCK66789601 Contact Us For Availability
NCL1
Cover,LED LGE MCK66770601 Contact Us For Availability
NCO1
Cover,Decor LGE MCK66789801 Contact Us For Availability
NCO2
Cover,Decor LGE MCK66790201 Contact Us For Availability
NCO3
Cover,Decor LGE MCK66790301 Contact Us For Availability
NCP1
Cover Assembly,Power LGE ACQ85598301 Contact Us For Availability
NCR1
Cover,Rear LGE MCK66770101 Contact Us For Availability
NCW1
Cover,Wheel LGE MCK66790401 Contact Us For Availability
NFC1
Frame,Caster LGE MDQ61886501 Contact Us For Availability
NFC2
Frame,Caster LGE MDQ62997601 Contact Us For Availability
NGA1
Gasket LGE MDS63733917 Contact Us For Availability
NGA2
Gasket LGE MDS63733918 Contact Us For Availability
NGA3
Gasket LGE MDS63733919 Contact Us For Availability
NGA4
Gasket LGE MDS63733920 Contact Us For Availability
NGA5
Gasket LGE MDS63733921 Contact Us For Availability
NGA6
Gasket LGE MDS63733922 Contact Us For Availability
NGA7
Gasket LGE MDS63734001 Contact Us For Availability
NHC1
Holder,Connector LGE MEG62859001 Contact Us For Availability
NHD1
Holder,Cover LGE MEG62839601 Contact Us For Availability
NHL1
Holder,LED LGE MEG62858901 Contact Us For Availability
NHS1
Harness,Single LGE EAD61872801 Contact Us For Availability
NHS2
Harness,Single LGE 6631FI3156H Contact Us For Availability
NHS3
Harness,Single LGE EAD61872701 Contact Us For Availability
NLR1
Lever,Release LGE MFC62389701 Contact Us For Availability
NMD1
Motor Assembly,DC,Vacuum Cleaner LGE EAU60885401 Contact Us For Availability
NOP2
Mop LGE MFQ61841603 Contact Us For Availability
NPC1
PCB Assembly,Sub LGE EBR72784301 Contact Us For Availability
NPC2
PCB Assembly,Sub LGE EBR66044704 Contact Us For Availability
NPI1
Pin,Common LGE 1PZZFI3002A Contact Us For Availability
NPP1
Cover,Pipe LGE MCK66790001 Contact Us For Availability
NRA1
Roller Assembly LGE AHJ33151903 Contact Us For Availability
NRC1
Ring,Connector LGE MGZ62407101 Contact Us For Availability
NRC2
Ring,Connector LGE MGZ62407201 Contact Us For Availability
NRE1
Ring,E LGE MGZ61846001 Contact Us For Availability
NSA1
Shaft Assembly,Agitator LGE AHR72989702 Contact Us For Availability
NSG1
Shaft,Hinge LGE MHJ62556001 Contact Us For Availability
NST1
Supporter,Housing LGE MJH62494201 Contact Us For Availability
NSW1
Switch Assembly LGE EBF60693501 Contact Us For Availability
NTR1
Button,Release LGE MBG64304101 Contact Us For Availability
NVW1
Cover,Wire LGE MCK66770301 Contact Us For Availability
NWA1
Wheel Assembly LGE AJW73050401 Contact Us For Availability
NWV1
Window,Viewing LGE MKC64079201 Contact Us For Availability
TAD1
Tank Assembly,Dust LGE AJL73352101 Contact Us For Availability
TBR1
Bar LGE MAK62247001 Contact Us For Availability
TCD1
Cover,Decor LGE MCK66769601 Contact Us For Availability
TCD2
Cover,Decor LGE MCK66769301 Contact Us For Availability
TCF1
Case,Front LGE MBN62503401 Contact Us For Availability
TCG1
Cover,Guide LGE MCK66769101 Contact Us For Availability
TCG2
Cover,Guide LGE MCK66769201 Contact Us For Availability
TCG3
Cover,Guide LGE MCK66769701 Contact Us For Availability
TCH1
Cover,Handle LGE MCK66769401 Contact Us For Availability
TDF1
Decor,Front LGE MCR64487901 Contact Us For Availability
TFA1
Frame Assembly,Filter LGE ADV74067001 Contact Us For Availability
TFL1
Cover,Filter LGE MCK66769801 Contact Us For Availability
TFR1
Cover,Front LGE MCK66769901 Contact Us For Availability
TFS1
Filter,Motor Safety LGE MDJ61980604 Contact Us For Availability
TGA1
Gasket LGE MDS63733912 Contact Us For Availability
TGA2
Gasket LGE MDS63733913 Contact Us For Availability
TGA3
Gasket LGE MDS63711101 Contact Us For Availability
TGA4
Gasket LGE MDS63733914 Contact Us For Availability
TGA5
Gasket LGE MDS63711401 Contact Us For Availability
TGA6
Gasket LGE MDS63711501 Contact Us For Availability
TGA7
Gasket LGE MDS63733915 Contact Us For Availability
TGA8
Gasket LGE MDS63711601 Contact Us For Availability
TGA9
Gasket LGE MDS63733916 Contact Us For Availability
TGE1
Gear LGE MDT62267101 Contact Us For Availability
TGU1
Guide,Air LGE MEA62730301 Contact Us For Availability
TGU2
Guide,Air LGE MEA62730401 Contact Us For Availability
THC1
Handle,Carrier LGE MEB62414701 Contact Us For Availability
THR1
Holder,Rotary LGE MEG61888702 Contact Us For Availability
TLR1
Lever,Release LGE MFC61846902 Contact Us For Availability
TMP1
Mop LGE MFQ61841902 Contact Us For Availability
TMP2
Mop LGE MFQ61842001 Contact Us For Availability
TPB1
Plate,Bottom LGE MGJ63044001 Contact Us For Availability
TPR1
Plate,Rotation LGE MGJ63043901 Contact Us For Availability
TPS1
Plate,Shield LGE MGJ63044101 Contact Us For Availability
TRE1
Button,Release LGE MBG64303801 Contact Us For Availability
TRE2
Button,Release LGE MBG62127601 Contact Us For Availability
TSC1
Spring,Coil LGE MHY38975001 Contact Us For Availability
TSC2
Spring,Coil LGE MHY61944601 Contact Us For Availability
TSF1
Supporter,Filter LGE MJH62493901 Contact Us For Availability
TSW1
Sweeper LGE MJJ61981501 Contact Us For Availability
TTD1
Tank,Dust LGE MJM62284901 Contact Us For Availability
× ![]()
