Model LG LUU427HV.ANWBEUS – Common Parts & Diagrams
0

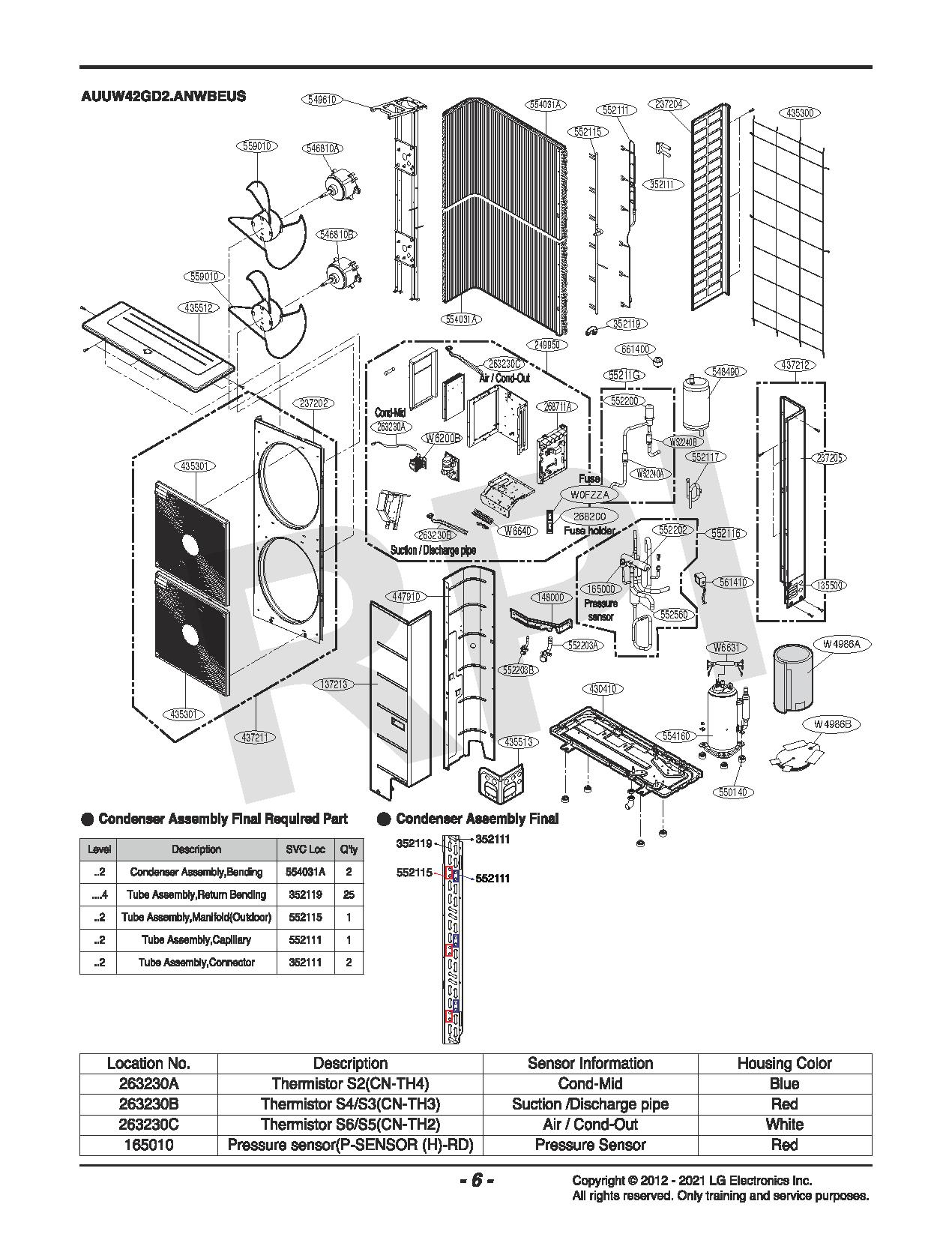

Common parts from model LG LUU427HV.ANWBEUS
137213
Panel Assembly,Side LGE AGL76513013 Contact Us For Availability
237202
Panel,Front LGE MGC39426114 Contact Us For Availability
237204
Panel,Side LGE MGC39426015 Contact Us For Availability
237205
Panel,Rear LGE MGC39613728 Contact Us For Availability
249950
Case Assembly,Control Box LGE ABQ75744305 Contact Us For Availability
352111
Tube Assembly,Connector LGE 5211A20349Z Contact Us For Availability
430410
Base Assembly,Outdoor LGE AAN74512204 Contact Us For Availability
435300
Grille,Rear LGE MDX40922509 Contact Us For Availability
435512
Cover Assembly,Top(Outdoor) LGE ACQ35131820 Contact Us For Availability
435513
Cover Assembly,Tubing LGE ACQ34583416 Contact Us For Availability
437211
Panel Assembly,Front(Outdoor) LGE AGL34578711 Contact Us For Availability
447910
Barrier Assembly,Outdoor LGE AAM35646423 Contact Us For Availability
548490
Accumulator Assembly LGE AAB73250401 Contact Us For Availability
549610
Bracket Assembly,Motor(Outdoor) LGE ABA34168813 Contact Us For Availability
552115
Tube Assembly,Manifold(Outdoor) LGE AJR73326605 Contact Us For Availability
552116
Tube Assembly,Reverse LGE AJR73944509 Contact Us For Availability
552117
Tube Assembly,Suction(Outdoor) LGE AJR36388509 Contact Us For Availability
552202
Valve,Reverse LGE 3A02080B Contact Us For Availability
552560
Muffler LGE MFS62323001 Contact Us For Availability
W4986B
Sound proof LGE MMC00280407 Contact Us For Availability
W6631
Harness,Multi LGE EAD41893612 Contact Us For Availability
W6640
Connector,Terminal Block LGE 3A00493P Contact Us For Availability
W52240A
Strainer LGE 3H03659M Contact Us For Availability
W52240B
Strainer LGE 3H03659C Contact Us For Availability
× ![]()
