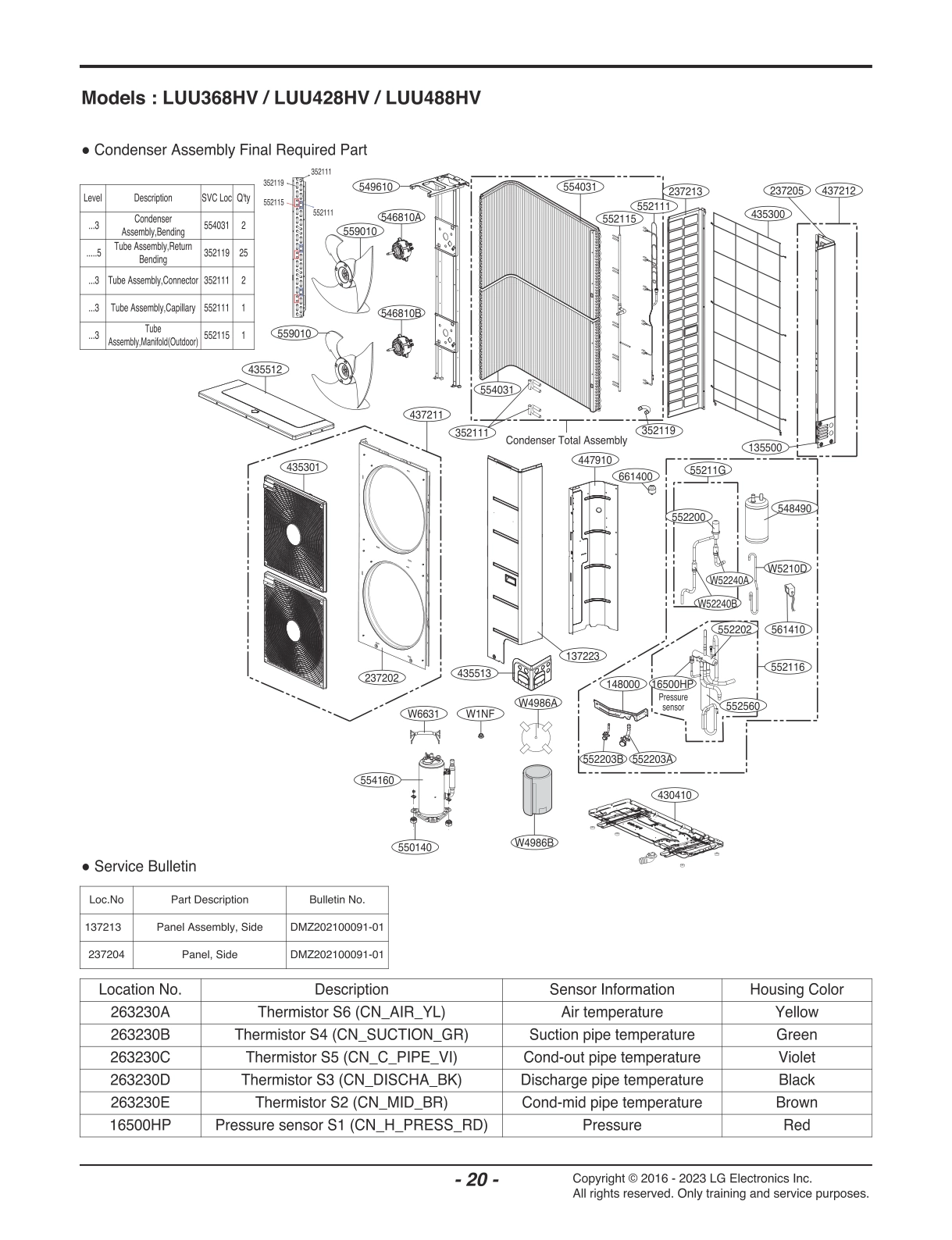

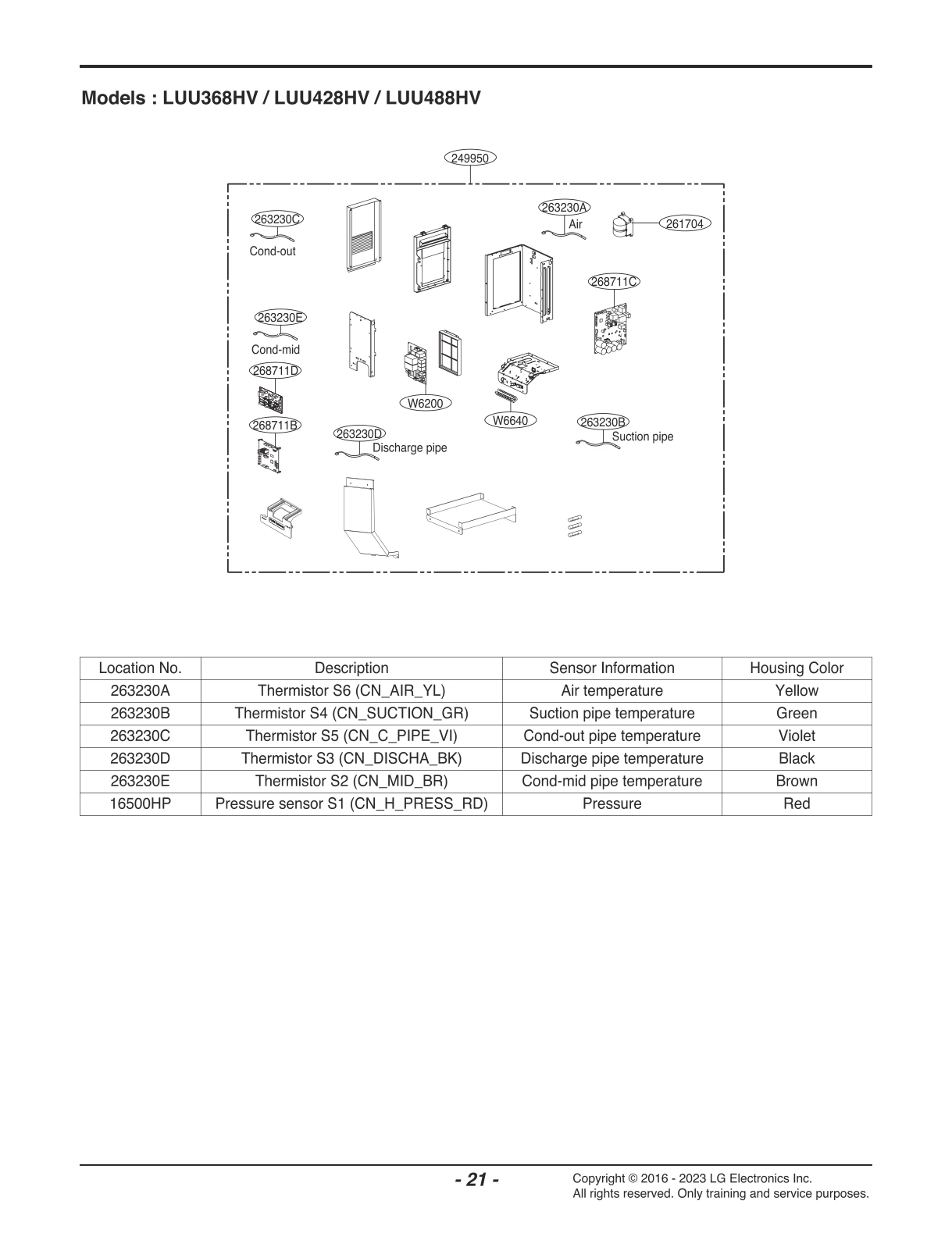

Model LG LUU368HV.EWGBEUS – Common Parts & Diagrams

16500HP
Sensor,Pressure
Sensor,Pressure LGE EBD60663821 Contact Us For Availability
View on Model
55211G
Tube Assembly,Expansion
Tube Assembly,Expansion LGE AJR36388615 Contact Us For Availability
View on Model
135500
Cover
Cover LGE MCK39626227 Contact Us For Availability
View on Model
137223
Panel Assembly,Side
Panel Assembly,Side LGE AGL34579164 Contact Us For Availability
View on Model
237202
Panel,Front
Panel,Front LGE MGC39426120 Contact Us For Availability
View on Model
237205
Panel,Rear
Panel,Rear LGE MGC39613745 Contact Us For Availability
View on Model
237213
Panel,Side
Panel,Side LGE MGC39426024 Contact Us For Availability
View on Model
249950
Case Assembly,Control Box
Case Assembly,Control Box LGE ABQ75744228 Contact Us For Availability
View on Model
261704
Transformer,Reactor
Transformer,Reactor LGE EBJ61770404 Contact Us For Availability
View on Model
263230B
Thermistor Assembly,NTC
Thermistor Assembly,NTC LGE EBG61405903 Contact Us For Availability
View on Model
268711B
PCB Assembly,Cycle(Onboarding)
PCB Assembly,Cycle(Onboarding) LGE EBR82717425 Contact Us For Availability
View on Model
352111
Tube Assembly,Connector
Tube Assembly,Connector LGE 5211A20349Z Contact Us For Availability
View on Model
430410
Base Assembly,Outdoor
Base Assembly,Outdoor LGE AAN74512204 Contact Us For Availability
View on Model
435512
Cover Assembly,Top(Outdoor)
Cover Assembly,Top(Outdoor) LGE ACQ35131832 Contact Us For Availability
View on Model
435513
Cover Assembly,Tubing
Cover Assembly,Tubing LGE ACQ34583434 Contact Us For Availability
View on Model
437212
Panel Assembly,Rear(Outdoor)
Panel Assembly,Rear(Outdoor) LGE AGL76512822 Contact Us For Availability
View on Model
447910
Barrier Assembly,Outdoor
Barrier Assembly,Outdoor LGE AAM35646423 Contact Us For Availability
View on Model
546810B
Motor Assembly,DC,Outdoor
Motor Assembly,DC,Outdoor LGE EAU62543704 Contact Us For Availability
View on Model
548490
Accumulator Assembly
Accumulator Assembly LGE AAB35754002 Contact Us For Availability
View on Model
549610
Bracket Assembly,Motor(Outdoor)
Bracket Assembly,Motor(Outdoor) LGE ABA34168813 Contact Us For Availability
View on Model
552115
Tube Assembly,Manifold(Outdoor)
Tube Assembly,Manifold(Outdoor) LGE AJR76562809 Contact Us For Availability
View on Model
552202
Valve,Reverse
Valve,Reverse LGE 3A02080B Contact Us For Availability
View on Model
552560
Muffler
Muffler LGE MFS62323001 Contact Us For Availability
View on Model
554160
Compressor Set,Korea
Compressor Set,Korea LGE TBZ37955101 Contact Us For Availability
View on Model
661400
Coil Module,Expansion
Coil Module,Expansion LGE EAP65270708 Contact Us For Availability
View on Model
W4986A
Sound proof
Sound proof LGE MMC00280407 Contact Us For Availability
View on Model
W5210D
Tube,Suction
Tube,Suction LGE MJU41942218 Contact Us For Availability
View on Model
W6631
Harness,Multi
Harness,Multi LGE EAD63768930 Contact Us For Availability
View on Model
W6640
Connector,Terminal Block
Connector,Terminal Block LGE 3A00493P Contact Us For Availability
View on Model
W52240A
Strainer
Strainer LGE 3H03659C Contact Us For Availability
View on Model
W52240B
Strainer
Strainer LGE 3H03659M Contact Us For Availability
View on Model
