Model LG LUU360HV.EWGHEUS – Common Parts & Diagrams

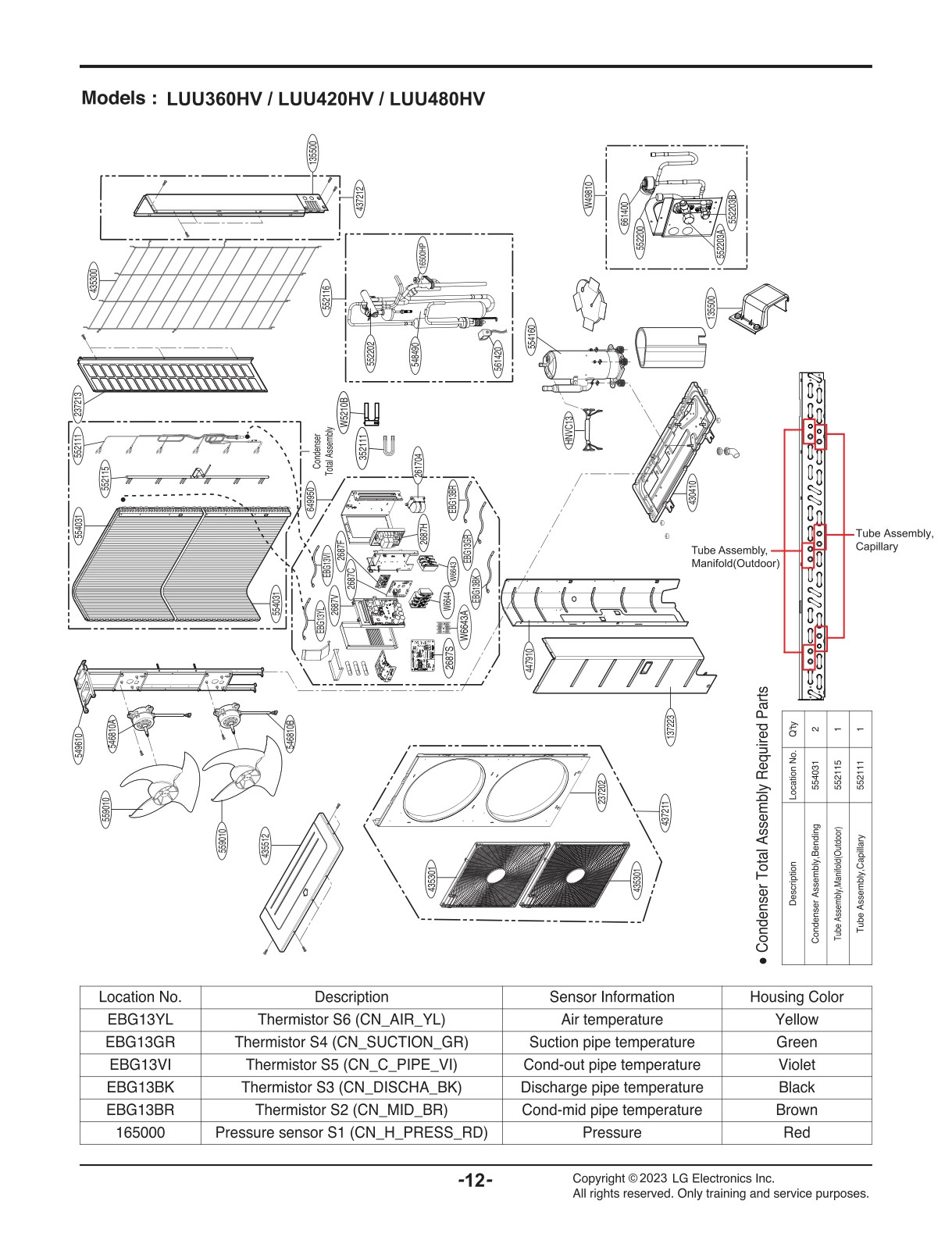

DIAGRAM 1
Common parts from model LG LUU360HV.EWGHEUS
2687F
PCB Assembly,Fan LGE EBR39070401 Contact Us For Availability
2687H
PCB Assembly,Filter LGE EBR37889402 Contact Us For Availability
2687V
PCB Assembly,Inv(H/W) LGE EBR85663804 Contact Us For Availability
135500
Cover LGE MCK67662904 Contact Us For Availability
137223
Panel Assembly,Side LGE AGL34579165 Contact Us For Availability
137223
Panel Assembly,Side LGE AGL34579169 Contact Us For Availability
237202
Panel,Front LGE MGC66162501 Contact Us For Availability
237213
Panel,Side LGE MGC39426024 Contact Us For Availability
237213
Panel,Side LGE MGC39426025 Contact Us For Availability
352111
Tube Assembly,Connector LGE AJR72914502 Contact Us For Availability
430410
Base Assembly,Outdoor LGE AAN75031001 Contact Us For Availability
435300
Grille,Rear LGE MDX40922518 Contact Us For Availability
435512
Cover Assembly,Top(Outdoor) LGE ACQ35131821 Contact Us For Availability
437211
Panel Assembly,Front(Outdoor) LGE AGL34578727 Contact Us For Availability
437211
Panel Assembly,Front(Outdoor) LGE AGL34578729 Contact Us For Availability
437212
Panel Assembly,Rear(Outdoor) LGE AGL76512821 Contact Us For Availability
437212
Panel Assembly,Rear(Outdoor) LGE AGL76512823 Contact Us For Availability
447910
Barrier Assembly,Outdoor LGE AAM35646423 Contact Us For Availability
546810A
Motor Assembly,DC,Outdoor LGE EAU62543705 Contact Us For Availability
546810B
Motor Assembly,DC,Outdoor LGE EAU62543706 Contact Us For Availability
548490
Accumulator LGE 4848A20007R Contact Us For Availability
549610
Bracket Assembly,Motor(Outdoor) LGE ABA34168813 Contact Us For Availability
549610
Bracket Assembly,Motor(Outdoor) LGE ABA34168821 Contact Us For Availability
552111
Tube Assembly,Capillary LGE AJR75062901 Contact Us For Availability
552115
Tube Assembly,Manifold(Outdoor) LGE AJR76562812 Contact Us For Availability
552116
Tube Assembly,Reverse LGE AJR76802411 Contact Us For Availability
552200
Valve,Expansion Body LGE 5220A90013J Contact Us For Availability
552202
Valve,Reverse LGE MJX63491603 Contact Us For Availability
552203A
Valve,Service LGE MJX62472107 Contact Us For Availability
552203B
Valve,Service LGE MJX62472202 Contact Us For Availability
554031
Condenser Assembly,Bending LGE ACG73706319 Contact Us For Availability
554160
Compressor Set,Korea LGE TBZ39253201 Contact Us For Availability
561420
Coil Assembly,Reverse LGE EAP64467707 Contact Us For Availability
649950
Case Assembly,Control(Outdoor) LGE ABQ30208502 Contact Us For Availability
661400
Coil Module,Expansion LGE EAP65270708 Contact Us For Availability
EBG13GR
Thermistor Assembly,NTC LGE EBG61405903 Contact Us For Availability
EBG13VI
Thermistor Assembly,NTC LGE EBG61445812 Contact Us For Availability
HNVC13
Harness,Multi LGE EAD63768954 Contact Us For Availability
W5210B
Tube,Connector LGE 5210A20851E Contact Us For Availability
W6643
Connector,Terminal Block LGE EAG38884401 Contact Us For Availability
W6644
Connector,Terminal Block LGE EAG63591101 Contact Us For Availability
W49810
Supporter Assembly LGE AJJ76563405 Contact Us For Availability
× ![]()
