Model LG LUU090HV.EWGHEUS – Common Parts & Diagrams

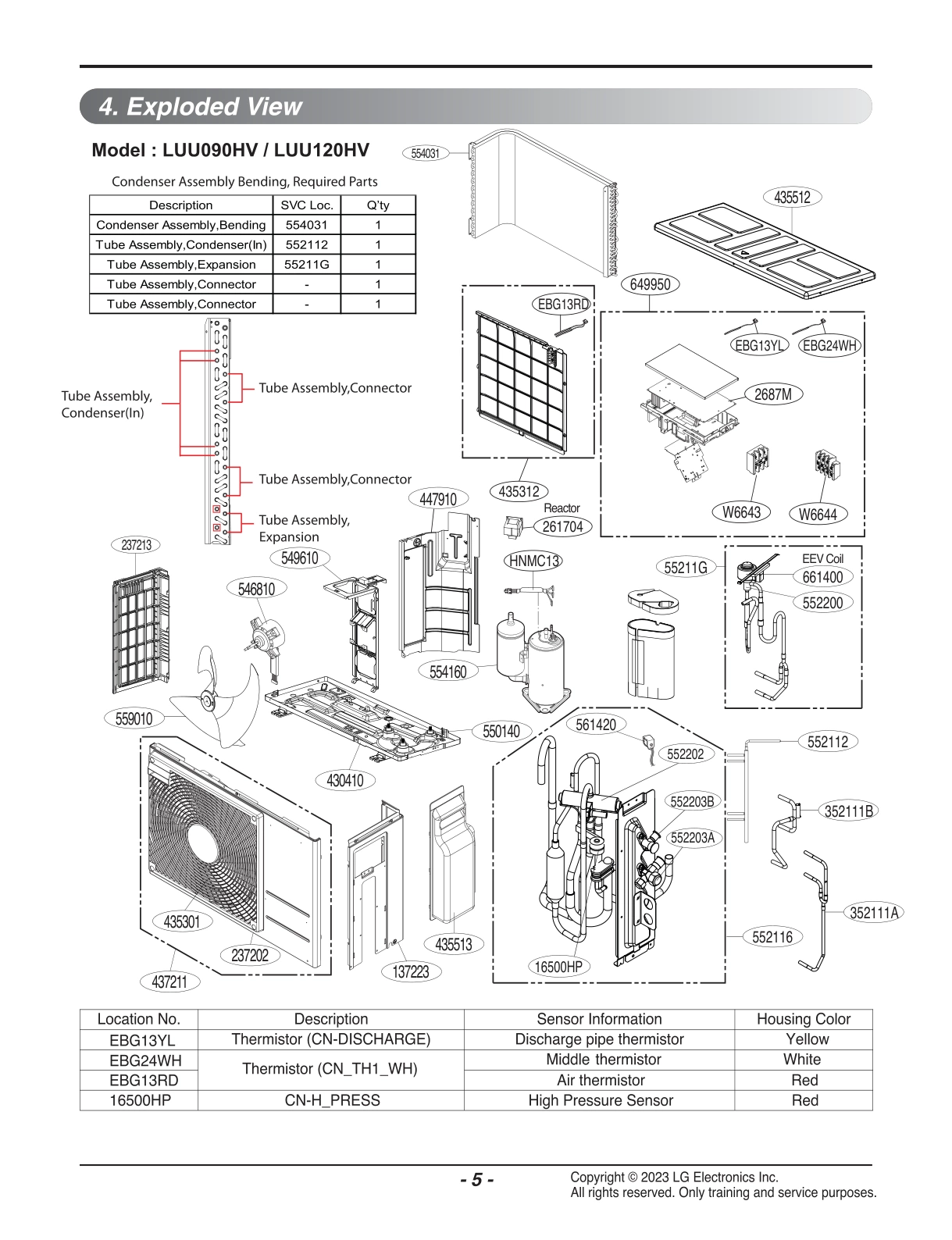

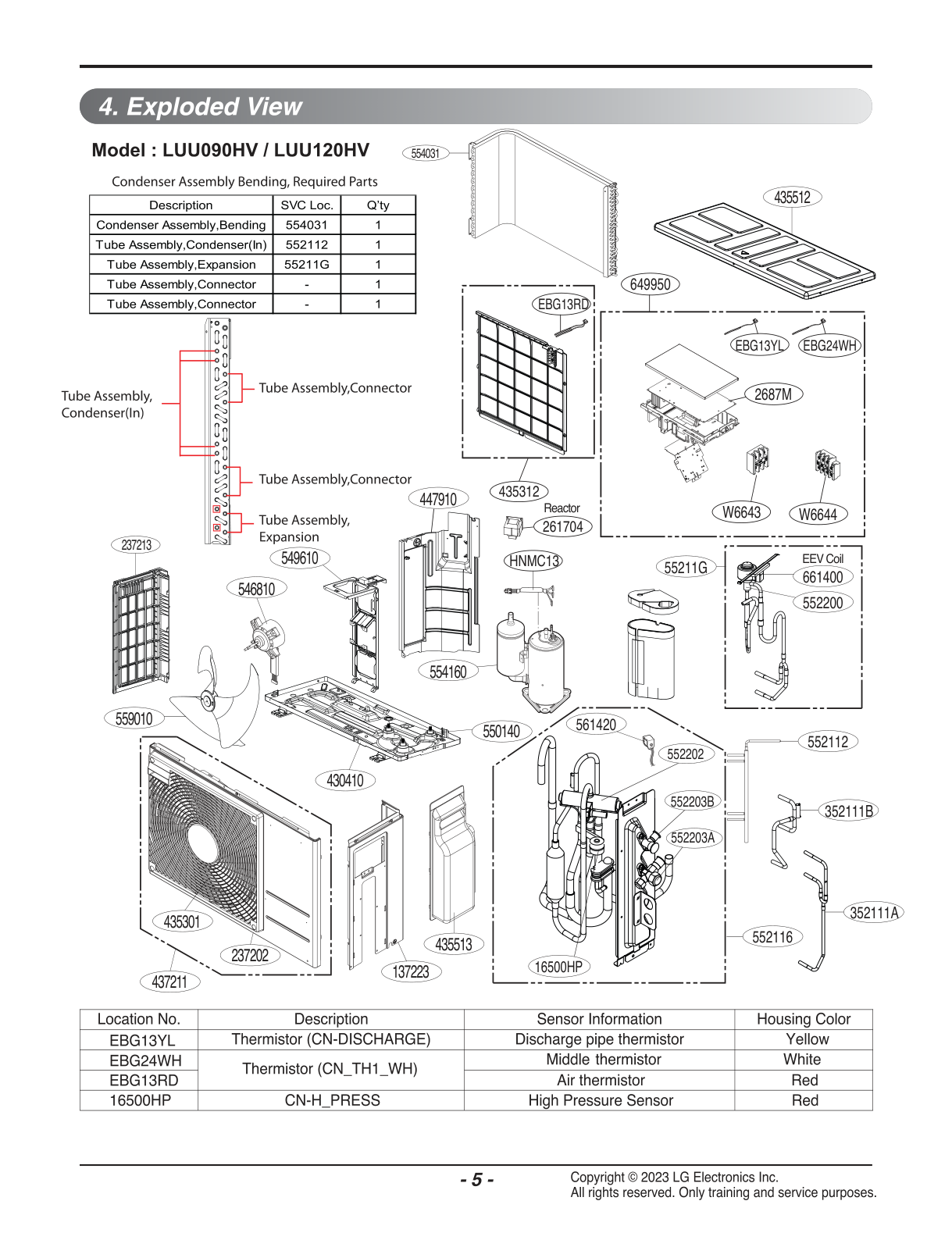

DIAGRAM 1
Common parts from model LG LUU090HV.EWGHEUS
237202
Panel,Front LGE MGC56983346 Contact Us For Availability
237213
Panel,Side LGE MGC65919304 Contact Us For Availability
352111A
Tube Assembly,Connector LGE AJR75564601 Contact Us For Availability
352111B
Tube Assembly,Connector LGE AJR75564702 Contact Us For Availability
430410
Base Assembly,Outdoor LGE AAN75968715 Contact Us For Availability
435512
Cover Assembly,Top(Outdoor) LGE ACQ68979336 Contact Us For Availability
435513
Cover Assembly,Tubing LGE ACQ85982701 Contact Us For Availability
437211
Panel Assembly,Front(Outdoor) LGE AGL68978042 Contact Us For Availability
437211
Panel Assembly,Front(Outdoor) LGE AGL68978065 Contact Us For Availability
447910
Barrier Assembly,Outdoor LGE AAM68980842 Contact Us For Availability
549610
Bracket Assembly,Motor(Outdoor) LGE ABA75269301 Contact Us For Availability
552112
Tube Assembly,Condenser(In) LGE AJR74043403 Contact Us For Availability
552116
Tube Assembly,Reverse LGE AJR74007515 Contact Us For Availability
552203A
Valve,Service LGE MJX62472208 Contact Us For Availability
552203B
Valve,Service LGE MJX63932316 Contact Us For Availability
554031
Condenser Assembly,Bending LGE ACG69396032 Contact Us For Availability
554160
Compressor Set,China LGE TBZ37434501 Contact Us For Availability
649950
Case Assembly,Control(Outdoor) LGE ABQ75964105 Contact Us For Availability
661400
Coil Module,Expansion LGE EAP65270706 Contact Us For Availability
× ![]()
