Model Whirlpool LUD2100X6 – Common Parts & Diagrams
05 - PUMP AND SPRAY ARM
07 - DISHRACK

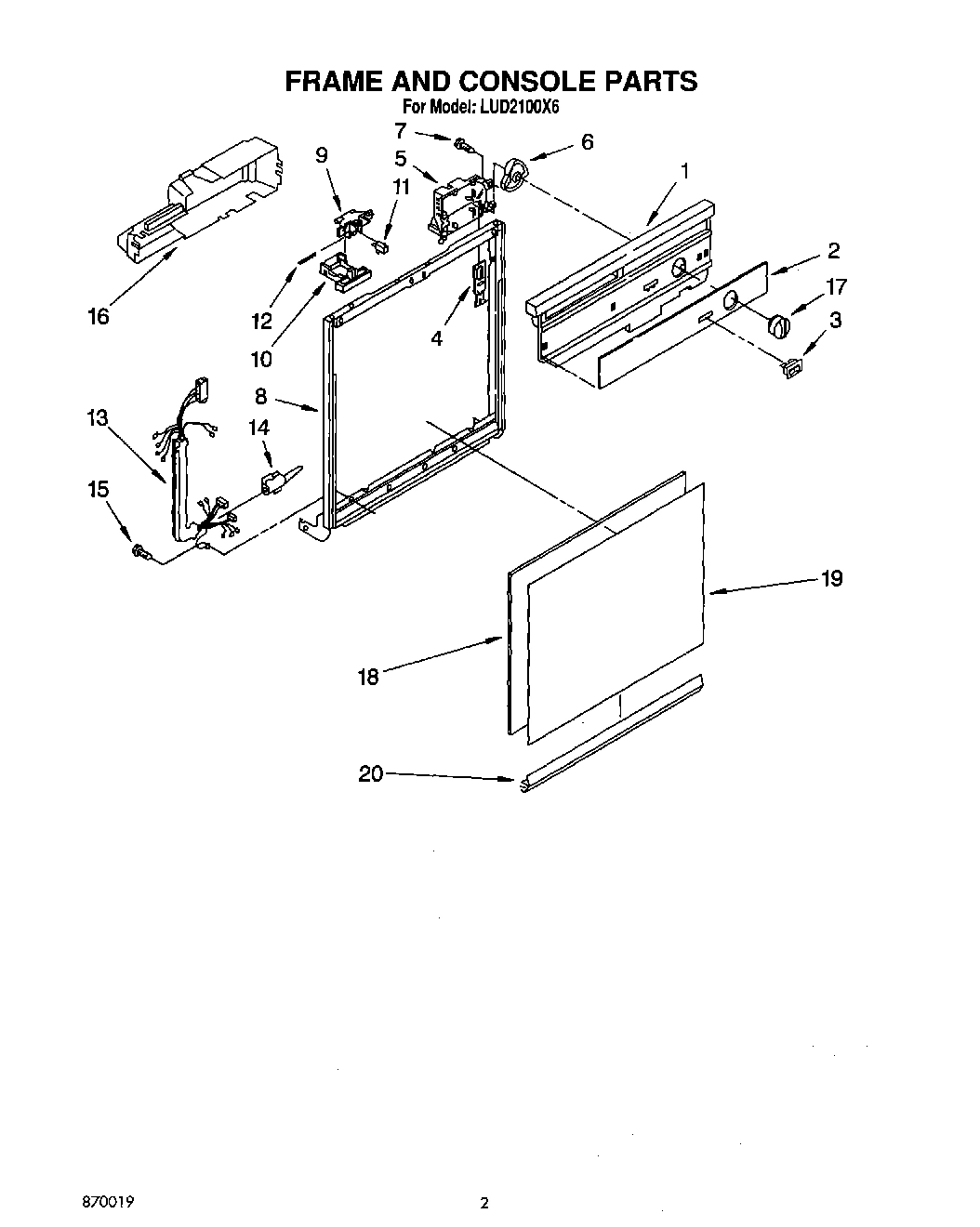

02 - FRAME AND CONSOLE

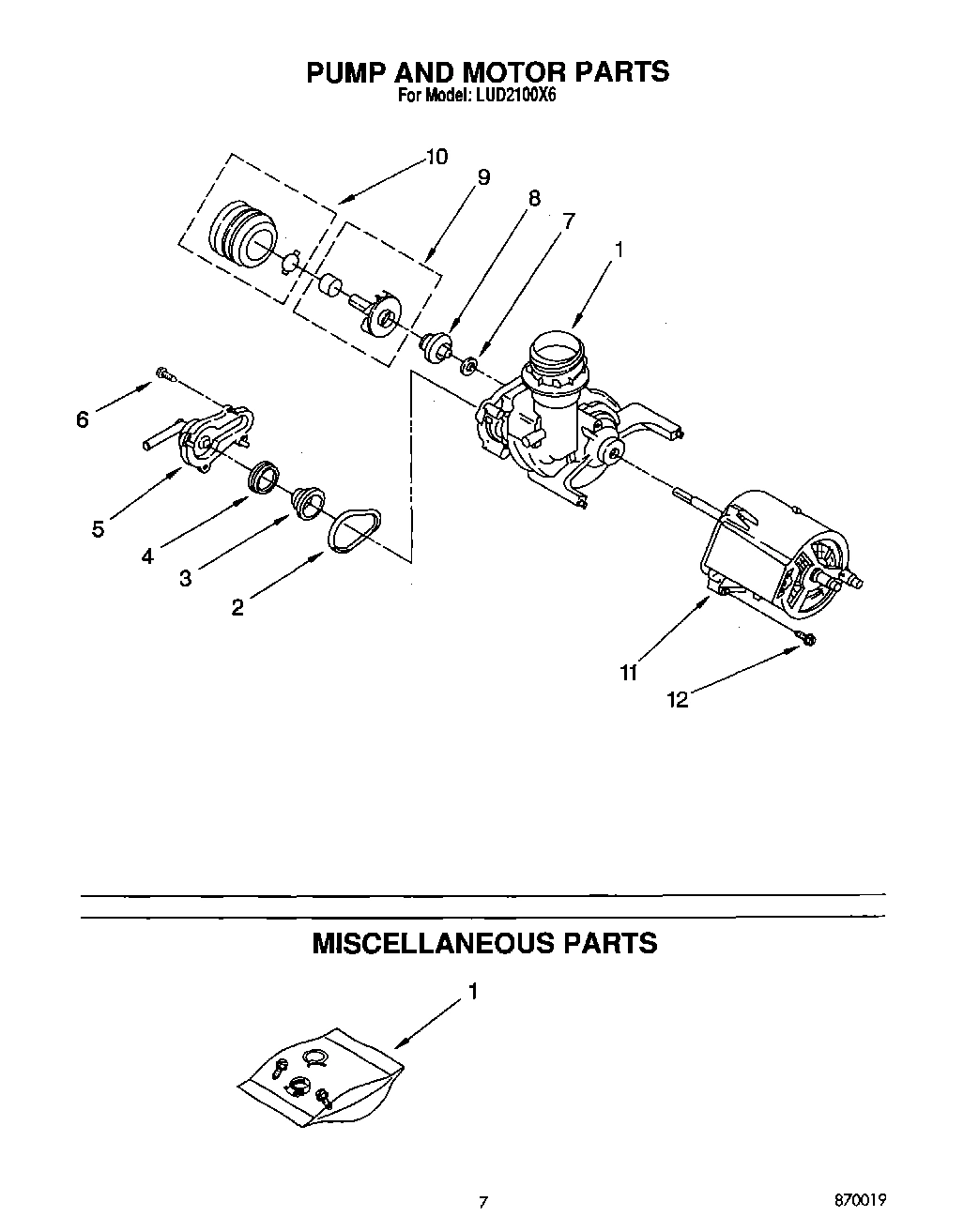

06 - PUMP AND MOTOR, MISCELLANEOUS

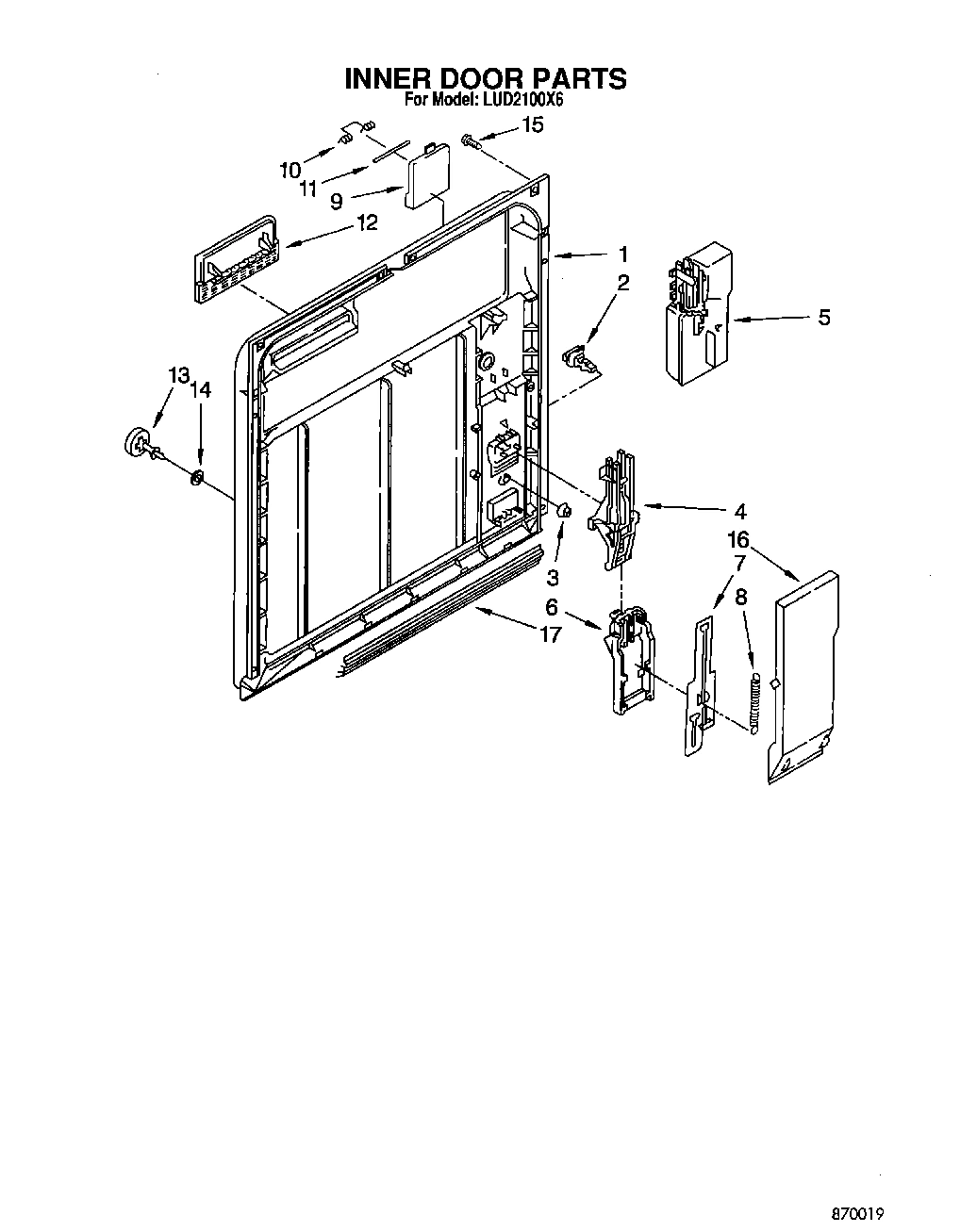

03 - INNER DOOR

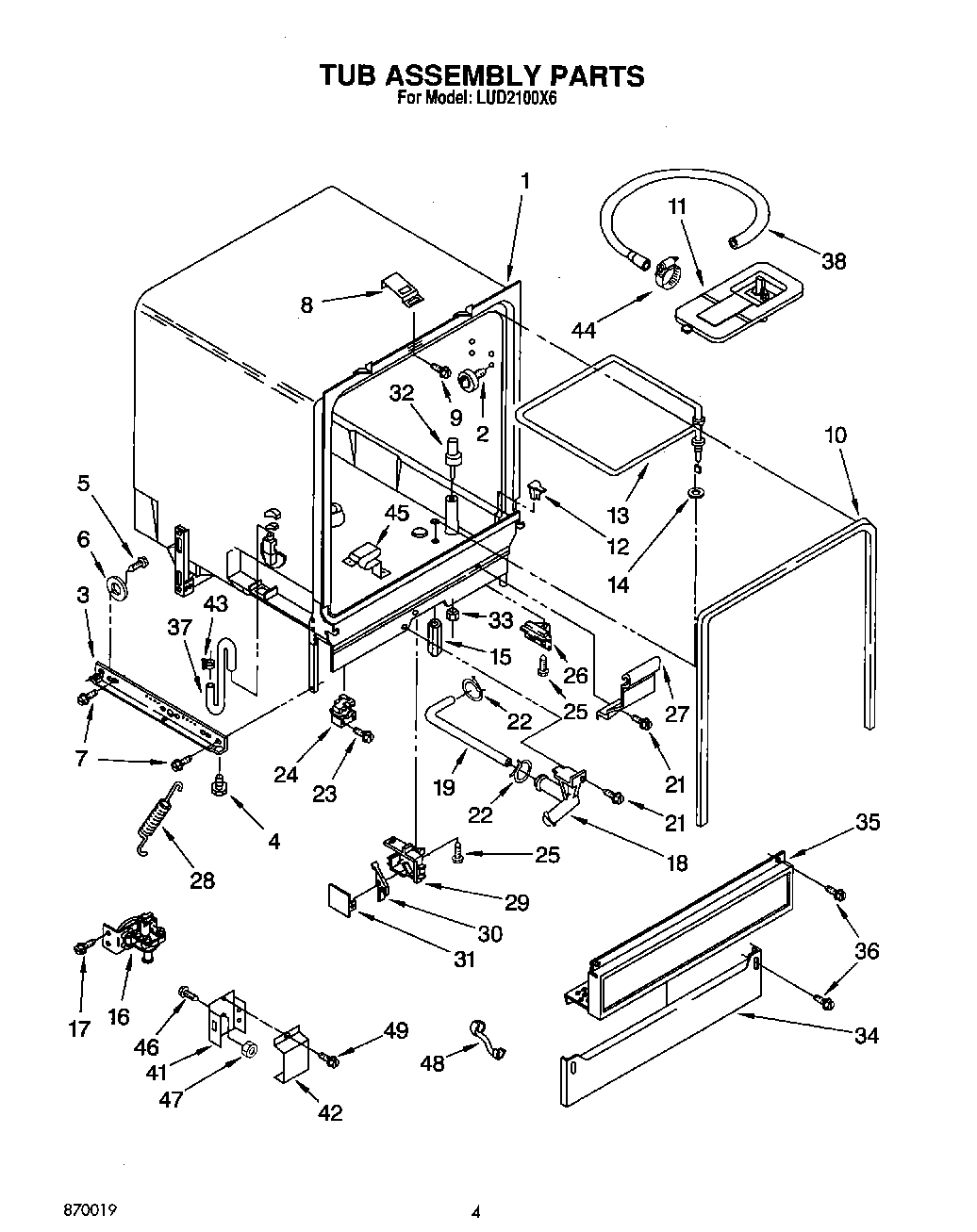

04 - TUB ASSEMBLY, LIT/OPTIONAL
Common parts from model Whirlpool LUD2100X6
WPL LIT0870019 WPL LIT0870019 Contact Us For Availability
WPL LIT3367007 WPL LIT3367007 Contact Us For Availability
WPL LIT3369093 WPL LIT3369093 Contact Us For Availability
WPL LIT3369311 WPL LIT3369311 Contact Us For Availability
WPL LIT3369695 WPL LIT3369695 Contact Us For Availability
WPL LIT3372192 WPL LIT3372192 Contact Us For Availability
1
Grommet, Pump Seal WPL 3369037 Contact Us For Availability
1
Tub Assembly WPL 3370850 Contact Us For Availability
2
Seal, Drain Cover WPL 3369031 Contact Us For Availability
2
Tub, Wheel Assembly (8) WPL 3369078 Contact Us For Availability
3
Runner (2) WPL 3368932 Contact Us For Availability
4
Ring, Diaphragm WPL 3369029 Contact Us For Availability
4
Follower, Cam WPL 3368997 Contact Us For Availability
5
Cover, Drain Valve WPL 3369030 Contact Us For Availability
5
Screw, Shoulder (2) WPL 3370389 Contact Us For Availability
6
Draw Bar, (Upper Dispenser) WPL 3369000 Contact Us For Availability
6
Wheel (2) WPL 302819 Contact Us For Availability
7
Seal Seat WPL 3369020 Contact Us For Availability
8
Washer, Grommet WPL 3369038 Contact Us For Availability
8
Plate, Latch WPL 3372030 Contact Us For Availability
9
Screw WPL 3372029 Contact Us For Availability
10
End Cap, Track (2) WPL 300845 Contact Us For Availability
11
Support & Bearing Assembly (Includes Items: 1 WPL 3371745 Contact Us For Availability
12
Pin, Switch (2) WPL 3368955 Contact Us For Availability
13
Washer WPL 3369044 Contact Us For Availability
15
Nut (2) (Heater Terminal) WPL 3369073 Contact Us For Availability
16
Cover, Drip WPL 3371569 Contact Us For Availability
16
Washer, Curved WPL 3371634 Contact Us For Availability
16
Water Valve WPL 3371817 Contact Us For Availability
18
Check, Valve Assembly WPL 3369421 Contact Us For Availability
19
Hose, Coupler WPL 3369050 Contact Us For Availability
20
Retainer, Panel WPL 3370441 Contact Us For Availability
22
Clamp WPL 371499 Contact Us For Availability
27
Shield, Harness WPL 3368983 Contact Us For Availability
28
Spring & Bearing Assembly (2) WPL 3369337 Contact Us For Availability
29
Housing, Float Switch WPL 3369048 Contact Us For Availability
30
Switch, Float WPL 3369067 Contact Us For Availability
31
Cover, Switch Housing WPL 3369049 Contact Us For Availability
33
Nut WPL 717488 Contact Us For Availability
35
Panel, Access WPL 3368936 Contact Us For Availability
37
Hose, Inlet WPL 3369414 Contact Us For Availability
41
Box, Terminal WPL 3370292 Contact Us For Availability
42
COVER ASSEMBLY TERMINAL BOX WPL 300068 Contact Us For Availability
45
Support, Heater WPL 3368987 Contact Us For Availability
48
Relief, Strain WPL 3370307 Contact Us For Availability
49
DOOR SPRING KIT: (HEAVY DUTY) WPL 4318050 Contact Us For Availability
49
Screw, 8-18 WPL 3369138 Contact Us For Availability
49
Leveler (Thinner) WPL 350941 Contact Us For Availability
49
SIDE PANEL KITS: (WHITE) WPL 4317925 Contact Us For Availability
49
Side Panel Kits (Avocado) WPL 4317926 Contact Us For Availability
49
Side Panel Kits (Gold) WPL 4317927 Contact Us For Availability
49
Side Panel Kits (Almond) WPL 4317929 Contact Us For Availability
49
Side Panel Kits (Toast) WPL 4317930 Contact Us For Availability
49
Side Panel Kits (Platinum) WPL 4317931 Contact Us For Availability
49
Tine Tip Repair Kit (Blue - Enough For Two Co WPL 675677 Contact Us For Availability
49
WPL 72112 WPL 72112 Contact Us For Availability
49
WPL 799340 WPL 799340 Contact Us For Availability
49
WPL 978883 WPL 978883 Contact Us For Availability
× ![]()
