Model GE LTGE5ASP113JW01 General Electric Model LTGE5ASP113JW01 – Common Parts & Diagrams
Front Bulkhead, Felt Seal and Cylinder

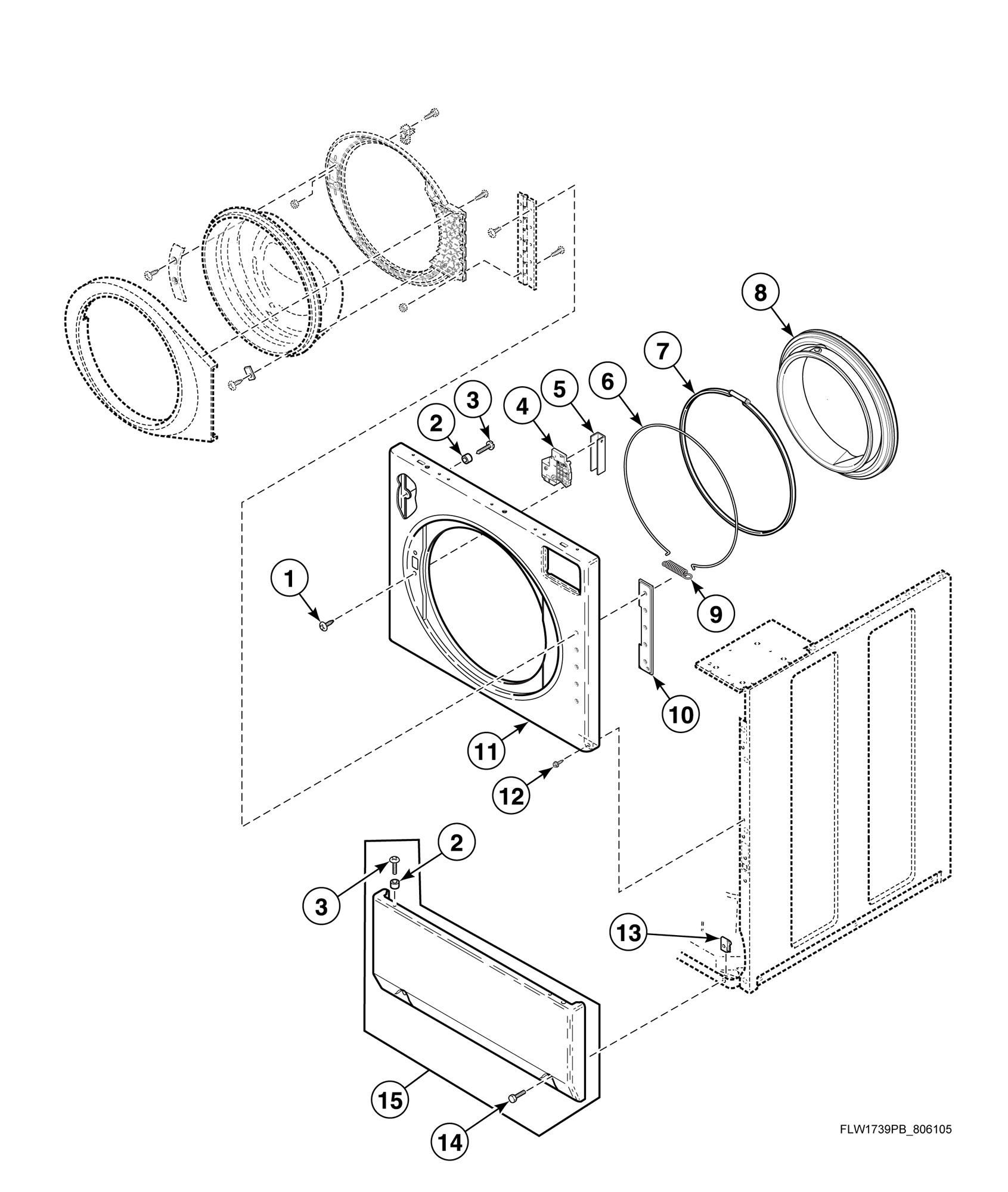

Front Panel
Gas Valve, Igniter and Gas Conversion Kits (Gas Model Dryers except LTME5ASP543KW01)
Heater Duct Assembly (Gas Models)
Idler Assembly
Inner Basket, Trunnion, Bearing Housing and Pulley
Mixing Valve and Valve-to-Dispenser Hose
Motor and Belt
Motor, Exhaust Fan and Belt
Outer Tub, Front and Clamp Ring
Overlay (10 Degree Front Models)
Rear Bulkhead, Felt Seal, Cylinder Roller and Terminal Block
Shipping Materials
Special Tools
Washer Junction Box
Washer Labels
Washer Lead-In Cord, Wire Ties and Harness Clips
Wire Harnesses and Wires (Drawing 1 of 2)
Wire Harnesses and Wires (Drawing 2 of 2)
Common parts from model GE LTGE5ASP113JW01 General Electric Model LTGE5ASP113JW01
1
Cylinder Seal Assembly GEN D510207P Contact Us For Availability
1
Adhesive (Comment: Apply to cylinder seal) GEN D511637P Contact Us For Availability
1
Seal Kit (Comment: Includes 2 cylinder seals, GEN RB170001 Contact Us For Availability
1
Lead-In Pipe Assembly GEN D510204 Contact Us For Availability
1
Idler Spring GEN D510185 Contact Us For Availability
1
Nut GEN 804418 Contact Us For Availability
1
Screw GEN M400043 Contact Us For Availability
1
Motor Mount Clamp GEN D510180 Contact Us For Availability
1
Out-of-Balance Switch Assembly GEN 803415 Contact Us For Availability
1
Control Overlay GEN 805651 Contact Us For Availability
1
Pulley Bolt Tightening Fixture (Comment: Use GEN 802336 Contact Us For Availability
1
Junction Box Cover GEN 803820 Contact Us For Availability
1
Notice Label GEN 803011 Contact Us For Availability
1
Wire Tie GEN 38663 Contact Us For Availability
1
Upper Gas Harness GEN D517094 Contact Us For Availability
1
Pressure Sensor Harness GEN 804433 Contact Us For Availability
1
Hose Clamp (Comment: 6 required) GEN 804173 Contact Us For Availability
2
Moisture Sensor Base GEN D513738 Contact Us For Availability
2
Screw GEN D503688 Contact Us For Availability
2
Panel Locator GEN 56079 Contact Us For Availability
2
Heat Duct Shroud GEN D510101 Contact Us For Availability
2
Balance Ring Assembly GEN 804393 Contact Us For Availability
2
Inverter Control Assembly GEN 807175P Contact Us For Availability
2
Cylinder Belt GEN D511255P Contact Us For Availability
2
Screw GEN 800461 Contact Us For Availability
2
Label GEN 804969 Contact Us For Availability
2
Washer GEN M400014 Contact Us For Availability
2
Wrench (Comment: Use for adjusting leveling l GEN 392P4 Contact Us For Availability
2
Junction Box Seal GEN 803832P Contact Us For Availability
2
Oversudsing Label (Comment: English) GEN 802074 Contact Us For Availability
2
Oversudsing Label (Comment: Spanish) GEN 802838 Contact Us For Availability
2
Oversudsing Label (Comment: Quebec French) GEN 802839 Contact Us For Availability
2
Harness Strap GEN 55881 Contact Us For Availability
2
Front Control Harness (Comment: Washer) GEN 806031 Contact Us For Availability
2
Dispenser Inlet Hose GEN 803849 Contact Us For Availability
3
Bar Sensor (Comment: 2 required) GEN D513737 Contact Us For Availability
3
Screw (Comment: Use with painted panels) GEN 39733 Contact Us For Availability
3
Screw (Comment: Use with stainless steel pane GEN 806276 Contact Us For Availability
3
Igniter and Bracket Assembly GEN D510184P Contact Us For Availability
3
Outlet Cover (Comment: Aluminized steel) GEN D500820 Contact Us For Availability
3
Outlet Cover (Comment: Black, Nitrocarburized GEN D515573 Contact Us For Availability
3
Idler Lever GEN D510133 Contact Us For Availability
3
Lifter GEN 804382 Contact Us For Availability
3
Mixing Valve (Comment: BSPP connection) GEN 806611 Contact Us For Availability
3
End Shield GEN 806258 Contact Us For Availability
3
Motor Pulley (Comment: 60 Hertz) GEN D500011 Contact Us For Availability
3
Washer GEN 804458 Contact Us For Availability
3
Hose Clip GEN 36985 Contact Us For Availability
3
Rear Bulkhead Assembly (Comment: White, Inclu GEN D510905WP Contact Us For Availability
3
Rear Bulkhead Assembly (Comment: Galvanized, GEN D511082P Contact Us For Availability
3
Shipping Brace GEN 804454 Contact Us For Availability
3
Power Cord Assembly GEN 204061 Contact Us For Availability
3
Warning Label (Comment: Reduce fire risk, Doo GEN 802367 Contact Us For Availability
3
Warning Label (Comment: Reduce fire risk, Doo GEN 804924 Contact Us For Availability
3
Warning Label (Comment: Reduce fire risk, Doo GEN 805962 Contact Us For Availability
3
Warning Label (Comment: Reduce fire risk, Doo GEN 805964 Contact Us For Availability
3
Warning Label (Comment: Reduce fire risk, Doo GEN 805965 Contact Us For Availability
3
Warning Label (Comment: Reduce fire risk, Doo GEN 805966 Contact Us For Availability
3
Warning Label (Comment: Reduce fire risk, Doo GEN 806550 Contact Us For Availability
3
Warning Label (Comment: Reduce fire risk, Doo GEN 806591 Contact Us For Availability
3
Motor Harness GEN 806029 Contact Us For Availability
4
Door Latch Assembly GEN 803920 Contact Us For Availability
4
Screw GEN 23222 Contact Us For Availability
4
Heater Duct Assembly (Comment: Includes items GEN D510025P Contact Us For Availability
4
Inner Basket Assembly Kit (Comment: Includes GEN 804376P Contact Us For Availability
4
Mixing Valve Screen GEN 24122 Contact Us For Availability
4
Motor Control Shield (Comment: Includes items GEN 806498 Contact Us For Availability
4
Motor and Pulley Assembly (Comment: 120 Volt/ GEN D511629P Contact Us For Availability
4
Out-of-Balance Switch Bracket GEN 804457 Contact Us For Availability
4
Screw GEN 800462 Contact Us For Availability
4
Wire Clip (Comment: Small) GEN D504034 Contact Us For Availability
4
Door Lock Harness Assembly GEN 806028 Contact Us For Availability
5
Cylinder Baffle (Comment: 3 required) GEN D510102W Contact Us For Availability
5
Door Lock Drip Shield GEN 804784 Contact Us For Availability
5
Sensor GEN D510213 Contact Us For Availability
5
Combustion Duct GEN D510131 Contact Us For Availability
5
Inner Basket Assembly GEN 804374P Contact Us For Availability
5
Nut GEN 800452 Contact Us For Availability
5
Motor Control Shield GEN 804878 Contact Us For Availability
5
Motor Hub Ring Kit GEN 590P3 Contact Us For Availability
5
Washer GEN 800624 Contact Us For Availability
5
Strain Relief GEN 60298 Contact Us For Availability
5
Wire Clip (Comment: Large) GEN 687500 Contact Us For Availability
5
Security Cabinet Harness GEN D513991 Contact Us For Availability
6
Cylinder Assembly (Comment: White) GEN D510159WP Contact Us For Availability
6
Cylinder Assembly (Comment: Galvanized, Inclu GEN D510265WP Contact Us For Availability
6
Wire Clamp Ring GEN 802283 Contact Us For Availability
6
Screw GEN 51782 Contact Us For Availability
6
Idler Wheel and Bearing Assembly GEN D510142P Contact Us For Availability
6
Screw GEN 804699 Contact Us For Availability
6
Screw GEN D501524 Contact Us For Availability
6
Pop Rivet GEN 685847 Contact Us For Availability
6
Shipping Spacer GEN 803858 Contact Us For Availability
6
Junction Box (Comment: Upper) GEN 804559 Contact Us For Availability
6
Notice Label GEN D516073 Contact Us For Availability
6
Nut GEN 03673 Contact Us For Availability
7
Screw GEN 62588 Contact Us For Availability
7
Hose Clamp (Comment: Seal to outer tub front) GEN 802281 Contact Us For Availability
7
Burner Assembly GEN D510149P Contact Us For Availability
7
Limit Thermostat (Comment: Black, Auto reset) GEN D510702 Contact Us For Availability
7
Trunnion Shaft Kit (Comment: Includes hardwar GEN 804405P Contact Us For Availability
7
Screw GEN M400057 Contact Us For Availability
7
Blower Fan Assembly GEN D510139P Contact Us For Availability
7
Hose Clip GEN 800553 Contact Us For Availability
7
Screw GEN 61199 Contact Us For Availability
7
Label (Comment: Remove shipping brace) GEN 804488 Contact Us For Availability
7
Line Filter (Comment: starting Serial Nos. be GEN 805633 Contact Us For Availability
7
Caution Label (Comment: Icon, Ground machine) GEN 801706 Contact Us For Availability
7
Warning Label (Comment: English/French, Disco GEN D500316 Contact Us For Availability
7
Disconnect Power Warning Label (Comment: Engl GEN D505281 Contact Us For Availability
7
Washer GEN 03815 Contact Us For Availability
8
Drying Rack GEN D512082P Contact Us For Availability
8
Door Seal (Comment: Black) GEN 804428P Contact Us For Availability
8
Door Seal Assembly (Comment: Gray) GEN 804429P Contact Us For Availability
8
L.P. Conversion Kit (Comment: Used to convert GEN 649P3 Contact Us For Availability
8
Thermostat (Comment: Manual reset) GEN D510703 Contact Us For Availability
8
Idler Lever and Wheel Assembly (Comment: Incl GEN D510158 Contact Us For Availability
8
Screw GEN 804399 Contact Us For Availability
8
Washer GEN 02834 Contact Us For Availability
8
Thermistor Assembly (Comment: Black) GEN D510523 Contact Us For Availability
8
Cylinder Roller Bracket GEN D510100 Contact Us For Availability
8
Filter Harness (Comment: Filter to main harne GEN 804396 Contact Us For Availability
8
Left Hand Thread Label (Comment: Text, Left h GEN 685928 Contact Us For Availability
8
Left Hand Thread Label (Comment: Icon, Left h GEN 804949 Contact Us For Availability
8
Screw GEN 20530 Contact Us For Availability
9
Screw GEN 800548 Contact Us For Availability
9
Extension Spring GEN 802285 Contact Us For Availability
9
Screw GEN D503661 Contact Us For Availability
9
N.G. Conversion Kit (Comment: Used to convert GEN 650P3 Contact Us For Availability
9
Screw GEN D500824 Contact Us For Availability
9
Washer GEN M400080 Contact Us For Availability
9
Screw GEN D502535 Contact Us For Availability
9
Pressure Bulb GEN 803837 Contact Us For Availability
9
Cylinder Roller GEN D510708P Contact Us For Availability
9
Warning Label (Comment: Text, Disconnect powe GEN 803260 Contact Us For Availability
9
Elec GEN F8211201 Contact Us For Availability
9
Strain Relief GEN 38384 Contact Us For Availability
10
Hinge Plate GEN 802206 Contact Us For Availability
10
Secondary Coil GEN 58804B Contact Us For Availability
10
NOT ON YOUR MODEL GEN - Contact Us For Availability
10
Retaining Ring GEN 23748 Contact Us For Availability
10
Pulley Assembly GEN 803974 Contact Us For Availability
10
Drive Belt GEN 804985 Contact Us For Availability
10
GEN D500049 GEN D500049 Contact Us For Availability
10
Junction Box (Comment: Lower) GEN 803819 Contact Us For Availability
10
GEN D500314 GEN D500314 Contact Us For Availability
10
GEN F8615701 GEN F8615701 Contact Us For Availability
11
Front Panel (Comment: Gray) GEN 802277DG Contact Us For Availability
11
Front Panel (Comment: White) GEN 802277WP Contact Us For Availability
11
Front Panel (Comment: Stainless steel) GEN 802288P Contact Us For Availability
11
Gas Valve Assembly (Comment: 60 Hertz, 22,500 GEN D510506P Contact Us For Availability
11
Washer GEN 52549 Contact Us For Availability
11
Washer GEN 800464 Contact Us For Availability
11
Motor and Rod Assembly Kit (Comment: Includes GEN 805726P Contact Us For Availability
11
Pressure Sensor Tube Assembly GEN 804483 Contact Us For Availability
11
Filter Jumper Harness (Comment: Filter to ter GEN 801420 Contact Us For Availability
12
Glide Kit (Comment: Includes items 10 and 11 GEN RB170003 Contact Us For Availability
12
Screw GEN 56124 Contact Us For Availability
12
Nut GEN 52566 Contact Us For Availability
12
Screw (Comment: Left hand thread) GEN 685831 Contact Us For Availability
12
Motor Rod GEN 803861 Contact Us For Availability
12
Hose Clamp GEN 803891 Contact Us For Availability
12
Washer GEN D504082 Contact Us For Availability
13
Cylinder Glide Bracket (Comment: 2 required) GEN D510145 Contact Us For Availability
13
Nut GEN 36020 Contact Us For Availability
13
Gas Valve Mounting Bracket GEN D510128 Contact Us For Availability
13
Shaft GEN 56461P Contact Us For Availability
13
Motor Mount GEN D510060 Contact Us For Availability
13
Washer (Comment: Used through Serial No. 1609 GEN M403958 Contact Us For Availability
13
Grommet GEN 29175 Contact Us For Availability
14
Front Bulkhead Assembly (Comment: Includes it GEN D515532 Contact Us For Availability
14
Screw GEN 801045 Contact Us For Availability
14
Booster and Holding Coil GEN 58804A Contact Us For Availability
14
Outer Tub Assembly GEN 803864 Contact Us For Availability
14
Roller Kit (Comment: Includes 2 each of items GEN RB170002 Contact Us For Availability
15
Access Panel Assembly (Comment: Gray) GEN D514250DG Contact Us For Availability
15
Access Panel Assembly (Comment: White) GEN D514250WP Contact Us For Availability
15
Access Panel Assembly (Comment: Stainless ste GEN D514251 Contact Us For Availability
15
Nut GEN 56156 Contact Us For Availability
15
Washer GEN 800457 Contact Us For Availability
15
Shock Assembly (Comment: Must replace all 4) GEN 803777 Contact Us For Availability
16
Elbow GEN D513072 Contact Us For Availability
16
Bearing Housing Kit (Comment: Includes hardwa GEN 805525 Contact Us For Availability
16
Counterweight GEN 803810 Contact Us For Availability
17
Tub Front GEN 803770 Contact Us For Availability
20
Foreign Object Deflector (Comment: Black, Inc GEN 806308 Contact Us For Availability
20
Foreign Object Deflector (Comment: Gray, Incl GEN 806313 Contact Us For Availability
20
Foreign Object Deflector (Comment: Tall, Gray GEN 806361 Contact Us For Availability
21
Tub Front Seal GEN 803801 Contact Us For Availability
22
Clamp Ring GEN 803802 Contact Us For Availability
23
Nut GEN F430218 Contact Us For Availability
24
Washer GEN M400081 Contact Us For Availability
26
Screw GEN 802596 Contact Us For Availability
27
Clothes Guard Deflector GEN 804467 Contact Us For Availability
27
Clothes Guard Deflector (Comment: Heavy duty) GEN 805548 Contact Us For Availability
28
Tub Front Assembly (Comment: Includes items 1 GEN 803879 Contact Us For Availability
29
Nut GEN 802343 Contact Us For Availability
NA
Anti-Seize Compound (Comment: Apply to motor GEN 27604P Contact Us For Availability
NA
Bearing Kit GEN 805730 Contact Us For Availability
NA
Mixing Valve Shield GEN 804783 Contact Us For Availability
NA
18 Gauge Wire (Comment: Black, Order wire by GEN 45001 Contact Us For Availability
NA
12 Gauge Wire (Comment: Orange, Order wire by GEN 45380 Contact Us For Availability
× ![]()
