Model LG LT1016CER.AT1AUSB 9,800 BTU 115v Through-the-Wall Air Conditioner – Common Parts & Diagrams

Common parts from model LG LT1016CER.AT1AUSB 9,800 BTU 115v Through-the-Wall Air Conditioner

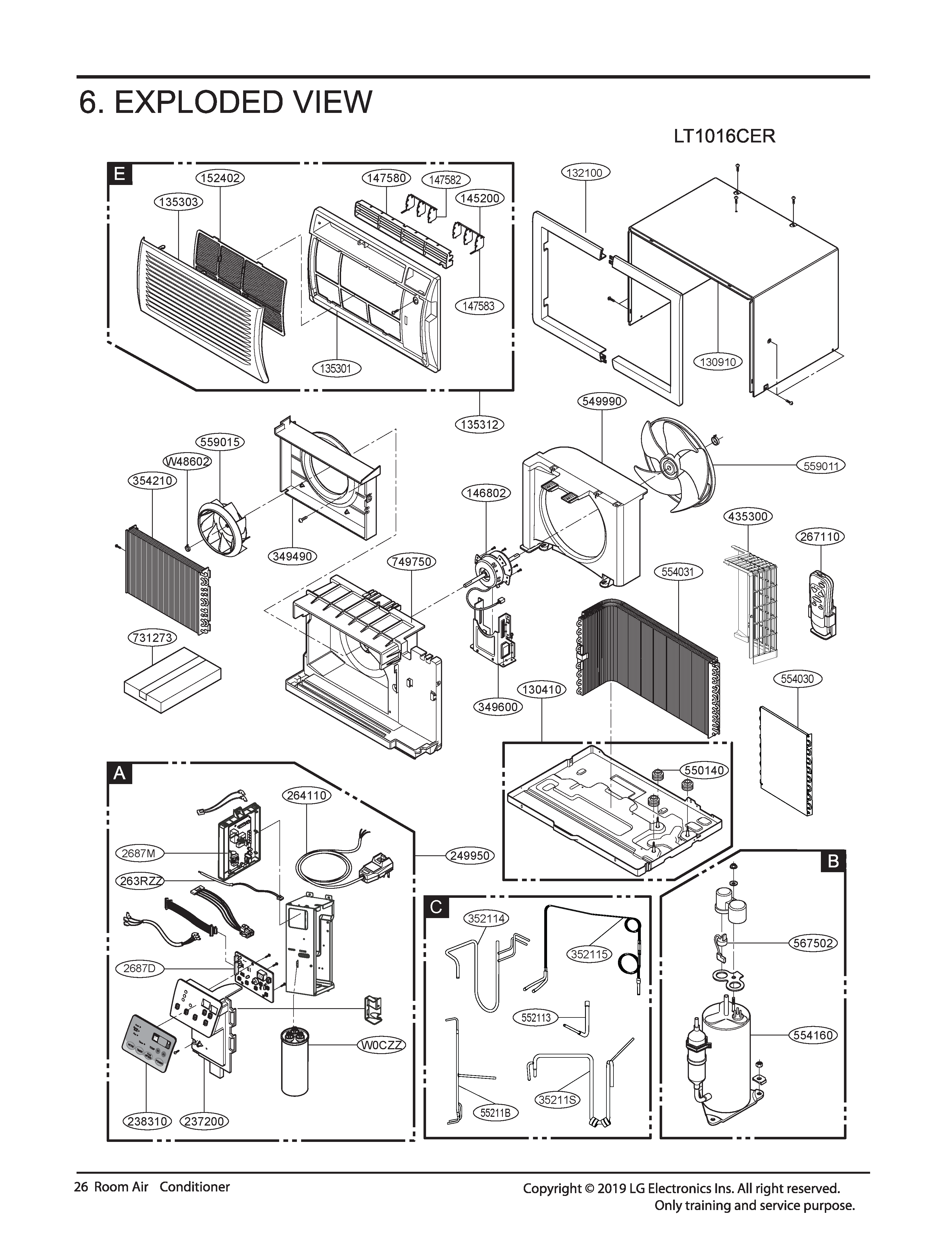

DIAGRAM 1

Print

• This Diagram
• All Diagrams

263RZZ

6323A20012F LG NTC Thermistor Backorder LGE 6323A20012F View Details $9.50

View on Model

35211S

Tube Assembly,Suction LGE AJR75743917 Contact Us For Availability

View on Model

55211B

AJR75704501 LG Air Conditioner Outer Condense Backorder LGE AJR75704501 View Details $23.09

View on Model

55211B

Tube Assembly,Condenser(Out) LGE AJR75704504 Contact Us For Availability

View on Model

130410

Base Assembly,Single LGE AAN73212137 Contact Us For Availability

View on Model

130410

Base Assembly,Single LGE AAN73212141 Contact Us For Availability

View on Model

130910

ABJ75367210 LG Air Conditioner Cabinet Assemb Backorder LGE ABJ75367210 View Details $122.78

View on Model

132100

Frame LGE MDQ63677202 Contact Us For Availability

View on Model

135301

3530A11003F LG Air Conditioner Front Grille Backorder LGE 3530A11003F View Details $34.33

View on Model

135303

3530A10272F LG Air Conditioner Inlet Grille Backorder LGE 3530A10272F View Details $15.74

View on Model

135312

3531A18004P LG Air Conditioner Front Grille A Backorder LGE 3531A18004P View Details $85.61

View on Model

145200

4520A20007C LG Air Conditioner Link Backorder LGE 4520A20007C View Details $2.95

View on Model

146802

4681A20175F LG Air Conditioner Motor Assembly Backorder LGE 4681A20175F View Details $122.78

View on Model

147580

4758A20058E LG Air Conditioner Horizontal Lou Backorder LGE 4758A20058E View Details $2.95

View on Model

147582

MFH63463704 LG Air Conditioner Vertical Louve Backorder LGE MFH63463704 View Details $6.94

View on Model

147583

MFH63463703 LG Air Conditioner Vertical Louve Backorder LGE MFH63463703 View Details $6.94

View on Model

152402

5230A20041E LG Air Conditioner Filter Backorder LGE 5230A20041E View Details $15.74

View on Model

237200

MGC35987202 LG Air Conditioner Control Panel Backorder LGE MGC35987202 View Details $6.94

View on Model

238310

Escutcheon LGE MDD62483302 Contact Us For Availability

View on Model

249950

ABQ74404923 LG Air Conditioner Control Case A Backorder LGE ABQ74404923 View Details $172.66

View on Model

249950

Case Assembly,Control LGE ABQ74404926 Contact Us For Availability

View on Model

264110

EAD63469509 LG Air Conditioner Power Cord Ass Backorder LGE EAD63469509 View Details $73.40

View on Model

267110

AKB73016019 LG Remote Controller Assembly Backorder LGE AKB73016019 View Details $15.74

View on Model

349490

MFX62982304 LG Air Conditioner Orifice Backorder LGE MFX62982304 View Details $19.38

View on Model

349600

4960A20005E LG Air Conditioner Motor Bracket Backorder LGE 4960A20005E View Details $12.32

View on Model

352114

Tube Assembly,Discharge LGE AJR75022316 Contact Us For Availability

View on Model

352114

Tube Assembly,Discharge LGE AJR75022321 Contact Us For Availability

View on Model

352115

AJR75704401 LG Air Conditioner Evaporator Tub Backorder LGE AJR75704401 View Details $49.10

View on Model

352115

Tube Assembly,Evaporator(In) LGE AJR75704402 Contact Us For Availability

View on Model

354210

ADL73741705 LG Evaporator Assembly Backorder LGE ADL73741705 View Details $187.30

View on Model

354210

Evaporator Assembly,First LGE ADL73741708 Contact Us For Availability

View on Model

435300

MDX64652002 LG Air Conditioner Rear Grille Backorder LGE MDX64652002 View Details $15.74

View on Model

549990

AHV73849802 LG Air Conditioner Shroud Assembl Backorder LGE AHV73849802 View Details $25.20

View on Model

550140

4984AR4390B LG Air Conditioner Compressor Dam Backorder LGE 4984AR4390B View Details $2.95

View on Model

552113

AJR75584101 LG Air Conditioner Outer Condense Backorder LGE AJR75584101 View Details $9.50

View on Model

552113

Tube Assembly,Condenser(Out) LGE AJR75584102 Contact Us For Availability

View on Model

554030

ACG73144503 LG Air Conditioner Condenser Asse Backorder LGE ACG73144503 View Details $176.15

View on Model

554030

Condenser Assembly,First LGE ACG73144504 Contact Us For Availability

View on Model

554031

ACG73126512 LG Air Conditioner Condenser Asse Backorder LGE ACG73126512 View Details $262.40

View on Model

554160

Compressor Set,China LGE TBZ38895201 Contact Us For Availability

View on Model

559011

5900A10009E LG Air Conditioner Axial Fan In Stock LGE 5900A10009E View Details $39.18

View on Model

559011

Fan,Axial LGE 5900A10009G Contact Us For Availability

View on Model

559015

5900A20009E LG Turbo Fan Backorder LGE 5900A20009E View Details $30.20

View on Model

567502

Overload Protect LGE EAF61751212 Contact Us For Availability

View on Model

731273

3127A20017E LG Part Assembly Installation-Sin Backorder LGE 3127A20017E View Details $59.80

View on Model

731273

Install Part Assembly,Single LGE AET74151910 Contact Us For Availability

View on Model

749750

Guide Assembly,Air LGE AEC73577511 Contact Us For Availability

View on Model

W0CZZ

Capacitor,Film,Box LGE 0CZZA20001N Contact Us For Availability

View on Model

W48602

3H02932B LG Air Conditioner Clamp Spring I.D. Backorder LGE 3H02932B View Details $2.95

View on Model

W48602

MBU64446301 LG Air Conditioner Spring Clamp Backorder LGE MBU64446301 View Details $2.95

View on Model

×
