Model LG LSXS26326S.ASTCNA3 26 cu. ft. Side-By-Side Refrigerator – Common Parts & Diagrams

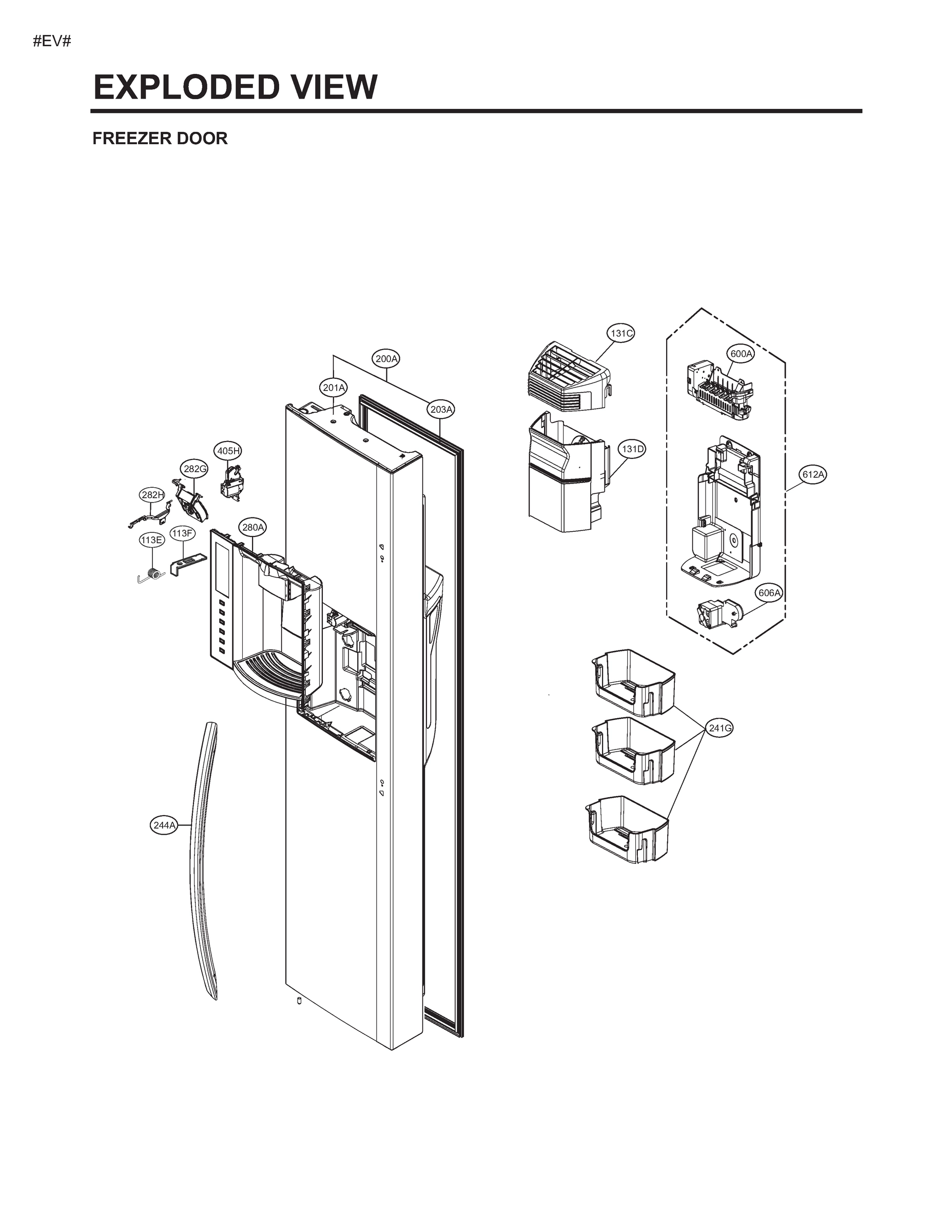

FREEZER DOOR

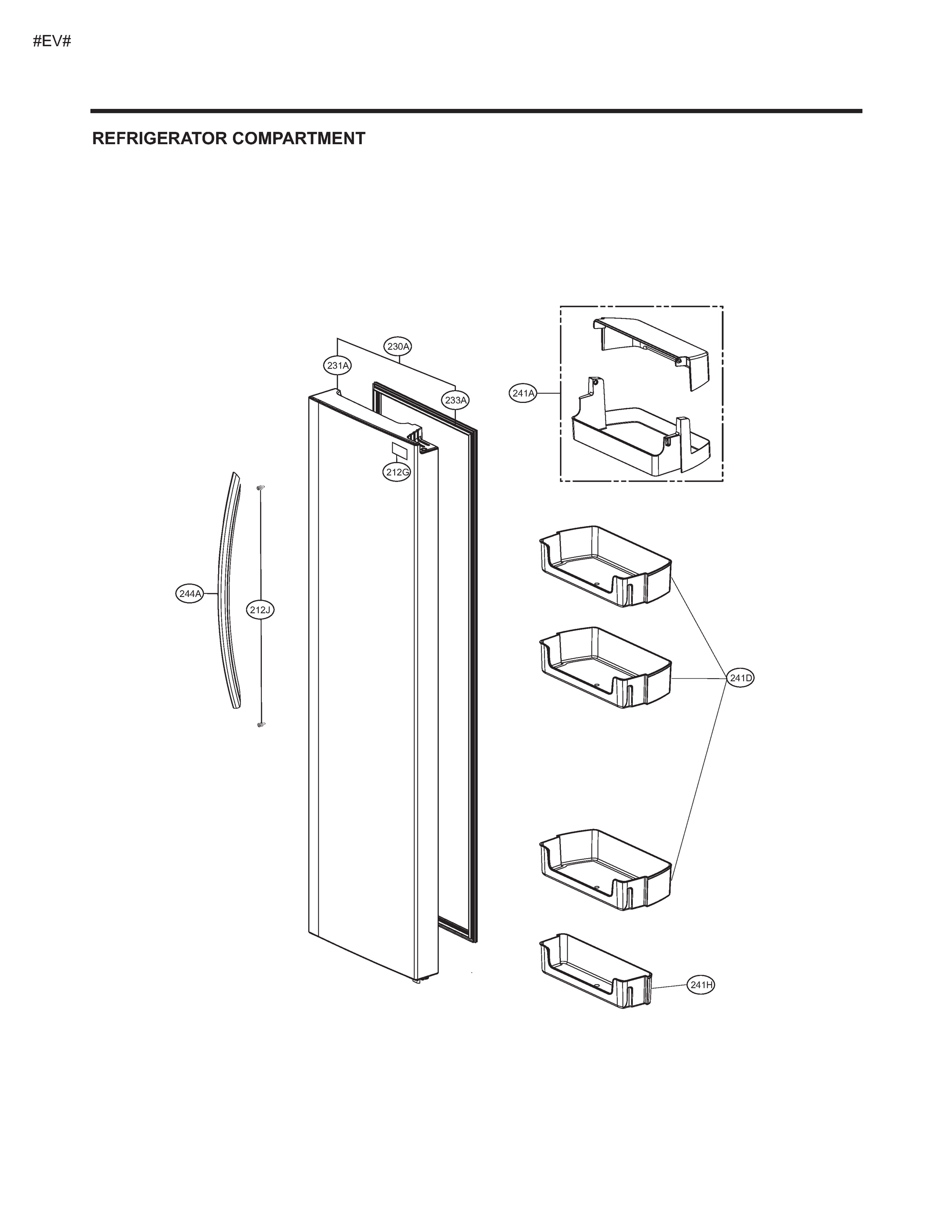

REFRIGERATOR COMPARTMENT
FREEZER COMPARTMENT
REFRIGERATOR COMPARTMENT
MACHINE COMPARTMENT
Common parts from model LG LSXS26326S.ASTCNA3 26 cu. ft. Side-By-Side Refrigerator
105A
Tube Assembly,Drain LGE 5251JA3004E Contact Us For Availability
120A
Case Assembly,Control Refrigerator LGE ABQ73984011 Contact Us For Availability
120B
Duct Assembly,Insulation LGE ADJ73292206 Contact Us For Availability
120D
Duct Assembly,Multi LGE ADJ73012203 Contact Us For Availability
131C
Cover Assembly,Bucket LGE ACQ55756502 Contact Us For Availability
136A
Tray Assembly,Drawer LGE AJP73595165 Contact Us For Availability
136C
Tray Assembly,Drawer LGE AJP73815123 Contact Us For Availability
140A
Shelf Assembly,Refrigerator LGE AHT73493833 Contact Us For Availability
149A
Shelf Assembly,Freezer LGE AHT73493936 Contact Us For Availability
149C
Shelf Assembly,Freezer LGE AHT73493938 Contact Us For Availability
154A
Cover Assembly,Tray LGE ACQ85968605 Contact Us For Availability
154B
Cover Assembly,TV LGE ACQ76008428 Contact Us For Availability
161C
Cover Assembly,Tray LGE ACQ76211725 Contact Us For Availability
201A
Door Foam Assembly,Freezer LGE ADD74296417 Contact Us For Availability
233A
Gasket Assembly,Door LGE 4987JJ1010Z Contact Us For Availability
241A
Basket Assembly,Door LGE AAP74211301 Contact Us For Availability
241D
Basket,Door LGE MAN63108801 Contact Us For Availability
241G
Basket,Door LGE MAN63108601 Contact Us For Availability
241H
Basket,Door LGE MAN63108701 Contact Us For Availability
244A
Handle Assembly,Refrigerator LGE AED74732905 Contact Us For Availability
271A
Hinge Assembly,Upper LGE AEH74176704 Contact Us For Availability
271C
Hinge Assembly,Upper LGE AEH73957102 Contact Us For Availability
280A
Cover Assembly,Display LGE ACQ87270803 No Longer Available
281A
Cover Assembly,Hinge LGE ACQ87309240 Contact Us For Availability
281B
Cover Assembly,Hinge LGE ACQ87309243 Contact Us For Availability
281G
Hinge Assembly,Lower LGE AEH75176202 Contact Us For Availability
281H
Hinge Assembly,Lower LGE AEH75176311 Contact Us For Availability
304A
Cover Assembly,Machinery(Rear) LGE ACQ86284806 Contact Us For Availability
314A
Stopper,Compressor LGE 4620JA3015A Contact Us For Availability
316A
Damper,Noise LGE 5072JQ3002F Contact Us For Availability
319C
Guide,Fan LGE MEA64710501 Contact Us For Availability
323B
Condenser Assembly,Wire LGE ACG73748502 Contact Us For Availability
329A
Fan Assembly LGE ADP74753501 Contact Us For Availability
329C
Fan Assembly LGE ADP74753302 Contact Us For Availability
330B
Shroud,Freezer LGE MHN61882004 Contact Us For Availability
332B
Grille Assembly,Fan LGE AEB72984714 Contact Us For Availability
404A
Motor,DC LGE EAU63103201 Contact Us For Availability
404B
Motor,DC LGE EAU63103207 Contact Us For Availability
405F
Damper,Motor Support LGE 5040JA2009A Contact Us For Availability
405G
Damper,Motor Support LGE 5040JA2004B Contact Us For Availability
410G
Capacitor,Electric Appliance Film,Radial LGE EAE32501017 Contact Us For Availability
411A
Power Cord Assembly LGE EAD61857344 Contact Us For Availability
501A
PCB Assembly,Main LGE EBR80977527 Contact Us For Availability
501F
Cover Assembly,PCB LGE ACQ85612409 Contact Us For Availability
606A
Motor, AC Indoor LGE EAU60784231 Contact Us For Availability
610E
Cover,Sensor LGE 3550JQ2073E Contact Us For Availability
611E
Filter Assembly,Water LGE ADQ73973201 Contact Us For Availability
612A
Motor, AC Dispenser LGE EAU61004410 Contact Us For Availability
615A
Tank,Water LGE MJM61904704 Contact Us For Availability
619A
Valve Assembly,Water LGE AJU34125558 Contact Us For Availability
903D
LED Assembly LGE EAV61875815 Contact Us For Availability
903E
LED Assembly LGE EAV61875814 Contact Us For Availability
903F
Sensor,Temperature LGE 6500JB2008Z Contact Us For Availability
903G
Sensor,Temperature LGE 6500JB1008D Contact Us For Availability
× ![]()
