Model LG LSXC22486D.ASBCNA3 22 cu. ft. Smart wi-fi Enabled Door-in-Door Counter-Depth Refrigerator – Common Parts & Diagrams

Common parts from model LG LSXC22486D.ASBCNA3 22 cu. ft. Smart wi-fi Enabled Door-in-Door Counter-Depth Refrigerator

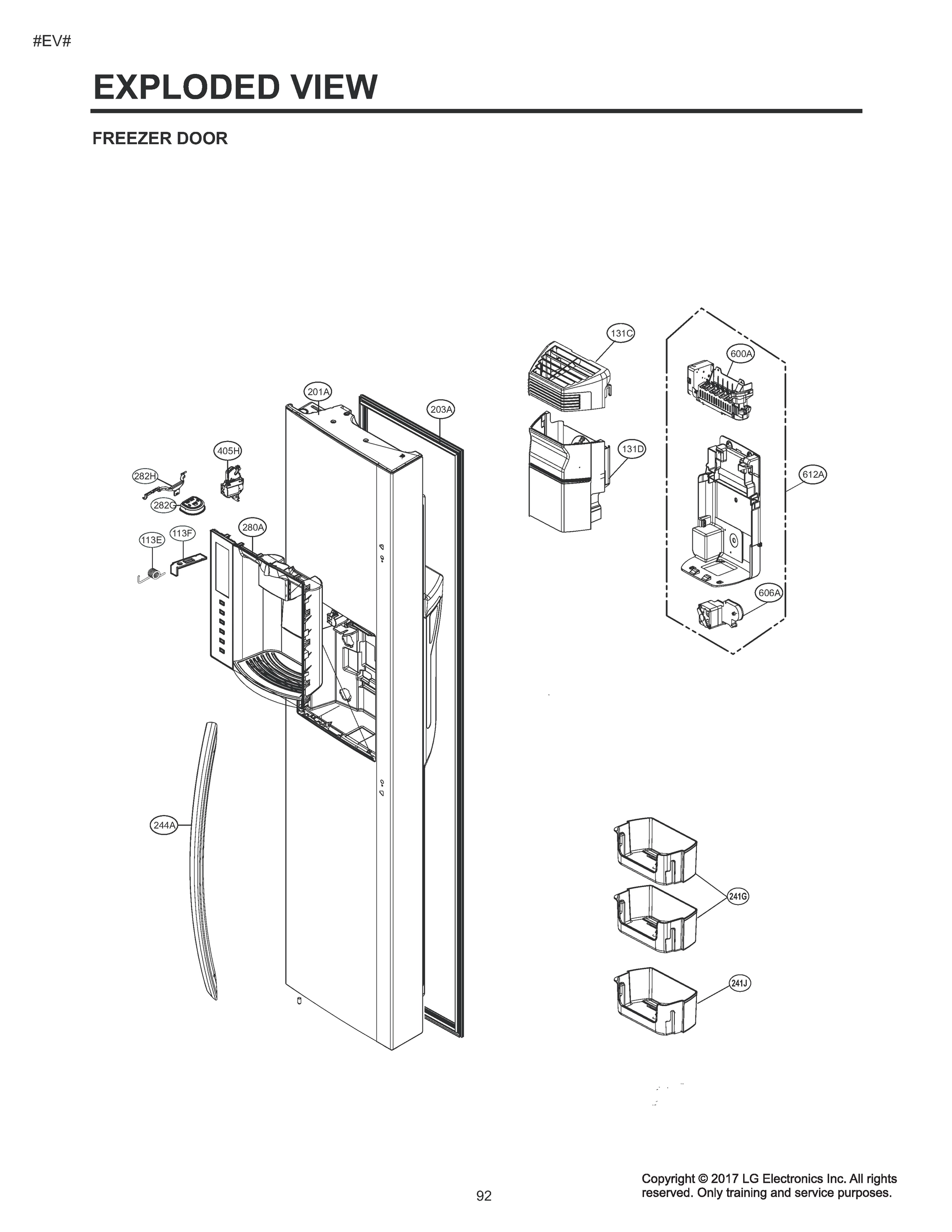

FREEZER DOOR

Print

• This Diagram
• All Diagrams

105A

5251JA3004E LG Drain Tube Assembly Backorder LGE 5251JA3004E View Details $20.36

View on Model

113E

4970JA3011K LG Refrigerator Lever Spring In Stock LGE 4970JA3011K View Details $6.99

View on Model

113F

4930JA3043A LG Refrigerator Holder Lever Backorder LGE 4930JA3043A View Details $6.99

View on Model

120A

ABQ73984011 LG Refrigerator Control Case Asse Backorder LGE ABQ73984011 View Details $182.28

View on Model

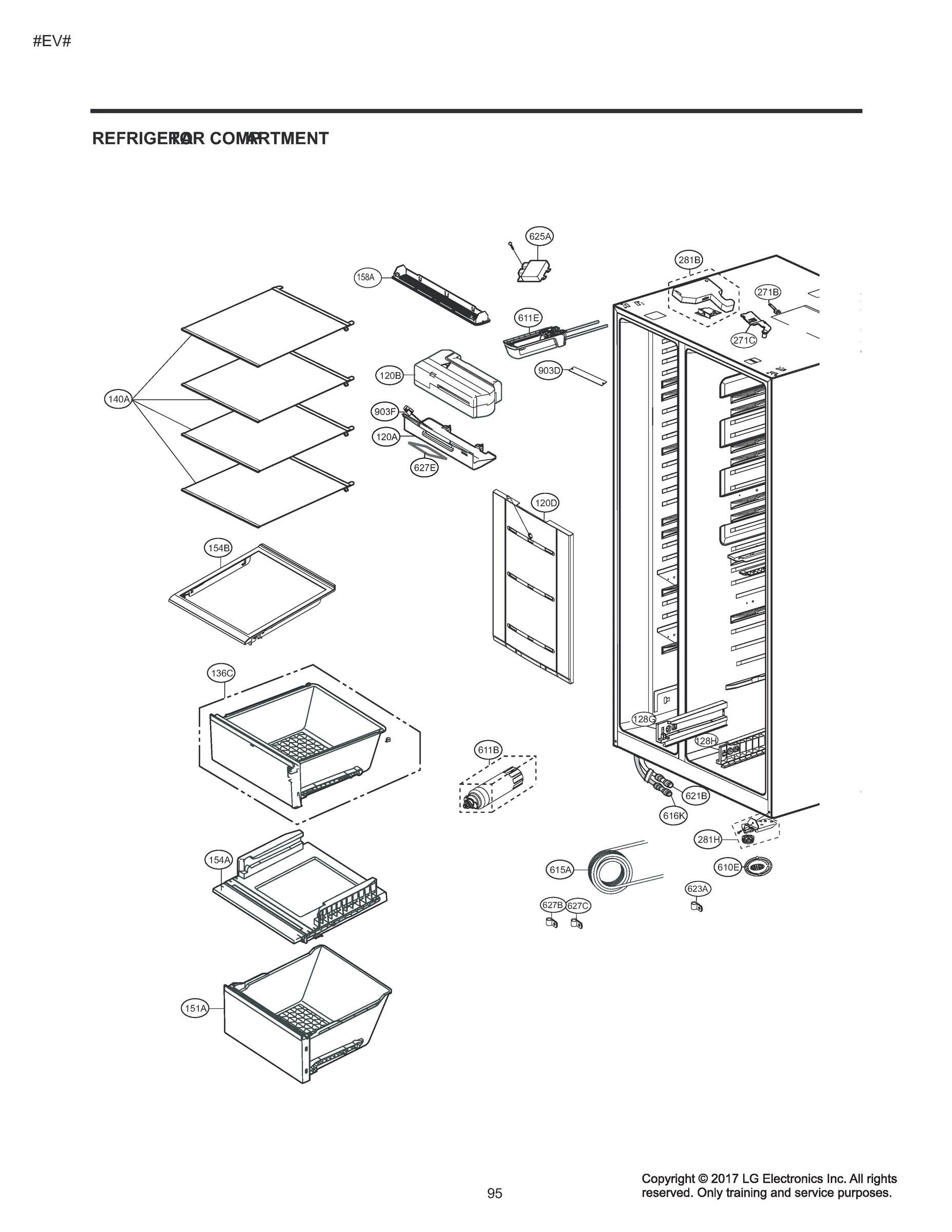

120B

ADJ73292206 LG Insulation Duct Assembly Backorder LGE ADJ73292206 View Details $182.28

View on Model

120D

ADJ73012203 LG Refrigerator Multi Duct Assemb Backorder LGE ADJ73012203 View Details $120.77

View on Model

131C

ACQ55756502 LG Refrigerator Bucket Cover Asse Backorder LGE ACQ55756502 View Details $64.02

View on Model

131D

AKC73029306 LG Refrigerator Ice Bucket Assemb In Stock LGE AKC73029306 View Details $355.17

View on Model

135D

MCK63310103 LG Duct Cover Backorder LGE MCK63310103 View Details $41.32

View on Model

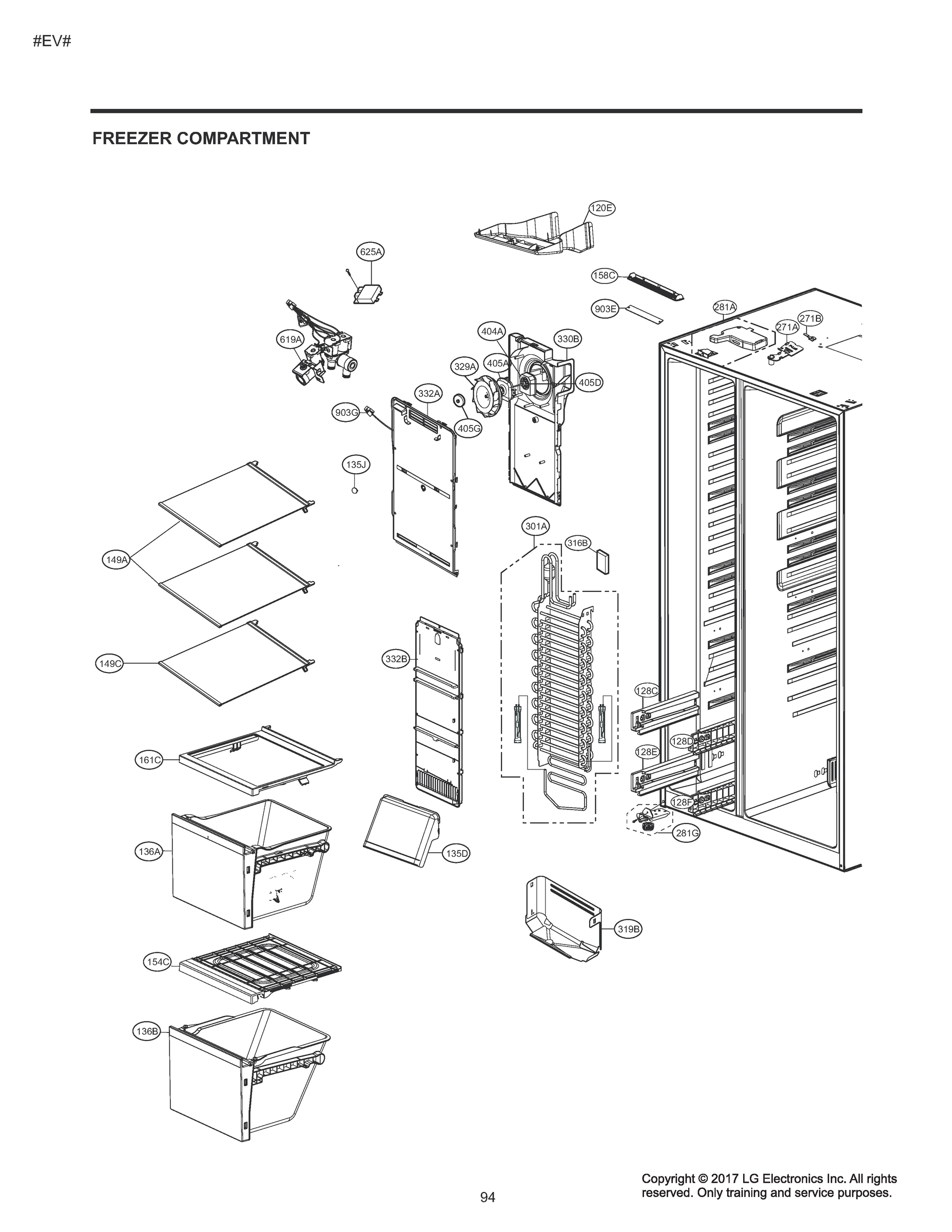

136A

AJP73595168 LG Refrigerator Drawer Tray Assem Backorder LGE AJP73595168 View Details $91.43

View on Model

154A

Cover Assembly,Tray LGE ACQ85968602 Contact Us For Availability

View on Model

203A

4987JJ1010Y LG Door Gasket Assembly Backorder LGE 4987JJ1010Y View Details $160.95

View on Model

212G

MFT62346511 LG Refrigerator Nameplate In Stock LGE MFT62346511 View Details $33.64

View on Model

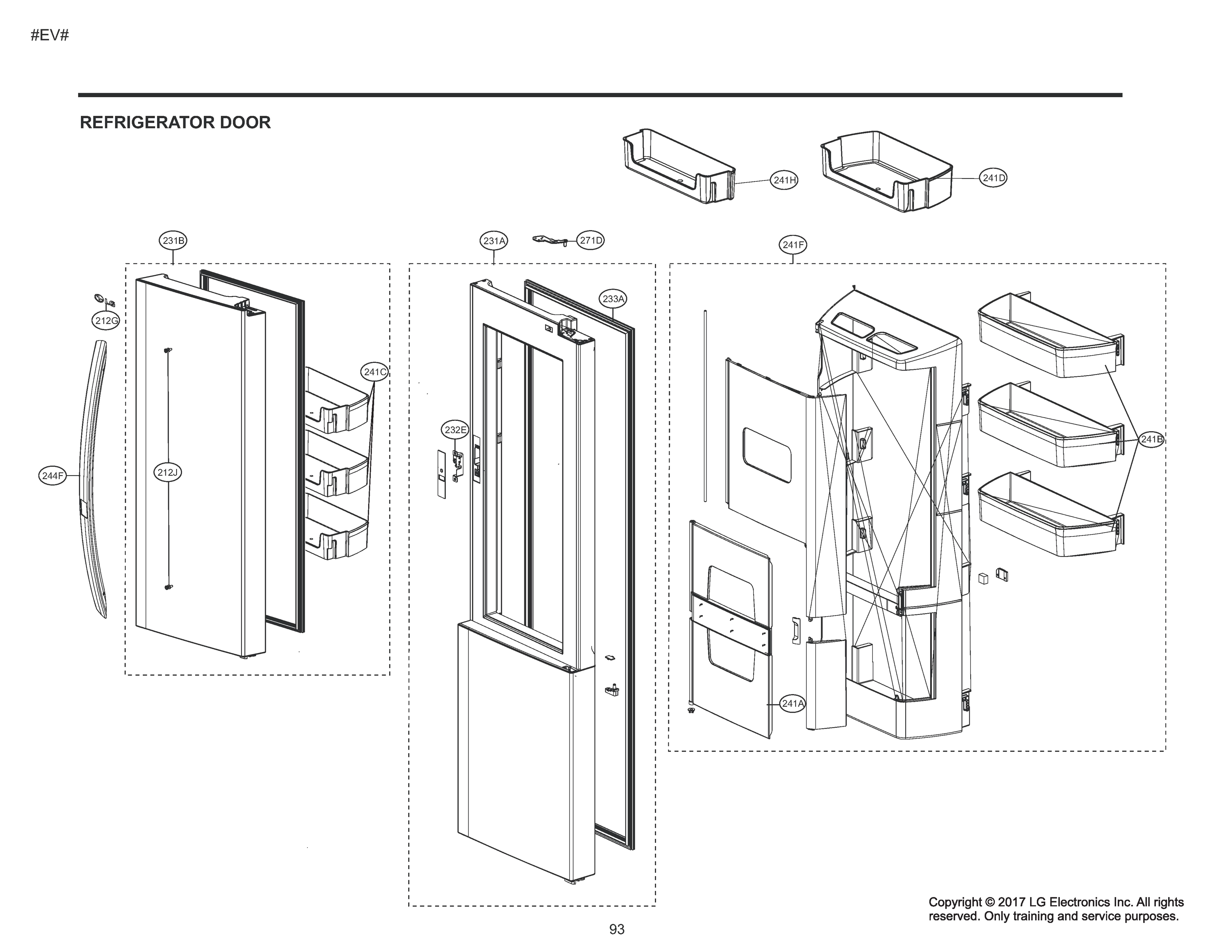

232E

AEJ73440302 LG Refrigerator Bracket Holder As Backorder LGE AEJ73440302 View Details $63.72

View on Model

233A

4987JJ1010Z LG Door Gasket Assembly Backorder LGE 4987JJ1010Z View Details $160.95

View on Model

241B

MAN63109001 LG Door Basket Backorder LGE MAN63109001 View Details $82.09

View on Model

241C

MAN63109301 LG Refrigerator Door Basket Backorder LGE MAN63109301 View Details $72.92

View on Model

241D

MAN63108801 LG Door Basket Backorder LGE MAN63108801 View Details $91.43

View on Model

241F

ABQ74662101 LG Home Bar Case Assembly In Stock LGE ABQ74662101 View Details $513.12

View on Model

241G

MAN63108601 LG Door Basket Backorder LGE MAN63108601 View Details $64.02

View on Model

241H

MAN63108701 LG Door Basket Backorder LGE MAN63108701 View Details $64.02

View on Model

244A

AED37082988 LG Refrigerator Handle Assembly Backorder LGE AED37082988 View Details $120.77

View on Model

244A

AED74732909 LG Refrigerator Handle Assembly Backorder LGE AED74732909 View Details $116.09

View on Model

244F

AED37082989 LG Refrigerator Left Door Handle Backorder LGE AED37082989 View Details $132.58

View on Model

244F

AED74732910 LG Refrigerator Handle Assembly Backorder LGE AED74732910 View Details $120.77

View on Model

271B

4510JA3004A LG Refrigerator Hinge Lever Backorder LGE 4510JA3004A View Details $6.99

View on Model

271C

AEH73957102 LG Upper Hinge Assembly Backorder LGE AEH73957102 View Details $26.27

View on Model

281B

ACQ87309246 LG Refrigerator Hinge Assembly Co Backorder LGE ACQ87309246 View Details $63.72

View on Model

281G

AEH75176202 LG Lower Hinge Assembly Backorder LGE AEH75176202 View Details $72.92

View on Model

301A

ADL73901333 LG Refrigerator Evaporator Assemb In Stock LGE ADL73901333 View Details $302.08

View on Model

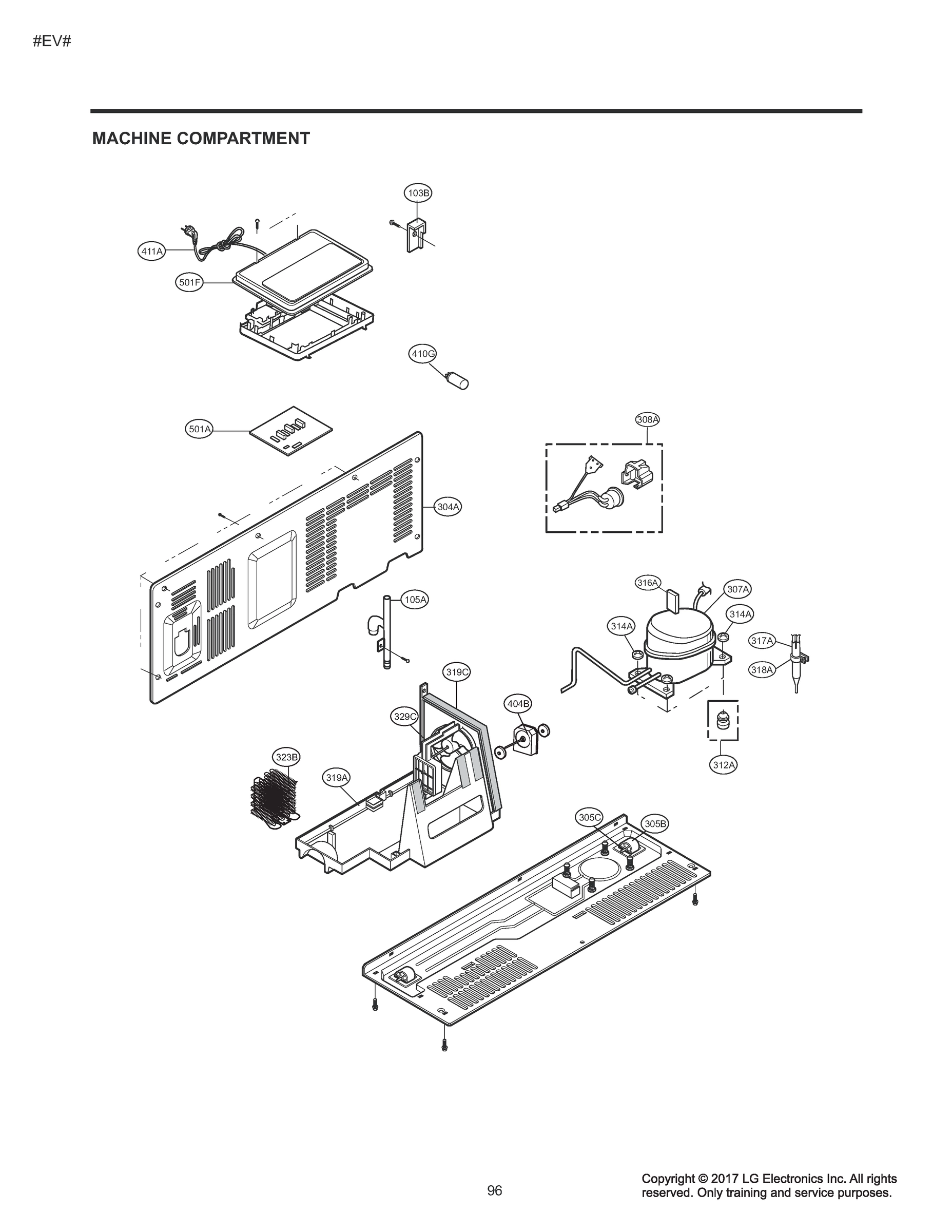

304A

ACQ86284806 LG Machinery Cover Assembly Backorder LGE ACQ86284806 View Details $64.02

View on Model

305C

1PZZJA3013B LG Common Pin In Stock LGE 1PZZJA3013B View Details $6.99

View on Model

307A

TCA38091801 LG Compressor FLS075LANA BR1NSVC In Stock LGE TCA38091801 View Details $453.84

View on Model

308A

Thermistor Assembly,PTC LGE EBG60663229 Contact Us For Availability

View on Model

314A

4620JA3015A LG Refrigerator Compressor Stoppe Backorder LGE 4620JA3015A View Details $6.99

View on Model

316A

5072JQ3002F LG Noise Damper Backorder LGE 5072JQ3002F View Details $5.56

View on Model

323B

ACG73748502 LG Wire Condenser Assembly In Stock LGE ACG73748502 View Details $187.15

View on Model

329A

ADP74753501 LG Refrigerator Fan Assembly Backorder LGE ADP74753501 View Details $20.36

View on Model

329C

ADP73273401 LG Fan Assembly Backorder LGE ADP73273401 View Details $26.27

View on Model

330B

MHN61882004 LG Freezer Shroud Refrigerator Backorder LGE MHN61882004 View Details $64.02

View on Model

332B

AEB72984718 LG Refrigerator Fan Grille Assemb Backorder LGE AEB72984718 View Details $160.95

View on Model

404A

EAU63103201 LG DC Motor Backorder LGE EAU63103201 View Details $91.43

View on Model

404B

EAU63103301 LG DC Motor Backorder LGE EAU63103301 View Details $99.89

View on Model

405D

5040JA2009B LG Refrigerator Damper Support Mo Backorder LGE 5040JA2009B View Details $6.99

View on Model

405G

5040JA2004B LG Refrigerator Motor Rubber Grom Backorder LGE 5040JA2004B View Details $6.99

View on Model

405H

EAU59551204 LG Refrigerator Dispenser Motor In Stock LGE EAU59551204 View Details $64.02

View on Model

410G

EAE58905704 LG Electric Appliance Capacitor In Stock LGE EAE58905704 View Details $53.65

View on Model

411A

EAD61857359 LG Refrigerator Power Cord Assemb Backorder LGE EAD61857359 View Details $63.72

View on Model

501A

EBR87145168 LG Refrigerator Main PCB Assembly Backorder LGE EBR87145168 View Details $372.17

View on Model

501F

ACQ85612409 LG Refrigerator Printed Circuit B Backorder LGE ACQ85612409 View Details $207.65

View on Model

600A

AEQ73209906 LG Ice Maker Assembly Kit In Stock LGE AEQ73209906 View Details $228.22

View on Model

606A

EAU64063301 LG Indoor DC Motor Assembly In Stock LGE EAU64063301 View Details $120.77

View on Model

611B

ADQ73613401 LG Refrigerator Water Filter Cart In Stock LGE ADQ73613401 View Details $50.98

View on Model

611E

ADQ73973201 LG Water Filter Assembly In Stock LGE ADQ73973201 View Details $120.77

View on Model

612A

EAU61004412 LG Dispenser AC Motor In Stock LGE EAU61004412 View Details $295.52

View on Model

615A

MJM61904708 LG Refrigerator Water Tank Backorder LGE MJM61904708 View Details $99.89

View on Model

616K

4932JA3002B LG Connector Tube In Stock LGE 4932JA3002B View Details $11.10

View on Model

621B

4932JA3002C LG Tube Connector Backorder LGE 4932JA3002C View Details $16.64

View on Model

903D

EAV61875815 LG LED Assembly Backorder LGE EAV61875815 View Details $72.92

View on Model

903E

EAV61875814 LG LED Assembly Backorder LGE EAV61875814 View Details $63.72

View on Model

903F

6500JB2008Z LG Temperature Sensor Backorder LGE 6500JB2008Z View Details $20.36

View on Model

903G

6500JB1008D LG Temperature Sensor In Stock LGE 6500JB1008D View Details $41.32

View on Model

×
