Model LG LST-5600A 52' – Common Parts & Diagrams
Diagram 0
Diagram 1
Diagram 2

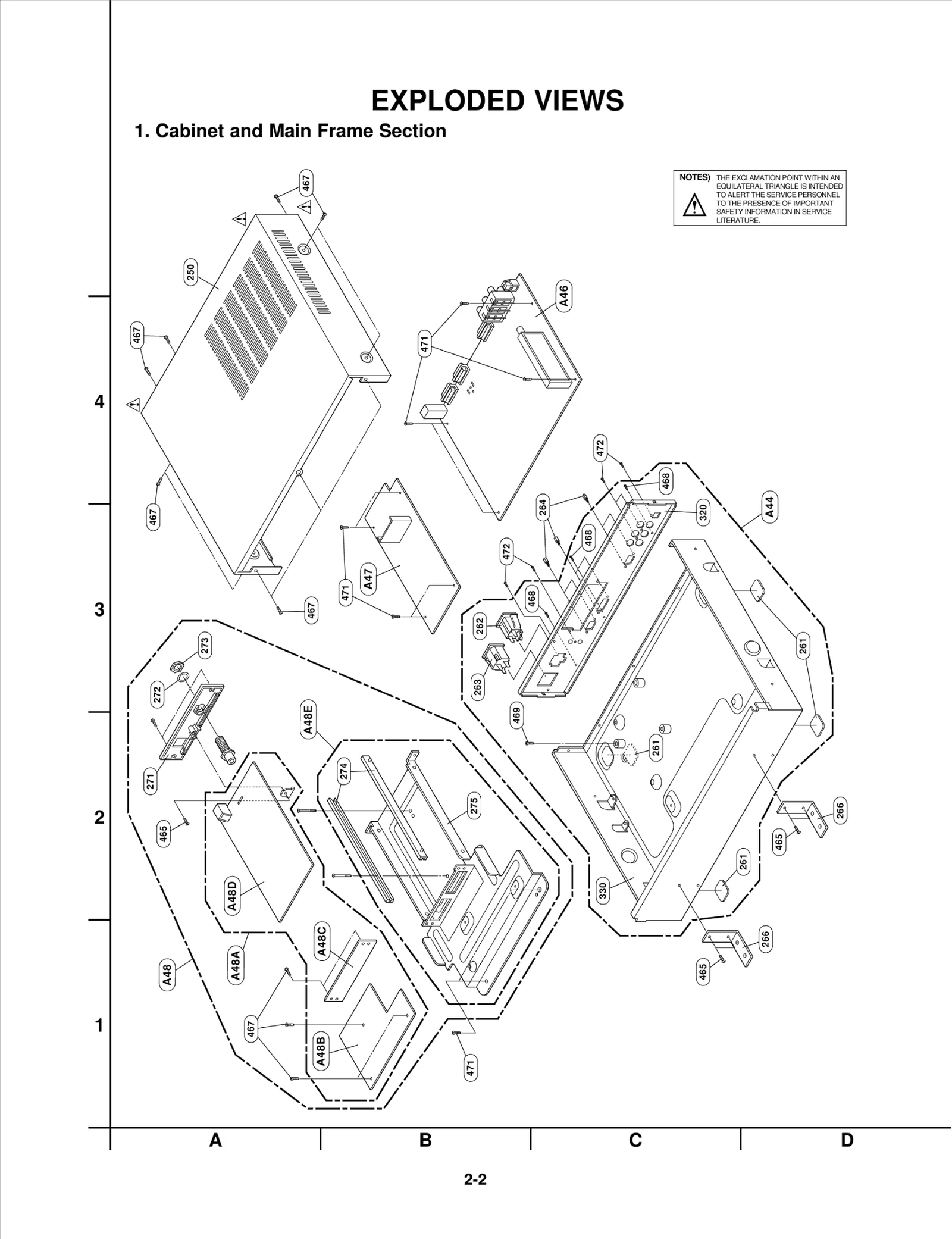

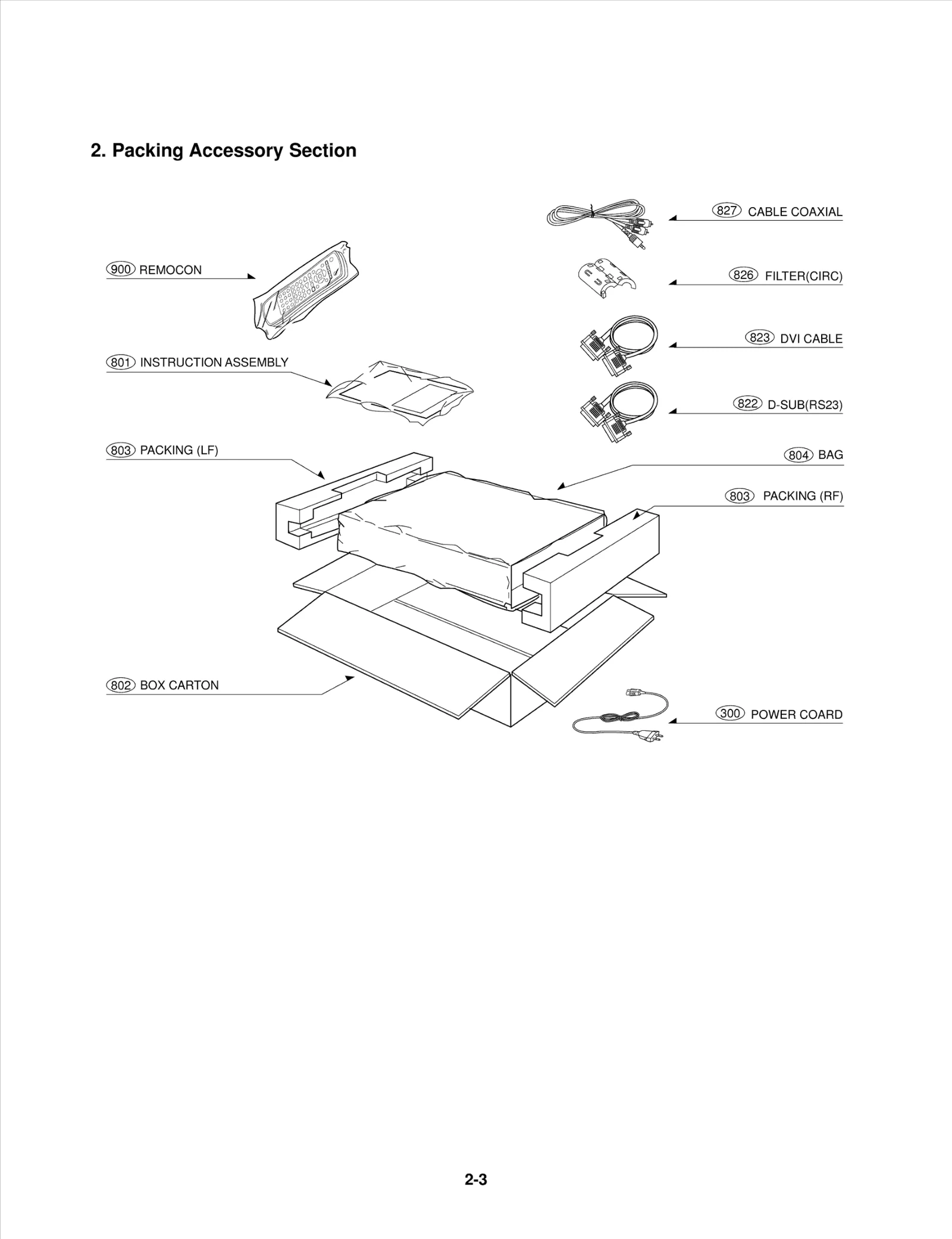

Common parts from model LG LST-5600A 52'
250
CASE LGE 3110R-V030B Contact Us For Availability
262
LGE 6620K00006A LGE 6620K00006A Contact Us For Availability
263
LGE 6631R-Y014A LGE 6631R-Y014A Contact Us For Availability
266
BRACKET LGE 4810R-0252A Contact Us For Availability
271
PLATE ASSEMBLY LGE 3301R-B001A Contact Us For Availability
272
WASHER,SPRING LOCK LGE 1WSV1200084 Contact Us For Availability
273
NUT,HEXAGON LGE 1NHD8220060 Contact Us For Availability
274
LGE 4930R-0500A LGE 4930R-0500A Contact Us For Availability
275
BRACKET LGE 4810R-0307A Contact Us For Availability
320
PANEL,VIDEO LGE 3720R-D131A Contact Us For Availability
330
CHASSIS LGE 3140R-V011C Contact Us For Availability
465
SCREW,DRAWING LGE 1SZZR-0097K Contact Us For Availability
467
SCREW,DRAWING LGE 1SZZR-0098G Contact Us For Availability
468
SCREW,DRAWING LGE 1SZZR-0097N Contact Us For Availability
469
SCREW,DRAWING LGE 1SZZR-0076A Contact Us For Availability
471
SCREW,DRAWING LGE 1SZZR-0098H Contact Us For Availability
472
SCREW,DRAWING LGE 1SZZR-0098K Contact Us For Availability
801
INSTRUCTION ASSEMBLY LGE 3835RB0002K Contact Us For Availability
802
BOX LGE 3890R-C120V Contact Us For Availability
803
PACKING LGE 3920R-E109A Contact Us For Availability
804
Sheet LGE 3858R-S001A Contact Us For Availability
822
CABLE,D-SUB LGE 6850R-TIA81 Contact Us For Availability
823
CABLE,COAXIAL LGE 6850R-ZAC06 Contact Us For Availability
826
FILTER(CIRC) LGE 6200RJB002B Contact Us For Availability
827
CABLE,COAXIAL LGE 6850R-NAA81 Contact Us For Availability
900
REMOTE CONTROLLER RE LGE 6712000003A Contact Us For Availability
A44
CHASSIS ASSEMBLY LGE 3141R-B001J Contact Us For Availability
A46
PWB(PCB) ASSEMBLY,TO LGE 6871R-3955A Contact Us For Availability
A47
BOARD ASSEMBLY LGE 3501R-2259A Contact Us For Availability
A48
BOARD ASSEMBLY LGE 3501R-3813A Contact Us For Availability
A48A
PWB(PCB) ASSEMBLY,TO LGE 6871R-3813A Contact Us For Availability
A48B
HAND INS PWB(PCB) AS LGE 6874RP3814A Contact Us For Availability
A48C
HAND INS PWB(PCB) AS LGE 6874RB3815A Contact Us For Availability
A48D
HAND INS PWB(PCB) AS LGE 6874RM3813A Contact Us For Availability
A48E
BRACKET ASSEMBLY LGE 4811R-0265A Contact Us For Availability
AR114
Resistor,Array LGE 0RRZVTA001M Contact Us For Availability
AR114
Resistor,Array LGE 0RRZVTA001J Contact Us For Availability
AR405
LGE 0RRZVTA001K LGE 0RRZVTA001K Contact Us For Availability
BD01
Filter,Bead LGE 636-004C Contact Us For Availability
BD101
DIODE S1WBA60 (1A 600V) LGE 0DD160000DA Contact Us For Availability
C100
Capacitor,Ceramic,Radial,Disc LGE 624-087H Contact Us For Availability
C102
CAPACITOR PCX2 275V 0.1UF M (P LGE 624-088F Contact Us For Availability
C103
CAPACITOR,AL.ELECTRO LGE 0CE107EF638 Contact Us For Availability
C103
CAPACITOR,FIXED ELEC LGE 0CE227JR6A0 Contact Us For Availability
C105
CAPACITOR,POLYESTER LGE 0CQ1031Y519 Contact Us For Availability
C108
Capacitor,AL,Radial LGE 0CE1064K638 Contact Us For Availability
C109
Capacitor,Film,DIP LGE 0CQ4731N409 Contact Us For Availability
C110
CAPACITOR,SEMI CERAM LGE 0CG1020U630 Contact Us For Availability
C111
Capacitor,Ceramic,Radial,Y-Cap LGE 0CG2220U630 Contact Us For Availability
C112
Capacitor,Ceramic,Axial LGE 0CN223AK948 Contact Us For Availability
C113
Capacitor,Ceramic,Axial LGE 0CN4710K518 Contact Us For Availability
C120
ELECTROLYTIC 1.0M SRA/ (*NSP) LGE 0CE1054K638 Contact Us For Availability
C122
CAPACITOR,FIXED ELEC LGE 0CE2282F611 Contact Us For Availability
C123
Capacitor,AL,Radial LGE 624-082H Contact Us For Availability
C129
Capacitor,AL,Radial LGE 624-085D Contact Us For Availability
C134
Capacitor,AL,Radial LGE 0CE108EH610 Contact Us For Availability
C154
Capacitor,AL,Radial LGE 0CE1074F638 Contact Us For Availability
C162
CAPACITOR,CHIP[AL. E LGE 0CH8106F611 Contact Us For Availability
C200
Capacitor,AL,Radial LGE 0CE106BK638 Contact Us For Availability
C204
Capacitor,AL,Radial LGE 0CE105BK638 Contact Us For Availability
C224
Capacitor,Ceramic,Chip LGE 0CH1473K942 Contact Us For Availability
C230
Capacitor,Ceramic,Chip LGE 0CH4331K412 Contact Us For Availability
C284
Capacitor,Ceramic,Chip LGE 0CH4330K412 Contact Us For Availability
C314
Capacitor,Ceramic,Chip LGE 0CH4270K412 Contact Us For Availability
C462
Capacitor,Ceramic,Chip LGE 0CH1103K562 Contact Us For Availability
C507
Capacitor,Ceramic,Chip LGE 0CH1102K562 Contact Us For Availability
C545
CHIP CAPA CERAMIC M/L T.C F/S LGE 0CH4470K412 Contact Us For Availability
C582
CAPACITOR,FIXED CERA LGE 0CH1823K512 Contact Us For Availability
C583
Capacitor,Ceramic,Chip LGE 0CH1822K512 Contact Us For Availability
C617
Capacitor,Ceramic,Chip LGE 0CH4100K412 Contact Us For Availability
C619
Capacitor,Ceramic,Chip LGE 0CH1474K562 Contact Us For Availability
C630
Capacitor,Ceramic,Chip LGE 0CH4471K412 Contact Us For Availability
C706
Capacitor,Ceramic,Chip LGE 0CH4560K412 Contact Us For Availability
C708
Capacitor,Ceramic,Chip LGE 0CH4020K012 Contact Us For Availability
C712
Capacitor,Ceramic,Chip LGE 0CH1222K562 Contact Us For Availability
C754
CAPACITOR,CHIP[AL. ELECTROLYTI LGE 0CH8226F611 Contact Us For Availability
C767
CAPACITOR,CHIP[AL. E LGE 0CH8476F611 Contact Us For Availability
C824
CAPACITOR,FIXED CERA LGE 0CK225CFK7A Contact Us For Availability
C825
Capacitor,Ceramic,Chip LGE 0CH1105F942 Contact Us For Availability
C931
Capacitor,Ceramic,Chip LGE 0CH4101K412 Contact Us For Availability
C936
Capacitor,Ceramic,Chip LGE 0CH1101K965 Contact Us For Availability
C958
CAPACITOR,CHIP[AL. ELECTROLYTI LGE 0CH8107F611 Contact Us For Availability
C966
CAPACITOR,FIXED CERAMIC(Temp.c LGE 0CH1104K512 Contact Us For Availability
C984
LGE 0CE227BK610 LGE 0CE227BK610 Contact Us For Availability
CN100
CONNECTOR (CIRC),BOA LGE 6630BL01511 Contact Us For Availability
CN200
CONNECTOR ASSEMBLY LGE 6631R-F010T Contact Us For Availability
CN201
CONNECTOR ASSEMBLY LGE 6631R-F010S Contact Us For Availability
CN202
LGE 561-715F LGE 561-715F Contact Us For Availability
CN202
LGE 561-715E LGE 561-715E Contact Us For Availability
CN203
Connector,Wafer LGE 561-715H Contact Us For Availability
CN203
CONNECTOR (CIRC),WAF LGE 561-715K Contact Us For Availability
CN300
LGE 561-716K LGE 561-716K Contact Us For Availability
CN301
CONNECTOR (CIRC),BOA LGE 6630BL01611 Contact Us For Availability
D101
DIODE LGE 0DD010009CA Contact Us For Availability
D101
DIODE LGE 0DD221009AA Contact Us For Availability
D105
DIODE 1SS133 DETECT, SW TP LGE 0DD133009AA Contact Us For Availability
D121
BRACKET ASSEMBLY LGE 4811R-0043A Contact Us For Availability
D126
DIODE,RECTIFIER LGE 0DR104009BA Contact Us For Availability
D129
Diode,Schottky LGE 0DR104510AB Contact Us For Availability
D129
DIODE,RECTIFIERS LGE 0DRSA00020A Contact Us For Availability
D129
DIODE,RECTIFIERS LGE 0DRFC00091A Contact Us For Availability
D502
DIODE,DETACTOR LGE 0DTSE00018A Contact Us For Availability
D901
DIODE,RECTIFIERS LGE 0DRGF00320A Contact Us For Availability
DL202
LED LGE 0DL210008GA Contact Us For Availability
FB101
Filter,Bead LGE 0LCCE00003C Contact Us For Availability
FB202
INDUCTOR,CHIP LGE 0LCCE00019A Contact Us For Availability
FB802
INDUCTOR,CHIP LGE 0LC11608C01 Contact Us For Availability
FH01
HOLDER FUSE LGE 586-008B Contact Us For Availability
IC101
IC,MICRO CONTROLLER LGE 0IMCRBM003A Contact Us For Availability
IC101
LGE 0IPMGSK002A LGE 0IPMGSK002A Contact Us For Availability
IC102
SENSOR LTV-817B PHOTO COUPLER LGE 657-063A Contact Us For Availability
IC103
IC,MEMORIES LGE 0IMMREB004A Contact Us For Availability
IC103
IC KEC, KIA431, GVR-C435/R-E4 LGE 0IKE431000A Contact Us For Availability
IC103
IC,Voltage Regulator LGE 0ISS431000A Contact Us For Availability
IC104A,IC1
PROGRAM LGE 6957R-3955A Contact Us For Availability
IC106
IC LGE 0IPH741400E Contact Us For Availability
IC151
IC,KEC LGE 0IKE781200S Contact Us For Availability
IC151
IC,LDO Voltage Regulator LGE 0IPMGFA017A Contact Us For Availability
IC151
IC,POWER MANAGEMENT LGE 0IPMGSH010A Contact Us For Availability
IC153
IC,POWER MANAGEMENT LGE 0IPMGKE018A Contact Us For Availability
IC153
LGE 0IPMGFA032A LGE 0IPMGFA032A Contact Us For Availability
IC200
IC,FRAM LGE 0IMMRRA001A Contact Us For Availability
IC201
IC,STANDARD LOGIC LGE 0ISTLAT004A Contact Us For Availability
IC201
LGE 0IPMGTI011A LGE 0IPMGTI011A Contact Us For Availability
IC202
LGE 0IMCRMO038A LGE 0IMCRMO038A Contact Us For Availability
IC203
IC,MICRO CHIP TECHNO LGE 0IMP242560A Contact Us For Availability
IC204
IC,Transceiver LGE 0IPRPTI015A Contact Us For Availability
IC204
IC,LDO Voltage Regulator LGE 0IMX232162A Contact Us For Availability
IC212
LGE 0IPRPPH023A LGE 0IPRPPH023A Contact Us For Availability
IC301
IC,STANDARD LOGIC LGE 0ISTLSG003A Contact Us For Availability
IC400
IC,CUSTOMIZED LGE 0ICTMLG009C Contact Us For Availability
IC405
IC,MEMORIES LGE 0IMMRHY025A Contact Us For Availability
IC500
LGE 0IPRPS2002A LGE 0IPRPS2002A Contact Us For Availability
IC501
IC,PERIPHERALS LGE 0IPRPPH012A Contact Us For Availability
IC503
LGE 0TFFC80001A LGE 0TFFC80001A Contact Us For Availability
IC504
IC,PERIPHERALS LGE 0IPRPAD008A Contact Us For Availability
IC505
IC,STANDARD LOGIC LGE 0ISTLPH026A Contact Us For Availability
IC506
IC,Multiplexer LGE 0ITO741570C Contact Us For Availability
IC604
IC,Display Driver LGE 0IPRPTK001A Contact Us For Availability
IC606
IC,LINEAR LGE 0ILNRMN005A Contact Us For Availability
IC608
IC,PERIPHERALS LGE 0IPRP00590A Contact Us For Availability
IC611
LGE 0ISTLTI034A LGE 0ISTLTI034A Contact Us For Availability
IC615
IC,PERIPHERALS LGE 0IPRP00535A Contact Us For Availability
IC701
IC,LINEAR LGE 0ILNRMN004D Contact Us For Availability
IC702
IC,OP Amplifier LGE 0IMO330780B Contact Us For Availability
IC703
IC,POWER MANAGEMENT LGE 0IPMGKE016A Contact Us For Availability
IC801
IC,STANDARD LOGIC LGE 0ISTL00017A Contact Us For Availability
IC802
IC,MEMORIES LGE 0IMMR00013A Contact Us For Availability
IC950
LGE 4811R-0042P LGE 4811R-0042P Contact Us For Availability
IC951
IC,LDO Voltage Regulator LGE 0IPMGKE031A Contact Us For Availability
IC952
IC,POWER MANAGEMENT LGE 0IPMGKE030A Contact Us For Availability
IC955
LGE 0IPMGSJ014A LGE 0IPMGSJ014A Contact Us For Availability
IC958
IC,Voltage Regulator LGE 0IPMGKE033A Contact Us For Availability
IC959
IC,POWER MANAGEMENT LGE 0IPMGKE032A Contact Us For Availability
IC960
LGE 0IPMGSJ012A LGE 0IPMGSJ012A Contact Us For Availability
JA100
JACK,MODULAR LGE 6612E00028A Contact Us For Availability
JA200
JACK,PHONE LGE 6612F00048A Contact Us For Availability
JA500
CONNECTOR(CIRC),DRAW LGE 6630R-SY08X Contact Us For Availability
JA600
JACK,RCA LGE 6612J10008A Contact Us For Availability
JA701
JACK,FIBER OPTIC LGE 6612K00003D Contact Us For Availability
L101
FILTER(CIRC),EMC LGE 6200RLB007C Contact Us For Availability
L102
FILTER(CIRC) LGE 616-145H Contact Us For Availability
L121
COIL,RF LGE 6140RCC009A Contact Us For Availability
L122
Coil,Choke LGE 633-088D Contact Us For Availability
L123
COIL,CHOKE LGE 633-088G Contact Us For Availability
L201
LGE 0LCTD00021B LGE 0LCTD00021B Contact Us For Availability
L203
LGE 0LCTD00021A LGE 0LCTD00021A Contact Us For Availability
L605
Inductor,Wire Wound,Chip LGE 6140RF0005X Contact Us For Availability
P101
Connector,Wafer LGE 561-715L Contact Us For Availability
P101
CONNECTOR (CIRC),WAF LGE 6630VL01016 Contact Us For Availability
P102
CONNECTOR ASSEMBLY LGE 6631R-F010U Contact Us For Availability
P200
CONNECTOR (CIRC),WAF LGE 6630VL01002 Contact Us For Availability
P201
CONNECTOR (CIRC),WAF LGE 6630V602506 Contact Us For Availability
P203
CONNECTOR (CIRC),WAF LGE 6630VL01010 Contact Us For Availability
PR200
FUSE,SLOW BLOW LGE 0FS5000EHA8 Contact Us For Availability
PW101
Connector,Wafer LGE 6630VM01502 Contact Us For Availability
Q201
TR,Bipolar LGE 0TRKE80040A Contact Us For Availability
Q205
TR,Bipolar LGE 0TRON80002A Contact Us For Availability
Q300
TRANSISTOR,BIPOLARS LGE 0TRKE80039A Contact Us For Availability
Q702
LGE 0TR101009AD LGE 0TR101009AD Contact Us For Availability
Q705
TRANSISTOR CHIP KTC3875S-Y-T1( LGE 0TR387509AB Contact Us For Availability
R100
RESISTOR,FIXED CARBON FILM LGE 0RD1504H632 Contact Us For Availability
R102
LGE 0RD1803F608 LGE 0RD1803F608 Contact Us For Availability
R103
RESISTOR,FIX METAL FILM OXIDE LGE 0RS5602K619 Contact Us For Availability
R105
RESISTOR CHIP 220 1/10W 5 D.R LGE 0RH2200D622 Contact Us For Availability
R105
RESISTOR FIXED CARBON FILM 10 LGE 0RD0102F608 Contact Us For Availability
R106
Resistor,Carbon Film LGE 0RD6800F608 Contact Us For Availability
R107
RESISTOR 2.7/2W CEMENT SMPS V LGE 614-007A Contact Us For Availability
R108
FIXED CARBON FILM 4.7K UG8*NSP LGE 0RD4701F608 Contact Us For Availability
R117
Resistor,Chip LGE 0RH2202C622 Contact Us For Availability
R119
Resistor,Chip LGE 0RH1004C622 Contact Us For Availability
R121
Resistor,Carbon Film LGE 0RD1800F608 Contact Us For Availability
R122
Resistor,Carbon Film LGE 0RD2201F608 Contact Us For Availability
R124
Resistor,Metal Film LGE 0RN1801F408 Contact Us For Availability
R125
Resistor,Metal Film LGE 0RN3301F408 Contact Us For Availability
R126
LGE 0RD1200F608 LGE 0RD1200F608 Contact Us For Availability
R128
RESISTOR FIXED CARBON FILM 100 LGE 0RD1003F608 Contact Us For Availability
R129
LGE 0RF0300F708 LGE 0RF0300F708 Contact Us For Availability
R157
RESISTOR FIXED CARBON FILM 3.9 LGE 0RD3901F608 Contact Us For Availability
R161
Resistor,Carbon Film LGE 0RD2200F608 Contact Us For Availability
R164
RESISTOR,CHIP LGE 0RH1001C622 Contact Us For Availability
R206
RESISTOR,CHIP LGE 0RH1000C622 Contact Us For Availability
R229
Resistor,Chip LGE 0RH1003C622 Contact Us For Availability
R246
Resistor,Chip LGE 0RH5601C622 Contact Us For Availability
R248
Resistor,Chip LGE 0RH4700C622 Contact Us For Availability
R265
Resistor,Chip LGE 0RH0222C622 Contact Us For Availability
R278
Resistor,Chip LGE 0RH1501C622 Contact Us For Availability
R288
RESISTOR,METAL GLAZED(CHIP) LGE 0RH0102G622 Contact Us For Availability
R298
Resistor,Chip LGE 0RH2200C622 Contact Us For Availability
R302
RESISTOR,CHIP LGE 0RH1200C622 Contact Us For Availability
R309
Resistor,Chip LGE 0RH2201C622 Contact Us For Availability
R310
Resistor,Chip LGE 0RH3301C622 Contact Us For Availability
R312
Resistor,Chip LGE 0RH2700C622 Contact Us For Availability
R418
Resistor,Chip LGE 0RH4701C622 Contact Us For Availability
R430
Resistor,Chip LGE 0RH0752C622 Contact Us For Availability
R437
Resistor,Chip LGE 0RH1800C622 Contact Us For Availability
R438
Resistor,Chip LGE 0RH0392C622 Contact Us For Availability
R502
RESISTOR,CHIP LGE 0RH1002C622 Contact Us For Availability
R504
Resistor,Chip LGE 0RJ4300C677 Contact Us For Availability
R510
Resistor,Chip LGE 0RH5100C622 Contact Us For Availability
R517
Resistor,Chip LGE 0RH0272C622 Contact Us For Availability
R550
Resistor,Chip LGE 0RH2701C622 Contact Us For Availability
R620
Resistor,Chip LGE 0RH4703C622 Contact Us For Availability
R656
LGE 0RJ6202C677 LGE 0RJ6202C677 Contact Us For Availability
R657
RESISTOR,CHIP LGE 0RH0682C622 Contact Us For Availability
R660
RESISTOR,CHIP LGE 0RH0472C622 Contact Us For Availability
R666
Resistor,Chip LGE 0RH0332C622 Contact Us For Availability
R671
Resistor,Chip LGE 0RH1500C622 Contact Us For Availability
R677
Resistor,Chip LGE 0RH7502C622 Contact Us For Availability
R681
Resistor,Chip LGE 0RH6803C622 Contact Us For Availability
R708
Resistor,Chip LGE 0RH2001C622 Contact Us For Availability
R715
RH 47K-J 1/16W GVC-F475,F477 LGE 0RH4702C622 Contact Us For Availability
R720
Resistor,Chip LGE 0RH1201C622 Contact Us For Availability
R815
Resistor,Chip LGE 0RH0000C622 Contact Us For Availability
R950
RESISTOR,VARIABLE[CA LGE 0RF1000H645 Contact Us For Availability
R951
Resistor,Chip LGE 0RH1502C622 Contact Us For Availability
R1604
RESISTOR,METAL GLAZE LGE 0RH9101C422 Contact Us For Availability
R1614
Resistor,Chip LGE 0RH7500C622 Contact Us For Availability
SW101
SWITCH,TACT LGE 6600RRT002W Contact Us For Availability
T101
TRANSFORMER,SMPS[COI LGE 6170RNGW15J Contact Us For Availability
T210
FILTER(CIRC),EMI LGE 6200VJT006A Contact Us For Availability
T612
Filter,LCR LGE 6200VJT001A Contact Us For Availability
T950
FILTER,EMI LGE 6200VJB001A Contact Us For Availability
TU300
TUNER LGE 6700NB0014A Contact Us For Availability
V101
VARISTOR LGE 656-004C Contact Us For Availability
X101
LGE 6204A42500C LGE 6204A42500C Contact Us For Availability
X102
LGE 6204A43686C LGE 6204A43686C Contact Us For Availability
X200
LGE 6204B47372Z LGE 6204B47372Z Contact Us For Availability
X600
LGE 6212AB2270D LGE 6212AB2270D Contact Us For Availability
X601
RESONATOR,CRYSTAL LGE 6212AB2010A Contact Us For Availability
X701
LGE 6212AB2008A LGE 6212AB2008A Contact Us For Availability
X801
LGE 6204B42700C LGE 6204B42700C Contact Us For Availability
ZD152
DIODE,ZENERS LGE 0DZ332609BA Contact Us For Availability
× ![]()
Login and Registration Form
