Model LG LST-4600A ' MDP – Common Parts & Diagrams

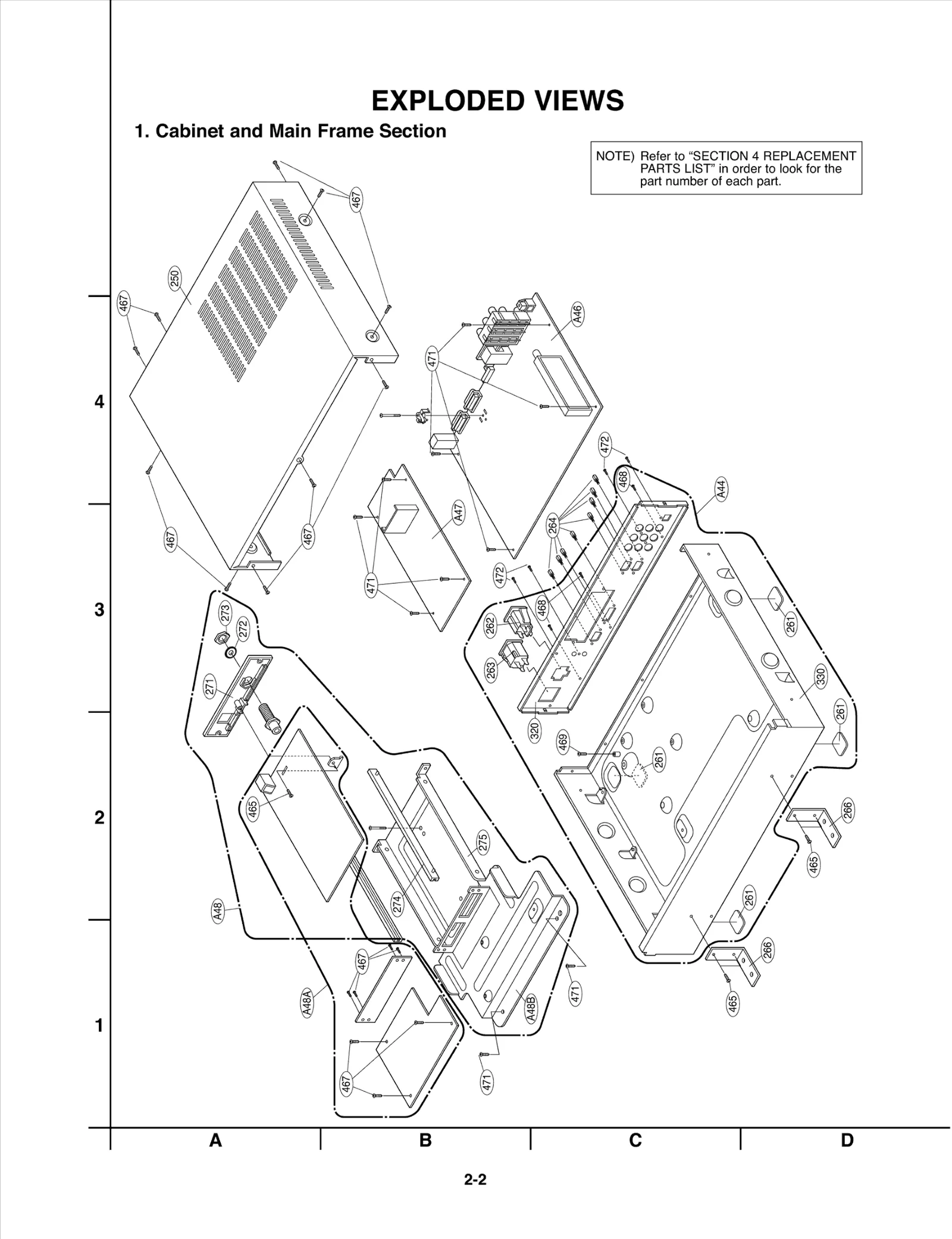

Diagram 0
Diagram 1
Common parts from model LG LST-4600A ' MDP
250
CASE LGE 3110R-V030B Contact Us For Availability
261
LGE 5040R-0069F LGE 5040R-0069F Contact Us For Availability
262
LGE 6620K00006A LGE 6620K00006A Contact Us For Availability
263
LGE 6631R-Y014A LGE 6631R-Y014A Contact Us For Availability
266
LGE 4811R-0252A LGE 4811R-0252A Contact Us For Availability
271
PLATE ASSEMBLY LGE 3301R-B001A Contact Us For Availability
272
WASHER,SPRING LOCK LGE 1WSV1200084 Contact Us For Availability
273
NUT,HEXAGON LGE 1NHD8220060 Contact Us For Availability
274
LGE 4930R-0500A LGE 4930R-0500A Contact Us For Availability
275
LGE 4810R-0233A LGE 4810R-0233A Contact Us For Availability
320
PANEL,VIDEO LGE 3720R-D109A Contact Us For Availability
330
CHASSIS LGE 3140R-V011B Contact Us For Availability
467
SCREW,DRAWING LGE 353-051G Contact Us For Availability
469
SCREW,DRAWING LGE 1SZZR-0076A Contact Us For Availability
471
SCREW,DRAWING LGE 353-051H Contact Us For Availability
472
SCREW,DRAWING LGE 353-051K Contact Us For Availability
801
LGE 3835RB0001Q LGE 3835RB0001Q Contact Us For Availability
802
BOX LGE 3890R-C120P Contact Us For Availability
803
LGE 3920R-E115A LGE 3920R-E115A Contact Us For Availability
804
Sheet LGE 3858R-S001A Contact Us For Availability
806
CABLE,COAXIAL LGE 6850R-NAA81 Contact Us For Availability
822
CABLE,D-SUB LGE 6850R-TIA81 Contact Us For Availability
823
CABLE,D-SUB LGE 6850R-T0A83 Contact Us For Availability
900
REMOTE CONTROLLER RE LGE 6712000003A Contact Us For Availability
A44
CHASSIS ASSEMBLY LGE 3141R-B001F Contact Us For Availability
A46
PWB(PCB) ASSEMBLY,TO LGE 6871R-3991A Contact Us For Availability
A47
BOARD ASSEMBLY LGE 3501R-2259A Contact Us For Availability
A48
BOARD ASSEMBLY LGE 3501R-3997A Contact Us For Availability
A48A
PWB(PCB) ASSEMBLY,TO LGE 6871R-3997A Contact Us For Availability
A48B
LGE 4811R-0069A LGE 4811R-0069A Contact Us For Availability
AR201
Resistor,Array LGE 0RRZVTA001M Contact Us For Availability
AR201
Resistor,Array LGE 0RRZVTA001J Contact Us For Availability
AR400
LGE 0RRZVTA001K LGE 0RRZVTA001K Contact Us For Availability
BD01
Filter,Bead LGE 636-004C Contact Us For Availability
BD101
DIODE S1WBA60 (1A 600V) LGE 0DD160000DA Contact Us For Availability
C100
Capacitor,Ceramic,Radial,Disc LGE 624-087H Contact Us For Availability
C102
CAPACITOR PCX2 275V 0.1UF M (P LGE 624-088F Contact Us For Availability
C103
CAPACITOR,AL.ELECTRO LGE 0CE107EF638 Contact Us For Availability
C103
CAPACITOR,FIXED ELEC LGE 0CE227JR6A0 Contact Us For Availability
C105
CAPACITOR,POLYESTER LGE 0CQ1031Y519 Contact Us For Availability
C108
Capacitor,AL,Radial LGE 0CE1064K638 Contact Us For Availability
C109
Capacitor,Film,DIP LGE 0CQ4731N409 Contact Us For Availability
C110
CAPACITOR,SEMI CERAM LGE 0CG1020U630 Contact Us For Availability
C111
Capacitor,Ceramic,Radial,Y-Cap LGE 0CG2220U630 Contact Us For Availability
C112
Capacitor,Ceramic,Axial LGE 0CN223AK948 Contact Us For Availability
C113
Capacitor,Ceramic,Axial LGE 0CN4710K518 Contact Us For Availability
C120
ELECTROLYTIC 1.0M SRA/ (*NSP) LGE 0CE1054K638 Contact Us For Availability
C122
CAPACITOR,FIXED ELEC LGE 0CE2282F611 Contact Us For Availability
C125
Capacitor,AL,Radial LGE 624-082H Contact Us For Availability
C134
Capacitor,AL,Radial LGE 0CE108EH610 Contact Us For Availability
C152
Capacitor,AL,Radial LGE 624-085D Contact Us For Availability
C154
Capacitor,AL,Radial LGE 0CE1074F638 Contact Us For Availability
C160
CAPACITOR,FIXED CERAMIC(Temp.c LGE 0CH1104K512 Contact Us For Availability
C166
Capacitor,Ceramic,Chip LGE 0CH4101K412 Contact Us For Availability
C201
Capacitor,AL,Radial LGE 0CE106BK638 Contact Us For Availability
C203
Capacitor,AL,Radial LGE 0CE105BK638 Contact Us For Availability
C230
Capacitor,Ceramic,Chip LGE 0CH4331K412 Contact Us For Availability
C290
Capacitor,Ceramic,Chip LGE 0CH4330K412 Contact Us For Availability
C315
Capacitor,Ceramic,Chip LGE 0CH4270K412 Contact Us For Availability
C472
Capacitor,Ceramic,Chip LGE 0CH1103K562 Contact Us For Availability
C501
Capacitor,Ceramic,Chip LGE 0CH1102K562 Contact Us For Availability
C522
CAPACITOR,CHIP[AL. E LGE 0CH8106F611 Contact Us For Availability
C545
CHIP CAPA CERAMIC M/L T.C F/S LGE 0CH4470K412 Contact Us For Availability
C615
Capacitor,Ceramic,Chip LGE 0CH1474K562 Contact Us For Availability
C616
Capacitor,Ceramic,Chip LGE 0CH4100K412 Contact Us For Availability
C630
Capacitor,Ceramic,Chip LGE 0CH4471K412 Contact Us For Availability
C706
Capacitor,Ceramic,Chip LGE 0CH4560K412 Contact Us For Availability
C708
Capacitor,Ceramic,Chip LGE 0CH4020K012 Contact Us For Availability
C712
Capacitor,Ceramic,Chip LGE 0CH1222K562 Contact Us For Availability
C759
CAPACITOR,CHIP[AL. ELECTROLYTI LGE 0CH8226F611 Contact Us For Availability
C767
CAPACITOR,CHIP[AL. E LGE 0CH8476F611 Contact Us For Availability
C981
LGE 0CE227BK610 LGE 0CE227BK610 Contact Us For Availability
C987
CAPACITOR,CHIP[AL. ELECTROLYTI LGE 0CH8107F611 Contact Us For Availability
D101
DIODE LGE 0DD010009CA Contact Us For Availability
D101
DIODE LGE 0DD221009AA Contact Us For Availability
D102
DIODE,RECTIFIER LGE 0DR104009BA Contact Us For Availability
D105
DIODE 1SS133 DETECT, SW TP LGE 0DD133009AA Contact Us For Availability
D121
BRACKET ASSEMBLY LGE 4811R-0043A Contact Us For Availability
D129
Diode,Schottky LGE 0DR104510AB Contact Us For Availability
D129
DIODE,RECTIFIERS LGE 0DRSA00020A Contact Us For Availability
D129
DIODE,RECTIFIERS LGE 0DRFC00091A Contact Us For Availability
D503
DIODE,DETACTOR LGE 0DTSE00018A Contact Us For Availability
FB201
Filter,Bead LGE 0LCCE00003C Contact Us For Availability
FB401
INDUCTOR,CHIP LGE 0LC11608C01 Contact Us For Availability
FH02
HOLDER FUSE LGE 586-008B Contact Us For Availability
IC101
LGE 0IPMGSK002A LGE 0IPMGSK002A Contact Us For Availability
IC101
IC,MICRO CONTROLLER LGE 0IMCRBM003A Contact Us For Availability
IC102
IC,MEMORIES LGE 0IMMREB004A Contact Us For Availability
IC102
SENSOR LTV-817B PHOTO COUPLER LGE 657-063A Contact Us For Availability
IC103
IC KEC, KIA431, GVR-C435/R-E4 LGE 0IKE431000A Contact Us For Availability
IC103
IC,Voltage Regulator LGE 0ISS431000A Contact Us For Availability
IC105
LGE 0IMMRMR024C LGE 0IMMRMR024C Contact Us For Availability
IC106
IC LGE 0IPH741400E Contact Us For Availability
IC151
IC,LDO Voltage Regulator LGE 0IPMGFA017A Contact Us For Availability
IC151
IC,KEC LGE 0IKE781200S Contact Us For Availability
IC151
IC,POWER MANAGEMENT LGE 0IPMGSH010A Contact Us For Availability
IC153
LGE 0IPMGFA032A LGE 0IPMGFA032A Contact Us For Availability
IC153
IC,POWER MANAGEMENT LGE 0IPMGKE018A Contact Us For Availability
IC200
IC,FRAM LGE 0IMMRRA001A Contact Us For Availability
IC201
LGE 0IPMGTI011A LGE 0IPMGTI011A Contact Us For Availability
IC201
IC,STANDARD LOGIC LGE 0ISTLAT004A Contact Us For Availability
IC202
LGE 0IMCRMO038A LGE 0IMCRMO038A Contact Us For Availability
IC203
IC,MICRO CHIP TECHNO LGE 0IMP242560A Contact Us For Availability
IC211
LGE 0IPRPPH023A LGE 0IPRPPH023A Contact Us For Availability
IC213
IC,LDO Voltage Regulator LGE 0IMX232162A Contact Us For Availability
IC213
IC,Transceiver LGE 0IPRPTI015A Contact Us For Availability
IC301
IC,STANDARD LOGIC LGE 0ISTLSG003A Contact Us For Availability
IC400
IC,CUSTOMIZED LGE 0ICTMLG009A Contact Us For Availability
IC404
IC,MEMORIES LGE 0IMMRHY025A Contact Us For Availability
IC500
LGE 0IPRPS2002A LGE 0IPRPS2002A Contact Us For Availability
IC501
IC,PERIPHERALS LGE 0IPRPPH012A Contact Us For Availability
IC503
LGE 0TFFC80001A LGE 0TFFC80001A Contact Us For Availability
IC600
LGE 0IPRPCY004A LGE 0IPRPCY004A Contact Us For Availability
IC602
FILTER(CIRC),BAND PA LGE 6200C000017 Contact Us For Availability
IC604
IC,Display Driver LGE 0IPRPTK001A Contact Us For Availability
IC605
LGE 0IPRPCY007A LGE 0IPRPCY007A Contact Us For Availability
IC606
IC,LINEAR LGE 0ILNRMN005A Contact Us For Availability
IC607
LGE 0IPH745400A LGE 0IPH745400A Contact Us For Availability
IC608
LGE 0IPRPNS013A LGE 0IPRPNS013A Contact Us For Availability
IC609
IC,Video Amplifier LGE 0IPRPAD005A Contact Us For Availability
IC611
LGE 0ISTLTI034A LGE 0ISTLTI034A Contact Us For Availability
IC613
Diode,TVS LGE 0DTSE00039A Contact Us For Availability
IC701
IC,LINEAR LGE 0ILNRMN004B Contact Us For Availability
IC701
IC,LINEAR LGE 0ILNRMN004A Contact Us For Availability
IC702
IC,OP Amplifier LGE 0IMO330780B Contact Us For Availability
IC703
IC,POWER MANAGEMENT LGE 0IPMGKE016A Contact Us For Availability
IC704
IC,Multiplexer LGE 0ITO741570C Contact Us For Availability
IC950
LGE 4811R-0042P LGE 4811R-0042P Contact Us For Availability
IC951
IC,LDO Voltage Regulator LGE 0IPMGKE031A Contact Us For Availability
IC952
IC,POWER MANAGEMENT LGE 0IPMGKE030A Contact Us For Availability
IC955
LGE 0IPMGSJ014A LGE 0IPMGSJ014A Contact Us For Availability
IC958
IC,Voltage Regulator LGE 0IPMGKE033A Contact Us For Availability
IC959
IC,POWER MANAGEMENT LGE 0IPMGKE032A Contact Us For Availability
JA100
JACK,MODULAR LGE 6612E00028A Contact Us For Availability
JA200
JACK,PHONE LGE 6612F00048A Contact Us For Availability
JA600
JACK,RCA LGE 6612JH003DA Contact Us For Availability
JA701
JACK,FIBER OPTIC LGE 6612K00003B Contact Us For Availability
L101
FILTER(CIRC),EMC LGE 6200RLB007C Contact Us For Availability
L102
FILTER(CIRC) LGE 616-145H Contact Us For Availability
L121
COIL,RF LGE 6140RCC009A Contact Us For Availability
L122
Coil,Choke LGE 633-088D Contact Us For Availability
L123
COIL,CHOKE LGE 633-088G Contact Us For Availability
L201
LGE 0LCTD00021B LGE 0LCTD00021B Contact Us For Availability
L202
LGE 0LCTD00021A LGE 0LCTD00021A Contact Us For Availability
L605
Inductor,Wire Wound,Chip LGE 6140RF0005X Contact Us For Availability
PR200
FUSE,SLOW BLOW LGE 0FS5000EHA8 Contact Us For Availability
Q103
TR,Bipolar LGE 0TRON80002A Contact Us For Availability
Q201
TR,Bipolar LGE 0TRKE80040A Contact Us For Availability
Q300
TRANSISTOR,BIPOLARS LGE 0TRKE80039A Contact Us For Availability
Q301
TRANSISTOR CHIP KTC3875S-Y-T1( LGE 0TR387509AB Contact Us For Availability
Q702
LGE 0TR101009AD LGE 0TR101009AD Contact Us For Availability
R100
RESISTOR,FIXED CARBON FILM LGE 0RD1504H632 Contact Us For Availability
R101
LGE 0RD1803F608 LGE 0RD1803F608 Contact Us For Availability
R103
RESISTOR,FIX METAL FILM OXIDE LGE 0RS5602K619 Contact Us For Availability
R105
RESISTOR CHIP 220 1/10W 5 D.R LGE 0RH2200D622 Contact Us For Availability
R105
RESISTOR FIXED CARBON FILM 10 LGE 0RD0102F608 Contact Us For Availability
R106
Resistor,Carbon Film LGE 0RD6800F608 Contact Us For Availability
R107
RESISTOR 2.7/2W CEMENT SMPS V LGE 614-007A Contact Us For Availability
R108
FIXED CARBON FILM 4.7K UG8*NSP LGE 0RD4701F608 Contact Us For Availability
R109
Resistor,Chip LGE 0RH3301C622 Contact Us For Availability
R116
Resistor,Chip LGE 0RH2202C622 Contact Us For Availability
R119
Resistor,Chip LGE 0RH1004C622 Contact Us For Availability
R121
Resistor,Carbon Film LGE 0RD1800F608 Contact Us For Availability
R122
Resistor,Carbon Film LGE 0RD2201F608 Contact Us For Availability
R124
Resistor,Metal Film LGE 0RN1801F408 Contact Us For Availability
R125
Resistor,Metal Film LGE 0RN3301F408 Contact Us For Availability
R126
LGE 0RD1200F608 LGE 0RD1200F608 Contact Us For Availability
R128
RESISTOR FIXED CARBON FILM 100 LGE 0RD1003F608 Contact Us For Availability
R129
LGE 0RF0300F708 LGE 0RF0300F708 Contact Us For Availability
R152
Resistor,Chip LGE 0RH0222C622 Contact Us For Availability
R157
RESISTOR FIXED CARBON FILM 3.9 LGE 0RD3901F608 Contact Us For Availability
R163
Resistor,Carbon Film LGE 0RD2200F608 Contact Us For Availability
R168
Resistor,Chip LGE 0RH2701C622 Contact Us For Availability
R185
RESISTOR,CHIP LGE 0RH1001C622 Contact Us For Availability
R202
Resistor,Chip LGE 0RH0272C622 Contact Us For Availability
R202
RESISTOR,CHIP LGE 0RH1000C622 Contact Us For Availability
R225
RESISTOR,CHIP LGE 0RH1002C622 Contact Us For Availability
R231
Resistor,Chip LGE 0RH1003C622 Contact Us For Availability
R234
Resistor,Chip LGE 0RH4703C622 Contact Us For Availability
R246
Resistor,Chip LGE 0RH5601C622 Contact Us For Availability
R261
Resistor,Chip LGE 0RH4700C622 Contact Us For Availability
R288
RESISTOR,METAL GLAZED(CHIP) LGE 0RH0102G622 Contact Us For Availability
R295
Resistor,Chip LGE 0RH4701C622 Contact Us For Availability
R302
RESISTOR,CHIP LGE 0RH1200C622 Contact Us For Availability
R309
Resistor,Chip LGE 0RH2201C622 Contact Us For Availability
R311
Resistor,Chip LGE 0RH1501C622 Contact Us For Availability
R410
Resistor,Chip LGE 0RH0752C622 Contact Us For Availability
R503
Resistor,Chip LGE 0RH7502C622 Contact Us For Availability
R516
Resistor,Chip LGE 0RH0000C622 Contact Us For Availability
R600
LGE 0RJ6202C677 LGE 0RJ6202C677 Contact Us For Availability
R602
RESISTOR,CHIP LGE 0RH0682C622 Contact Us For Availability
R628
Resistor,Chip LGE 0RH2700C622 Contact Us For Availability
R631
Resistor,Chip LGE 0RH3300C622 Contact Us For Availability
R671
Resistor,Chip LGE 0RH1500C622 Contact Us For Availability
R680
Resistor,Chip LGE 0RH7500C622 Contact Us For Availability
R681
Resistor,Chip LGE 0RH6803C622 Contact Us For Availability
R687
Resistor,Chip LGE 0RH2200C622 Contact Us For Availability
R696
Resistor,Chip LGE 0RH5100C622 Contact Us For Availability
R707
Resistor,Chip LGE 0RH2001C622 Contact Us For Availability
R950
RESISTOR,VARIABLE[CA LGE 0RF1000H645 Contact Us For Availability
R1101
RESISTOR,CHIP LGE 0RH0472C622 Contact Us For Availability
R1603
Resistor,Chip LGE 0RJ4300C677 Contact Us For Availability
R1615
Resistor,Chip LGE 0RH1201C622 Contact Us For Availability
R1626
Resistor,Chip LGE 0RH0332C622 Contact Us For Availability
SW102
SWITCH,TACT LGE 6600RRT002W Contact Us For Availability
SW201
SWITCH,SLIDE LGE 6600Q000023 Contact Us For Availability
T101
TRANSFORMER,SMPS[COI LGE 6170RNGW15J Contact Us For Availability
T210
FILTER(CIRC),EMI LGE 6200VJT006A Contact Us For Availability
T613
Filter,LCR LGE 6200VJT001A Contact Us For Availability
T950
FILTER,EMI LGE 6200VJB001A Contact Us For Availability
TU300
TUNER LGE 6700NB0011A Contact Us For Availability
V101
VARISTOR LGE 656-004C Contact Us For Availability
X101
LGE 6204A42500C LGE 6204A42500C Contact Us For Availability
X102
LGE 6204A43686C LGE 6204A43686C Contact Us For Availability
X200
LGE 6204B47372Z LGE 6204B47372Z Contact Us For Availability
X600
LGE 6212AB2270D LGE 6212AB2270D Contact Us For Availability
X601
RESONATOR,CRYSTAL LGE 6212AB2010A Contact Us For Availability
X701
LGE 6212AB2008A LGE 6212AB2008A Contact Us For Availability
ZD152
DIODE,ZENERS LGE 0DZ332609BA Contact Us For Availability
× ![]()
Login and Registration Form
