Model LG LST-3510A Digital Broadcasting Receiver – Common Parts & Diagrams
Diagram 0

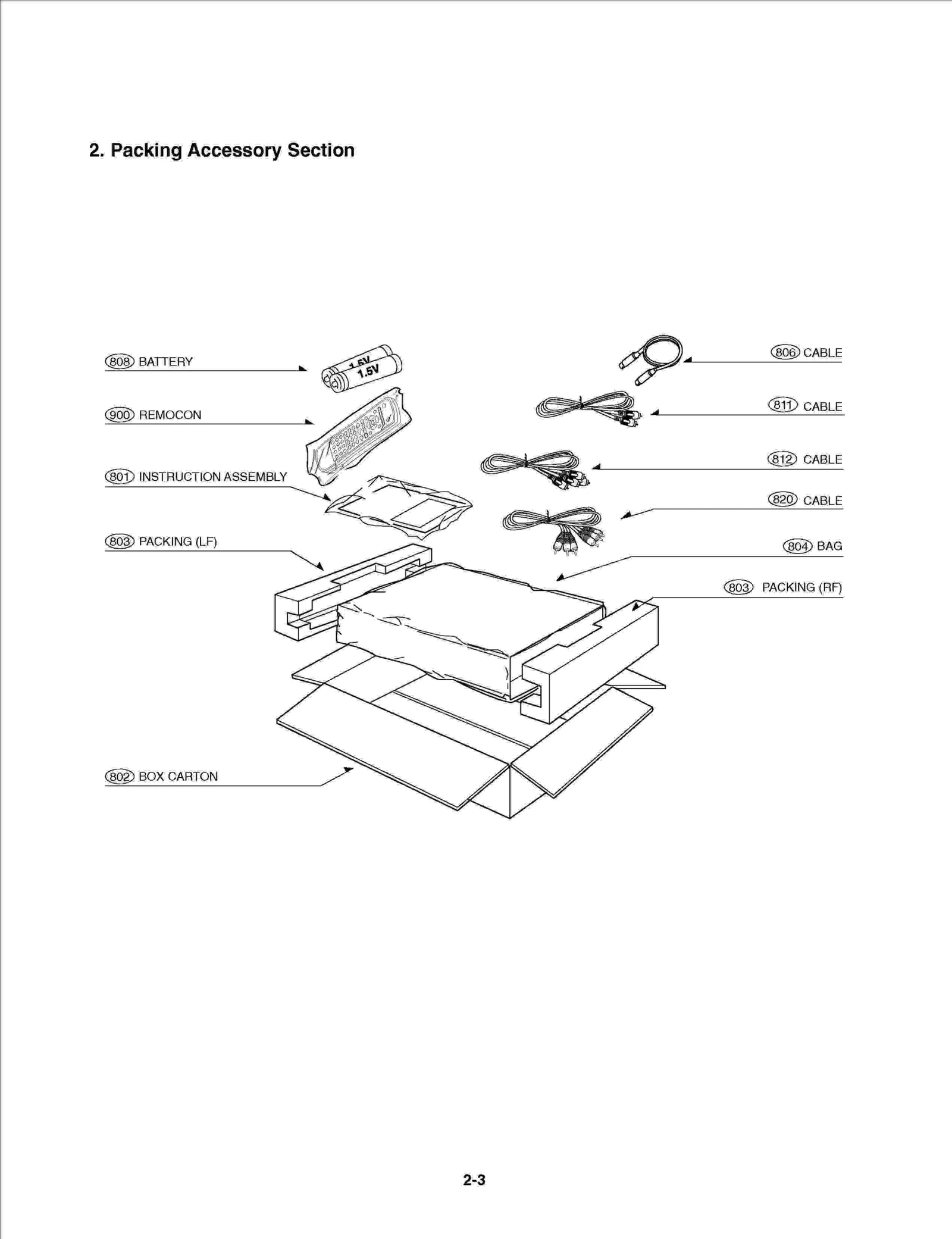

Diagram 1
Diagram 2
Diagram 3
Common parts from model LG LST-3510A Digital Broadcasting Receiver
001
PLATE LGE 3300R-0547A Contact Us For Availability
002
MAGNET LGE 5016H-1016B Contact Us For Availability
003
CLAMP LGE 4860R-0006A Contact Us For Availability
004
HOLDER,SHELF LGE 4930R-0299A Contact Us For Availability
008
GEAR LGE 4470R-0047A Contact Us For Availability
009
GEAR LGE 4470R-0053A Contact Us For Availability
010
CABLE,FLAT LGE 6850R-GK22Z Contact Us For Availability
012
RUBBER LGE 5040R-0047B Contact Us For Availability
012
LGE 5040R-0047A LGE 5040R-0047A Contact Us For Availability
013
BELT LGE 4400R-0006B Contact Us For Availability
014
GEAR LGE 4470R-0055A Contact Us For Availability
015
PWB(PCB) ASSEMBLY,TO LGE 6871R-4415C Contact Us For Availability
016
GEAR LGE 4470R-0050A Contact Us For Availability
017
GEAR LGE 4470R-0056A Contact Us For Availability
018
GUIDE LGE 4974R-0023A Contact Us For Availability
020
LGE 3040R-0067A LGE 3040R-0067A Contact Us For Availability
026
LGE 3390R-0010A LGE 3390R-0010A Contact Us For Availability
026
TRAY LGE 3390R-0005A Contact Us For Availability
250
CASE LGE 3110R-V005A Contact Us For Availability
260
CHASSIS LGE 3140R-V002B Contact Us For Availability
280
PANEL ASSEMBLY,FRONT LGE 3721R-F333C Contact Us For Availability
285
DOOR,CASE LGE 3580R-T090C Contact Us For Availability
300
POWER CORD LGE 6410RAHK02D Contact Us For Availability
320
PANEL,VIDEO LGE 3720R-D078B Contact Us For Availability
430
SCREW LGE 1SZZH-1003A Contact Us For Availability
431
SCREW, LGE 1SZZH-1007B Contact Us For Availability
432
SCREW, LGE 1SZZR-0011A Contact Us For Availability
462
SCREW,DRAWING LGE 353-051J Contact Us For Availability
463
SCREW,DRAWING LGE 353-051G Contact Us For Availability
469
NUT,HEXAGON LGE 1NHD8220060 Contact Us For Availability
470
WASHER,SPRING LOCK LGE 1WSV1200084 Contact Us For Availability
801
INSTRUCTION ASSEMBLY LGE 3835RS0061E Contact Us For Availability
802
LGE 3890R-H823U LGE 3890R-H823U Contact Us For Availability
803
LGE 3920R-E073A LGE 3920R-E073A Contact Us For Availability
804
Sheet LGE 3858R-S001A Contact Us For Availability
806
CABLE,COAXIAL LGE 6850R-CAA22 Contact Us For Availability
808
LGE 6910R-AB02A LGE 6910R-AB02A Contact Us For Availability
811
PLUG ASSEMBLY LGE 6611R1G003A Contact Us For Availability
812
PLUG ASSEMBLY LGE 6611R2G003A Contact Us For Availability
820
PLUG ASSEMBLY LGE 6611R3G001A Contact Us For Availability
900
REMOTE CONTROLLER AS LGE 6711R1N132B Contact Us For Availability
A01
CLAMP ASSY LGE 4861R-0006A Contact Us For Availability
A02
LGE 3041R-M014A LGE 3041R-M014A Contact Us For Availability
A03
BASE ASSEMBLY LGE 3041R-0054E Contact Us For Availability
A26
BASE ASSEMBLY LGE 6721R-0358A Contact Us For Availability
A42
LGE 6874R-3893A LGE 6874R-3893A Contact Us For Availability
A43
BOARD ASSEMBLY LGE 3501R-3892B Contact Us For Availability
A44
Frame Assembly LGE 3141R-V007B Contact Us For Availability
A46
PWB(PCB) ASSEMBLY,TO LGE 6871R-9233C Contact Us For Availability
A46A
SUB PWB(PCB) ASSEMBL LGE 6885R-9246B Contact Us For Availability
A47
BOARD ASSEMBLY LGE 3501R-2253D Contact Us For Availability
A49
HAND INS PWB(PCB) AS LGE 6874R-3892A Contact Us For Availability
A50
PWB(PCB) ASSEMBLY,TO LGE 6871R-3892A Contact Us For Availability
AR100
Resistor,Array LGE 0RRZVTA001J Contact Us For Availability
AR101
Resistor,Array LGE 0RRZVTA001O Contact Us For Availability
AR703
Resistor,Array LGE 0RRZVTA001L Contact Us For Availability
B731
FILTER(CIRC),EMI LGE 6200HJC106A Contact Us For Availability
BD101
DIODE S1WBA60 (1A 600V) LGE 0DD160000DA Contact Us For Availability
C2A5
Capacitor,Ceramic,Chip LGE 0CH1683F942 Contact Us For Availability
C2A8
Capacitor,Ceramic,Chip LGE 0CH1152K562 Contact Us For Availability
C2B3
Capacitor,Ceramic,Chip LGE 0CH1392K562 Contact Us For Availability
C2B5
Capacitor,Ceramic,Chip LGE 0CH1333K562 Contact Us For Availability
C2C5
Capacitor,Ceramic,Chip LGE 0CH1332K562 Contact Us For Availability
C2C6
Capacitor,Ceramic,Chip LGE 0CH1102K562 Contact Us For Availability
C2D4
CAPACITOR,CHIP[AL. ELECTROLYTI LGE 0CH8476C611 Contact Us For Availability
C2D9
CAPACITOR,CHIP[CERAM LGE 0CH1104K942 Contact Us For Availability
C2E3
CHIP CAPA CERAMIC M/L T.C F/S LGE 0CH4470K412 Contact Us For Availability
C2M2
Capacitor,Ceramic,Chip LGE 0CH1682K562 Contact Us For Availability
C2M3
Capacitor,Ceramic,Chip LGE 0CH1472K562 Contact Us For Availability
C2N3
Capacitor,Ceramic,Chip LGE 0CH1223K942 Contact Us For Availability
C102
CAPACITOR PCX2 275V 0.1UF M (P LGE 624-088F Contact Us For Availability
C103
CAPACITOR,FIXED ELEC LGE 0CE227JR6A0 Contact Us For Availability
C104
CHIP CAPA CERAMIC M/L T.C F/S LGE 0CH4220K412 Contact Us For Availability
C105
CAPACITOR,POLYESTER LGE 0CQ1031Y519 Contact Us For Availability
C106
CAPACITOR,FIXED CERAMIC(High d LGE 624-087G Contact Us For Availability
C107
Capacitor,Ceramic,Chip LGE 0CH1821K562 Contact Us For Availability
C109
CAPACITOR POLYESTER(MYLAR) CD- LGE 0CQ1041N409 Contact Us For Availability
C110
CAPACITOR,SEMI CERAM LGE 0CG1020U630 Contact Us For Availability
C111
Capacitor,Ceramic,Radial,Y-Cap LGE 0CG2220U630 Contact Us For Availability
C120
ELECTROLYTIC 1.0M SRA/ (*NSP) LGE 0CE1054K638 Contact Us For Availability
C122
CAPACITOR,AL.ELECTROLYTIC LGE 0CE108EF630 Contact Us For Availability
C124
Capacitor,AL,Radial LGE 0CE228BF630 Contact Us For Availability
C126
Capacitor,AL,Radial LGE 624-082H Contact Us For Availability
C127
Capacitor,AL,Radial LGE 0CE108EH610 Contact Us For Availability
C128
Capacitor,AL,Radial LGE 0CE227CH618 Contact Us For Availability
C132
Capacitor,AL,Radial LGE 624-085D Contact Us For Availability
C133
Capacitor,AL,Radial LGE 0CE2276F638 Contact Us For Availability
C145
CAPACITOR,FIXED CERAMIC(Temp.c LGE 0CH1104K512 Contact Us For Availability
C157
Capacitor,AL,Radial LGE 0CE1074F638 Contact Us For Availability
C159
C.ELECTROLYTIC 4.7M SRA 50VGVP LGE 0CE4754K638 Contact Us For Availability
C240
Capacitor,Ceramic,Chip LGE 0CH1222K562 Contact Us For Availability
C285
CAPACITOR,CHIP[AL. E LGE 0CH8106F611 Contact Us For Availability
C298
Capacitor,AL,Chip LGE 0CH8477C611 Contact Us For Availability
C309
Capacitor,Ceramic,Chip LGE 0CH1225F944 Contact Us For Availability
C379
CAPACITOR,CHIP[AL. ELECTROLYTI LGE 0CH8226F611 Contact Us For Availability
C404
CAPACITOR,CHIP[AL. E LGE 0CH8476F611 Contact Us For Availability
C410
Capacitor,AL,Chip LGE 0CH8105K611 Contact Us For Availability
C439
LGE 0CE474VK6DC LGE 0CE474VK6DC Contact Us For Availability
C443
Capacitor,Ceramic,Chip LGE 0CH4221K412 Contact Us For Availability
C507
Capacitor,Ceramic,Chip LGE 0CH4100K412 Contact Us For Availability
C509
CAPACITOR,FIXED ELEC LGE 0CE227VF6DC Contact Us For Availability
C518
LGE 0CC151CF45A LGE 0CC151CF45A Contact Us For Availability
C528
Capacitor,Ceramic,Chip LGE 0CH1225F946 Contact Us For Availability
C538
CAPACITOR,CHIP[AL. ELECTROLYTI LGE 0CH8107F611 Contact Us For Availability
C539
LGE 0CH1823F942 LGE 0CH1823F942 Contact Us For Availability
C540
Capacitor,Ceramic,Chip LGE 0CH4180K412 Contact Us For Availability
C543
LGE 0CK562CF56A LGE 0CK562CF56A Contact Us For Availability
C546
Capacitor,Ceramic,Chip LGE 0CH1103K562 Contact Us For Availability
C634
LGE 0CH4150K472 LGE 0CH4150K472 Contact Us For Availability
C825
LGE 0CC106EH98A LGE 0CC106EH98A Contact Us For Availability
C902
Capacitor,AL,Radial LGE 0CE4763F638 Contact Us For Availability
C911
Capacitor,Ceramic,Axial LGE 0CN1030K518 Contact Us For Availability
C912
Capacitor,Ceramic,Axial LGE 0CN1040K948 Contact Us For Availability
C1405
Capacitor,Ceramic,Chip LGE 0CH4330K412 Contact Us For Availability
C1412
Capacitor,Ceramic,Chip LGE 0CH4270K412 Contact Us For Availability
D2A2
Diode,Switching LGE 0DS202009CA Contact Us For Availability
D101
DIODE LGE 0DD010009CA Contact Us For Availability
D101
DIODE LGE 0DD221009AA Contact Us For Availability
D102
DIODE EU01W(R-FORM) T R-B413M LGE 0DD010009AC Contact Us For Availability
D121
Diode,Schottky LGE 0DR158220AA Contact Us For Availability
D123
BRACKET ASSEMBLY LGE 4811R-0043A Contact Us For Availability
D125
LGE 4811R-0043F LGE 4811R-0043F Contact Us For Availability
D201
LGE 0DR495009AA LGE 0DR495009AA Contact Us For Availability
D500
Diode,Switching LGE 0DD160009AB Contact Us For Availability
D702
LED LGE 0DL210008GA Contact Us For Availability
D800
DIODE,DETACTOR LGE 0DTSE00018A Contact Us For Availability
D901
LED LGE 0DLLT0109AB Contact Us For Availability
DIG901
LGE 6302R-V207A LGE 6302R-V207A Contact Us For Availability
F103
FILTER(CIRC),EMC LGE 6200JB8009L Contact Us For Availability
F402
FILTER(CIRC),BAND PA LGE 6200C000017 Contact Us For Availability
F405
Filter,LCR LGE 6200VJT001A Contact Us For Availability
FH01
HOLDER FUSE LGE 586-008B Contact Us For Availability
FR101
Resistor,Fusible LGE 0RF0200F708 Contact Us For Availability
G502
GASKET LGE 4986R-0004B Contact Us For Availability
H901
LGE 4930R-0386A LGE 4930R-0386A Contact Us For Availability
IC2A1
IC,LINEAR LGE 0ILNRHI003A Contact Us For Availability
IC2A4
LGE 0IKE393000G LGE 0IKE393000G Contact Us For Availability
IC2M1
LGE 0IFA303200A LGE 0IFA303200A Contact Us For Availability
IC2M1
IC,LINEAR LGE 0ILNRFA013A Contact Us For Availability
IC3F1
LGE 0IMMRFU011A LGE 0IMMRFU011A Contact Us For Availability
IC100
IC,Microprocessors LGE 0IMCRSS016A Contact Us For Availability
IC101
LGE 4811R-0049B LGE 4811R-0049B Contact Us For Availability
IC102
SENSOR LTV-817B PHOTO COUPLER LGE 657-063A Contact Us For Availability
IC103
LGE 0IMMRFU002A LGE 0IMMRFU002A Contact Us For Availability
IC103
IC KEC, KIA431, GVR-C435/R-E4 LGE 0IKE431000A Contact Us For Availability
IC103
IC,Voltage Regulator LGE 0ISS431000A Contact Us For Availability
IC104
IC LGE 0IPH741400E Contact Us For Availability
IC105
IC,MEMORIES LGE 0IMMRSS037D Contact Us For Availability
IC107
LGE 0IPH740700A LGE 0IPH740700A Contact Us For Availability
IC108
LGE 0ISTLFA083A LGE 0ISTLFA083A Contact Us For Availability
IC109
IC,STANDARD LOGIC LGE 0ISTLFA033B Contact Us For Availability
IC110
LGE 0ISTLFA090A LGE 0ISTLFA090A Contact Us For Availability
IC151
LGE 0IPMGFA032A LGE 0IPMGFA032A Contact Us For Availability
IC153
BRACKET ASSEMBLY LGE 4811R-0043B Contact Us For Availability
IC154
IC,POWER MANAGEMENT LGE 0IPMGFA015A Contact Us For Availability
IC154
IC,SHARP LGE 0ISH313000C Contact Us For Availability
IC156
IC,POWER MANAGEMENT LGE 0IPMGFA016A Contact Us For Availability
IC156
IC,POWER MANAGEMENT LGE 0IPMGJR007A Contact Us For Availability
IC156
IC,Voltage Regulator LGE 0IPMGSH009A Contact Us For Availability
IC157
LGE 4811R-0049A LGE 4811R-0049A Contact Us For Availability
IC201
LGE 0ILNRHY002B LGE 0ILNRHY002B Contact Us For Availability
IC203
IC,ELITE MEMORY TECH LGE 0IEB121616B Contact Us For Availability
IC204
IC,MICRO CHIP TECHNO LGE 0IMP242560A Contact Us For Availability
IC205
OSCILLATOR LGE 6204A40006D Contact Us For Availability
IC210
LGE 0ISTLAT008A LGE 0ISTLAT008A Contact Us For Availability
IC211
LGE 0IPRPLG001A LGE 0IPRPLG001A Contact Us For Availability
IC300
IC,CUSTOMIZED LGE 0ICTMLG009A Contact Us For Availability
IC301
IC, CUSTOMIZED LGE 0ICTMHY011A Contact Us For Availability
IC305
LGE 0IHY576532A LGE 0IHY576532A Contact Us For Availability
IC305
LGE 0IMMREB005A LGE 0IMMREB005A Contact Us For Availability
IC305
IC,MEMORIES LGE 0IMMRHY025A Contact Us For Availability
IC305
LGE 0IMMRWI004A LGE 0IMMRWI004A Contact Us For Availability
IC400
IC,Transceiver LGE 0IPRPTI015A Contact Us For Availability
IC403
LGE 0IPH745400A LGE 0IPH745400A Contact Us For Availability
IC404
IC,Video Amplifier LGE 0IPRPAD005A Contact Us For Availability
IC501
IC,NATIONAL SEMICOND LGE 0INS860100A Contact Us For Availability
IC502
IC,MEMORIES LGE 0IMMRAL012A Contact Us For Availability
IC502
IC,MEMORIES LGE 0IMMRCB001A Contact Us For Availability
IC506
LGE 0IPRPCI007A LGE 0IPRPCI007A Contact Us For Availability
IC506
IC,POWER MANAGEMENT LGE 0IPMGA7001A Contact Us For Availability
IC520
LGE 0ISTLFA084A LGE 0ISTLFA084A Contact Us For Availability
IC531
LGE 0ISG744000B LGE 0ISG744000B Contact Us For Availability
IC533
LGE 0INA892100A LGE 0INA892100A Contact Us For Availability
IC540
IC,Receiver LGE 0ICB841500D Contact Us For Availability
IC543
LGE 0ISTLFA014B LGE 0ISTLFA014B Contact Us For Availability
IC546
TRANSFORMER,PULSE LGE 6170RA0002A Contact Us For Availability
IC548
IC,OP Amplifier LGE 0IMO330780B Contact Us For Availability
IC601
FILTER,EMI LGE 6200VJB001A Contact Us For Availability
IC607
LGE 0IPMGSJ014A LGE 0IPMGSJ014A Contact Us For Availability
IC705
LGE 4811R-0050A LGE 4811R-0050A Contact Us For Availability
IC725
LGE 4811R-0042J LGE 4811R-0042J Contact Us For Availability
IC802
LGE 0IPRPS2002A LGE 0IPRPS2002A Contact Us For Availability
IC803
IC,PERIPHERALS LGE 0IPRPPH012A Contact Us For Availability
IC901
IC,MICRO CONTROLLER LGE 0IMCRNE035A Contact Us For Availability
IC902
IC KIA7042P SP 4.2V RESET, KE LGE 0IKE704200B Contact Us For Availability
IR901
REMOTE CONTROLLER RECEIVER LGE 6712R1538GC Contact Us For Availability
L101
FILTER(CIRC),EMI LGE 6200RLB007A Contact Us For Availability
L102
FILTER(CIRC) LGE 616-145H Contact Us For Availability
L121
COIL,CHOKE LGE 633-088G Contact Us For Availability
L122
Coil,Choke LGE 6140RCC002A Contact Us For Availability
L123
Coil,Choke LGE 633-088D Contact Us For Availability
L301
FILTER(CIRC),EMI LGE 6200HJC102A Contact Us For Availability
L500
Inductor,Multilayer,Chip LGE 0LCCE00004D Contact Us For Availability
L713
Inductor,Wire Wound,Chip LGE 635-009D Contact Us For Availability
L714
LGE 0LCCE00004F LGE 0LCCE00004F Contact Us For Availability
L718
LGE 0LC1700003A LGE 0LC1700003A Contact Us For Availability
L900
INDUCTOR,CHIP LGE 0LCCE00004E Contact Us For Availability
L901
Inductor,Wire Wound,Radial LGE 0LR1000K035 Contact Us For Availability
P403
JACK,RCA LGE 6612JH003DF Contact Us For Availability
P500
JACK,FIBER OPTIC LGE 6612K00003B Contact Us For Availability
PW101
CONNECTOR (CIRC) LGE 561-292B Contact Us For Availability
Q2A2
TR,Bipolar LGE 0TR103709BB Contact Us For Availability
Q2A5
LGE 0TR388209AA LGE 0TR388209AA Contact Us For Availability
Q2M1
TR,Bipolar LGE 0TR124009AP Contact Us For Availability
Q151
TRANSISTOR LGE 0TR127309AA Contact Us For Availability
Q152
TRANSISTOR KTC3198-TP-BL(KTC1 LGE 0TR319809AC Contact Us For Availability
Q152
TRANSISTOR LGE 0TR534309BA Contact Us For Availability
Q152
TRANSISTOR KTC-3199-BL MINI T LGE 0TR319909AF Contact Us For Availability
Q153
TRANSISTOR KTC3203-TP-Y(KTC212 LGE 0TR320309AA Contact Us For Availability
Q203
TRANSISTOR LGE 0TR830009BA Contact Us For Availability
Q426
TR,Bipolar LGE 0TR150409AC Contact Us For Availability
Q509
TR CHIP KTC3875S-GR-T1(ALG) K LGE 0TR387509AC Contact Us For Availability
Q511
LGE 0TR101009AD LGE 0TR101009AD Contact Us For Availability
Q901
KRC103M-TP(KRC1203) KEC*NSP LGE 0TR103009AE Contact Us For Availability
R2A1
Resistor,Chip LGE 0RH0912C622 Contact Us For Availability
R2A9
Resistor,Chip LGE 0RH5602C622 Contact Us For Availability
R2B7
Resistor,Chip LGE 0RH0182C622 Contact Us For Availability
R2D4
Resistor,Chip LGE 0RH5601C622 Contact Us For Availability
R2D5
Resistor,Chip LGE 0RH6801C622 Contact Us For Availability
R2F2
Resistor,Chip LGE 0RH2200C622 Contact Us For Availability
R2G1
Resistor,Chip LGE 0RH2201C622 Contact Us For Availability
R2M3
Resistor,Chip LGE 0RH7501C622 Contact Us For Availability
R2N4
Resistor,Chip LGE 0RH1502C622 Contact Us For Availability
R2N5
Resistor,Chip LGE 0RH1202C622 Contact Us For Availability
R2P7
Resistor,Chip LGE 0RH2202C622 Contact Us For Availability
R100
RESISTOR,FIXED CARBON FILM LGE 0RD1504H632 Contact Us For Availability
R101
LGE 0RS1203K619 LGE 0RS1203K619 Contact Us For Availability
R102
Resistor,Chip LGE 0RH0222C622 Contact Us For Availability
R103
RESISTOR,FIX METAL FILM OXIDE LGE 0RS5602K619 Contact Us For Availability
R105
Resistor,Carbon Film LGE 0RD0222F608 Contact Us For Availability
R106
RESISTOR 2.7/2W CEMENT SMPS V LGE 614-007A Contact Us For Availability
R121
Resistor,Carbon Film LGE 0RD2200F608 Contact Us For Availability
R124
Resistor,Metal Film LGE 0RN3301F408 Contact Us For Availability
R125
Resistor,Metal Film LGE 0RN2701F408 Contact Us For Availability
R126
Resistor,Carbon Film LGE 0RD1000F608 Contact Us For Availability
R128
RESISTOR FIX METAL FILM 120 1W LGE 0RS1200J619 Contact Us For Availability
R154
FIXED CARBON FILM 4.7K UG8*NSP LGE 0RD4701F608 Contact Us For Availability
R161
Resistor,Carbon Film LGE 0RD3300F608 Contact Us For Availability
R162
RESISTOR FIXED CARBON FILM 47K LGE 0RD4702F608 Contact Us For Availability
R207
Resistor,Chip LGE 0RH1004C622 Contact Us For Availability
R212
Resistor,Chip LGE 0RH0272C622 Contact Us For Availability
R218
Resistor,Chip LGE 0RH4700C622 Contact Us For Availability
R275
Resistor,Chip LGE 0RH1501C622 Contact Us For Availability
R277
Resistor,Chip LGE 0RH1500C622 Contact Us For Availability
R285
Resistor,Chip LGE 0RH1802C622 Contact Us For Availability
R330
LGE 0RH3650D422 LGE 0RH3650D422 Contact Us For Availability
R415
Resistor,Chip LGE 0RH0332C622 Contact Us For Availability
R417
Resistor,Chip LGE 0RH1201C622 Contact Us For Availability
R418
Resistor,Chip LGE 0RJ3601C677 Contact Us For Availability
R442
RESISTOR,CHIP LGE 0RH1001C622 Contact Us For Availability
R473
RESISTOR,CHIP LGE 0RH0682C622 Contact Us For Availability
R479
Resistor,Chip LGE 0RH4703C622 Contact Us For Availability
R499
Resistor,Chip LGE 0RH2701C622 Contact Us For Availability
R505
Resistor,Chip LGE 0RH0102C622 Contact Us For Availability
R510
Resistor,Chip LGE 0RH3301C622 Contact Us For Availability
R516
RESISTOR,METAL GLAZE LGE 0RH1602C622 Contact Us For Availability
R521
Resistor,Chip LGE 0RH1003C622 Contact Us For Availability
R524
Resistor,Chip LGE 0RH1001C422 Contact Us For Availability
R527
RH 47K-J 1/16W GVC-F475,F477 LGE 0RH4702C622 Contact Us For Availability
R534
Resistor,Chip LGE 0RH6800C622 Contact Us For Availability
R561
Resistor,Chip LGE 0RH2001C622 Contact Us For Availability
R588
Resistor,Chip LGE 0RH0752C622 Contact Us For Availability
R618
RESISTOR,CHIP LGE 0RH1002C622 Contact Us For Availability
R740
RESISTOR,CHIP LGE 0RH1000C622 Contact Us For Availability
R747
Resistor,Chip LGE 0RH3300C622 Contact Us For Availability
R806
Resistor,Chip LGE 0RH4701C622 Contact Us For Availability
R814
Resistor,Chip LGE 0RH5100C622 Contact Us For Availability
R838
Resistor,Chip LGE 0RH0000C622 Contact Us For Availability
R903
RESISTOR FIXED CARBON FILM 10 LGE 0RD0102F608 Contact Us For Availability
R906
Resistor,Carbon Film LGE 0RD1002F608 Contact Us For Availability
R911
Resistor,Carbon Film LGE 0RD8200F608 Contact Us For Availability
R912
Resistor,Carbon Film LGE 0RD2201F608 Contact Us For Availability
R913
Resistor,Carbon Film LGE 0RD1501F608 Contact Us For Availability
R914
Resistor,Carbon Film LGE 0RD1201F608 Contact Us For Availability
R920
Resistor,Carbon Film LGE 0RD6800F608 Contact Us For Availability
R935
RESISTOR FIXED CARBON FILM 100 LGE 0RD1003F608 Contact Us For Availability
R941
Resistor,Carbon Film LGE 0RD3301F608 Contact Us For Availability
R1404
Resistor,Chip LGE 0RH8200C622 Contact Us For Availability
R1466
RESISTOR,CHIP LGE 0RH1200C622 Contact Us For Availability
R1494
Resistor,Chip LGE 0RJ4300C677 Contact Us For Availability
SW101
SWITCH,TACT LGE 6600RRT002W Contact Us For Availability
T101
TRANSFORMER,SMPS[COI LGE 6170RNGW16G Contact Us For Availability
TU701
TUNER LGE 6700NB0012A Contact Us For Availability
V101
VARISTOR LGE 656-004C Contact Us For Availability
X100
LGE 6212AB2100C LGE 6212AB2100C Contact Us For Availability
X201
LGE 6202R-BM01A LGE 6202R-BM01A Contact Us For Availability
X901
Crystal LGE 6202R-BJ01A Contact Us For Availability
ZD151
LGE 0DZ330009BF LGE 0DZ330009BF Contact Us For Availability
ZD151
LGE 0DZ330009CD LGE 0DZ330009CD Contact Us For Availability
ZD151
Diode,Zener LGE 0DZ337729AA Contact Us For Availability
ZD152
DIODE,ZENERS LGE 0DZ332609BA Contact Us For Availability
ZD153
DIODE,ZENER LGE 0DZ562609AB Contact Us For Availability
× ![]()
Login and Registration Form
