LG LSIL6336XE Parts List | Part Advantage

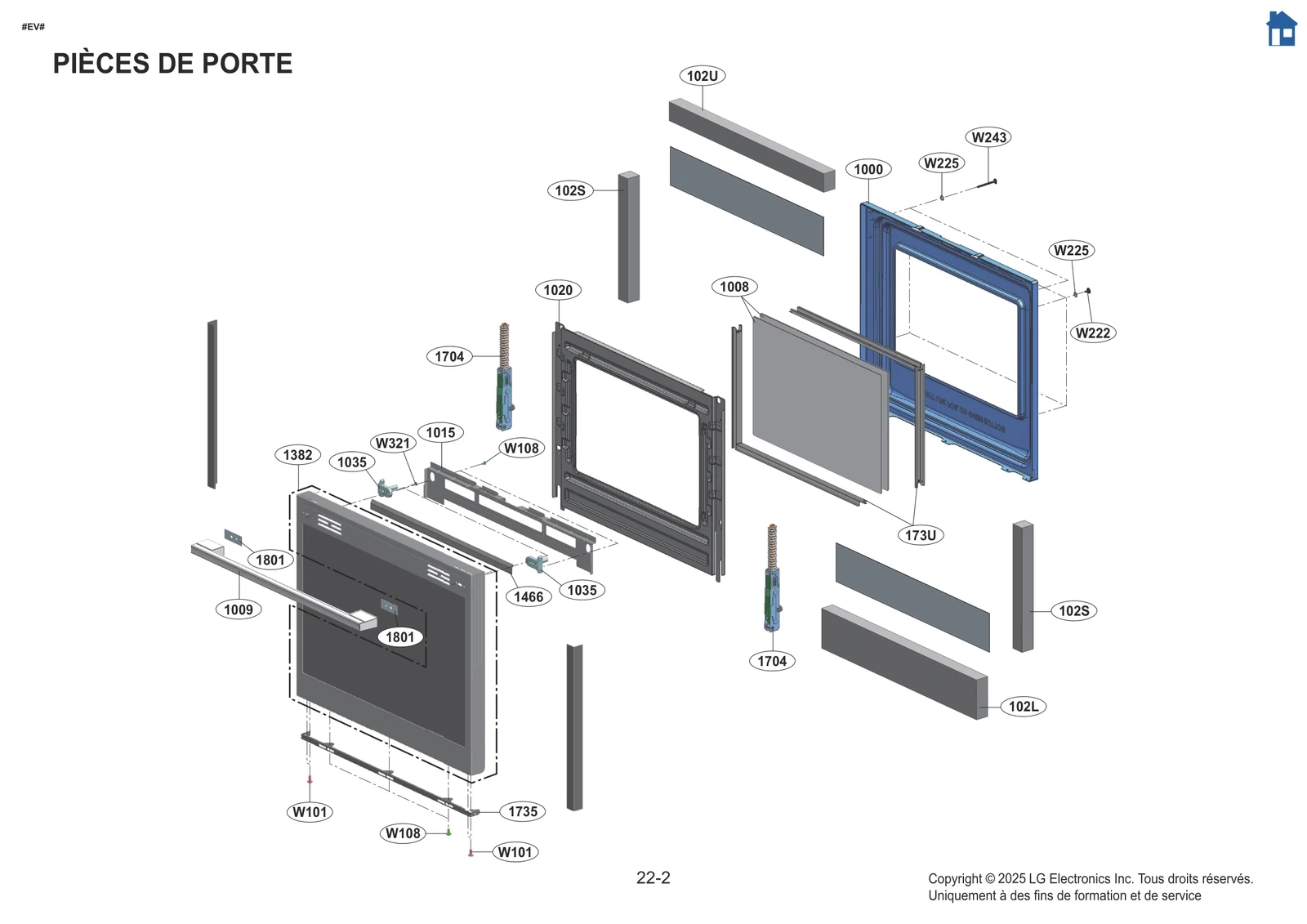

102L

MEV65115509 LG Insulator Backorder LGE MEV65115509 $14.57

View on Model

102S

MEV65115510 LG Insulator Backorder LGE MEV65115510 $9.72

View on Model

102U

MEV65115508 LG Insulator Backorder LGE MEV65115508 $9.72

View on Model

173U

Bracket,Mount LGE MAZ64569405 Contact Us For Availability

View on Model

244E

AEZ30166704 LG Knob Assembly Backorder LGE AEZ30166704 $44.78

View on Model

244S

KNOB ASSEMBLY Backorder LGE AEZ30166809 $63.26

View on Model

244T

Knob Assembly Backorder LGE AEZ30166801 $48.73

View on Model

261B

AJJ76418406 LG Circuit Board Assembly Support Backorder LGE AJJ76418406 $81.12

View on Model

507R

PCB Assembly,Power LGE EBR25036814 Contact Us For Availability

View on Model

546L

Bracket,Mount LGE MAZ67710502 Contact Us For Availability

View on Model

546R

Bracket,Mount LGE MAZ67710501 Contact Us For Availability

View on Model

550L

Barrier LGE MAL64330704 Contact Us For Availability

View on Model

550R

Barrier LGE MAL64330703 Contact Us For Availability

View on Model

1000

Frame,Door LGE MDQ64176910 Contact Us For Availability

View on Model

1008

4890W1N009G LG Window Glass Backorder LGE 4890W1N009G $81.12

View on Model

1009

HANDLE ASSEMBLY Backorder LGE AED30153301 $90.52

View on Model

1015

MEA63970507 LG Air Guide Backorder LGE MEA63970507 $20.09

View on Model

1020

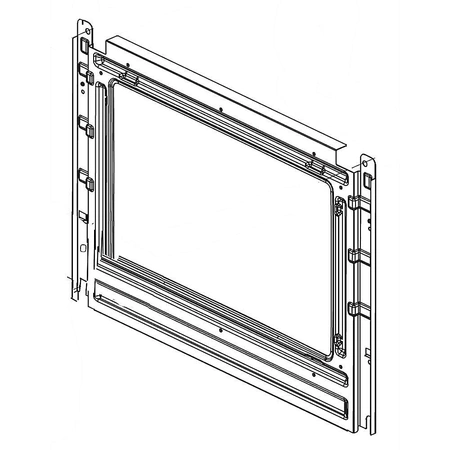

MCK68473201 LG Inner Cover Backorder LGE MCK68473201 $81.12

View on Model

1035

MJH64673101 LG Handle Support Assembly Backorder LGE MJH64673101 $6.11

View on Model

1382

AGM75509822 LG Door,Parts Assembly,Svc Backorder LGE AGM75509822 $63.26

View on Model

1466

COVER,GUIDE Backorder LGE MCK71414904 $14.57

View on Model

1704

AEH76198001 LG Hinge Assembly Backorder LGE AEH76198001 $55.55

View on Model

1735

Cover,Safety LGE MCK71457104 Contact Us For Availability

View on Model

1801

Gasket,Sealing LGE MDS67743106 Contact Us For Availability

View on Model

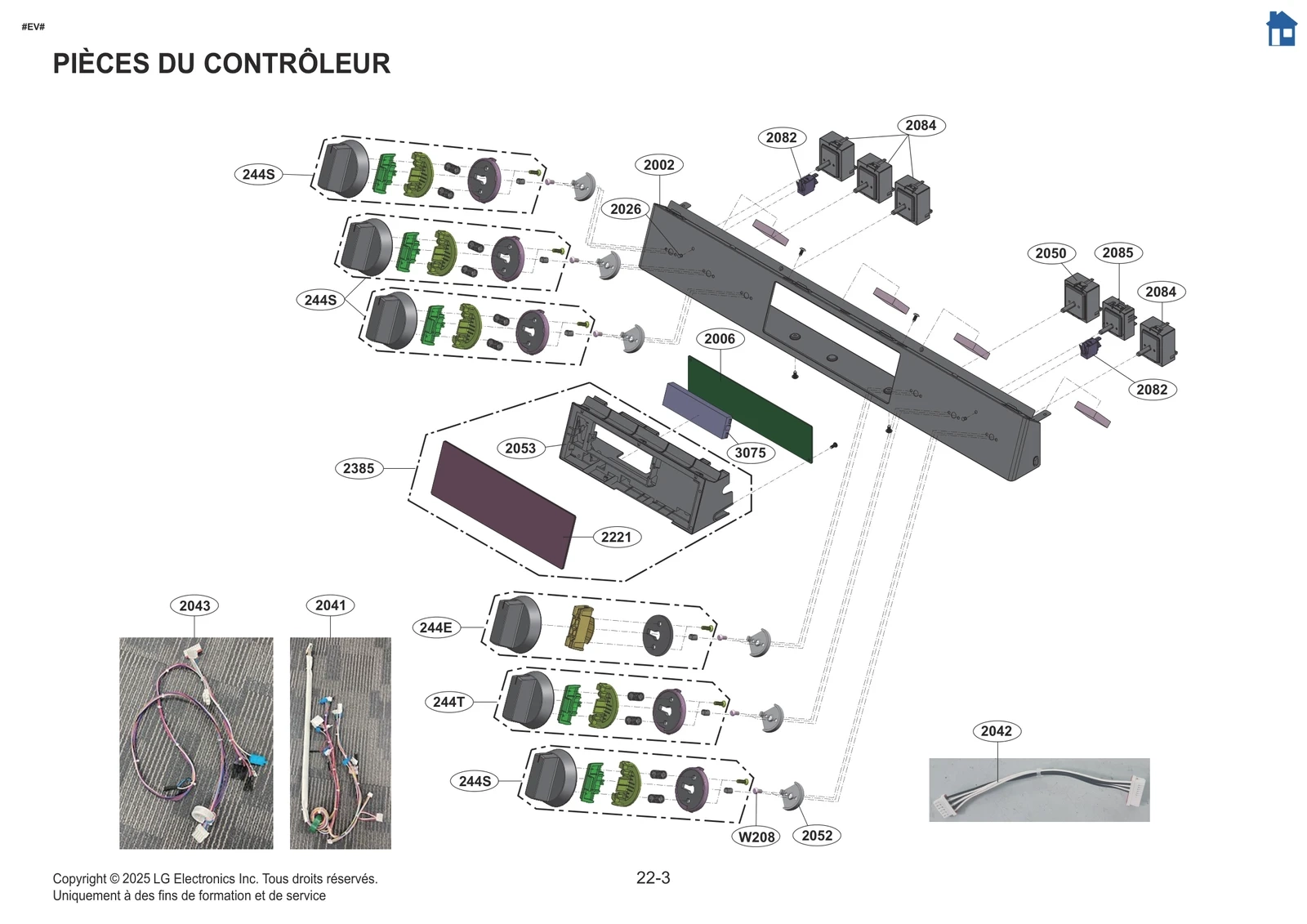

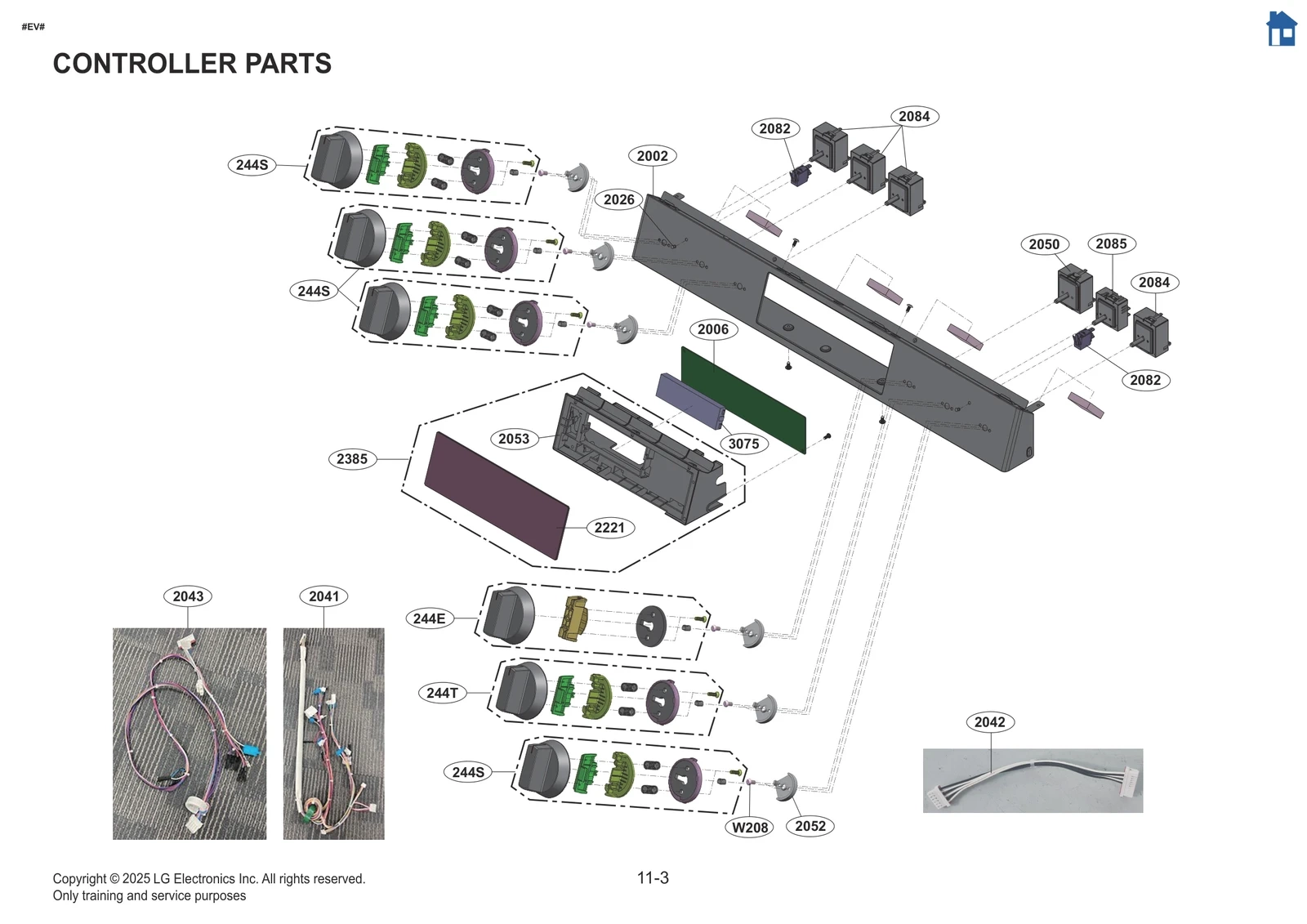

2002

Control Panel,Parts Assembly,SVC LGE AGM30074635 Contact Us For Availability

View on Model

2006

PCB Assembly,Main LGE EBR24604115 Contact Us For Availability

View on Model

2026

MCK62028003 LG Range Lamp Cover In Stock LGE MCK62028003 $6.11

View on Model

2041

Harness,Single LGE EAD63828117 Contact Us For Availability

View on Model

2042

Harness,Single LGE EAD62349863 Contact Us For Availability

View on Model

2043

EAD63828104 LG Harness, Single Backorder LGE EAD63828104 $98.93

View on Model

2050

EBF63054503 LG Rotary Switch Backorder LGE EBF63054503 $81.12

View on Model

2052

Ring,Guide LGE MGZ30291101 Contact Us For Availability

View on Model

2053

MJH66246801 LG PCB Supporter Backorder LGE MJH66246801 $44.78

View on Model

2082

EAQ60658303 LG Neon Lamp Backorder LGE EAQ60658303 $14.57

View on Model

2084

Backorder LGE EBF63054502 $90.45

View on Model

2085

EBF62174908 LG Rotary Switch In Stock LGE EBF62174908 $56.98

View on Model

2221

Window Assembly,Glass Backorder LGE AJX75331114 $109.49

View on Model

2385

Supporter,Parts Assembly,SVC LGE AGM75309071 Contact Us For Availability

View on Model

3013

Cover,Rear Backorder LGE MCK68473911 $90.45

View on Model

3022

AEG33897014 LG Heater Assembly Backorder LGE AEG33897014 $72.13

View on Model

3024

GRILLE,VENT Backorder LGE MDX65456106 $81.12

View on Model

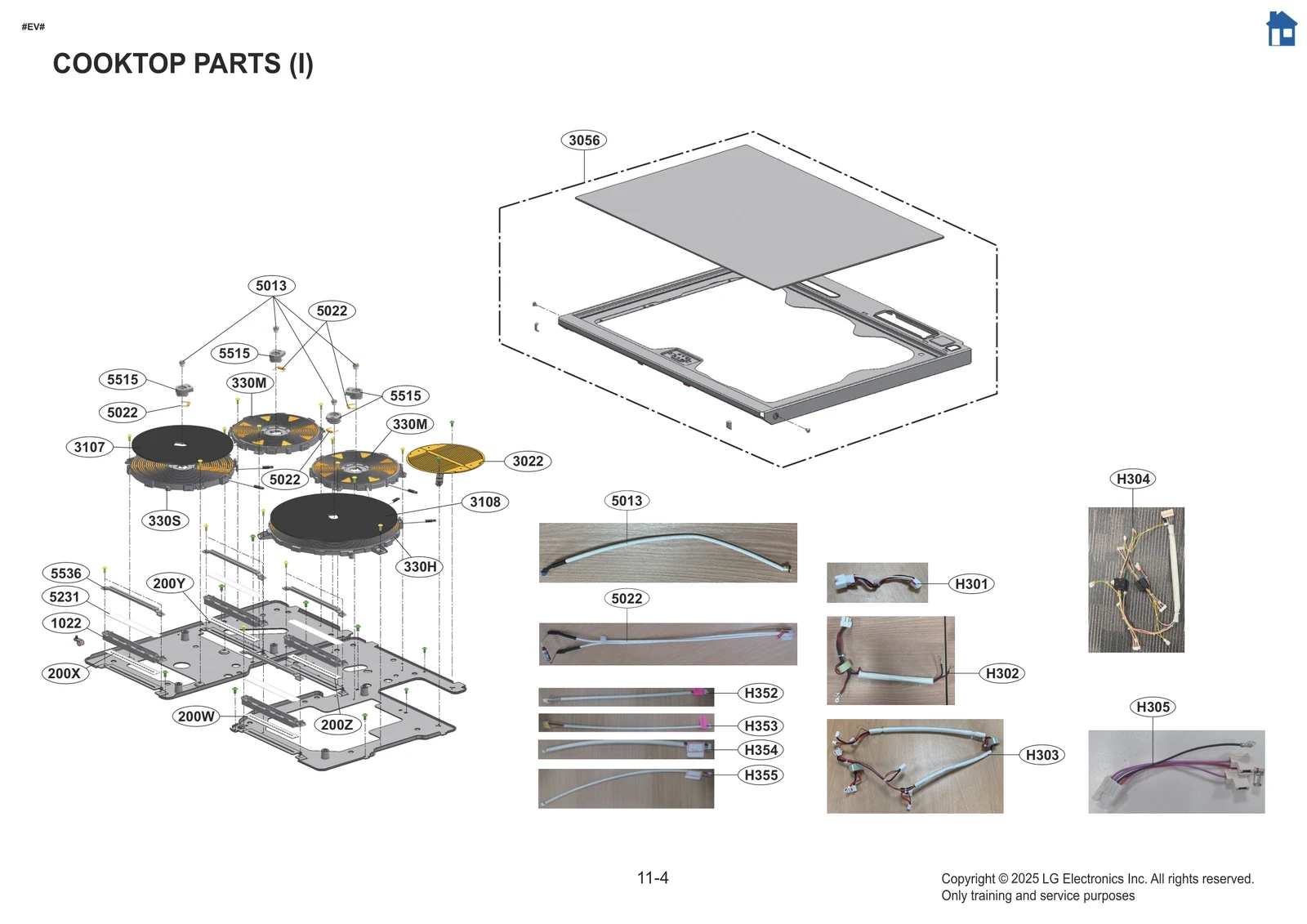

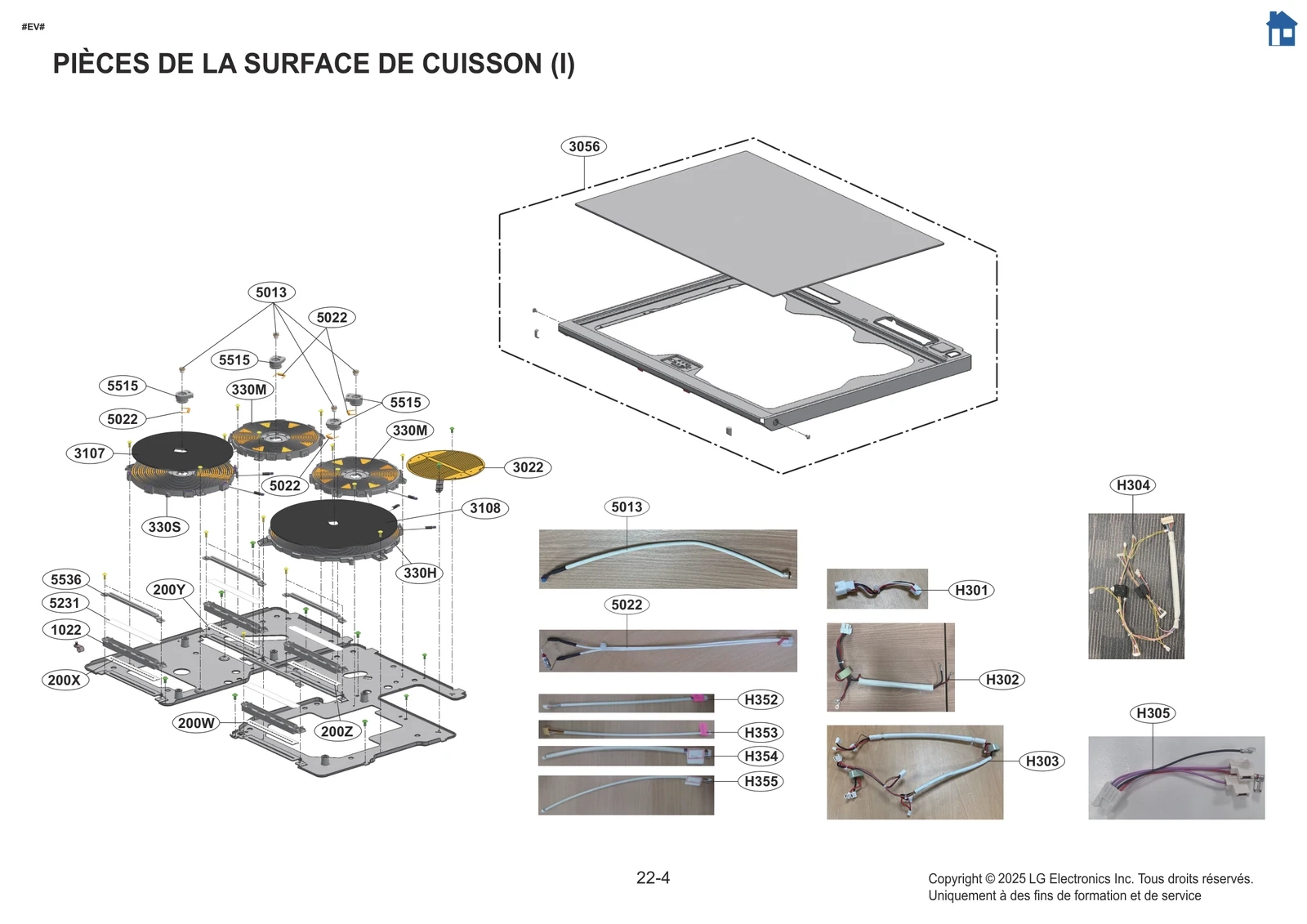

3056

AGU75049030 LG Upper Plate Assembly Backorder LGE AGU75049030 $476.40

View on Model

3057

3920W1N014A LG Idle Packing Backorder LGE 3920W1N014A $6.11

View on Model

3063

Cover,Rear Backorder LGE MCK68473909 $6.11

View on Model

3075

LED DISPLAY MODULE In Stock LGE EAV64012016 $72.13

View on Model

3090

Cover Assembly,Rear LGE ACQ88365239 Contact Us For Availability

View on Model

3093

MCR67468503 LG Range Rear Decor Guard Backorder LGE MCR67468503 $30.60

View on Model

3101

MEG66672701 LG Wire Holder Backorder LGE MEG66672701 $6.11

View on Model

3107

Insulator Backorder LGE MEV65897612 $30.60

View on Model

3108

Insulator LGE MEV65897619 Contact Us For Availability

View on Model

3208

MAZ64764301 LG Bracket Backorder LGE MAZ64764301 $6.11

View on Model

3222

Cover,Heater LGE MCK68473125 Contact Us For Availability

View on Model

3501

MHL63411413 LG Shelf Backorder LGE MHL63411413 $90.52

View on Model

3503

SHELF Backorder LGE MHL64891810 $132.54

View on Model

4002

EBF60663403 LG Range Oven Door Tact Switch Backorder LGE EBF60663403 $23.86

View on Model

4002

EBF60663404 LG Range Tact Switch Backorder LGE EBF60663404 $20.09

View on Model

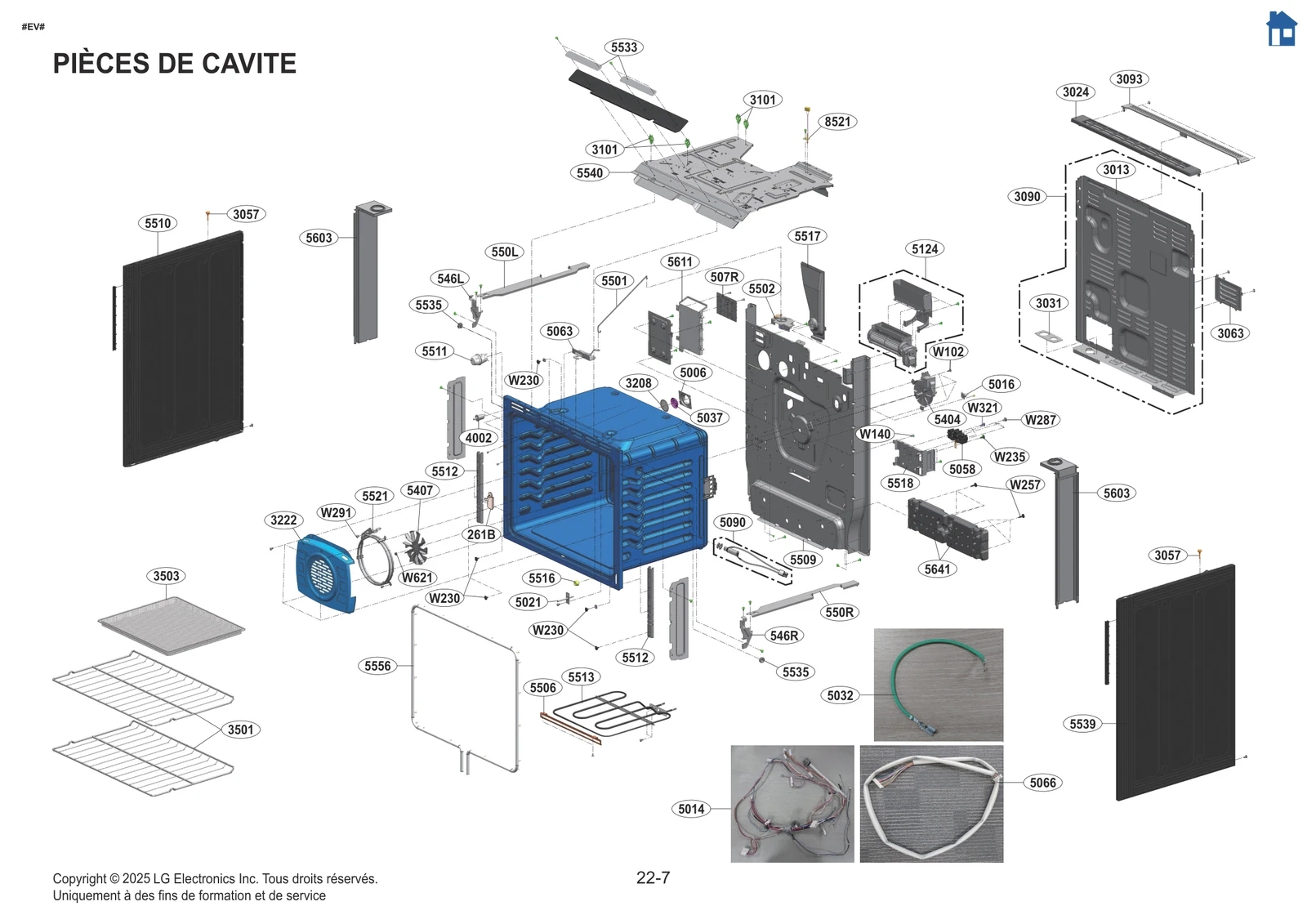

5006

MCZ63532001 LG Duct Backorder LGE MCZ63532001 $6.11

View on Model

5014

Harness,Single LGE EAD63827910 Contact Us For Availability

View on Model

5016

EBG51439305 LG Thermostat Backorder LGE EBG51439305 $9.72

View on Model

5021

EBG61305805 LG Oven Range Temperature Thermis In Stock LGE EBG61305805 $63.40

View on Model

5032

6877W1N024F LG Single Harness Backorder LGE 6877W1N024F $9.72

View on Model

5037

Filter,Charcoal LGE 5230W1N001J Contact Us For Availability

View on Model

5058

EAG32629305 LG Terminal Block Connector Backorder LGE EAG32629305 $37.50

View on Model

5063

ABA75389602 LG Bracket Assembly Backorder LGE ABA75389602 $30.60

View on Model

5066

EAD65883501 LG Single Harness Backorder LGE EAD65883501 $72.13

View on Model

5080

EBD51431001 LG Range Oven Meat Probe Temperat Backorder LGE EBD51431001 $63.26

View on Model

5090

Jack,DC Power Backorder LGE EAG43128002 $81.12

View on Model

5124

Fan Assembly,Blower LGE ADP30238106 Contact Us For Availability

View on Model

5404

MOTOR ASSEMBLY,AC,FAN Backorder LGE EAU63303808 $81.12

View on Model

5407

Fan,Convection LGE MDG62882902 Contact Us For Availability

View on Model

5501

Bar LGE MAK61907206 Contact Us For Availability

View on Model

5502

EAU62862906 LG AC Synchronous Motor Assembly Backorder LGE EAU62862906 $90.45

View on Model

5505

4980W1N013A LG Supporter Backorder LGE 4980W1N013A $6.11

View on Model

5505

Supporter LGE 4980W1N013G Contact Us For Availability

View on Model

5506

Bracket,Heater LGE MAZ63491304 Contact Us For Availability

View on Model

5509

MGC63819804 LG Rear Panel Backorder LGE MGC63819804 $109.49

View on Model

5510

Panel Assembly,Side LGE AGL30062532 Contact Us For Availability

View on Model

5511

EAQ62881201 LG Halogen Lamp Range Backorder LGE EAQ62881201 $44.78

View on Model

5512

Bracket,Hinge LGE MAZ64788506 Contact Us For Availability

View on Model

5513

MEE62306506 LG Sheath Heater Backorder LGE MEE62306506 $109.49

View on Model

5516

3920W1N013A LG Gasket Packing Backorder LGE 3920W1N013A $6.11

View on Model

5516

Packing,Gasket LGE 3920W1N013E Contact Us For Availability

View on Model

5517

AJV73149903 LG Vent Assembly Backorder LGE AJV73149903 $44.78

View on Model

5518

MAZ64569801 LG Bracket Idle Backorder LGE MAZ64569801 $14.57

View on Model

5521

MEE62865003 LG Range Heater Sheath Backorder LGE MEE62865003 $98.93

View on Model

5533

Bracket,Hinge LGE MAZ63548101 Contact Us For Availability

View on Model

5535

MJH63776501 LG Support Backorder LGE MJH63776501 $6.11

View on Model

5535

Supporter LGE MJH63776502 Contact Us For Availability

View on Model

5539

Panel Assembly,Side LGE AGL30062533 Contact Us For Availability

View on Model

5540

ADJ74172309 LG Duct Assembly Backorder LGE ADJ74172309 $98.93

View on Model

5540

Duct Assembly LGE ADJ74172315 Contact Us For Availability

View on Model

5556

MFZ64539501 LG Range Gasket Packing Backorder LGE MFZ64539501 $90.45

View on Model

5603

Guide Assembly,Suction LGE AEC75957201 Contact Us For Availability

View on Model

5611

MJH66322901 LG PCB Supporter Backorder LGE MJH66322901 $30.60

View on Model

5641

Balance Weight LGE MAG64123006 Contact Us For Availability

View on Model

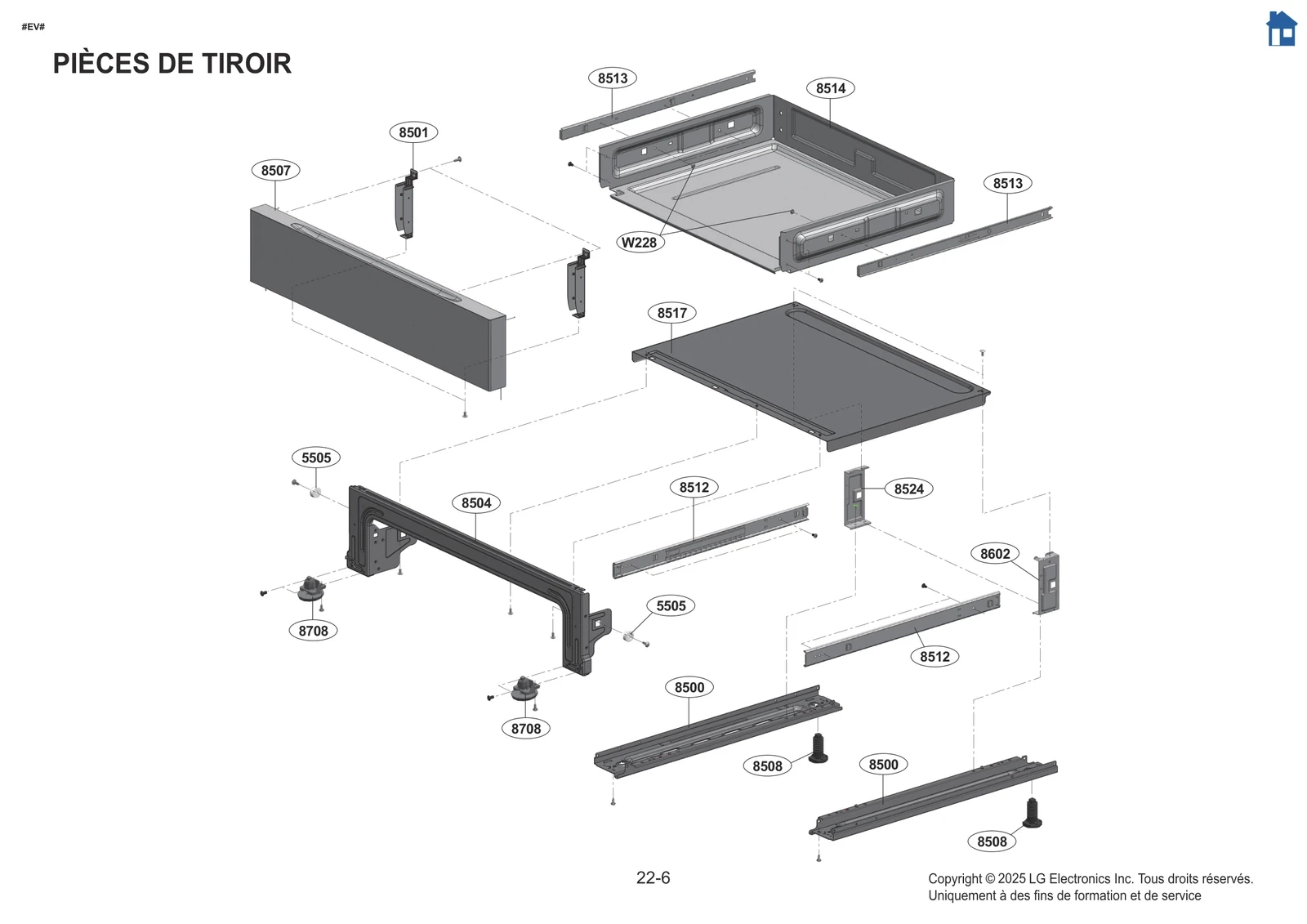

8500

Plate,Base LGE MGJ67004807 Contact Us For Availability

View on Model

8501

Frame,Fixing Backorder LGE MDQ66517504 $14.57

View on Model

8504

Plate,Front LGE MGJ67541201 Contact Us For Availability

View on Model

8507

Panel,Drawer Backorder LGE MGC66180318 $115.90

View on Model

8508

4778W1N001A LG Range Oven Leveling Leg Foot Backorder LGE 4778W1N001A $14.57

View on Model

8508

Foot LGE 4778W1N001G Contact Us For Availability

View on Model

8511

MAZ34877103 LG Idle Bracket In Stock LGE MAZ34877103 $14.57

View on Model

8511

Bracket,Idle LGE MAZ34877105 Contact Us For Availability

View on Model

8512

MHS62022301 LG Slider In Stock LGE MHS62022301 $72.13

View on Model

8513

MHS62022201 LG Slider Backorder LGE MHS62022201 $55.55

View on Model

8514

Drawer LGE MCX62743102 Contact Us For Availability

View on Model

8514

Drawer LGE MCX62743101 Contact Us For Availability

View on Model

8517

Insulator LGE MEV67765805 Contact Us For Availability

View on Model

8521

6322W2A001S LG NTC Thermistor Backorder LGE 6322W2A001S $23.86

View on Model

8524

Bracket,Mount LGE MAZ67768501 Contact Us For Availability

View on Model

8602

MAZ67769101 LG Bracket,Mount Backorder LGE MAZ67769101 $9.72

View on Model

8708

Foot Assembly LGE ADU73169404 Contact Us For Availability

View on Model

8708

Foot Assembly LGE ADU73169407 Contact Us For Availability

View on Model

9381

FAK30249601 LG Customized Anchor In Stock LGE FAK30249601 $6.11

View on Model

9501

5001W5N001D LG Accessory Backorder LGE 5001W5N001D $37.50

View on Model

9506

AAA74970602 LG Accessory Assembly Backorder LGE AAA74970602 $14.57

View on Model

H305

Harness,Single LGE EAD63891822 Contact Us For Availability

View on Model

MEZ3

LABEL,WARNING Backorder LGE MEZ69028403 $6.11

View on Model

W101

1SBF0402418 LG Laptop Screw Backorder LGE 1SBF0402418 $6.11

View on Model

W102

4B70188C LG Customized Screw Backorder LGE 4B70188C $6.11

View on Model

W108

1TTL0402418 LG Microwave Tapping Screw Backorder LGE 1TTL0402418 $4.74

View on Model

W208

FAB30455602 LG Screw Machine Backorder LGE FAB30455602 $6.11

View on Model

W222

1SZZW5N001C LG Range Screw Drawing Backorder LGE 1SZZW5N001C $6.11

View on Model

W225

1WZZW3Z003B LG Washer Customized Backorder LGE 1WZZW3Z003B $6.11

View on Model

W228

FAB31821702 LG Customized Screw Backorder LGE FAB31821702 $6.11

View on Model

W229

1SZZW1N003A LG Screw Customized Backorder LGE 1SZZW1N003A $6.11

View on Model

W230

1SZZW5N001A LG Screw Customized Backorder LGE 1SZZW5N001A $6.11

View on Model

W235

1ATF0502610 LG Screw Laptite Backorder LGE 1ATF0502610 $6.11

View on Model

W243

1SZZW5N001H LG Screw Customized Backorder LGE 1SZZW5N001H $6.11

View on Model

W257

1TTL0403818 LG Tapping Screw Backorder LGE 1TTL0403818 $6.11

View on Model

W287

FAB30162501 LG Customized Screw Backorder LGE FAB30162501 $6.11

View on Model

W291

1SZZW2A004E LG Customized Screw In Stock LGE 1SZZW2A004E $6.11

View on Model

W321

1TTL0403118 LG Tapping Screw Backorder LGE 1TTL0403118 $6.11

View on Model

W621

FAD33778501 LG Common Nut Backorder LGE FAD33778501 $6.11

View on Model

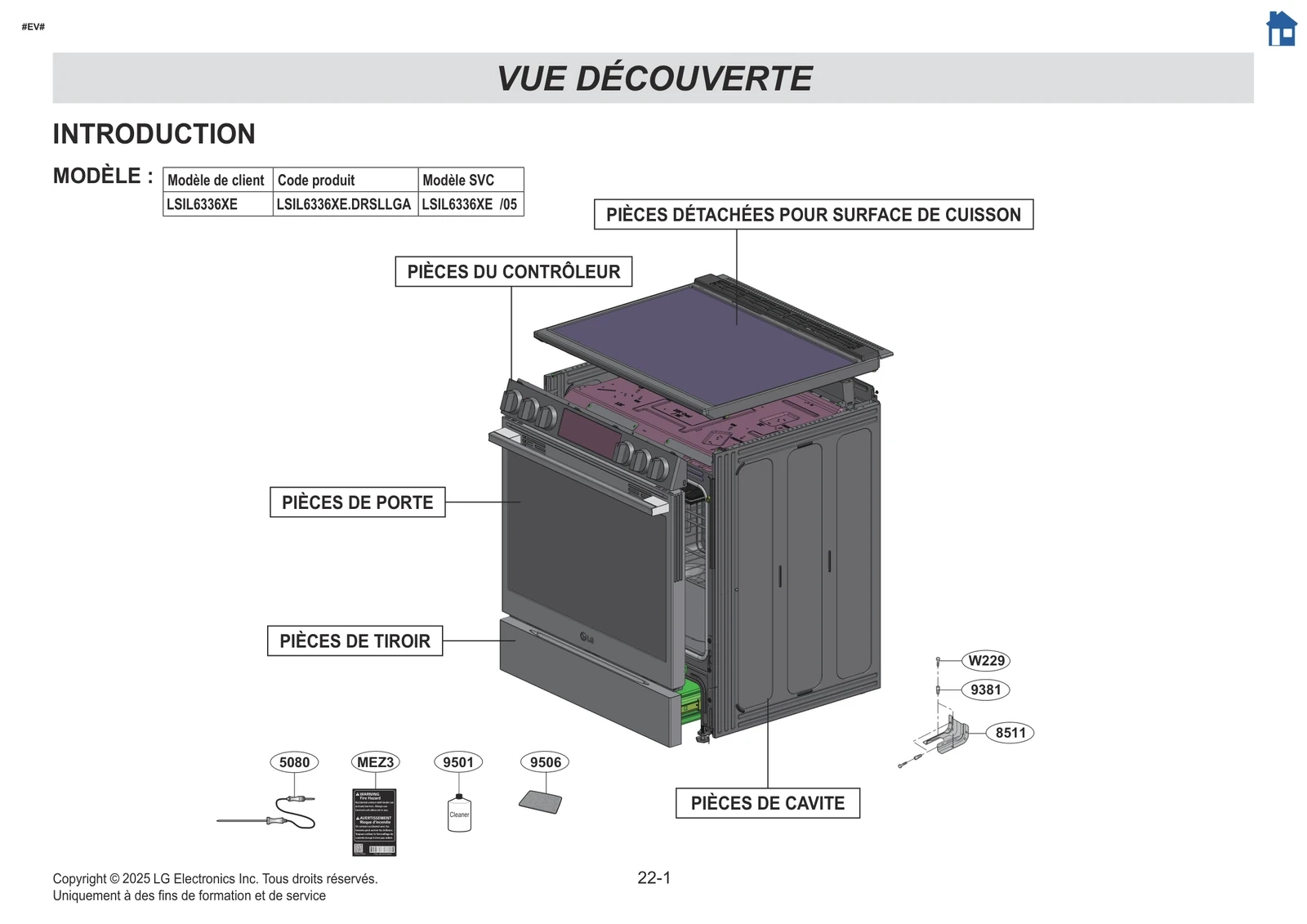

Model LG LSIL6336XE – Common Parts & Diagrams

Common parts from model LG LSIL6336XE

Search result for :
