Model LG LSB306 – Common Parts & Diagrams

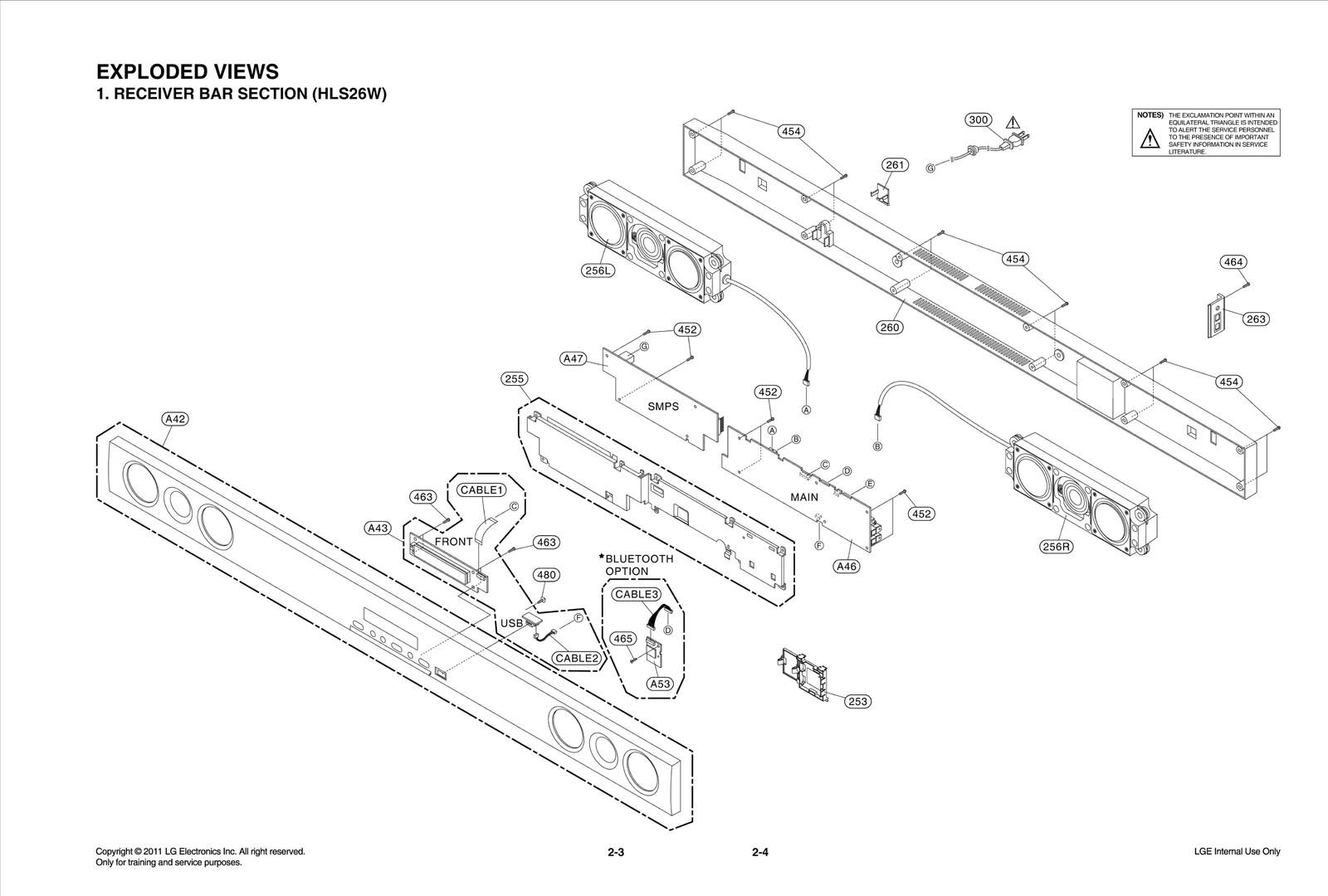

Diagram 0

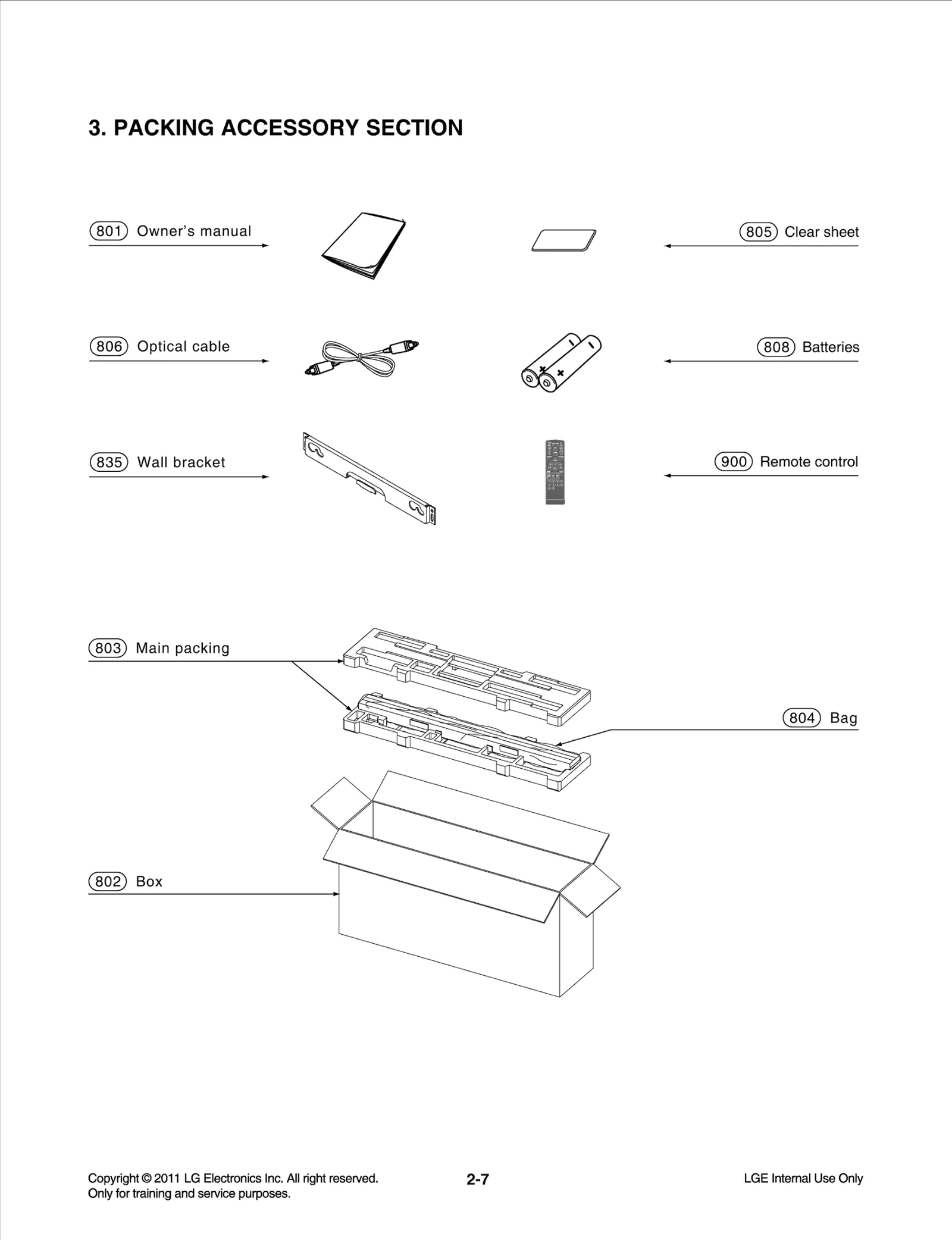

Diagram 1
Diagram 2
Common parts from model LG LSB306
253
Holder Assembly LGE AEJ73379401 Contact Us For Availability
255
Frame Assembly LGE ADV73845902 Contact Us For Availability
256L
Cover Assembly LGE ACQ85408101 Contact Us For Availability
256R
Cover Assembly LGE ACQ85408201 Contact Us For Availability
260
Panel Assembly,Rear LGE AGL73453801 Contact Us For Availability
261
Cover LGE MCK66019401 Contact Us For Availability
263
Cover LGE MCK66019501 Contact Us For Availability
300
Power Cord LGE EAD60816718 Contact Us For Availability
452
SCREW,DRAWING LGE 1SZZR-0098A Contact Us For Availability
454
Screw,Customized LGE 1SZZR-0098W Contact Us For Availability
463
SCREW,DRAWING LGE 1SZZR-0098G Contact Us For Availability
464
SCREW,DRAWING LGE 1SZZR-0097K Contact Us For Availability
465
SCREW,DRAWING LGE 1SZZR-0097N Contact Us For Availability
480
Screw,Customized LGE 353-100AAAA Contact Us For Availability
801
Manual Assembly,Owners LGE AFN75512437 Contact Us For Availability
802
Box,Master LGE MAY65187735 Contact Us For Availability
803
Packing LGE MFZ62138954 Contact Us For Availability
804
Bag LGE MAF58050915 Contact Us For Availability
805
Sheet LGE MHK37290701 Contact Us For Availability
806
Cable,Assembly LGE 6850R-ZAA02 Contact Us For Availability
808
BATTERY,ALKALINE LGE 6910A90004A Contact Us For Availability
808
BATTERY,MN LGE 841N0015 Contact Us For Availability
835
Bracket LGE MAZ62836401 Contact Us For Availability
900
Remote Controller Assembly LGE AKB73275404 Contact Us For Availability
A42
Panel Assembly,Front LGE AGL73453702 Contact Us For Availability
A43
PCB Assembly,Front LGE EBR72061902 Contact Us For Availability
A46
Option Code Assembly LGE EBR73048211 Contact Us For Availability
A47
PCB Assembly,Power LGE EBR72338902 Contact Us For Availability
A53
Module,Bluetooth LGE EAT61354201 Contact Us For Availability
BD900
Diode,Bridge LGE EAH31952201 Contact Us For Availability
C103
Capacitor,Ceramic,Chip LGE 0CK105DF56A Contact Us For Availability
C104
Capacitor,Ceramic,Ch LGE 0CK101BK4EA Contact Us For Availability
C105
Capacitor,Ceramic,Chip LGE 0CH1223K942 Contact Us For Availability
C203
Capacitor,Ceramic,Ch LGE 0CK105BF94A Contact Us For Availability
C205
Capacitor,Ceramic,Chip LGE 0CK221BK56A Contact Us For Availability
C208
Capacitor,Ceramic,Chip LGE 0CK222BKG6A Contact Us For Availability
C224
Capacitor,Ceramic,Chip LGE 0CH1225F946 Contact Us For Availability
C233
Capacitor,Ceramic,Ch LGE 0CK103BKK6A Contact Us For Availability
C303
Capacitor,Ceramic,Chip LGE 0CH4221K412 Contact Us For Availability
C404
Capacitor,Ceramic,Chip LGE 0CH4150K412 Contact Us For Availability
C514
Capacitor,Ceramic,Chip LGE 0CH4330K412 Contact Us For Availability
C526
Capacitor,Ceramic,Ch LGE 0CK100BK4EA Contact Us For Availability
C540
CAPACITOR,FIXED ELECTROLYTIC LGE 0CE107WF6DC Contact Us For Availability
C541
CAPACITOR,FIXED CERA LGE 0CK106EF56A Contact Us For Availability
C607
Capacitor,Ceramic,Ch LGE 0CK104BF56A Contact Us For Availability
C702
Capacitor,Ceramic,Chip LGE 0CH1472K562 Contact Us For Availability
C710
Capacitor,AL,Chip LGE 0CH8476H691 Contact Us For Availability
C712
Capacitor,Ceramic,Chip LGE 0CK475FHG6A Contact Us For Availability
C721
Capacitor,Ceramic,Chip LGE 0CH1333K562 Contact Us For Availability
C733
Capacitor,Ceramic,Chip LGE 0CH1104K566 Contact Us For Availability
C734
Capacitor,AL,Radial LGE 0CE477EJ630 Contact Us For Availability
C744
Capacitor,Ceramic,Chip LGE EAE36194101 Contact Us For Availability
C746
Capacitor,Ceramic,Chip LGE 0CK103DN56A Contact Us For Availability
C752
Capacitor,Ceramic,Chip LGE 0CK331DN56A Contact Us For Availability
C753
Capacitor,Ceramic,Chip LGE EAE37475001 Contact Us For Availability
C802
Capacitor,Ceramic,Chip LGE 0CH1822K562 Contact Us For Availability
C804
CHIP CAPA CERAMIC M/L T.C F/S LGE 0CH4470K412 Contact Us For Availability
C805
Capacitor,Ceramic,Chip LGE 0CH1102K562 Contact Us For Availability
C806
Capacitor,Ceramic,Chip LGE 0CK226FF56A Contact Us For Availability
C813
Capacitor,Ceramic,Chip LGE 0CH1152K562 Contact Us For Availability
C814
Capacitor,Ceramic,Ch LGE 0CK104CKG6A Contact Us For Availability
C815
CHIP CAPA CERAMIC M/L T.C F/S LGE 0CH4220K412 Contact Us For Availability
C816
Capacitor,Ceramic,Chip LGE 0CH4391K412 Contact Us For Availability
C828
Capacitor,AL,Chip LGE EAE39330001 Contact Us For Availability
C837
Capacitor,Ceramic,Chip LGE 0CH1332K512 Contact Us For Availability
C839
Capacitor,Ceramic,Chip LGE 0CH4101K412 Contact Us For Availability
C900
Capacitor,AL,Radial LGE 0CE686JV6A0 Contact Us For Availability
C901
Capacitor,Ceramic,Radial LGE EAE42617201 Contact Us For Availability
C901
Capacitor,Ceramic,Radial,Y-Cap LGE 0CG2220U630 Contact Us For Availability
C902
Capacitor,Ceramic,Radial LGE EAE42618801 Contact Us For Availability
C902
Capacitor,Ceramic,Radial,Y-Cap LGE 0CG4710U610 Contact Us For Availability
C920
Capacitor,Film,DIP LGE EAE50550201 Contact Us For Availability
C921
Capacitor,AL,Radial LGE 624-085D Contact Us For Availability
C923
CAPACITOR POLYESTER(MYLAR) CD- LGE 0CQ1041N409 Contact Us For Availability
C924
Capacitor,Film,DIP LGE EAE41288101 Contact Us For Availability
C925
Capacitor,Ceramic,Radial,Disc LGE 624-087H Contact Us For Availability
C951
CAPACITOR,FIXED ELEC LGE 0CE108EJK18 Contact Us For Availability
C953
CAPACITOR ELECTROLYTIC KCN21C2 LGE 0CE1056K618 Contact Us For Availability
C954
Capacitor,AL,Radial LGE 0CE1066K618 Contact Us For Availability
C955
Capacitor,Ceramic,Axial LGE 0CN1040K949 Contact Us For Availability
CA302
Capacitor,AL,Chip LGE 0CH8107C621 Contact Us For Availability
CA304
CAPACITOR,AL.ELECTRO LGE 0CE226SF6DC Contact Us For Availability
CA403
CAPACITOR,CHIP[AL. E LGE 0CH8106F611 Contact Us For Availability
CA404
Capacitor,AL,Chip LGE 0CH8107F621 Contact Us For Availability
CA501
CAPACITOR,FIXED ELECTROLYTIC LGE 0CE476SF6DC Contact Us For Availability
CA502
Capacitor,AL,Chip LGE EAE56703201 Contact Us For Availability
CA805
Capacitor,AL,Chip LGE EAE60658801 Contact Us For Availability
CA807
Capacitor,AL,Chip LGE EAE30174501 Contact Us For Availability
CA815
Capacitor,AL,Chip LGE EAE60659101 Contact Us For Availability
CABLE1
Cable,FFC LGE EAD35665116 Contact Us For Availability
CABLE2
Harness,Single LGE EAD33638816 Contact Us For Availability
CABLE3
Harness,Single LGE EAD55699605 Contact Us For Availability
CM901
Capacitor,Film,DIP LGE EAE39104801 Contact Us For Availability
CM901
CAPACITOR PCX2 275V 0.1UF M (P LGE 624-088F Contact Us For Availability
CM901
Capacitor,Film,Box LGE EAE61103301 Contact Us For Availability
CM901
CAPACITOR,DRAWING LGE 624-088L Contact Us For Availability
CN101
CONNECTOR (CIRC),FFC LGE 6630XE00112 Contact Us For Availability
CN301
Connector,FFC/FPC/PIC LGE 6630R-FB11L Contact Us For Availability
CN571
Connector,Wafer LGE 6630V90078H Contact Us For Availability
CN801
Connector,BtoB LGE 6630R-BF03J Contact Us For Availability
CN900
Connector,BtoB LGE EAG00743102 Contact Us For Availability
D803
Diode,Schottky LGE 0DSKE00048A Contact Us For Availability
D805
Diode,Rectifier LGE 0DRTW00268A Contact Us For Availability
D806
Diode,Zener LGE 0DZPH00038A Contact Us For Availability
D920
DIODE,SWITCHING LGE 0DSSA00010A Contact Us For Availability
D950
Diode,Switching LGE EAH30982401 Contact Us For Availability
D951
DIODE,RECTIFIER LGE 0DR104009BA Contact Us For Availability
F900
FUSE,SLOW BLOW LGE 0FS5001B51D Contact Us For Availability
FB920
Filter,Bead LGE EAM56488801 Contact Us For Availability
FC802
Filter,EMI/Power LGE EAM62092401 Contact Us For Availability
FR950
Resistor,Fusible LGE 0RF0200F709 Contact Us For Availability
IC101A
S/W,System Program LGE SAA35479902 Contact Us For Availability
IC102
IC,EEPROM LGE EAN57037601 Contact Us For Availability
IC103
IC,Voltage Detector LGE EAN60772201 Contact Us For Availability
IC201
IC,A/D Converter LGE EAN58772001 Contact Us For Availability
IC202
IC,I/O Support Chip LGE EAN57065701 Contact Us For Availability
IC301
IC,Display Driver LGE EAN41678501 Contact Us For Availability
IC401
IC,Digital Signal Processors LGE EAN61489101 Contact Us For Availability
IC403A
S/W,System Program LGE SAA35480002 Contact Us For Availability
IC404
IC,CMOS LGE EAN60070301 Contact Us For Availability
IC405
IC,Voltage Regulator LGE EAN61607501 Contact Us For Availability
IC501
IC,Digital Signal Processors LGE EAN57796901 Contact Us For Availability
IC502
IC,SDRAM LGE 0IMMREO001E Contact Us For Availability
IC503A
S/W,System Program LGE SAA35479802 Contact Us For Availability
IC504
IC,Voltage Regulator LGE EAN61131201 Contact Us For Availability
IC601
IC,PWM Controller LGE EAN60993101 Contact Us For Availability
IC702
IC,Power Amplifier LGE EAN60995801 Contact Us For Availability
IC702
IC,Power Amplifier LGE EAN60995802 Contact Us For Availability
IC802
IC,DC,DC Converter LGE EAN57771001 Contact Us For Availability
IC803
IC,DC,DC Converter LGE EAN60660502 Contact Us For Availability
IC806
IC,LDO Voltage Regulator LGE EAN50484701 Contact Us For Availability
IC920
IC,PWM Controller LGE EAN61607401 Contact Us For Availability
IC950
IC,Voltage Reference LGE EAN60911701 Contact Us For Availability
IC950
IC KEC, KIA431, GVR-C435/R-E4 LGE 0IKE431000A Contact Us For Availability
IC950
IC,POWER MANAGEMENT LGE 0IPMGUC004B Contact Us For Availability
JK201
Jack,Phone LGE 6612F00086A Contact Us For Availability
JK203
JACK,FIBER OPTIC LGE 6612K00010B Contact Us For Availability
JK771
Connector,Wafer LGE 6630V90078D Contact Us For Availability
JK773
Connector,USB LGE EAG35130501 Contact Us For Availability
L201
Filter,Bead LGE 0LCCE00004Y Contact Us For Availability
L302
Filter,Bead LGE 0LCCE00005N Contact Us For Availability
L711
Coil,Choke LGE EAP60986503 Contact Us For Availability
L804
Transformer,Switching LGE EBJ60770139 Contact Us For Availability
L843
Filter,Bead LGE EAM42641607 Contact Us For Availability
LF901
Filter,Line Noise LGE EAM61230103 Contact Us For Availability
PC900
SENSOR LTV-817B PHOTO COUPLER LGE 657-063A Contact Us For Availability
PC900
Photo,Coupler LGE EAV61473101 Contact Us For Availability
PC900
Photo,Coupler LGE EAV59176001 Contact Us For Availability
PN900
CONNECTOR (CIRC) LGE 561-292B Contact Us For Availability
Q101
TR,Bipolar LGE 0TR150409AC Contact Us For Availability
Q301
TRANSISTOR KRA103S-T1(PC)22-22 LGE 0TR103009AC Contact Us For Availability
Q302
TR,Bipolar LGE 0TRKE80041A Contact Us For Availability
Q801
TR,Bipolar LGE 0TRON80001C Contact Us For Availability
Q803
TR,Bipolar LGE 0TR103009AA Contact Us For Availability
Q804
TRANSISTOR,FETS LGE 0TFPH80002A Contact Us For Availability
Q951
TRANSISTOR KTC3202-TP-Y(KTC195 LGE 0TR320209AA Contact Us For Availability
R163
Resistor,Chip LGE 0RJ1201C678 Contact Us For Availability
R165
Resistor,Chip LGE 0RJ4701C678 Contact Us For Availability
R167
RESISTOR CHIP LGE 0RH0472D622 Contact Us For Availability
R168
Resistor,Chip LGE 0RJ2702C678 Contact Us For Availability
R187
RESISTOR CHIP 220 1/10W 5 D.R LGE 0RH2200D622 Contact Us For Availability
R191
Resistor,Chip LGE 0RH7500C622 Contact Us For Availability
R193
Resistor,Chip LGE 0RH8200C622 Contact Us For Availability
R195
Resistor,Chip LGE 0RH1501C622 Contact Us For Availability
R203
Resistor,Chip LGE 0RH3902C622 Contact Us For Availability
R206
Resistor,Chip LGE 0RJ4700C678 Contact Us For Availability
R226
Resistor,Chip LGE 0RJ0752C678 Contact Us For Availability
R302
Resistor,Chip LGE 0RH3302D622 Contact Us For Availability
R303
Resistor,Chip LGE 0RH3002C622 Contact Us For Availability
R306
RESISTOR,CHIP LGE 0RH1000C622 Contact Us For Availability
R307
Resistor,Chip LGE 0RH1003C622 Contact Us For Availability
R311
RESISTOR CHIP 100K 1/10W 5 D. LGE 0RH1003D622 Contact Us For Availability
R400
Resistor,Chip LGE 0RH1004C622 Contact Us For Availability
R401
Resistor,Chip LGE 0RH3301C622 Contact Us For Availability
R405
Resistor,Chip LGE 0RH0000C622 Contact Us For Availability
R409
Resistor,Chip LGE 0RH0752C622 Contact Us For Availability
R410
Resistor,Chip LGE 0RH5101C422 Contact Us For Availability
R433
Resistor,Chip LGE 0RJ0332C678 Contact Us For Availability
R531
Resistor,Chip LGE 0RJ1003C678 Contact Us For Availability
R532
Resistor,Chip LGE 0RJ1004C678 Contact Us For Availability
R533
Resistor,Chip LGE 0RJ2200C678 Contact Us For Availability
R542
Resistor,Chip LGE 0RJ1002C678 Contact Us For Availability
R613
Resistor,Chip LGE 0RJ0472C678 Contact Us For Availability
R703
Resistor,Chip LGE 0RH2202C622 Contact Us For Availability
R704
Resistor,Chip LGE 0RJ0000C678 Contact Us For Availability
R708
Resistor,Chip LGE 0RJ1001C678 Contact Us For Availability
R712
Resistor,Chip LGE 0RH0331C622 Contact Us For Availability
R726
Resistor,Chip LGE 0RH0182D622 Contact Us For Availability
R727
Resistor,Chip LGE 0RH0331D622 Contact Us For Availability
R801
Resistor,Chip LGE 0RH2203C622 Contact Us For Availability
R803
RESISTOR,METAL GLAZE LGE 0RH2402C422 Contact Us For Availability
R805
RESISTOR,METAL GLAZE LGE 0RH1602C622 Contact Us For Availability
R806
Resistor,Chip LGE 0RH5101C622 Contact Us For Availability
R809
Resistor,Chip LGE 0RJ5602C477 Contact Us For Availability
R810
Resistor,Chip LGE 0RH3001C422 Contact Us For Availability
R811
Resistor,Chip LGE 0RH1302C422 Contact Us For Availability
R812
Resistor,Chip LGE 0RH9100C622 Contact Us For Availability
R817
Resistor,Chip LGE 0RH0221C622 Contact Us For Availability
R823
Resistor,Chip LGE 0RH4702C422 Contact Us For Availability
R824
Resistor,Chip LGE 0RH1202C422 Contact Us For Availability
R825
Resistor,Chip LGE 0RH1001C422 Contact Us For Availability
R832
Resistor,Chip LGE 0RH8201C422 Contact Us For Availability
R833
Resistor,Chip LGE 0RH3002C422 Contact Us For Availability
R835
Resistor,Chip LGE 0RH1000C422 Contact Us For Availability
R836
Resistor,Chip LGE 0RH1002C422 Contact Us For Availability
R837
RH 47K-J 1/16W GVC-F475,F477 LGE 0RH4702C622 Contact Us For Availability
R841
Resistor,Chip LGE 0RH4701C622 Contact Us For Availability
R846
Resistor,Chip LGE 0RH6800C622 Contact Us For Availability
R847
Resistor,Chip LGE 0RH2200C622 Contact Us For Availability
R851
RESISTOR,CHIP LGE 0RH1001C622 Contact Us For Availability
R852
RESISTOR,CHIP LGE 0RH1002C622 Contact Us For Availability
R854
Resistor,Chip LGE EBC38990201 Contact Us For Availability
R900
Resistor,Carbon Film LGE EBC60972001 Contact Us For Availability
R920
RESISTOR,FIX METAL FILM OXIDE LGE 0RS5602K619 Contact Us For Availability
R921
RESISTOR FIXED CARBON FILM LGE 0RD0102F609 Contact Us For Availability
R924
Resistor,Metal Oxide Film LGE 0RS0470K619 Contact Us For Availability
R951
RESISTOR FIXED CARBON FILM KCN LGE 0RD1001F609 Contact Us For Availability
R953
Resistor,Carbon Film LGE 0RD1502F609 Contact Us For Availability
R954
Resistor,Carbon Film LGE 0RD2201F609 Contact Us For Availability
R957
Resistor,Metal Film LGE 0RN2001F409 Contact Us For Availability
R958
Resistor,Carbon Film LGE 0RD5601F609 Contact Us For Availability
RC301
Receiver Module LGE EAV37005204 Contact Us For Availability
SW101
Switch,Tact LGE 6600R000005 Contact Us For Availability
T900
Transformer,Switching LGE EBJ60770138 Contact Us For Availability
TH900
Thermistor,NTC LGE EBG43134001 Contact Us For Availability
TH900
Thermistor,NTC LGE EBG61026201 Contact Us For Availability
TM2
CONNECTOR (CIRC),HOU LGE 561-661B Contact Us For Availability
VFD
VFD LGE EAJ60868406 Contact Us For Availability
VR900
Varistor LGE EAF43134201 Contact Us For Availability
X101
Crystal LGE 6212AB2220C Contact Us For Availability
X400
RESONATOR,CRYSTAL LGE 6212AB2246C Contact Us For Availability
X501
Crystal LGE 6212AB2120G Contact Us For Availability
X601
Crystal LGE 6212AB2192K Contact Us For Availability
ZD771
Diode,TVS LGE EAH54696501 Contact Us For Availability
ZD801
DIODE,ZENERS LGE 0DZPH00048A Contact Us For Availability
ZD920
Diode,Zener LGE 0DZSE00104A Contact Us For Availability
ZD921
Diode,Zener LGE 0DZSE00044B Contact Us For Availability
ZD950
Diode,Zener LGE 0DZSE00164A Contact Us For Availability
× ![]()
Login and Registration Form
