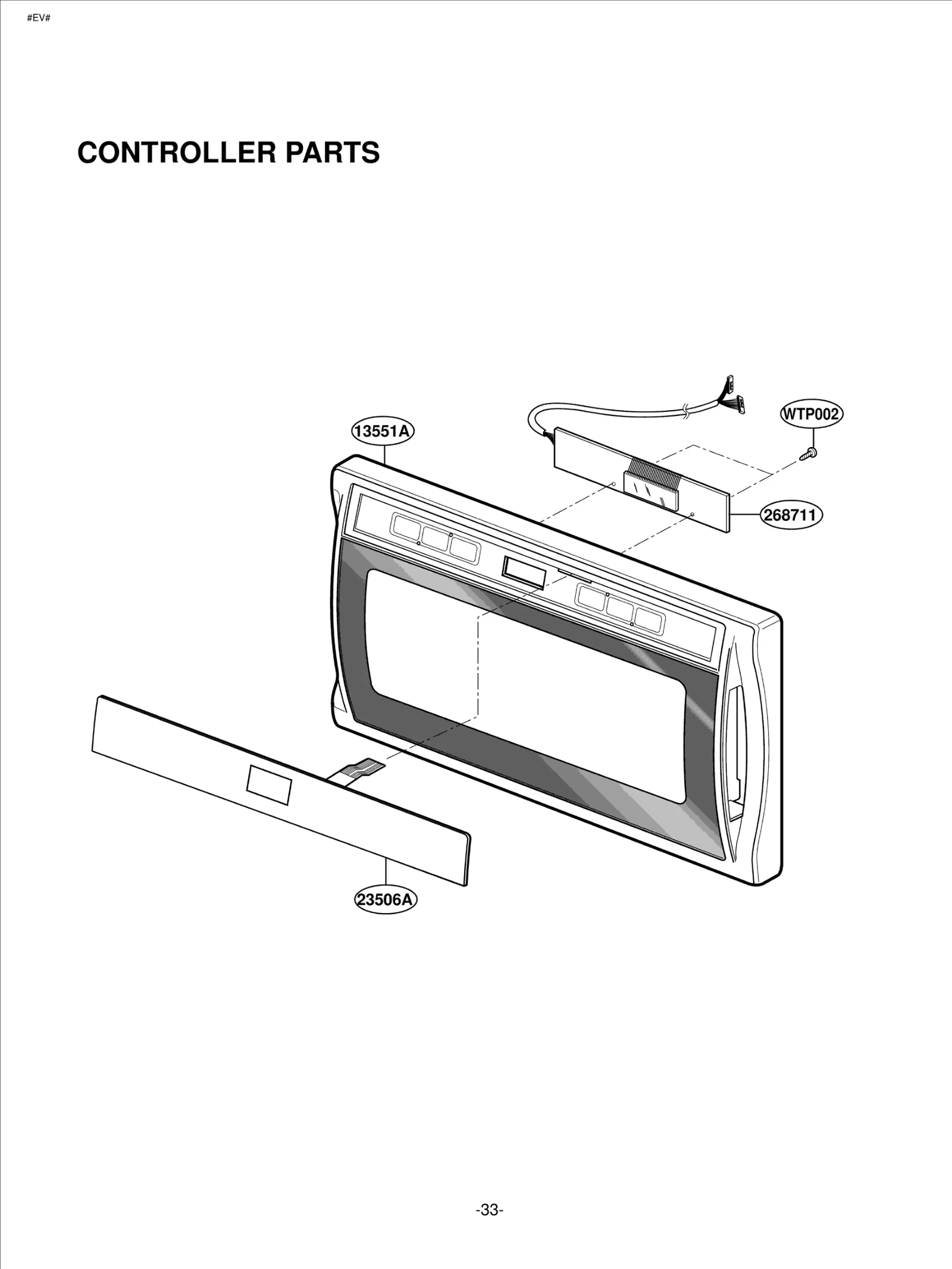

Model LG LRMM1430SW MWO-L – Common Parts & Diagrams

13551A
SERVICE PARTS
SERVICE PARTS LGE 383EW5A259A Contact Us For Availability
View on Model
13806F
DECO,FRONT
DECO,FRONT LGE 3806W1A062B Contact Us For Availability
View on Model
23506A
KEY MEMBRANE
KEY MEMBRANE LGE 3506W1A443A Contact Us For Availability
View on Model
33112U
Case,Flat
Case,Flat LGE 3112W0F020L Contact Us For Availability
View on Model
35264A
GUIDE,AIR
GUIDE,AIR LGE 4974W0A006A Contact Us For Availability
View on Model
35889A
ROTATING RING ASSEMBLY
ROTATING RING ASSEMBLY LGE 5889W1A003A Contact Us For Availability
View on Model
35889A
ROTATING RING ASSEMBLY
ROTATING RING ASSEMBLY LGE 5889W1A003C Contact Us For Availability
View on Model
36549S
MOTOR(CIRC),SYNCHRONOUS
MOTOR(CIRC),SYNCHRONOUS LGE 6549W1S015A Contact Us For Availability
View on Model
43500A
BOARD,LATCH
BOARD,LATCH LGE 3500W0A002A Contact Us For Availability
View on Model
43501A
BOARD ASSEMBLY,LATCH
BOARD ASSEMBLY,LATCH LGE 3501W1A030A Contact Us For Availability
View on Model
54974S
GUIDE,SUCTION
GUIDE,SUCTION LGE 4974W1A014A Contact Us For Availability
View on Model
54974T
BRACKET,SENSOR
BRACKET,SENSOR LGE 4810W1A079A Contact Us For Availability
View on Model
54980A
PCB SUPPORT DASS-9N MV-1120M W
PCB SUPPORT DASS-9N MV-1120M W LGE 4B73792B Contact Us For Availability
View on Model
55238A
GUIDE,AIR
GUIDE,AIR LGE 4974W1A013A Contact Us For Availability
View on Model
55900A
PROPELLER
PROPELLER LGE 2B72125A Contact Us For Availability
View on Model
56201A
FILTER ASSEMBLY(CIRC)
FILTER ASSEMBLY(CIRC) LGE 6201W1A008F Contact Us For Availability
View on Model
56324A
MAGNETRON
MAGNETRON LGE 6324W1A002B Contact Us For Availability
View on Model
56411A
POWER CORD ASSEMBLY
POWER CORD ASSEMBLY LGE 6411W1A027A Contact Us For Availability
View on Model
56411A
POWER CORD
POWER CORD LGE 6411W1A027B Contact Us For Availability
View on Model
56501A
SENSOR ASSEMBLY
SENSOR ASSEMBLY LGE 6501W1A006E Contact Us For Availability
View on Model
56549F
MOTOR(CIRC),FAN
MOTOR(CIRC),FAN LGE 6549W1F005B Contact Us For Availability
View on Model
56851H
CABLE,HIGH VOLTAGE
CABLE,HIGH VOLTAGE LGE 6850W1A001B Contact Us For Availability
View on Model
56912B
LAMP,DRAWING
LAMP,DRAWING LGE 6912W3B002Q Contact Us For Availability
View on Model
63302A
BASE PLATE
BASE PLATE LGE 3302W0A041A Contact Us For Availability
View on Model
268711
PWB(PCB) ASSEMBLY,SUB
PWB(PCB) ASSEMBLY,SUB LGE 6871W1S144C Contact Us For Availability
View on Model
268712
PWB(PCB) ASSEMBLY,SUB
PWB(PCB) ASSEMBLY,SUB LGE 6871W1S145A Contact Us For Availability
View on Model
568711
PWB(PCB) ASSEMBLY,SUB
PWB(PCB) ASSEMBLY,SUB LGE 6871W1S019A Contact Us For Availability
View on Model
568771
HARNESS
HARNESS LGE 6877W1A434A Contact Us For Availability
View on Model
568772
HARNESS
HARNESS LGE 6631W3A003Q Contact Us For Availability
View on Model
647781
LEG
LEG LGE 4778W1A002A Contact Us For Availability
View on Model
647782
LEG
LEG LGE 4B73900A Contact Us For Availability
View on Model
MEZ173
Label,Cooking Guide
Label,Cooking Guide LGE 3850W1D101A Contact Us For Availability
View on Model
MFL552
Manual,Owners
Manual,Owners LGE 3828W5A3194 Contact Us For Availability
View on Model
WTT022
TRUSS HEAD TP SCREW+2 CUT MV-
TRUSS HEAD TP SCREW+2 CUT MV- LGE 1TTL0402422 Contact Us For Availability
View on Model
