LG LRE3091SW Parts List | Part Advantage

1018

4890W1N005A LG Range Oven Door Inner Window G Backorder LGE 4890W1N005A $132.54

View on Model

1403

4980W1N011E LG Supporter Backorder LGE 4980W1N011E $72.13

View on Model

1704

AEH72957505 LG Hinge Assembly Backorder LGE AEH72957505 $132.54

View on Model

2006

EBR60969302 LG Range PCB Main Assembly Backorder LGE EBR60969302 $227.71

View on Model

2009

EBR60969202 LG Range Power PCB Assembly Backorder LGE EBR60969202 $150.14

View on Model

2082

EAQ60658301 LG Lamp Neon Backorder LGE EAQ60658301 $23.86

View on Model

2083

Switch,Rotary LGE EBF60663201 Contact Us For Availability

View on Model

2084

Switch,Rotary LGE EBF60669101 Contact Us For Availability

View on Model

2085

EBF60688001 LG Range Rotary Switch Backorder LGE EBF60688001 $169.01

View on Model

3006

4B72510F LG Wire Holder Backorder LGE 4B72510F $6.11

View on Model

3013

MCK36350003 LG Rear Cover Backorder LGE MCK36350003 $86.10

View on Model

3058

4970W1N004A LG Spring Assembly Backorder LGE 4970W1N004A $6.11

View on Model

3063

MCK36350004 LG Rear Cover Backorder LGE MCK36350004 $96.73

View on Model

3301

MEE62385201 LG Range Oven Heater Element Backorder LGE MEE62385201 $185.17

View on Model

3302

5300W1R005A LG Range Top Burner Element Heate Backorder LGE 5300W1R005A $261.61

View on Model

3303

5300W1R004A LG Range Oven Cooktop Small Radia Backorder LGE 5300W1R004A $115.90

View on Model

3401

4980W1N014A LG Supporter Backorder LGE 4980W1N014A $6.11

View on Model

3501

MHL39256104 LG Shelf Assembly Backorder LGE MHL39256104 $102.46

View on Model

3501

MHL39256107 LG Range Oven Gliding Shelf Rack In Stock LGE MHL39256107 $34.31

View on Model

4002

EBF60663401 LG Tact Switch Backorder LGE EBF60663401 $48.84

View on Model

5001

3B74133K LG Microwave Oven Time Delay Fuse Backorder LGE 3B74133K $4.74

View on Model

5010

6411W1N002A LG Cord Assembly Power Backorder LGE 6411W1N002A $101.72

View on Model

5019

6877W1N025B LG Single Harness Backorder LGE 6877W1N025B $37.50

View on Model

5021

EBG61305805 LG Oven Range Temperature Thermis In Stock LGE EBG61305805 $63.40

View on Model

5037

5230W1N001B LG Charcoal Filter Backorder LGE 5230W1N001B $48.73

View on Model

5041

Filter Assembly LGE EAM60740401 Contact Us For Availability

View on Model

5063

ABA73249401 LG Bracket Assembly Backorder LGE ABA73249401 $63.26

View on Model

5409

Insulator LGE 5012W0N002B Contact Us For Availability

View on Model

5501

4270W1N001B LG Bar Backorder LGE 4270W1N001B $23.86

View on Model

5502

Motor Assembly,AC,Synchronous LGE 6549W1S025B Contact Us For Availability

View on Model

5504

Supporter LGE 4980W1A111B Contact Us For Availability

View on Model

5505

4980W1N013A LG Supporter Backorder LGE 4980W1N013A $6.11

View on Model

5508

6640000045A LG Range Terminal Block Connector Backorder LGE 6640000045A $23.86

View on Model

5509

Panel LGE 3720W0E011B Contact Us For Availability

View on Model

5510

MGC62644006 LG Side Panel Backorder LGE MGC62644006 $169.01

View on Model

5510

Panel,Side LGE 3720W0E012R Contact Us For Availability

View on Model

5511

6913W1N002C LG Range Incandescent Lamp In Stock LGE 6913W1N002C $76.99

View on Model

5512

MAZ61885801 LG Range Hinge Bracket Backorder LGE MAZ61885801 $48.73

View on Model

5513

Heater,Sheath LGE MEE61843502 Contact Us For Availability

View on Model

5514

LGE MEE61843402 LGE MEE61843402 Contact Us For Availability

View on Model

5515

Packing,Gasket LGE 3920W0N001B Contact Us For Availability

View on Model

5516

3920W1N013A LG Gasket Packing Backorder LGE 3920W1N013A $6.11

View on Model

5517

Vent Assembly LGE AJV31005901 Contact Us For Availability

View on Model

5518

Bracket,Idle LGE 4810W1N056B Contact Us For Availability

View on Model

5548

Bracket,Idle LGE 4810W1N050B Contact Us For Availability

View on Model

8388

AGM72925302 LG Drawer,Parts Assembly,Svc Backorder LGE AGM72925302 $280.09

View on Model

8501

3212W0N001C LG Door Frame Backorder LGE 3212W0N001C $90.45

View on Model

8502

3302W1N001B LG Range Base Plate Backorder LGE 3302W1N001B $62.73

View on Model

8503

Plate,Front LGE MGJ62087501 Contact Us For Availability

View on Model

8504

Plate,Front LGE 3446W0N001E Contact Us For Availability

View on Model

8507

Panel LGE 3720W0E010M Contact Us For Availability

View on Model

8508

4778W1N001B LG Range Oven Leveling Leg Foot In Stock LGE 4778W1N001B $9.72

View on Model

8511

MAZ34877103 LG Idle Bracket In Stock LGE MAZ34877103 $14.57

View on Model

8514

Drawer LGE MCX61841010 Contact Us For Availability

View on Model

8515

Drawer LGE MCX61841102 Contact Us For Availability

View on Model

8517

Insulator LGE 5012W0N001D Contact Us For Availability

View on Model

8520

MJH37701302 LG Holder Supporter Backorder LGE MJH37701302 $44.78

View on Model

8524

Bracket,Mount LGE MAZ61951201 Contact Us For Availability

View on Model

8525

MJB61872001 LG Slide Stopper Backorder LGE MJB61872001 $23.86

View on Model

8526

MJB61872101 LG Slide Stopper Backorder LGE MJB61872101 $23.86

View on Model

8527

Stopper,Slide LGE MJB61872201 Contact Us For Availability

View on Model

8530

MEA61857701 LG Guide Rail Backorder LGE MEA61857701 $9.72

View on Model

9381

FAK30249601 LG Customized Anchor In Stock LGE FAK30249601 $6.11

View on Model

W101

1SBF0402418 LG Laptop Screw Backorder LGE 1SBF0402418 $6.11

View on Model

W222

1SZZW5N001C LG Range Screw Drawing Backorder LGE 1SZZW5N001C $6.11

View on Model

W225

1WZZW3Z003B LG Washer Customized Backorder LGE 1WZZW3Z003B $6.11

View on Model

W229

1SZZW1N003A LG Screw Customized Backorder LGE 1SZZW1N003A $6.11

View on Model

W230

1SZZW5N001A LG Screw Customized Backorder LGE 1SZZW5N001A $6.11

View on Model

W231

1SZZW1N006A LG Customized Screw Backorder LGE 1SZZW1N006A $6.11

View on Model

W235

1ATF0502610 LG Screw Laptite Backorder LGE 1ATF0502610 $6.11

View on Model

W236

4H00056C LG Washer Assembly Backorder LGE 4H00056C $14.57

View on Model

W237

1SBF0402618 LG Taptite Screw Backorder LGE 1SBF0402618 $6.11

View on Model

W241

1NZZW1N002A LG Customized Nut Backorder LGE 1NZZW1N002A $6.11

View on Model

W243

1SZZW5N001H LG Screw Customized Backorder LGE 1SZZW5N001H $6.11

View on Model

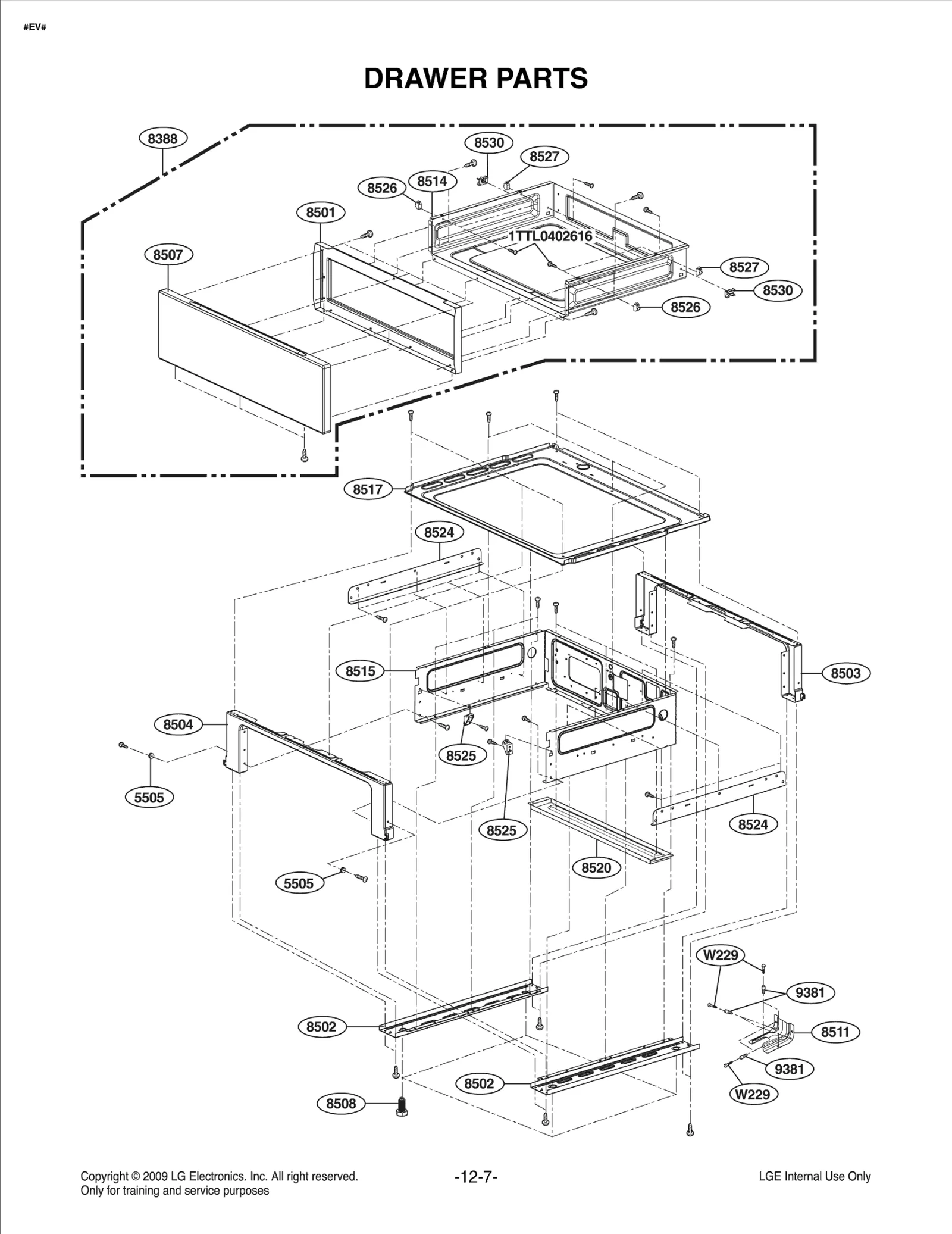

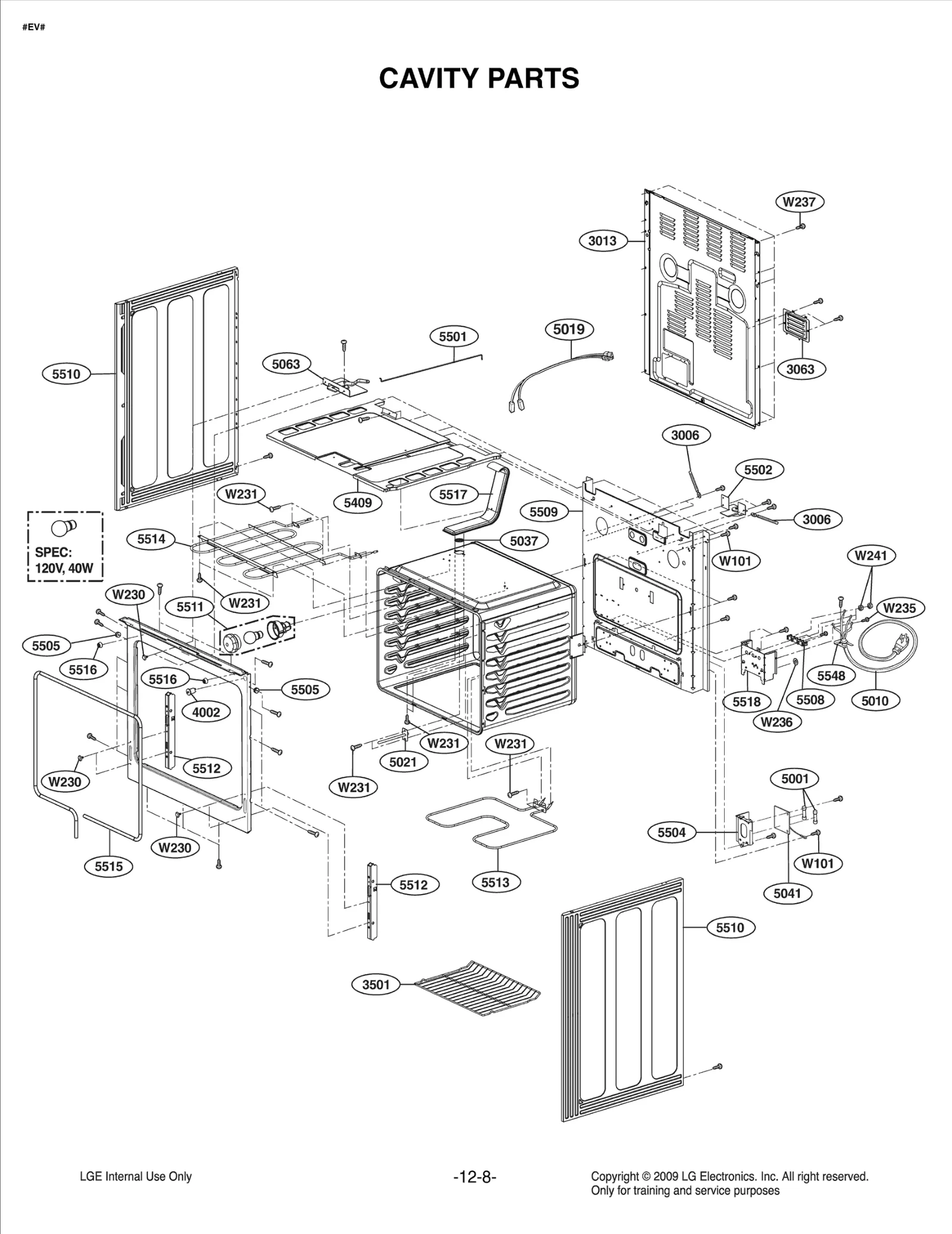

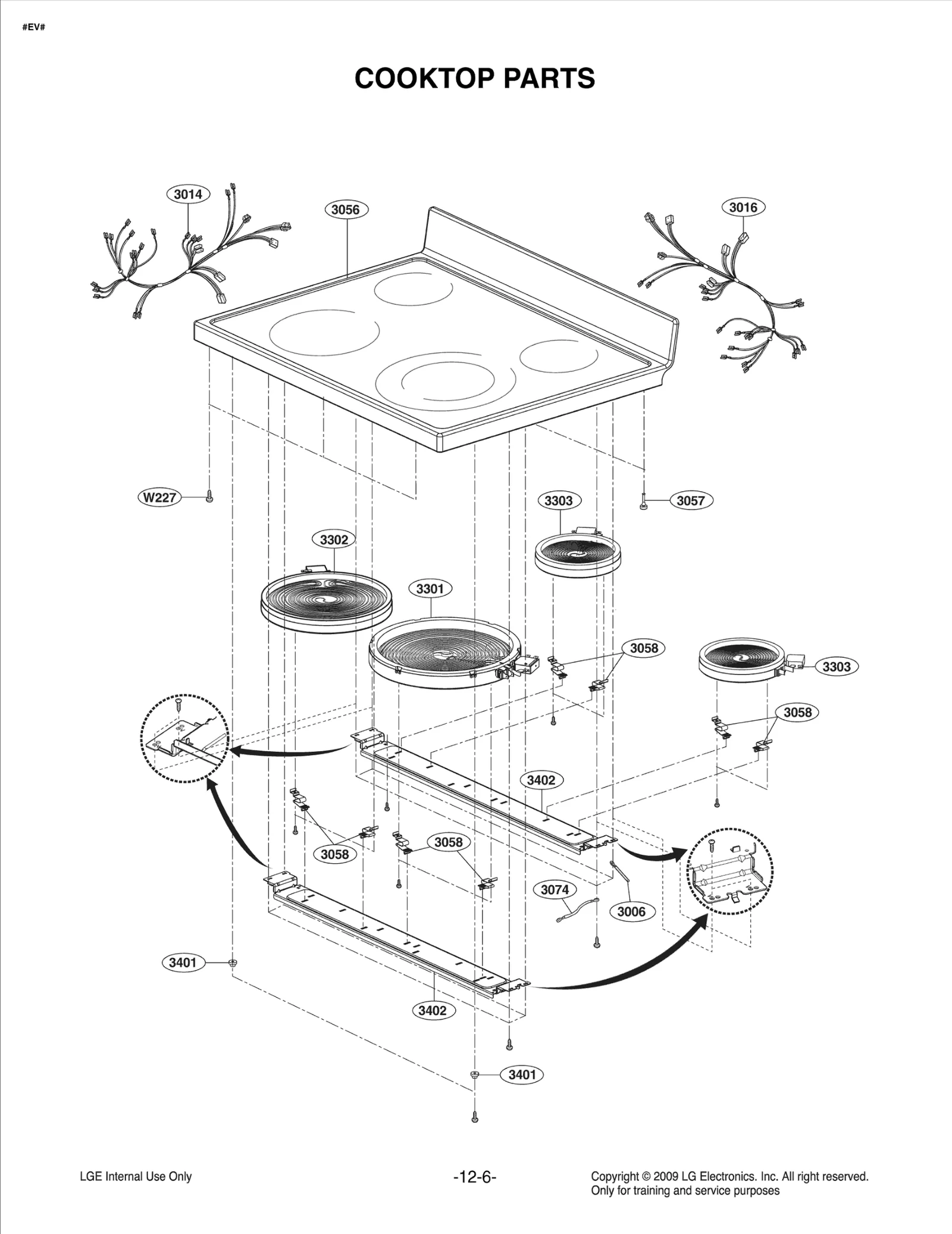

Model LG LRE3091SW – Common Parts & Diagrams

Common parts from model LG LRE3091SW
