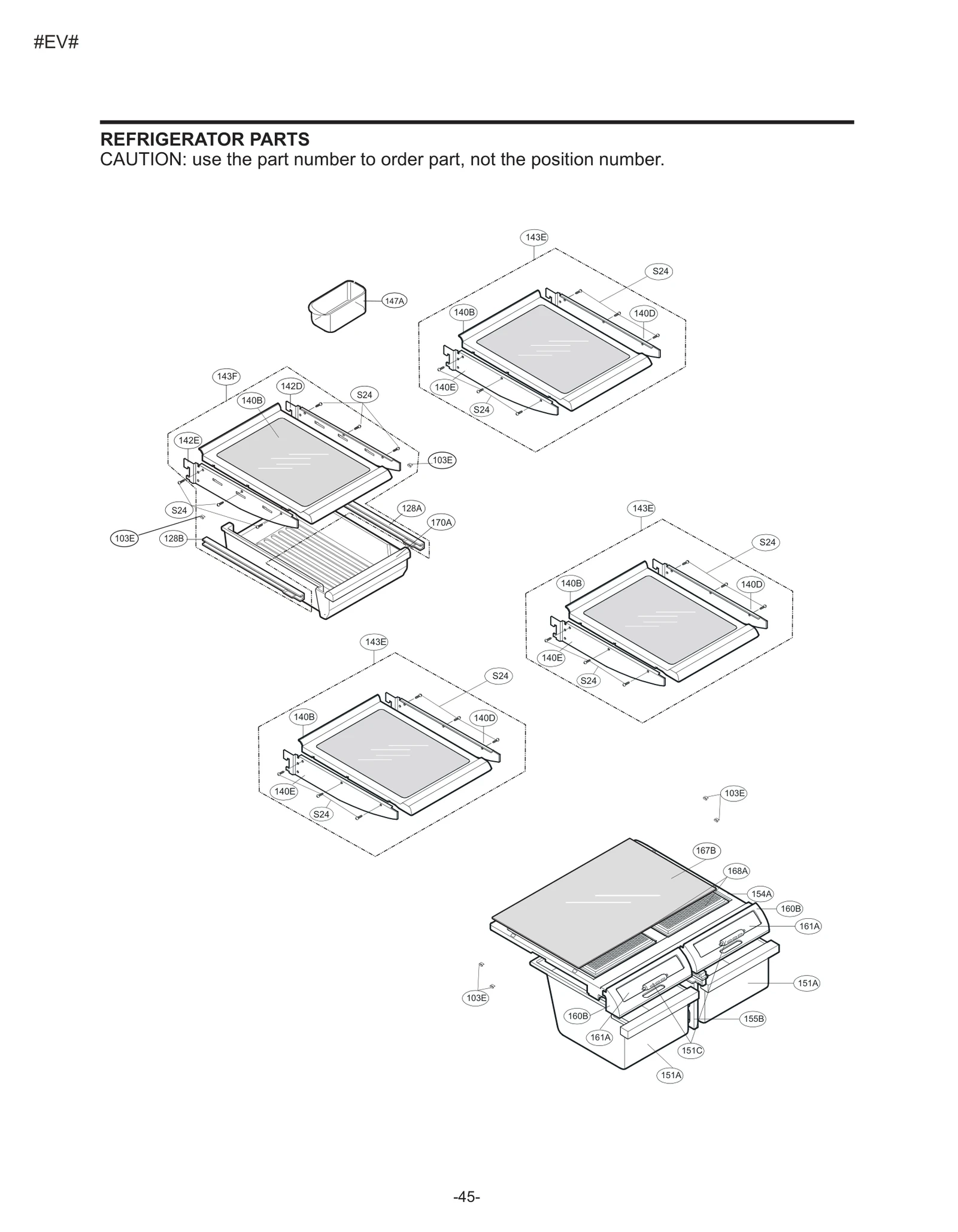

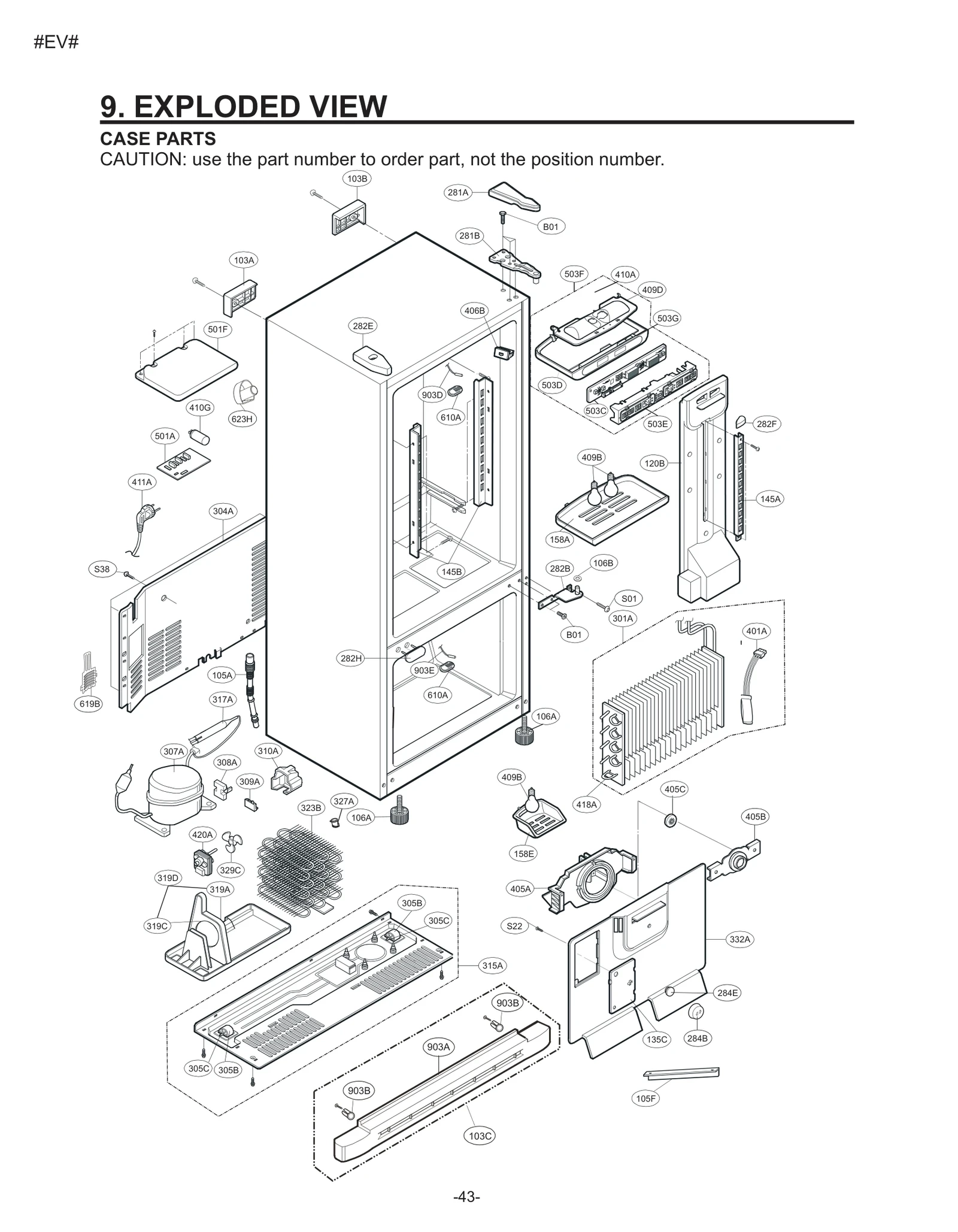

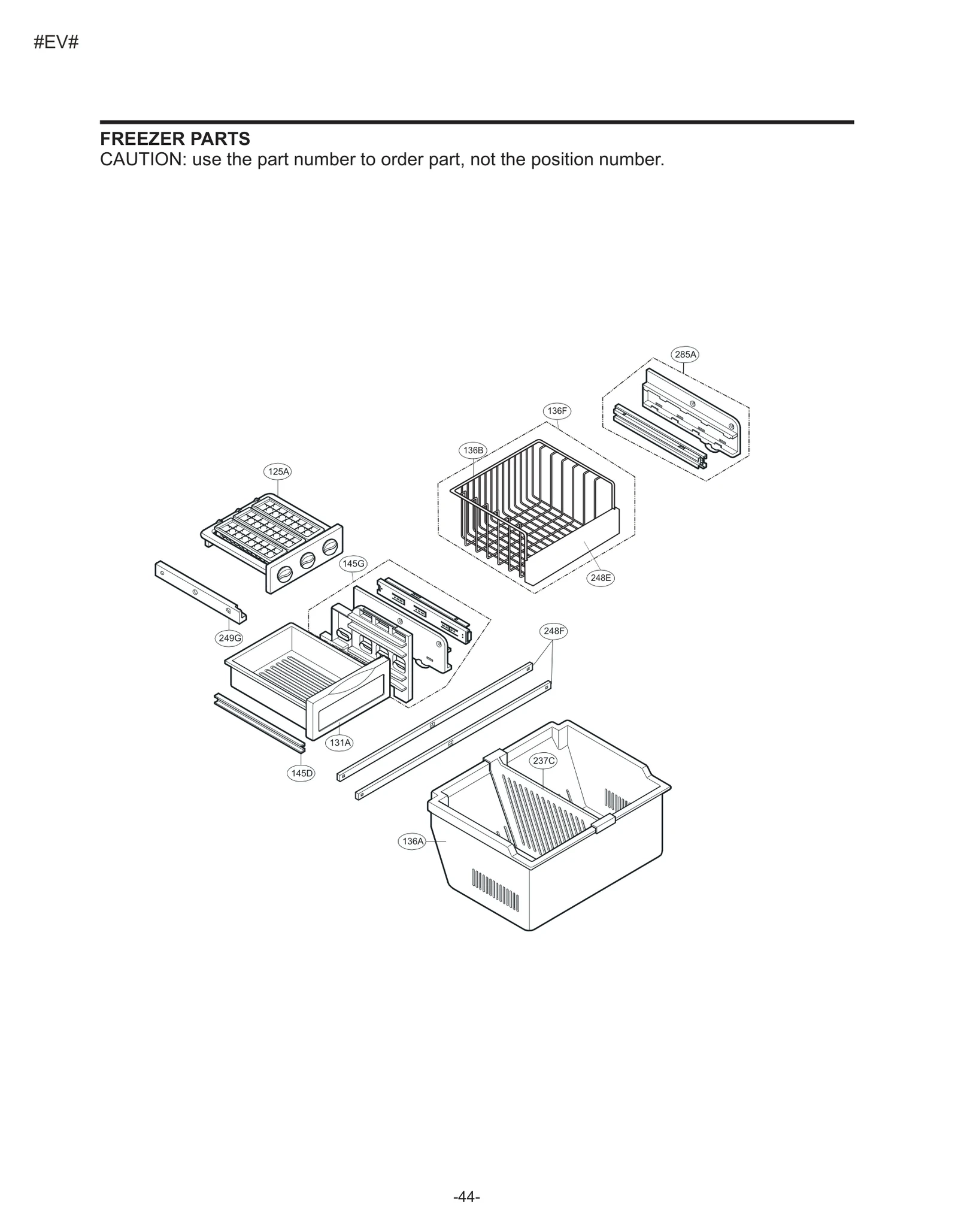

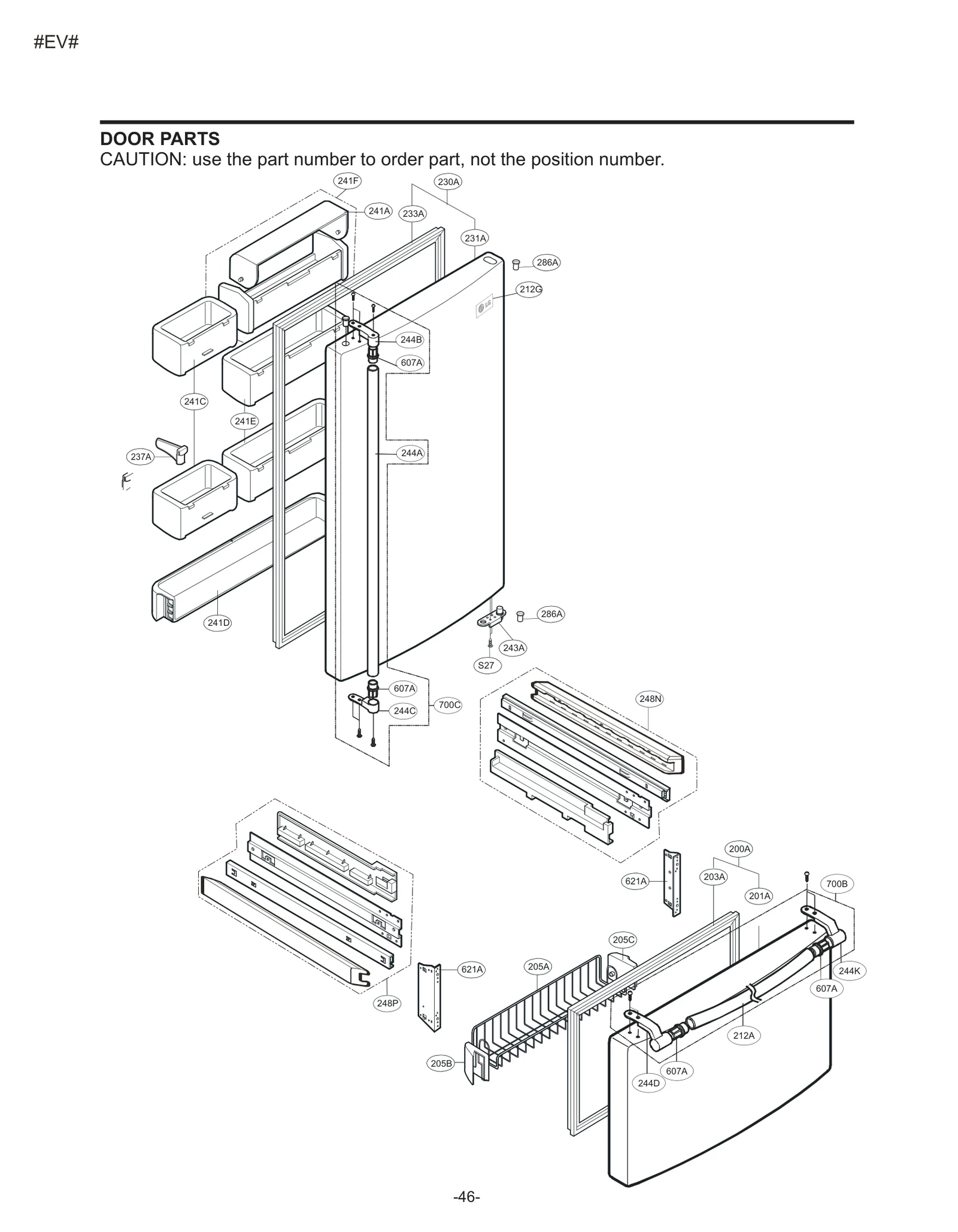

Model LG LRDN22711SW – Common Parts &amp; Diagrams

105A

5251JA3003D LG Drain Tube Assembly In Stock LGE 5251JA3003D $10.52

106B

4J00382C LG Washer Common Backorder LGE 4J00382C $6.62

110D

KNOB,SHUTTER LGE 4940JL2001B Contact Us For Availability

120B

5209JJ1002A LG Refrigerator Multi-Duct Air Di Backorder LGE 5209JJ1002A $199.76

128A

4975JJ2002A LG Refrigerator Right Side Drawer Backorder LGE 4975JJ2002A $24.91

128B

4975JJ2002B LG Refrigerator Left Side Drawer Backorder LGE 4975JJ2002B $24.91

128C

4975JJ2003C LG RAIL Guide Assembly Backorder LGE 4975JJ2003C $46.70

140B

SHELF ASSEMBLY,R LGE 5027JJ2007B Contact Us For Availability

140D

5026JJ2001G LG Net Shelf In Stock LGE 5026JJ2001G $60.38

140E

5026JJ2001H LG Shelf Net Backorder LGE 5026JJ2001H $53.07

142D

5026JJ2001L LG Shelf Net Backorder LGE 5026JJ2001L $60.38

142E

5026JJ2001M LG Net Shelf Backorder LGE 5026JJ2001M $60.38

143E

5027JJ1008B LG Shelf Backorder LGE 5027JJ1008B $150.20

143F

AHT72996103 LG Refrigerator Shelf Assembly Backorder LGE AHT72996103 $172.59

145G

GUIDE ASSEMBLY,RAIL LGE 4975JJ2005H Contact Us For Availability

147A

BANK,DAIRY LGE 5074JJ1005A Contact Us For Availability

149B

SHELF,F LGE 5026JL1001B Contact Us For Availability

151A

TRAY ASSEMBLY,VEGETABLE LGE 3391JJ1019E Contact Us For Availability

151C

4940JJ2003B LG Shutter Knob Backorder LGE 4940JJ2003B $6.62

3550JJ1033A LG Refrigerator Crisper Cover Gla Backorder LGE 3550JJ1033A $86.64

COVER,T/V LGE 3550JL2001J Contact Us For Availability

COVER,T/V LGE 3550JL2001K Contact Us For Availability

COVER,T/V LGE 3550JL1006C Contact Us For Availability

155B

SUPPORTER ASSEMBLY,COVER-T/V LGE 4981JJ2001A Contact Us For Availability

158A

3550JJ1040A LG Refrigerator Lamp Lens Cover Backorder LGE 3550JJ1040A $39.18

158E

MCK30060901 LG Refrigerator Lamp Cover Backorder LGE MCK30060901 $31.90

160B

DECO,TRAY LGE 3806JL2005C Contact Us For Availability

160B

COVER,T/V LGE 3550JL1006D Contact Us For Availability

160B

DECO,TRAY LGE 3806JL2005D Contact Us For Availability

161A

COVER,TRAY LGE 3550JJ2026A Contact Us For Availability

167B

GLASS,SHELF LGE 4890JL1002K Contact Us For Availability

168A

3550JJ1035A LG Magic Room Refrigerator Cover Backorder LGE 3550JJ1035A $77.79

3391JJ2004G LG Refrigerator Deli Drawer Snack Backorder LGE 3391JJ2004G $114.35

3391JJ2004H LG Meat Tray Assembly Backorder LGE 3391JJ2004H $109.92

TRAY ASSEMBLY,MEAT LGE 3391JJ2004K Contact Us For Availability

TRAY ASSEMBLY,MEAT LGE 3391JJ2004J Contact Us For Availability

200A

DOOR ASSEMBLY,F LGE 3581JJ8019B Contact Us For Availability

201A

DOOR FOAM ASSEMBLY,F LGE 5433JJ0018C Contact Us For Availability

203A

ADX52752607 LG Door Gasket Assembly Backorder LGE ADX52752607 $37.41

205A

BASKET,DOOR LGE 5004JJ1042B Contact Us For Availability

205B

BASKET,TILT LGE 5004JJ2005B Contact Us For Availability

205C

BASKET,TILT LGE 5004JJ2005A Contact Us For Availability

212A

HANDLE,F LGE 3650JJ1017K Contact Us For Availability

212G

MFT62346501 LG Refrigerator Nameplate Backorder LGE MFT62346501 $32.63

212G

MFT62346510 LG Refrigerator Nameplate Backorder LGE MFT62346510 $24.91

212G

MFT62366501 LG Nameplate Backorder LGE MFT62366501 $40.59

230A

DOOR ASSEMBLY,R LGE 3581JJ8024B Contact Us For Availability

231A

DOOR FOAM ASSEMBLY,R LGE 5433JJ0019B Contact Us For Availability

233A

GASKET ASSEMBLY,DOOR LGE 4987JJ1004B Contact Us For Availability

234B

3806JL1004D LG Duct Decor Backorder LGE 3806JL1004D $19.31

234B

DECO,DUCT LGE 3806JL1004E Contact Us For Availability

234B

DECO,DUCT LGE 3806JL1004F Contact Us For Availability

237A

GUIDE,BOTTLE LGE 4974JJ2021A Contact Us For Availability

241A

COVER,TRAY LGE 3550JL2003J Contact Us For Availability

241A

COVER,TRAY LGE 3550JL2003K Contact Us For Availability

241A

COVER,TRAY LGE 3550JL2003G Contact Us For Availability

241C

BASKET,DOOR LGE 5004JJ1031A Contact Us For Availability

241D

BASKET,DOOR LGE 5004JJ0001A Contact Us For Availability

241E

5004JJ1029A LG Refrigerator Door Basket Assem Backorder LGE 5004JJ1029A $94.66

241F

BASKET ASSEMBLY,DOOR LGE 5005JJ2010E Contact Us For Availability

243A

4620JJ3006A LG Door Stopper In Stock LGE 4620JJ3006A $19.31

244A

HANDLE,R LGE 3650JJ2008R Contact Us For Availability

244B

HOLDER,HANDLE LGE 4930JJ2009E Contact Us For Availability

244C

HOLDER,HANDLE LGE 4930JJ2010E Contact Us For Availability

244D

HOLDER,HANDLE LGE 4930JJ2012E Contact Us For Availability

244K

HOLDER,HANDLE LGE 4930JJ2011E Contact Us For Availability

248N

RIGHT RAIL, (RAIL + CONNECTOR) LGE 5219JJ2002A Contact Us For Availability

248P

5219JJ2002B LG Slide Rail Assembly Backorder LGE 5219JJ2002B $202.47

249G

GUIDE,RAIL LGE 4974JJ1011A Contact Us For Availability

281B

HINGE ASSEMBLY,U LGE 4775JJ2003B Contact Us For Availability

282X

5006JJ3010E LG Refrigerator Handle Cap Backorder LGE 5006JJ3010E $6.62

285A

GUIDE ASSEMBLY,RAIL LGE 4975JJ2007G Contact Us For Availability

286A

4984JJ3003A LG Refrigerator Door Hinge Bushin In Stock LGE 4984JJ3003A $6.62

301A

5421JJ1001B LG Refrigerator Evaporator Assemb Backorder LGE 5421JJ1001B $375.67

304A

3551JJ2008B LG Refrigerator Cover Assembly Backorder LGE 3551JJ2008B $133.22

305B

4580JJ3001A LG Refrigerator Tray Roller Backorder LGE 4580JJ3001A $19.31

305C

4J04238A LG Common Pin Backorder LGE 4J04238A $6.62

309A

6750C-0004S LG Refrigerator Compressor Overlo Backorder LGE 6750C-0004S $24.91

309A

6750CR0004S LG Overload Protector Backorder LGE 6750CR0004S $101.16

310A

3550JA2042C LG Refrigerator PTC Cover Backorder LGE 3550JA2042C $10.52

317A

ADH73150210 LG Dryer Assembly In Stock LGE ADH73150210 $72.46

319E

4810JJ0002A LG Motor Bracket Backorder LGE 4810JJ0002A $39.18

327A

5006JA3049A LG Drain Tube Cap Backorder LGE 5006JA3049A $6.62

329A

5901JJ1005A LG Fan Assembly Backorder LGE 5901JJ1005A $19.31

329C

5901JJ1004B LG Refrigerator Compressor Conden Backorder LGE 5901JJ1004B $19.31

401A

6615JB2005C LG Refrigerator Defrost Control A Backorder LGE 6615JB2005C $39.18

404A

MOTOR(MECH),FAN LGE 4680JK1002B Contact Us For Availability

405B

4810JA3007A LG Motor Bracket Backorder LGE 4810JA3007A $6.62

405C

J756-00008B LG Refrigerator Damper Motor Supp Backorder LGE J756-00008B $6.62

406B

6600JB1010A LG Refrigerator Push Button Door In Stock LGE 6600JB1010A $10.36

409B

Lamp,Incandescent LGE 6912JK2002E Contact Us For Availability

409D

3034JJ1002B LG Refrigerator Reflector Backorder LGE 3034JJ1002B $60.67

410A

HARNESS LGE 6621JK2003B Contact Us For Availability

410A

Socket,Lamp LGE EAG62831801 Contact Us For Availability

412D

6877JK2011D LG Harness Assembly Backorder LGE 6877JK2011D $60.13

418A

5300JB1100J LG Refrigerator Defrost Heater El Backorder LGE 5300JB1100J $103.57

419B

Pipe,Joint LGE 5200JJ3003E Contact Us For Availability

420A

4680JK1001B LG AC Motor Backorder LGE 4680JK1001B $114.35

490B

LAMP,[INCANDESCENT] REVEAL LGE 6912JK2002C Contact Us For Availability

501A

6871JB1215J LG Refrigerator Main Printed Wiri Backorder LGE 6871JB1215J $224.72

501F

Cover Assembly,PCB LGE 3551JJ1020D Contact Us For Availability

503C

PWB(PCB) ASSEMBLY,DISPLAY LGE 6871JB2047A Contact Us For Availability

503E

3550JJ2031A LG Display Cover Backorder LGE 3550JJ2031A $24.91

503F

Case Assembly,Display LGE ABQ33905312 Contact Us For Availability

503G

3806JL1049A LG Refrigerator Decorative Contro Backorder LGE 3806JL1049A $39.18

607A

4930JJ2013A LG Holder Bracket Backorder LGE 4930JJ2013A $10.52

610A

COVER,SENSOR LGE 3550JJ2020A Contact Us For Availability

611C

COVER,FILTER LGE 3550JL1008B Contact Us For Availability

621A

CONNECTOR (MECH),DOOR LGE 4932JJ2001B Contact Us For Availability

700B

HANDLE ASSEMBLY,F LGE 3651JJ0002D Contact Us For Availability

700C

HANDLE ASSEMBLY,R LGE 3651JJ1017H Contact Us For Availability

903A

COVER,LOWER LGE 3550JJ0006A Contact Us For Availability

903B

HOLDER,COVER LOWER LGE 4930JJ2021A No Longer Available

B01

1STZJA3004C LG Refrigerator Customized Screw Backorder LGE 1STZJA3004C $6.62

GRS1

AEY73231701 LG Kit Assembly Backorder LGE AEY73231701 $114.35

S01

4J00415D LG Refrigerator Customized Screw Backorder LGE 4J00415D $6.62

S24

1SZZJA3011B LG Refrigerator Customized Drawin In Stock LGE 1SZZJA3011B $6.62

S27

4J01424C LG Screw Customized Backorder LGE 4J01424C $6.62
