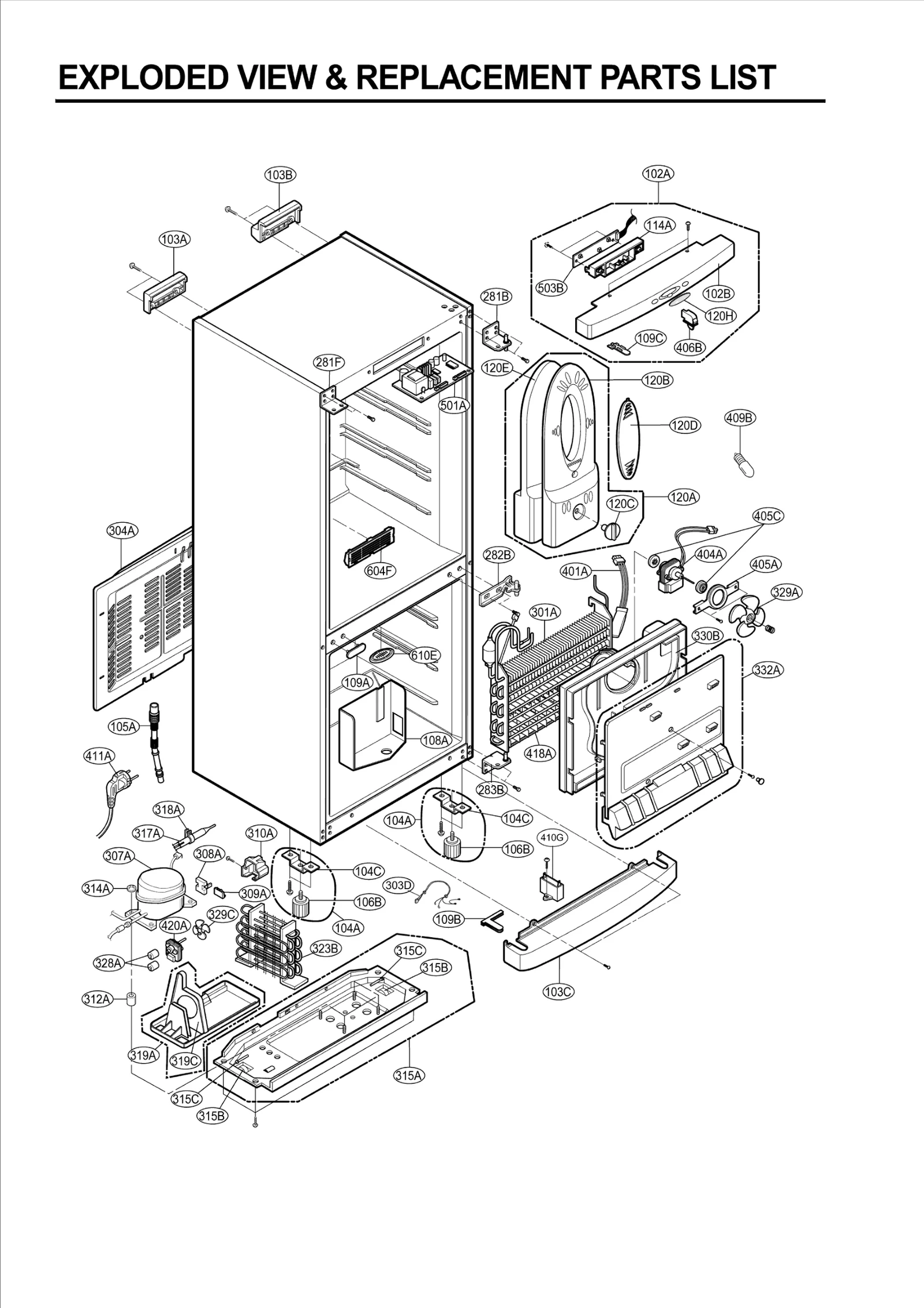

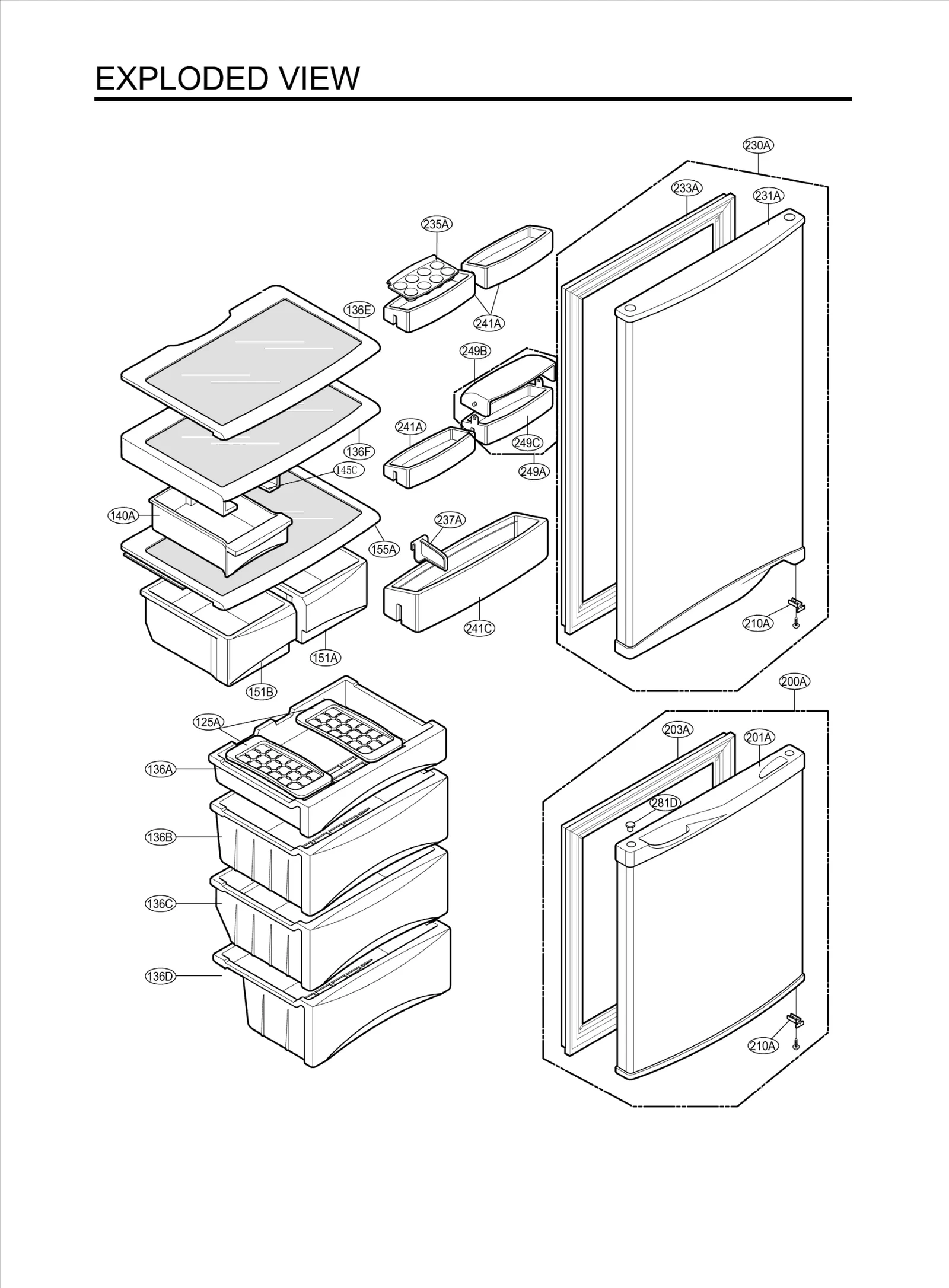

Model LG LRBP1031T.CTICLGA Medium REF – Common Parts & Diagrams

109B
CAP,COVER
CAP,COVER LGE 5006JQ3038F Contact Us For Availability
View on Model
109C
CAP,COVER
CAP,COVER LGE 5006JQ3039F Contact Us For Availability
View on Model
114A
BUTTON,LINK
BUTTON,LINK LGE 5020JS1002K Contact Us For Availability
View on Model
120A
CONTROL BOX ASSEMBLY,R
CONTROL BOX ASSEMBLY,R LGE 4995JQ1005J Contact Us For Availability
View on Model
120B
Case,Control Refrigerator
Case,Control Refrigerator LGE 4994JS1003H Contact Us For Availability
View on Model
120C
KNOB,DAMPER
KNOB,DAMPER LGE 4940JQ3003A Contact Us For Availability
View on Model
120D
COVER,LAMP
COVER,LAMP LGE 3550JQ3009B Contact Us For Availability
View on Model
120E
DUCT ASSEMBLY,INSULATION
DUCT ASSEMBLY,INSULATION LGE 5209JQ1005B Contact Us For Availability
View on Model
120H
COVER,LED
COVER,LED LGE 3550JA2076A Contact Us For Availability
View on Model
136A
Tray Assembly,Drawer
Tray Assembly,Drawer LGE AJP34979902 Contact Us For Availability
View on Model
136E
SHELF ASSEMBLY,R
SHELF ASSEMBLY,R LGE 5027JQ2006A Contact Us For Availability
View on Model
136F
SHELF ASSEMBLY,R
SHELF ASSEMBLY,R LGE 5027JQ2007A Contact Us For Availability
View on Model
140A
Tray Assembly,Meat
Tray Assembly,Meat LGE AJP73015102 Contact Us For Availability
View on Model
151A
NLA-02-14-07-LZ,
NLA-02-14-07-LZ, LGE 3391JA2015K Contact Us For Availability
View on Model
151B
TRAY ASSEMBLY,VEGETABLE
TRAY ASSEMBLY,VEGETABLE LGE 3391JA2015J Contact Us For Availability
View on Model
155A
COVER ASSEMBLY,T/V
COVER ASSEMBLY,T/V LGE 3551JQ2013A Contact Us For Availability
View on Model
200A
DOOR ASSEMBLY,F
DOOR ASSEMBLY,F LGE 3581JQ8042Z Contact Us For Availability
View on Model
201A
DOOR FOAM ASSEMBLY,F
DOOR FOAM ASSEMBLY,F LGE 5433JQ2003W Contact Us For Availability
View on Model
210A
BRACKET,DOOR
BRACKET,DOOR LGE 4810JQ3019B Contact Us For Availability
View on Model
230A
DOOR ASSEMBLY,R
DOOR ASSEMBLY,R LGE 3581JQ8044K Contact Us For Availability
View on Model
231A
DOOR FOAM ASSEMBLY,R
DOOR FOAM ASSEMBLY,R LGE 5433JQ2008A Contact Us For Availability
View on Model
233A
Gasket Assembly,Door
Gasket Assembly,Door LGE 4987JQ1017C Contact Us For Availability
View on Model
235A
TRAY,EGG
TRAY,EGG LGE 3390JQ2006A Contact Us For Availability
View on Model
237A
GUIDE,BOTTLE
GUIDE,BOTTLE LGE 4974JA2020A Contact Us For Availability
View on Model
241A
Basket,Door
Basket,Door LGE MAN36996405 Contact Us For Availability
View on Model
241C
Basket,Door
Basket,Door LGE MAN36997002 Contact Us For Availability
View on Model
249A
BANK ASSEMBLY,DAIRY
BANK ASSEMBLY,DAIRY LGE 5075JQ2002F Contact Us For Availability
View on Model
249B
COVER
COVER LGE 3550JA1087A Contact Us For Availability
View on Model
249C
Bucket,Dairy
Bucket,Dairy LGE MKK36999005 Contact Us For Availability
View on Model
281B
HINGE ASSEMBLY,U
HINGE ASSEMBLY,U LGE 4775JQ3002A Contact Us For Availability
View on Model
281F
HINGE ASSEMBLY,U
HINGE ASSEMBLY,U LGE 4775JQ3002B Contact Us For Availability
View on Model
282B
HINGE ASSEMBLY,C
HINGE ASSEMBLY,C LGE 4775JQ2026A Contact Us For Availability
View on Model
283B
HINGE ASSEMBLY,L
HINGE ASSEMBLY,L LGE 4775JQ2027A Contact Us For Availability
View on Model
302B
Evaporator Assembly
Evaporator Assembly LGE 5421JQ2001W Contact Us For Availability
View on Model
303D
Drawing,Assembly
Drawing,Assembly LGE 6877JR2021G Contact Us For Availability
View on Model
304A
Cover Assembly,Machinery(Rear)
Cover Assembly,Machinery(Rear) LGE 3551JQ1012A Contact Us For Availability
View on Model
310A
COVER,P.T.C
COVER,P.T.C LGE 3550CT0008A Contact Us For Availability
View on Model
315A
COMP BASE ASSEMBLY,STD
COMP BASE ASSEMBLY,STD LGE 3103JQ1006A Contact Us For Availability
View on Model
315C
PIN,DRAWING
PIN,DRAWING LGE 1PZZJQ3017A Contact Us For Availability
View on Model
319A
TRAY,DRIP
TRAY,DRIP LGE 3390JA0018A Contact Us For Availability
View on Model
319C
GUIDE,FAN
GUIDE,FAN LGE 4974JQ1006A Contact Us For Availability
View on Model
329C
FAN ASSEMBLY
FAN ASSEMBLY LGE 5901JQ1004A Contact Us For Availability
View on Model
330B
SHROUD ASSEMBLY,F
SHROUD ASSEMBLY,F LGE 4999JQ2001A Contact Us For Availability
View on Model
332A
GRILLE ASSEMBLY,FAN
GRILLE ASSEMBLY,FAN LGE 3531JQ2001A Contact Us For Availability
View on Model
404A
MOTOR(MECH),FAN
MOTOR(MECH),FAN LGE 4680JB1034G Contact Us For Availability
View on Model
405A
BRACKET,MOTOR
BRACKET,MOTOR LGE 4810JQ3021A Contact Us For Availability
View on Model
406B
SWITCH,[PUSH]
SWITCH,[PUSH] LGE 6600JR1002E Contact Us For Availability
View on Model
406B
Switch,Push Button
Switch,Push Button LGE 6600JR1002K Contact Us For Availability
View on Model
410G
Capacitor,Elec Appliance Film,Radial
Capacitor,Elec Appliance Film,Radial LGE EAE32501015 Contact Us For Availability
View on Model
411A
POWER CORD ASSEMBLY
POWER CORD ASSEMBLY LGE 6411JR1003C Contact Us For Availability
View on Model
418A
HEATER,SHEATH
HEATER,SHEATH LGE 5300JB1050D Contact Us For Availability
View on Model
420A
MOTOR(MECH),COOLING
MOTOR(MECH),COOLING LGE 4680JB1035H Contact Us For Availability
View on Model
501A
PCB Assembly,Main
PCB Assembly,Main LGE EBR36697204 Contact Us For Availability
View on Model
503B
PWB(PCB) ASSEMBLY,DISPLAY
PWB(PCB) ASSEMBLY,DISPLAY LGE 6871JR3001A Contact Us For Availability
View on Model
