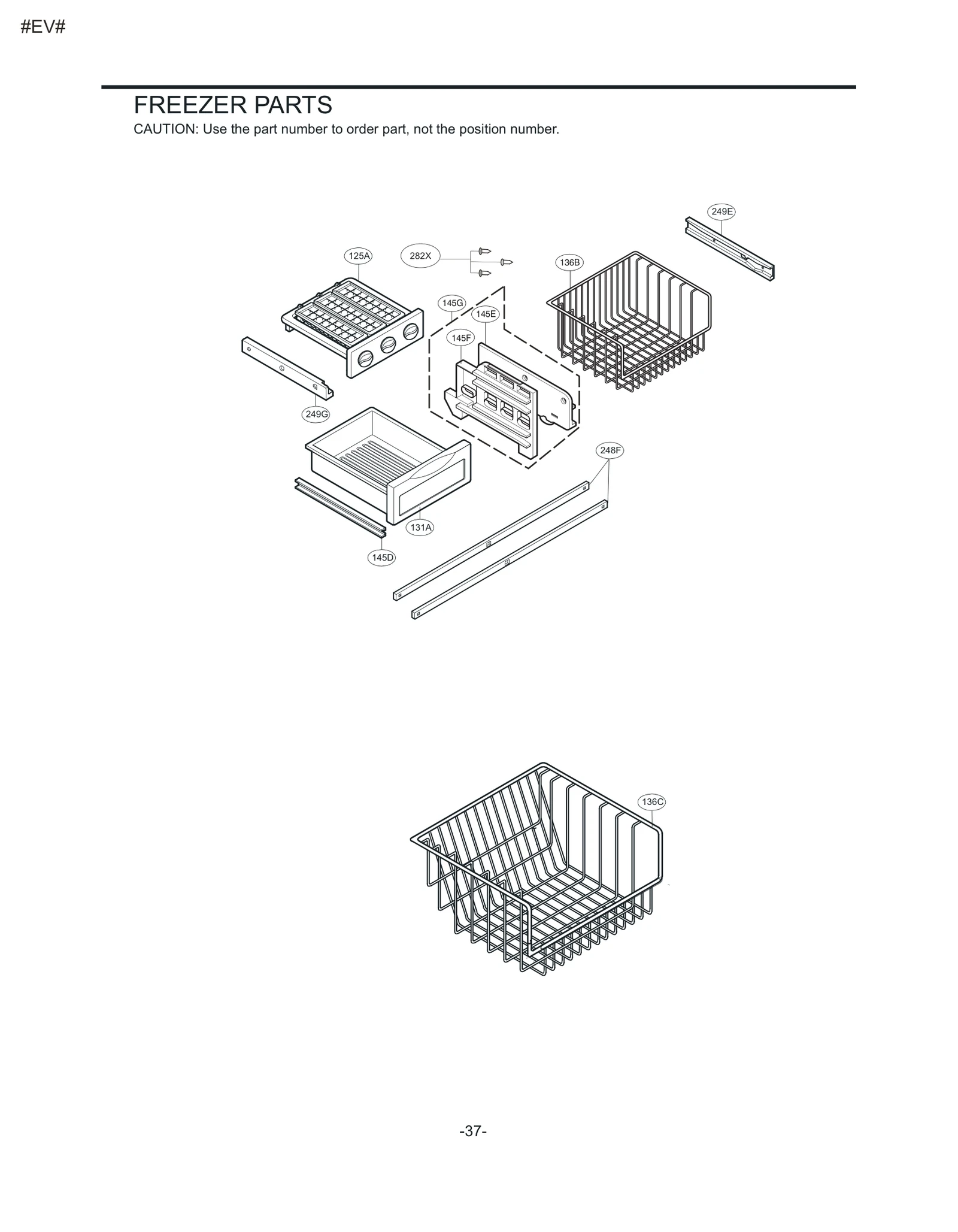

Model LG LRBN20510BQ – Common Parts &amp; Diagrams

105A

5251JA3003D LG Drain Tube Assembly In Stock LGE 5251JA3003D $10.52

106B

4J00382C LG Washer Common Backorder LGE 4J00382C $6.62

110D

KNOB,SHUTTER LGE 4940JL2001B Contact Us For Availability

120B

5209JJ1002A LG Refrigerator Multi-Duct Air Di Backorder LGE 5209JJ1002A $199.76

125A

TRAY ASSEMBLY,ICE LGE 3391JJ1009B Contact Us For Availability

128B

4975JJ2002B LG Refrigerator Left Side Drawer Backorder LGE 4975JJ2002B $24.91

128C

4975JJ2003C LG RAIL Guide Assembly Backorder LGE 4975JJ2003C $46.70

131A

5075JJ1001A LG Refrigerator Ice Bank Assembly Backorder LGE 5075JJ1001A $114.35

131A

5075JJ1001B LG Ice Bucket Assembly Backorder LGE 5075JJ1001B $133.22

136B

TRAY,DRAWER LGE 3390JJ1035A Contact Us For Availability

136C

TRAY,DRAWER LGE 3390JJ1028A Contact Us For Availability

140D

5026JJ2001G LG Net Shelf In Stock LGE 5026JJ2001G $60.38

140E

5026JJ2001H LG Shelf Net Backorder LGE 5026JJ2001H $53.07

142E

5026JJ2001M LG Net Shelf Backorder LGE 5026JJ2001M $60.38

143A

5027JJ1028A LG Shelf Assembly Backorder LGE 5027JJ1028A $150.20

143B

SHELF ASSEMBLY,R LGE 5027JJ1015A Contact Us For Availability

143J

SHELF ASSEMBLY,R (SNACK PAN) LGE 5027JJ1028C Contact Us For Availability

144A

GUIDE ASSEMBLY,RAIL LGE 4975JJ2004A Contact Us For Availability

145D

GUIDE,RAIL LGE 4974JJ1012A Contact Us For Availability

145E

GUIDE,RAIL LGE 4974JJ1014A Contact Us For Availability

145F

GUIDE,RAIL LGE 4974JJ1013A Contact Us For Availability

145G

GUIDE ASSEMBLY,RAIL LGE 4975JJ2005B Contact Us For Availability

149B

SHELF,F LGE 5026JL1001B Contact Us For Availability

151A

3391JJ1020D LG Refrigerator Vegetable Tray As In Stock LGE 3391JJ1020D $152.39

151C

4940JJ2003B LG Shutter Knob Backorder LGE 4940JJ2003B $6.62

154A

COVER,T/V LGE 3550JL2001K Contact Us For Availability

154A

COVER,T/V LGE 3550JL1006C Contact Us For Availability

154A

COVER,T/V LGE 3550JL2001J Contact Us For Availability

155B

4981JJ2001B LG Tray Cover Assembly Supporter Backorder LGE 4981JJ2001B $19.45

158A

3550JJ1040A LG Refrigerator Lamp Lens Cover Backorder LGE 3550JJ1040A $39.18

158E

MCK30060901 LG Refrigerator Lamp Cover Backorder LGE MCK30060901 $31.90

160B

COVER,T/V LGE 3550JL1006D Contact Us For Availability

160B

DECO,TRAY LGE 3806JL2005C Contact Us For Availability

160B

DECO,TRAY LGE 3806JL2005D Contact Us For Availability

167B

4890JL1002M LG Refrigerator Crisper Cover Gla Backorder LGE 4890JL1002M $103.57

3391JJ2004G LG Refrigerator Deli Drawer Snack Backorder LGE 3391JJ2004G $114.35

3391JJ2004H LG Meat Tray Assembly Backorder LGE 3391JJ2004H $109.92

TRAY ASSEMBLY,MEAT LGE 3391JJ2004K Contact Us For Availability

TRAY ASSEMBLY,MEAT LGE 3391JJ2004J Contact Us For Availability

200A

DOOR ASSEMBLY,F LGE 3581JJ8023E Contact Us For Availability

201A

5433JJ0017K LG Freezer Door Foam Assembly Backorder LGE 5433JJ0017K $407.44

203A

GASKET ASS"Y, FREEZER DOOR LGE 4987JJ1004C Contact Us For Availability

205D

5004JJ1041A LG Refrigerator Door Basket Backorder LGE 5004JJ1041A $86.64

MFT62346501 LG Refrigerator Nameplate Backorder LGE MFT62346501 $32.63

MFT62346510 LG Refrigerator Nameplate Backorder LGE MFT62346510 $24.91

Name Plate LGE MFT61843003 Contact Us For Availability

Name Plate LGE 3846JD1007F Contact Us For Availability

MARK LGE 3846JD1007B Contact Us For Availability

230A

DOOR ASSEMBLY,R LGE 3581JJ8027S Contact Us For Availability

231A

LGE ADD73476402 LGE ADD73476402 Contact Us For Availability

231A

Door Foam Assembly,Refrigerator LGE 5433JJ0016F Contact Us For Availability

233A

GASKET ASS"Y, REFRIG DOOR LGE 4987JJ1004D Contact Us For Availability

234B

3806JL1004D LG Duct Decor Backorder LGE 3806JL1004D $19.31

234B

DECO,DUCT LGE 3806JL1004E Contact Us For Availability

234B

DECO,DUCT LGE 3806JL1004F Contact Us For Availability

241A

COVER,TRAY LGE 3550JL2003K Contact Us For Availability

241A

COVER,TRAY LGE 3550JL2003H Contact Us For Availability

241A

COVER,TRAY LGE 3550JL2003J Contact Us For Availability

241C

5004JJ1030A LG Refrigerator Door Basket Assem Backorder LGE 5004JJ1030A $86.64

241D

DOOR BASKET LGE 5004JJ0002A Contact Us For Availability

241E

BASKET,DOOR LGE 5004JJ1028A Contact Us For Availability

241F

5005JJ2009E LG Door Basket Assembly Backorder LGE 5005JJ2009E $114.35

243A

STOPPER,DOOR LGE 4620JJ3006B Contact Us For Availability

244E

5006JJ3016B LG Refrigerator Handle Cap Backorder LGE 5006JJ3016B $6.62

244H

HANDLE REFRIGERATOR LGE 3650JJ0006B Contact Us For Availability

244J

3806JJ1020C LG Decor Handle Backorder LGE 3806JJ1020C $152.39

244M

3806JJ1020D LG Refrigerator Handle Decor Backorder LGE 3806JJ1020D $133.22

244P

HANDLE,F LGE 3650JJ2012C Contact Us For Availability

248F

SUPPORTER,HOLDER LGE 4980JJ2005B Contact Us For Availability

249E

GUIDE,RAIL LGE 4974JJ1010A Contact Us For Availability

249G

GUIDE,RAIL LGE 4974JJ1011A Contact Us For Availability

281B

HINGE ASSEMBLY,U LGE 4775JJ2003B Contact Us For Availability

281E

5006JJ3014B LG Hinge Cap Backorder LGE 5006JJ3014B $5.75

282X

5006JJ3010E LG Refrigerator Handle Cap Backorder LGE 5006JJ3010E $6.62

283D

4775JJ2007C LG Lower Hinge Assembly Backorder LGE 4775JJ2007C $109.92

283F

4620JJ2007A LG Door Stopper Backorder LGE 4620JJ2007A $10.52

286A

4984JJ3003A LG Refrigerator Door Hinge Bushin In Stock LGE 4984JJ3003A $6.62

301A

5421JJ1001A LG Evaporator Assembly Backorder LGE 5421JJ1001A $336.07

305B

4580JJ3001A LG Refrigerator Tray Roller Backorder LGE 4580JJ3001A $19.31

305C

1PZZJA3013B LG Common Pin In Stock LGE 1PZZJA3013B $6.62

305C

4J04238A LG Common Pin Backorder LGE 4J04238A $6.62

309A

6750C-0004S LG Refrigerator Compressor Overlo Backorder LGE 6750C-0004S $24.91

309A

6750CR0004S LG Overload Protector Backorder LGE 6750CR0004S $101.16

310A

3550JA2042C LG Refrigerator PTC Cover Backorder LGE 3550JA2042C $10.52

314A

4620JA3015A LG Refrigerator Compressor Stoppe Backorder LGE 4620JA3015A $6.62

317A

ADH73150210 LG Dryer Assembly In Stock LGE ADH73150210 $72.46

319A

3390JJ0003A LG Refrigerator Drip Tray Backorder LGE 3390JJ0003A $86.64

319C

4974JJ1009A LG Fan Guide Backorder LGE 4974JJ1009A $39.18

327A

5006JA3049A LG Drain Tube Cap Backorder LGE 5006JA3049A $6.62

329A

5901JJ1005A LG Fan Assembly Backorder LGE 5901JJ1005A $19.31

329C

5901JJ1004B LG Refrigerator Compressor Conden Backorder LGE 5901JJ1004B $19.31

332A

3531JJ1004T LG Fan Grille Assembly Backorder LGE 3531JJ1004T $133.22

401A

6615JB2005C LG Refrigerator Defrost Control A Backorder LGE 6615JB2005C $39.18

404A

MOTOR(MECH),FAN LGE 4680JK1002B Contact Us For Availability

405B

4810JA3007A LG Motor Bracket Backorder LGE 4810JA3007A $6.62

405C

J756-00008B LG Refrigerator Damper Motor Supp Backorder LGE J756-00008B $6.62

409B

Lamp,Incandescent LGE 6912JK2002E Contact Us For Availability

409B

LAMP,[INCANDESCENT] REVEAL LGE 6912JK2002C Contact Us For Availability

409D

3034JJ1002B LG Refrigerator Reflector Backorder LGE 3034JJ1002B $60.67

410A

HARNESS LGE 6621JK2003B Contact Us For Availability

410A

Socket,Lamp LGE EAG62831801 Contact Us For Availability

419B

Pipe,Joint LGE 5200JJ3003E Contact Us For Availability

420A

4680JK1001B LG AC Motor Backorder LGE 4680JK1001B $114.35

501A

6871JB1215J LG Refrigerator Main Printed Wiri Backorder LGE 6871JB1215J $224.72

501F

Cover Assembly,PCB LGE 3551JJ1020D Contact Us For Availability

503C

PWB(PCB) ASSEMBLY,DISPLAY LGE 6871JB2047A Contact Us For Availability

503E

3550JJ2031A LG Display Cover Backorder LGE 3550JJ2031A $24.91

503F

Case Assembly,Display LGE ABQ33905312 Contact Us For Availability

503G

3806JL1049A LG Refrigerator Decorative Contro Backorder LGE 3806JL1049A $39.18

610A

COVER,SENSOR LGE 3550JJ2020A Contact Us For Availability

611C

COVER,FILTER LGE 3550JL1008B Contact Us For Availability

619B

3550JJ2024A LG Valve Cover Backorder LGE 3550JJ2024A $69.11

623H

COVER,TUBE LGE 3550JJ2036A Contact Us For Availability

903D

6500JB2001B LG Refrigerator Humidity Sensor T In Stock LGE 6500JB2001B $24.91

903E

6500JB2002T LG Refrigerator Freezer Temperatu Backorder LGE 6500JB2002T $17.20

B01

1STZJA3004C LG Refrigerator Customized Screw Backorder LGE 1STZJA3004C $6.62

GRS1

AEY73231701 LG Kit Assembly Backorder LGE AEY73231701 $114.35

S01

1SZZJJ3010A LG Customized Screw Backorder LGE 1SZZJJ3010A $2.03

S02

SCREW,DRAWING LGE 1SZZJJ3010E Contact Us For Availability

S03

BOLT,DRAWING LGE 1BHZJA3003D Contact Us For Availability

S22

J471-00001J LG Customized Screw Backorder LGE J471-00001J $6.62

S24

1SZZJA3011B LG Refrigerator Customized Drawin In Stock LGE 1SZZJA3011B $6.62

S27

4J01424C LG Screw Customized Backorder LGE 4J01424C $6.62

S38

4J00415D LG Refrigerator Customized Screw Backorder LGE 4J00415D $6.62

S38

4J01425A LG Screw Customized Backorder LGE 4J01425A $6.62
