Model LG LP2065 AC – Common Parts & Diagrams

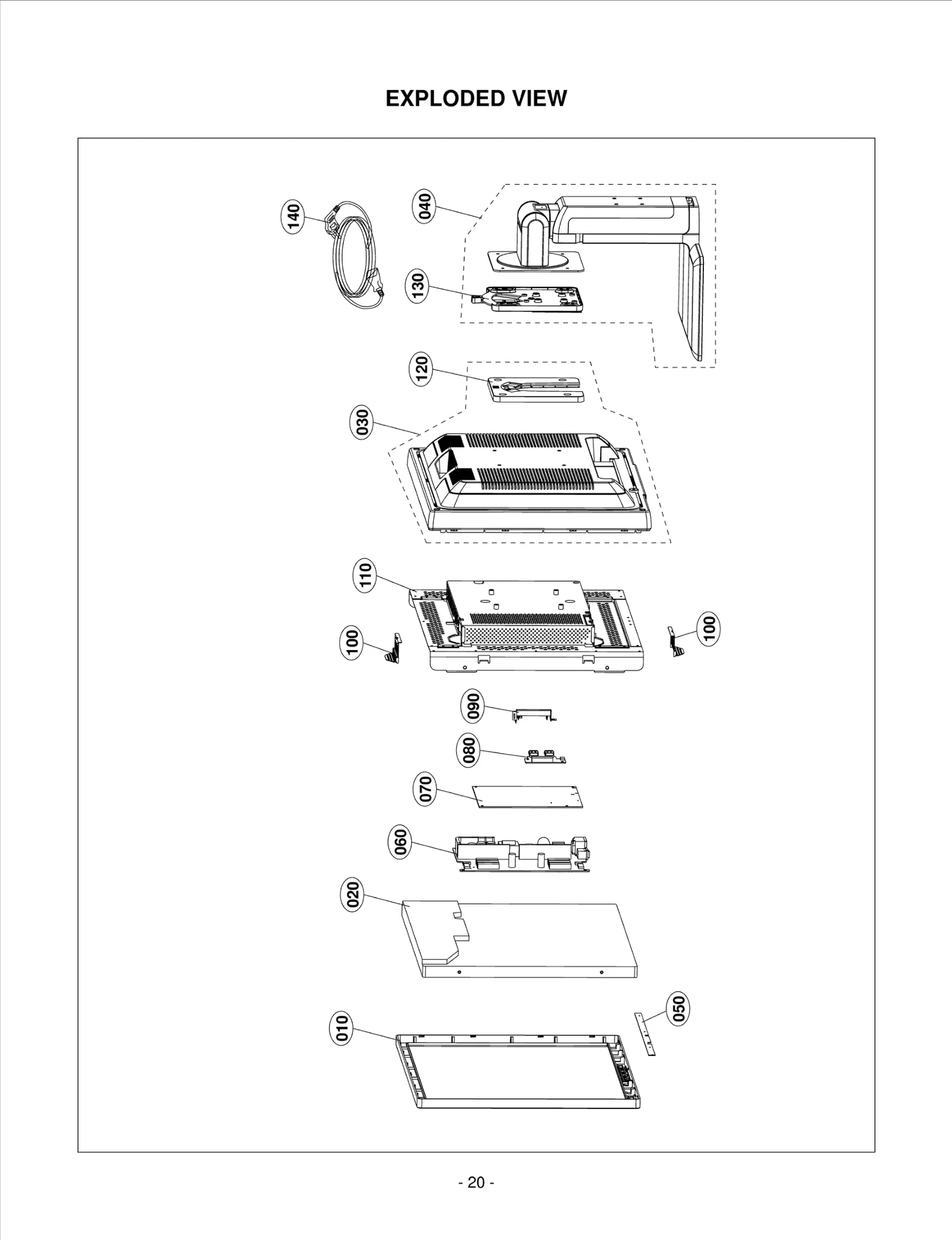

Diagram 0
Diagram 1
Common parts from model LG LP2065 AC
0
CONNECTOR ASSEMBLY LGE 6631T20034M Contact Us For Availability
0
Card LGE 38409R0018H Contact Us For Availability
0
PACKING LGE 3920900043A Contact Us For Availability
0
Card LGE 38409R0013C Contact Us For Availability
0
CABLE,DVI LGE 68509J0001A Contact Us For Availability
0
Screw,Taptite LGE FAB30005104 Contact Us For Availability
0
Screw,Taptite LGE FAB30007511 Contact Us For Availability
0
Screw Assembly LGE FAB30021802 Contact Us For Availability
0
BAG LGE 3880TKZ033C Contact Us For Availability
0
BOX LGE 3890900118A Contact Us For Availability
0
CONNECTOR ASSEMBLY LGE 6631900055A Contact Us For Availability
0
Screw,Taptite LGE FAB30012105 Contact Us For Availability
0
Packing LGE 3918TKK038F Contact Us For Availability
0
CABLE,DVI LGE 6866TDV004U Contact Us For Availability
0
Screw,Taptite LGE FAB30013603 Contact Us For Availability
0
Screw,Taptite LGE FAB30015301 Contact Us For Availability
0
Card LGE 38409R0014C Contact Us For Availability
0
Harness,Single LGE 6631T20034E Contact Us For Availability
0
BAG LGE 3880TKZ033D Contact Us For Availability
0
CONNECTOR ASSEMBLY LGE 6631900053B Contact Us For Availability
0
S/W Package LGE SAB30688001 Contact Us For Availability
0
Screw,Taptite LGE FAB30005102 Contact Us For Availability
020
LCD,Module-TFT LGE 6304FLP325B Contact Us For Availability
030
BACK COVER ASSEMBLY LGE 3809900115A Contact Us For Availability
040
Base Assembly LGE 3043900007D Contact Us For Availability
070
MAIN TOTAL ASSEMBLY LGE 33139L2008A Contact Us For Availability
080
PWB(PCB) ASSEMBLY,SU LGE 68719ST864A Contact Us For Availability
090
SHIELD LGE 48149K0019A Contact Us For Availability
100
LGE 4814TKK264A LGE 4814TKK264A Contact Us For Availability
120
Plate LGE 49509K0278A Contact Us For Availability
130
COVER ASSEMBLY LGE 35519K0008A Contact Us For Availability
C203
CAPACITOR,FIXED ELEC LGE JCE475EK638 Contact Us For Availability
C207
CAPACITOR,FIXED ELEC LGE JCE477EF638 Contact Us For Availability
C210
CAPACITOR,FIXED ELEC LGE JCE107EH638 Contact Us For Availability
C220
CAPACITOR,FIXED ELEC LGE JCE107EF638 Contact Us For Availability
C252
CAPACITOR,FIXED ELEC LGE JCE227BF638 Contact Us For Availability
C318
CAPACITOR,FIXED CERA LGE 0CC680CK41A Contact Us For Availability
C336
CAPACITOR,FIXED CERA LGE 0CK103CK51A Contact Us For Availability
C350
CAPACITOR,FIXED CERA LGE 0CK224CF56A Contact Us For Availability
C355
CAPACITOR,FIXED CERA LGE 0CK474CH94A Contact Us For Availability
C414
CAPACITOR,FIXED CERA LGE 0CC270CK41A Contact Us For Availability
C458
CAPACITOR,FIXED CERA LGE 0CK102CK56A Contact Us For Availability
C495
CAPACITOR,FIXED CERA LGE 0CK473CK56A Contact Us For Availability
C612
CAPACITOR,FIXED CERA LGE 0CC360CK41A Contact Us For Availability
C620
CAPACITOR,FIXED ELEC LGE JCE106EK638 Contact Us For Availability
C621
CAPACITOR,FIXED CERA LGE 0CK475CC94A Contact Us For Availability
C624
CAPACITOR,FIXED CERA LGE 0CK104CK56A Contact Us For Availability
C638
CAPACITOR,FIXED CERA LGE 0CK105CD56A Contact Us For Availability
C801
CAPACITOR,FIXED ELECTROLYTIC LGE 0CE107WF6DC Contact Us For Availability
D334
DIODE,SWITCHING LGE 0DSON00138A Contact Us For Availability
D349
DIODE,SWITCHING LGE 0DS226009AA Contact Us For Availability
F201
IC,PERIPHERALS LGE 0IPRP00682A Contact Us For Availability
J303
Connector,Wafer LGE 6602T20008P Contact Us For Availability
J308
CONNECTOR (CIRC),WAF LGE 6630VF00530 Contact Us For Availability
J310
CONNECTOR (CIRC),D-S LGE 6630TGA005A Contact Us For Availability
J602
Connector,USB LGE 6630SK00704 Contact Us For Availability
J603
Connector,USB LGE 6630SK00804 Contact Us For Availability
J801
Connector,Wafer LGE 6602T20009P Contact Us For Availability
L601
FILTER(CIRC),EMC LGE 6210TCE001S Contact Us For Availability
L605
FILTER(CIRC),EMC LGE 6210TCE001Z Contact Us For Availability
LED701
LED,Chip LGE 0DLLT0208AA Contact Us For Availability
Q301
TRANSISTOR LGE 0TR390609FA Contact Us For Availability
Q305
TRANSISTOR LGE 0TR390409AE Contact Us For Availability
Q324
TR,Bipolar LGE 0TR162309CA Contact Us For Availability
Q503
IC,KEC LGE 0IKE704200H Contact Us For Availability
R201
RESISTOR CHIP 4.7K 1/10W 5 D. LGE 0RH4701D622 Contact Us For Availability
R206
RESISTOR,FIXED SMALL LGE 0RX0221K668 Contact Us For Availability
R227
RESISTOR,FIXED SMALL LGE 0RX0331K668 Contact Us For Availability
R309
RESISTOR,METAL GLAZE LGE 0RJ0472D677 Contact Us For Availability
R330
RESISTOR,METAL GLAZE LGE 0RJ0682D677 Contact Us For Availability
R377
RESISTOR,METAL GLAZE LGE 0RJ1001D677 Contact Us For Availability
R398
RESISTOR,METAL GLAZE LGE 0RJ0752D677 Contact Us For Availability
R401
RESISTOR,METAL GLAZE LGE 0RJ3900D677 Contact Us For Availability
R451
RESISTOR,METAL GLAZE LGE 0RJ1002D477 Contact Us For Availability
R465
RESISTOR,METAL GLAZE LGE 0RJ0562D677 Contact Us For Availability
R473
RESISTOR,METAL GLAZE LGE 0RJ0102D677 Contact Us For Availability
R578
Resistor,Chip LGE 0RJ2201D677 Contact Us For Availability
R602
RESISTOR,METAL GLAZE LGE 0RJ2202D677 Contact Us For Availability
R607
RESISTOR,METAL GLAZE LGE 0RJ2200D677 Contact Us For Availability
R618
RESISTOR,METAL GLAZE LGE 0RJ1002D677 Contact Us For Availability
R628
RESISTOR,METAL GLAZE LGE 0RJ1502D677 Contact Us For Availability
R633
RESISTOR,METAL GLAZE LGE 0RJ1003D677 Contact Us For Availability
R701
RESISTOR,METAL GLAZE LGE 0RJ4701D677 Contact Us For Availability
R3011
RESISTOR,METAL GLAZE LGE 0RJ1501D677 Contact Us For Availability
R3016
Resistor,Chip LGE 0RJ2000D677 Contact Us For Availability
R3020
RESISTOR,METAL GLAZE LGE 0RJ0222D677 Contact Us For Availability
RA404
RESISTOR,METAL GLAZE LGE 0RJ0222C687 Contact Us For Availability
SW705
SWITCH,TACT LGE 6600R00004C Contact Us For Availability
U201
TRANSISTOR,FETS LGE 0TFFC80054A Contact Us For Availability
U205
IC,POWER MANAGEMENT LGE 0IPMGFA003E Contact Us For Availability
U206
IC,POWER MANAGEMENT LGE 0IPMGSG016A Contact Us For Availability
U207
IC,ROHM LGE 0IRH033200A Contact Us For Availability
U208
IC,POWER MANAGEMENT LGE 0IPMG00028A Contact Us For Availability
U331
IC,MEMORIES LGE 0IMMR00014A Contact Us For Availability
U334
IC,STANDARD LOGIC LGE 0ISTL00031A Contact Us For Availability
U335
IC,PERIPHERALS LGE 0IPRP00651A Contact Us For Availability
U401
IC,PERIPHERALS LGE 0IPRP00575B Contact Us For Availability
U402
IC,DDR SDRAM LGE 0IMMR00258A Contact Us For Availability
U501
IC,DRAWING LGE 0IZZ9H0082A Contact Us For Availability
U502
IC,MEMORIES LGE 0IMMRSG036B Contact Us For Availability
U601
TRANSISTOR,FETS LGE 0TFVI80067A Contact Us For Availability
U605
IC,PERIPHERALS LGE 0IPRP00016A Contact Us For Availability
U606
IC,POWER MANAGEMENT LGE 0IPMGFA003G Contact Us For Availability
X401
RESONATOR,CRYSTAL LGE 6212AA2004F Contact Us For Availability
X501
Crystal LGE 6212AA2005C Contact Us For Availability
X601
LGE 6212AA2004C LGE 6212AA2004C Contact Us For Availability
× ![]()
